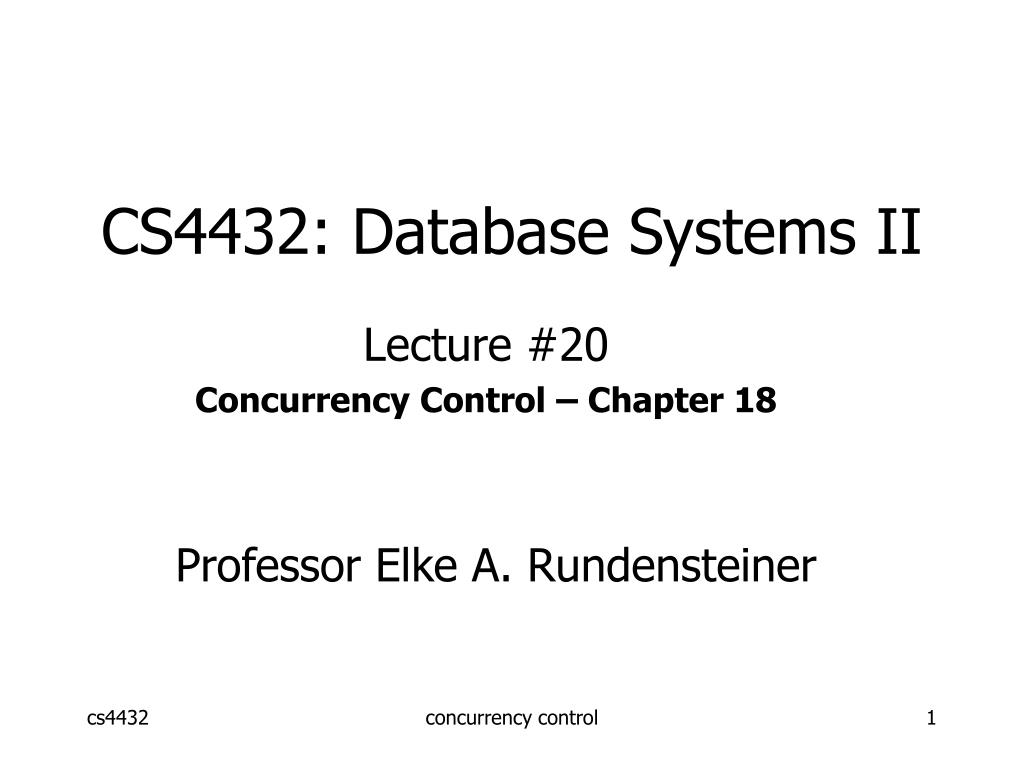

  1. CS4432: Database Systems II Lecture #20 Concurrency Control – Chapter 18 Professor Elke A. Rundensteiner concurrency control

  2. Chapter 9 Concurrency Control T1 T2 … Tn DB (consistency constraints) concurrency control

  3. Example: T1: Read(A) T2: Read(A) A  A+100 A  A2 Write(A) Write(A) Read(B) Read(B) B  B+100 B  B2 Write(B) Write(B) Constraint: A=B concurrency control

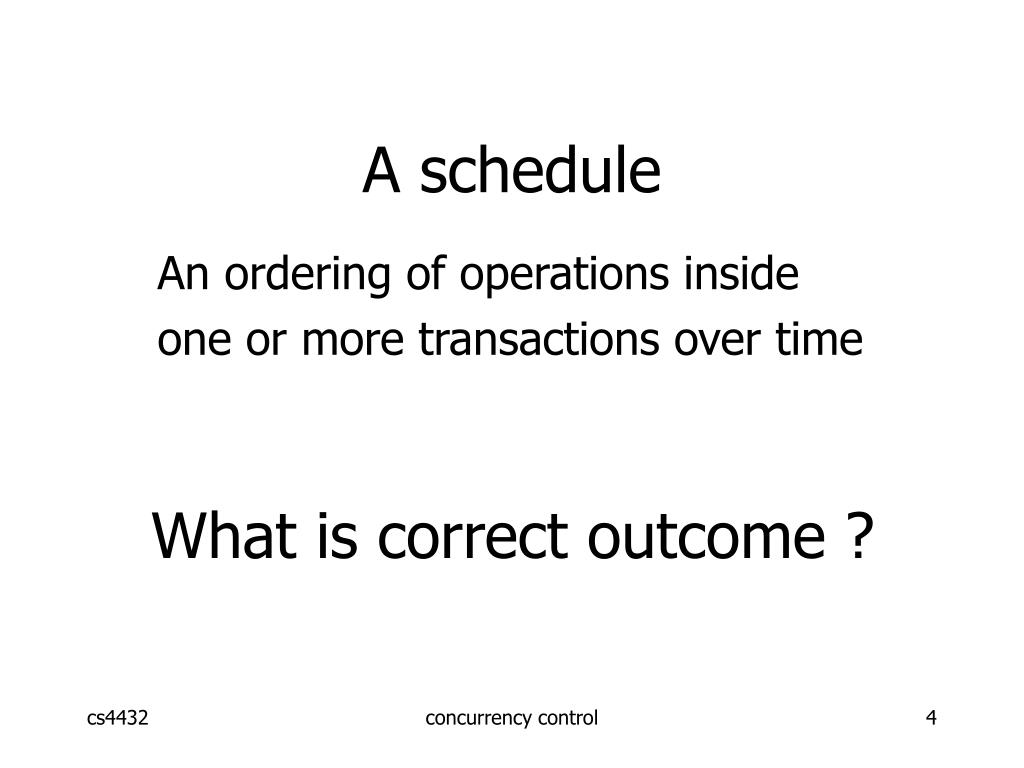

  4. A schedule An ordering of operations inside one or more transactions over time What is correct outcome ? concurrency control

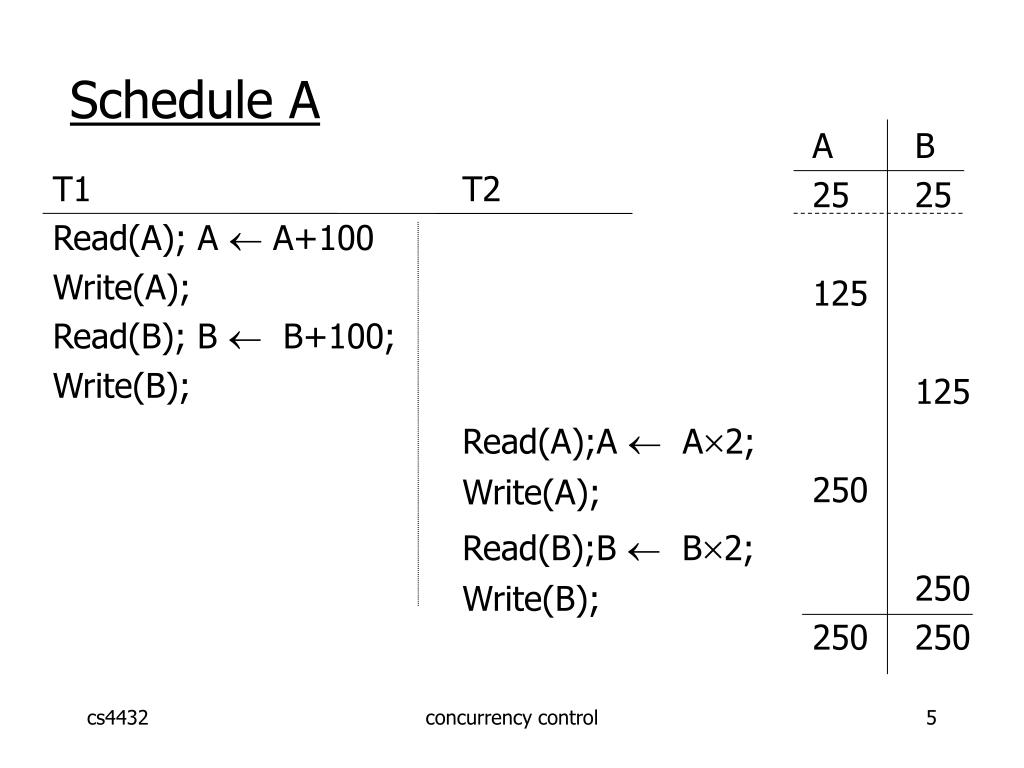

  5. A B 25 25 125 125 250 250 250 250 Schedule A T1 T2 Read(A); A  A+100 Write(A); Read(B); B  B+100; Write(B); Read(A);A  A2; Write(A); Read(B);B  B2; Write(B); concurrency control

  6. A B 25 25 50 50 150 150 150 150 Schedule B T1 T2 Read(A);A  A2; Write(A); Read(B);B  B2; Write(B); Read(A); A  A+100 Write(A); Read(B); B  B+100; Write(B); concurrency control

  7. Serial Schedules ! • Any serial schedule is “good”. concurrency control

  8. Yet Interleave Transactionsina Schedule? concurrency control

  9. A B 25 25 125 250 125 250 250 250 Schedule C T1 T2 Read(A); A  A+100 Write(A); Read(A);A  A2; Write(A); Read(B); B  B+100; Write(B); Read(B);B  B2; Write(B); concurrency control

  10. A B 25 25 125 250 50 150 250 150 Schedule D T1 T2 Read(A); A  A+100 Write(A); Read(A);A  A2; Write(A); Read(B);B  B2; Write(B); Read(B); B  B+100; Write(B); concurrency control

  11. A B 25 25 125 125 25 125 125 125 Same as Schedule D but with new T2’ Schedule E T1 T2’ Read(A); A  A+100 Write(A); Read(A);A  A1; Write(A); Read(B);B  B1; Write(B); Read(B); B  B+100; Write(B); concurrency control

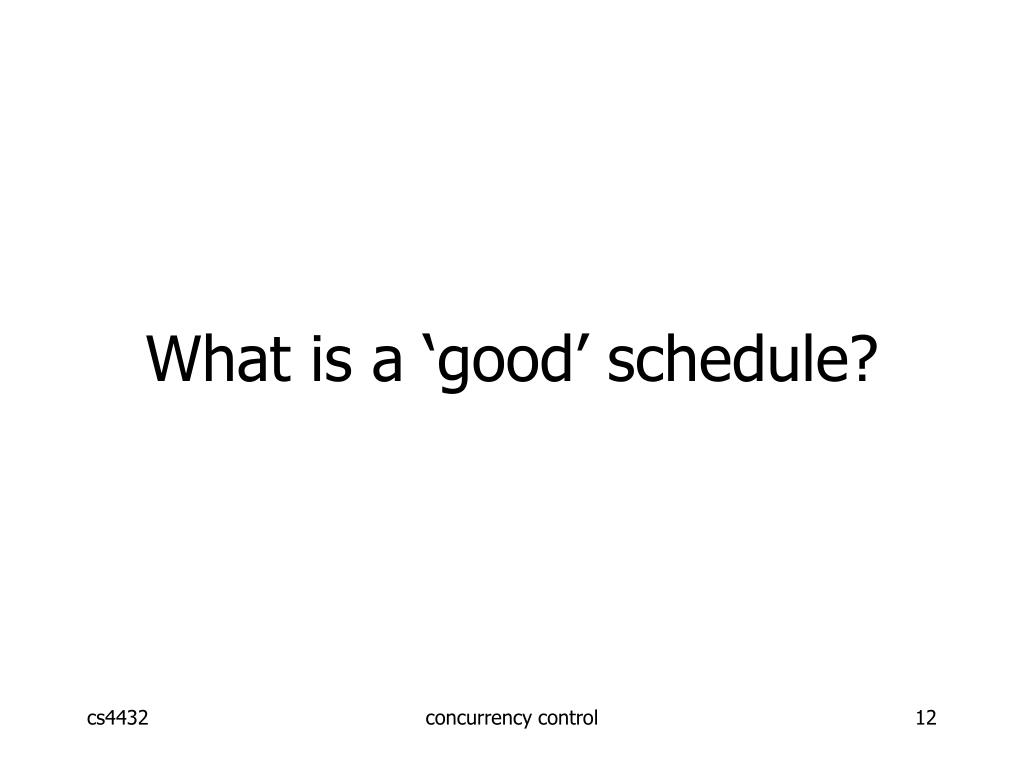

  12. What is a ‘good’ schedule? concurrency control

  13. We want schedules that are “good” regardless of : • initial state and • transaction semantics • Hence we consider only : • order of read/writes Example: Sc=r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) concurrency control

  14. Remember Schedule C T1 T2 Read(A); A  A+100 Write(A); Read(A);A  A2; Write(A); Read(B); B  B+100; Write(B); Read(B);B  B2; Write(B); concurrency control

  15. Example: Sc=r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) Sc’=r1(A)w1(A) r1(B)w1(B)r2(A)w2(A)r2(B)w2(B) T1 T2 concurrency control

  16. Now Let’s Try that for Schedule D !!! T1 T2 Read(A); A  A+100 Write(A); Read(A);A  A2; Write(A); Read(B);B  B2; Write(B); Read(B); B  B+100; Write(B); concurrency control

  17. Now for Sd: Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B) Sd=r1(A)w1(A) r1(B)w1(B)r2(A)w2(A)r2(B)w2(B) concurrency control

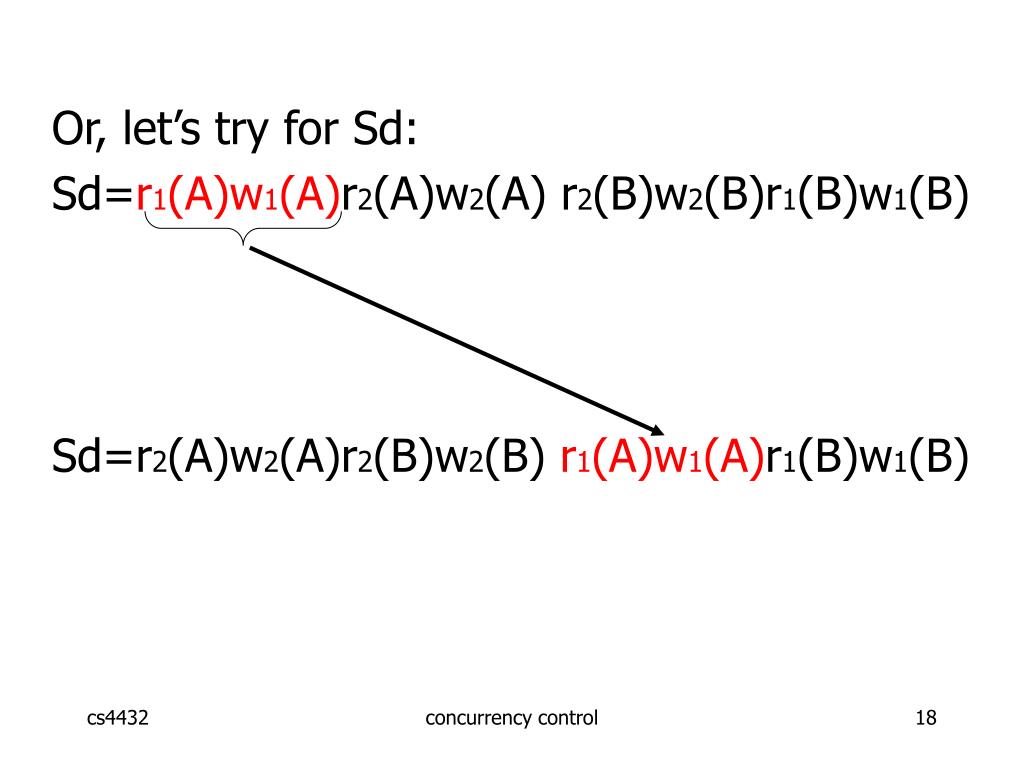

  18. Or, let’s try for Sd: Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B) Sd=r2(A)w2(A)r2(B)w2(B) r1(A)w1(A)r1(B)w1(B) concurrency control

  19. In short, Schedule D cannot be “fixed” : Sd=r1(A)w1(A)r2(A)w2(A) r2(B)w2(B)r1(B)w1(B) Observation : there seems to be no save way to transform this schedule Sd into an equivalent serial schedule !?! concurrency control

  20. We note about schedule D: • T2 T1 • T1 T2 T1 T2 Sd cannot be rearranged into a serial schedule Sd is not “equivalent” to any serial schedule Sd is “bad” concurrency control

  21. Returning to Sc Sc=r1(A)w1(A)r2(A)w2(A)r1(B)w1(B)r2(B)w2(B) T1 T2 T1 T2  no cycles  Sc is “equivalent” to a serial schedule, I.e., in this case (T1,T2). concurrency control

  22. Idea: Swap non-conflicting operation pairs to see if you can go to a serial schedule. concurrency control
