  1. Laser application in Otolaryngology Babak Saedi Otolaryngologist Imam Khomeini hospital

  2. Background • Maiman built the first laser in 1960. • With synthetic ruby crystals, this laser produced electromagnetic radiation at a wavelength of 0.69 µm in the visible range of the spectrum. • Although the laser energy produced by Maiman's ruby laser lasted less than 1 ms, it paved the way for explosive development and widespread application of this technology

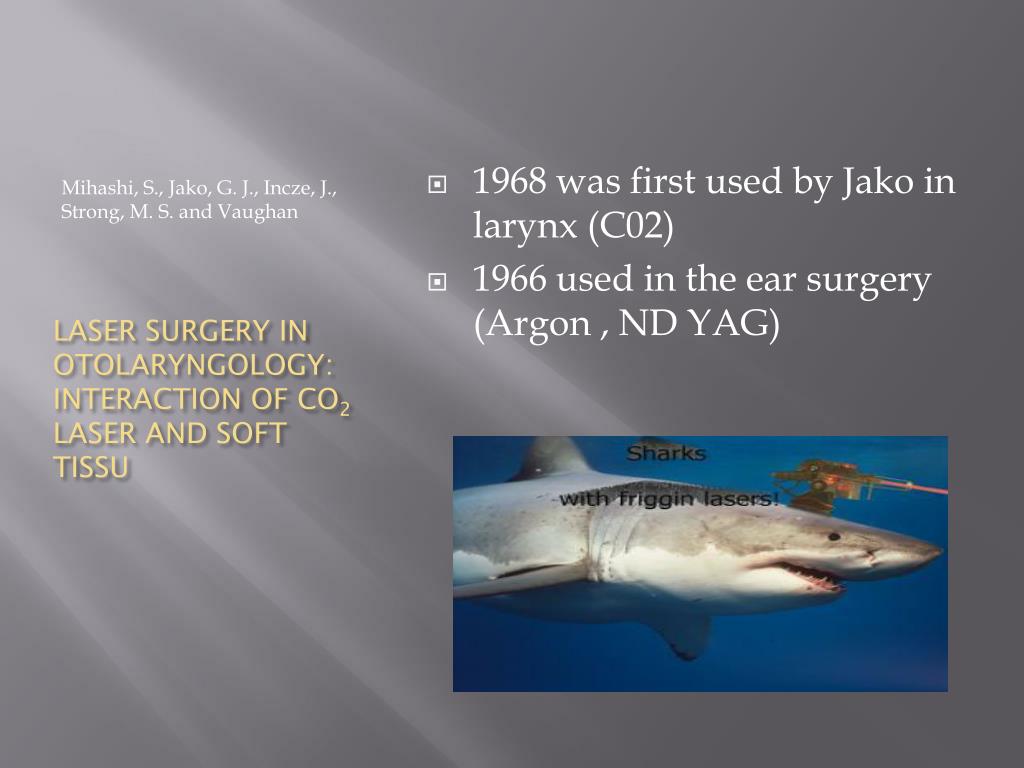

  3. LASER SURGERY IN OTOLARYNGOLOGY: INTERACTION OF CO2 LASER AND SOFT TISSU • 1968 was first used by Jako in larynx (C02) • 1966 used in the ear surgery (Argon , ND YAG) Mihashi, S., Jako, G. J., Incze, J., Strong, M. S. and Vaughan

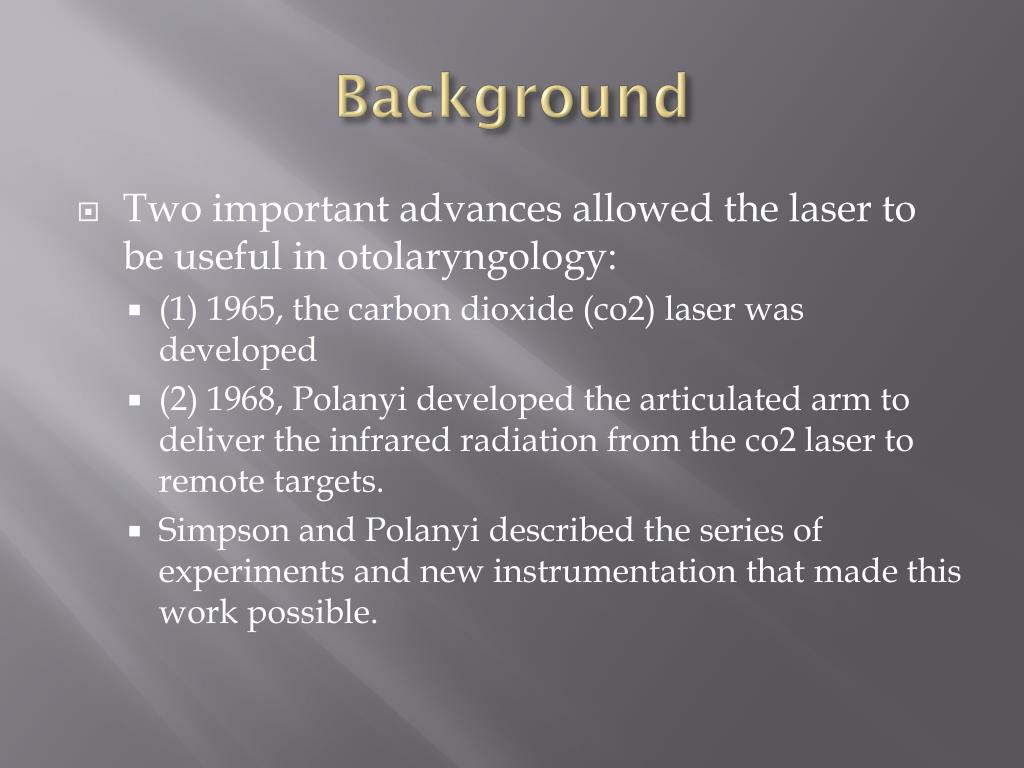

  4. Background • Two important advances allowed the laser to be useful in otolaryngology: • (1) 1965, the carbon dioxide (co2) laser was developed • (2) 1968, Polanyi developed the articulated arm to deliver the infrared radiation from the co2 laser to remote targets. • Simpson and Polanyi described the series of experiments and new instrumentation that made this work possible.

  5. Background • Two important advances allowed the laser to be useful in otolaryngology: • (1) 1965, the carbon dioxide (co2) laser was developed • (2) 1968, Polanyi developed the articulated arm to deliver the infrared radiation from the co2 laser to remote targets. • Simpson and Polanyi described the series of experiments and new instrumentation that made this work possible.

  6. Background • Strong and Jako in 1972 introduced CO2 laser excision for the treatment of laryngeal disease. • The advantages they noted were precise control, minimal bleeding, and the absence of post-operative edema. • Steiner further developed the technique of TLM with a study in Gottenberg, Germany

  7. ND YAG

  8. obstructing neoplasms of the tracheobronchial tree

  9. The Argon Laser

  10. Argon laser stapedotomy

  11. KTP Laser • 532 nm wavelength (potassium-titanyl-phosphate) • Frequency doubling • Nd: YAG laser passes through a KTP crystal – emission is ½ its wavelength • Oxyhemoglobin is primary chromophore • Fiberoptic carrier • Continuous wave (CW) mode to cut tissue • Pulsed mode for vascular lesions • Q-Switched mode for red/orange tattoo pigment • Applications • Granuloma excision of the respiratory tract • Subglottic/tracheal stenosis • Subglottic/supraglottic cyst excision • Inferior turbinate reduction • Nasal papilloma excision • Nasopharyngeal stenosis • Supraglottoplasty • Laryngeal papilloma excision • Middle ear surgery (Cholesteatoma excision, stapes surgery) • Delivery • CW/pulsed mode: insulated fiber, fiber handpiece, scanner, or microscope • Q-Switched mode: articulating arm

  12. CO2 laser

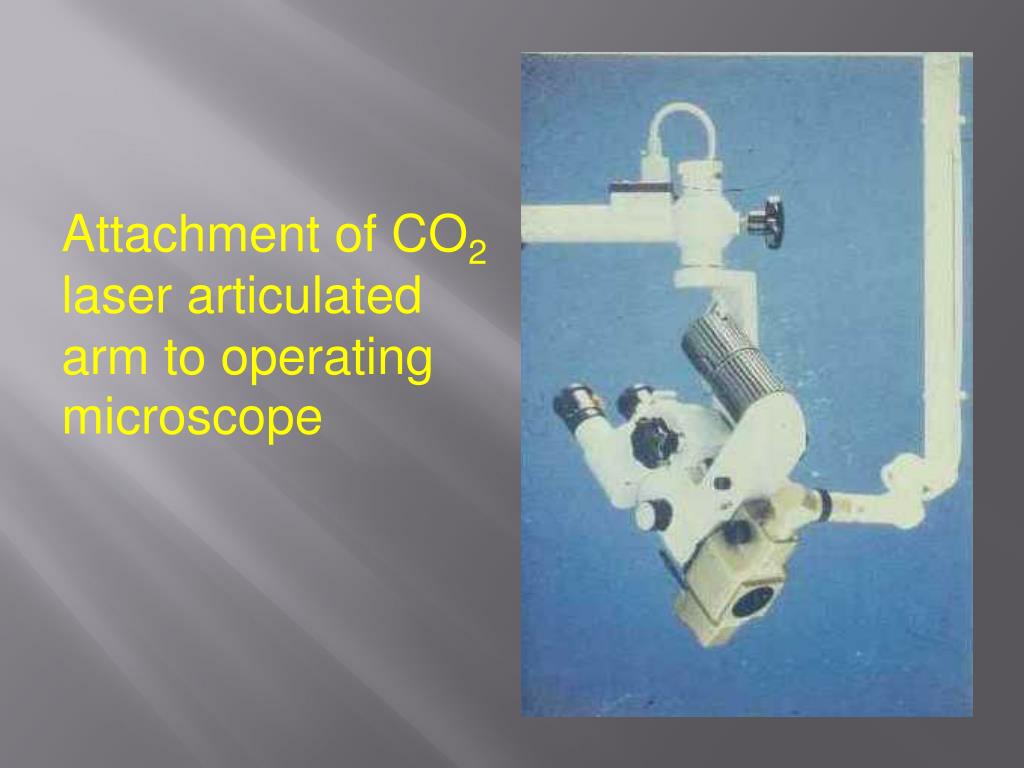

  13. Attachment of CO2 laser articulated arm to operating microscope

  14. The CO2 Laser • CO2 lasers produce light with a wavelength of 10,600 nm in the infrared (invisible) range of the electromagnetic spectrum. • A second, built-in, coaxial helium-neon laser is usually necessary • This laser acts as an aiming beam for the invisible CO2 laser beam. • The laser energy is aimed with a microscope-mounted micromanipulator.

  15. The CO2 Laser • The radiant energy produced by the CO2 laser is strongly absorbed by pure, water and by all biologic tissues high in water content. • Reflection and scattering are negligible.

  16. Gallo, et al. Laryngoscope. Volume 112(2), February 2002, pp 370-374 (B) • Table 2. Indication by Stage for Laser Resection

  17. Laryngeal tumor

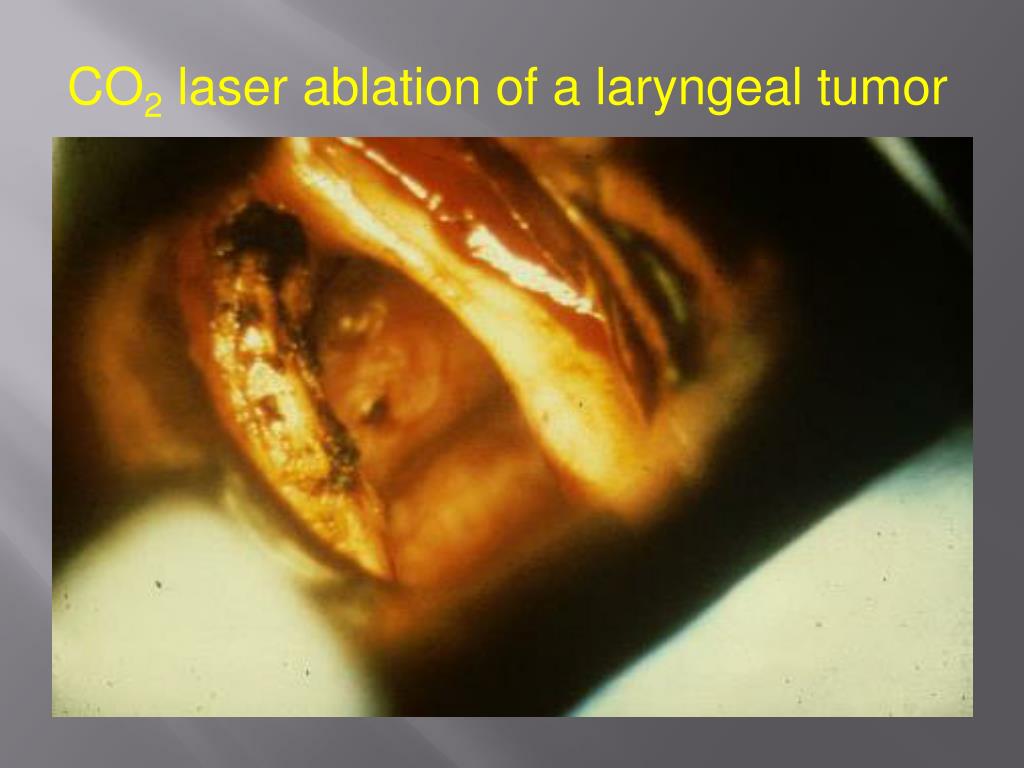

  18. CO2 laser ablation of a laryngeal tumor

  19. Gallo, et al. Laryngoscope. Volume 112(2), February 2002, pp 370-374 (B) • Cordectomies performed using a CO2 laser mounted on a Zeiss surgical microscope. • Performed under general anesthesia. • En-bloc excised tissue was completely detached • the specimen was whole-mounted on a slide and oriented to mark the anterior and the medial margins. • An accompanying legend was drawn adjacent to the lesion • If the histologic examination revealed a positive margin, on frozen sections, the resection was extended until healthy margins were obtained.

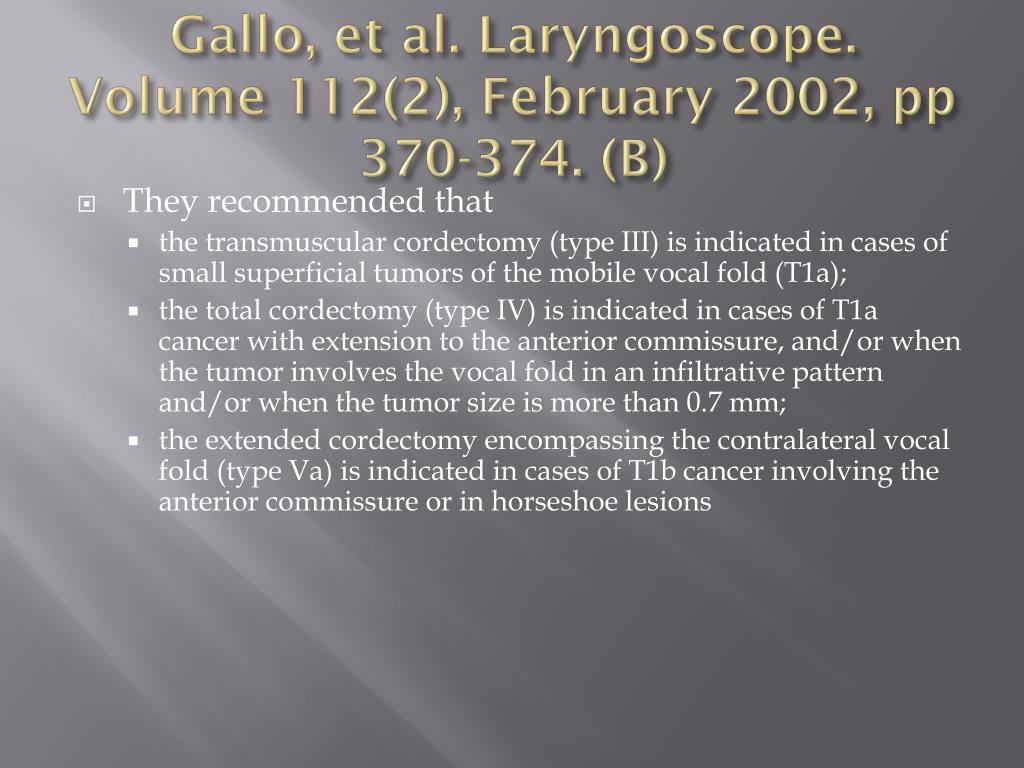

  20. Gallo, et al. Laryngoscope. Volume 112(2), February 2002, pp 370-374. (B) • They recommended that • the transmuscular cordectomy (type III) is indicated in cases of small superficial tumors of the mobile vocal fold (T1a); • the total cordectomy (type IV) is indicated in cases of T1a cancer with extension to the anterior commissure, and/or when the tumor involves the vocal fold in an infiltrative pattern and/or when the tumor size is more than 0.7 mm; • the extended cordectomy encompassing the contralateral vocal fold (type Va) is indicated in cases of T1b cancer involving the anterior commissure or in horseshoe lesions

  21. Moreau: Laryngoscope, Volume 110(6).June 2000.1000-1006 (B) • Retrospective study of 160 patients treated from 1988 to 1996 • determine if laser endoscopic microsurgery is a reliable and appropriate approach in the treatment of laryngeal cancers. • Glottic tumors were treated with either type I, type II, or type III cordectomy • For supraglottic cancers, excision limited to • a part of the vestibule, • a trans-preepiglottic resection, or • a radical supraglottic resection

  22. Subglottic Hemangioma • Sie et al. with 10 year experience with CO2 laser in SGH • Serial procedures and 20% rate of post-treatment subglottic stenosis • Madgy et al. reviewed six cases of SGH managed with the KTP laser • Steroids after surgery • End point was to achieve 60 to 70% airway patency • 3 with mild post-procedural SGS • Barlow et al. - spastic diplegia in 20% of 26 children less than 2 years of age treated with IFN • Life threatening • Hemangiomas respond to steroids in 30 to 60% of cases – IFN administered in non-responders

  23. Complications • Granuloma formation at the anterior commissure was a common occurrence in the study by Moreau. • These granulomas tended to last for several months before spontaneous resolution. • Other complications, which were few, included: • laryngeal hemorrhage, • pneumothorax, • aspiration pneumonia, • subcutaneous air, and p • relaryngeal abscess. • Anterior webs can result from anterior commissure resection; these were treated with repeat endoscopic procedures.

  24. Conclusions • Microendoscopic laser surgery • provides an excellent alternative to radiotherapy in the treatment of early-stage glottic cancer. • Advantages of laser resection include • minimal bleeding, precise control of resection, and the absence of postoperative edema. • Cure rates of patients with early-stage glottic carcinoma treated with CO2 laser are equal to those achieved with radiation therapy. • Nevertheless, the role and the indications of this technique in the treatment of early-stage glottic cancer has not been defined accurately and remains controversial.

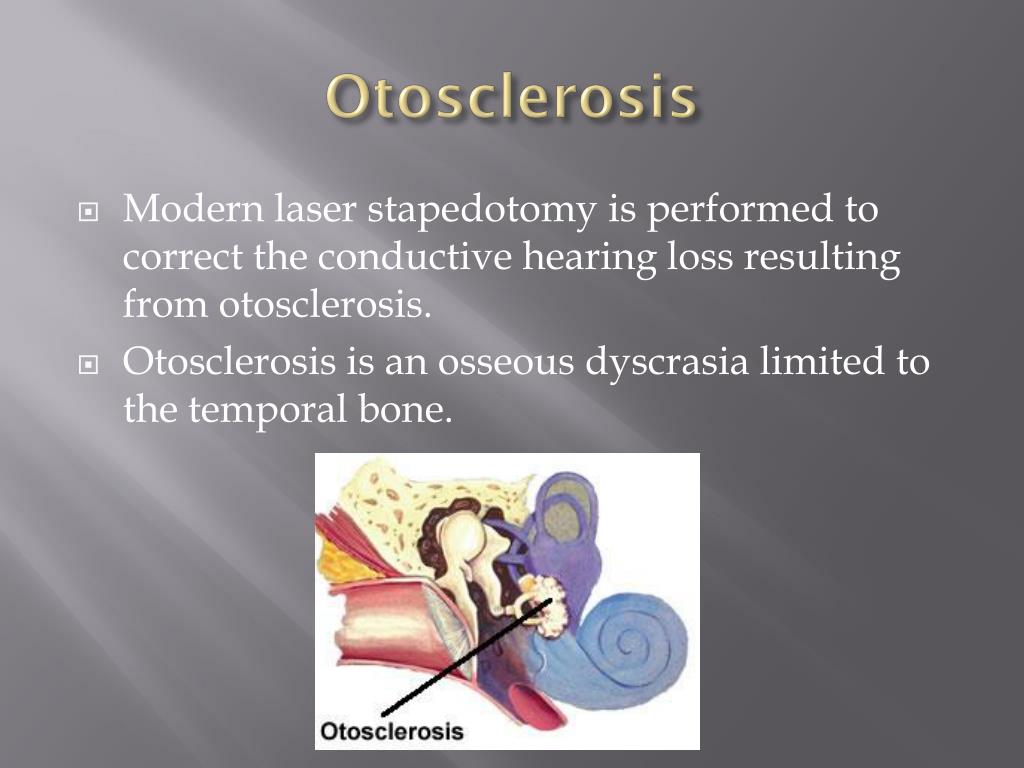

  25. Otosclerosis • Modern laser stapedotomy is performed to correct the conductive hearing loss resulting from otosclerosis. • Otosclerosis is an osseous dyscrasia limited to the temporal bone.

  26. Otosclerosis • Approximately 10% of the caucasian population is affected. • Otosclerosis is inherited in an autosomal dominant pattern with incomplete penetrance. • Women are 2 times more likely to develop the disease than men.

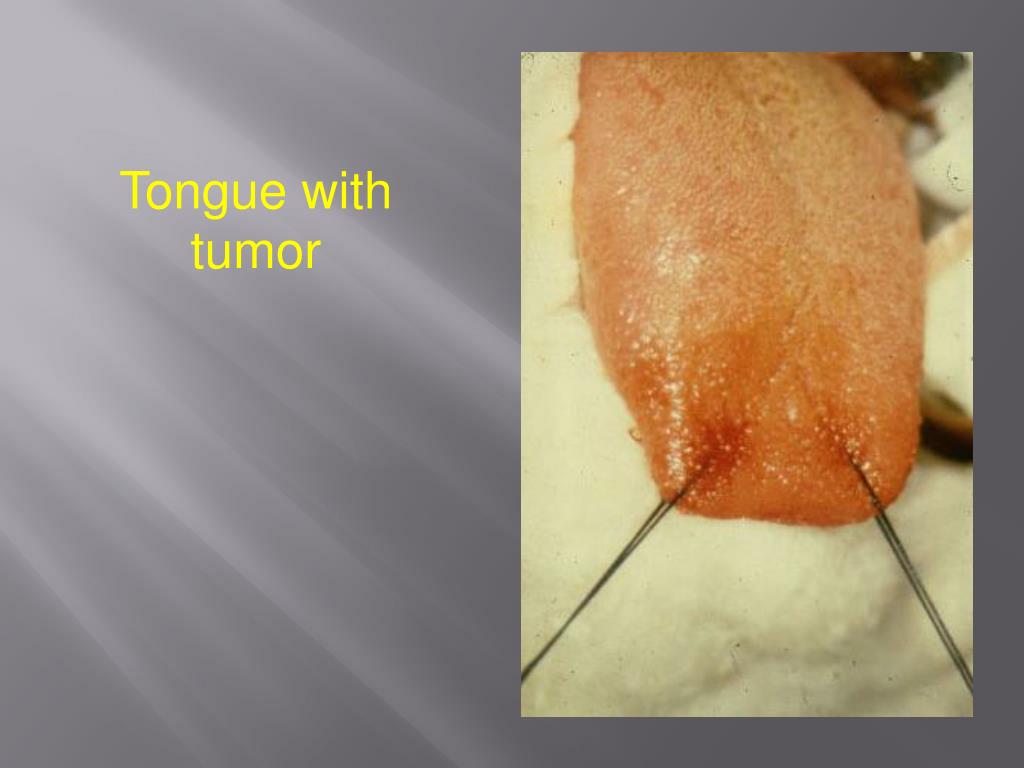

  27. Tongue with tumor

  28. Tongue following laser excision of tumor

  29. Laser in Rhinology • Nasal plastic surgery!!!!!!!!! • Synechia

  30. Laser tonsillectomy!!!!!!! • Sleep apnea

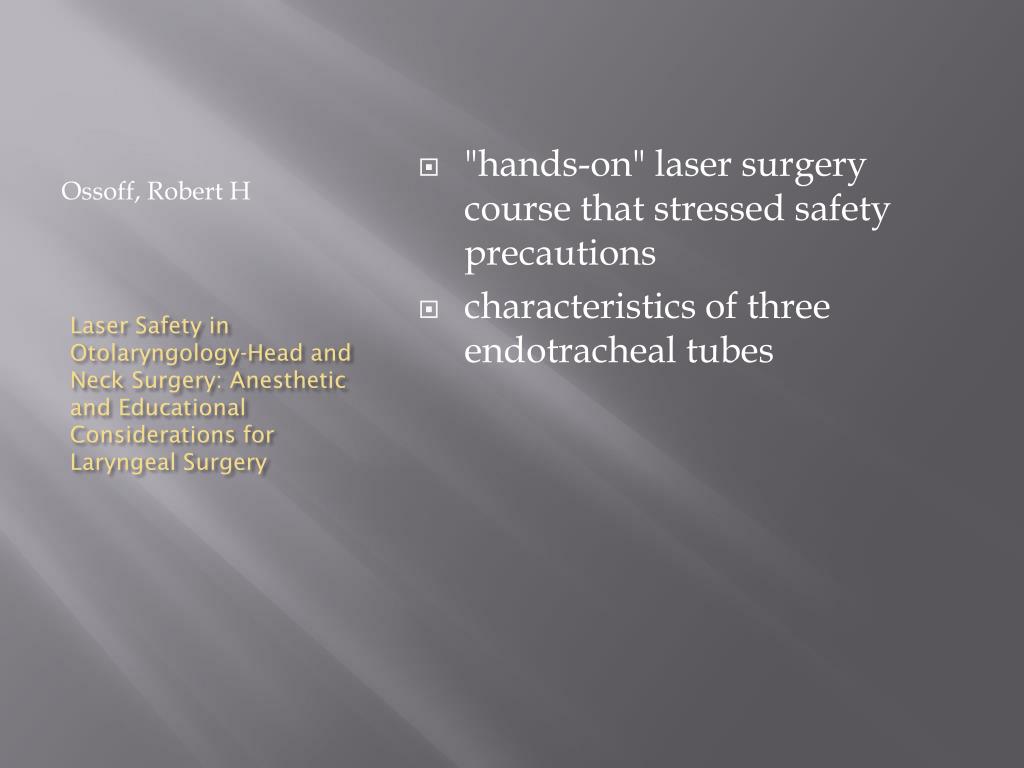

  31. Laser Safety in Otolaryngology-Head and Neck Surgery: Anesthetic and Educational Considerations for Laryngeal Surgery • "hands-on" laser surgery course that stressed safety precautions • characteristics of three endotracheal tubes Ossoff, Robert H

  32. References Einstein, A. On the quantum theory of radiation. Physikal Zeitschr 1917; 18:121. Reinisch L. Laser physics and tissue interactions. Otolaryngol Clin North Am 1996;29(6): 893–912. Lai HC, et al. Fires of endotracheal tubes of three different materials during carbon dioxide laser surgery. Acta Anaesthesiol Sin. 2002 Mar;40(1):47-51. Batta K, Goodyear HM, Moss C, Williams HC, Hiller L, Waters R. Randomised controlled study of early pulsed dye laser treatment of uncomplicated childhood hemangiomas: results of a 1-year analysis. Lancet 2002; 360: 521–527. Ossoff RH:  The co2 laser in otolaryngology-head and neck surgery: a retrospective analysis of complications.   Laryngoscope  1983; 93:1287. Abramson AL, DiLorenzo TP, Steinberg BM:  Is papillomavirus detectable in the plume of laser-treated laryngeal papilloma?.   Arch Otolaryngol Head Neck Surg  1990; 116:604. Tanaka R, Miyasaka M, Taira H, Tanino R. Comparison of pulsed dye laser and wait and see policy in treatment of childhood hemangioma. Lasers Surg Med 2005; 17: 35. Barlow CF, Priebe CJ, Mulliken JB, et al.: Spastic diplegia as a complication of interferon Alpha-2a treatment of hemangiomas of infancy. J Pediatr 1998, 132:527–530. Sie KC, McGill T, Healy GB: Subglottic hemangioma: ten years’ experience with the carbon dioxide laser. Ann Otol Rhinol Laryngol 1994, 103:167–172. Madgy D, Ahsan SF, Kest D, Stein I: The application of the Potassium-Titanyl- Phosphate (KTP) laser in the management of subglottic hemangioma. Arch Otolaryngol Head Neck Surg 2001, 127:47–50. American National Standards Institute :  American national standard for the safe use of lasers, Z136.1,   New York, American National Standards Institute, 1996. Shah H:  Benign tumors of the tracheobronchial tree. Endoscopic characteristics and role of laser resection.   Chest  1995; 107:1744. Karamzadeh, AM, et al. Lasers in pediatric airway surgery: current and future clinical applications. Lasers Surg Med. 2004;35(2):128-34. Strunk Jr CL, Quinn Jr FB:  Stapedectomy surgery in residency: KTP-532 laser versus argon laser.   Am J Otolaryngol  1993; 14:113. Cummings: Otolaryngology: Head & Neck Surgery, 4th ed. 2005 Mosby, Inc. Landthaler, M, Hohenleutner, U. Laser therapy of vascular lesions. Photodermatol Photoimmunol Photomed 2006; 22: 324–332 Brown, DH. The Versatile Contact Nd:YAG Laser in Head and Neck Surgery: An in Vivo and Clinical Analysis. Laryngoscope 110: May 2000. 854-867. Pransky, SM, Canto, C. Management of subglottic hemangioma. Curr Opin Otolaryngol Head Neck Surg. 2004 Dec;12(6):509-12.
