  1. Lecture 8 - Iterative systems of Equations CVEN 302 June 19, 2002

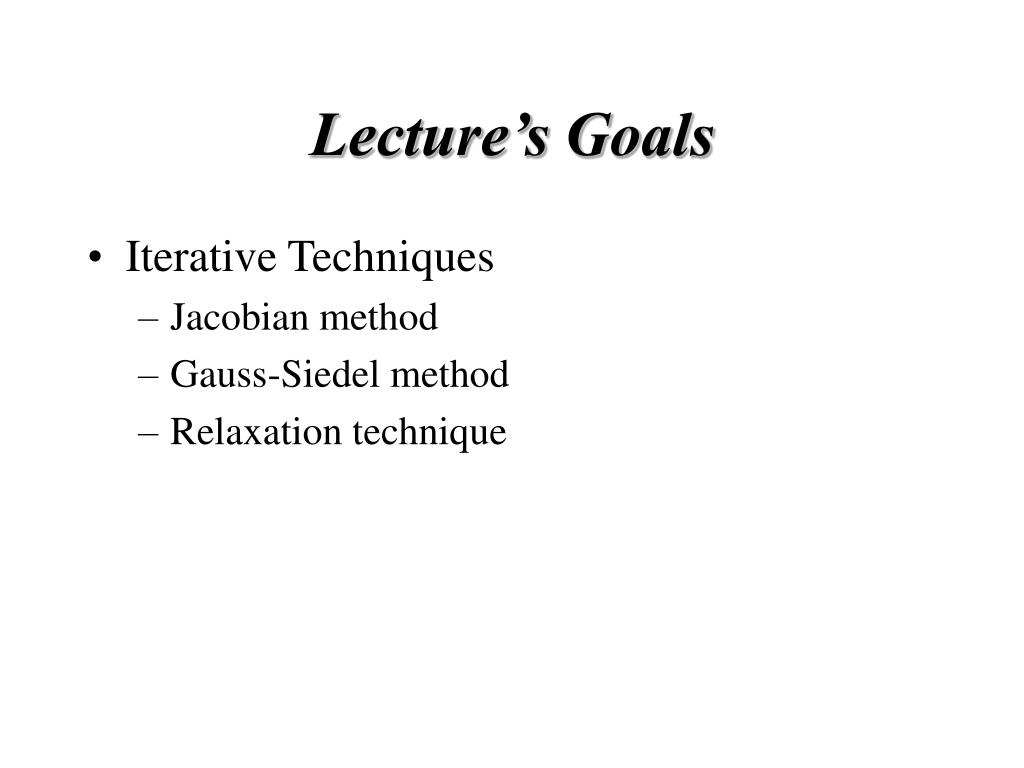

  2. Lecture’s Goals • Iterative Techniques • Jacobian method • Gauss-Siedel method • Relaxation technique

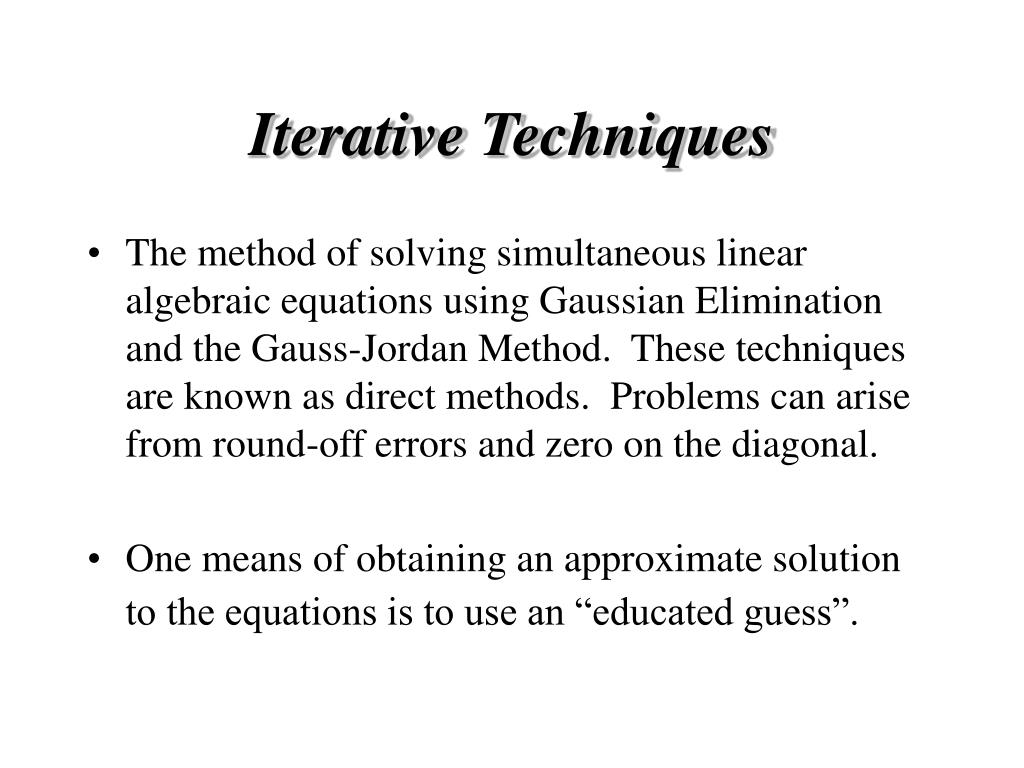

  3. Iterative Techniques • The method of solving simultaneous linear algebraic equations using Gaussian Elimination and the Gauss-Jordan Method. These techniques are known as direct methods. Problems can arise from round-off errors and zero on the diagonal. • One means of obtaining an approximate solution to the equations is to use an “educated guess”.

  4. Iterative Methods • We will look at three iterative methods: • Jacobi Method • Gauss-Seidel Method • Successive over Relaxation (SOR)

  5. Convergence Restrictions • There are two conditions for the iterative method to converge. • Necessary that 1 coefficient in each equation is dominate. • The sufficient condition is that the diagonal is dominate.

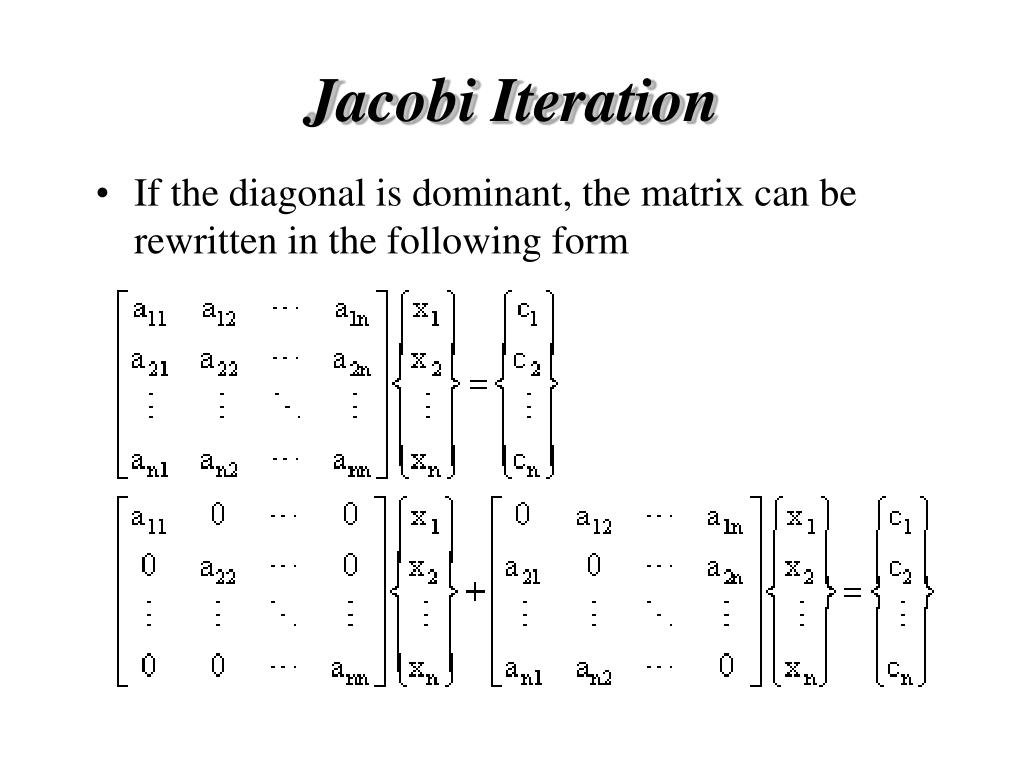

  6. Jacobi Iteration • If the diagonal is dominant, the matrix can be rewritten in the following form

  7. Jacobi Iteration • The technique can be rewritten in a shorthand fashion, where D is the diagonal, A” is the matrix without the diagonal and c is the right-hand side of the equations.

  8. Jacobi Iteration • The technique solves for the entire set of x values for each iteration. • The problem does not update the values until an iteration is completed.

  9. Example (Jacobi Iteration) 4X1 + 2X2 = 2 2X1 + 10X2 + 4X3 = 6 4X2 + 5X3 = 5 Solution: (X1 , X2 , X3 ) = (0.41379, 0.17241, 0.86206)

  10. Jacobi Example

  11. Jacobi Example

  12. Jacobi Example • Formulation of the matrix

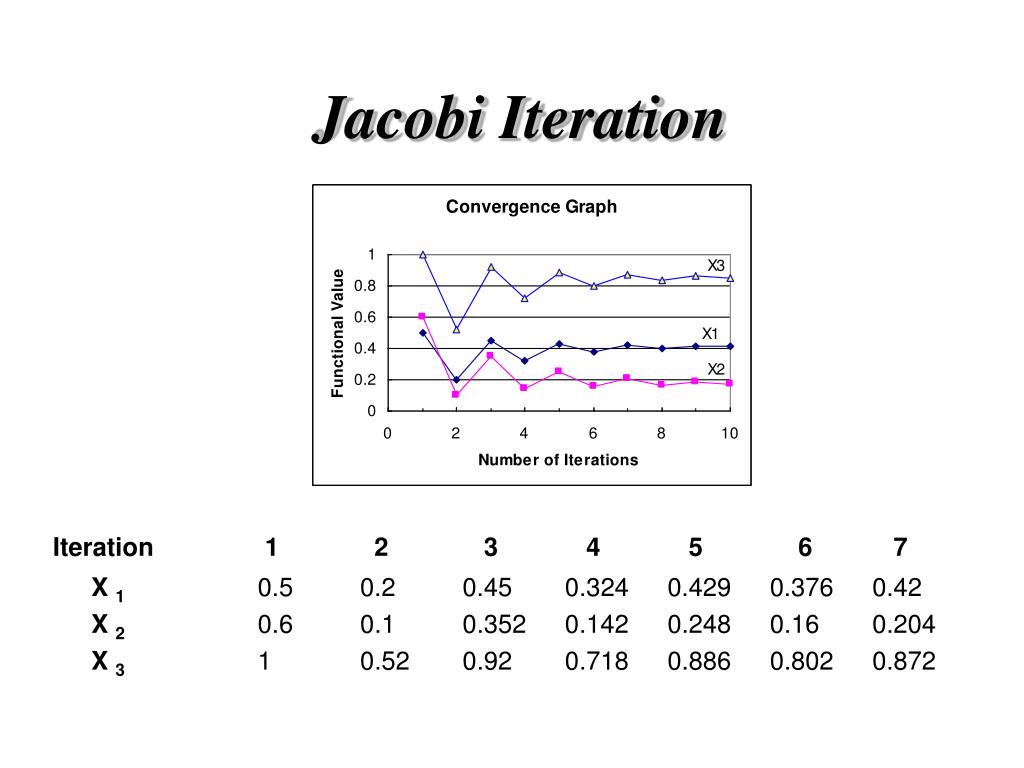

  13. Jacobi Iteration Iteration 1 2 3 4 5 6 7 X 1 0.5 0.2 0.45 0.324 0.429 0.376 0.42 X 2 0.6 0.1 0.352 0.142 0.248 0.16 0.204 X 3 1 0.52 0.92 0.718 0.886 0.802 0.872

  14. Jacobi Program • The computer program is setup to do the Jacobi method for any size square matrix: Jacobi(A,b) • The program can has options for maximum number of iterations, nmax, and tolerance, tol. Jacobi(A,b,nmax,tol)

  15. Gauss-Seidel Iterations • The Gauss-Seidel / Seidel technique is similar to the Jacobi iteration technique with one difference. • The method updates the results continuously. It uses the new information from the previous iteration to accelerate converge to a solution.

  16. Gauss-Seidel Model • The Gauss-Seidel Algorithm: • The combined vector is upgraded ever term.

  17. Example (Gauss-Seidel Iteration) 4X1 + 2X2 = 2 2X1 + 10X2 + 4X3 = 6 4X2 + 5X3 = 5 Solution: (X1 , X2 , X3 ) = (0.41379, 0.17241, 0.86206)

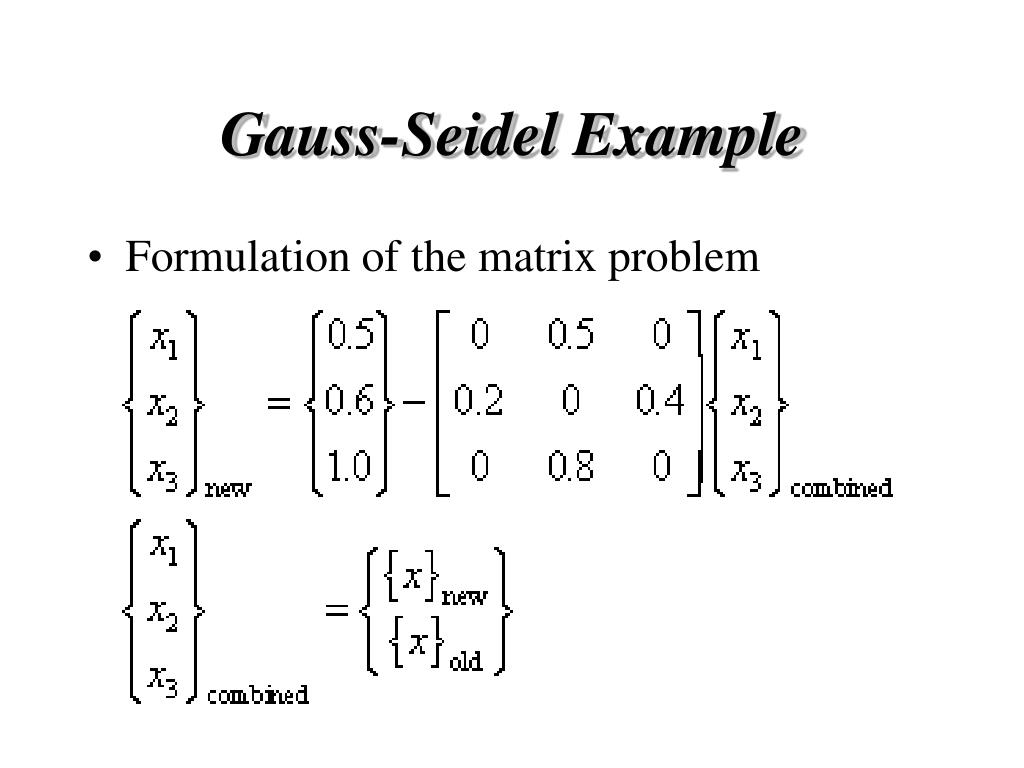

  18. Gauss-Seidel Example • Formulation of the matrix problem

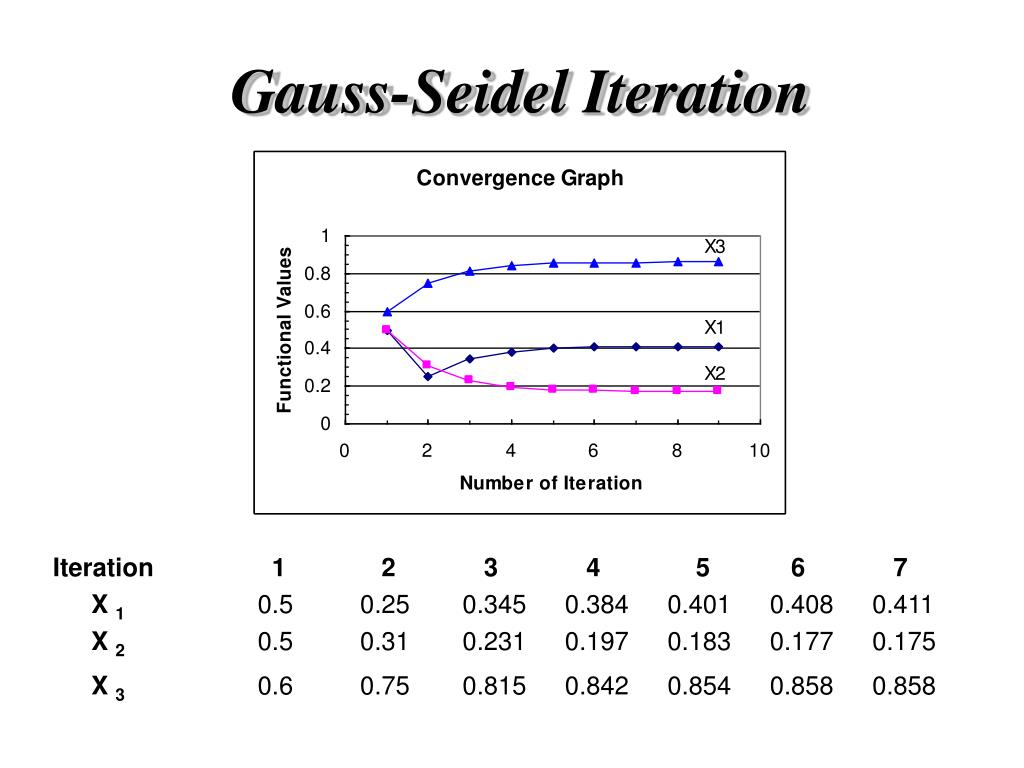

  19. Gauss-Seidel Iteration Iteration1 2 3 4 5 6 7 X 1 0.5 0.25 0.345 0.384 0.401 0.408 0.411 X 2 0.5 0.31 0.231 0.197 0.183 0.177 0.175 X 3 0.6 0.75 0.815 0.842 0.854 0.858 0.858

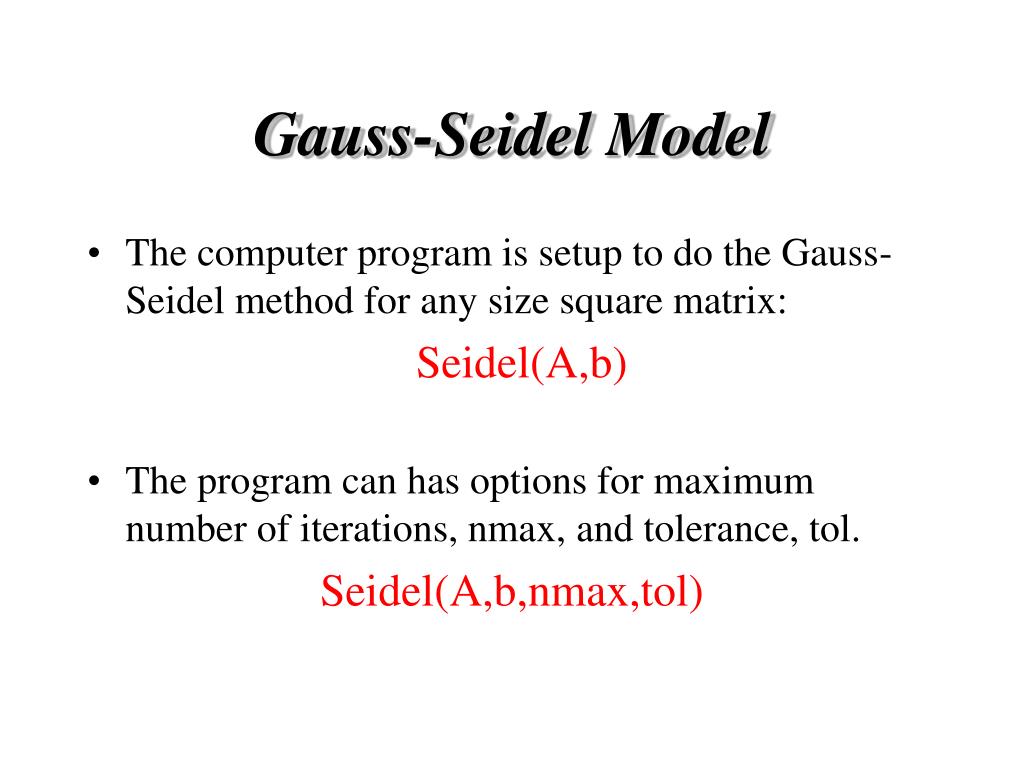

  20. Gauss-Seidel Model • The computer program is setup to do the Gauss-Seidel method for any size square matrix: Seidel(A,b) • The program can has options for maximum number of iterations, nmax, and tolerance, tol. Seidel(A,b,nmax,tol)

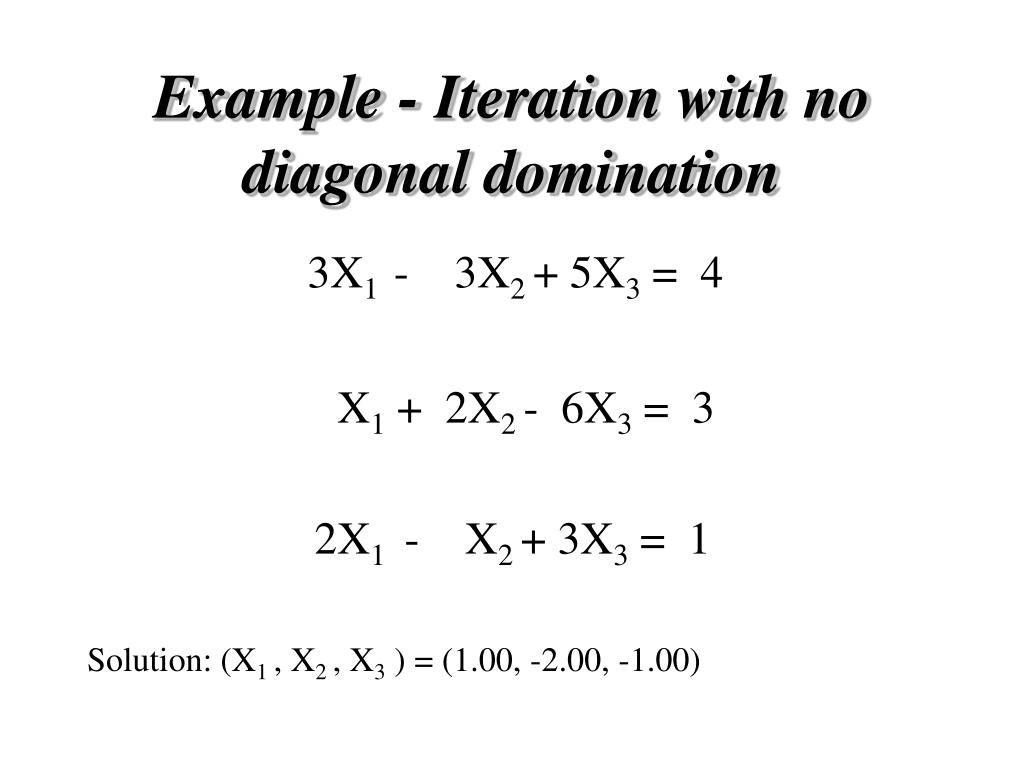

  21. Example - Iteration with no diagonal domination 3X1- 3X2 + 5X3 = 4 X1 + 2X2 - 6X3 = 3 2X1 - X2 + 3X3 = 1 Solution: (X1 , X2 , X3 ) = (1.00, -2.00, -1.00)

  22. Using the GS algorithm Using the Gauss-Seidel Program with the following A matrix and b vector. Solution: (X1 , X2 , X3 ) = (1.00, -2.00, -1.00)

  23. Gauss-Seidel Example

  24. Gauss-Seidel Example Program will work with the equations:

  25. Using a Gauss-Seidel Iteration Iteration 1 2 3 4 5 6 7 X 1 1.33 2.630 3.412 2.296 -1.375 6.078 -7.620 X 2 0.833 -0.648 -5.113 -10.584 -11.989 -3.698 14.769 X 3 -0.278 -1.635 -3.645 -4.725 -2.746 3.153 10.336

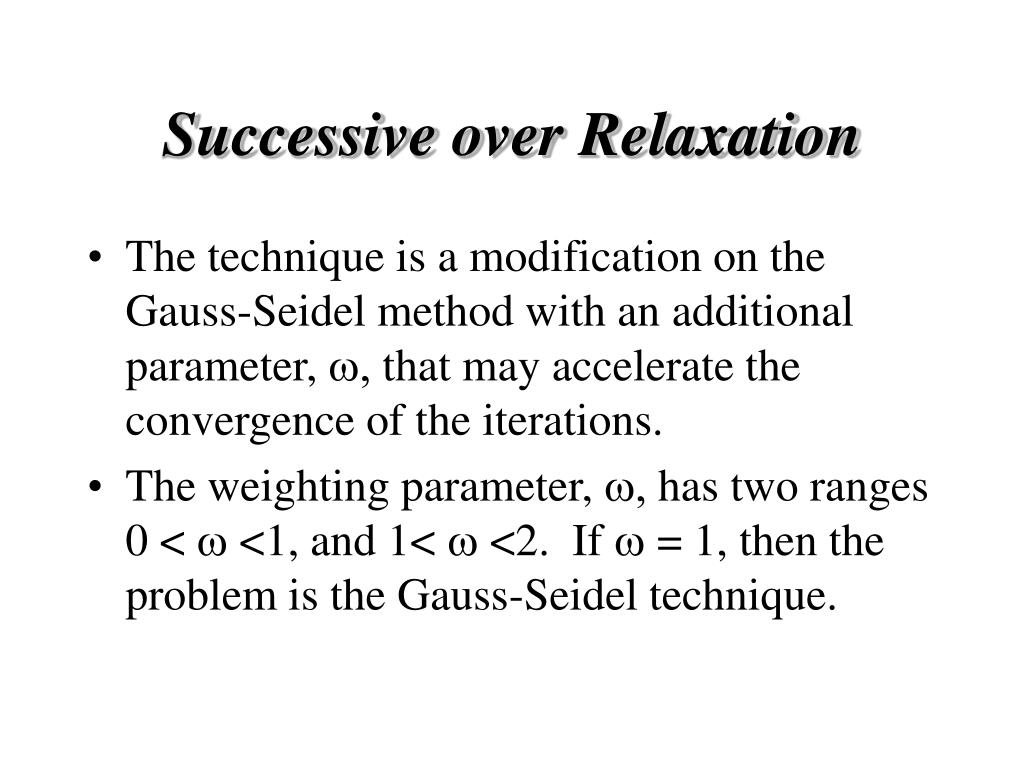

  26. Successive over Relaxation • The technique is a modification on the Gauss-Seidel method with an additional parameter, w, that may accelerate the convergence of the iterations. • The weighting parameter, w, has two ranges 0 < w <1, and 1< w <2. If w = 1, then the problem is the Gauss-Seidel technique.

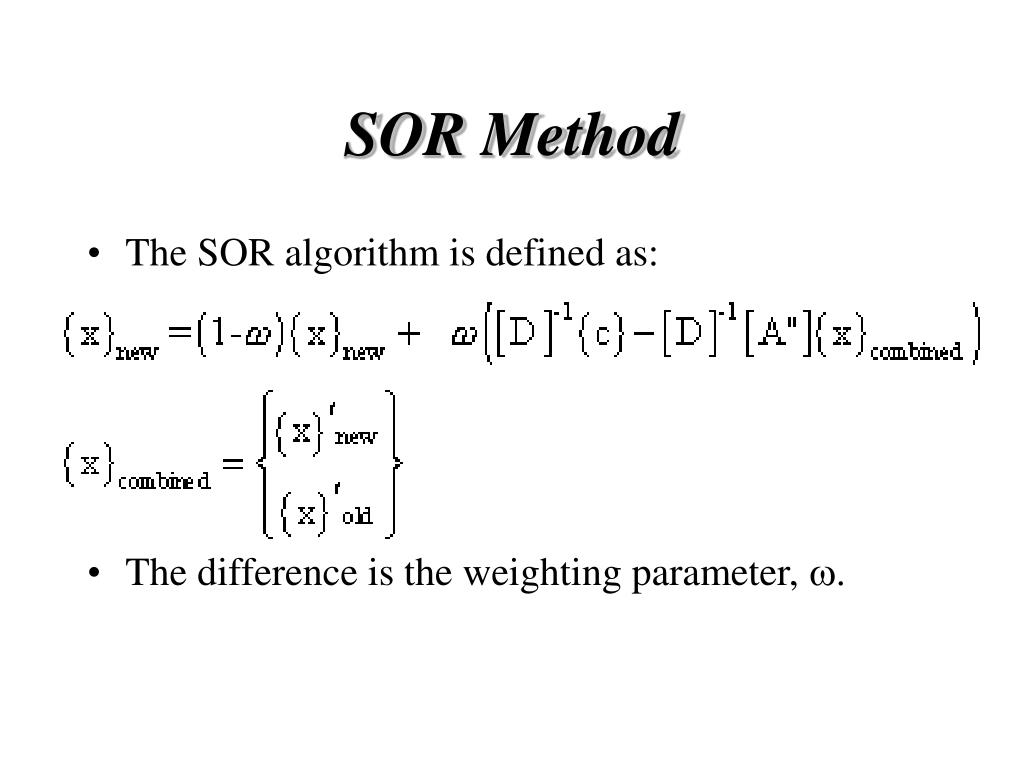

  27. SOR Method • The SOR algorithm is defined as: • The difference is the weighting parameter, w.

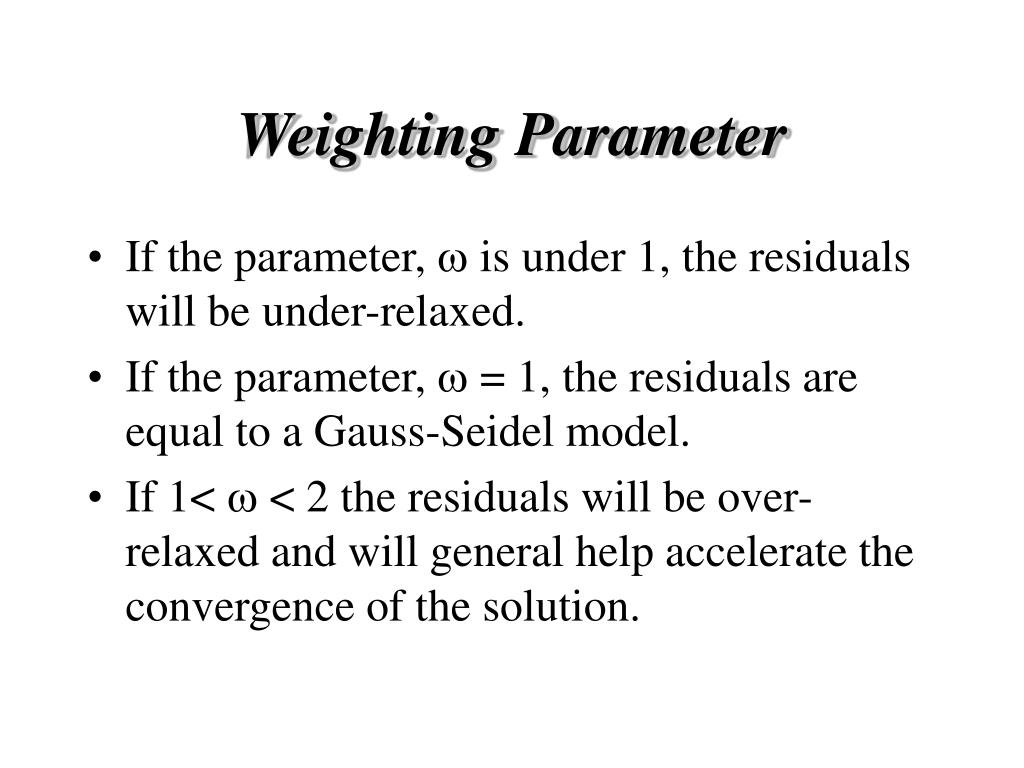

  28. Weighting Parameter • If the parameter, w is under 1, the residuals will be under-relaxed. • If the parameter, w = 1, the residuals are equal to a Gauss-Seidel model. • If 1< w < 2 the residuals will be over-relaxed and will general help accelerate the convergence of the solution.

  29. Example of SOR 4X1 + 2X2 = 2 2X1 + 10X2 + 4X3 = 6 4X2 + 5X3 = 5 Solution: (X1 , X2 , X3 ) = (0.41379, 0.17241, 0.86206)

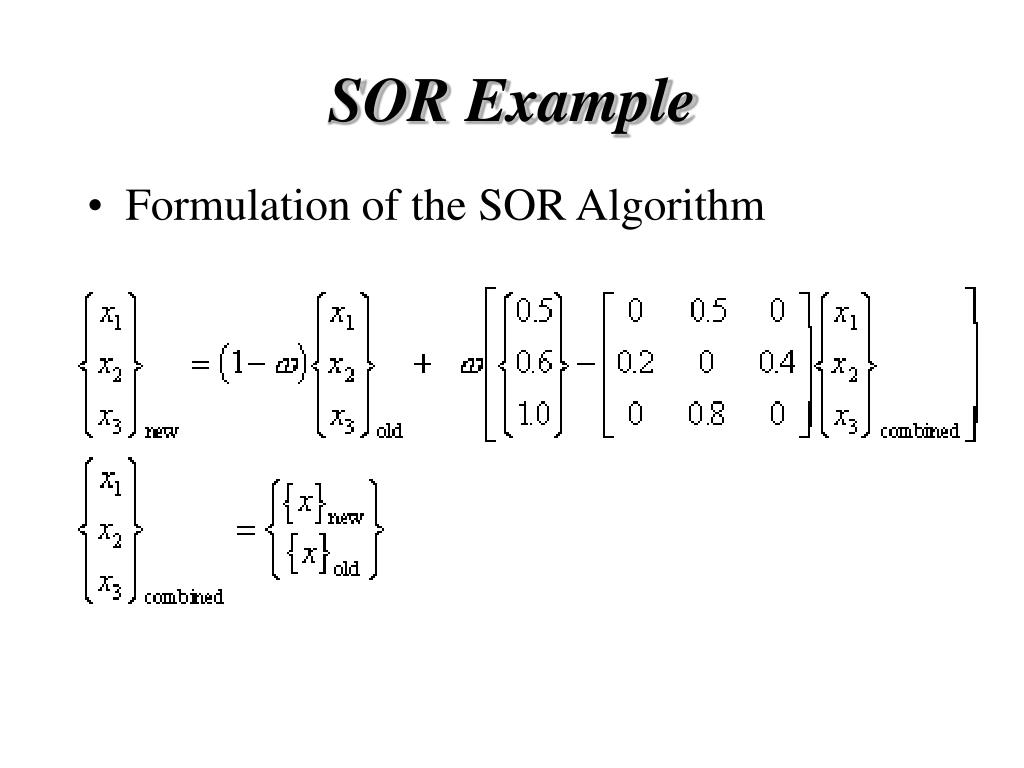

  30. SOR Example • Formulation of the SOR Algorithm

  31. Effects of w Parameter • Using the SOR program SOR(A,b,w,nmax,tol) with nmax=50 and tol = 0.000001

  32. Summary • Convergence conditions need to be met in order for iterative techniques to converge • Jacobi method upgrades the values after each iteration. • Gauss-Seidel upgrades continuously through method. • SOR (Successive over Relaxation) uses the residuals to accelerate the convergence.

  33. Homework • Check the Homework webpage
