Writing Formulas and Naming Compounds

Writing Formulas and Naming Compounds. 3-. 3+. When compounds form, the net charge always equals zero. The number of + always equals the number of -. Lets picture what happens. Na + + Cl - are attracted to each other. Na + and O 2- are attracted to each other. NaCl. Cl -. Na +.

prue
Télécharger la présentation

Writing Formulas and Naming Compounds

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Writing Formulas and Naming Compounds 3- 3+ When compounds form, the net charge always equals zero. The number of + always equals the number of -.

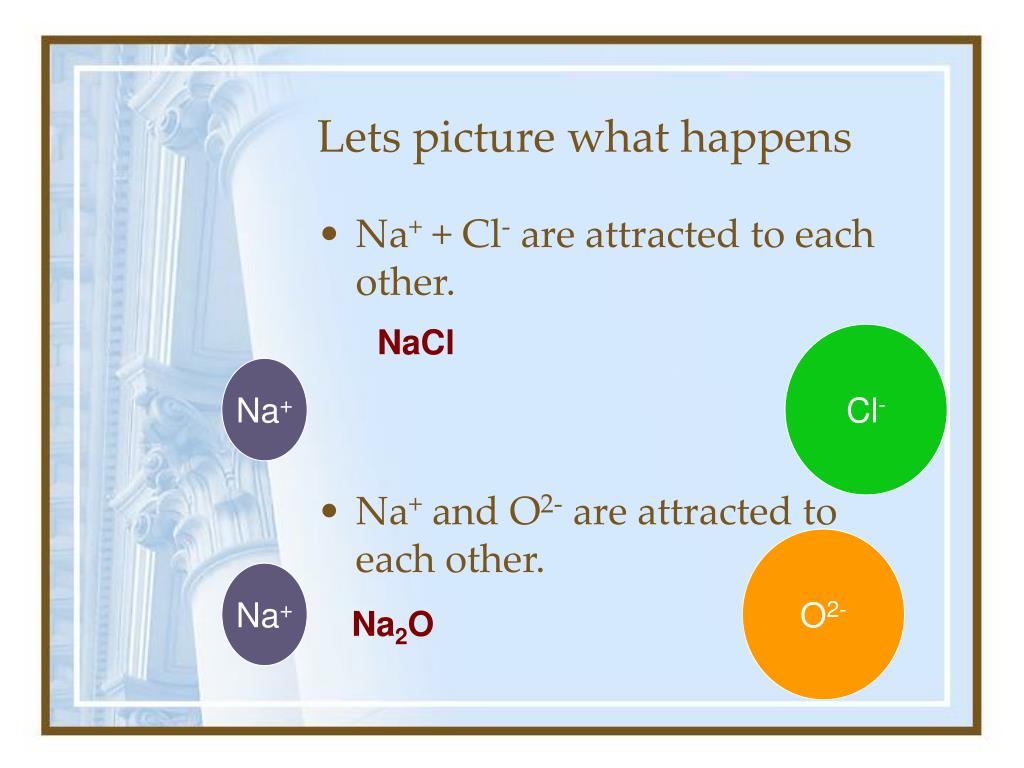

  2. Lets picture what happens • Na+ + Cl- are attracted to each other. • Na+ and O2- are attracted to each other. NaCl Cl- Na+ O2- Na+ Na+ Na2O

  3. potassium magnesium Gallium Lithium chloride oxide hydroxide phosphide phosphate Your turn: Use the following ions to make as many compounds as you can. You may use your ion sheet. • Cl1- • O2- • (OH)1- • P3- • PO43- K+ Mg2+ Ga3+ Li1+ Cl1- KCl MgCl2 GaCl3 LiCl O2- Ga2O3 Li2O K 2O MgO (OH)1- KOH Ga(OH)3 LiOH Mg(OH)2 P3- K3P Mg3P2 GaP Li3P

  4. Potassium chloride Magnesium chloride Potassium oxide Magnesium oxide Potassium hydroxide Magnesium hydroxide Potassium phosphide Magnesium phosphide gallium phosphide

  5. Oxidation number • The charge on a monatomic ion is called the oxidation number. • An ion with more than one atom, has a different oxidation number on each atom, so the sum of the oxidation numbers equals the charge of the ion. • Your ion sheet lists some common oxidation numbers for metals .

  6. Reading Isotopes Mass number S Charge or oxidation number 2- 32 16 atomic number = number of protons

  7. Reading Isotopes Mass number F Charge or oxidation number 1- 19 9 atomic number = number of protons

  8. What is the oxidation numbers of sulfur in this compound? ? 4 of 2- = -8 CaSO4 2+ 0 = 2 - 8 + ? ? = 6

  9. What is the oxidation numbers of phosphorous in this compound? ? 4 of 2- = -8 Na3 PO4 3 sets of 1+ 0 = 3 - 8 + ? ? = 5

  10. Write the formula for the following compounds: calcium chloride sodium cyanide magnesium oxide MAKE SURE THE CHARGES ARE BALANCED! Ca Cl2 Na CN Mg O

  11. Write the formula for the following compounds: silver and fluorine nickel (II) and sulfur chromium (III) and bromine MAKE SURE THE CHARGES ARE BALANCED! Ag F Ni S Cr Br3

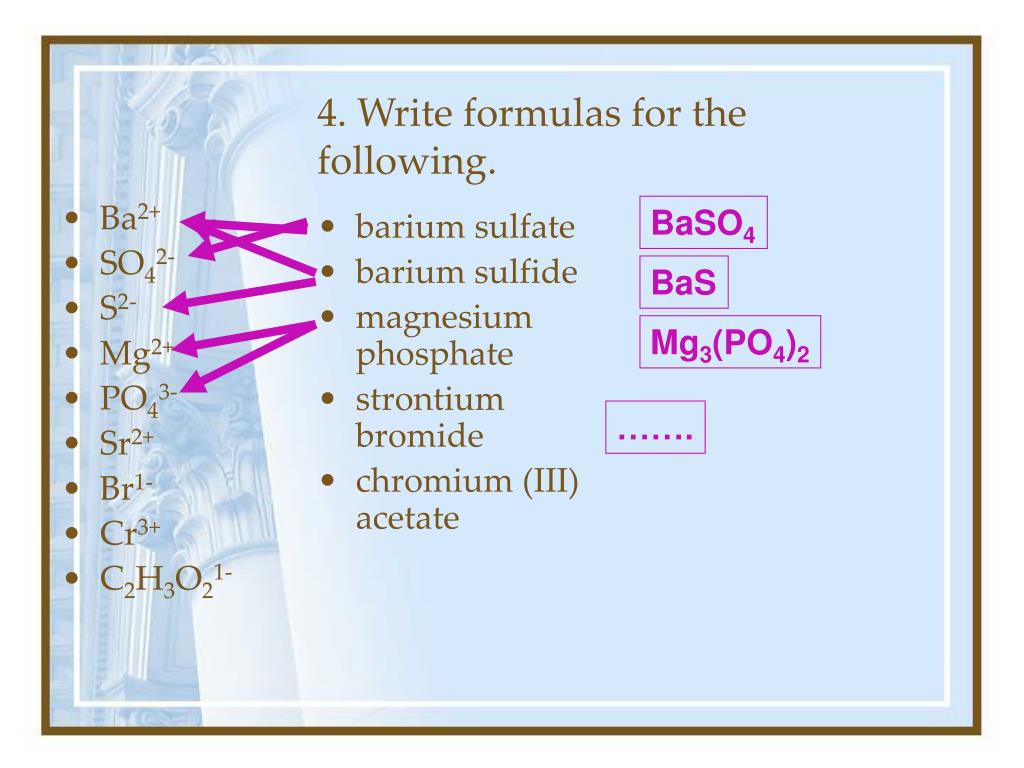

  12. barium sulfate barium sulfide magnesium phosphate strontium bromide chromium (III) acetate Ba2+ SO42- S2- Mg2+ PO43- Sr2+ Br1- Cr3+ C2H3O21- 4. Write formulas for the following. BaSO4 BaS Mg3(PO4)2 …….

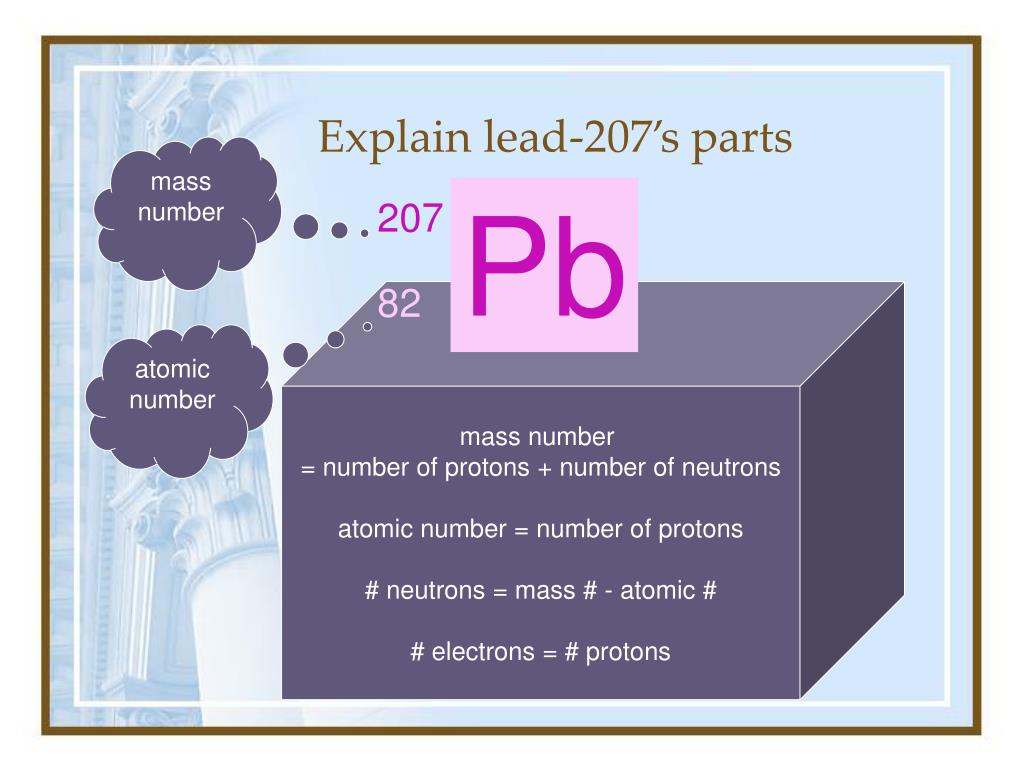

  13. Explain lead-207’s parts mass number Pb 207 82 mass number = number of protons + number of neutrons atomic number = number of protons # neutrons = mass # - atomic # # electrons = # protons atomic number

  14. Naming Binary inorganic compounds. Al2S3 Sulfide S2- Aluminum Al3+ K3P Phosphide P3- Potassium K+ The charges not needed for naming most compounds The charges are only needed for writing chemical formulas.

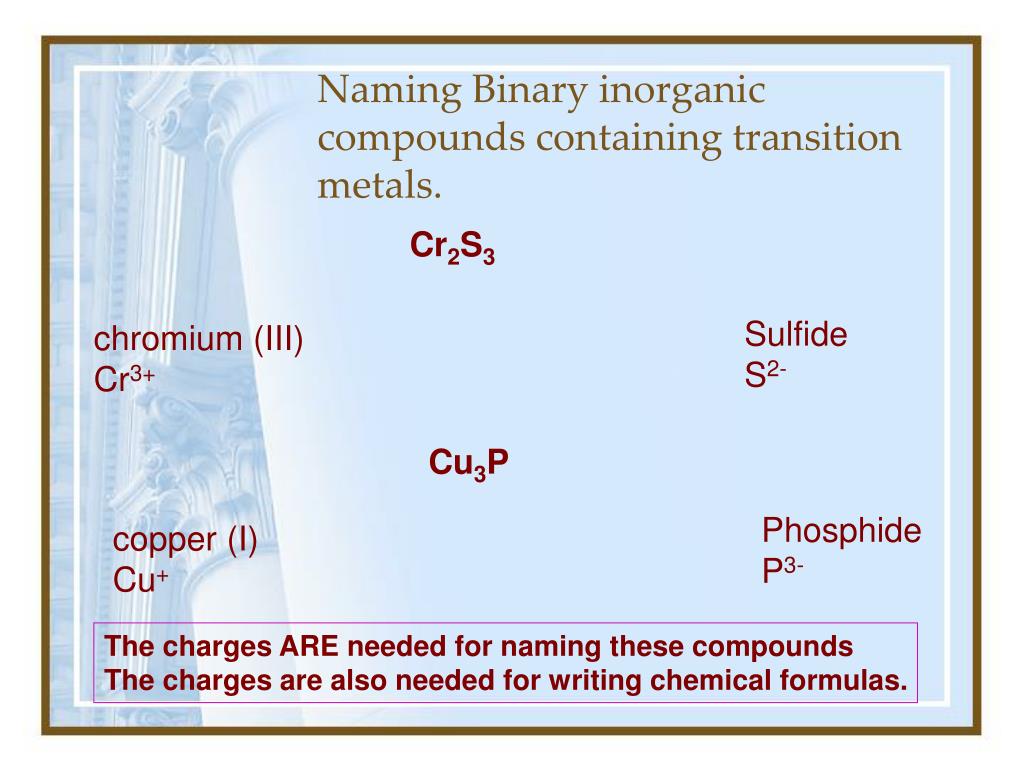

  15. Naming Binary inorganic compounds containing transition metals. Cr2S3 Sulfide S2- chromium (III) Cr3+ Cu3P Phosphide P3- copper (I) Cu+ The charges ARE needed for naming these compounds The charges are also needed for writing chemical formulas.

  16. To name covalent compounds • Covalent compounds are composed of two or more nonmetals which share electrons. (Some metalloids are covalently bonded as well). • USE PREFIXES mono = 1 penta = 5 di = 2 hexa = 6 tri = 3 hepta = 7 tetra = 4 octa = 8

  17. Naming covalent compounds mono = 1 penta = 5 di = 2 hexa = 6 tri = 3 hepta = 7 tetra = 4 octa = 8 • CO2 • CO • P2O5 • carbon dioxide • carbon monoxide • diphosphorous pentoxide Try SF6 prefix if not mono-name of less electronegative atom, prefix of second atom– ending ide sulfur hexafluoride

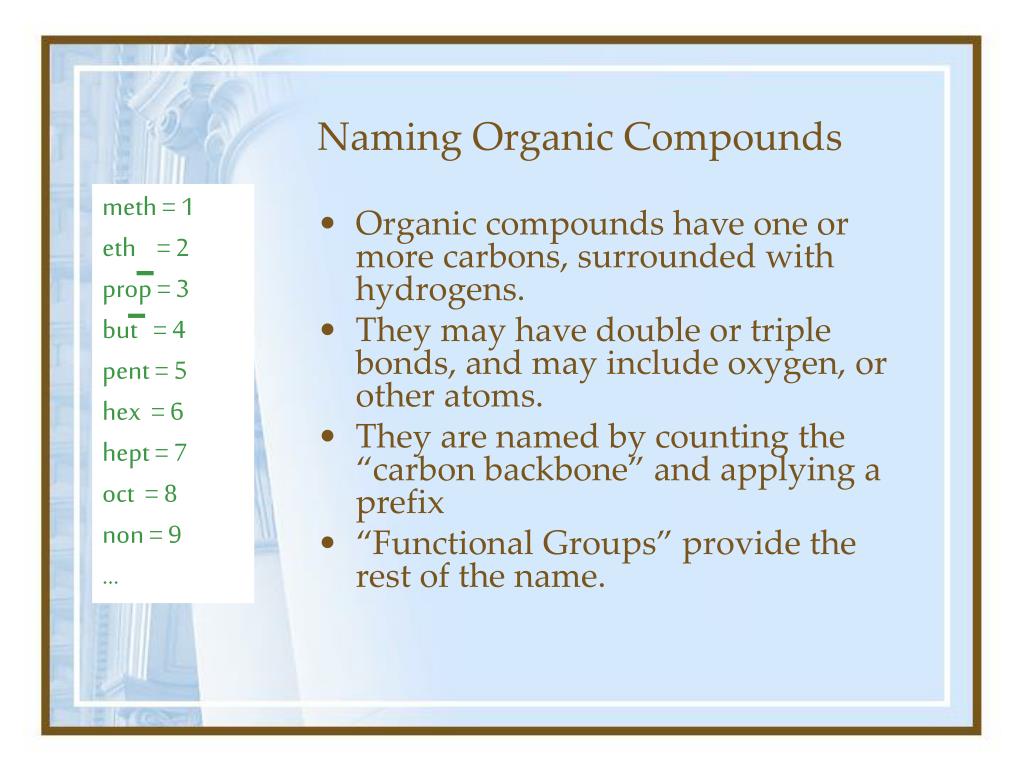

  18. Naming Organic Compounds meth = 1 eth = 2 prop = 3 but = 4 pent = 5 hex = 6 hept = 7 oct = 8 non = 9 … • Organic compounds have one or more carbons, surrounded with hydrogens. • They may have double or triple bonds, and may include oxygen, or other atoms. • They are named by counting the “carbon backbone” and applying a prefix • “Functional Groups” provide the rest of the name.

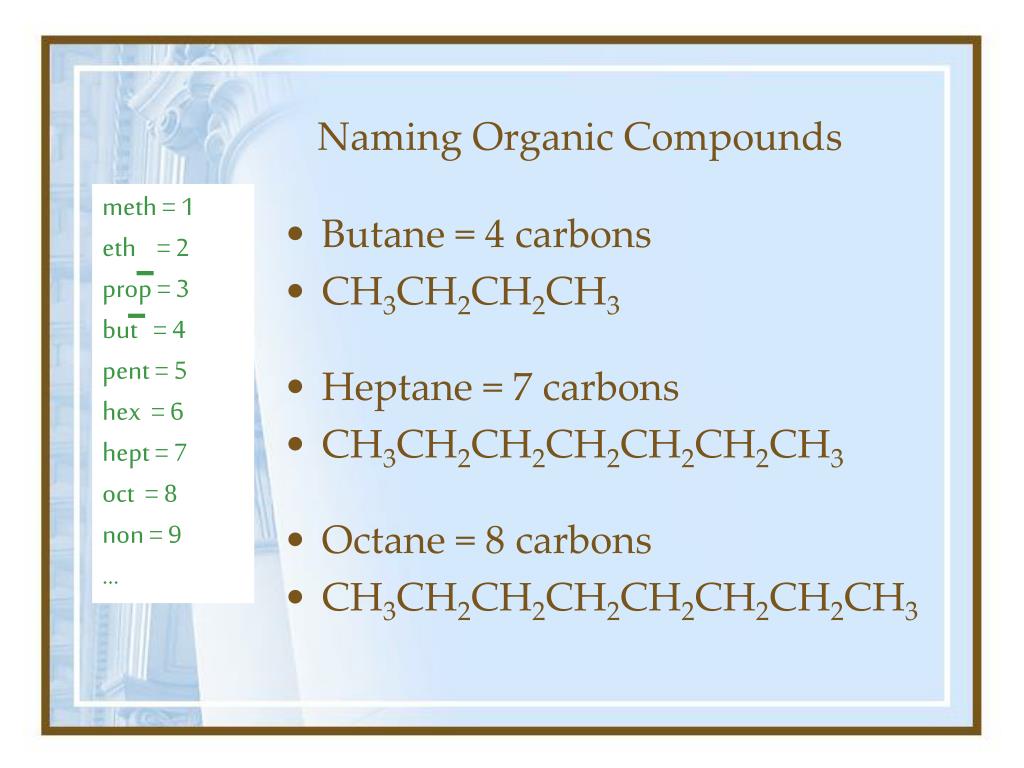

  19. Naming Organic Compounds meth = 1 eth = 2 prop = 3 but = 4 pent = 5 hex = 6 hept = 7 oct = 8 non = 9 … • Butane = 4 carbons • CH3CH2CH2CH3 • Heptane = 7 carbons • CH3CH2CH2CH2CH2CH2CH3 • Octane = 8 carbons • CH3CH2CH2CH2CH2CH2CH2CH3
