Memcache vs Diskcache

OpenAFS Linux Performance Improvements in 1.5/1.6 Simon Wilkinson Your File System Inc. 20 April 2010. Memcache vs Diskcache. Assertion:

psyche
Télécharger la présentation

Memcache vs Diskcache

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

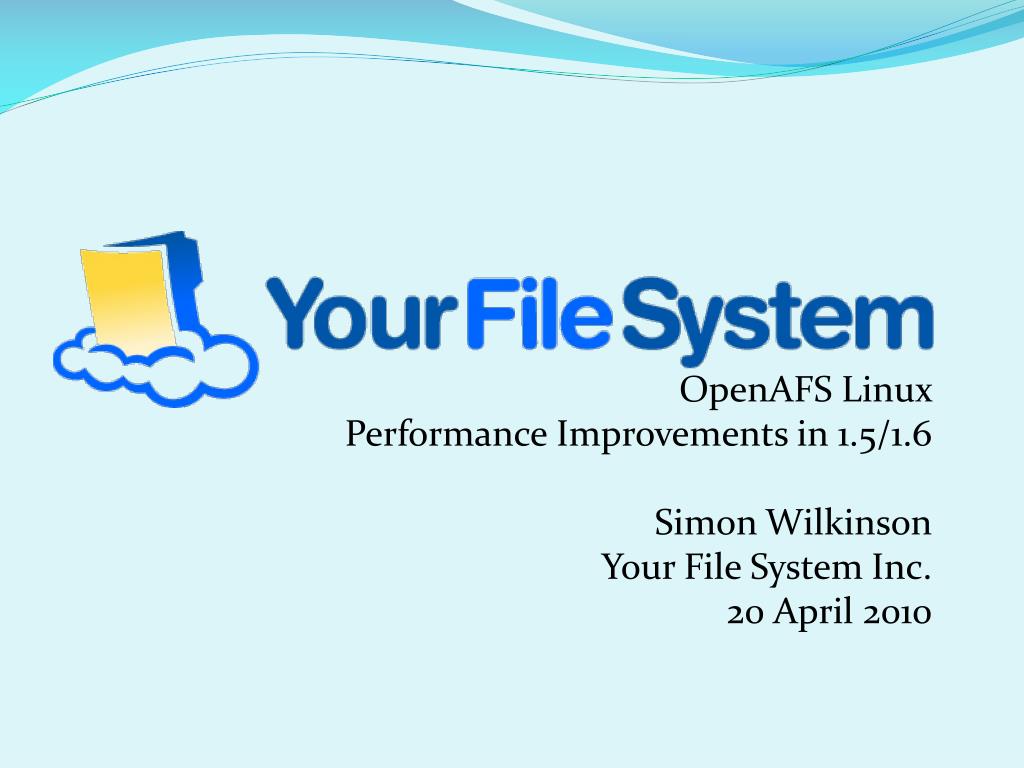

  1. OpenAFS Linux Performance Improvements in 1.5/1.6Simon WilkinsonYour File System Inc.20 April 2010

  2. Memcache vs Diskcache Assertion: “On systems (such as Linux) with a file system page cache, it should be possible to improve AFS disk cache performance so it is similar to that of the AFS memory cache implementation”

  3. Disk cache benefits over memory cache • Can be larger • Makes more efficient use of space • Reduces potential for deadlocks • Doesn’t tie down kernel memory which hurts overall system performance

  4. Architecture Fileserver afs cache (disk or memory) page cache process

  5. Page Cache Improvements • Reduce the number of redundant reads by correctly using the page dirty flag • Enable readahead when filling the page cache from disk • Remove duplicate writes of pages to disk by telling the kernel what we’re doing • Populate the page cache with a background thread, rather than doing it during requests

  6. Minimize data copies • Copying data is expensive • Minimise the number of copies between the network, the various caches and user space • Significant improvements made to write-on-close • Other cases an ongoing project

  7. Playing nicely with the other children • Keyrings are now authoritative for PAG membership • Many more memory management fixes • For the first time, it’s possible to write to a mmap()’d file that’s larger than the cache • Deadlocks are much harder to provoke in low memory situations

  8. Cache read performance:AFS should match ext3 below 1GB

  9. The long tail • Significant real world performance improvements appear in the long tail • Web server benchmarks suggest performance improvements of ~500% are obtainable for some readonly workloads.

  10. Contact Info • Simon Wilkinson • Your File System Inc. • sxw@your-file-system.com
