Atomic Mass is not a whole number

Atomic Mass is not a whole number. because it takes into account all the isotopes of an element . To calculate, multiply the % abundance of each isotope by the relative mass of each and add together. 3.1. (7.42% x 6.015) + (92.58% x 7.016). 100. Natural lithium is: 7.42% 6 Li (6.015 amu)

qiana
Télécharger la présentation

Atomic Mass is not a whole number

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Atomic Mass is not a whole number • because it takes into account all the isotopes of an element To calculate, multiply the % abundance of each isotope by the relative mass of each and add together 3.1

  2. (7.42% x 6.015) + (92.58% x 7.016) 100 Natural lithium is: 7.42% 6Li (6.015 amu) 92.58% 7Li (7.016 amu) Average atomic mass of lithium: = 6.941 amu 3.1

  3. X(14.001) + (1-X)( 15.001) EXAMPLE: There are 2 isotopes of nitrogen, one with an atomic mass of 14.0031 amu and one with a mass of 15.001 amu. What is the percent abundance of each? X% N (14.0031 amu (1-X)% N (15.001 amu) Average atomic mass of nitrogen: = 14.0067 amu 14.001X + 15.001 – 15.001X = 14.0067 -.9943 = -.9979X X = .996 or 99.6% 1-X = .004 or .4% 3.1

  4. How do we know this? • Dalton’s Atomic Theory had to be modified due to the discovery of the isotope. • The mass spectrometer, built by Aston, a student of JJ Thompson, identified the existence of isotopes 3.1

  5. How does a Mass Spectrometer work? articles are turned into positive ions, accelerated and then deflected by an electric or magnetic field. The resulting path of ions depends on their ‘mass to charge’ ratio(m/z). Particles with a large m/z value are deflected least Particles with a low m/z value are deflected most.

  6. A MASS SPECTROMETER DETECTOR ION SOURCE ANALYSER A mass spectrometer consists of ... an ion source, an analyser and a detector. PARTICLES MUST BE IONIZED SO THEY CAN BE ACCELERATED AND DEFLECTED

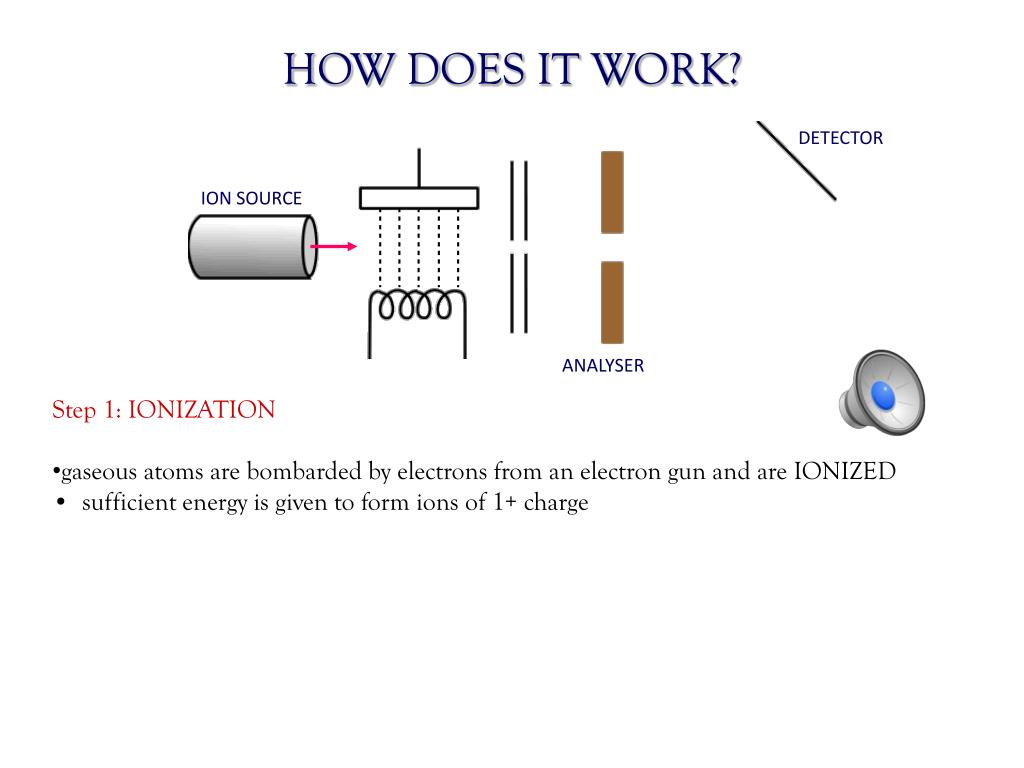

  7. HOW DOES IT WORK? DETECTOR ION SOURCE ANALYSER • Step 1: IONIZATION • gaseous atoms are bombarded by electrons from an electron gun and are IONIZED • sufficient energy is given to form ions of 1+ charge

  8. HOW DOES IT WORK? DETECTOR ION SOURCE ANALYSER • Step 1: IONIZATION • Step 2: ACCELERATION • ions are charged so can be ACCELERATED by an electric field

  9. HOW DOES IT WORK? DETECTOR ION SOURCE ANALYSER • Step 1: IONIZATION • Step 2: ACCELERATION • Step 3: DEFLECTION • charged particles will be DEFLECTED by a magnetic or electric field

  10. HOW DOES IT WORK? DETECTOR ION SOURCE ANALYSER • Step 1: IONIZATION • Step 2: ACCELERATION • Step 3: DEFLECTION • Step 4: DETECTION • by electric or photographic methods

  11. HOW DOES IT WORK? DETECTOR ION SOURCE ANALYSER IONIZATION ACCELERATION DEFLECTION DETECTION

  12. HOW DOES IT WORK? - Deflection 20Ne 21Ne 22Ne HEAVIER ISOTOPES ARE DEFLECTED LESS • the radius of the path depends on the value of the mass/charge ratio (m/z) • ions of heavier isotopes have larger m/z values so follow a larger radius curve • as most ions are 1+charged, the amount of separation depends on their mass

  13. 2+ ions 1+ ions 20Ne 22Ne ABUNDANCE Doubling the charge, halves the m/z value Abundance stays the same 0 4 8 12 16 20 m/z values HOW DOES IT WORK? - Deflection 20Ne 21Ne 22Ne HEAVIER ISOTOPES ARE DEFLECTED LESS • if an ion acquires a 2+ charge it will be deflected more; its m/z value is halved

  14. 20Ne 90.92% 21Ne 0.26% 22Ne 8.82% 19 20 21 22 23 WHAT IS A MASS SPECTRUM? MASS SPECTRUM OF NEON • In early research with a mass spectrograph, Aston (Nobel Prize, 1922) demonstrated that naturally occurring neon consisted of three isotopes ... 20Ne, 21Ne and 22Ne. • positions of the peaks gives atomic mass • peak intensity gives the relative abundance • highest abundance is scaled to 100% and other values are adjusted accordingly

  15. CALCULATING AVERAGE ATOMIC MASS Calculate the average relative atomic mass of neon using data on the previous page. Out of every 100 atoms... 90.92 are 20Ne , 0.26 are 21Ne and 8.82 are 22Ne Answer: 20.18 A TIPIn calculations of this type... multiply each relative mass by its abundance add up the total of these values divide the result by the sum of the abundances; (100 in this case) * if the question is based on percentage abundance, divide by 100 but if it is based on heights of lines in a mass spectrum, add up the heights of the lines and then divide by that number (see later).

  16. IDENTIFY THE ELEMENT • First, calculate average atomic mass • Then find the element with the closest mass on periodic table Average Atomic Mass = 91.32 Closest Element: Zirconium (Zr, Z=40)

  17. How to Read a Mass Spec Diagram beyond analyzing isotopes of elements • HW: • If you need a refresher to how the mass spectrometer works: • http://www.bozemanscience.com/ap-chem-009-mass-spectrometry/ • 2. Watch from about 21:38 to 43:16 to see how to analyze many different types of spec data • http://www.youtube.com/watch?feature=player_detailpage&v=biH065_y1I4#t=1292
