  1. CVEN 689Project PresentationTim Schniedwind

  2. Introduction to Project • Correlation Between Air Pollution and Population Density in Metropolitan Areas • Target Areas • New York • Chicago • Houston • Los Angeles

  3. Air Pollution Research • Covers Scale from Global Warming to Air inside Homes • Produced by Factories(point source), Cars(non point source),stoves etc…

  4. Impacts of Air Pollution • Local(near source) Impacts to Human Health • As it disperses: Impacts to Environment • Acid Rain • Holes in the Ozone Layer • Human Health issues

  5. Importance for Urban Planning • Mass Transportation vs. Expanding Existing Highways or Building New ones • Urban Sprawl • Does More Spread Out = More Pollution

  6. Research Being done: TNRCC • Ozone measurements for the Houston Area • Speed Limit Issue

  7. Air Pollution Models • Attempts to Calculate Air Pollution in an Area based on sources of emmission and estimated dispersion and motion of ‘pollution’ • Project in Mendoza Argentina

  8. Project Goals • Learn GIS • Produce at minimum a visual comparison containing: • Population Dot Density Maps for Each target area • surface showing air pollution levels for several pollutants (both average and maximum values) • Take more of a public policy approach than scientific or engineering perspective

  9. Dot Density Example

  10. Development Platform • ArcMap (ArcInfo 8 line of products) Reasons: • Population Dot Density done automatically, improved joins, other time savers • Location

  11. Location: Home vs. School Grad Students: Open 9-5

  12. Data Acquisition: Census Data • www.census.gov • Just .txt files, many per state • www.Geographynetwork.com • Census 2000 data • County, Tract, Block • Shapefile Data available on County Level • Tables with Census Data available on Statewide Level

  13. EPA Air Pollution Data • EPA Airs Monitoring System • Yearly data 1994-1999 • Averages and Peak Values • Shapefile with monitoring locations (.e00 format) • .dbf table containing the measurements for each monitoring location

  14. Airs Locations

  15. Airs Locations • Los Angeles • Houston

  16. AIRS Parameters • Carbon Monoxide • NO2 • SO2 • O3(Ozone) • PM10 (Particulate Matter > 10 microns) • Pb (lead)

  17. Airs Parameters Chosen • Ozone(O3): • formed when VOC’s react with NOx compounds in the presence of sunlight, • most common in summer • human health effects • National Ambient Air Quality Standard: • 1hour averaging period < .125 ppm

  18. Airs Parameter (continued) • PM 10: • Measurement of Particles > 10 microns • Particles this size cannot enter lungs • 24 hours: <155mg/m3 • SO2: • Sulfur dioxide • .035ppm, hourly • CO • Carbon Monoxide, Limit: 35.5 ppm 1hr. period

  19. Methodology: Dot Density Diagrams • Which data to use to generate Dot Density Diagrams, County, Tract, or Block? • Shapefiles only available as county .zip files • Necessitated selecting individual counties that make up metropolitan area

  20. Tract or Block

  21. Chicago Area Tracts

  22. Dot Density Steps • Select Counties and Download Tract shapefiles(and associated files) as well as dbf containing census data on the tract level • Merge(geoprocessing wizard) County Layers together to form one layer containing all the tracts in the “metropolitan area” • Join Metropolitan Area layer with dbf file containing Census Tract Data • Use Symbology tab to Set Dot Density Parameters (simlar to legend in ArcView)

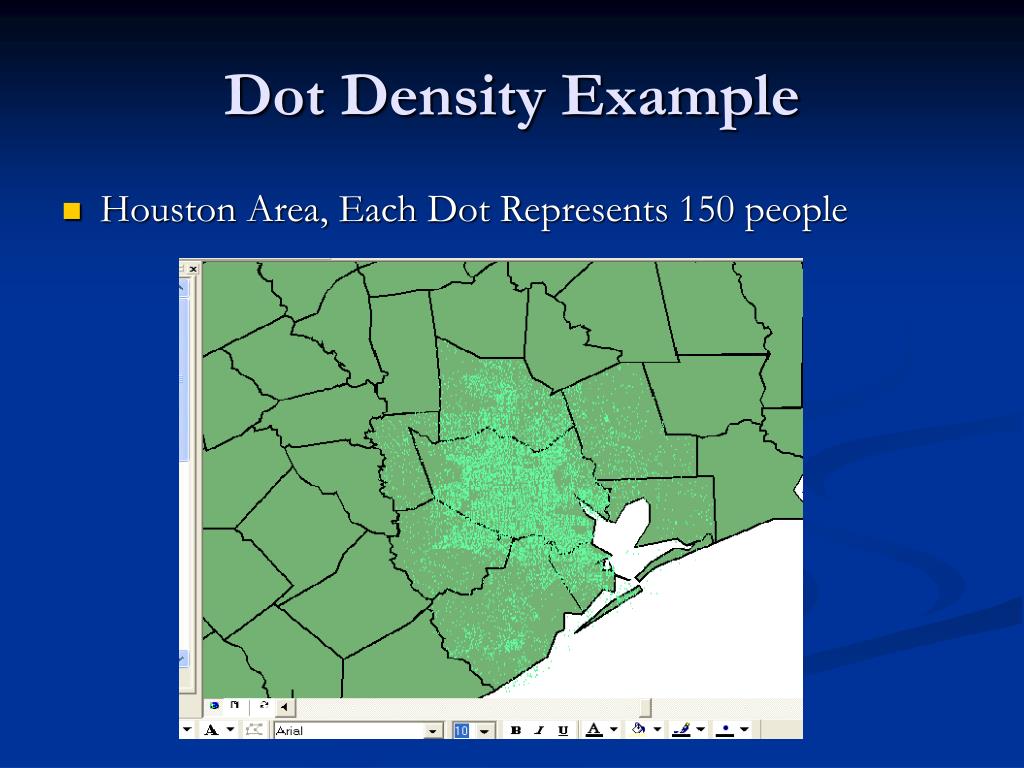

  23. Dot Density Example • Houston Area, Each Dot Represents 150 people

  24. Dot Density Chicago • Each Dot represents 750 people (computational reasons)

  25. Methodology: Creating a Surface • Create a New Table of Monitor Values taking out values for years prior to 1999 • Reason: So Join will not introduce Non Uniform Dates • Use “Select by Attributes” and “Export” from the table options menu • Join Table with Shapefile of monitor location points

  26. Methodology continued • Trim out those stations that don’t measure pollution levels for the particular surface being created • Use Spatial Analyst (inverse distance weighting) to Interpolate A Grid from Monitor Point data

  27. Inverse Distance Weighting • Method used for filling in surface based on values collected at measuring stations • Part of the Spatial Analysis Package • IDW assumes things that are closer together are more alike. • Gives higher weighting to those points that are closer to the location it is calculating

  28. Surface Example • Houston, Ozone Max 1 Hr Values: • (.125> violates federal regulations)

  29. Future Plans • Pull Everything Together so that it can be analyzed Visually • Draw Conclusions • Numerical Analysis?

  30. Questions • (please help me, I need to fill 13 more minutes)
