  1. Open MPI China MCP

  2. Agenda MPI Overview Open MPI Architecture Open MPI TI Implementation Open MPI Run-time Parameters Open MPI Usage Example Getting Started

  3. Agenda MPI Overview Open MPI Architecture Open MPI TI Implementation Open MPI Run-time Parameters Open MPI Usage Example Getting Started

  4. What is MPI? • Message Passing Interface • “De facto” standard • Not an “official” standard(IEEE, IETF) • Written and ratified by the MPI Forum • Body of academic, research, and industry representatives • MPI spec • MPI-1 published in 1994 • MPI-2 published in 1996 • MPI-3 published in 2012 • Specified interfaces in C, C++, Fortran 77/90

  5. MPI High-Level View User Application MPI API Operation System

  6. MPIGoal • High-level network API • Abstract away the underlying transport • Easy to use for customers • API designed to be “friendly” to high performance network • Ultra low latency (nanoseconds matter) • Rapid ascent to wire-rate bandwidth • Typically used in High Performance Computing(HPC) environments • Has a bias for large compute jobs • “HPC” definition is evolving • MPI starting to be used outside of HPC • MPI is a good network IPC API

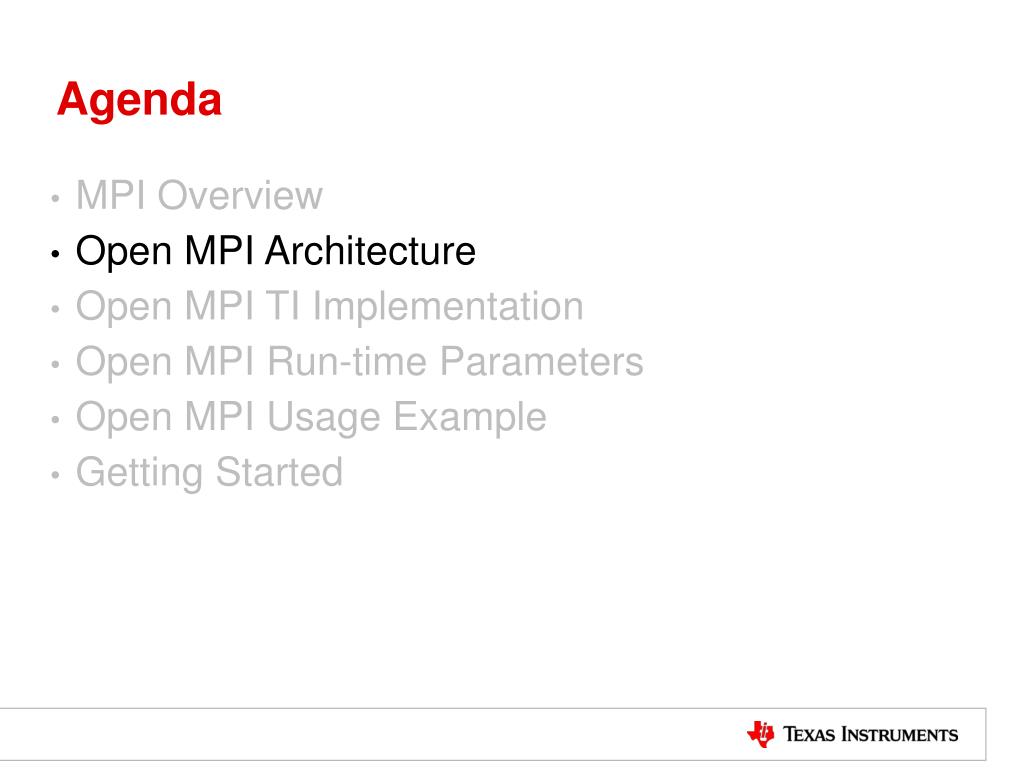

  7. Agenda MPI Overview Open MPI Architecture Open MPI TI Implementation Open MPI Run-time Parameters Open MPI Usage Example Getting Started

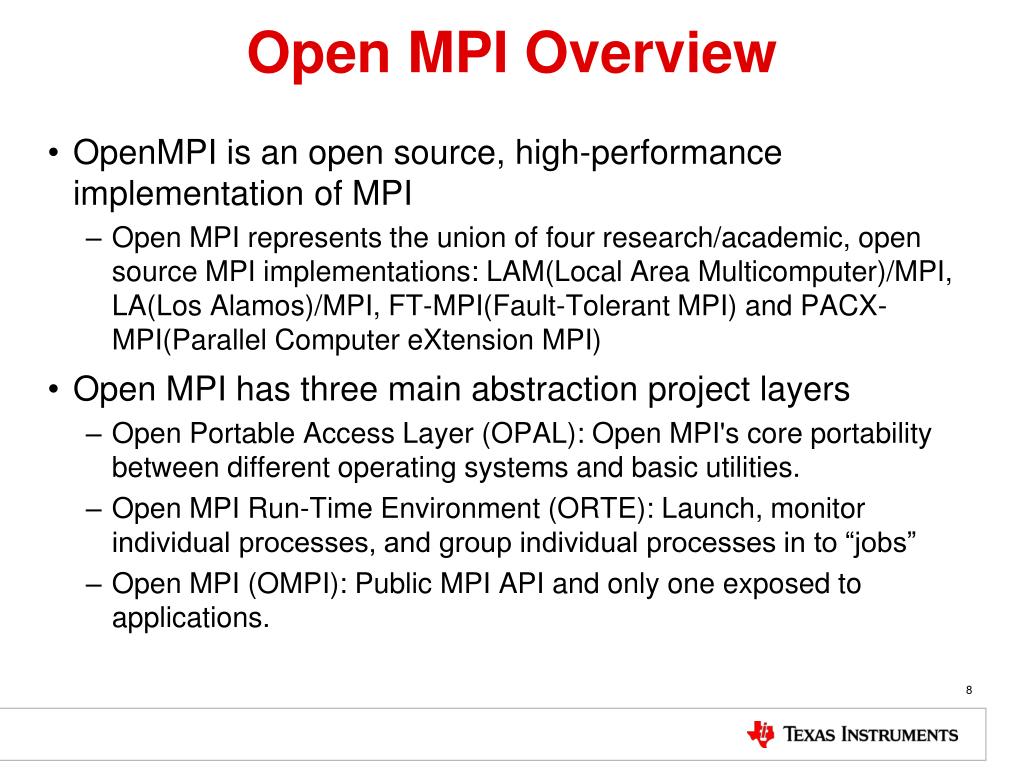

  8. Open MPI Overview • OpenMPI is an open source, high-performance implementation of MPI • Open MPI represents the union of four research/academic, open source MPI implementations: LAM(Local Area Multicomputer)/MPI, LA(Los Alamos)/MPI, FT-MPI(Fault-Tolerant MPI) and PACX-MPI(Parallel Computer eXtension MPI) • Open MPI has three main abstraction project layers • Open Portable Access Layer (OPAL): Open MPI's core portability between different operating systems and basic utilities. • Open MPI Run-Time Environment (ORTE): Launch, monitor individual processes, and group individual processes in to “jobs” • Open MPI (OMPI): Public MPI API and only one exposed to applications.

  9. Open MPI High-Level View MPI Application Open MPI (OMPI) Project Open MPI Run-Time Environment (ORTE) Project Open Portable Access Layer (OPAL) Project Operation System Hardware

  10. Project Separation MPI Application libompi libopen-rte libopen-pal Operation System Hardware

  11. Library dependencies MPI Application libompi libopen-rte libopen-pal Operation System Hardware

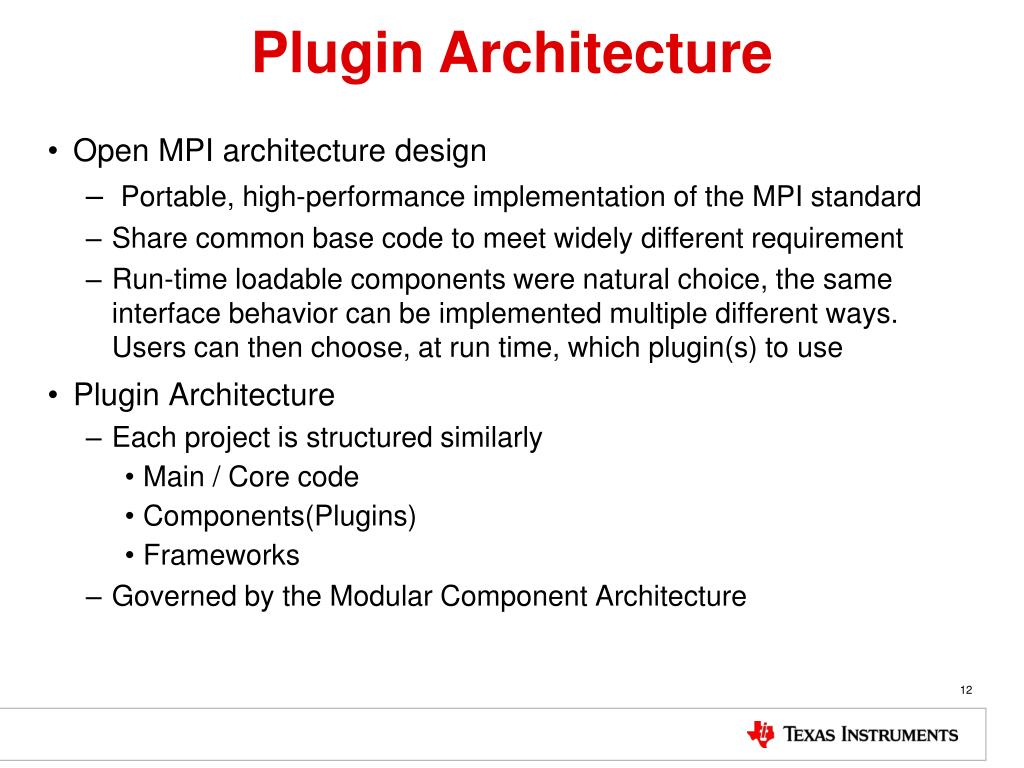

  12. Plugin Architecture • Open MPI architecture design • Portable, high-performance implementation of the MPI standard • Share common base code to meet widely different requirement • Run-time loadable components were natural choice, the same interface behavior can be implemented multiple different ways. Users can then choose, at run time, which plugin(s) to use • Plugin Architecture • Each project is structured similarly • Main / Core code • Components(Plugins) • Frameworks • Governed by the Modular Component Architecture

  13. MCA Architecture Overview User Application MPI API Modular Component Architecture (MCA) … Framework Framework Framework Framework Framework Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. Comp. … … … … …

  14. MCA Layout • MCA • Top-level architecture for component services • Find, load, unload components • Frameworks • Targeted set of functionality • Defined interfaces • Essentially: a group of one type of plugins • E.g., MPI point-to-point, high-resolution timers • Components • Code that exports a specific interface • Loaded/unloaded rum-time • “Plugins” • Modules • A components paired with resources • E.g., TCP component loaded, find 2 IP interface(eth0, eth1), make 2 TCP modules

  15. OMPI Architecture Overview OMPI Layer … MPI Byte Transfer Layer (btl) MPI collective operations (coll) MPI one-sided communication interface( osc) Memory Pool Framework (mpool) Framework … … … … grdma sm tcp pt2pt. Comp. Base Base Base Base sm rdma tuned rgpusm. Comp. Comp. …

  16. ORTE Architecture Overview ORTE Layer … Process Lifecycle Management (PLM) I/O Forwarding service (iof) Routing table for the RML (routed) OpenRTE Group Communication(grpcomm) Framework … … … … tm hnp radix pmi Comp. Base Base Base Base slurm direct bad Comp. Comp. tool …

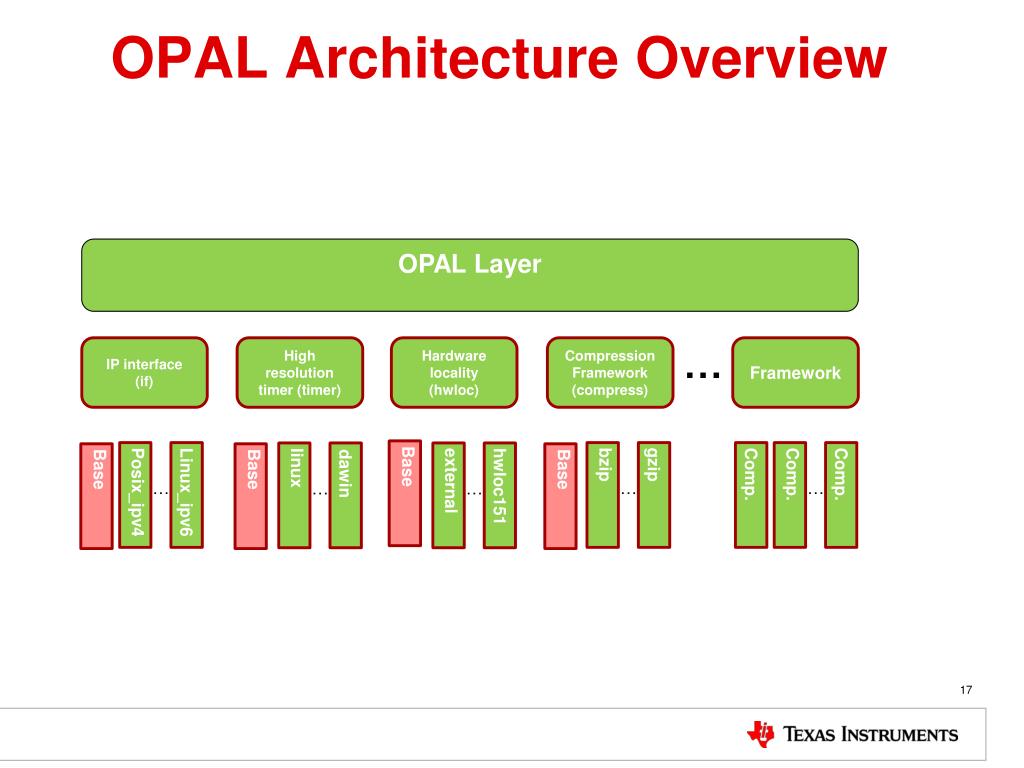

  17. OPAL Architecture Overview OPAL Layer … IP interface (if) High resolution timer (timer) Hardware locality (hwloc) Compression Framework (compress) Framework … … … … Posix_ipv4 linux external bzip Comp. Base Base Base Base Linux_ipv6 hwloc151 gzip Comp. Comp. dawin …

  18. Agenda MPI Overview Open MPI Architecture Open MPI TI Implementation Open MPI Run-time Parameters Open MPI Usage Example Getting Started

  19. Open MPI TI Implementation • Open MPI on K2H platform • All components in 1.7.1 are supported • Launching and initial interfacing by using “SSH” • Adding BTLs for SRIO and Hyperlink transports A15 SMP Linux MPI MPI Application IPC OpenCL IPC A15 SMP Linux Ethernet MPI Hyperlink IPC SRIO Kernel Kernel Kernel OpenCL C66x subsystem OpenMP IPC Run-time Shared memory/Navigator Shared memory/Navigator K2H K2H Kernel Kernel Kernel C66x subsystem OpenMP Run-time Node 0 Node 1

  20. OMPI TI Added Components OMPI Layer … MPI Byte Transfer Layer (btl) MPI collective operations (coll) MPI one-sided communication interface( osc) Memory Pool Framework (mpool) Framework … … … … grdma sm hlink pt2pt. Comp. Base Base Base Base srio rdma tuned rgpusm. Comp. Comp. …

  21. OpenMPI Hyperlink BTL • Hyperlink is TI-proprietary high speed, point-to-point interface, with 4 lanes up to 12.5Gbps (maximum transfer of 5.5-6 Gbytes/s). • New BTL module has been added to ti-openmpi (openmpi 1.7.1 based) to support transport over Hyperlink. MPI Hyperlink communication is driven by A15 only. • K2H device has 2 Hyperlink ports (0 and 1) allowing one SoC to connect directly with two neighboring SoCs. • Daisy chaining is not supported. • Additional connectivity can be obtained by mapping common memory region in intermediate node • Data transfers are operated by EDMA • Hyperlink BTL support is seamlessly integrated into OpenMPI run-time: • Example code to run mpptest using 2 nodes over hyperlink: /opt/ti-openmpi/bin/mpirun --mcabtlself,hlink -np 2 -host c1n1,c1n2 ./mpptest -sync logscale • Example code to run nbody using 4 nodes hyperlink: /opt/ti-openmpi/bin/mpirun--mcabtlself,hlink-np 4 -host c1n1,c1n2,c1n3,c1n4 ./nbody 1000 HL1 HL1 K2H K2H HL1 HL1 K2H K2H HL0 HL0 HL0 HL0 HL0 HL0 3 node Hyperlink topology 4 node Hyperlink topology K2H HL1 HL1 K2H HL1 HL0 K2H

  22. OpenMPI Hyperlink BTL – connection types Node 2 writes to Node 3 Node 3 Node 2 src dst Adjacent connections Local read src dst Local read Node 3 writes to Node 2 Same memory block mapped via both Hyperlink ports (to different nodes), used only for diagonal uni-directional connection Node 3 reads from Node 2t Node 2 Node 3 dst HL1 HL1 transfer Same memory block mapped via both Hyperlink ports (to different nodes), used only for diagonal uni-directional connection src Sending fragment from node 1 to node 3 HL0 HL0 Node 1 writes to Node 2 Node 3 writes to Node 4 Diagonal connections HL0 Sending fragment from node 3 to node 1 HL0 Node 1 Node 4 src HL1 HL1 transfer dst Node1 reads from Node 4

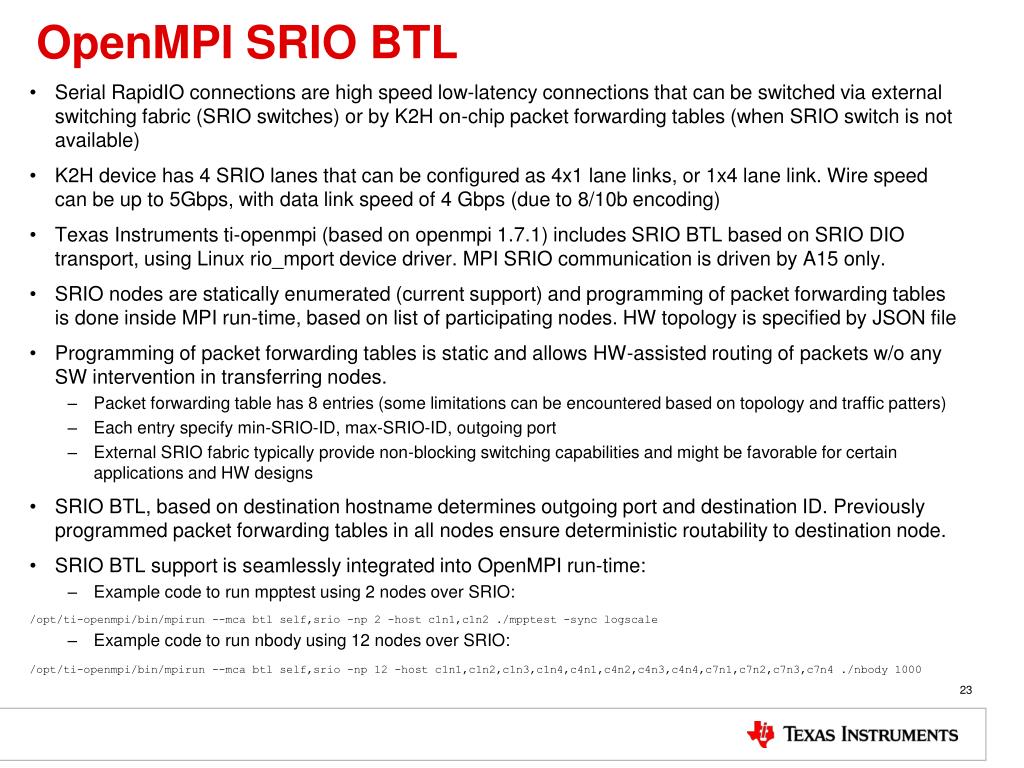

  23. OpenMPI SRIO BTL • Serial RapidIO connections are high speed low-latency connections that can be switched via external switching fabric (SRIO switches) or by K2H on-chip packet forwarding tables (when SRIO switch is not available) • K2H device has 4 SRIO lanes that can be configured as 4x1 lane links, or 1x4 lane link. Wire speed can be up to 5Gbps, with data link speed of 4 Gbps (due to 8/10b encoding) • Texas Instruments ti-openmpi (based on openmpi 1.7.1) includes SRIO BTL based on SRIO DIO transport, using Linux rio_mport device driver. MPI SRIO communication is driven by A15 only. • SRIO nodes are statically enumerated (current support) and programming of packet forwarding tables is done inside MPI run-time, based on list of participating nodes. HW topology is specified by JSON file • Programming of packet forwarding tables is static and allows HW-assisted routing of packets w/o any SW intervention in transferring nodes. • Packet forwarding table has 8 entries (some limitations can be encountered based on topology and traffic patters) • Each entry specify min-SRIO-ID, max-SRIO-ID, outgoing port • External SRIO fabric typically provide non-blocking switching capabilities and might be favorable for certain applications and HW designs • SRIO BTL, based on destination hostname determines outgoing port and destination ID. Previously programmed packet forwarding tables in all nodes ensure deterministic routability to destination node. • SRIO BTL support is seamlessly integrated into OpenMPI run-time: • Example code to run mpptest using 2 nodes over SRIO: /opt/ti-openmpi/bin/mpirun --mcabtlself,srio -np 2 -host c1n1,c1n2 ./mpptest -sync logscale • Example code to run nbody using 12 nodes over SRIO: /opt/ti-openmpi/bin/mpirun --mcabtlself,srio -np 12 -host c1n1,c1n2,c1n3,c1n4,c4n1,c4n2,c4n3,c4n4,c7n1,c7n2,c7n3,c7n4 ./nbody1000

  24. OpenSRIO BTL – possible topologies star topology SRIO switch K2H K2H K2H K2H K2H K2H Packet forwarding capability allows creation of HW virtual links (no SW operation!) K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H K2H 2-D torus (16-nodes) K2H K2H Connections with 4 lanes per link K2H K2H K2H K2H Full connectivity of 4 nodes – 1 lane per link

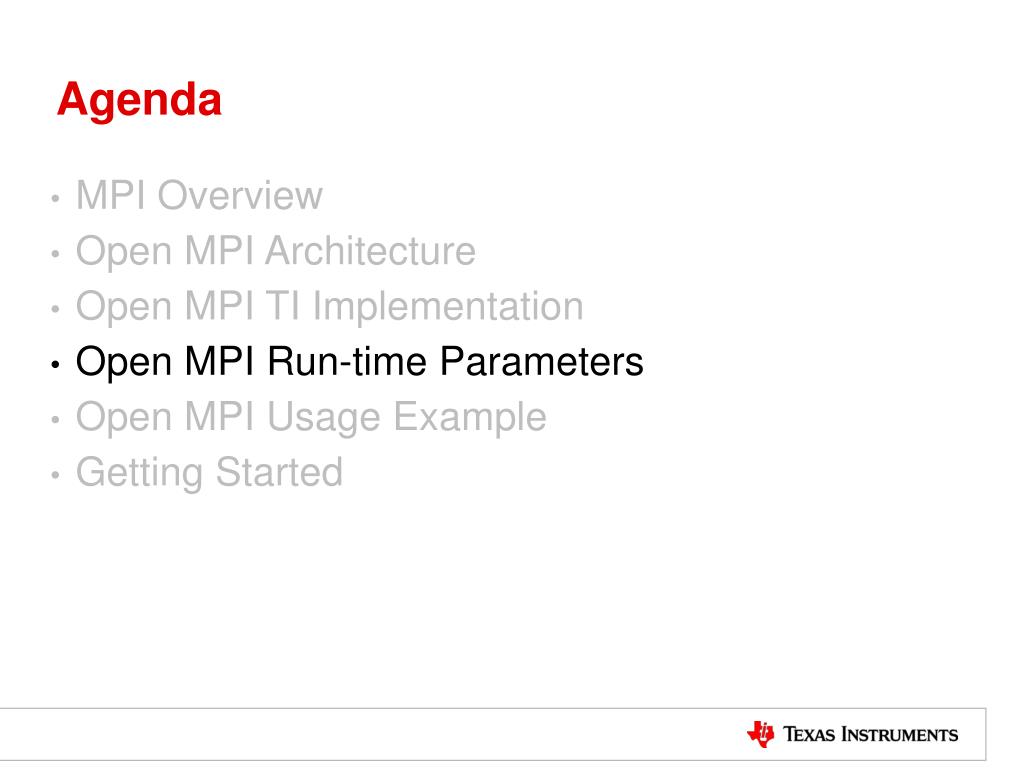

  25. Agenda MPI Overview Open MPI Architecture Open MPI TI Implementation Open MPI Run-time Parameters Open MPI Usage Example Getting Started

  26. Open MPI Run-time Parameters • MCA parameters are the basic unit of run-time tuning for Open MPI. • The system is a flexible mechanism that allows users to change internal Open MPI parameter values at run time • If a task can be implemented in multiple, user-discernible ways, implement as many as possible and make choosing between them be an MCA parameter • Service provided by the MCA base • Does not mean that they are restricted to the MCA components of frameworks • OPAL, ORTE, and OMPI projects all have “base” parameters • Allows users to be proactive and tweak Open MPI's behavior for their environment. It’s allows users to experiment with the parameter space to find the best configuration for their specific system.

  27. MCA parameters lookup order • mpiruncommand line • Environment variable • File, these location are themselves tunable • $HOME/.openmpi/mca-params.conf • $prefix/etc/openmpi-mca-params.conf • Default value • mpirun –mca <name> <value> • export OMPI_MCA_<name> <value>

  28. Show all the MCA parameters for all components that ompi_info finds Show all the MCA parameters for TCP BTL component Show all the MCA parameters for all BTL components MCA run-time parameters usage • Get the MCA information • The ompi_info command can list the parameters for a given component, all the parameters for a specific framework, or all parameters. • MCA Usage • The mpirun command execute serial and parallel jobs in Open MPI /opt/ti-openmpi/bin/ompi_info–param all all Select the btl_base_verbose and use tcp for transport /opt/ti-openmpi/bin/ompi_info–parambtlall /opt/ti-openmpi/bin/ompi_info–parambtltcp /opt/ti-openmpi/bin/mpirun –mcaorte_base_help_aggregate 0 –mcabtl_base_verbose 100 –mcabtl self, tcp –np 2 –host k2node1, k2node2 /home/mpiuser/nbody 1000

  29. Agenda MPI Overview Open MPI Architecture Open MPI TI Implementation Open MPI Run-time Parameters Open MPI Usage Example Getting Started

  30. Open MPI API Usage • Open MPI API is standard MPI API, refer to the following link to get more information: http://www.open-mpi.org/doc/ • This example project locate at <mcsdk-hpc_install_path>/demos/testmpi MPI_Init (&argc, &argv); /* Startup */ /* starts MPI */ MPI_Comm_rank (MPI_COMM_WORLD, &rank); /* Who am I?*/ /* get current process id */ MPI_Comm_size (MPI_COMM_WORLD, &size);/* How many peers do I have */ /* get number of processes */ { /* Get the name of the processor */ char processor_name[320]; intname_len; MPI_Get_processor_name(processor_name, &name_len); printf("Hello world from processor %s, rank %d out of %d processors\n", processor_name, rank, size); gethostname(processor_name, 320); printf ("locally obtained hostname %s\n", processor_name); } MPI_Finalize(); /* Finish the MPI application and release sources*/

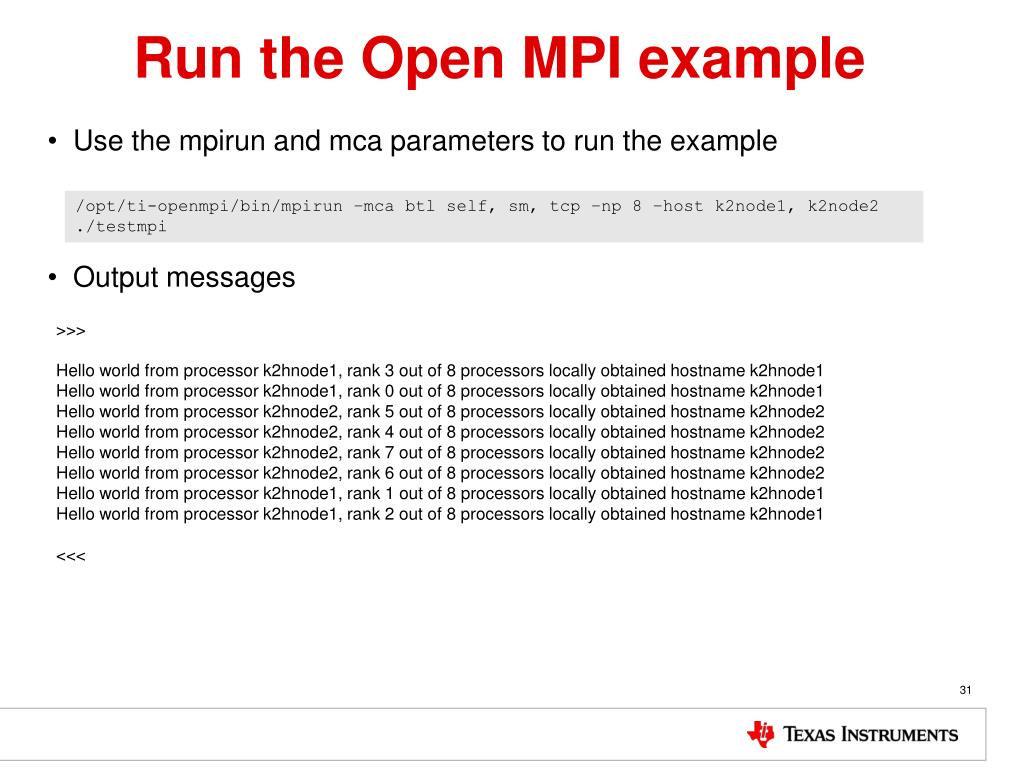

  31. Run the Open MPI example • Use the mpirun and mca parameters to run the example • Output messages /opt/ti-openmpi/bin/mpirun –mcabtl self, sm, tcp –np 8 –host k2node1, k2node2 ./testmpi >>> Hello world from processor k2hnode1, rank 3 out of 8 processors locally obtained hostname k2hnode1 Hello world from processor k2hnode1, rank 0 out of 8 processors locally obtained hostname k2hnode1 Hello world from processor k2hnode2, rank 5 out of 8 processors locally obtained hostname k2hnode2 Hello world from processor k2hnode2, rank 4 out of 8 processors locally obtained hostname k2hnode2 Hello world from processor k2hnode2, rank 7 out of 8 processors locally obtained hostname k2hnode2 Hello world from processor k2hnode2, rank 6 out of 8 processors locally obtained hostname k2hnode2 Hello world from processor k2hnode1, rank 1 out of 8 processors locally obtained hostname k2hnode1 Hello world from processor k2hnode1, rank 2 out of 8 processors locally obtained hostname k2hnode1 <<<

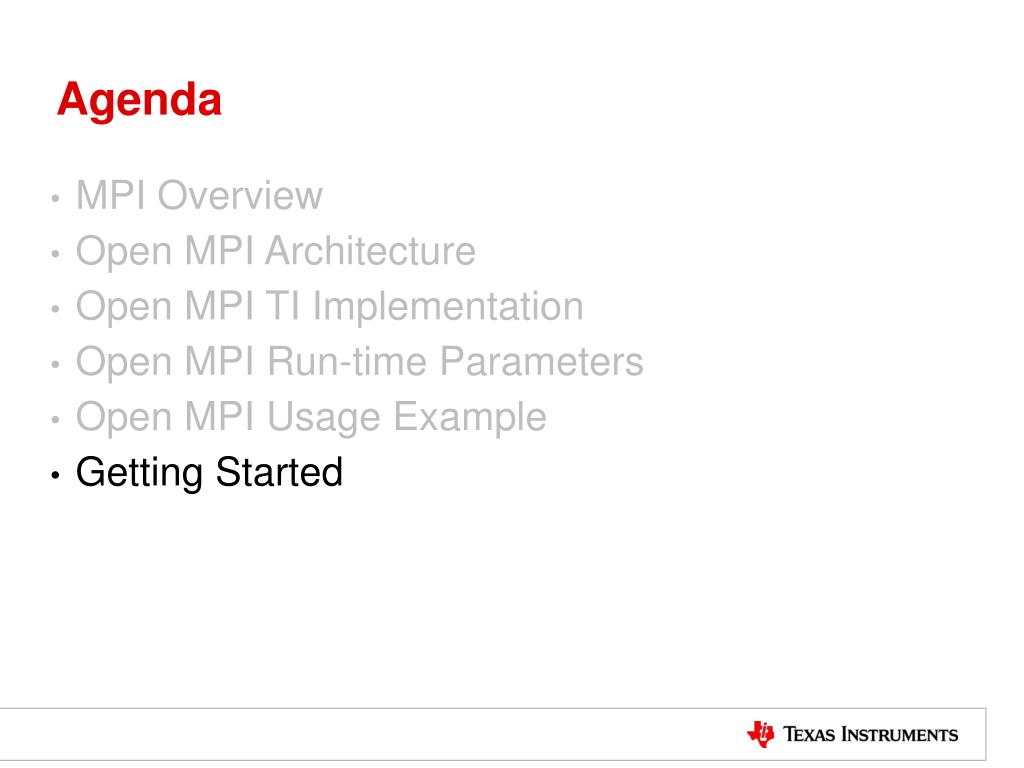

  32. Agenda MPI Overview Open MPI Architecture Open MPI TI Implementation Open MPI Run-time Parameters Open MPI Usage Example Getting Started

  33. Getting Started
