  1. 1701 Golf Road Rolling Meadows IL Anything over IP Presented by: Amit Tivon - Regional Sales Director 201 529 1100 x 322 amit_t@rad.com

  2. Agenda • E&M over PSN – single service • How to select product and technology • E&M to T1 over PSN • How does TDM o IP works • How to access RAD & Hutton • Q&A

  3. E&M over PSN – single service Central side Remote IPMUX-1E IPMUX-1E Products • IPMUX-1E • IPMUX-24 • IPMUX-216 • VMUX-110/210/2120 • MEGAPLEX/KILOMUX • More E&M ETH ETH E&M ETH Radio ETH Radio NMS • Services • E&M for 2 Way Radio • Applications: • Municipalities • Public Safety • Transportation • Utility • Other

  4. GIGE/IP/MPLS Backbone E&M to T1 over PSN VMUX-110/E&M 2 Way Radio 4 E&M VMUX-2120 VMUX-110/E&M GIGE Back Bone 2 Way Radio 4 E&M IPmux-24 16T1 VMUX-110/E&M • Applications: • Service Provider • Municipalities • Public Safety • Transportation • Utility • Other 2 Way Radio 4 E&M

  5. Internet PSTN Off Premise Extension (OPX) + LAN Data over Canopy Radios Remote Site Central Site Vmux-110 Vmux-110 ETH ETH Analogvoice(FXO) Canopy Radios Canopy Radio Analog voice(FXS) PBX • Extend PBX extensions and LAN Data over Canopy radios • Number of analog voice interfaces supported: 4 or 8 • Type of analog voice interfaces supported: FXS, FXO or E&M • Integrated bridge/router ensures QoS by rate limiting the LAN Data and prioritizing voice

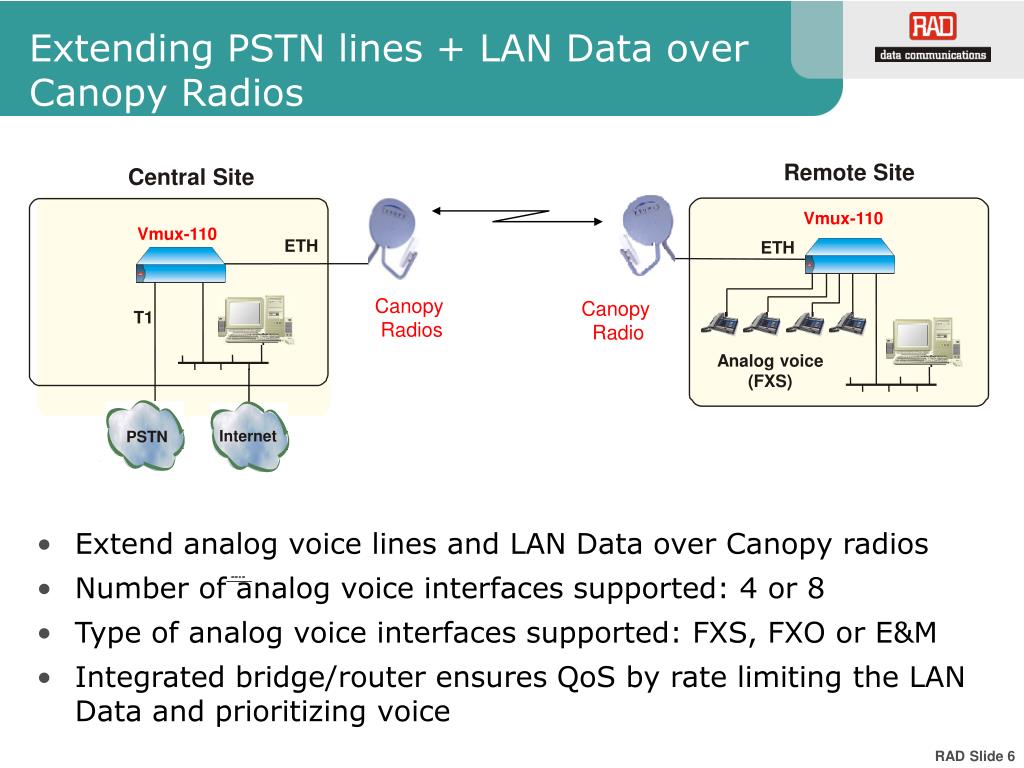

  6. Internet PSTN Extending PSTN lines + LAN Data over Canopy Radios Remote Site Central Site Vmux-110 Vmux-110 ETH ETH Canopy Radios Canopy Radio T1 Analog voice(FXS) • Extend analog voice lines and LAN Data over Canopy radios • Number of analog voice interfaces supported: 4 or 8 • Type of analog voice interfaces supported: FXS, FXO or E&M • Integrated bridge/router ensures QoS by rate limiting the LAN Data and prioritizing voice

  7. Private-Line Automatic Ringdown (PLAR or ARD) over Canopy Radios Vmux-110 Vmux-110 ETH ETH Canopy Radios Canopy Radio Analog voice(FXS) Analog voice(FXS) • Does not require dialing to connect calls • When a telephone goes off-hook, the remote telephone rings • With E&M, when the M lead goes off-hook, the remote E lead (or remote DS0) goes off-hook • Supports supplemental call signaling such as hookflash • Also called “hotline” or "bat-phone“ • Integrated bridge/router ensures QoS by rate limiting the LAN Data and prioritizing voice

  8. Multiplexer, Chanel bank, SONET ADM, Cross connect and ETH switch in one box – the MEGAPLEX - behind the radio system Remote Site Local side T1/E1 • E&M, FXO, FXS • Serial – RS-232, V.35 • T1 or E1 • OC-3 or OC-12 • ETH or GIGE • more PSN FXS ETH or TDM or OC-3/12 MEGAPLEX ETH or TDM or OC-3/12 MEGAPLEX FXO E&M V.35 ETH/TDM/SONET Radio T1 OC-3/12 ETH Rings RS-232 OC-3 OC-12 SONET ETH/GE NMS • Services: • Municipalities • Public Safety • Transportation • Utility • Other

  9. How to select equipment and technology • What is the customer back bone? Delay & Jitter? • Fiber – ETH • Public Internet • Wireless • Leased lines • Satellite • Mix • Does back bone support QoS? • Layer 2 • Layer 3 • None • What is the required service? • T1 to T1 • FXS to FXO • E&M to T1 or E&M to E&M • Push to Talk • T3 to T3 • RS-232/422 • V.35 N*64 • What is the topology? • PTP • Ring • PTMP • Mesh

  10. T1s over a GIGE fiber/wireless ring 4 T1 IPmux-24 IPmux-216 IPmux-24 GbE Ring Fiber/Wireless 4 T1 IPmux-24 16T1 • Applications: • Service Provider • Cellular BH • Municipalities • Public Safety • Transportation • Utility • Other 4 T1 • Resiliency – 50 milliseconds G.8032 • Overcome Jitter and Delay • T1 Facility loopback • Supporting accurate clock recovery for GSM!

  11. TDM Frame TDM Frame Ethernet/IP Packets Packet Switched Network How Does TDMoIP Work? Ethernet/IP Packets • The synchronous bit stream is segmented • Headers are added to each segment to form the packet • Packets are forwarded to destination over the PSN network • At destination, the original bit stream is reconstructed by removing headers, concatenating frames and regenerating the timing

  12. Typical Requirements Aggregate analog payphones, PBX, data and Ethernet via bandwidth-constrained satellite and radio links PBX Vmux-2100 E1/T1s PSTN IP Router E&M 2-way Radio Vmux-110 LAN Oil & Gas MarketOffshore Platform Connectivity Shore-based Data Center Offshore Oil Platforms Vmux-2100 E1/T1s IP Router PBX E&M E&M Trunking System Vmux-110 Corporate LAN

  13. Case StudyGibson County 911 Services TN, USA • County 911 Command Center Relies on RAD Solution to Transport 4-Wire Audio over Wireless Ethernet • Crowded UHF Airwaves Renders County's Original System Unreliable ““We started deploying this system more than 6 months ago and, I must say, it has performed exceptionally well. We can't figure out how we got along without it!” Bob Moore, Operations Manager for 911 Services Gibson County, TN

  14. Case Study City of Norman, OK USA • Wireless Public Safety Network • City of Norman, OK Implements RAD’s Airmux-200 & • Megaplex-2100 for Public Safety Communications Network consolidate all the various communications services into a multiservice platform that would also provide a central point for troubleshooting 4 wire E&M for 2-way radio Video streams ETH LAN traffic Low-speed data

  15. How to access RAD & Hutton • Direct contact – Amit Tivon 201 787 3537 • amit_t@rad.com • Pre Sales – SE – 201 529 1100 x 1 • presales@rad.com • Bob Hagarman - 717-524-7922 • Email: hagarmanb@hutton.com

  16. Q&A

  17. Thank you
