Top 5 causes of poor pellet formation – and how dies may be to blame

1. Top 5 causes of poor pellet formation – and how dies may be to blame

2. Walk any pelletizing line when quality drops, and you’ll hear the same theories. Bad resin batch. Temperature fluctuations. Contaminated feedstock. Operators spend weeks adjusting every variable except the obvious one staring them in the face. The truth is surprisingly consistent: most pellet quality problems trace directly back to pelletizer dies. Not the material, not the temperature controller, not the feed system—the dies themselves. Yet dies remain the last thing anyone checks when pellets come out wrong. This blind spot costs operations through waste, rework, and customer complaints that could have been avoided by understanding how dies affect every aspect of pellet formation. • Worn die holes: the silent production killer • Pelletizer dies don’t announce when they’re failing. They degrade quietly, stealing quality one pellet at a time. What starts as microscopic wear—maybe 0.001″ around the edges—gradually creates flow variations that destroy consistency. Polymer flows like water, finding the easiest path, and worn die holes provide plenty of irregular paths.

3. The symptoms show up everywhere except where operators typically look. Those “angel hairs” trailing from pellets? That’s polymer finding worn edges to cling to. Inconsistent pellet sizes despite stable feed rates? Worn holes create different pressure drops across the die face. One recycling operation discovered their 15% waste rate dropped to 3% after replacing dies they’d considered “still good.” • Here’s what happens: polymer exits worn holes at slightly different velocities, creating variations that the best pelletizer knives can’t overcome. Even premium tungsten carbide pelletizer blades can’t compensate for the polymer that’s already flowing wrong. Whether you’re running underwater pelletizing systems or strand operations, the die condition determines everything downstream. The fix isn’t complicated—scheduled die inspection based on material abrasiveness and running hours. Glass-filled materials might destroy holes in 2,000 hours, while virgin PP runs 8,000 hours without issue.

4. Temperature problems hide in plain sight • Die temperature seems simple until you map it properly. Most operations check one or two points and assume the rest match. Reality? A 5°F variation across the pelletizer dies changes everything about how polymer flows and cuts. That variation turns into sticky pellets on one side and brittle ones on the other. • The die itself often creates these problems. Heating zones that made sense during installation develop dead spots over time. This affects underwater pelletizing particularly hard since water temperature must also stay consistent for proper cooling. Polymer residue builds up unevenly, creating insulation where you don’t want it. Material degradation leaves deposits that affect heat transfer. Before long, the die that should maintain 450°F everywhere ranges from 445°F to 460°F, depending on where you measure.

5. Smart operations learned to temperature map quarterly, checking multiple points across the die face. They discovered that what seemed like material variations were actually temperature inconsistencies affecting how pelletizer blades performed their cuts. One compounder processing TPE fixed three years of “formulation issues” by replacing die heater bands and properly insulating their die assembly. • Alignment: where precision meets reality • Perfect die-to-blade alignment sounds like overkill until you calculate what misalignment costs. A 0.003″ gap variation between pelletizer dies and pelletizer knives creates fines that contaminate everything downstream. Dust levels spike. Pellet length varies wildly. The cutting system works harder, wearing blades faster, generating more heat, and creating more problems.

6. Dies contribute to alignment issues through face runout, mounting surface wear, and thermal expansion that nobody accounted for during installation. That die face that looked perfectly flat and cold might bow 0.002″ at operating temperature. This becomes critical in helical pelletizer setups where the rotating blade must maintain consistent contact across the entire die face. Mounting bolts that seemed tight last month loosened from thermal cycling. The die that aligned perfectly with standard pelletizer blades might not match up with upgraded carbide knife geometries. • The diagnostic is straightforward: check the gap at multiple points around the die while at operating temperature. Document the readings. When variation exceeds 0.002″, it’s time for correction. Sometimes that means shimming. Sometimes machining. Sometimes replacement. But always, it means stopping the cascade of problems misalignment creates between pelletizer knives and dies.

7. Build-up: the gradual performance thief • Polymer doesn’t just pass through pelletizer dies—it leaves calling cards. Degraded material plates onto surfaces. Additives accumulate in low-flow zones. What started as mirror-finish holes develops texture that grabs more material, accelerating the problem. After six months, those pristine dies look like they’ve aged years. • Black specks in clear pellets often trace directly to die contamination. This problem intensifies in underwater pelletizing, where temperature shock can cause material to stick more readily. Discolored streaks point to degraded material hiding in die crevices. That “occasional” contamination during color changes? Usually, die build-up releases unpredictably. The die becomes a contamination source rather than just a flow path for pelletizer blades to cut against.

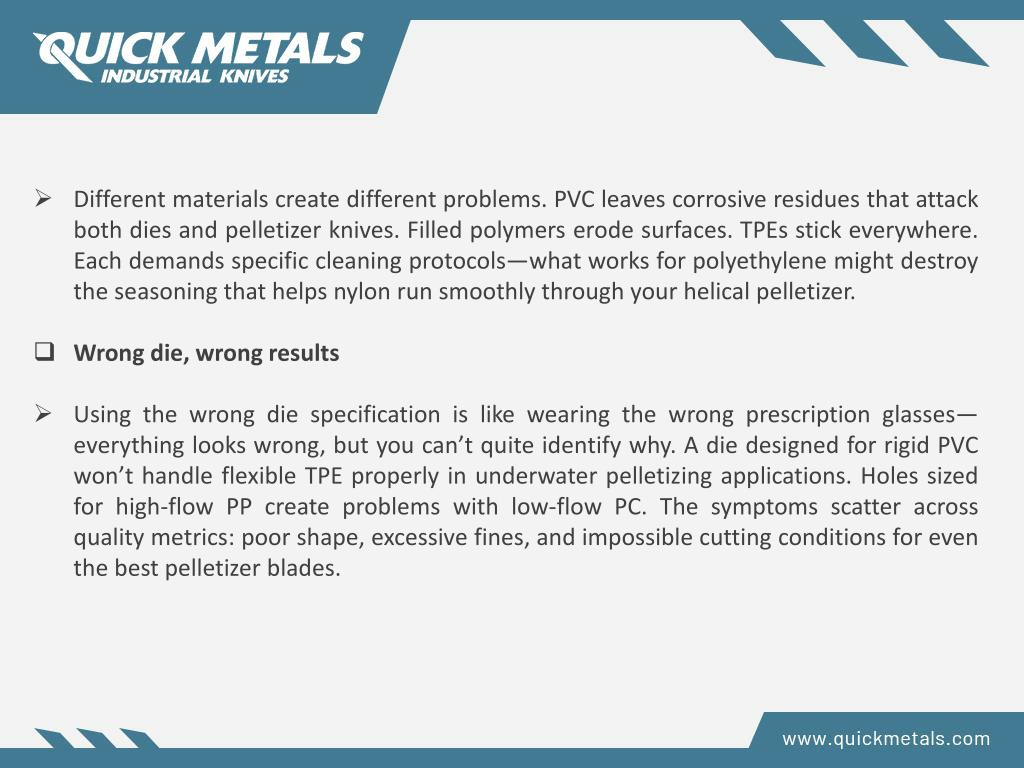

8. Different materials create different problems. PVC leaves corrosive residues that attack both dies and pelletizer knives. Filled polymers erode surfaces. TPEs stick everywhere. Each demands specific cleaning protocols—what works for polyethylene might destroy the seasoning that helps nylon run smoothly through your helical pelletizer. • Wrong die, wrong results • Using the wrong die specification is like wearing the wrong prescription glasses—everything looks wrong, but you can’t quite identify why. A die designed for rigid PVC won’t handle flexible TPE properly in underwater pelletizing applications. Holes sized for high-flow PP create problems with low-flow PC. The symptoms scatter across quality metrics: poor shape, excessive fines, and impossible cutting conditions for even the best pelletizer blades.

9. Die specifications matter more than most operations realize. Hole geometry, land length, and entry angles—each affects how material exits and how pelletizer knives perform their cuts. Soft polymers need different support than rigid ones. Filled materials require different approaches than virgin resins. High-viscosity materials demand different pressure drops than low-viscosity grades, especially in underwater pelletizing, where cooling happens instantly. • One processor struggled for months with a new glass-filled grade until switching to pelletizer dies specifically designed for abrasive materials. The change from standard 90-degree entry angles to optimized 45-degree angles transformed their operation. Fines dropped 70%. Pelletizer blade life doubled. The “difficult” material became routine.

10. The path forward • Poor pellet formation usually isn’t mysterious—it’s the pelletizer dies telling you they need attention. The evidence shows up in pellet quality, dust levels, and waste rates. Smart operations learned to look at dies first when pellet problems appear, not last after exhausting other possibilities. • The fix starts with honest die assessment. Measure wear. Map temperatures. Check alignment between dies and pelletizer knives. Document build-up. Match specifications to materials and whether you’re running strand, underwater pelletizing, or helical pelletizer systems. Most operations discover their dies are working harder than necessary, creating problems that cascade through the entire line. • Quality pellets require sharp pelletizer blades cutting clean polymer from good pelletizer dies. Skimp on any element and the others can’t compensate. But when dies perform properly, everything else falls into place—including the bottom line.
