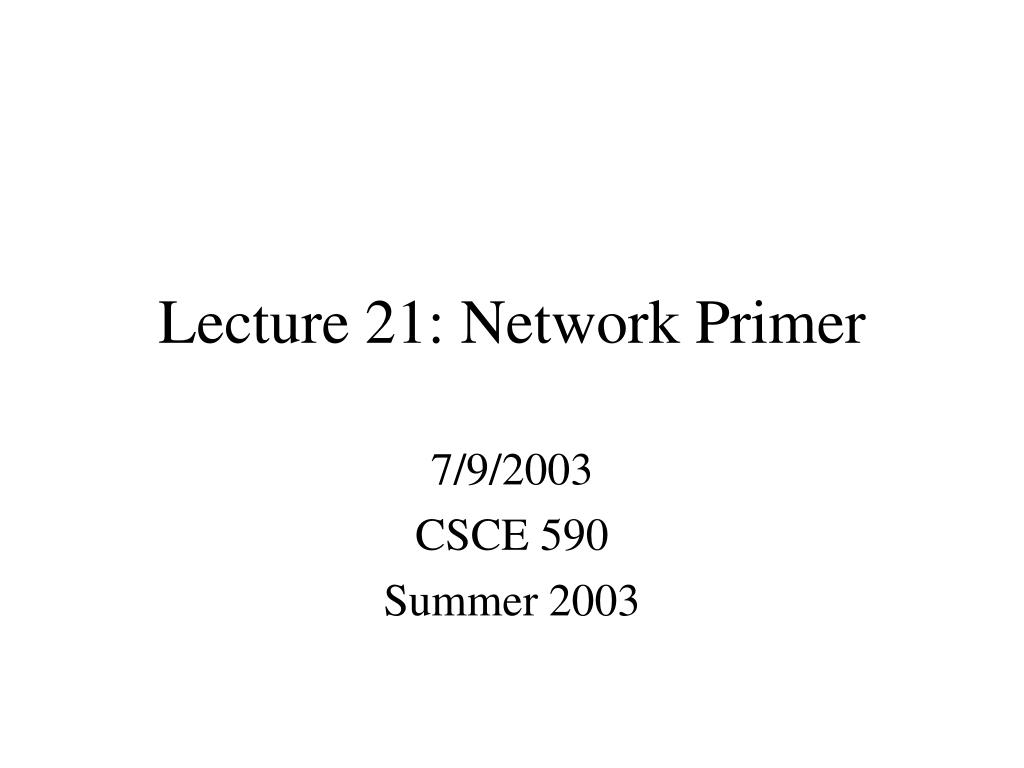

  1. Lecture 21: Network Primer 7/9/2003 CSCE 590 Summer 2003

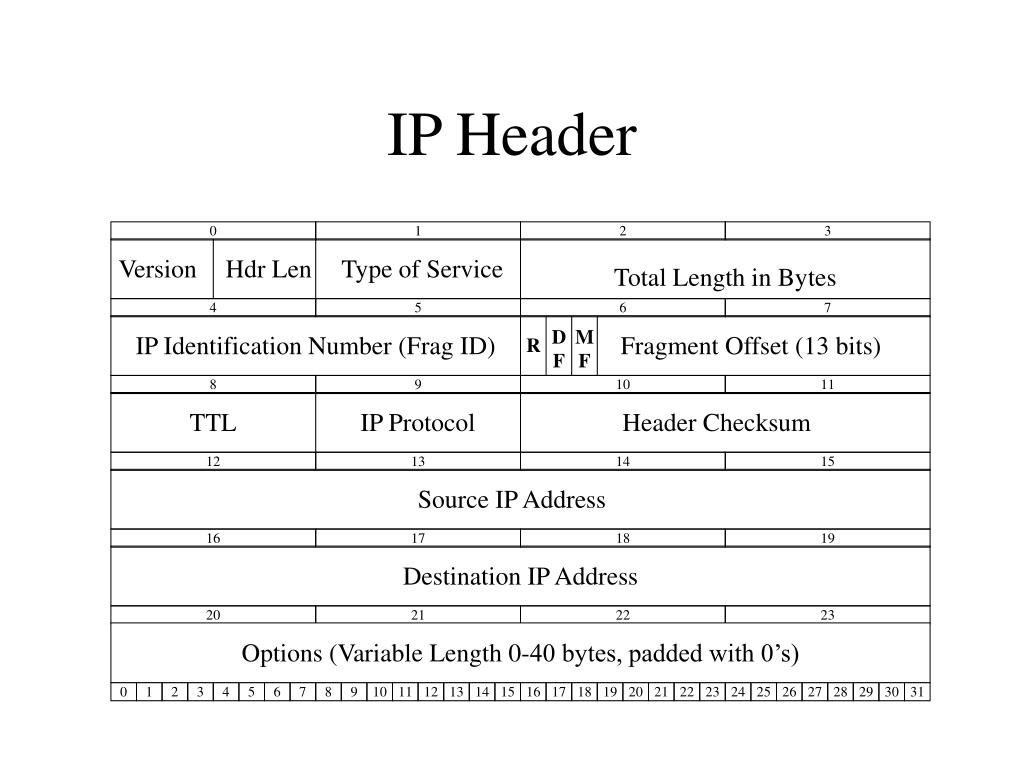

  2. Version Hdr Len Type of Service Total Length in Bytes IP Identification Number (Frag ID) DF MF Fragment Offset (13 bits) R TTL IP Protocol Header Checksum Source IP Address Destination IP Address Options (Variable Length 0-40 bytes, padded with 0’s) 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 20 16 12 8 4 0 17 5 21 9 1 13 2 22 18 14 6 10 7 19 3 15 23 11 IP Header

  3. IP Header Fields: TTL • TTL: Time To Live, 8 bits, maximum number of hops a packet can take. • Each router along the way decrements it • If it reaches zero, that router returns an ICMP time-exceeded packet to the source • This keeps lost and looping packets from wandering the Internet forever • Can be used for evasion and reconnaissance • Insert a packet with a TTL that expires into a stream to break up signature an IDS may see, but it times out before it ever gets to the host

  4. TTL Example 10/01-12:45:07.501646 210.181.246.201:1310 -> 129.252.243.173:80 TCPTTL:111 TOS:0x0 ID:51149 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK =+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+= 10/01-12:45:07.501804 210.181.246.201:1310 -> 129.252.243.173:80 TCP TTL:109 TOS:0x0 ID:51149 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK =+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+= 10/01-12:45:07.502067 210.181.246.201:1310 -> 129.252.243.173:80 TCP TTL:107 TOS:0x0 ID:51149 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK =+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+= 10/01-12:45:07.502089 210.181.246.201:1310 -> 129.252.243.173:80 TCP TTL:105 TOS:0x0 ID:51149 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK

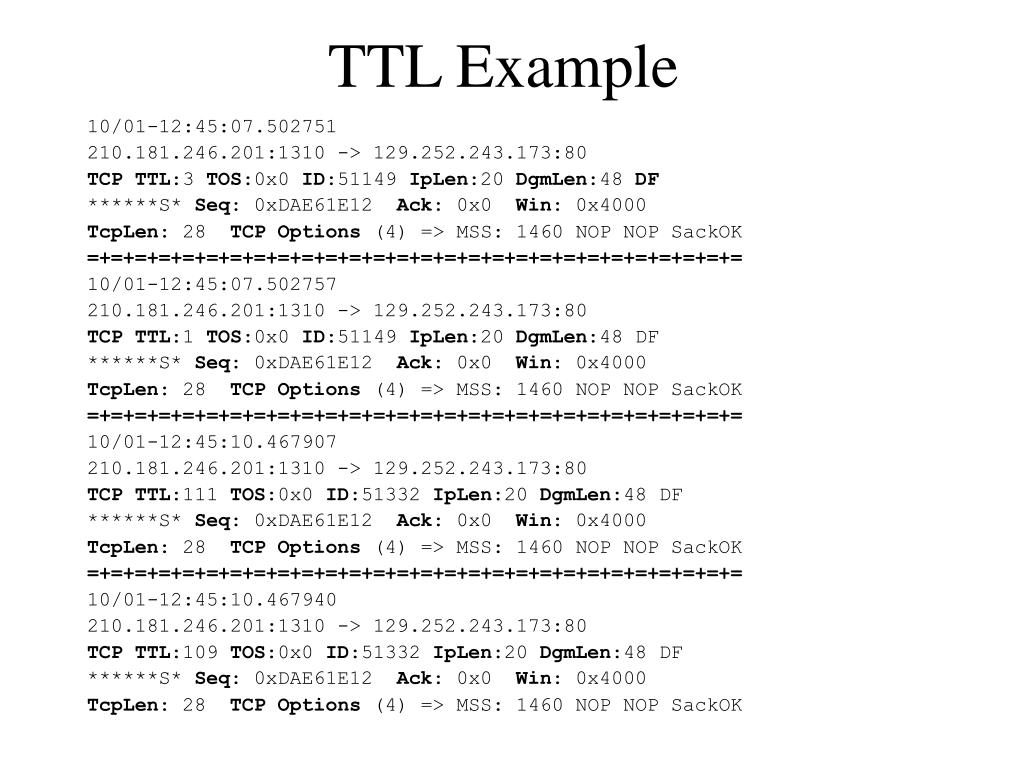

  5. TTL Example 10/01-12:45:07.502751 210.181.246.201:1310 -> 129.252.243.173:80 TCPTTL:3 TOS:0x0 ID:51149 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK =+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+= 10/01-12:45:07.502757 210.181.246.201:1310 -> 129.252.243.173:80 TCPTTL:1 TOS:0x0 ID:51149 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK =+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+= 10/01-12:45:10.467907 210.181.246.201:1310 -> 129.252.243.173:80 TCPTTL:111 TOS:0x0 ID:51332 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK =+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+= 10/01-12:45:10.467940 210.181.246.201:1310 -> 129.252.243.173:80 TCPTTL:109 TOS:0x0 ID:51332 IpLen:20 DgmLen:48 DF ******S* Seq: 0xDAE61E12 Ack: 0x0 Win: 0x4000 TcpLen: 28 TCP Options (4) => MSS: 1460 NOP NOP SackOK

  6. IP Header Fields • IP Protocol: 8 bits, what type of header follow the IP header (which IP protocol is being used) • ICMP = 1 • TCP = 6 • UDP = 17 • And others • Header Checksum: 16 bits, checksum of the IP header

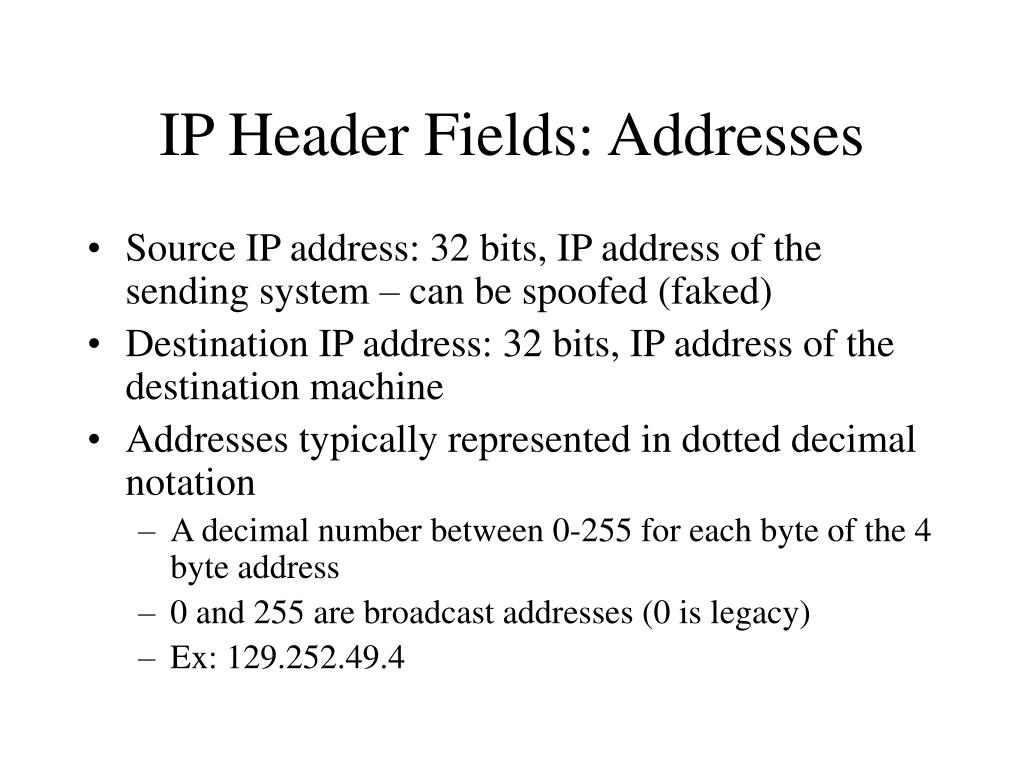

  7. IP Header Fields: Addresses • Source IP address: 32 bits, IP address of the sending system – can be spoofed (faked) • Destination IP address: 32 bits, IP address of the destination machine • Addresses typically represented in dotted decimal notation • A decimal number between 0-255 for each byte of the 4 byte address • 0 and 255 are broadcast addresses (0 is legacy) • Ex: 129.252.49.4

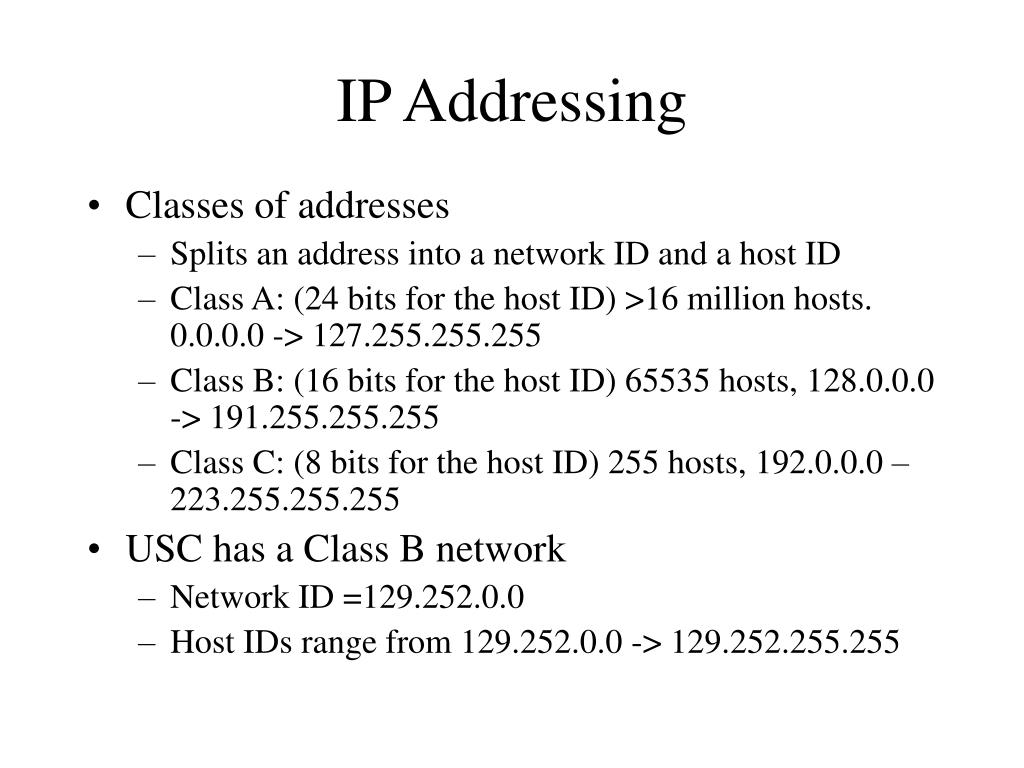

  8. IP Addressing • Classes of addresses • Splits an address into a network ID and a host ID • Class A: (24 bits for the host ID) >16 million hosts. 0.0.0.0 -> 127.255.255.255 • Class B: (16 bits for the host ID) 65535 hosts, 128.0.0.0 -> 191.255.255.255 • Class C: (8 bits for the host ID) 255 hosts, 192.0.0.0 – 223.255.255.255 • USC has a Class B network • Network ID =129.252.0.0 • Host IDs range from 129.252.0.0 -> 129.252.255.255

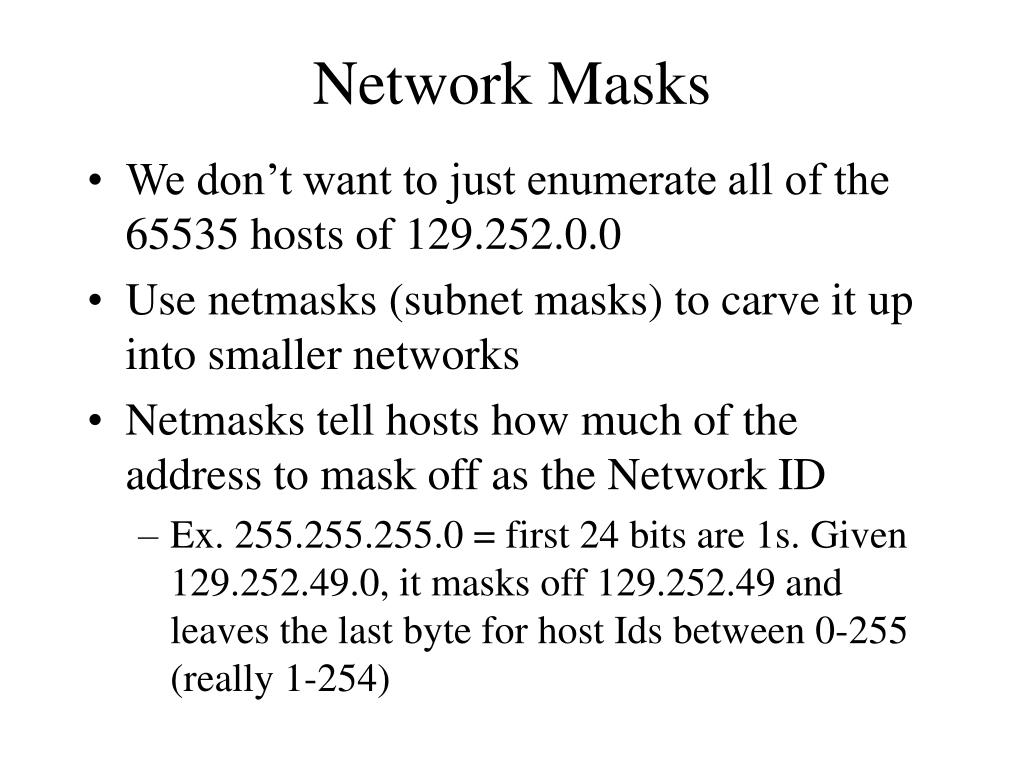

  9. Network Masks • We don’t want to just enumerate all of the 65535 hosts of 129.252.0.0 • Use netmasks (subnet masks) to carve it up into smaller networks • Netmasks tell hosts how much of the address to mask off as the Network ID • Ex. 255.255.255.0 = first 24 bits are 1s. Given 129.252.49.0, it masks off 129.252.49 and leaves the last byte for host Ids between 0-255 (really 1-254)

  10. Variable Length Network Masks • Common masks are 16 (255.255.0.0) and 24 (255.255.255.0) bits • Variable length masks are like 25 bits = 255.255.255.128 and splits a Class C in half. • For a network ID of 129.252.49.0/25, addresses range from 129.252.49.0-129.252.49.127. Broadcast addresses = 129.252.49.0 and 129.252.49.127 • The other half is represented 129.252.49.128/25 and addresses range from 129.252.49.128-129.252.49.255. Broadcast addresses = 129.252.49.128 and 129.252.49.255 • The more you split it, the more addresses you lose to broadcast and network addresses.

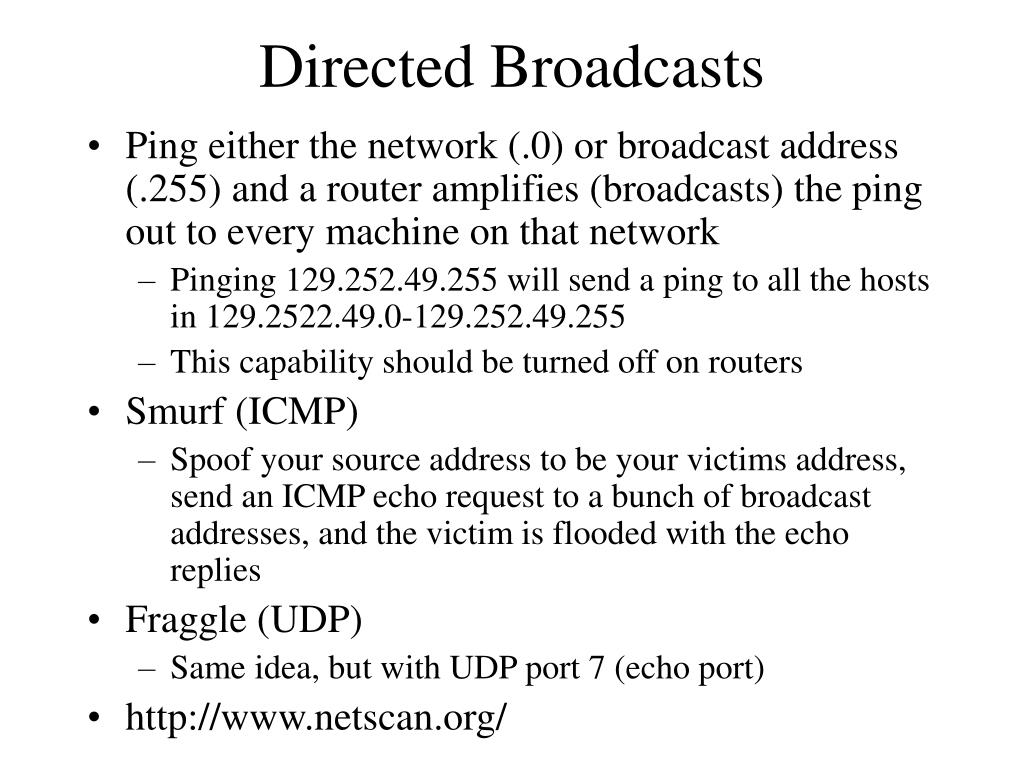

  11. Directed Broadcasts • Ping either the network (.0) or broadcast address (.255) and a router amplifies (broadcasts) the ping out to every machine on that network • Pinging 129.252.49.255 will send a ping to all the hosts in 129.2522.49.0-129.252.49.255 • This capability should be turned off on routers • Smurf (ICMP) • Spoof your source address to be your victims address, send an ICMP echo request to a bunch of broadcast addresses, and the victim is flooded with the echo replies • Fraggle (UDP) • Same idea, but with UDP port 7 (echo port) • http://www.netscan.org/

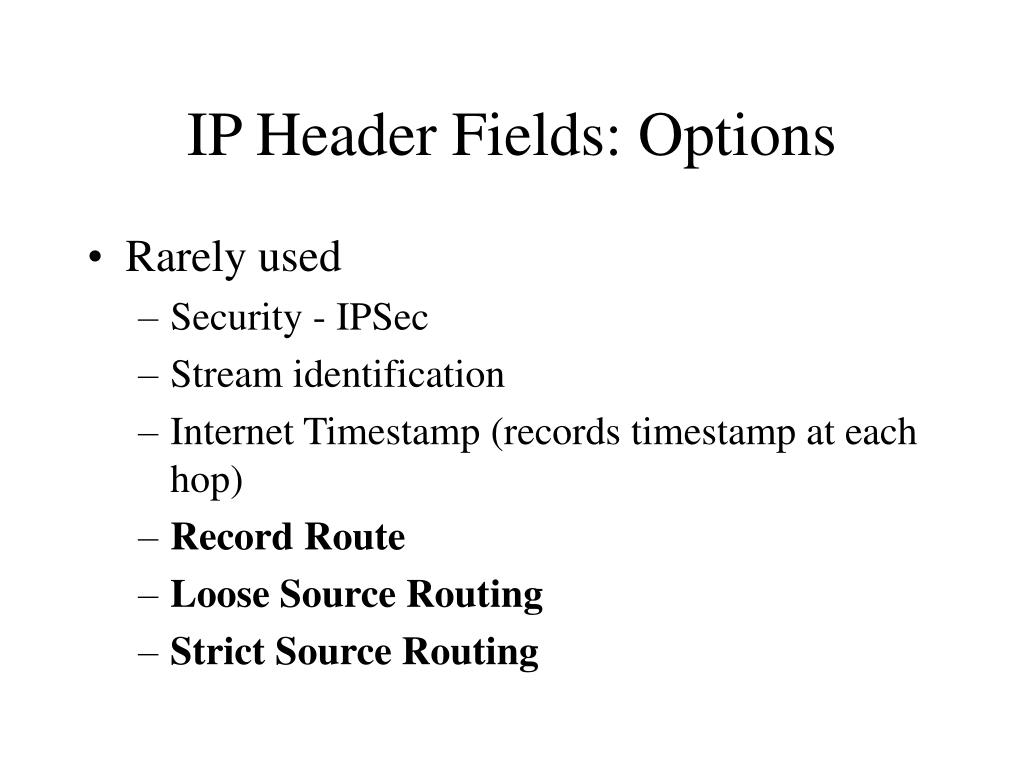

  12. IP Header Fields: Options • Rarely used • Security - IPSec • Stream identification • Internet Timestamp (records timestamp at each hop) • Record Route • Loose Source Routing • Strict Source Routing

  13. code length ptr IP address 1 IP address 2 … IP address 5 IP Route Options • Codes: • 0x07 = Record Route Option • 0x83 = Loose Source Routing • 0x89 = Strict Source Routing • Length = determone # of IP addresses in list • Pointer (ptr) = pointer to current IP address in option list

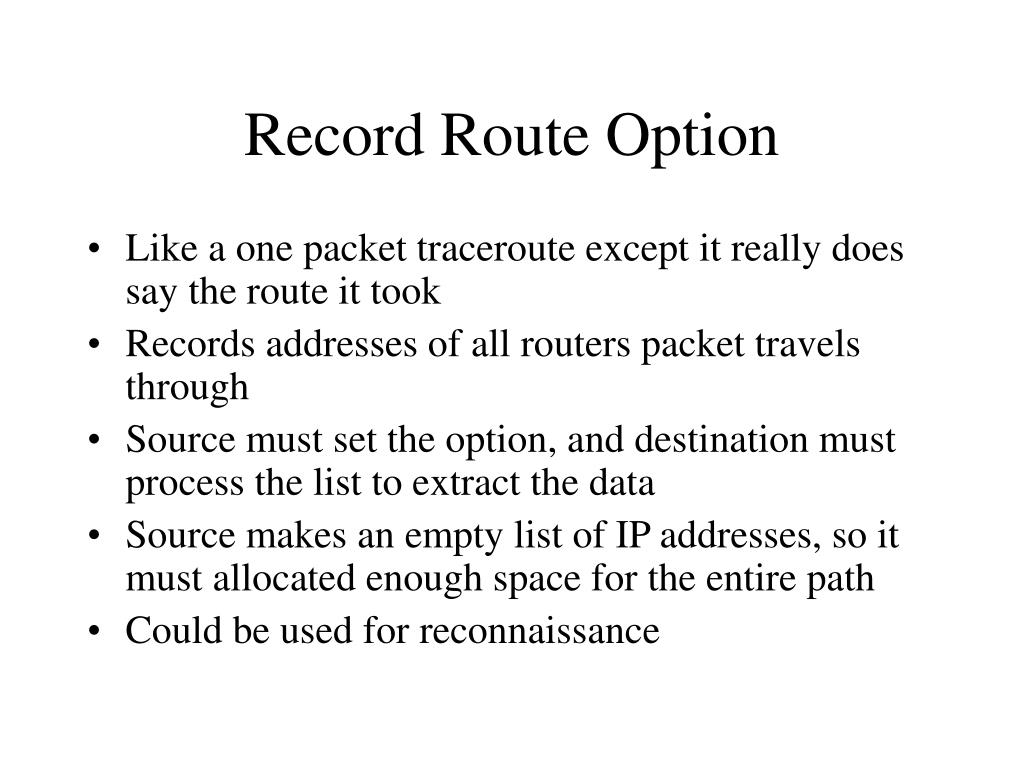

  14. Record Route Option • Like a one packet traceroute except it really does say the route it took • Records addresses of all routers packet travels through • Source must set the option, and destination must process the list to extract the data • Source makes an empty list of IP addresses, so it must allocated enough space for the entire path • Could be used for reconnaissance

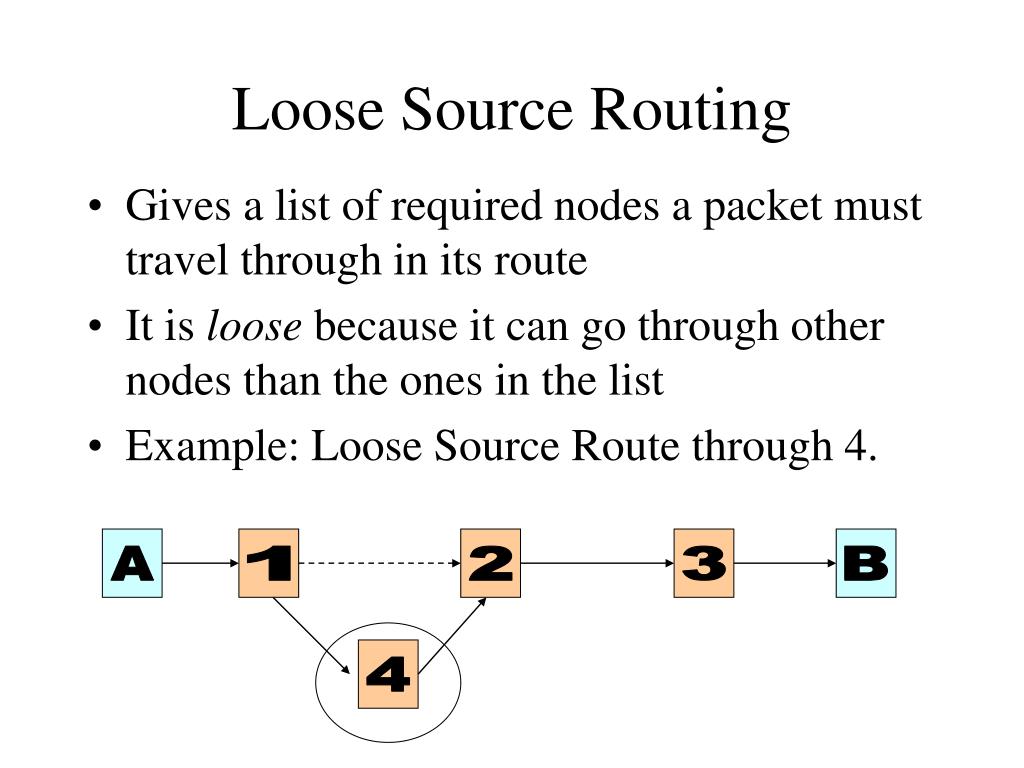

  15. A 1 2 3 B 4 Loose Source Routing • Gives a list of required nodes a packet must travel through in its route • It is loose because it can go through other nodes than the ones in the list • Example: Loose Source Route through 4.

  16. Strict Source Routing • Specifies the exact path a packet must go for up to the first 9 hops • It is strict because it must go through this path or not at all. • Ex: Strict Source Route through 1,4,3 A 1 2 3 B 4

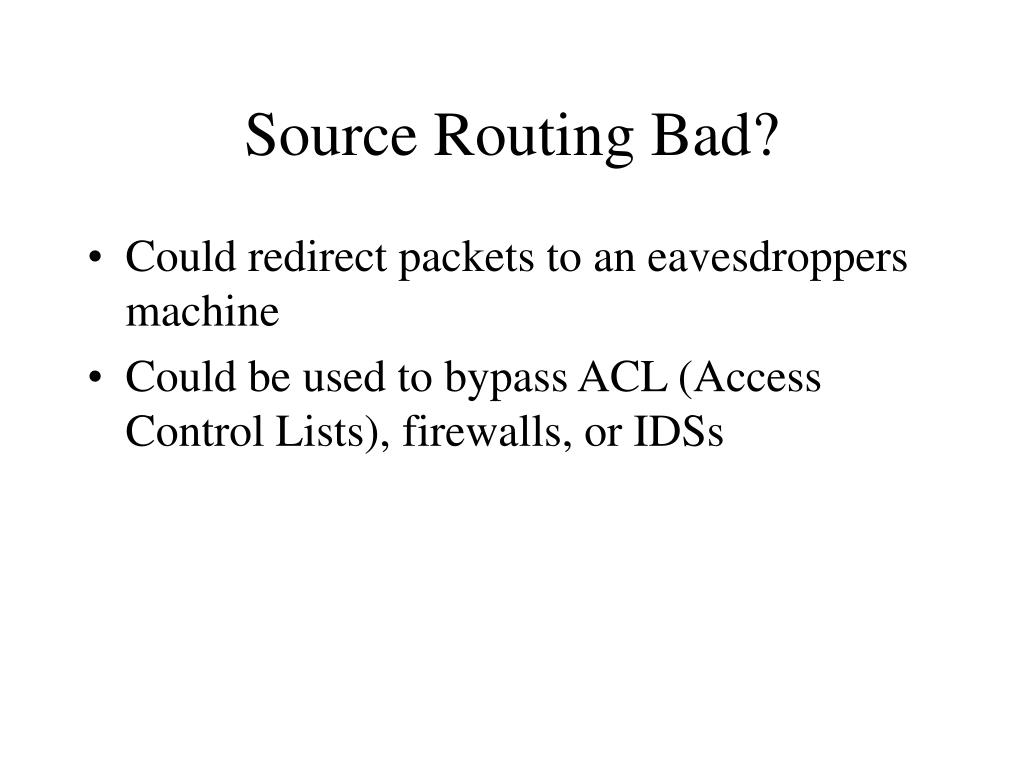

  17. Source Routing Bad? • Could redirect packets to an eavesdroppers machine • Could be used to bypass ACL (Access Control Lists), firewalls, or IDSs

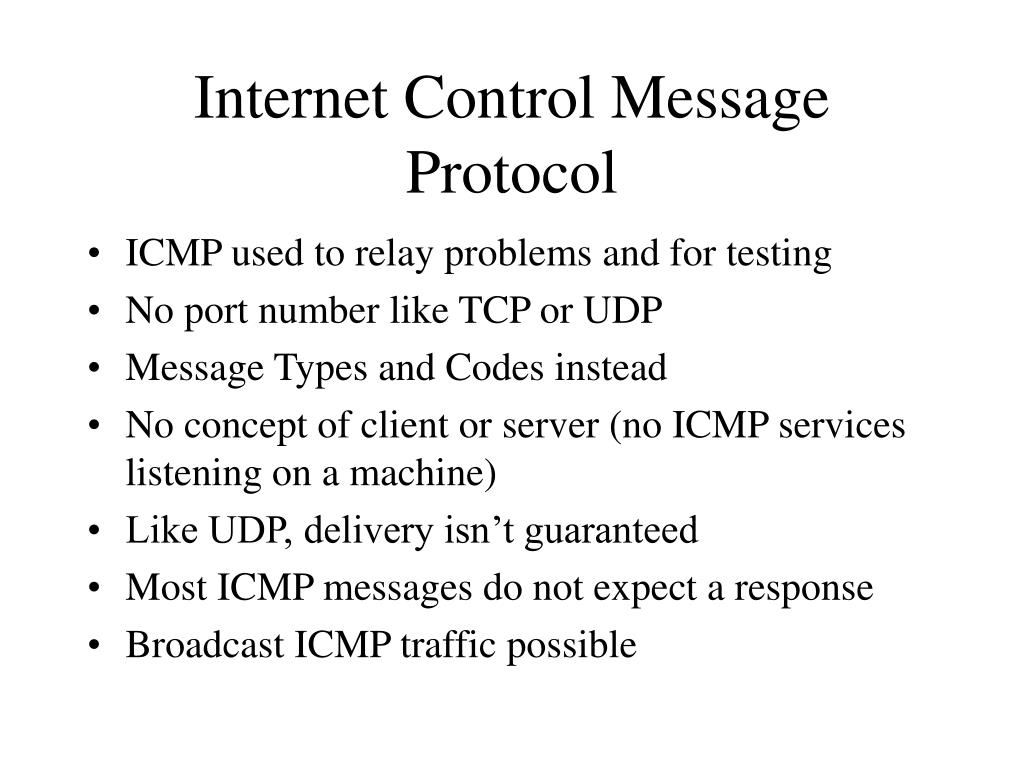

  18. Internet Control Message Protocol • ICMP used to relay problems and for testing • No port number like TCP or UDP • Message Types and Codes instead • No concept of client or server (no ICMP services listening on a machine) • Like UDP, delivery isn’t guaranteed • Most ICMP messages do not expect a response • Broadcast ICMP traffic possible

  19. ICMP Queries • Ping • Echo Request (8,0) (type,code) • Echo Reply (0,0) • Timestamp • Timestamp request (13,0) • Timestamp reply (14,0) • Information: Obsoleted by bootp, RARP, DHCP • Information Request (15,0) • Information Reply (16,0) • Address Mask • Address Mask Request (17,0) • Address Mask Reply (18,0)

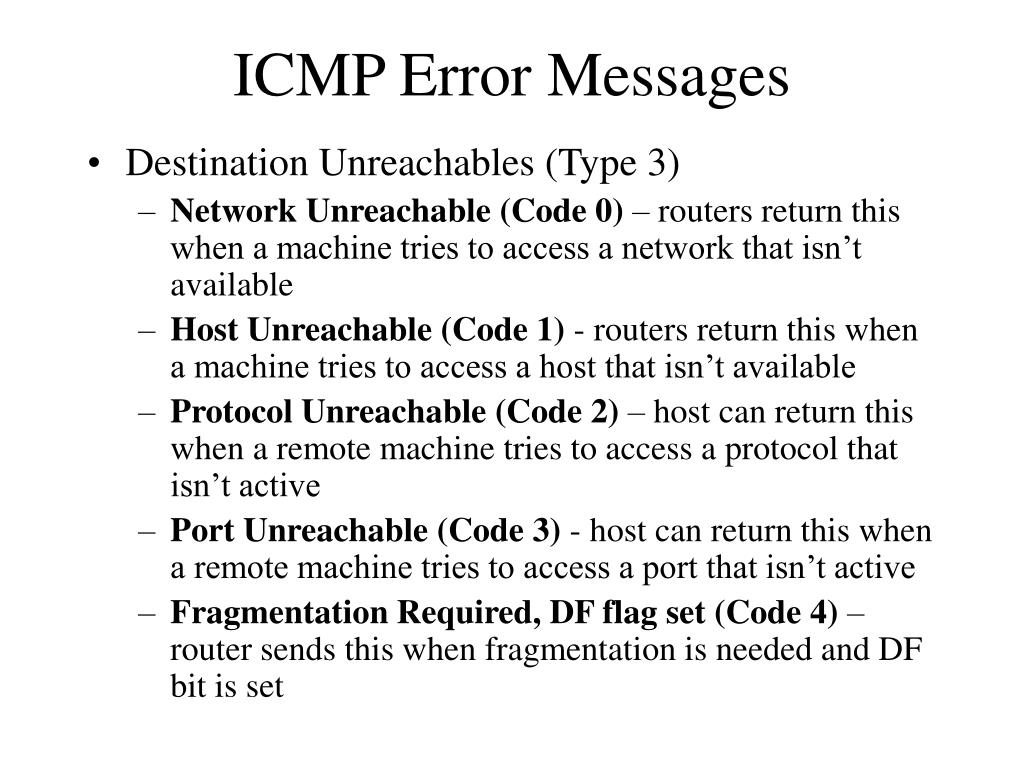

  20. ICMP Error Messages • Destination Unreachables (Type 3) • Network Unreachable (Code 0) – routers return this when a machine tries to access a network that isn’t available • Host Unreachable (Code 1) - routers return this when a machine tries to access a host that isn’t available • Protocol Unreachable (Code 2) – host can return this when a remote machine tries to access a protocol that isn’t active • Port Unreachable (Code 3) - host can return this when a remote machine tries to access a port that isn’t active • Fragmentation Required, DF flag set (Code 4) – router sends this when fragmentation is needed and DF bit is set

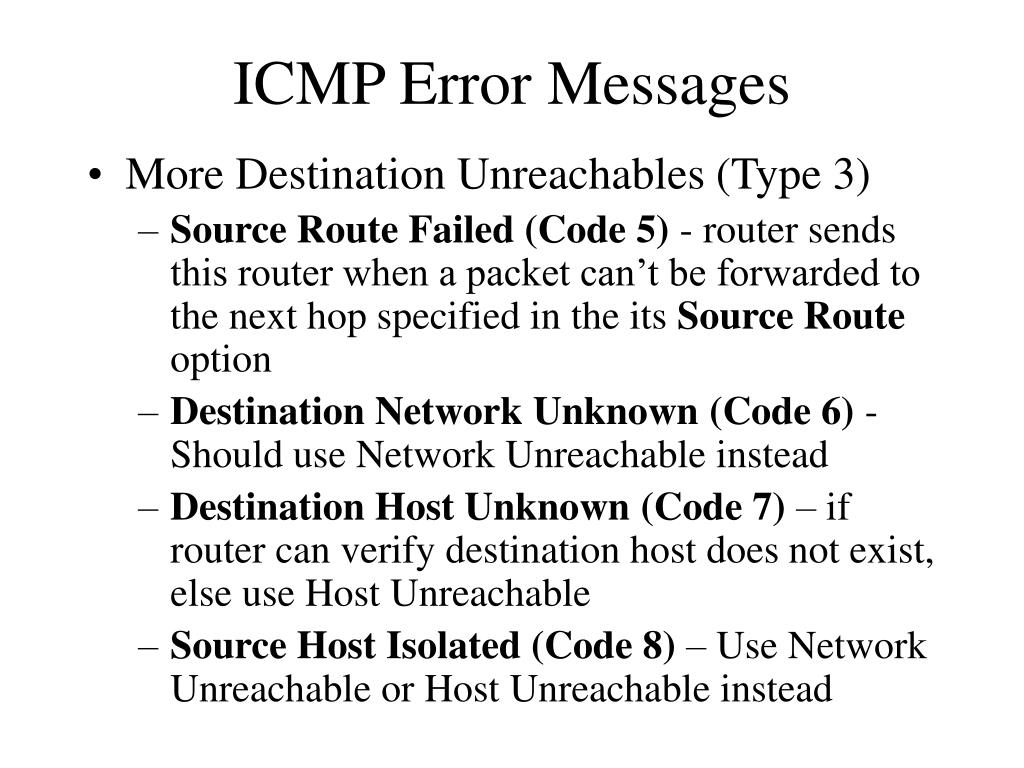

  21. ICMP Error Messages • More Destination Unreachables (Type 3) • Source Route Failed (Code 5) - router sends this router when a packet can’t be forwarded to the next hop specified in the its Source Route option • Destination Network Unknown (Code 6) - Should use Network Unreachable instead • Destination Host Unknown (Code 7) – if router can verify destination host does not exist, else use Host Unreachable • Source Host Isolated (Code 8) – Use Network Unreachable or Host Unreachable instead

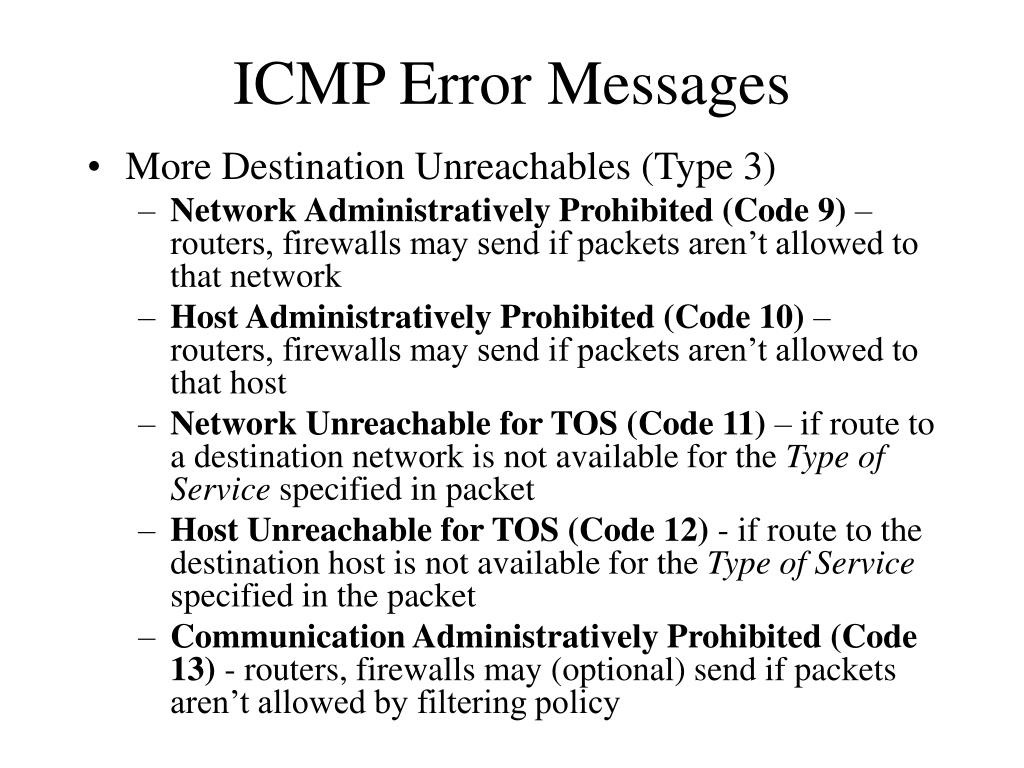

  22. ICMP Error Messages • More Destination Unreachables (Type 3) • Network Administratively Prohibited (Code 9) – routers, firewalls may send if packets aren’t allowed to that network • Host Administratively Prohibited (Code 10) – routers, firewalls may send if packets aren’t allowed to that host • Network Unreachable for TOS (Code 11) – if route to a destination network is not available for the Type of Service specified in packet • Host Unreachable for TOS (Code 12) - if route to the destination host is not available for the Type of Service specified in the packet • Communication Administratively Prohibited (Code 13) - routers, firewalls may (optional) send if packets aren’t allowed by filtering policy

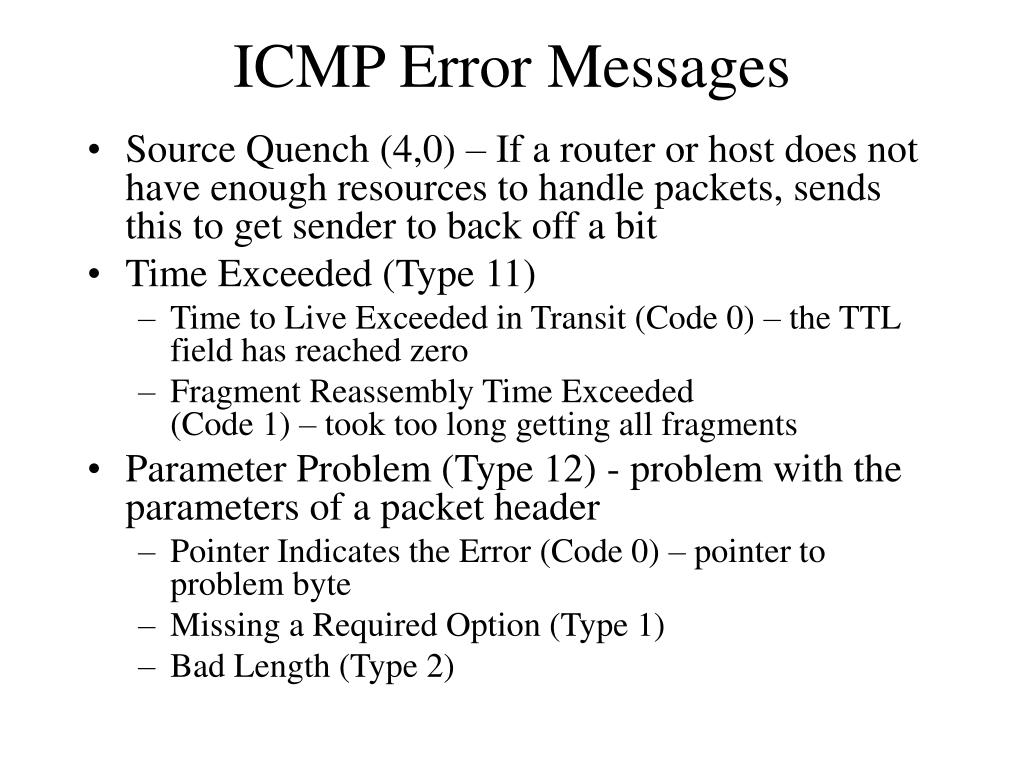

  23. ICMP Error Messages • Source Quench (4,0) – If a router or host does not have enough resources to handle packets, sends this to get sender to back off a bit • Time Exceeded (Type 11) • Time to Live Exceeded in Transit (Code 0) – the TTL field has reached zero • Fragment Reassembly Time Exceeded (Code 1) – took too long getting all fragments • Parameter Problem (Type 12) - problem with the parameters of a packet header • Pointer Indicates the Error (Code 0) – pointer to problem byte • Missing a Required Option (Type 1) • Bad Length (Type 2)

  24. ICMP Error Messages • Redirect (type 5) • Redirect Datagram for the Network (Code 0) • Redirect Datagram for the Host (Code 1) • Redirect Datagram for the TOS & Network (Code 2) • Redirect Datagram for the TOS & Host (Code 3) • A router receives a packet from a host and it identifies from its routing tables that the next hop to the packet’s destination is on the same network that the packet just came from, then a redirect message is sent to the source host • Router forwards packet to the correct next hop • When source gets the redirect, it modifies its route table accordingly

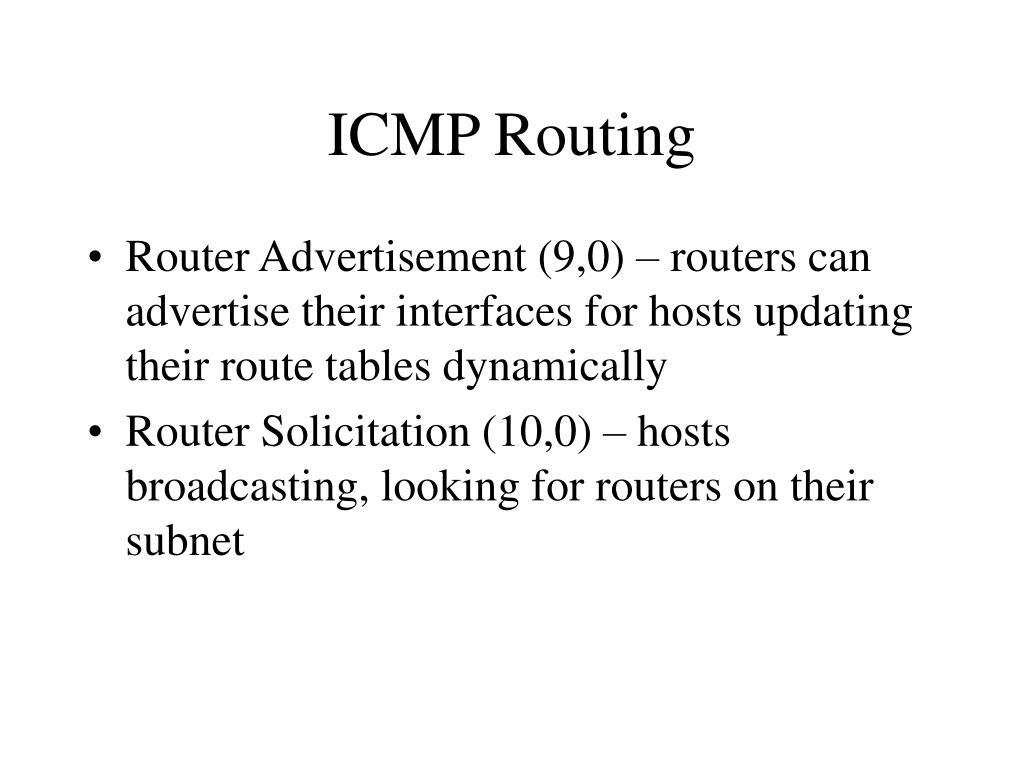

  25. ICMP Routing • Router Advertisement (9,0) – routers can advertise their interfaces for hosts updating their route tables dynamically • Router Solicitation (10,0) – hosts broadcasting, looking for routers on their subnet

  26. Message Type Checksum Message Code 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 0 1 2 3 ICMP Header

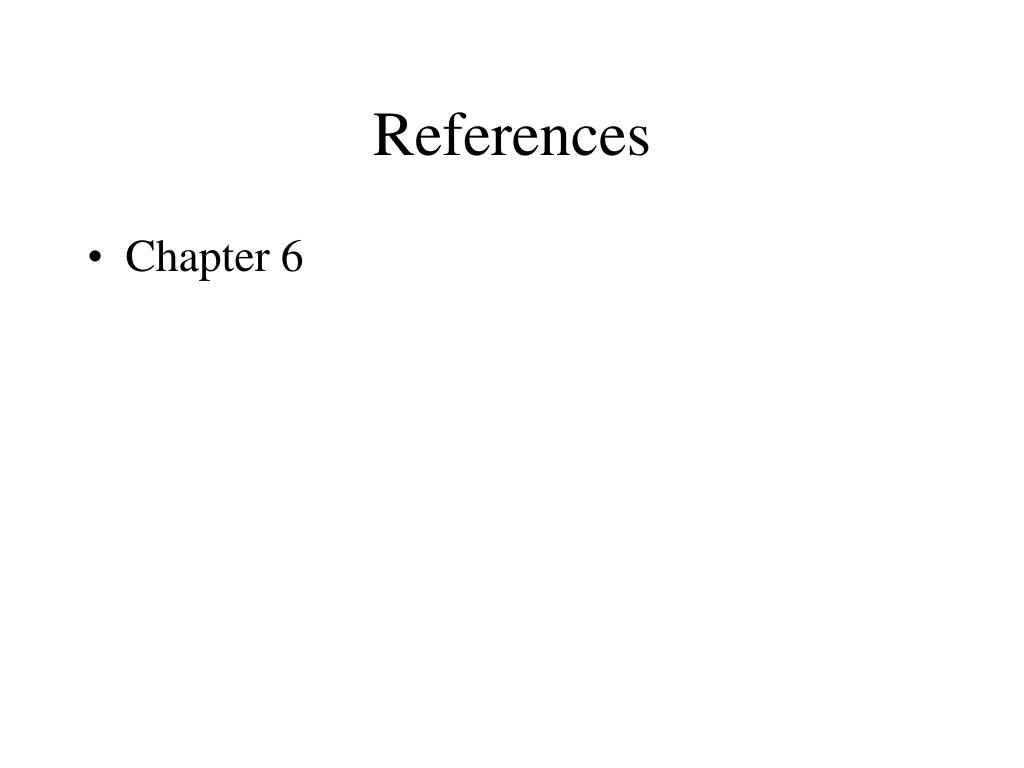

  27. References • Chapter 6
