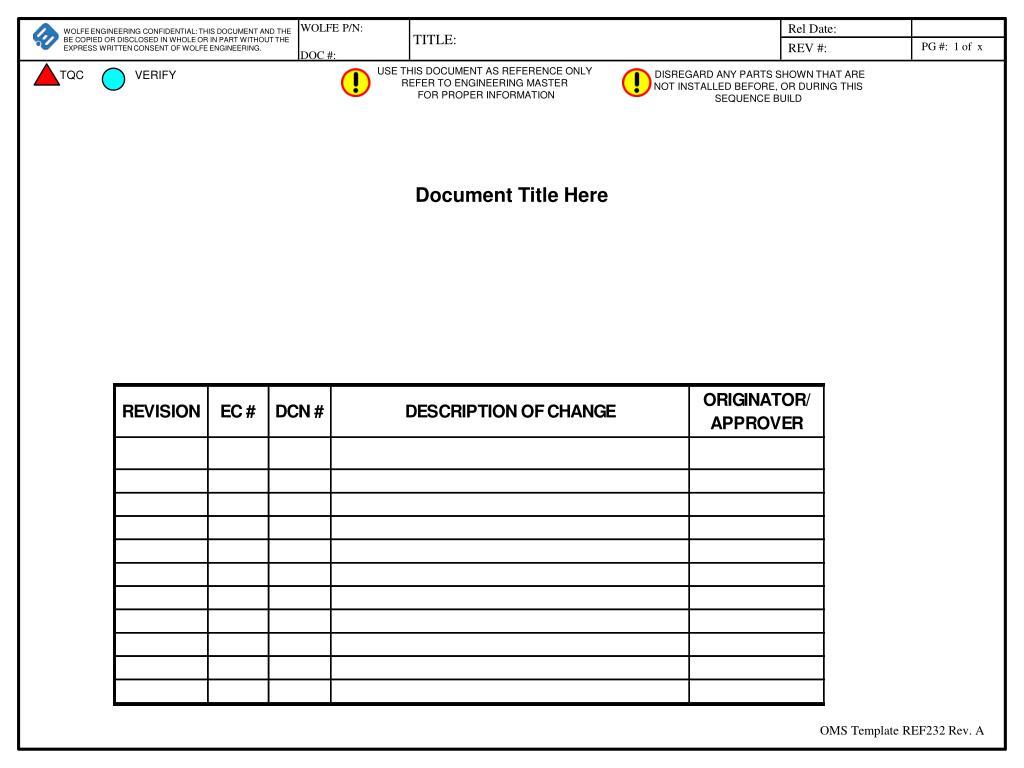

  1. Document Title Here OMS Template REF232 Rev. A

  2. Table of Contents: Section 1.0 List of applicable documents Section 2.0 Unique Tool or Equipment List Section 3.0 ESD Precautions. Section 4.0 Safety Precautions. Section 5.0 Assembly Instructions Section 6.0 Operator Certification Guideline or Checklist.

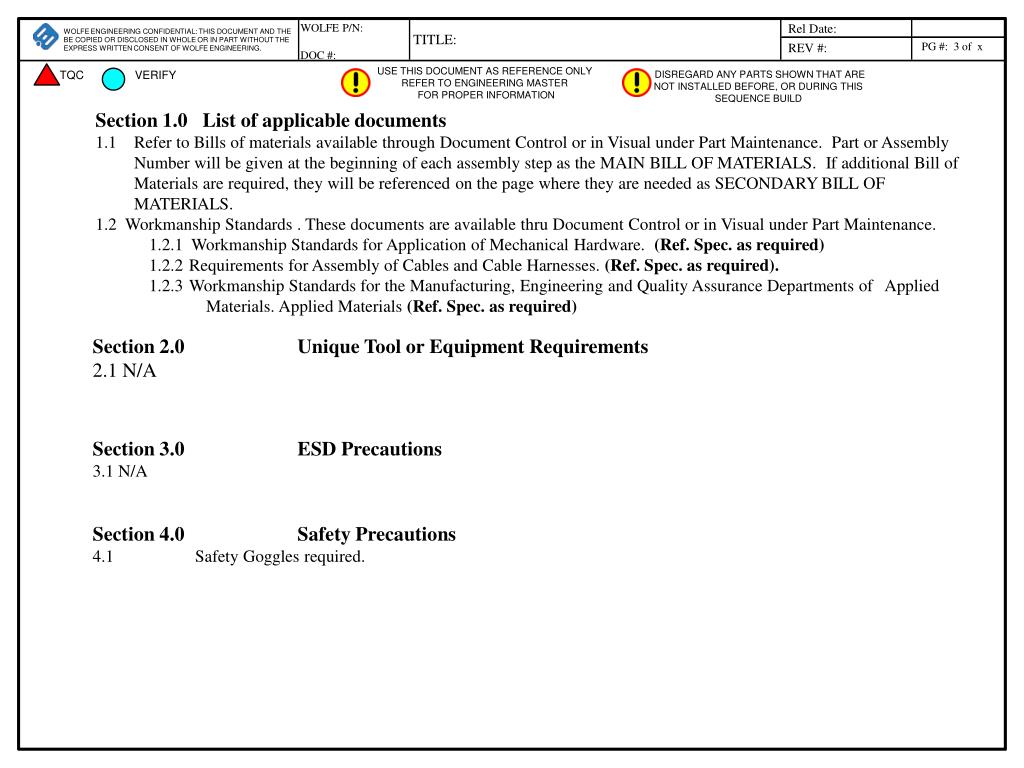

  3. Section 1.0 List of applicable documents 1.1 Refer to Bills of materials available through Document Control or in Visual under Part Maintenance. Part or Assembly Number will be given at the beginning of each assembly step as the MAIN BILL OF MATERIALS. If additional Bill of Materials are required, they will be referenced on the page where they are needed as SECONDARY BILL OF MATERIALS. 1.2 Workmanship Standards . These documents are available thru Document Control or in Visual under Part Maintenance. 1.2.1 Workmanship Standards for Application of Mechanical Hardware. (Ref. Spec. as required) 1.2.2 Requirements for Assembly of Cables and Cable Harnesses. (Ref. Spec. as required). 1.2.3 Workmanship Standards for the Manufacturing, Engineering and Quality Assurance Departments of Applied Materials. Applied Materials (Ref. Spec. as required) Section 2.0 Unique Tool or Equipment Requirements 2.1 N/A Section 3.0 ESD Precautions 3.1 N/A Section 4.0 Safety Precautions 4.1 Safety Goggles required.

  4. 5.0 ASSEMBLY PROCEDURE 5.1 (Enter Sub assembly title)parts preparation. Refer to Bills of Materials-xxx-xxxxx-xx 5.1.1 Unpack all components carefully and place on holding station table. Insect all parts for damage or defects. SHOW PICTURE OF PIECE PARTS Picture 1

  5. 2 11 9 3 5.2 (Enter Title) ASSY 5 7 6 1 EXAMPLE PICTURE-THIS PAGE IS OPTIONAL Picture 2 10 8

  6. Sample of work instructions Modify as required. 5.2 UV SENSOR ASSY Picture 3 Picture 4 6 Picture 5 7

  7. 5.4 Assy Title(continued) Refer to Asy Dwg and BOM # xxx-xxxx

  8. Section 6.0 Operator Certification Guideline or Checklist.
