IODE E2EDM Ocean Data Portal

1. JCOMM MAN-VI, Sixth session of the JCOMM Management Committee 3 – 6 December, Paris IODE E2EDM Ocean Data Portal Sergey Belov, Nick Mikhailov National Oceanographic Data Centre of Russia

2. What is the E2EDM technology? The “end to end” data management (E2EDM) technology is considered as set of comprehensive interconnected services for data discovery (using metadata-driven approach), data access and delivery (as well as providing basic publishing services). 22- 25 October, Oostende, 2007 JCOMM MAN meeting, 3 - 6 December, Paris

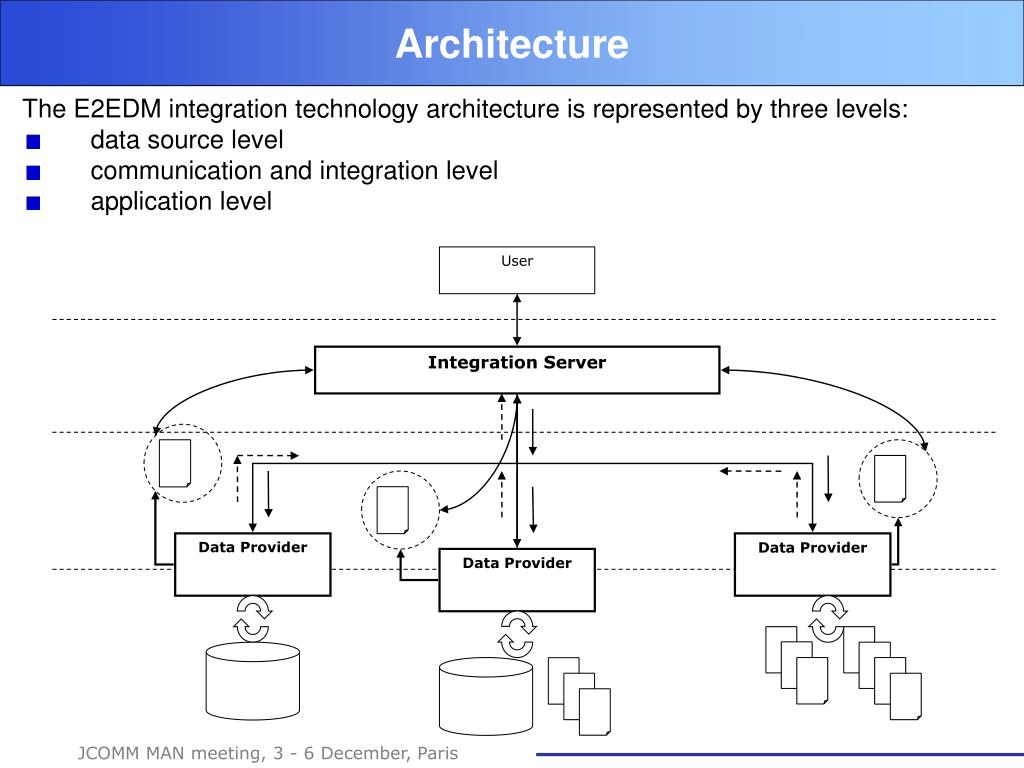

3. Architecture The E2EDM integration technology architecture is represented by three levels: • data source level • communication and integration level • application level User Integration Server Data Provider Data Provider Data Provider JCOMM MAN meeting, 3 - 6 December, Paris

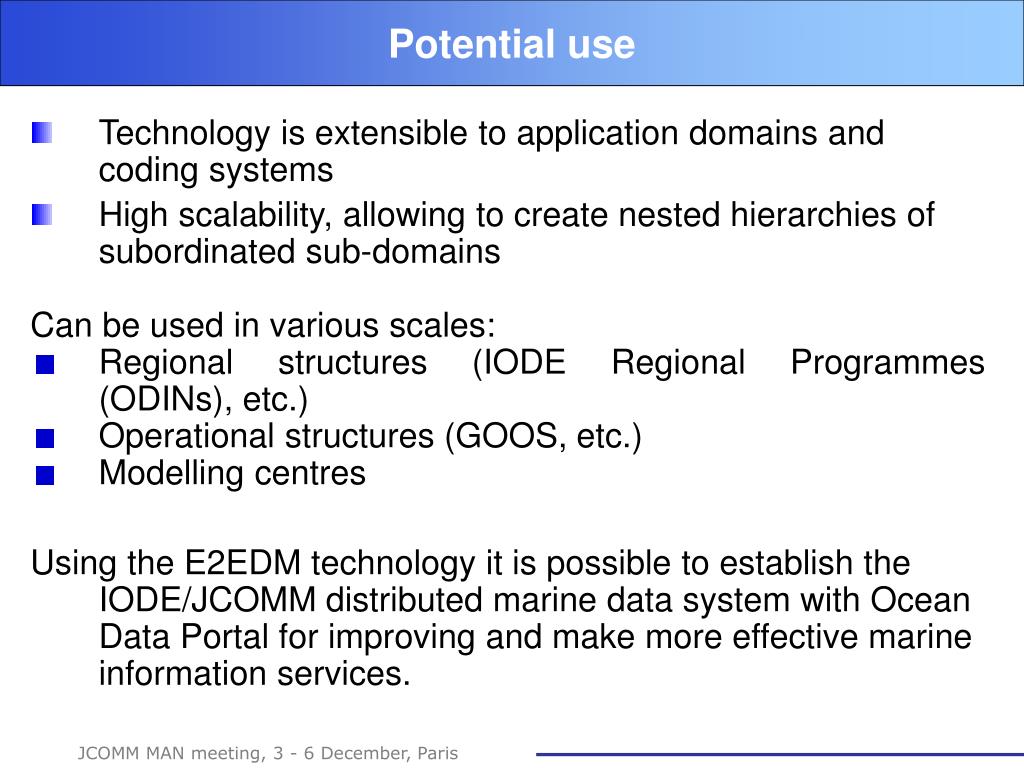

4. Potential use • Technology is extensible to application domains and coding systems • High scalability, allowing to create nested hierarchies of subordinated sub-domains Can be used in various scales: • Regional structures (IODE Regional Programmes (ODINs), etc.) • Operational structures (GOOS, etc.) • Modelling centres Using the E2EDM technology it is possible to establish the IODE/JCOMM distributed marine data system with Ocean Data Portal for improving and make more effective marine information services. JCOMM MAN meeting, 3 - 6 December, Paris

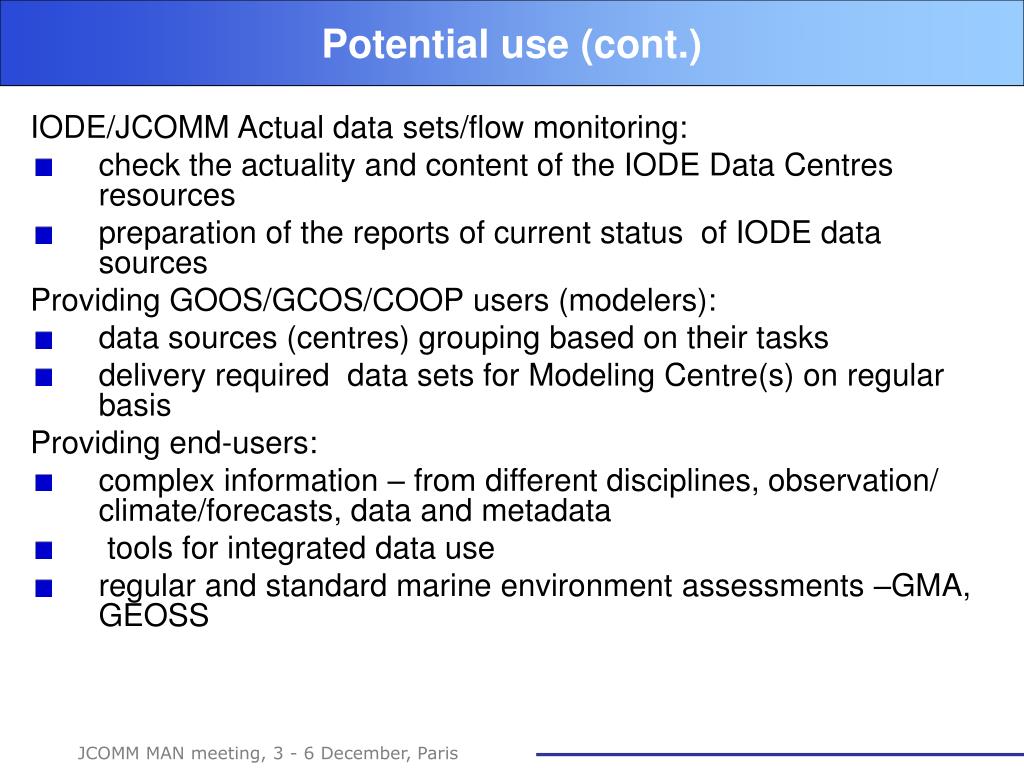

5. Potential use (cont.) IODE/JCOMM Actual data sets/flow monitoring: • check the actuality and content of the IODE Data Centres resources • preparation of the reports of current status of IODE data sources Providing GOOS/GCOS/COOP users (modelers): • data sources (centres) grouping based on their tasks • delivery required data sets for Modeling Centre(s) on regular basis Providing end-users: • complex information – from different disciplines, observation/ climate/forecasts, data and metadata • tools for integrated data use • regular and standard marine environment assessments –GMA, GEOSS JCOMM MAN meeting, 3 - 6 December, Paris

6. JCOMM PP-III coverage VLIZ, Belgium MetOffice,UK IFREMER/SISMER France NODC, Russia JCOMM MAN meeting, 3 - 6 December, Paris

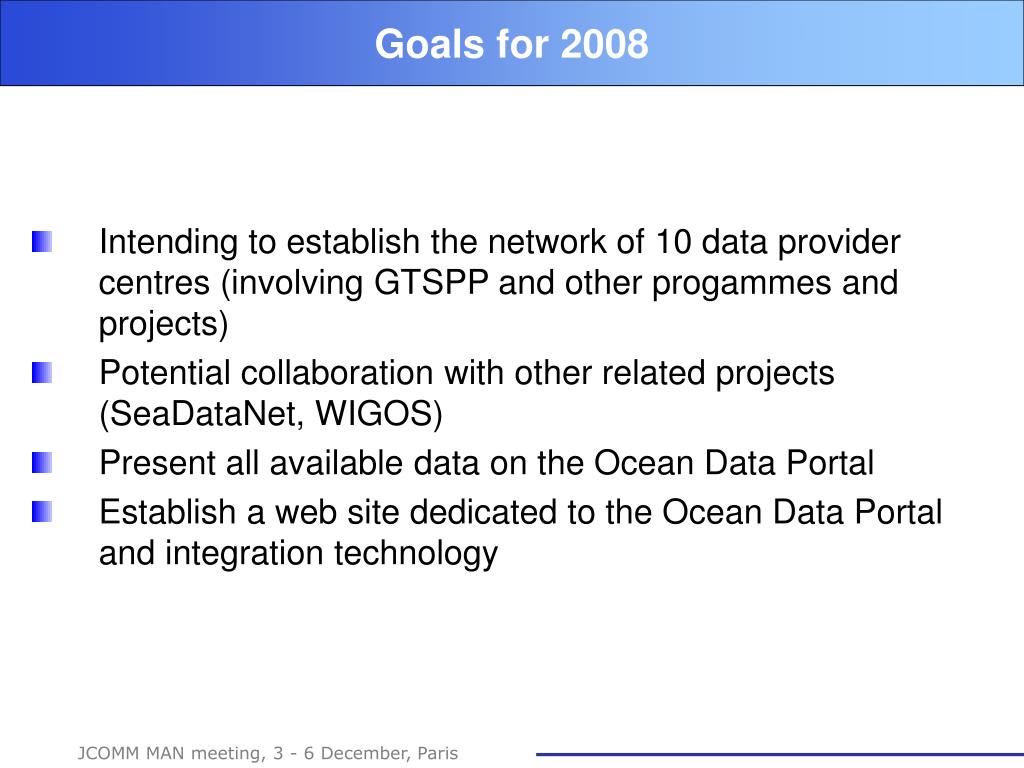

7. Goals for 2008 • Intending to establish the network of 10 data provider centres (involving GTSPP and other progammes and projects) • Potential collaboration with other related projects (SeaDataNet, WIGOS) • Present all available data on the Ocean Data Portal • Establish a web site dedicated to the Ocean Data Portal and integration technology JCOMM MAN meeting, 3 - 6 December, Paris

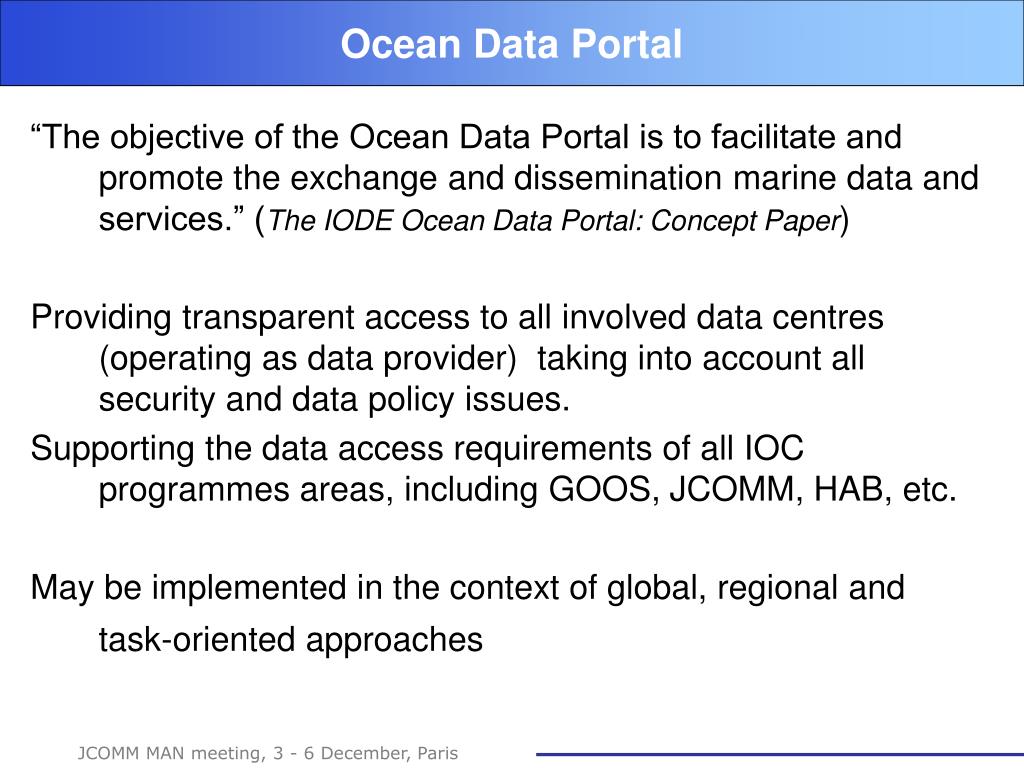

8. Ocean Data Portal “The objective of the Ocean Data Portal is to facilitate and promote the exchange and dissemination marine data and services.” (The IODE Ocean Data Portal: Concept Paper) Providing transparent access to all involved data centres (operating as data provider) taking into account all security and data policy issues. Supporting the data access requirements of all IOC programmes areas, including GOOS, JCOMM, HAB, etc. May be implemented in the context of global, regional and task-oriented approaches JCOMM MAN meeting, 3 - 6 December, Paris

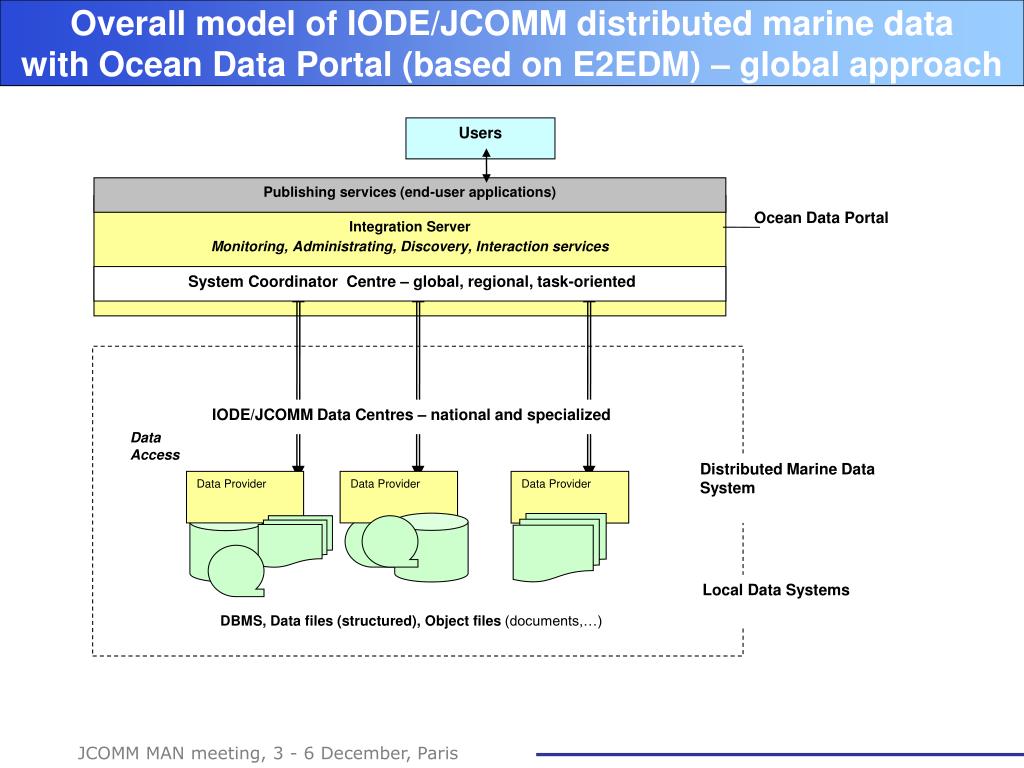

9. Overall model of IODE/JCOMM distributed marine data with Ocean Data Portal (based on E2EDM) – global approach Users Publishing services (end-user applications) Integration Server Monitoring, Administrating, Discovery, Interaction services Ocean Data Portal System Coordinator Centre – global, regional, task-oriented IODE/JCOMM Data Centres – national and specialized Data Access Distributed Marine Data System Data Provider Data Provider Data Provider Local Data Systems DBMS, Data files (structured), Object files (documents,…) JCOMM MAN meeting, 3 - 6 December, Paris

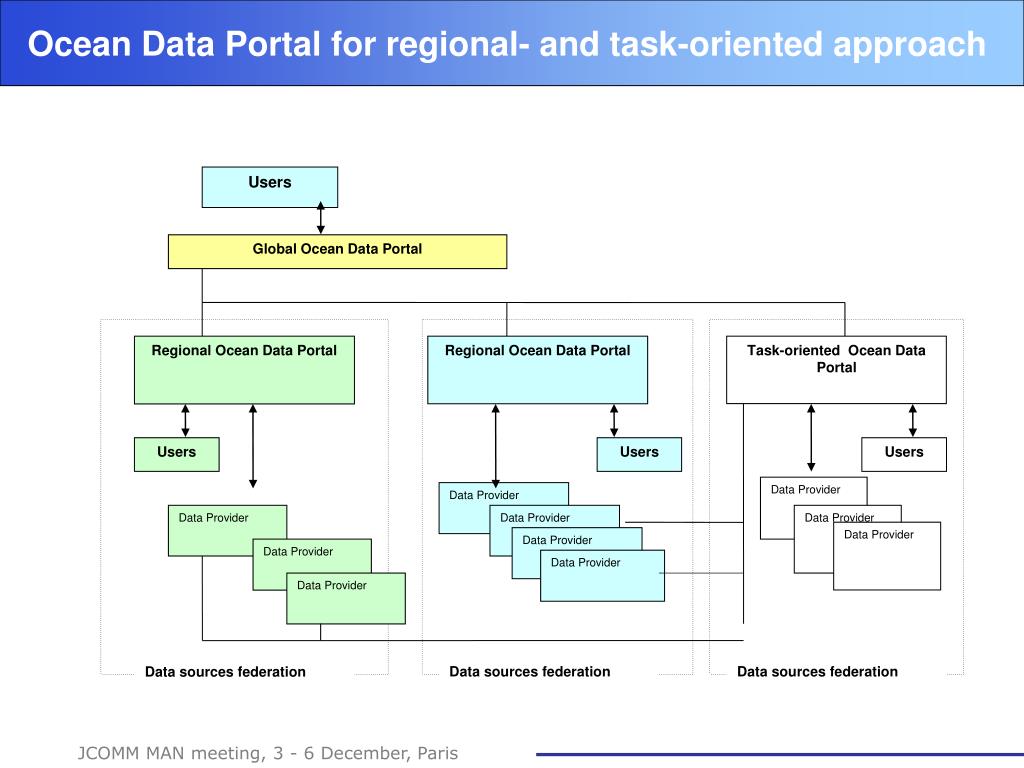

10. Users Global Ocean Data Portal Ocean Data Portal for regional- and task-oriented approach Regional Ocean Data Portal Regional Ocean Data Portal Task-oriented Ocean Data Portal Users Users Users Data Provider Data Provider Data Provider Data Provider Data Provider Data Provider Data Provider Data Provider Data Provider Data Provider Data sources federation Data sources federation Data sources federation JCOMM MAN meeting, 3 - 6 December, Paris

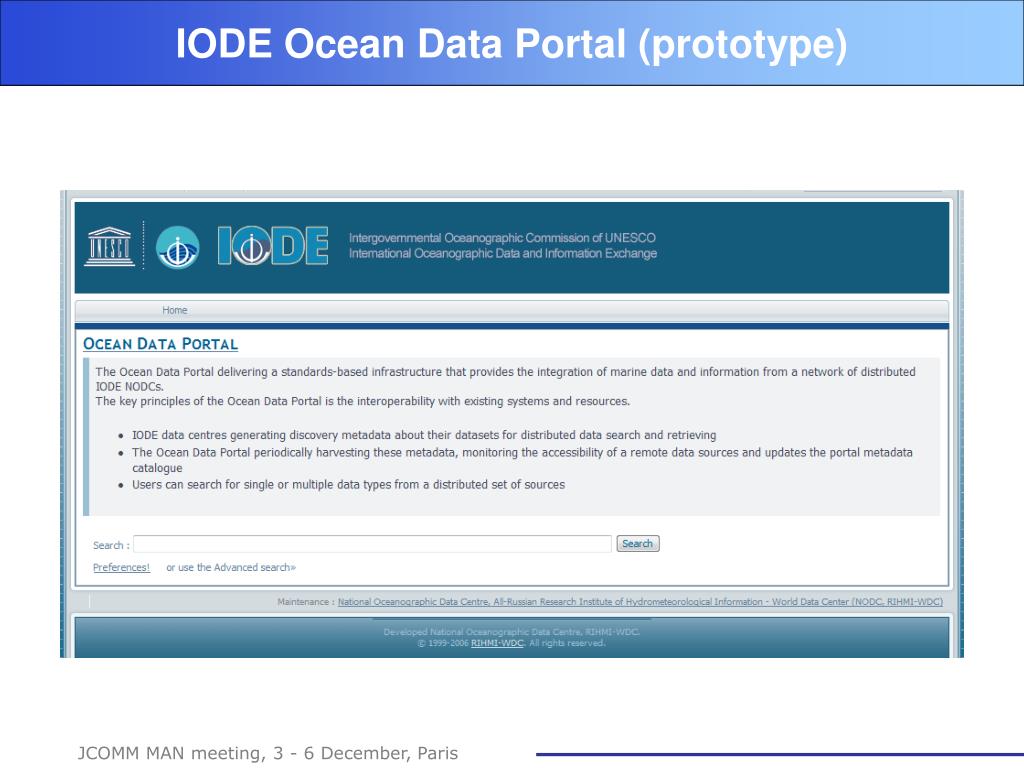

11. IODE Ocean Data Portal (prototype) JCOMM MAN meeting, 3 - 6 December, Paris

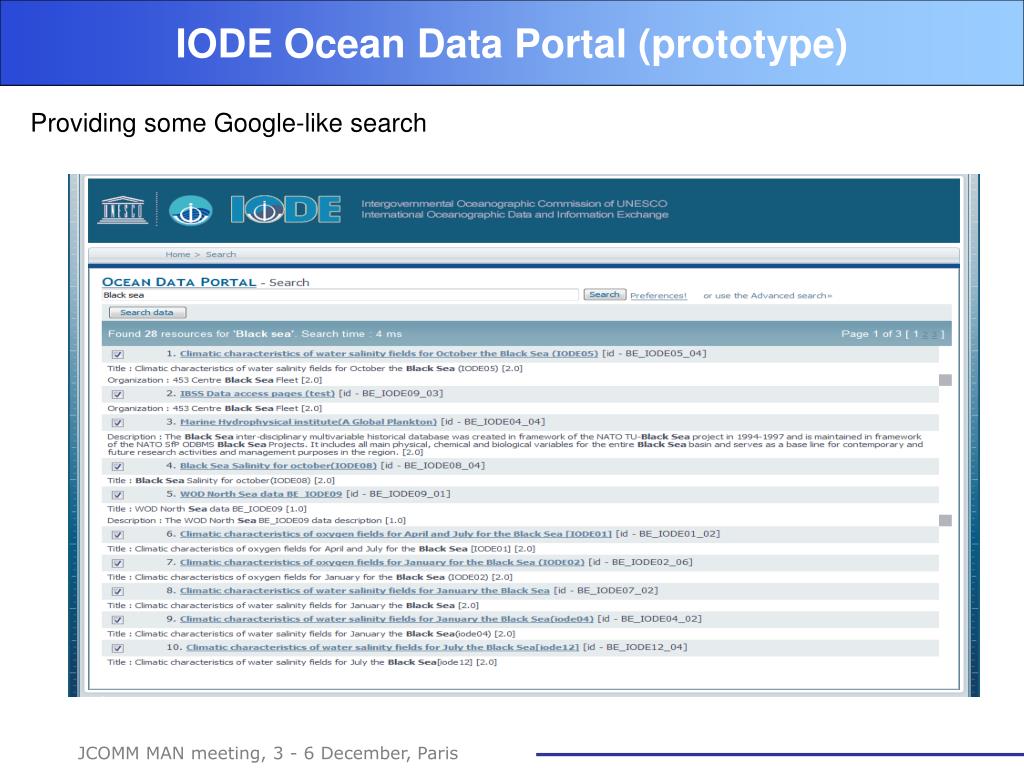

12. IODE Ocean Data Portal (prototype) Providing some Google-like search JCOMM MAN meeting, 3 - 6 December, Paris

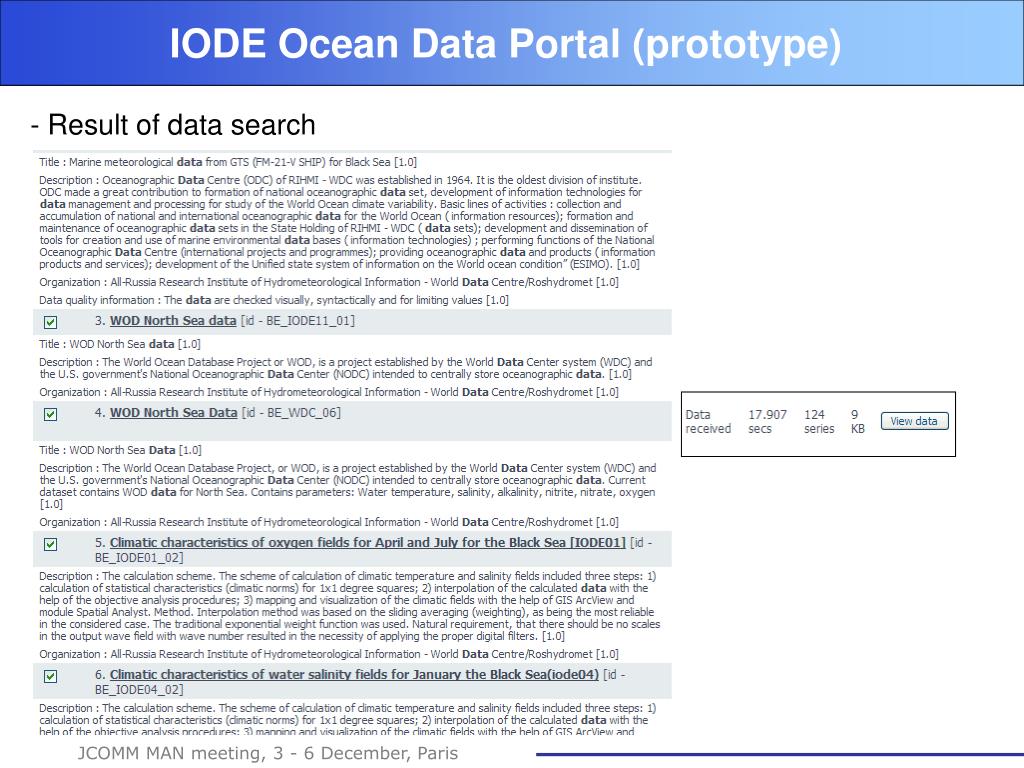

13. IODE Ocean Data Portal (prototype) - Result of data search JCOMM MAN meeting, 3 - 6 December, Paris

14. IODE Ocean Data Portal (prototype) - Advanced metadata search JCOMM MAN meeting, 3 - 6 December, Paris

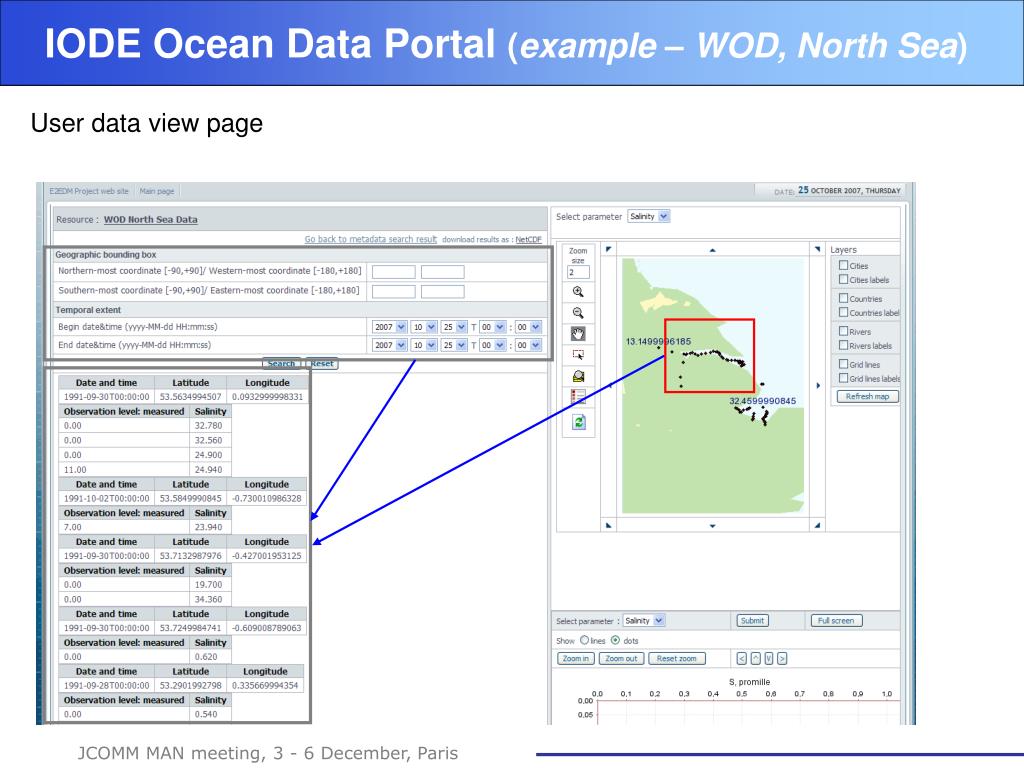

15. IODE Ocean Data Portal (example – WOD, North Sea) User data view page JCOMM MAN meeting, 3 - 6 December, Paris

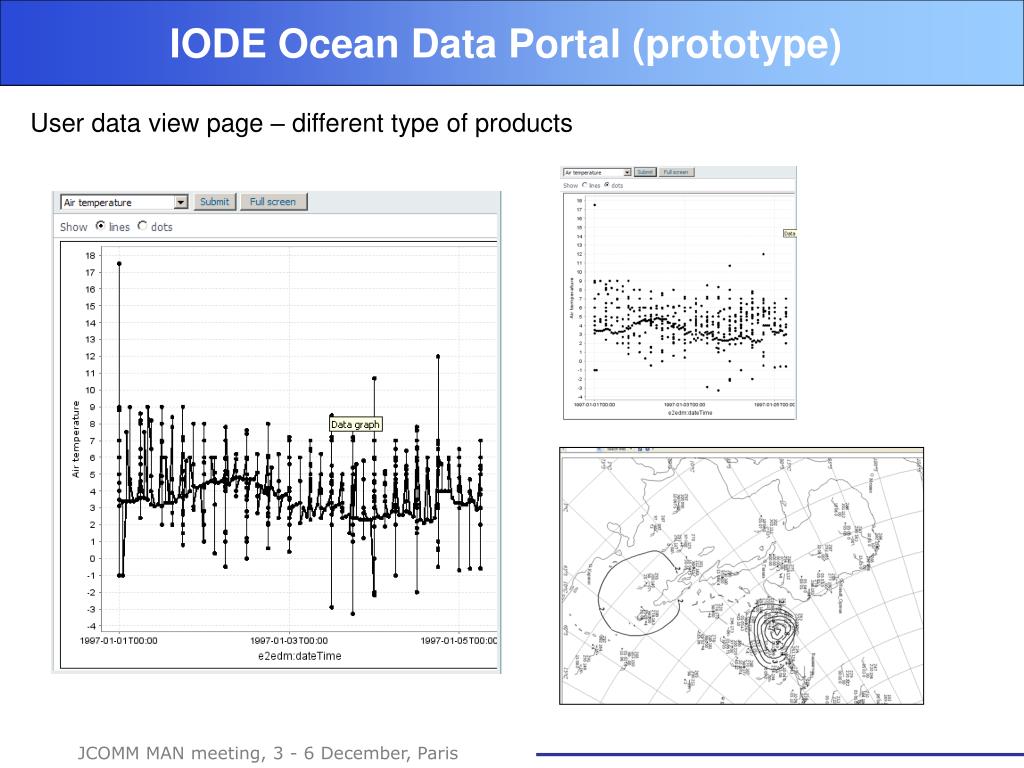

16. IODE Ocean Data Portal (prototype) User data view page – different type of products JCOMM MAN meeting, 3 - 6 December, Paris

17. E2EDM software and portal • E2EDM Data Provider (DP) – set of services, providing the access to the local data system of participating centres. As soon as the Data Provider is installed as a “wrapper” of the local data system, this system becomes a data source for the E2E-based distributed data system • http://e2edm.vliz.be/dpms/admin?action=viewResourceList • E2EDM Integration Server – set of services, providing management and use of the data sources by two-way interaction with Data Providers • http://e2edm.vliz.be/iserv/backend?action=manageProviders • E2EDM Ocean Data Portal prototype – portal-like application providing access to the data of IODE data providers • http://e2edm.vliz.be/e2edmclient/ JCOMM MAN meeting, 3 - 6 December, Paris

18. Thank you!
