  1. Introduction to Verilog(Behavioral Modeling)

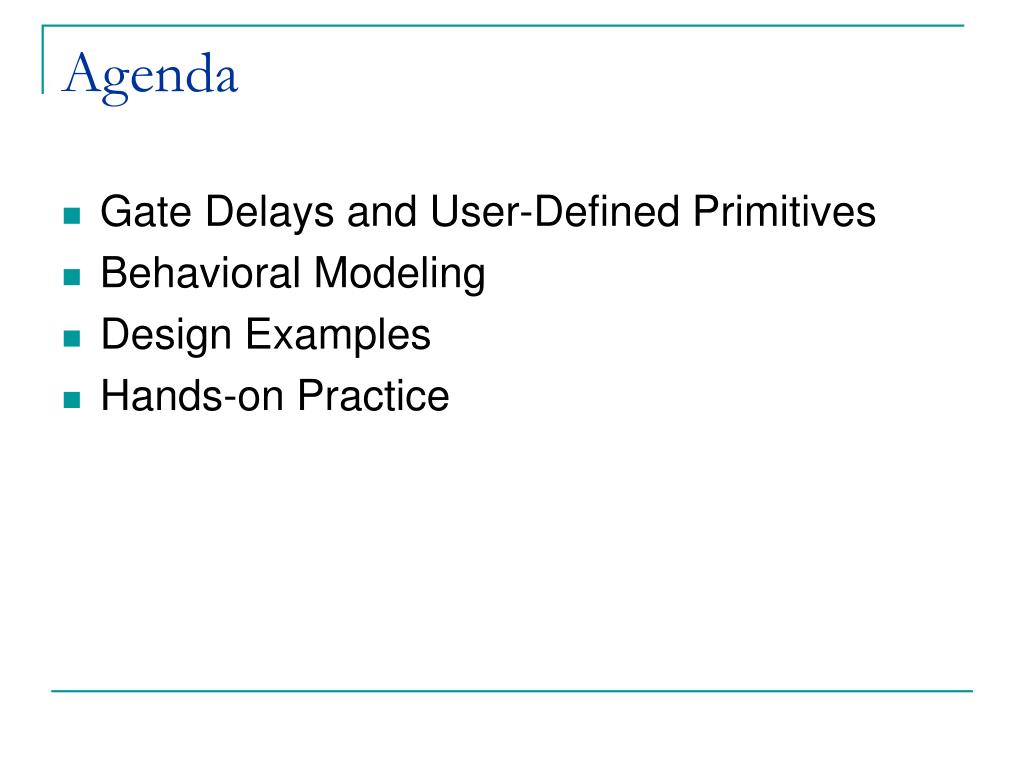

  2. Agenda • Gate Delays and User-Defined Primitives • Behavioral Modeling • Design Examples • Hands-on Practice

  3. Gate Delays and User-Defined Primitives

  4. Compiler directive Unit of measurement Round-off unit Gate Delays • Physical circuits exhibit propagation delay • Therefore, necessary to specify delays in simulation • Association of time unit with Physical time through compiler directive ‘timescale 1ns/100ps What if no timescale is specified?

  5. Gate-level model with propagation delays module cct_prop_delay(A,B,C,D,E) output D,E; input A,B,C; wire w1; and #(30) G1(w1,A,B); not #(10) G2 (E,C); or #(20) G3 (D,w1,E); endmodule

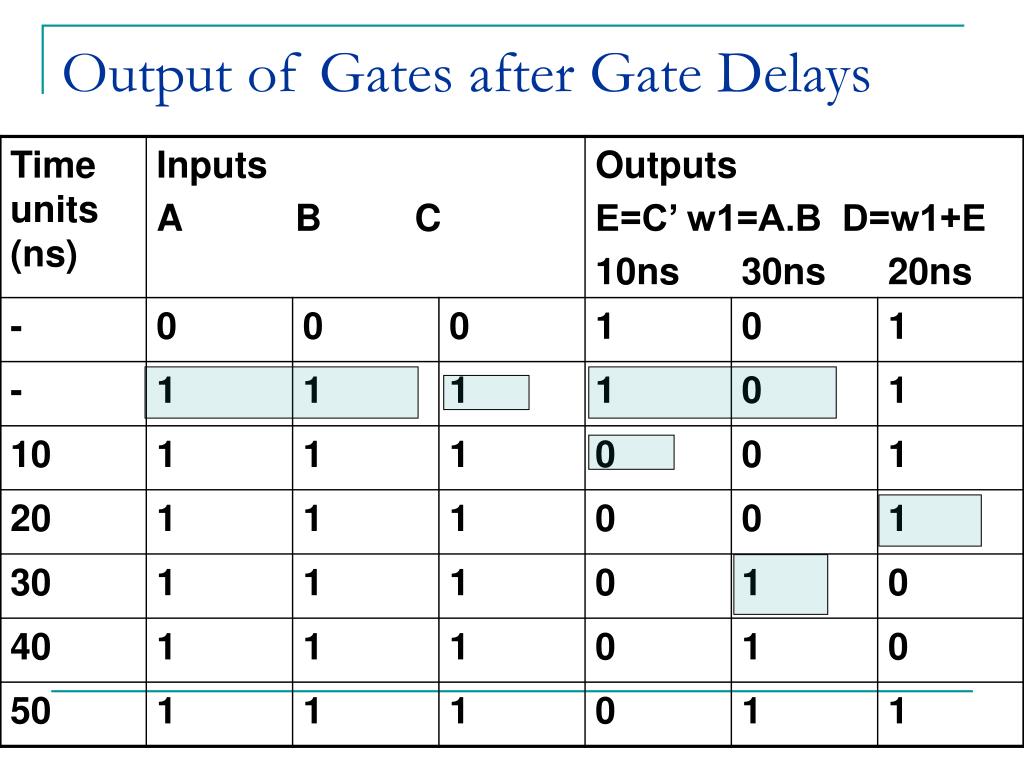

  6. Output of Gates after Gate Delays

  7. Output of Gates after Gate Delays

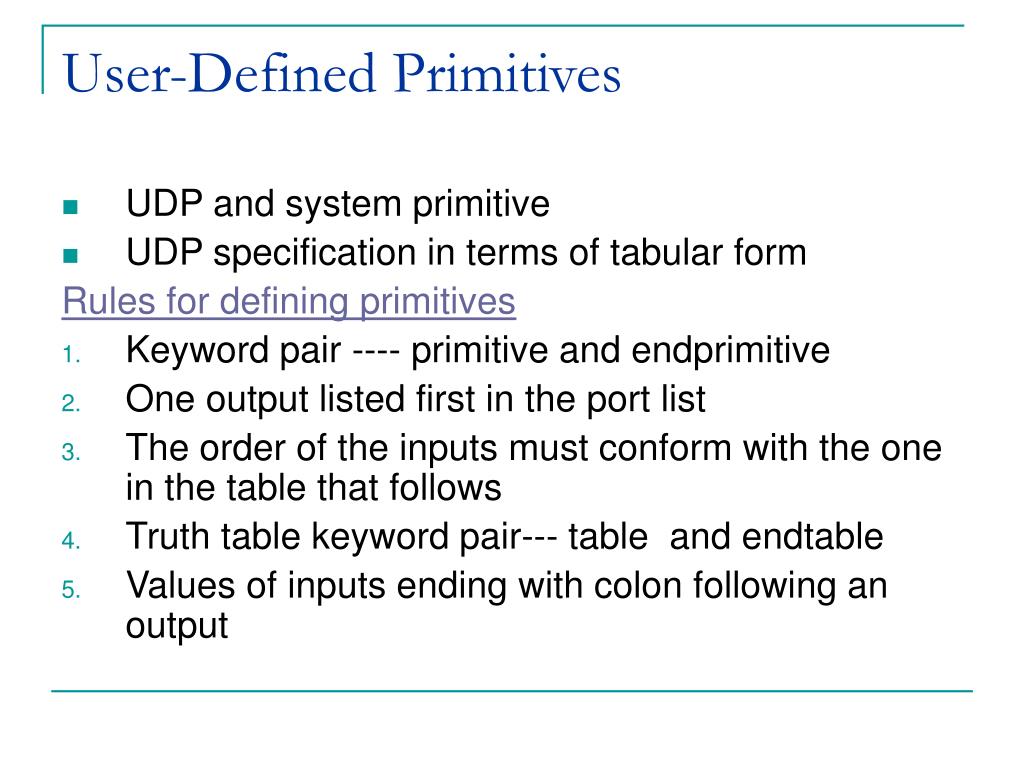

  8. User-Defined Primitives • UDP and system primitive • UDP specification in terms of tabular form Rules for defining primitives • Keyword pair ---- primitive and endprimitive • One output listed first in the port list • The order of the inputs must conform with the one in the table that follows • Truth table keyword pair--- table and endtable • Values of inputs ending with colon following an output

  9. Verilog model: (OR Gate) primitive UDP_123(C,A,B); output C; input A,B; table // A B : C 0 0 : 0; 0 1 : 1; 1 0 : 1; 1 1 : 1; endtable endprimitive

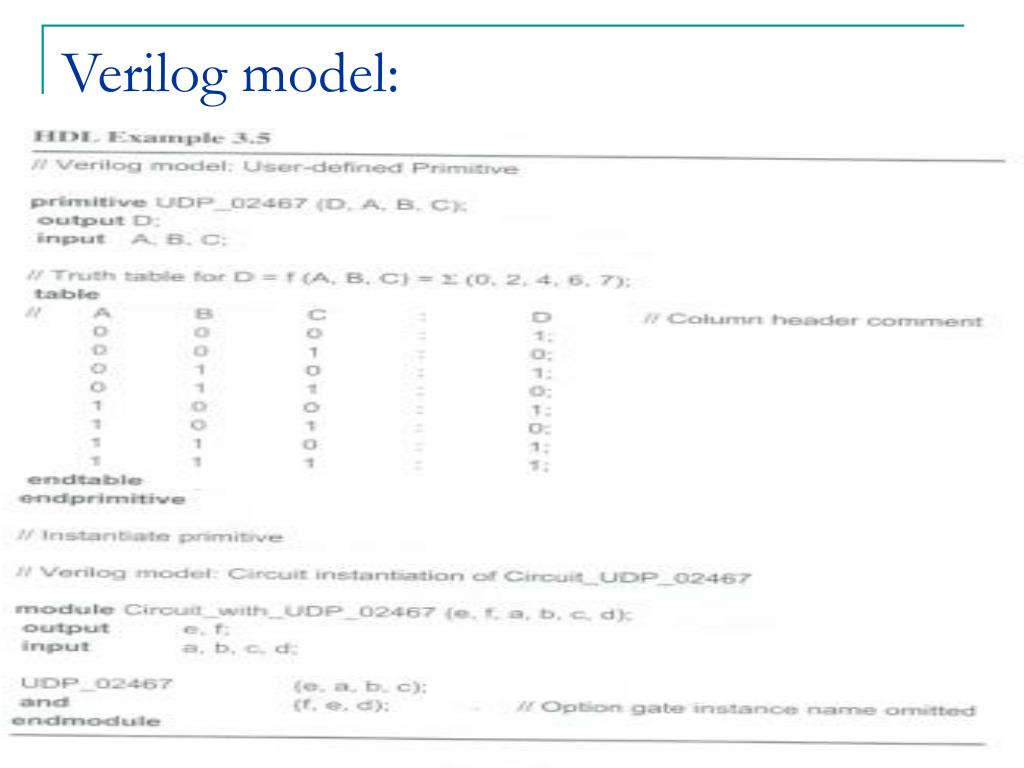

  10. Verilog model:

  11. LED Decoder Design Seven Segment LED seg0 LED DECODER seg6 seg1 switch1 seg2 seg5 seg4 seg3 switch2 seg3 switch3 seg2 seg1 seg4 seg5 seg0 seg6

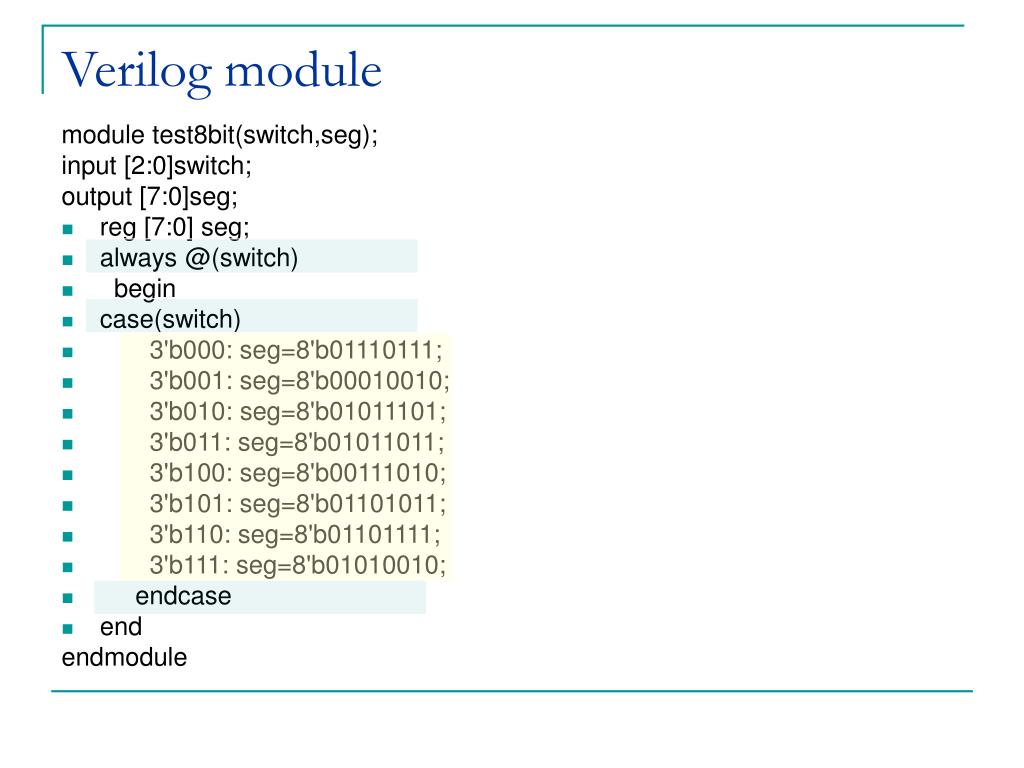

  12. Verilog module module test8bit(switch,seg); input [2:0]switch; output [7:0]seg; • reg [7:0] seg; • always @(switch) • begin • case(switch) • 3'b000: seg=8'b01110111; • 3'b001: seg=8'b00010010; • 3'b010: seg=8'b01011101; • 3'b011: seg=8'b01011011; • 3'b100: seg=8'b00111010; • 3'b101: seg=8'b01101011; • 3'b110: seg=8'b01101111; • 3'b111: seg=8'b01010010; • endcase • end endmodule

  13. The Translate process converts the netlist output by the synthesizer into a Xilinx-specific format and adds with it the design constraints specified by user. • The Map process decomposes the netlist and rearranges it so it fits nicely into the circuitry elements contained in the specified FPGA device. • Then the Place & Route process assigns the mapped elements to specific locations in the FPGA and sets the switches to route the logic signals between them.

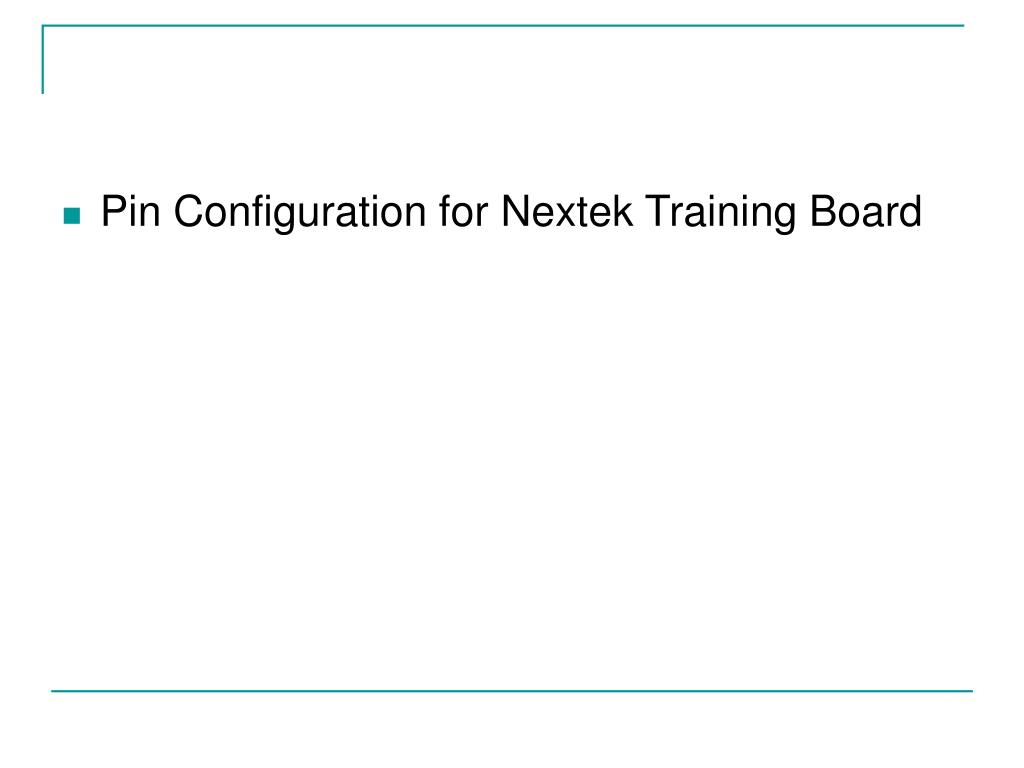

  14. Pin Configuration for Nextek Training Board
