  1. ALMA Real Time Control System Jeff Kern Ralph Marson, Thomas Juerges

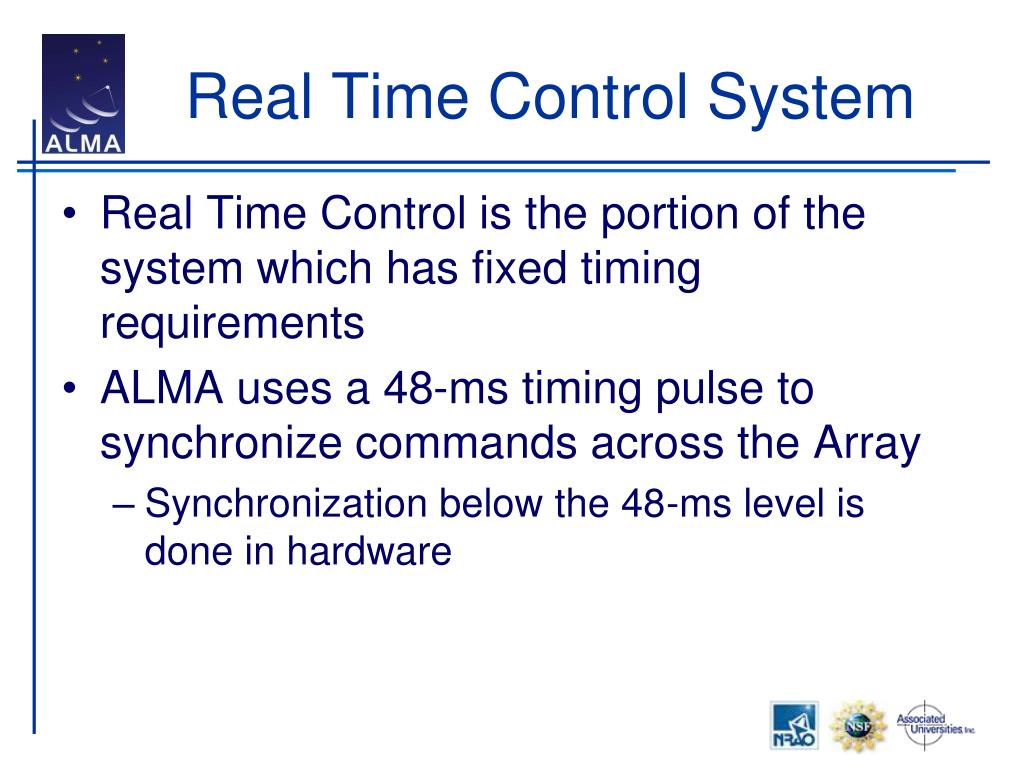

  2. Real Time Control System • Real Time Control is the portion of the system which has fixed timing requirements • ALMA uses a 48-ms timing pulse to synchronize commands across the Array • Synchronization below the 48-ms level is done in hardware

  3. Real Time Subsystems in ALMA • Fringe and Delay Tracking • Distributed: Done partially at the Antenna (64) and partially in the Correlator (2) • Antenna Pointing • At least 66 Antennas • Data Acquisition • Correlators (2) • Total Power (Square Law) Detectors • 2 kHz / Baseband / Polarization / Antenna • Holography Receiver for Beacon Holography

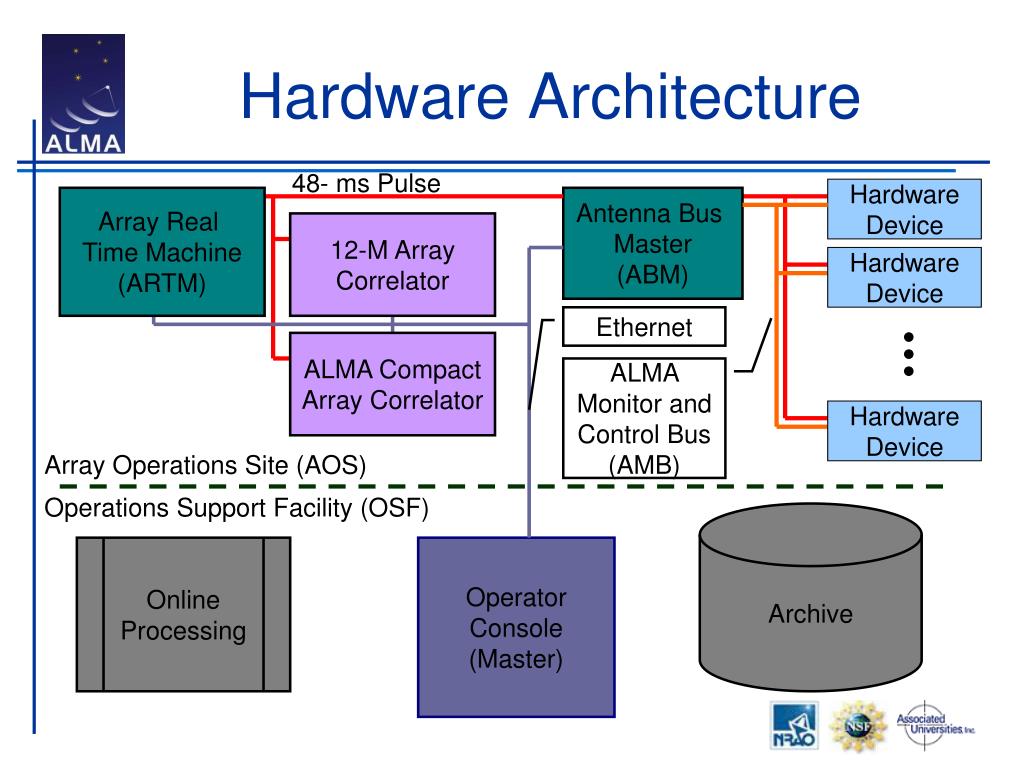

  4. Hardware Architecture 48- ms Pulse Hardware Device Array Real Time Machine (ARTM) Antenna Bus Master (ABM) 12-M Array Correlator Hardware Device Ethernet ALMA Compact Array Correlator ALMA Monitor and Control Bus (AMB) Hardware Device Array Operations Site (AOS) Operations Support Facility (OSF) Archive Online Processing Operator Console (Master)

  5. Software Architecture • Most Control systems for large telescopes have the same high level architecture. Master Archive Software Bus (Middleware) Weather Station Back End Front End Mount

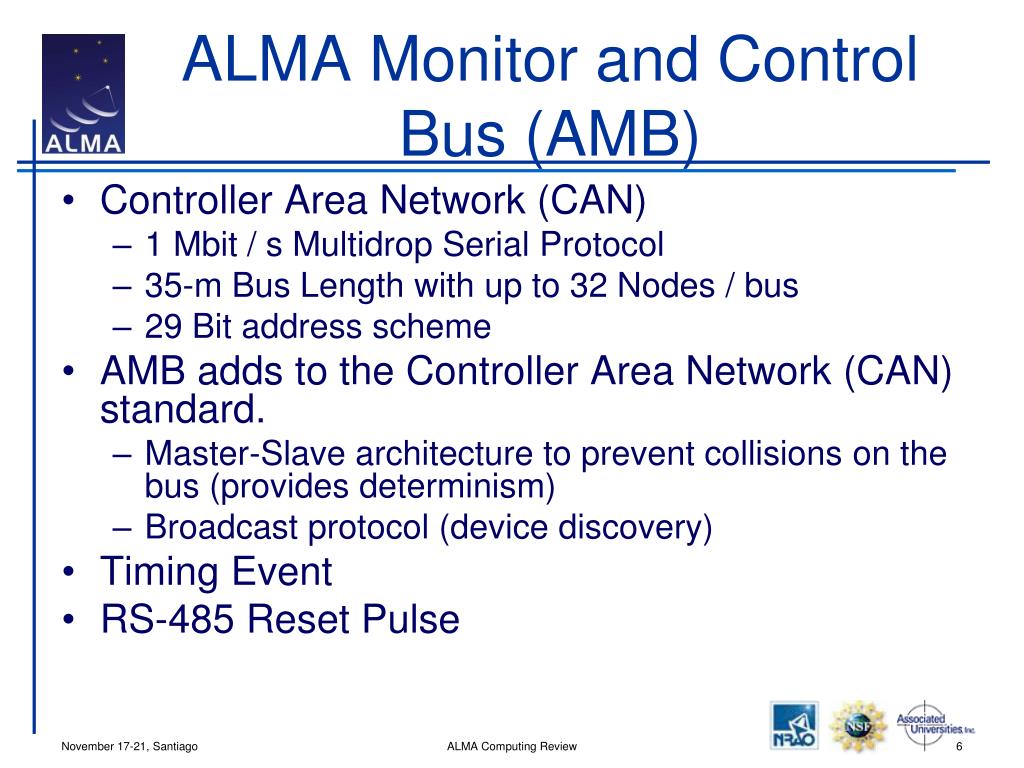

  6. ALMA Monitor and Control Bus (AMB) • Controller Area Network (CAN) • 1 Mbit / s Multidrop Serial Protocol • 35-m Bus Length with up to 32 Nodes / bus • 29 Bit address scheme • AMB adds to the Controller Area Network (CAN) standard. • Master-Slave architecture to prevent collisions on the bus (provides determinism) • Broadcast protocol (device discovery) • Timing Event • RS-485 Reset Pulse November 17-21, Santiago ALMA Computing Review 6

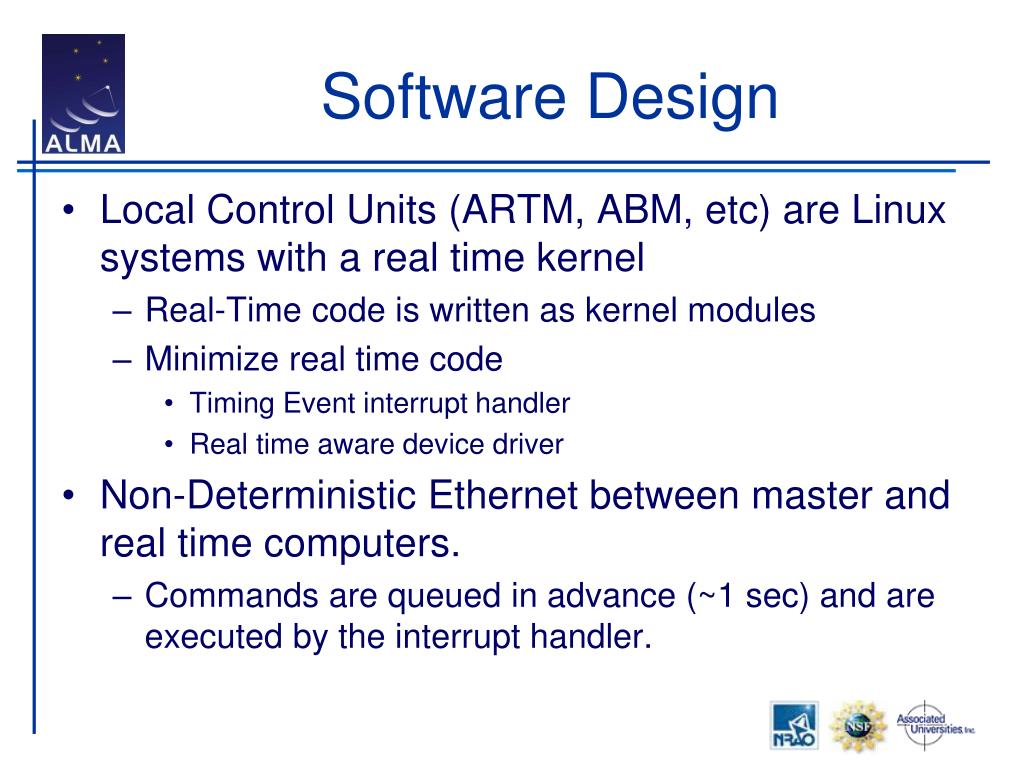

  7. Software Design • Local Control Units (ARTM, ABM, etc) are Linux systems with a real time kernel • Real-Time code is written as kernel modules • Minimize real time code • Timing Event interrupt handler • Real time aware device driver • Non-Deterministic Ethernet between master and real time computers. • Commands are queued in advance (~1 sec) and are executed by the interrupt handler.

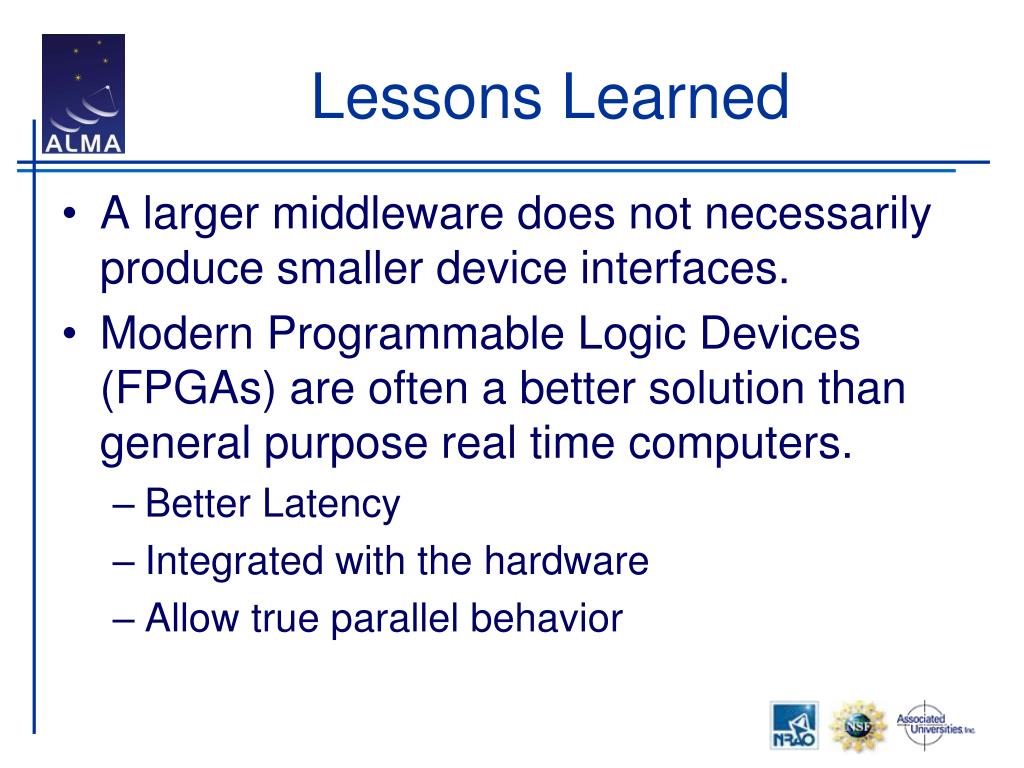

  8. Lessons Learned • A larger middleware does not necessarily produce smaller device interfaces. • Modern Programmable Logic Devices (FPGAs) are often a better solution than general purpose real time computers. • Better Latency • Integrated with the hardware • Allow true parallel behavior

  9. Is this the End of Real Time? • Some applications still require general purpose real time computers: • Data Acquisition • Real Time Data Processing (Adaptive Optics) • Distributed Servo Systems • Small projects without a VHDL expert and no resources to invest in developing one.
