Innovative VLSI Design Replacing Ripple-Carry with Wallace-Tree Multipliers

Dec 14, 2025

90 likes | 201 Vues

This work by Robert Gubitz and Bjoern Konieczek presents a new approach to VLSI design, focusing on replacing traditional ripple-carry adders with advanced ripple-lookahead adders. Additionally, we propose substituting carry-save array multipliers with Wallace-tree multipliers for enhanced performance. Our methods include rounding results to improve average error and present synthesis results of the designs. This study emphasizes the effectiveness of back-annotated design processes, showing promising advancements in VLSI implementation techniques.

Share Presentation

Embed Code

quynh

Télécharger la présentation

Innovative VLSI Design Replacing Ripple-Carry with Wallace-Tree Multipliers

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

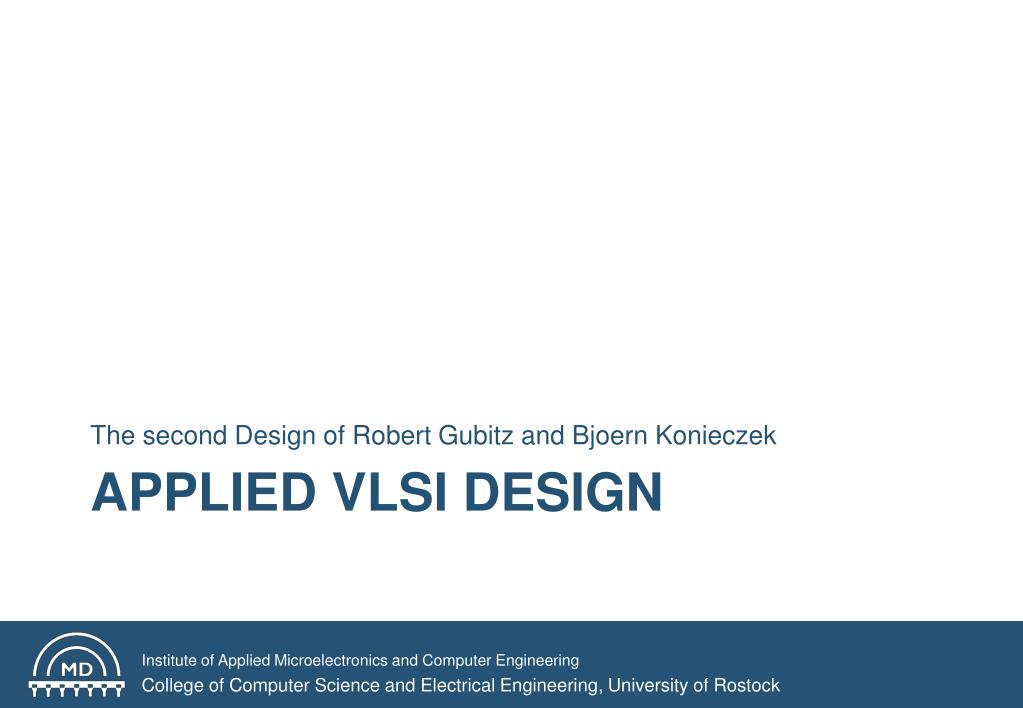

The second Design of Robert Gubitz and Bjoern Konieczek Applied VLSI Design
First Approach
New Approach Replace Ripple Look-Ahead Adder with Ripple-Carry Adder
New Approach Replace Carry Save Array Multiplier with Wallace-Tree

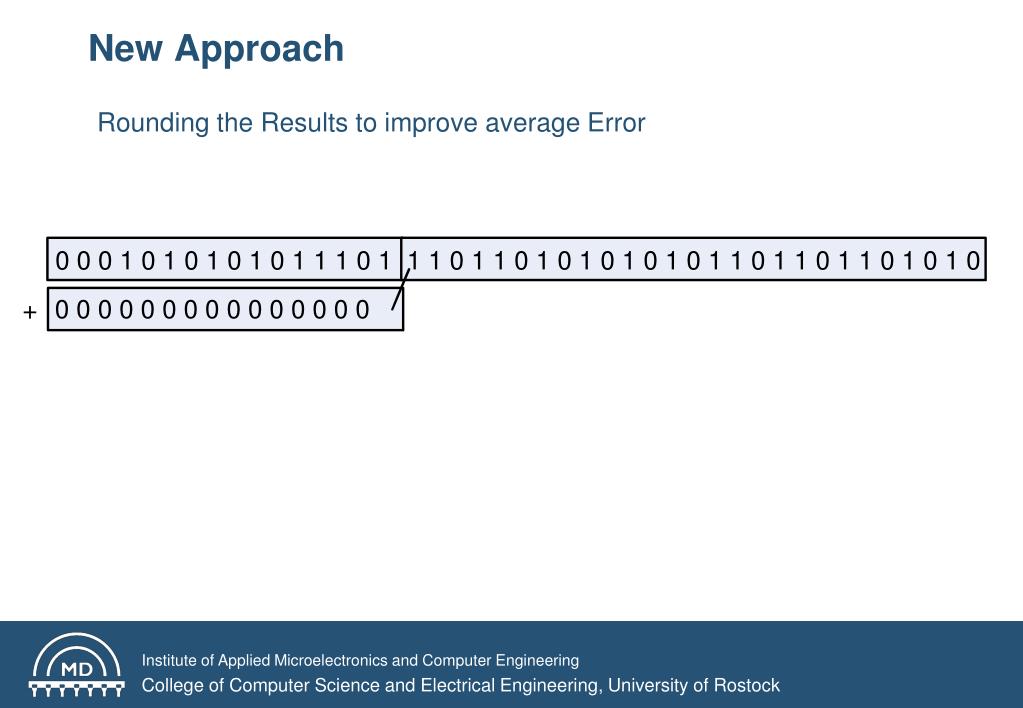

New Approach Rounding the Results to improve average Error

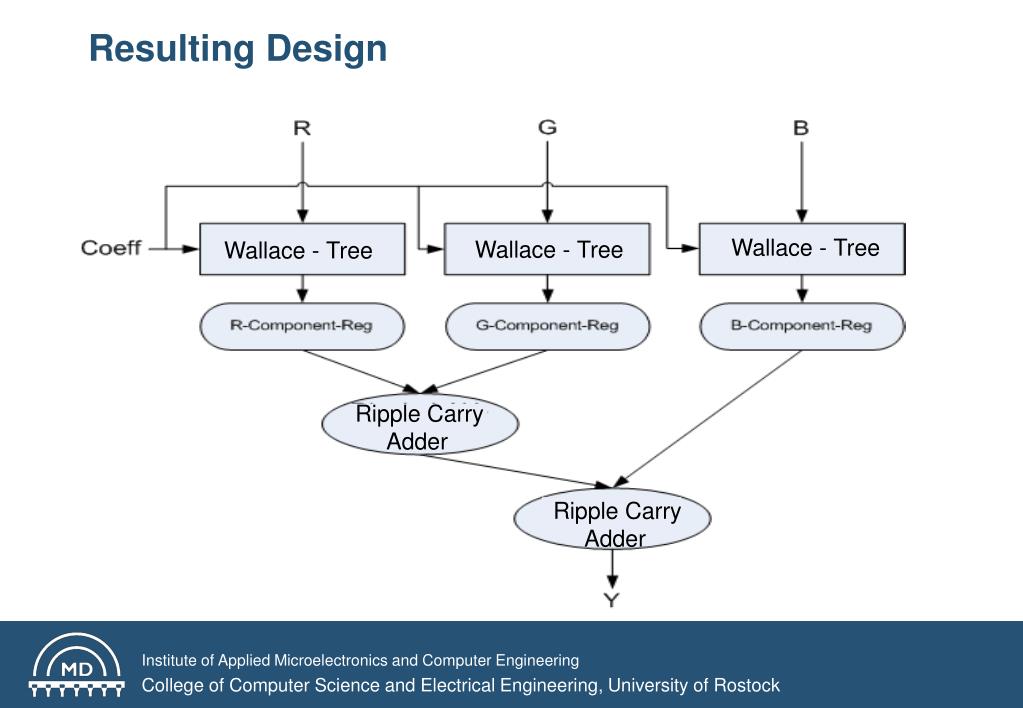

Resulting Design
Results – Synthesis

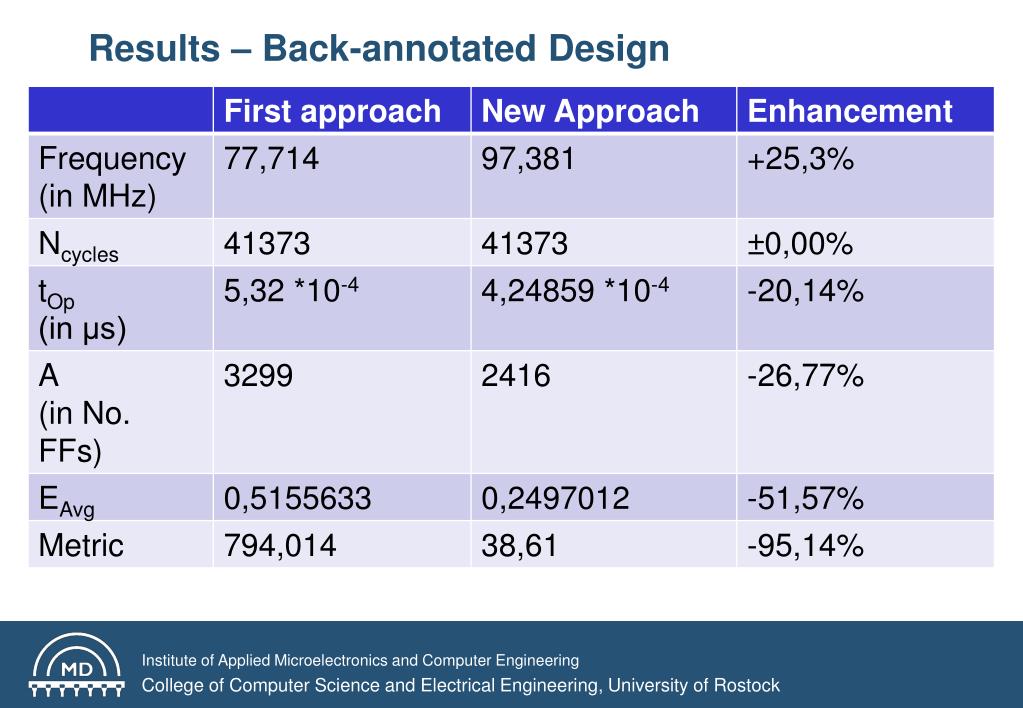

Results – Back-annotated Design

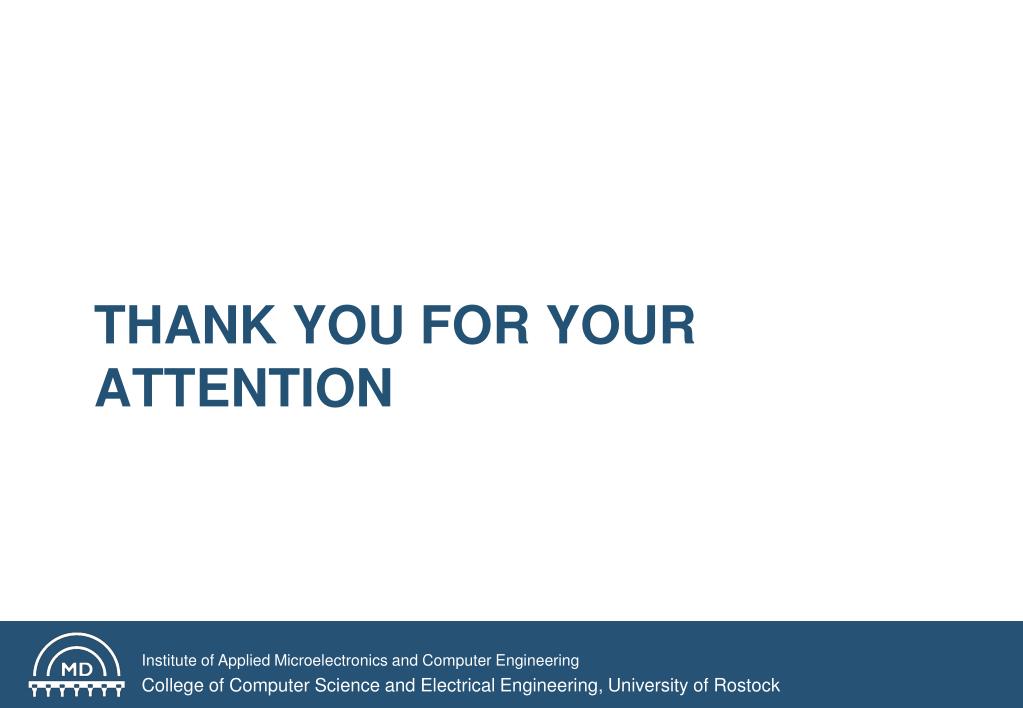

Thank YOU For YOUR ATTENTION
