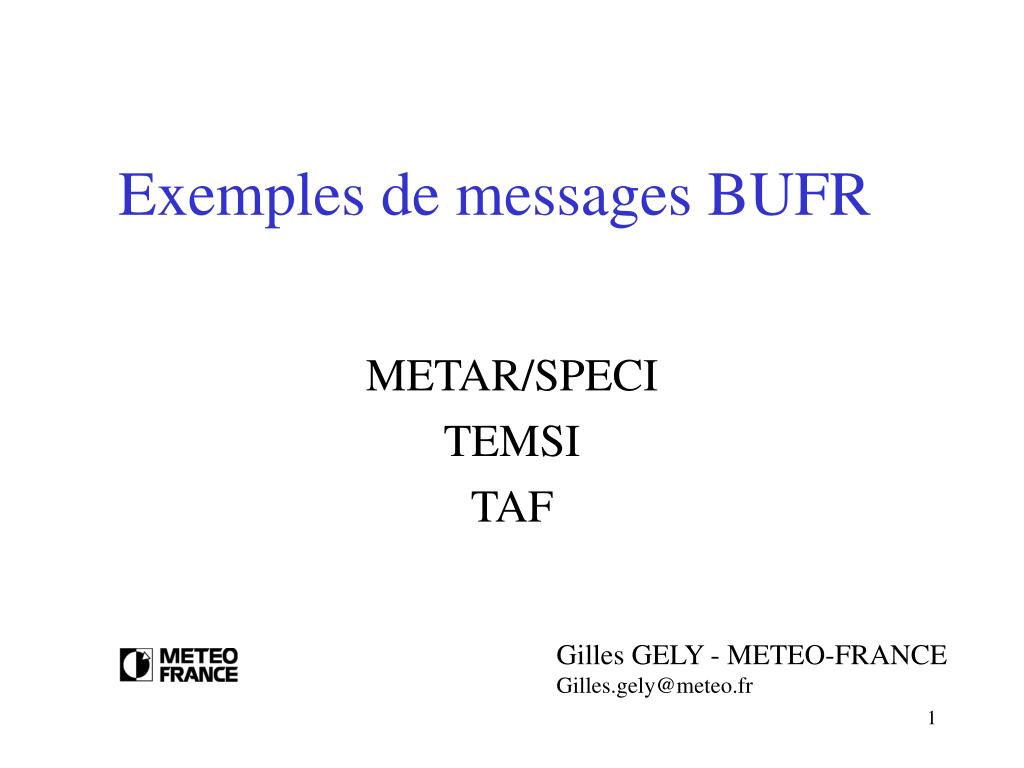

  1. Exemples de messages BUFR METAR/SPECI TEMSI TAF Gilles GELY - METEO-FRANCE Gilles.gely@meteo.fr

  2. METAR – SPECI (1)

  3. METAR – SPECI (2) SAAO33 DRRN 230600 METAR DRRN 230600Z 02005KT 2000 DU NSC 25/04 Q1010 NOSIG= BUFR SECTION 0 LENGTH OF SECTION 0 (BYTES) 8 TOTAL LENGTH OF BUFR MESSAGE (BYTES) 106 BUFR EDITION NUMBER 3

  4. METAR – SPECI (3) BUFR SECTION 1 LENGTH OF SECTION 1 (BYTES) 18 BUFR EDITION NUMBER 3 ORIGINATING SUB-CENTRE 0 ORIGINATING CENTRE 85 UPDATE SEQUENCE NUMBER 0 FLAG (PRESENCE OF SECTION 2) 0 BUFR MESSAGE TYPE 0 BUFR MESSAGE SUBTYPE 15 VERSION NUMBER OF LOCAL TABLE 4 YEAR 4 MONTH 3 DAY 23 HOUR 6 MINUTE 0 VERSION NUMB OF MASTER TABLE 5 BUFR MASTER TABLE 0

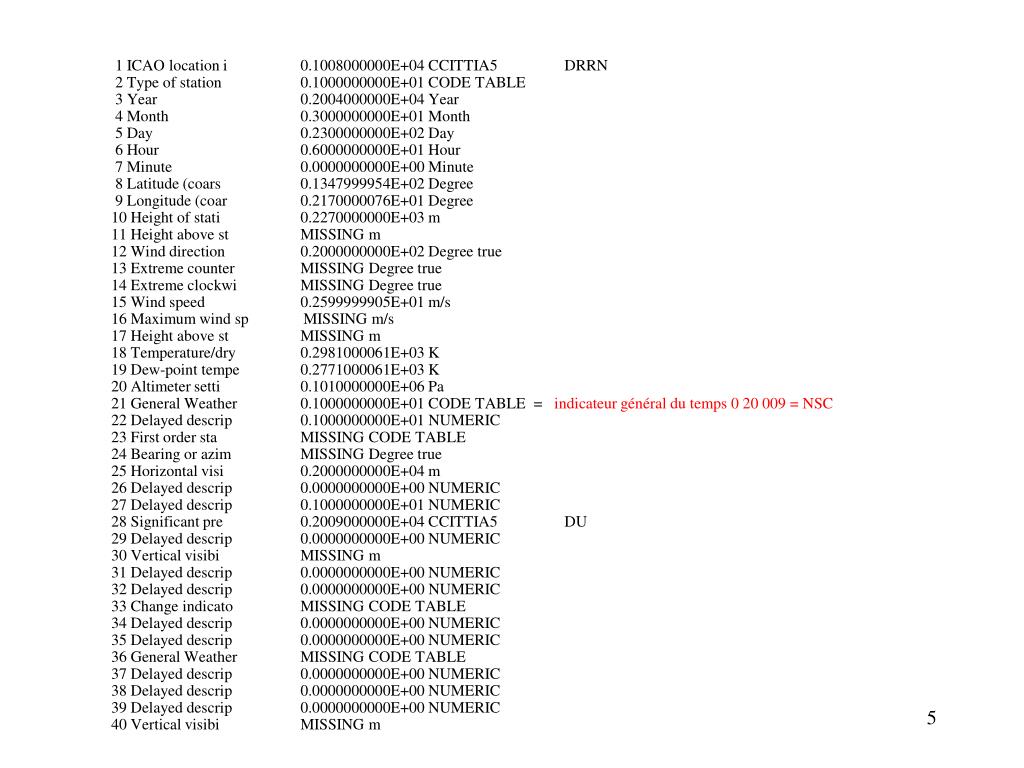

  5. 1 ICAO location i 0.1008000000E+04 CCITTIA5 DRRN 2 Type of station 0.1000000000E+01 CODE TABLE 3 Year 0.2004000000E+04 Year 4 Month 0.3000000000E+01 Month 5 Day 0.2300000000E+02 Day 6 Hour 0.6000000000E+01 Hour 7 Minute 0.0000000000E+00 Minute 8 Latitude (coars 0.1347999954E+02 Degree 9 Longitude (coar 0.2170000076E+01 Degree 10 Height of stati 0.2270000000E+03 m 11 Height above st MISSING m 12 Wind direction 0.2000000000E+02 Degree true 13 Extreme counter MISSING Degree true 14 Extreme clockwi MISSING Degree true 15 Wind speed 0.2599999905E+01 m/s 16 Maximum wind sp MISSING m/s 17 Height above st MISSING m 18 Temperature/dry 0.2981000061E+03 K 19 Dew-point tempe 0.2771000061E+03 K 20 Altimeter setti 0.1010000000E+06 Pa 21 General Weather 0.1000000000E+01 CODE TABLE = indicateur général du temps 0 20 009 = NSC 22 Delayed descrip 0.1000000000E+01 NUMERIC 23 First order sta MISSING CODE TABLE 24 Bearing or azim MISSING Degree true 25 Horizontal visi 0.2000000000E+04 m 26 Delayed descrip 0.0000000000E+00 NUMERIC 27 Delayed descrip 0.1000000000E+01 NUMERIC 28 Significant pre 0.2009000000E+04 CCITTIA5 DU 29 Delayed descrip 0.0000000000E+00 NUMERIC 30 Vertical visibi MISSING m 31 Delayed descrip 0.0000000000E+00 NUMERIC 32 Delayed descrip 0.0000000000E+00 NUMERIC 33 Change indicato MISSING CODE TABLE 34 Delayed descrip 0.0000000000E+00 NUMERIC 35 Delayed descrip 0.0000000000E+00 NUMERIC 36 General Weather MISSING CODE TABLE 37 Delayed descrip 0.0000000000E+00 NUMERIC 38 Delayed descrip 0.0000000000E+00 NUMERIC 39 Delayed descrip 0.0000000000E+00 NUMERIC 40 Vertical visibi MISSING m

  6. TEMSI (1) 1 BUFR PAR TYPE D’OBJET: JUBE99EGRR TEMSI BUFR WAF EGRR EMBEDDED CB JUCE00EGRR TEMSI BUFR WAF EGRR CLEAR AIR TURBULENCE JUFE00EGRR TEMSI BUFR WAF EGRR FRONTS JUNE00EGRR TEMSI BUFR WAF EGRR OTHER SIG WX JUOE00EGRR TEMSI BUFR WAF EGRR TURBULENCE IN CLOUD JUTE00EGRR TEMSI BUFR WAF EGRR ICING JUTE97EGRR TEMSI BUFR WAF EGRR TROPOPAUSE JUVE00EGRR TEMSI BUFR WAF EGRR TROPICAL STORMS, SANDSTORMS, VOLCANOES JUWE96EGRR TEMSI BUFR WAF EGRR JETSTREAMS

  7. 1 001031 2 008021 3 004001 4 004002 5 004003 6 004004 7 004005 8 008021 9 004001 10 004002 11 004003 12 004004 13 004005 14 007002 15 007002 16 111000 17 031001 18 008011 19 008007 20 007002 21 007002 22 102000 23 031001 24 005002 25 006002 26 011031 27 008007 28 008011 BUFR zones de turbulences BUFR SECTION 0 LENGTH OF SECTION 0 (BYTES) 8 TOTAL LENGTH OF BUFR MESSAGE (BYTES) 1792 BUFR EDITION NUMBER 2 BUFR SECTION 1 LENGTH OF SECTION 1 (BYTES) 18 BUFR EDITION NUMBER 2 ORIGINATING CENTRE 74 UPDATE SEQUENCE NUMBER 0 FLAG (PRESENCE OF SECTION 2) 0 BUFR MESSAGE TYPE 7 BUFR MESSAGE SUBTYPE 255 VERSION NUMBER OF LOCAL TABLE 1 YEAR 4 MONTH 3 DAY 23 HOUR 18 MINUTE 0 VERSION NUMBER OF MASTER TABLE 2 BUFR MASTER TABLE 0 BUFR TABLES TO BE LOADED B000740201 ,D000740201 • TEMSI (2) Section 3

  8. 1 IDENTIFICATION 0.9300000000E+02 CODE TABLE 1031 2 TIME SIGNIFICAN 0.1600000000E+02 CODE TABLE 8021 = analyse 3 YEAR 0.2004000000E+04 YEAR 4 MONTH 0.3000000000E+01 MONTH 5 DAY 0.2200000000E+02 DAY 6 HOUR 0.1800000000E+02 HOUR 7 MINUTE 0.0000000000E+00 MINUTE 8 TIME SIGNIFICAN 0.4000000000E+01 CODE TABLE 8021 = prévision 9 YEAR 0.2004000000E+04 YEAR 10 MONTH 0.3000000000E+01 MONTH 11 DAY 0.2300000000E+02 DAY 12 HOUR 0.1800000000E+02 HOUR 13 MINUTE 0.0000000000E+00 MINUTE 14 HEIGHT OR ALTIT 0.7620000000E+04 M 15 HEIGHT OR ALTIT 0.1920000000E+05 M 16 DELAYED DESCRIP 0.2400000000E+02 NUMERIC = 24 zones de turbulences 17 METEOROLOGICAL 0.1300000000E+02 CODE TABLE 8011 = Turbulence 18 DIMENSIONAL SIG 0.2000000000E+01 CODE TABLE 8007 = Zone 19 HEIGHT OR ALTIT MISSING M 20 HEIGHT OR ALTIT 0.1128000000E+05 M 21 DELAYED DESCRIP 0.1500000000E+02 NUMERIC = 15 lat/lon de description de la zone 22 LATITUDE (COARS -0.4179999924E+02 DEGREE 23 LONGITUDE (COAR 0.1049000015E+03 DEGREE … … … 52 DEGREE OF TURBU 0.6000000000E+01 CODE TABLE 11031 = turbulence modéré en atmosphère clair 53 DIMENSIONAL SIG MISSING CODE TABLE 8007 54 METEOROLOGICAL MISSING CODE TABLE 8011

  9. TAF en BUFR (METEO-FRANCE) FTAO33 DRRN 240400 DRRN 240400Z 240606 02006KT CAVOK TEMPO 0610 3000 DU= BUFR SECTION 0 LENGTH OF SECTION 0 (BYTES) 8 TOTAL LENGTH OF BUFR MESSAGE (BYTES) 524 BUFR EDITION NUMBER 3 BUFR SECTION 1 LENGTH OF SECTION 1 (BYTES) 18 BUFR EDITION NUMBER 3 ORIGINATING SUB-CENTRE 0 ORIGINATING CENTRE 85 UPDATE SEQUENCE NUMBER 0 FLAG (PRESENCE OF SECTION 2) 0 BUFR MESSAGE TYPE 0 BUFR MESSAGE SUBTYPE 51 VERSION NUMBER OF LOCAL TABLE 4 YEAR 4 MONTH 3 DAY 24 HOUR 4 MINUTE 0 VERSION NUMBER OF MASTER TABLE 5 BUFR MASTER TABLE 0

  10. 1 ICAO location i 0.1008000000E+04 CCITTIA5 DRRN 2 Year 0.2004000000E+04 Year 3 Month 0.3000000000E+01 Month 4 Day 0.2400000000E+02 Day 5 Hour 0.4000000000E+01 Hour 6 Minute 0.0000000000E+00 Minute 7 Latitude (coars 0.1347999954E+02 Degree 8 Longitude (coar 0.2170000076E+01 Degree 9 Height of stati 0.2270000000E+03 m 10 Delayed descrip 0.2500000000E+02 NUMERIC = découpage heure/heure du TAF long (06h à 06h) 11 Hour 0.6000000000E+01 Hour = 6h 12 Delayed descrip 0.2000000000E+01 NUMERIC = 2 tendances: prévision de BASE + TEMPO 13 Indicateur de c 0.8000000000E+01 CODE TABLE = 0 08 192 : BASE 14 Delayed descrip 0.1000000000E+01 NUMERIC 15 Wind direction 0.2000000000E+02 Degree true 16 Wind speed 0.3099999905E+01 m/s 17 Maximum wind sp MISSING m/s 18 General Weather 0.2000000000E+01 CODE TABLE = table 0 20 009 : CAVOK 19 Delayed descrip 0.0000000000E+00 NUMERIC 20 Delayed descrip 0.0000000000E+00 NUMERIC 21 Delayed descrip 0.0000000000E+00 NUMERIC 22 Vertical visibi MISSING m 23 Delayed descrip 0.0000000000E+00 NUMERIC 24 Delayed descrip 0.0000000000E+00 NUMERIC 25 Indicateur de c 0.2000000000E+01 CODE TABLE = table 0 08 192 : TEMPO 26 Delayed descrip 0.0000000000E+00 NUMERIC 27 General Weather MISSING CODE TABLE 28 Delayed descrip 0.1000000000E+01 NUMERIC 29 Horizontal visi 0.3000000000E+04 m 30 Delayed descrip 0.1000000000E+01 NUMERIC 31 Significant pre 0.2009000000E+04 CCITTIA5 DU 32 Delayed descrip 0.0000000000E+00 NUMERIC 33 Vertical visibi MISSING m 34 Delayed descrip 0.0000000000E+00 NUMERIC 35 Delayed descrip 0.0000000000E+00 NUMERIC 36 Hour 0.7000000000E+01 Hour = 07 h … … …

  11. Document OMM sur les nouvelles entrées table B et D • SIGMET SIGMET de turbulence:
