  1. Online Scheduling with Reordering Matthias Westermann RWTH Aachen Joint work with Matthias Englert and Deniz Özmen

  2. Minimum makespan scheduling makespan • Input sequence of jobs with processing times. • Scheduling algorithm assigns the jobs to m machines. • Objective is to minimize the makespan. M. Westermann - RWTH Aachen

  3. Online scheduling without preemption • Online algorithm gets to know the input sequence job by job without knowledge about the future. • Classic model:Each arriving job has to be assigned immediately to one of the machines. M. Westermann - RWTH Aachen

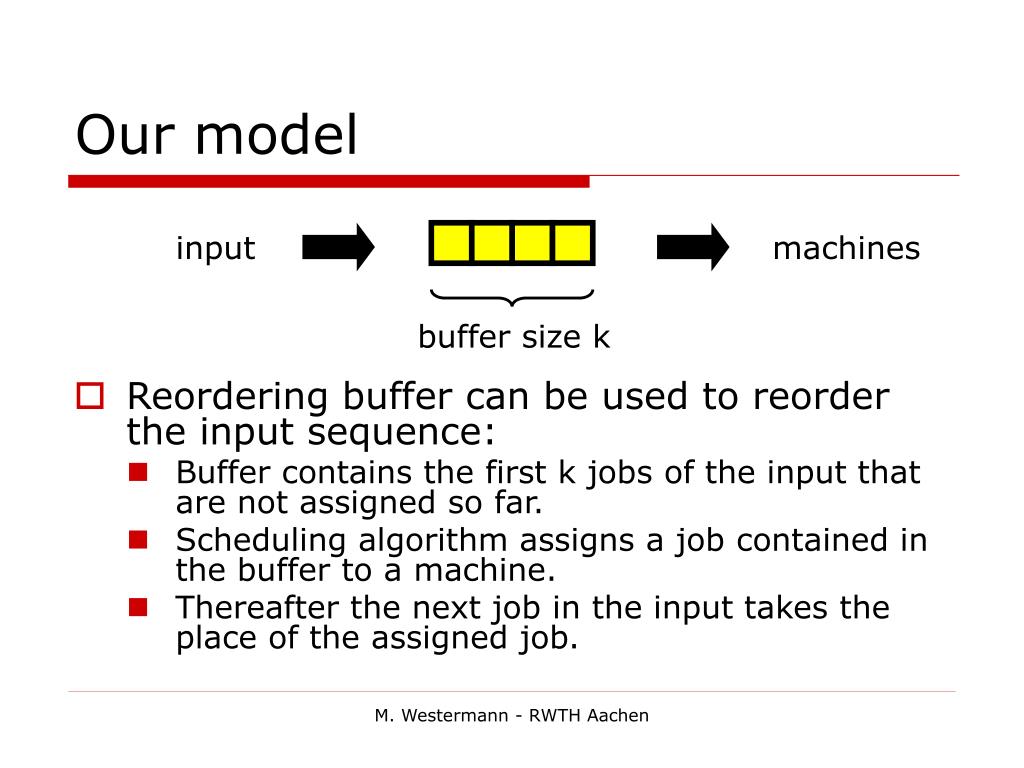

  4. Our model • Reordering buffer can be used to reorder the input sequence: • Buffer contains the first k jobs of the input that are not assigned so far. • Scheduling algorithm assigns a job contained in the buffer to a machine. • Thereafter the next job in the input takes the place of the assigned job. input machines buffer size k M. Westermann - RWTH Aachen

  5. Competitive analysis • Comparison: • Online algorithm (without knowledge about the future) • Offline algorithm (knows the whole input in advance) • Online algorithm is c-competitive, if its makespan is at most c times the makespan of an optimal offline algorithm. M. Westermann - RWTH Aachen

  6. m identical machines- main results • Lower bound of rm, if the size of the buffer does not depend on the input sequence. • r2 = 4/3 • limm!1 rm = LambertW-1(-1/e2) /(1+LambertW-1(-1/e2)) ¼ 1.4659 • Scheduling algorithm matching the lower bound with a buffer of size d(1+2/rm)¢me+2. • 1+2/r2 = 2.5 • limm!1 1+2/rm¼ 2.36 smallest real solution to x¢ex = -1/e2 M. Westermann - RWTH Aachen

  7. m identical machines- values of rm M. Westermann - RWTH Aachen

  8. m identical machines- previous work M. Westermann - RWTH Aachen

  9. m identical machines- the lower bound of rm • Assume for contradiction that algorithm A achieves a competitive ratio r < rm with a buffer of size k. • 1/+k jobs of size  arrive. wi := min{rm/m, (rm-1)/i} rm is the solution to  wi = 1 M0 Mm-1 M. Westermann - RWTH Aachen

  10. m identical machines- the lower bound of rm • There exists a machine Mjwith load ¸ wj. • If wj = rm/m,no more jobs arrive. • The optimal makespan is · (1+k¢)/m+ = (1+(k+m)¢)/m. • A’s competitive ratio is ¸ rm/(1+(k+m)¢). M. Westermann - RWTH Aachen

  11. m identical machines- the lower bound of rm • If wj = (rm-1)/j, (m-j) large jobs of size 1/j arrive. • The optimal makespan · (1+(k+j)¢)/j. • If A schedules two large jobs on the same machine, A’s competitive ratio is ¸ 2/(1+(k+j)¢) . • Otherwise, i.e., A schedules at least one of the large jobs on a machine with load ¸ (rm-1)/j, A’s competitive ratio is ¸ rm/(1+(k+j)¢) . M. Westermann - RWTH Aachen

  12. m identical machines- the upper bound of rm • When a new job arrives: • Store this job in the buffer and remove a job J of smallest size from the buffer. • Schedule J on a machine Mi with load · wi¢(T+m¢L(J))-L(J). total scheduled load size of J Assume for contradiction that such a machine does not exist. Then T >  (wi¢(T+m¢L(J))-L(J)) = T. M. Westermann - RWTH Aachen

  13. m identical machines- the upper bound of rm • After all jobs have arrived: • Schedule virtually some of the remaining jobs on m empty machines according to LPT. Abort just before more than two jobs should be assigned to the same machine. • Schedule the remaining jobs according to Greedy. M0 Mm-1 M. Westermann - RWTH Aachen

  14. m identical machines- the upper bound of rm buffer size 3m: total load · m¢OPT, since ¸ m-1 jobs remain in the buffer wi¢(T+(m-1)¢Lmin) size of each remaining job · OPT/3 · (rm-1)¢OPT average load · OPT smallest size of all remaining jobs M0 Mm-1 M. Westermann - RWTH Aachen

  15. m identical machines- further results • 2 identical machines • Scheduling algorithm achieving the optimal competitive ratio r2 with a buffer of size 2. • Small buffer sizes • Lower bound of 3/2 > rm, if the buffer size is at most bm/2c. • Lower bound of 1+1/21/2¼ 1.7071, if the buffer size is at most bm/8c and m ¸ 8. M. Westermann - RWTH Aachen

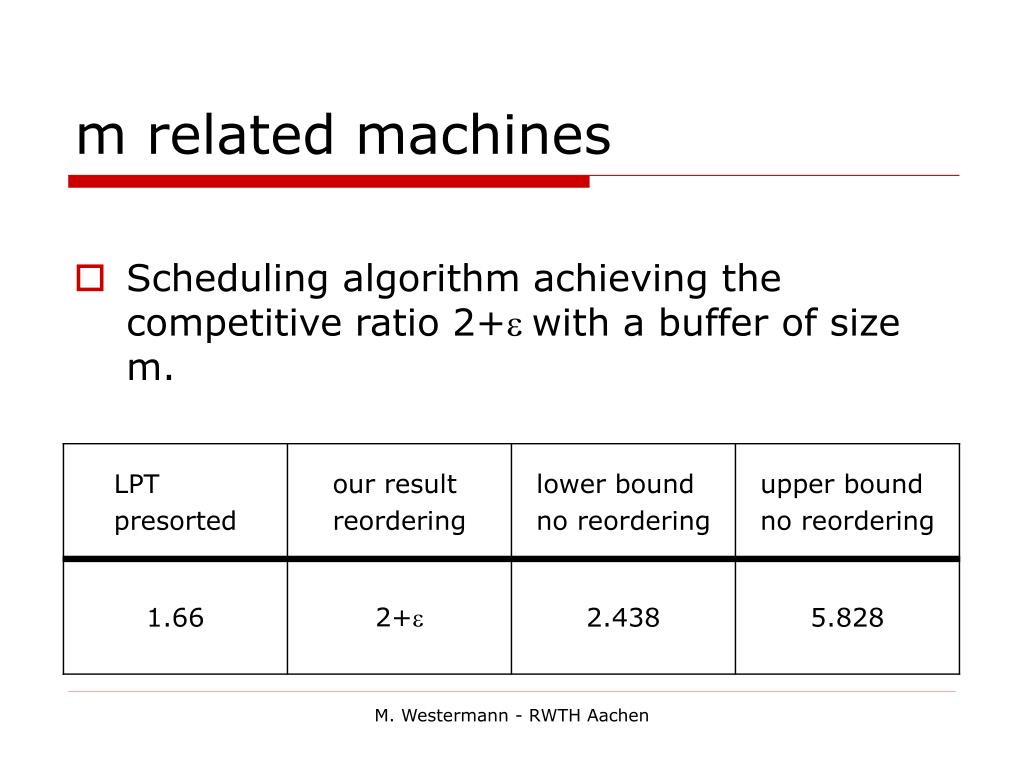

  16. m related machines • Scheduling algorithm achieving the competitive ratio 2+ with a buffer of size m. M. Westermann - RWTH Aachen

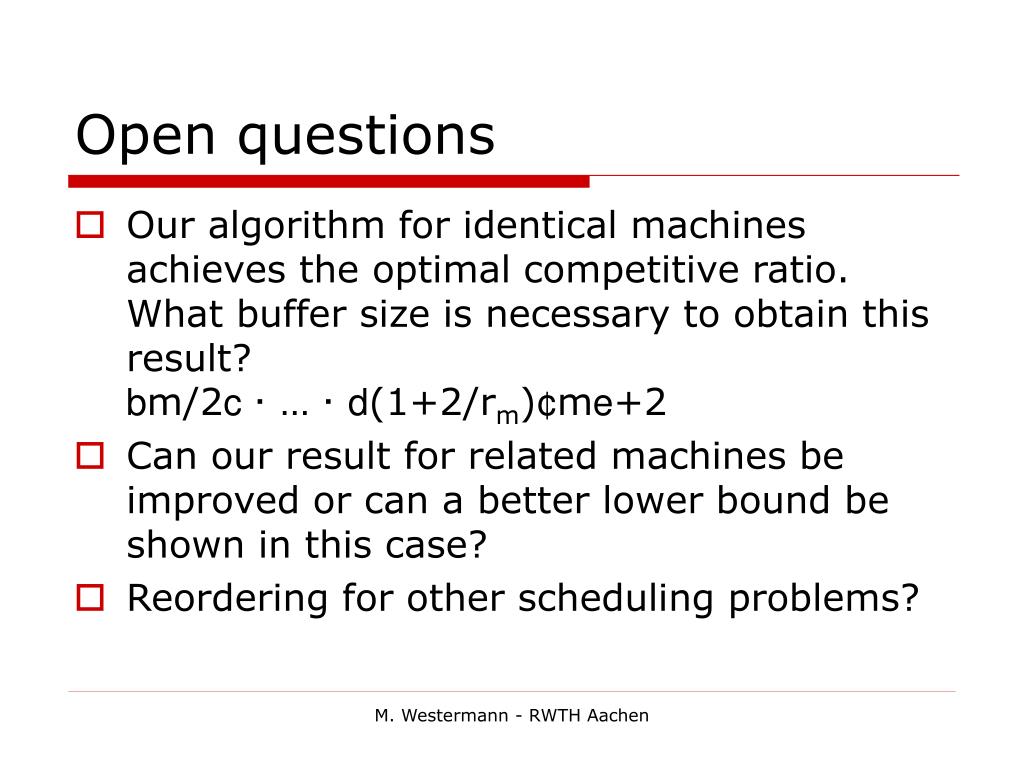

  17. Open questions • Our algorithm for identical machines achieves the optimal competitive ratio. What buffer size is necessary to obtain this result? bm/2c· … ·d(1+2/rm)¢me+2 • Can our result for related machines be improved or can a better lower bound be shown in this case? • Reordering for other scheduling problems? M. Westermann - RWTH Aachen
