  1. Migrating Win32 Applications to WPF

  2. Migration of Existing Applications Migration: • The architecture of WPF is significantly different • The approach to migration will need to be different than Win32=> WinForm • For example, WPF encourages customers to use Styles/Templates to create borders instead of a simple BorderStyle

  3. Migration of Existing Applications If we run into these kinds of conflicts in the WPF runtime library implementation… • We will keep the new WPF style, but… • A migration issue will exist for the developer’s disposition

  4. Migration of Existing Applications • More refactoring will be needed than for Windows Forms migration • Some behaviors will change • e.g.: MDI applications will be rendered as a Tabbed document

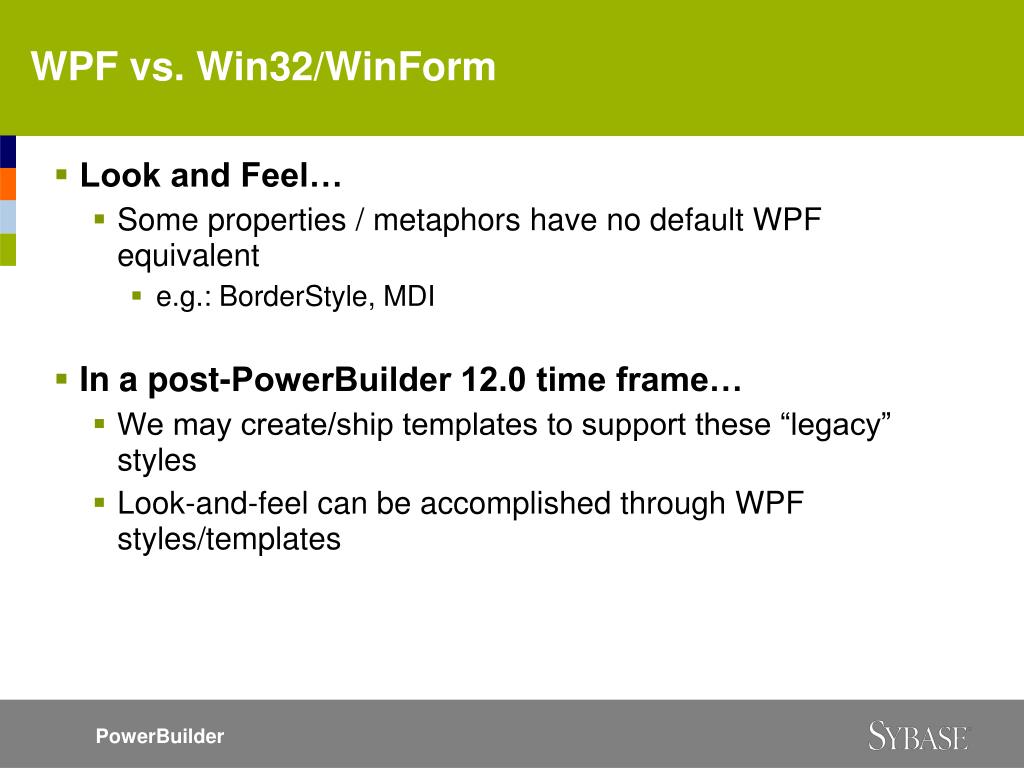

  5. WPF vs. Win32/WinForm • Look and Feel… • Some properties / metaphors have no default WPF equivalent • e.g.: BorderStyle, MDI • In a post-PowerBuilder 12.0 time frame… • We may create/ship templates to support these “legacy” styles • Look-and-feel can be accomplished through WPF styles/templates

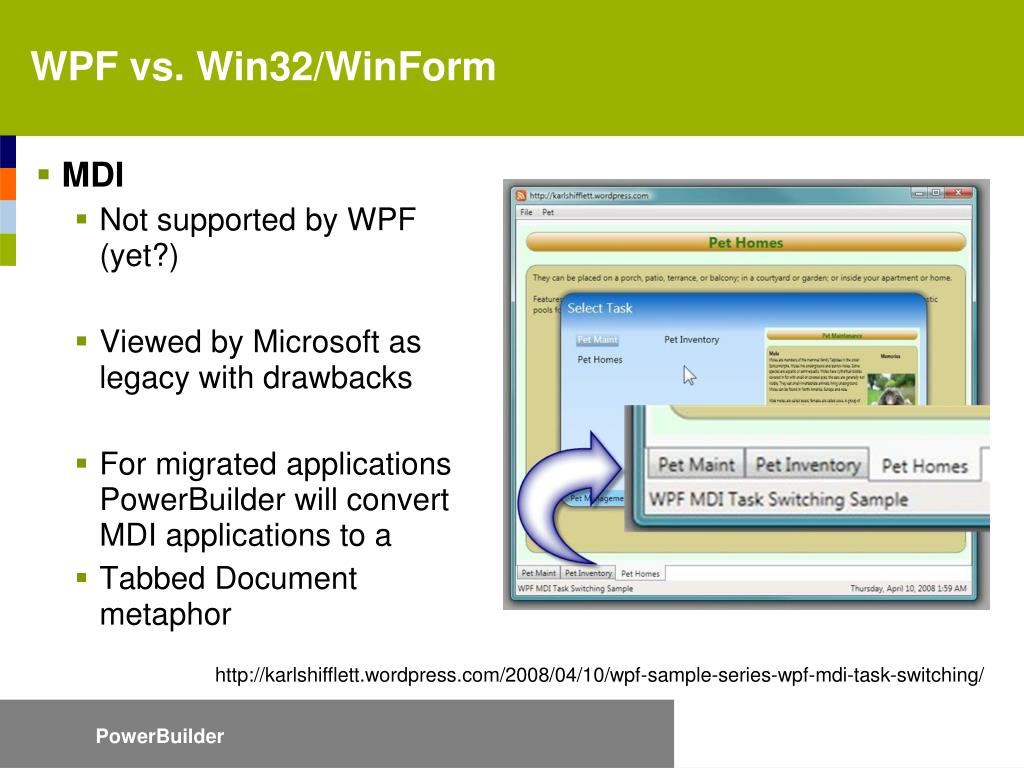

  6. WPF vs. Win32/WinForm • MDI • Not supported by WPF (yet?) • Viewed by Microsoft as legacy with drawbacks • For migrated applications PowerBuilder will convert MDI applications to a • Tabbed Document metaphor http://karlshifflett.wordpress.com/2008/04/10/wpf-sample-series-wpf-mdi-task-switching/

  7. WPF vs. Win32/WinForm • User Defined Custom Events • WPF - the event model is changed • Several custom events have no WPF matching event • Will not be supported in PowerBuilder 12.0

  8. WPF vs. Win32/WinForm Window Handle Usage: • Win32/WinForm applications • Each control is actually a Window • Each control has its own Window handle • e.g: You can call SetParent(hwnd) to set the parent Window for the current Window through Win32 API calls. …cont’d…

  9. WPF vs. Win32/WinForm …cont’d…Window Handle Usage: • In WPF, there is only a single handle for the Window • A control nested in a Window will NOT have its own handle • API calls using Window handles will not be supported • For migrated applications, there is no workaround but to refactor the code

  10. WPF vs. Win32/WinForm Event Sequence: • Again, the event model of WPF application is changed • The event sequence of WPF applications is different than WinForm / Win32 • We cannot ensure the event sequence of WPF controls is exactly the same • For migrated applications, there is no workaround but to refactor the code

  11. Fully Managed Code at Runtime • .NET applications deployed by PowerBuilder 11.x have a Managed Code runtime…except for the DataWindow engine • Current PowerBuilder 11.x “Unmanaged” issues: • Need to specify the path for DataWindow unmanaged DLLs • Can not run applications in partial trust environments • The DataWindow engine is being rewritten from the ground up in C# and will be fully-Managed Code
