  1. MAGNETIC MATERIALS FOR PARTICLE ACCELERATION R. Hasegawa Metglas, Inc., Conway, SC, USA K. Ogura and T. Yoshida Hitachi Metals, Ltd., Tottori, Japan RPIA 2006, Tsukuba, Japan 07-10 March 2006

  2. OVERVIEW • Introduction • Amorphous Alloy Inductors • Nanocrystalline Alloy Inductors • Production of Large Size Cores • Conclusion

  3. INTRODUCTION • Materials Considered (past & present): • Ferrites • Fe-based Nanocrystalline Alloys • Fe-, Fe-Ni- and Co-based Amorphous Alloys • Main Features: • Low Q • High Operating Flux Densities • High Accelerating Gradient Operations • Suppression of Coupled Bunch Instability Wider Availability of Core Materials for Specific Cavity Requirements

  4. HISTORICAL FT3M FT3L Fe-AM FeNi-AM Y. Tanabe, M. Fujieda, Y. Mori, H. Nakayama, C. Ohmori, K.Saito, Y. Sato, T. Uesugi, M. Yamamoto, T. Yan, E. Ezura, T. Takagi and M. Yoshii, KEK Preprint 98-77 (June 1998)

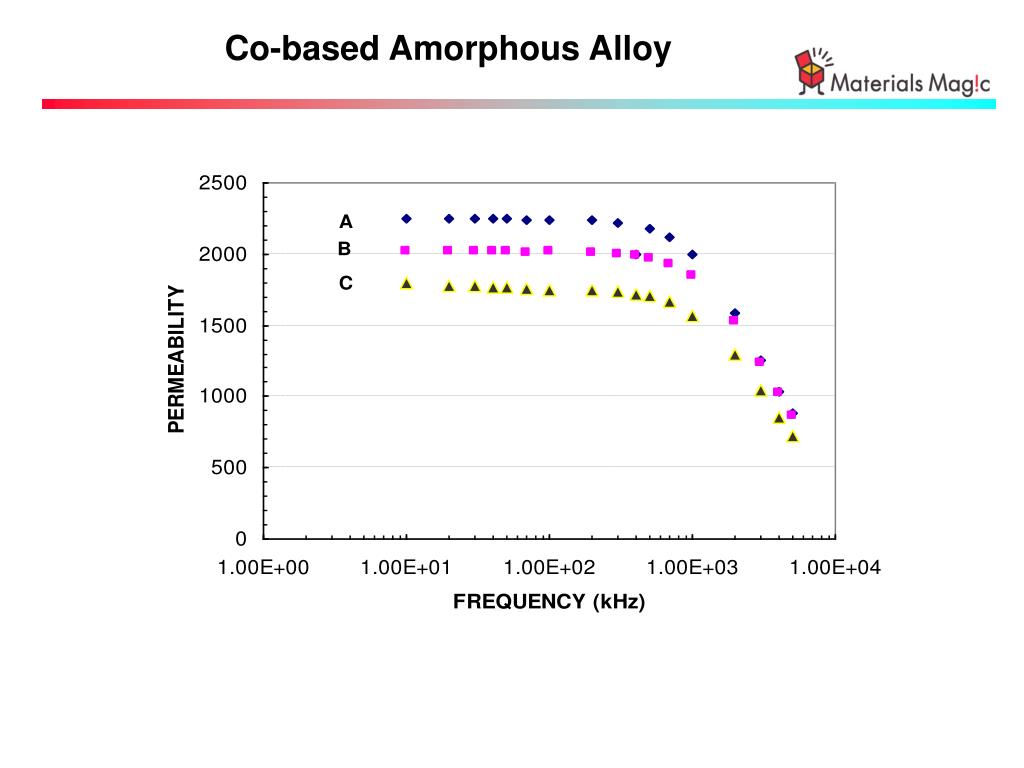

  5. Co-based Amorphous Alloy

  6. µQf Product Comparison FT3L and Fe-AM : data of Tanabe et al.

  7. Nanocrystalline Alloy

  8. Nanocrystalline Alloy

  9. Nanocrystalline Alloy (FT3L-13µm) Q

  10. Previous Winding Tension Pattern A Pattern B Diameter of Wound Core LARGE CORE PRODUCTION

  11. µQf Variability - Core Winding Tension

  12. CONCLUSION • Both amorphous and nanocrystalline alloys were • heat-treated with a magnetic field applied along • cores’ axis direction. • µQf > 7 GHz at 1 MHz achieved in amorphous Co- • based alloy and Fe-based nanocrystalline alloy • Q ~ 4 (Co-based amorphous alloy) • Q ~ 1 (Fe-based nanocrystalline alloy) • µ ~ 2000 (Co-based amorphous alloy) • µ ~ 5000 (Fe-based amorphous alloy) • Controlled core winding tension is necessary to • reduce performance variability across cores’ build. • PROVIDE WIDER AVAILABILITY OF INDUCTOR CORE • MATERIAL FOR PARTICLE ACCELERATION
