  1. Convergence & Virtualization Brandon Wagner

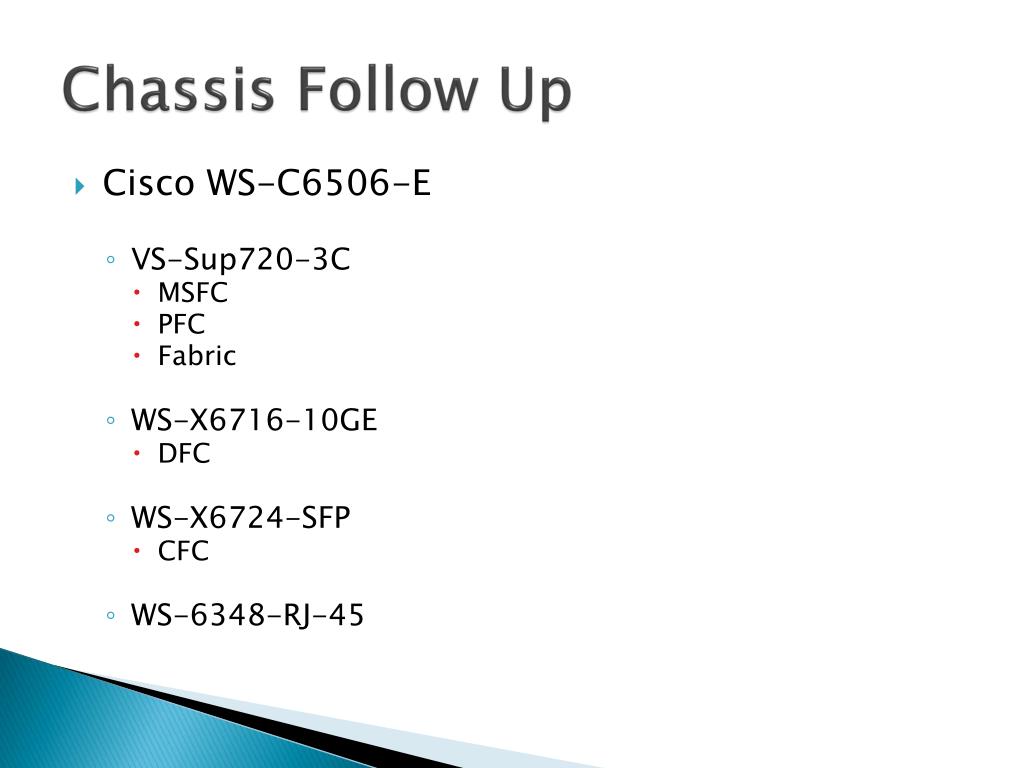

  2. Chassis Follow Up • Cisco WS-C6506-E • VS-Sup720-3C • MSFC • PFC • Fabric • WS-X6716-10GE • DFC • WS-X6724-SFP • CFC • WS-6348-RJ-45

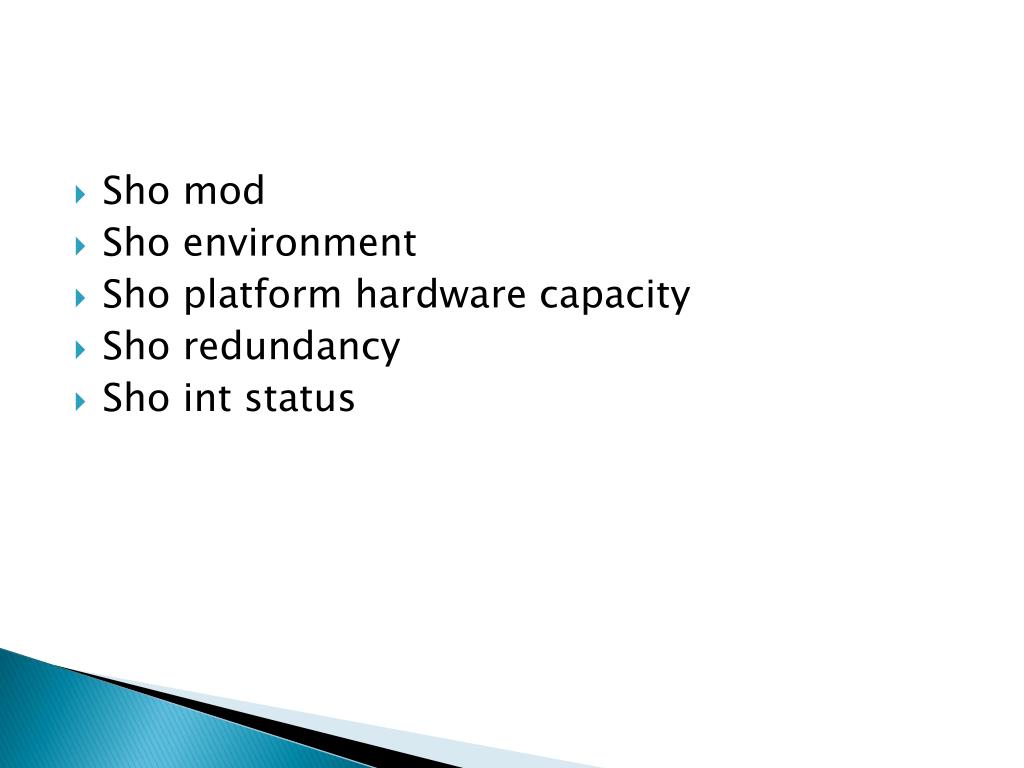

  3. Sho mod • Sho environment • Sho platform hardware capacity • Sho redundancy • Shoint status

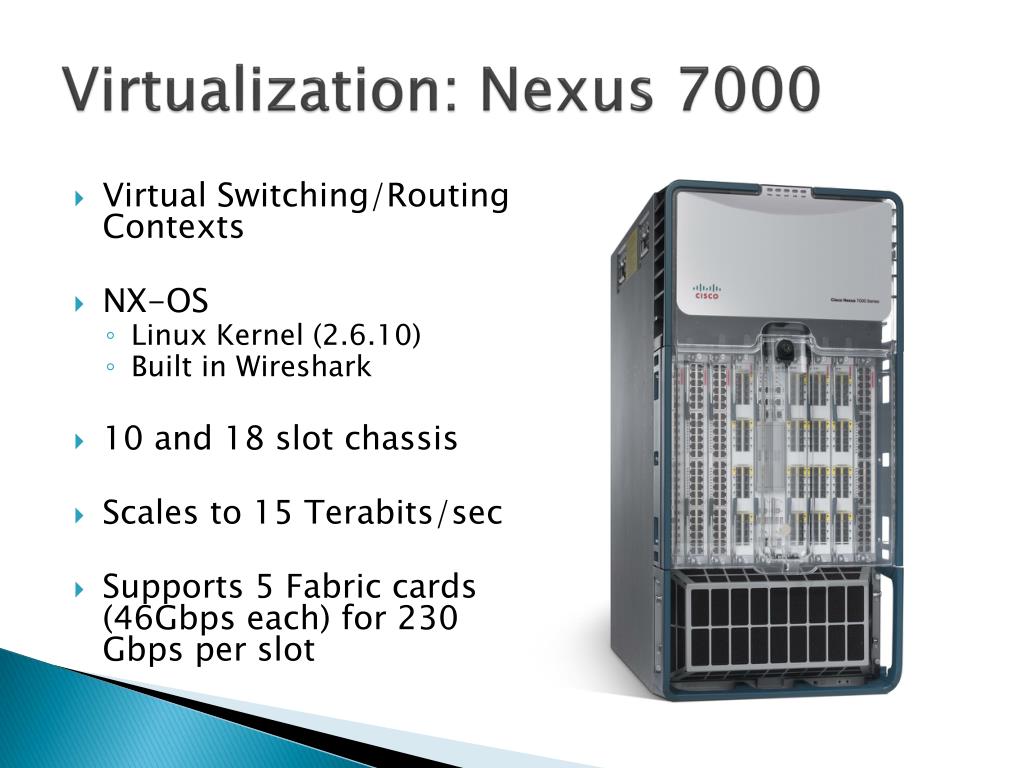

  4. Virtualization: Nexus 7000 • Virtual Switching/Routing Contexts • NX-OS • Linux Kernel (2.6.10) • Built in Wireshark • 10 and 18 slot chassis • Scales to 15 Terabits/sec • Supports 5 Fabric cards (46Gbps each) for 230 Gbps per slot

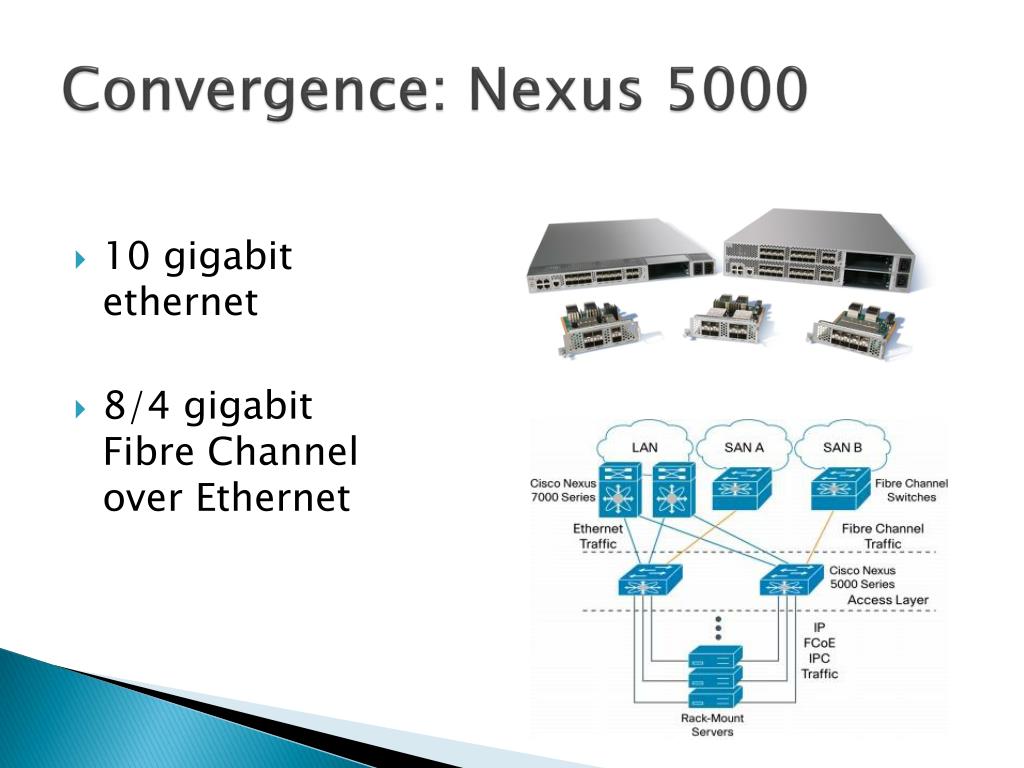

  5. Convergence: Nexus 5000 • 10 gigabit ethernet • 8/4 gigabit Fibre Channel over Ethernet

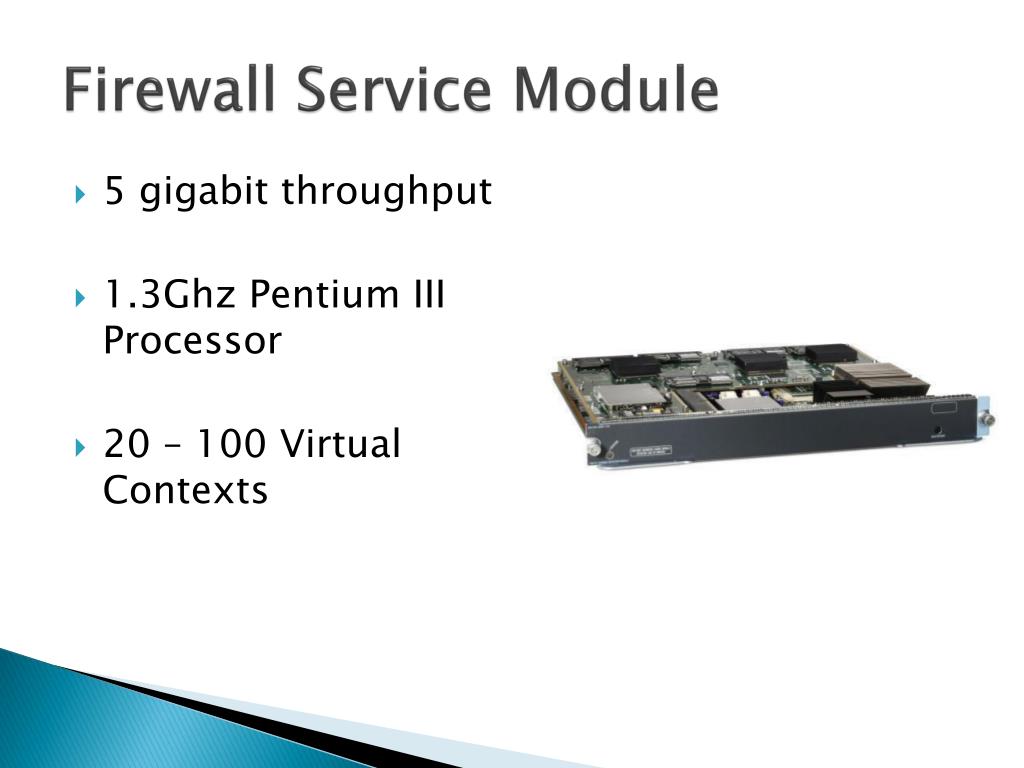

  6. Firewall Service Module • 5 gigabit throughput • 1.3Ghz Pentium III Processor • 20 – 100 Virtual Contexts

  7. Virtualization vs Discrete • Pro’s and Con’s? • Central or Distributed? • Where do we go from here?
