  1. Baseload Electricityquantify, address, manage3) Gathering information & understanding Presenter Todd Hoener, LEEDaccredited professional End-use energy specialist Renewable energy program administrator Certified home energy rater & Light commercial energy auditor Golden Valley Electric Association Fairbanks, Alaska 907 451 5607 w tmhoener@gmail.com 2010 Energy OutWest Reno, Nevada

  2. 2010 Energy OutWest Reno, Nevada

  3. Review • Volt (E) = watt(P) divided by amp(I) • (E = P / I) • Amp (ampere) (I) = watt(P) divided by volt(E) • (I = P / E ) • Watt (P) = volt (E) multiplied by amp(I) • (P = E * I ) 2010 Energy OutWest Reno, Nevada

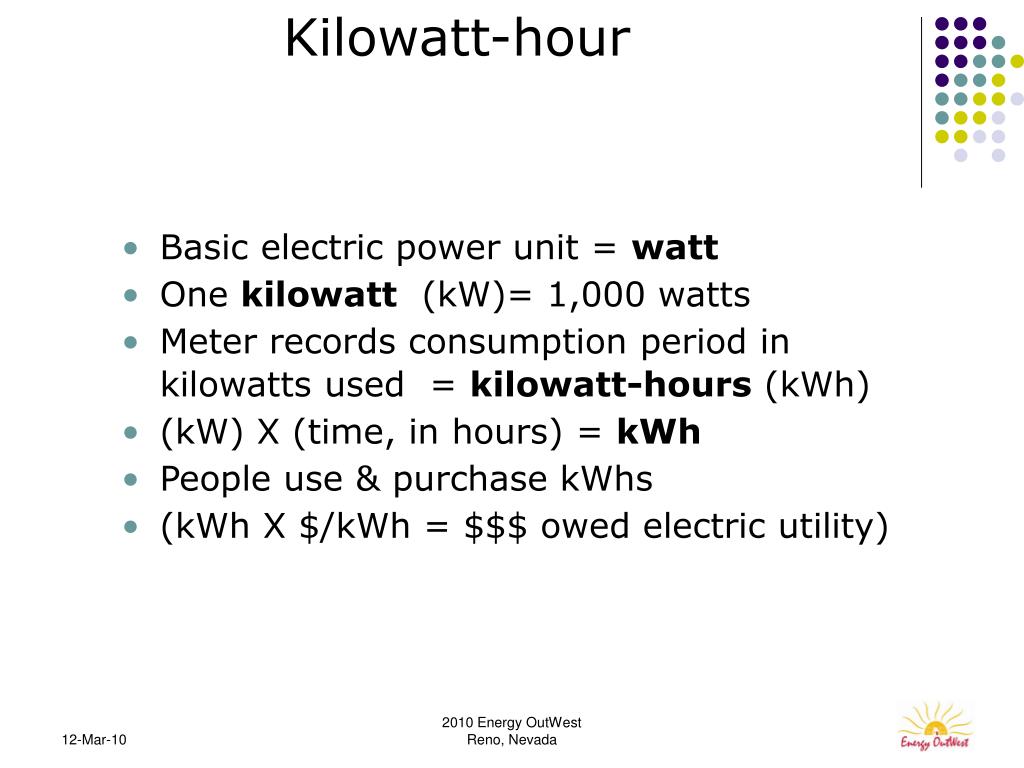

  4. Kilowatt-hour • Basic electric power unit = watt • One kilowatt (kW)= 1,000 watts • Meter records consumption period in kilowatts used = kilowatt-hours (kWh) • (kW) X (time, in hours) = kWh • People use & purchase kWhs • (kWh X $/kWh = $$$ owed electric utility) 2010 Energy OutWest Reno, Nevada

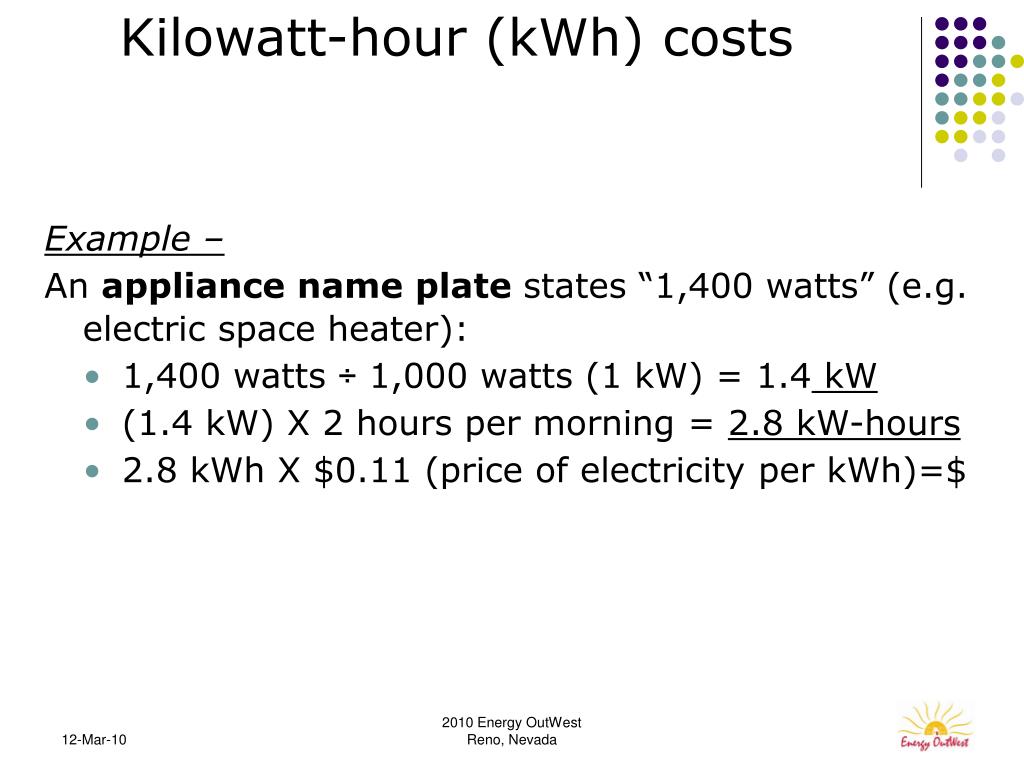

  5. Kilowatt-hour (kWh) costs Example – An appliance name plate states “1,400 watts” (e.g. electric space heater): • 1,400 watts ÷ 1,000 watts (1 kW) = 1.4 kW • (1.4 kW) X 2 hours per morning = 2.8 kW-hours • 2.8 kWh X $0.11 (price of electricity per kWh)=$ 2010 Energy OutWest Reno, Nevada

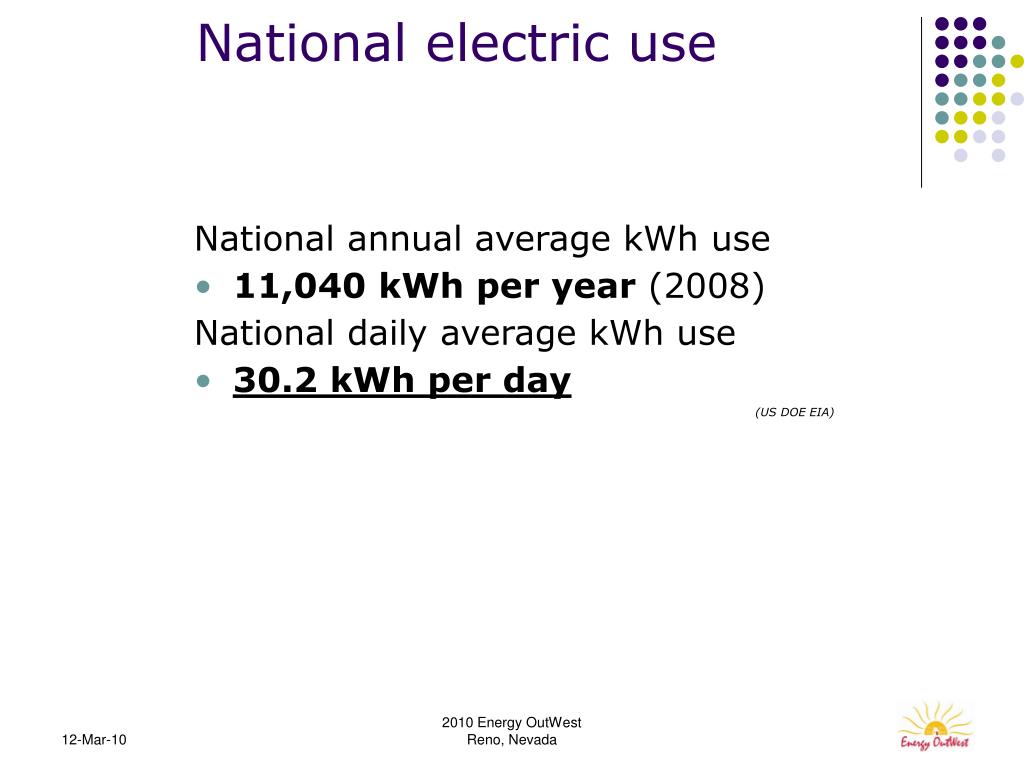

  6. National electric use National annual average kWh use • 11,040 kWh per year (2008) National daily average kWh use • 30.2 kWh per day (US DOE EIA) 2010 Energy OutWest Reno, Nevada

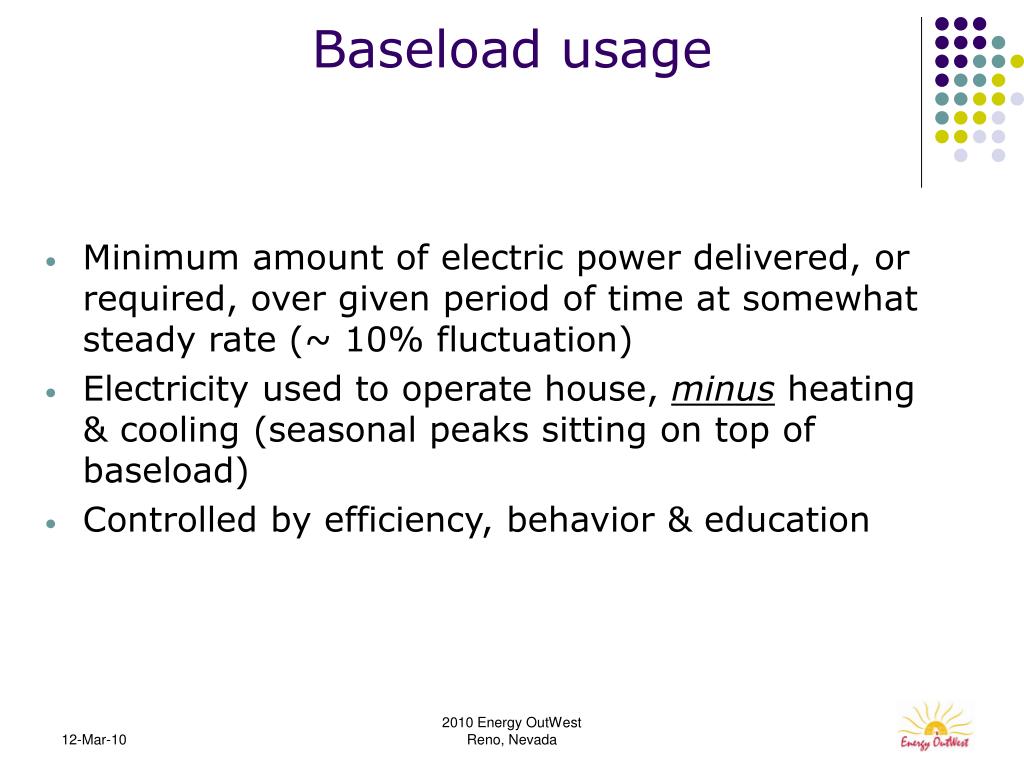

  7. Baseload usage Minimum amount of electric power delivered, or required, over given period of time at somewhat steady rate (~ 10% fluctuation) Electricity used to operate house, minus heating & cooling (seasonal peaks sitting on top of baseload) Controlled by efficiency, behavior & education 2010 Energy OutWest Reno, Nevada

  8. Baseload daily average 2010 Energy OutWest Reno, Nevada

  9. 2010 Energy OutWest Reno, Nevada

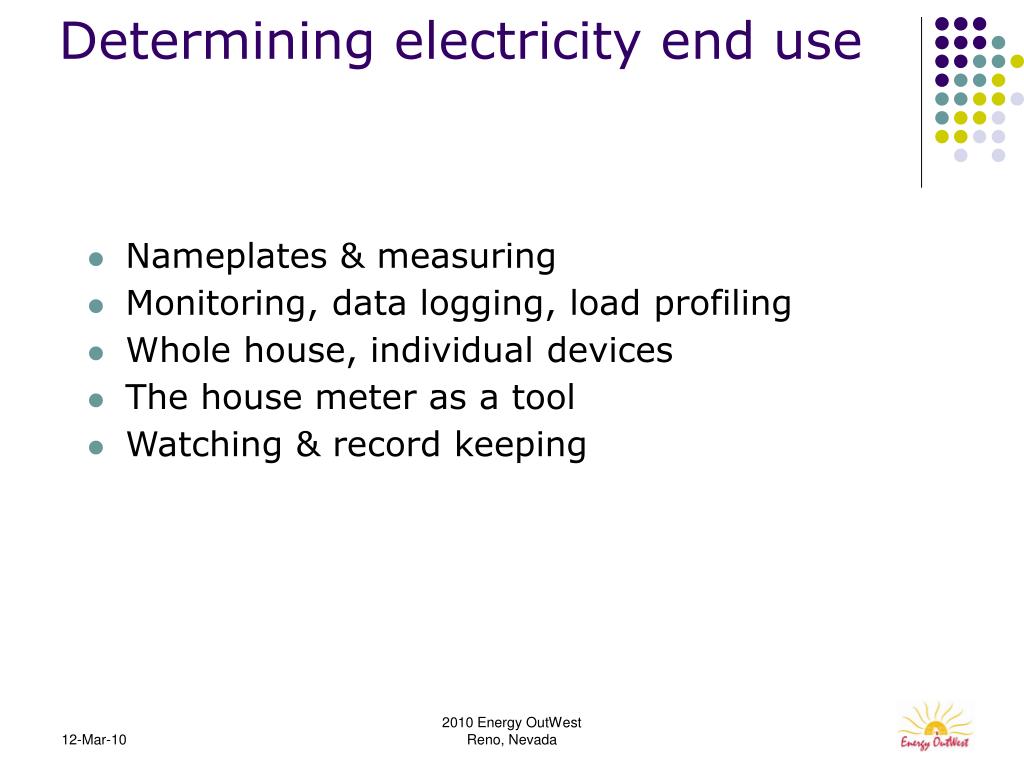

  10. Determining electricity end use Nameplates & measuring Monitoring, data logging, load profiling Whole house, individual devices The house meter as a tool Watching & record keeping 2010 Energy OutWest Reno, Nevada

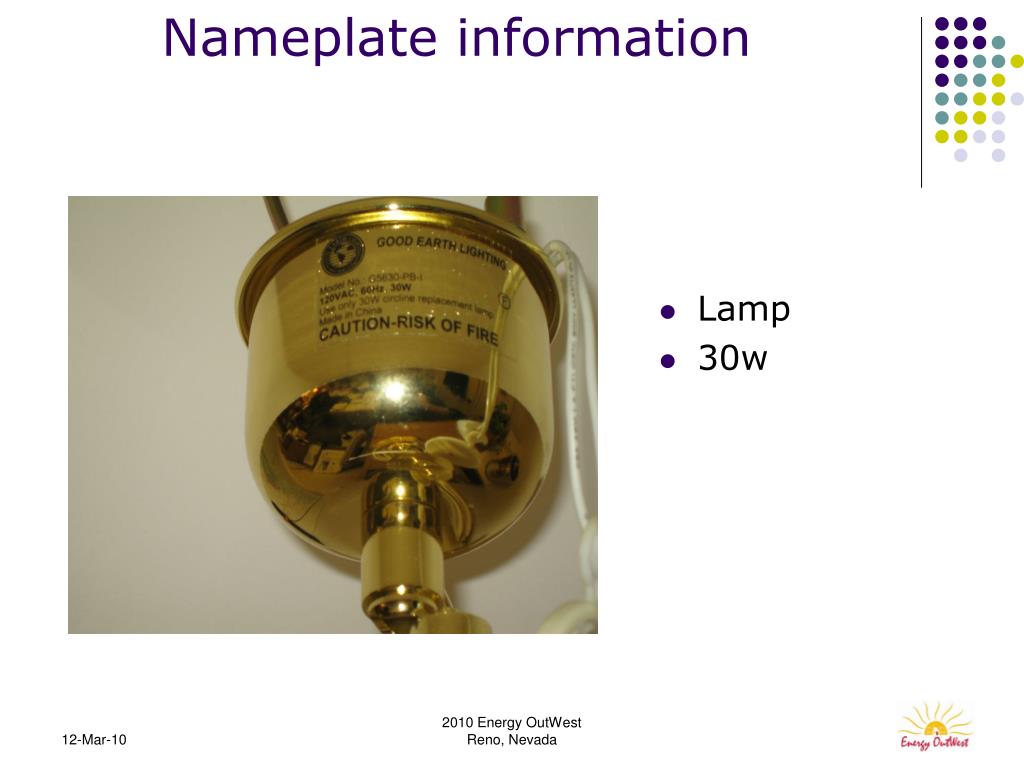

  11. Nameplate information • Lamp • 30w 2010 Energy OutWest Reno, Nevada

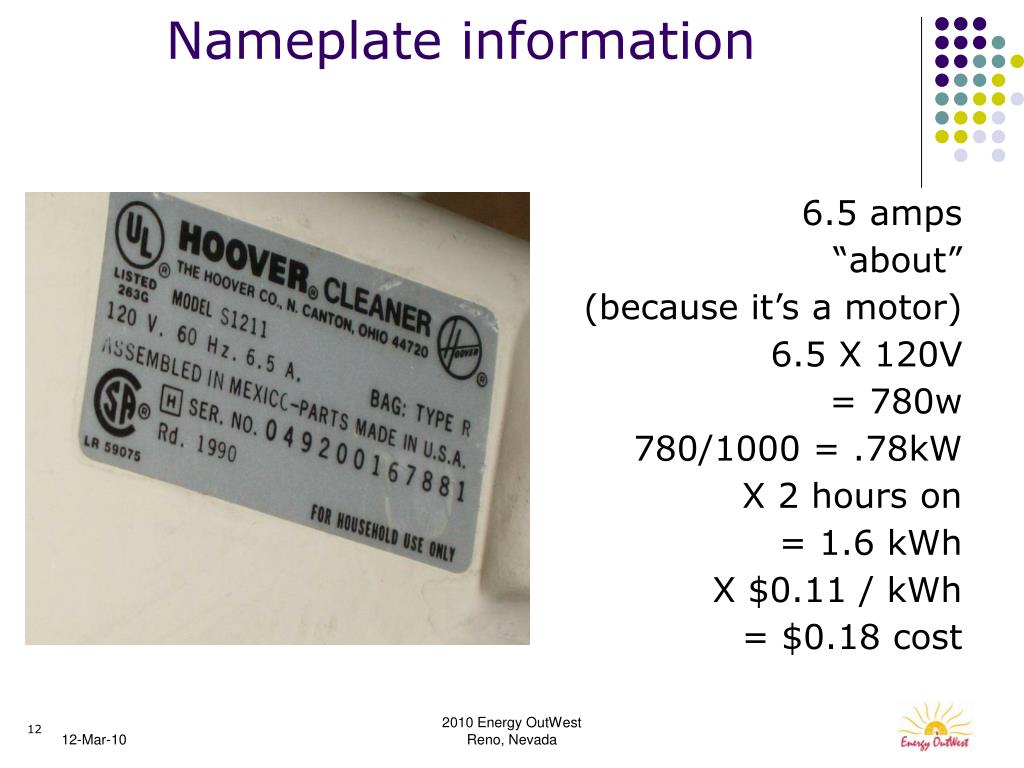

  12. Nameplate information 6.5 amps “about” (because it’s a motor) 6.5 X 120V = 780w 780/1000 = .78kW X 2 hours on = 1.6 kWh X $0.11 / kWh = $0.18 cost 2010 Energy OutWest Reno, Nevada 12

  13. Nameplate information 25 watts 25/1000=.025 kW 5 hours on =0.125 kWh X $0.11 / kWh $0.014 cost 2010 Energy OutWest Reno, Nevada

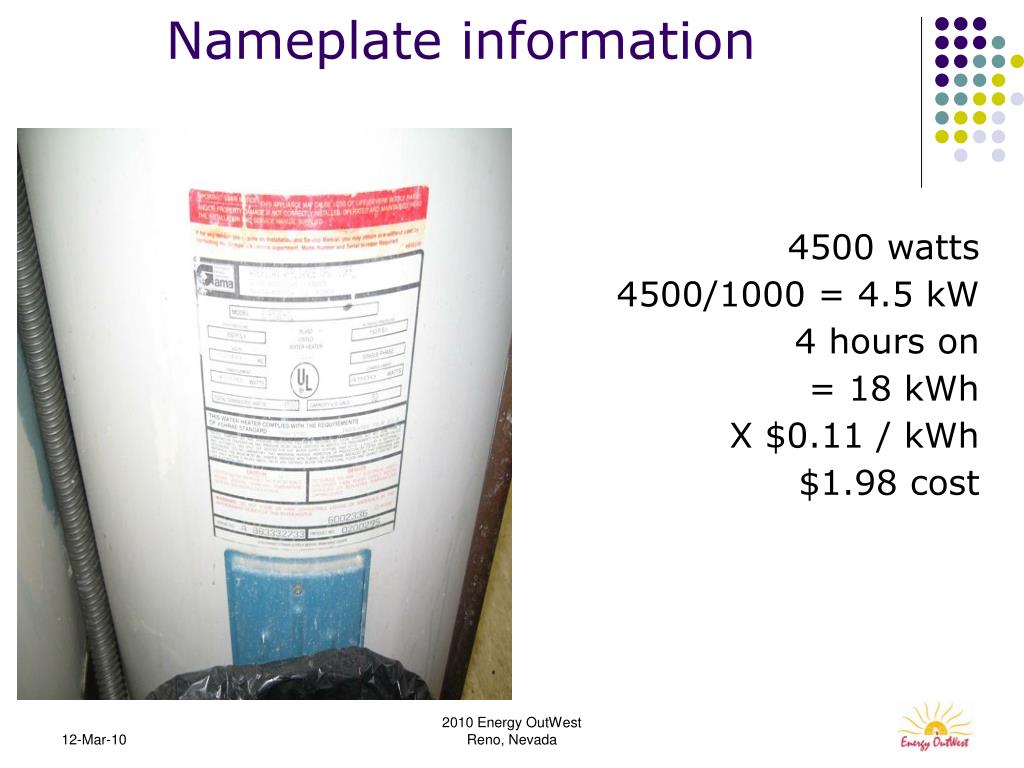

  14. Nameplate information 4500 watts 4500/1000 = 4.5 kW 4 hours on = 18 kWh X $0.11 / kWh $1.98 cost 2010 Energy OutWest Reno, Nevada

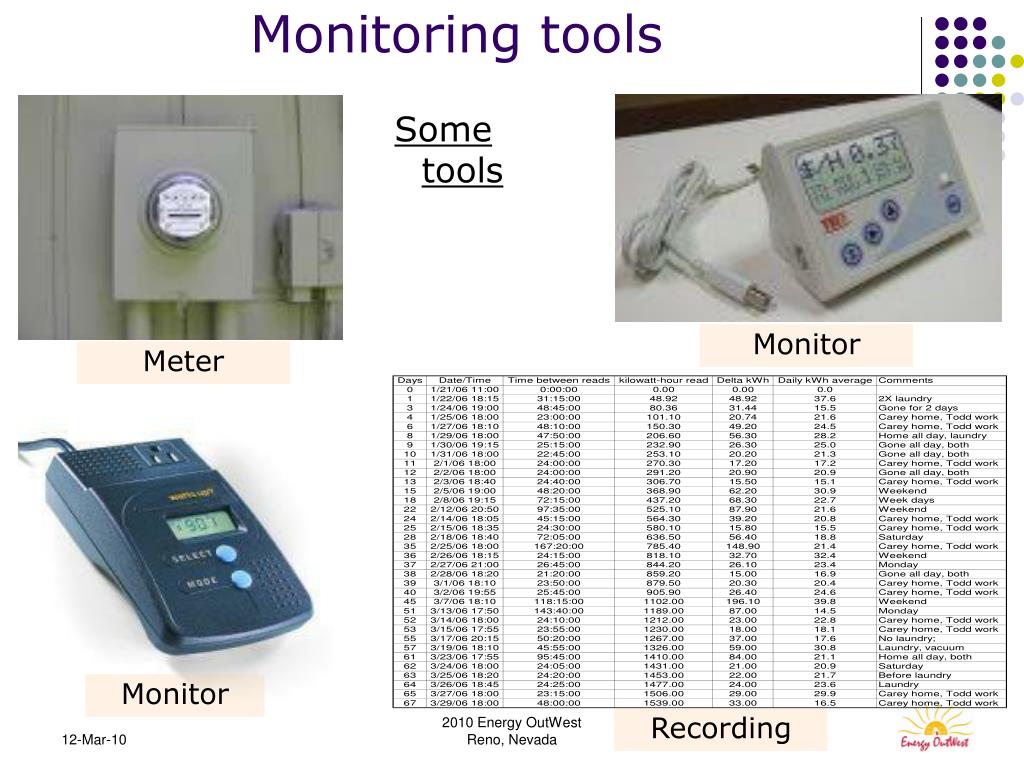

  15. Monitoring tools Some tools Monitor Meter Monitor 2010 Energy OutWest Reno, Nevada Recording

  16. Residential house meters • “Turtle” automatic meter reading meters • Could be configured “Smart” 2010 Energy OutWest Reno, Nevada

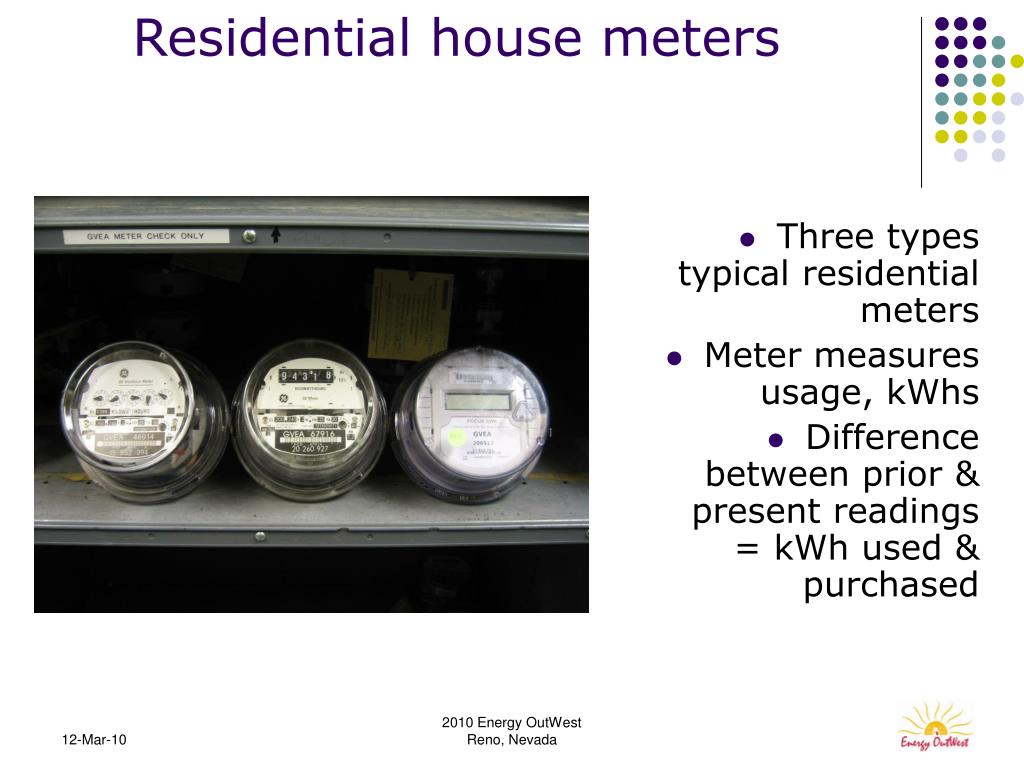

  17. Residential house meters • Three types typical residential meters • Meter measures usage, kWhs • Difference between prior & present readings = kWh used & purchased 2010 Energy OutWest Reno, Nevada

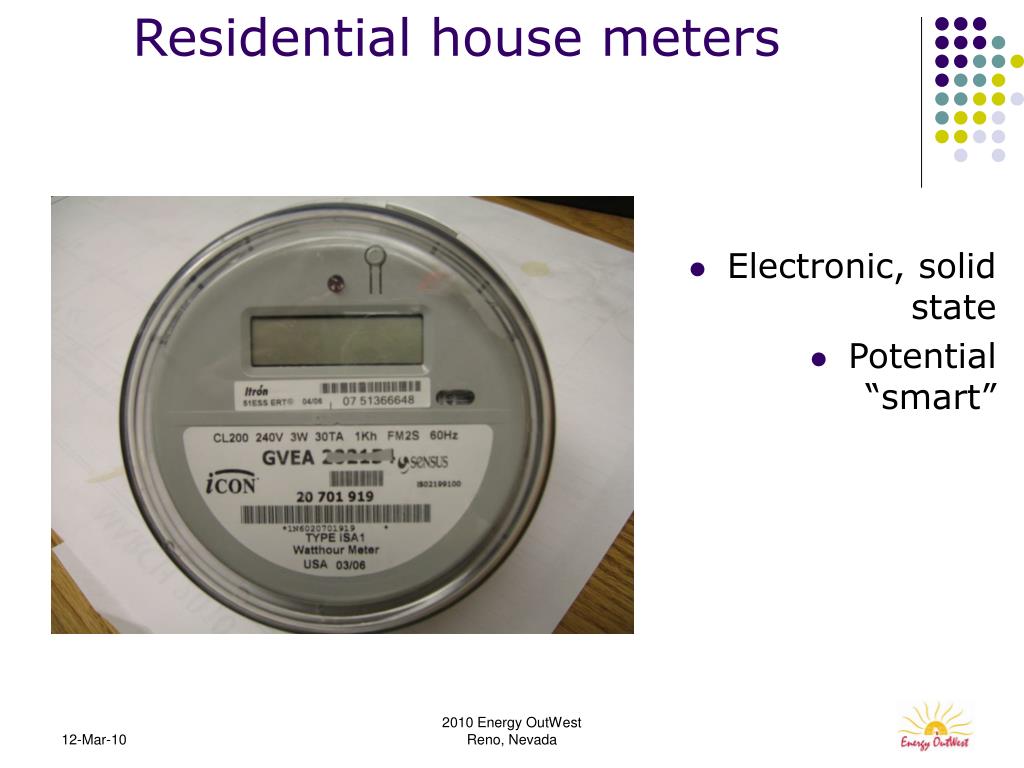

  18. Residential house meters • Electronic, solid state • Potential “smart” 2010 Energy OutWest Reno, Nevada

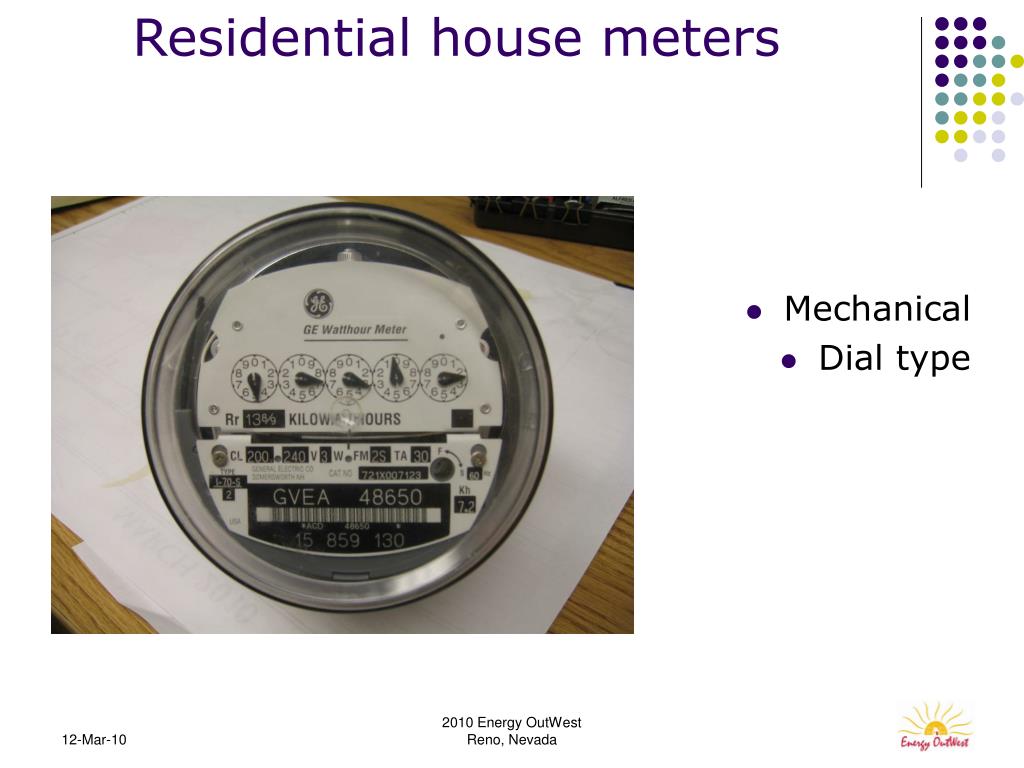

  19. Residential house meters • Mechanical • Dial type 2010 Energy OutWest Reno, Nevada

  20. Residential house meters • Mechanical • Digital type 2010 Energy OutWest Reno, Nevada

  21. Demand meters • Demand meter 2010 Energy OutWest Reno, Nevada

  22. Meter info downstream • Gatherers 2010 Energy OutWest Reno, Nevada

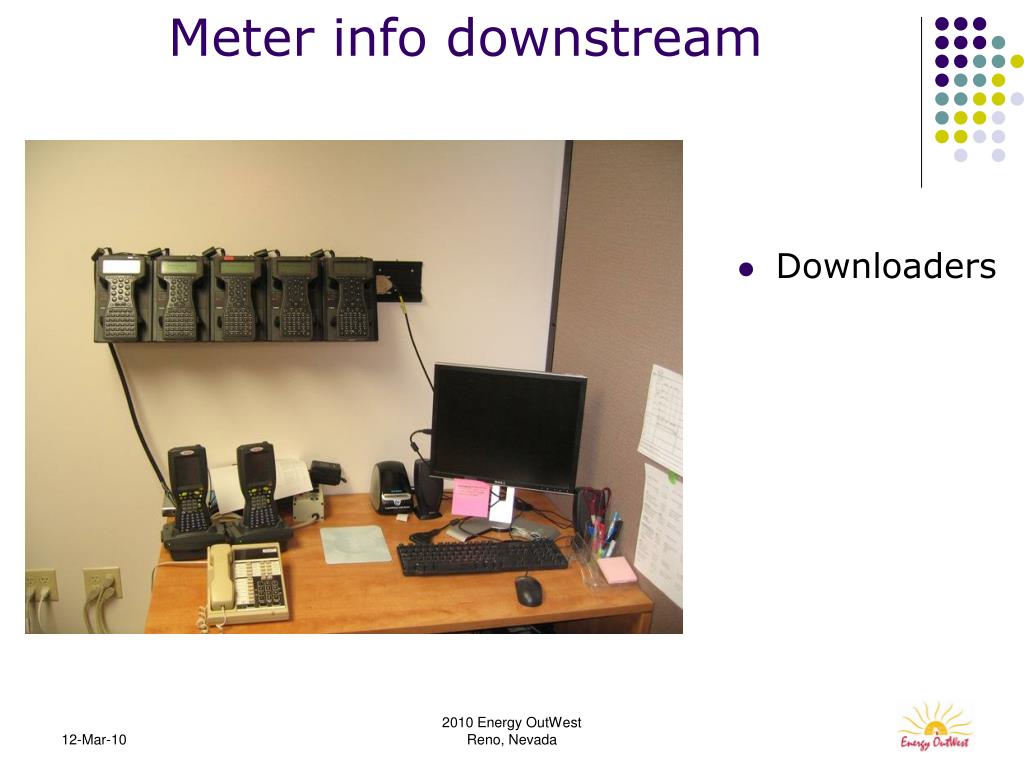

  23. Meter info downstream • Downloaders 2010 Energy OutWest Reno, Nevada

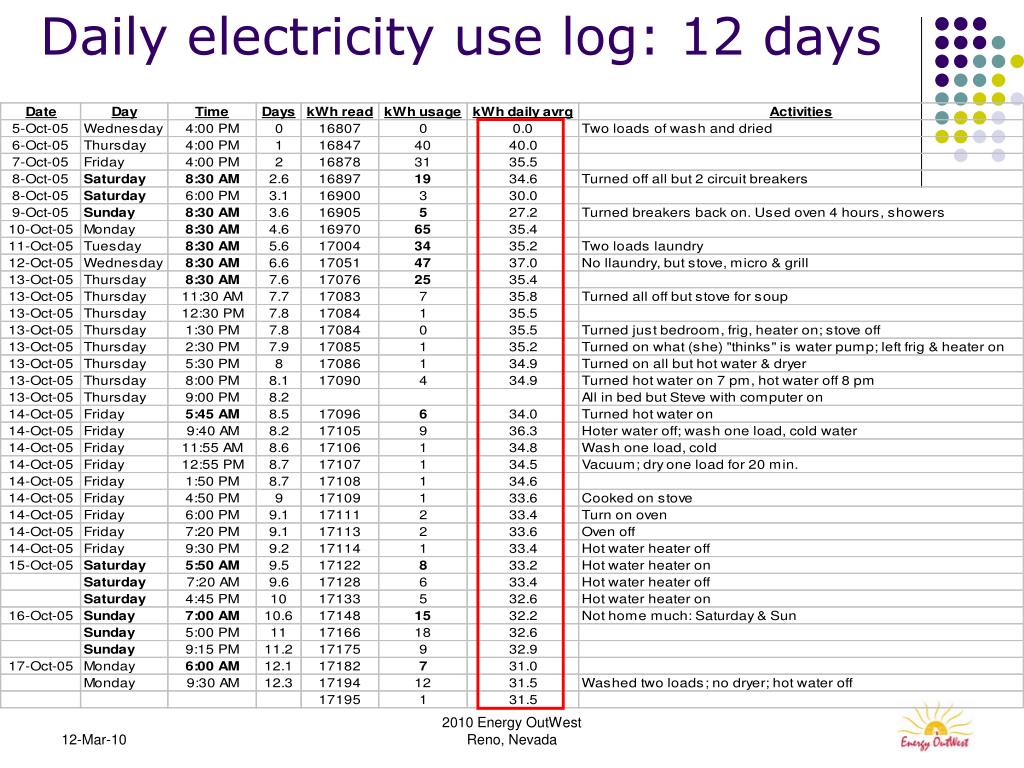

  24. Daily electricity use log: 12 days 2010 Energy OutWest Reno, Nevada

  25. 24-hr profile from “smart” meter 2010 Energy OutWest Reno, Nevada

  26. A word about meter accuracy 2010 Energy OutWest Reno, Nevada

  27. Whole house monitoring tools Energy Usage Monitor (EML) Measures kWhs Measures kW load Displays time monitored Projects costs Connects 120V or 240V) Cost: ~ $ 295 2010 Energy OutWest Reno, Nevada

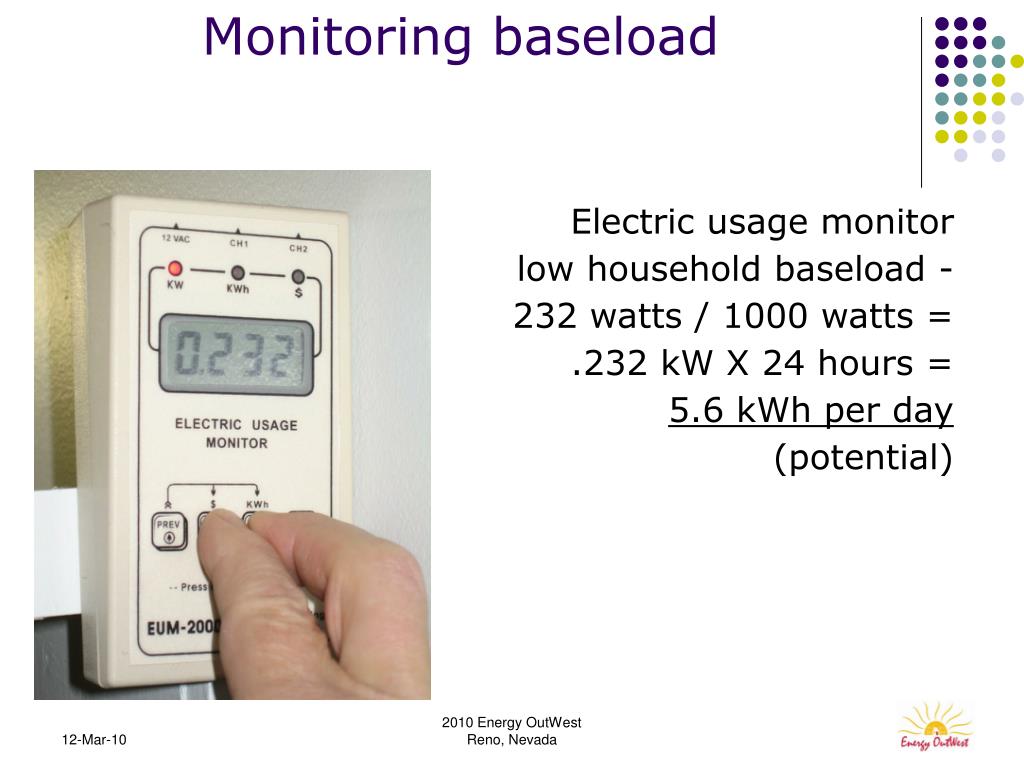

  28. Monitoring baseload Electric usage monitor low household baseload - 232 watts / 1000 watts = .232 kW X 24 hours = 5.6 kWh per day (potential) 2010 Energy OutWest Reno, Nevada

  29. Monitoring peak load Electric usage monitor higher household baseload - electric water heater load on (water heater timer on) 97.7 kWhs, if left on 24 hrs 2010 Energy OutWest Reno, Nevada

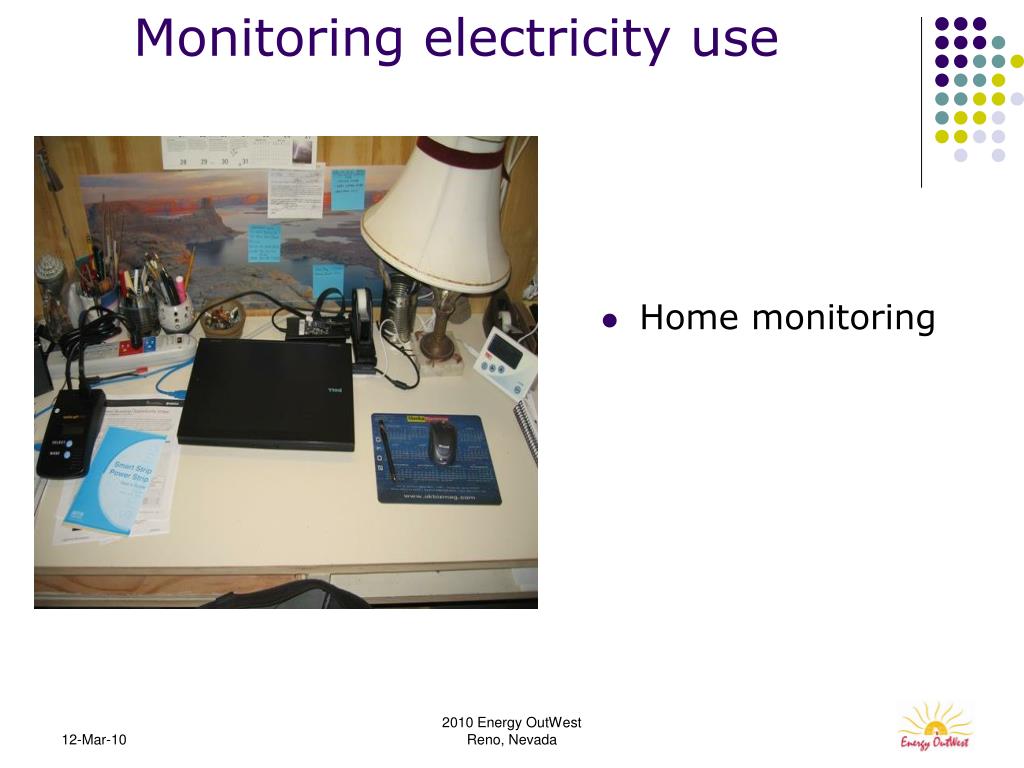

  30. Monitoring electricity use • Home monitoring 2010 Energy OutWest Reno, Nevada

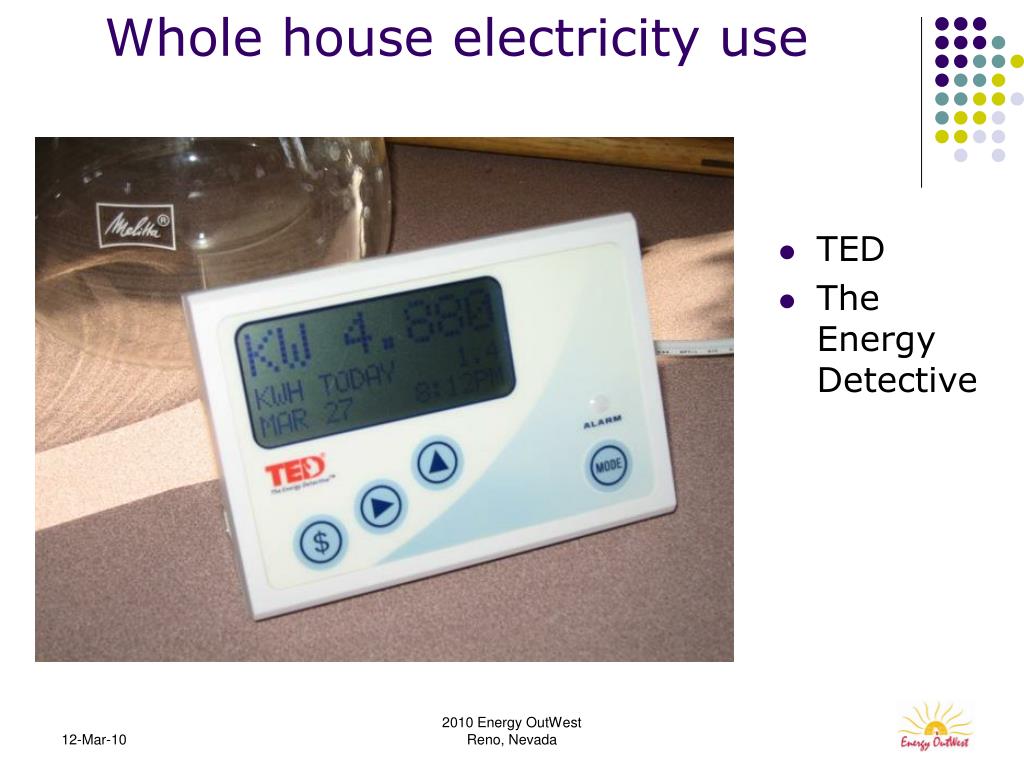

  31. Whole house electricity use • TED • The Energy Detective 2010 Energy OutWest Reno, Nevada

  32. Whole house monitoring • Installing TED 2010 Energy OutWest Reno, Nevada

  33. Whole house monitoring • Installing TED 2010 Energy OutWest Reno, Nevada

  34. Whole house monitoring • Installing TED 2010 Energy OutWest Reno, Nevada

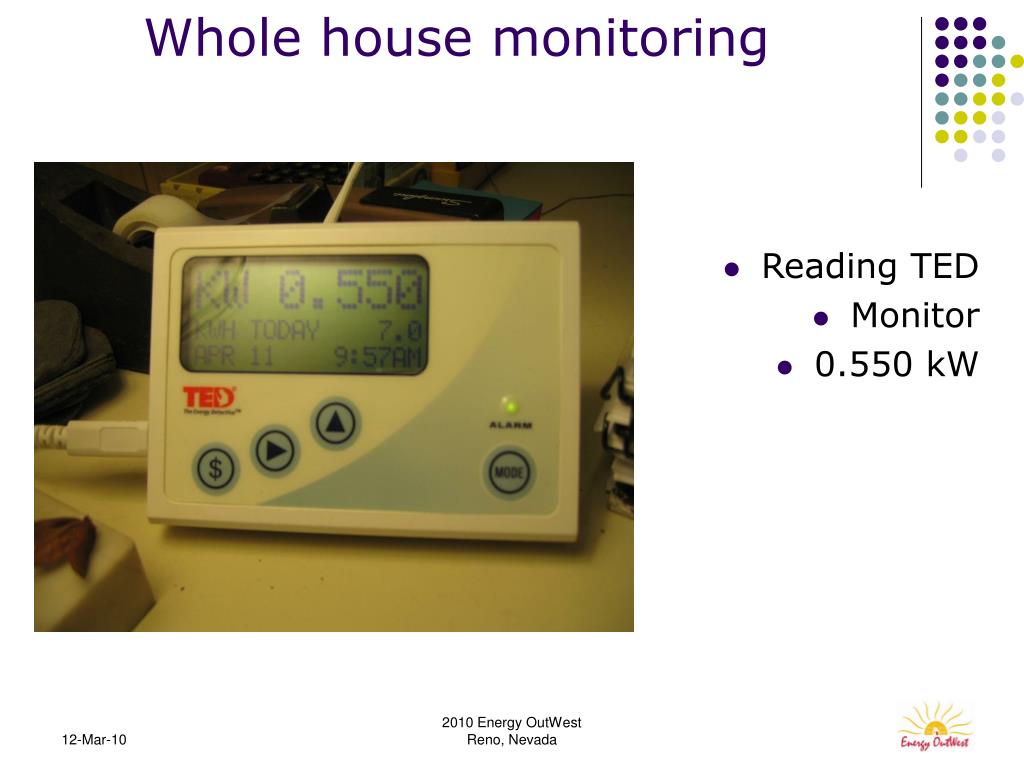

  35. Whole house monitoring • Reading TED • Monitor • 0.550 kW 2010 Energy OutWest Reno, Nevada

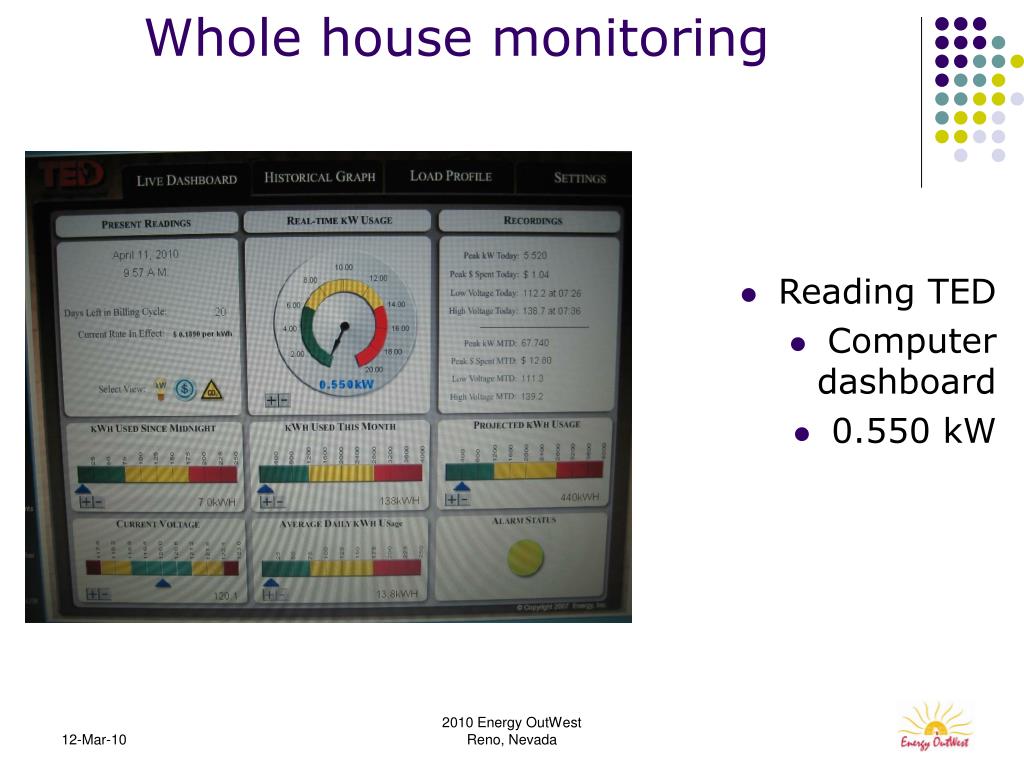

  36. Whole house monitoring • Reading TED • Computer dashboard • 0.550 kW 2010 Energy OutWest Reno, Nevada

  37. Whole house monitoring • Reading TED • Computer dashboard • 0.740 kW 2010 Energy OutWest Reno, Nevada

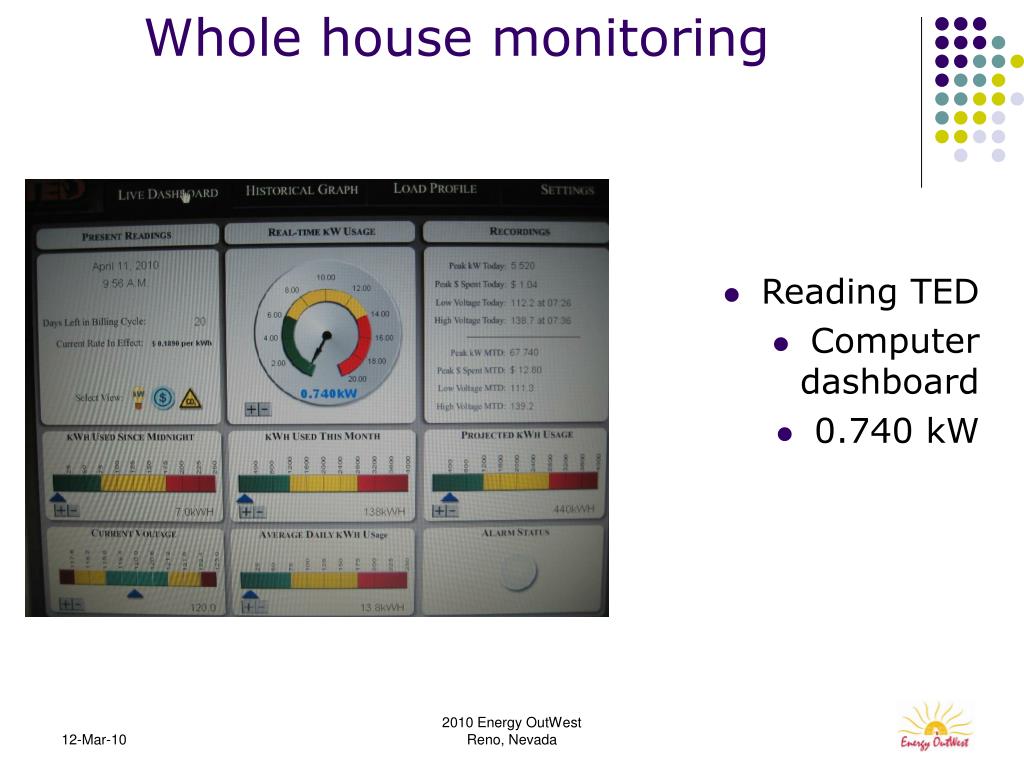

  38. Whole house monitoring • Reading TED • Computer dashboard • 0.930 kW 2010 Energy OutWest Reno, Nevada

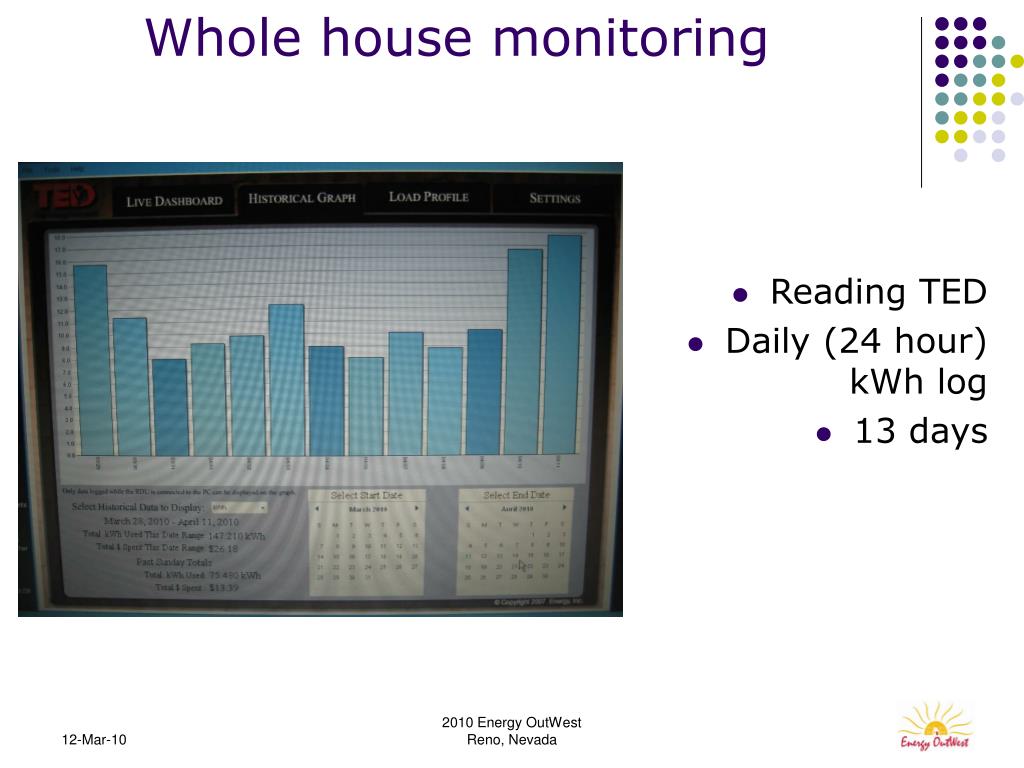

  39. Whole house monitoring • Reading TED • Daily (24 hour) kWh log • 13 days 2010 Energy OutWest Reno, Nevada

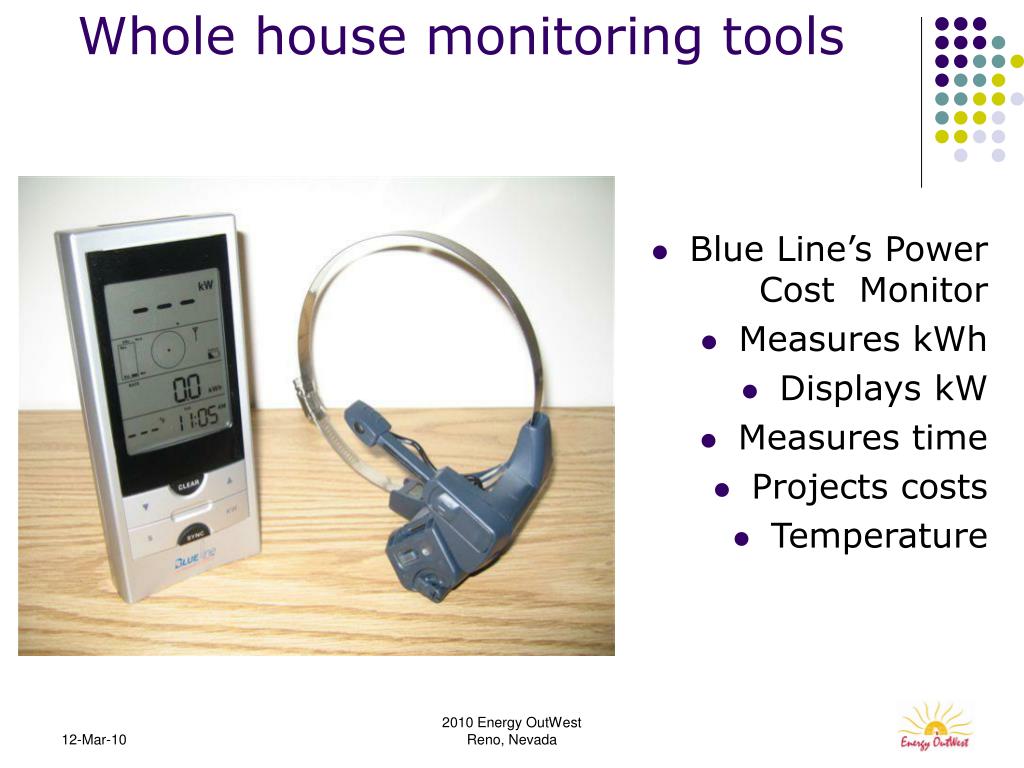

  40. Whole house monitoring tools Blue Line’s Power Cost Monitor Measures kWh Displays kW Measures time Projects costs Temperature 2010 Energy OutWest Reno, Nevada

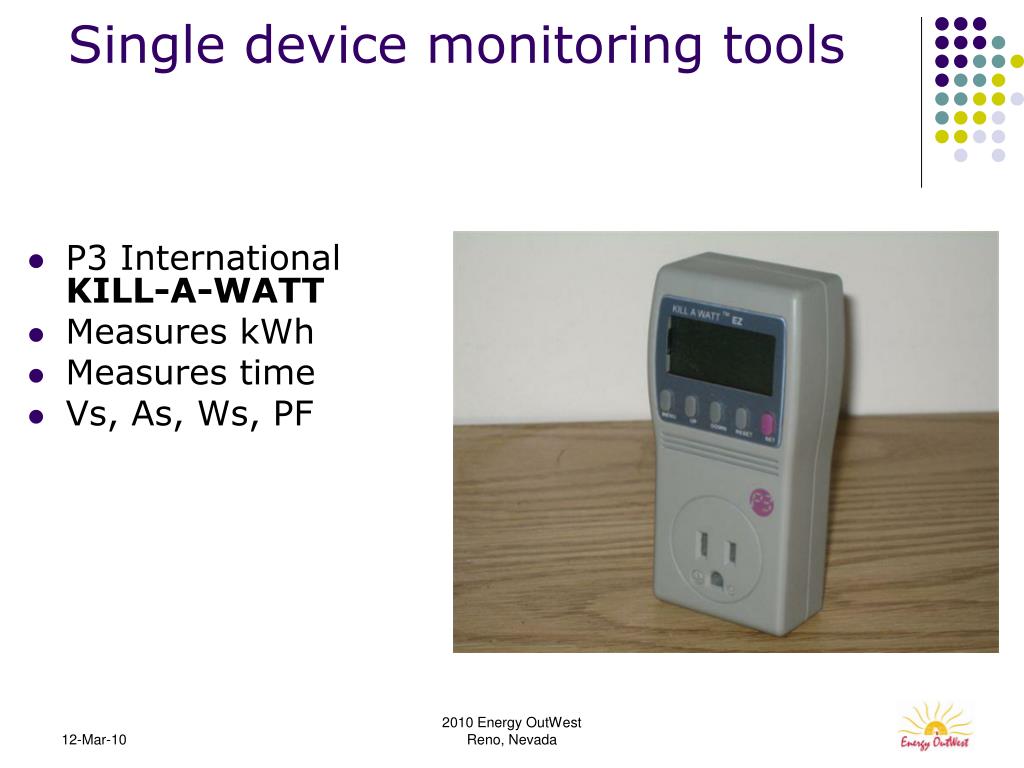

  41. Single device monitoring tools P3 International KILL-A-WATT Measures kWh Measures time Vs, As, Ws, PF 2010 Energy OutWest Reno, Nevada

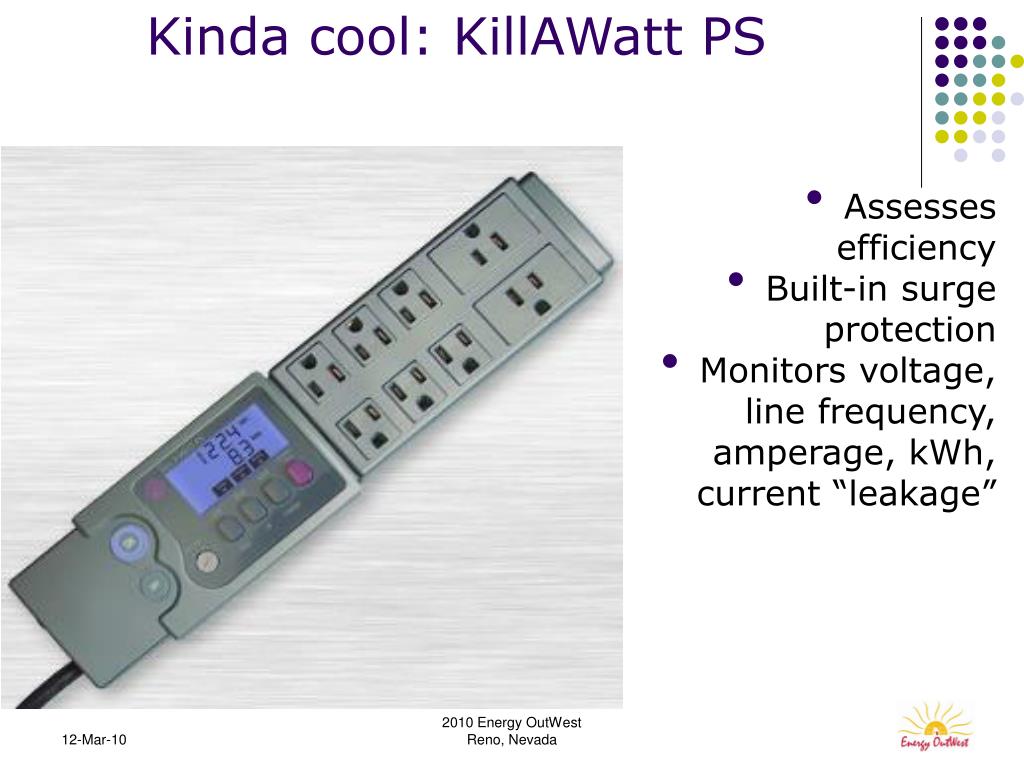

  42. Kinda cool: KillAWatt PS Assesses efficiency Built-in surge protection Monitors voltage, line frequency, amperage, kWh, current “leakage” 2010 Energy OutWest Reno, Nevada

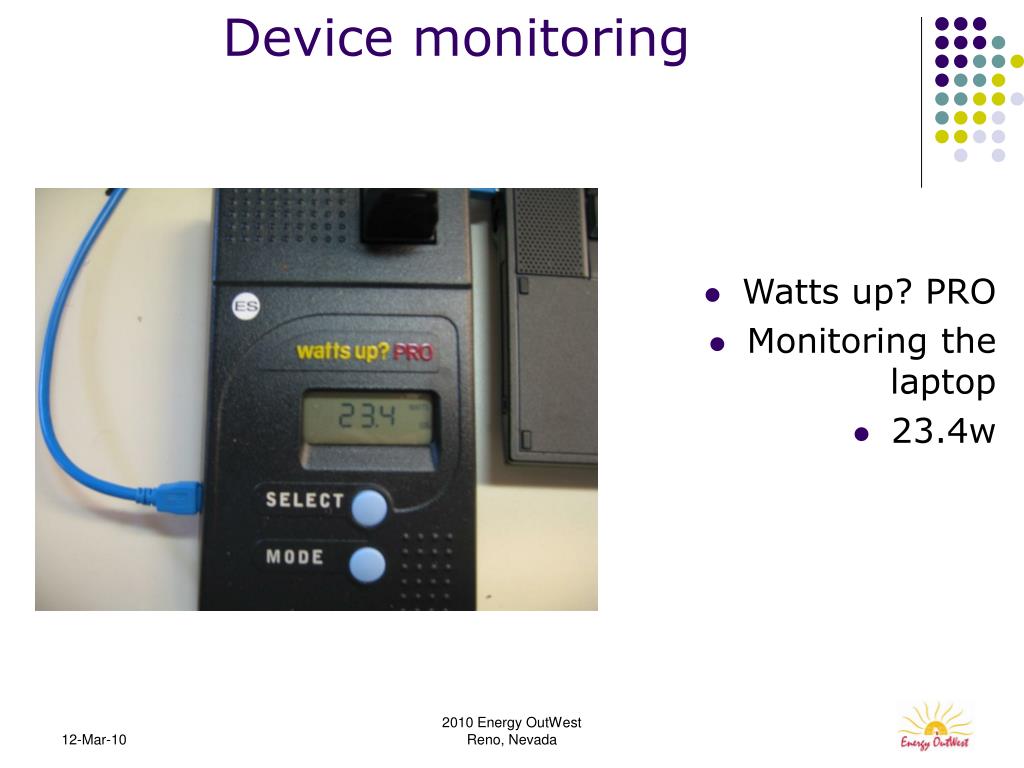

  43. Device monitoring • Watts up? PRO • Monitoring the laptop • 23.4w 2010 Energy OutWest Reno, Nevada

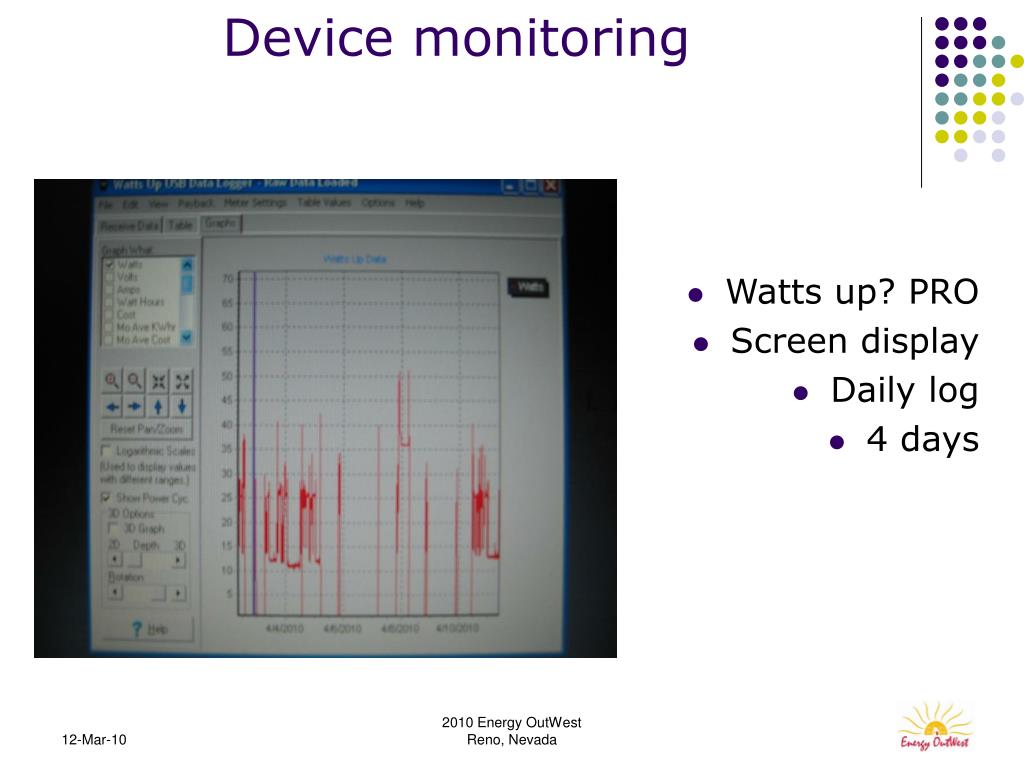

  44. Device monitoring • Watts up? PRO • Screen display • Daily log • 4 days 2010 Energy OutWest Reno, Nevada

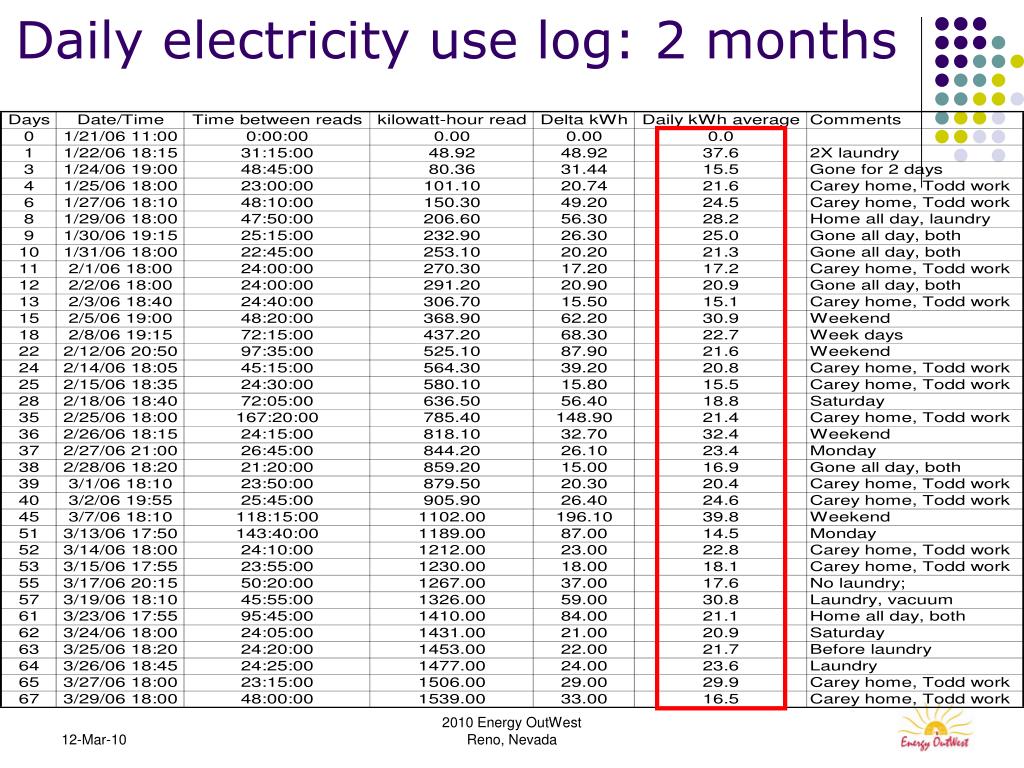

  45. Daily electricity use log: 2 months 2010 Energy OutWest Reno, Nevada

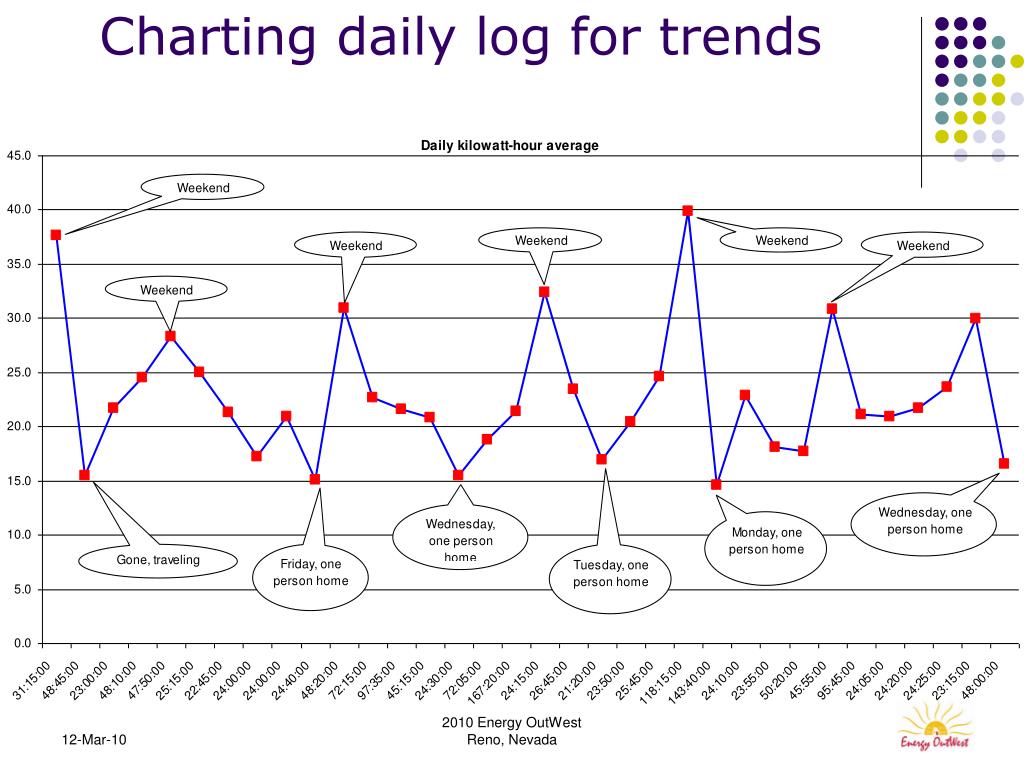

  46. Charting daily log for trends 2010 Energy OutWest Reno, Nevada

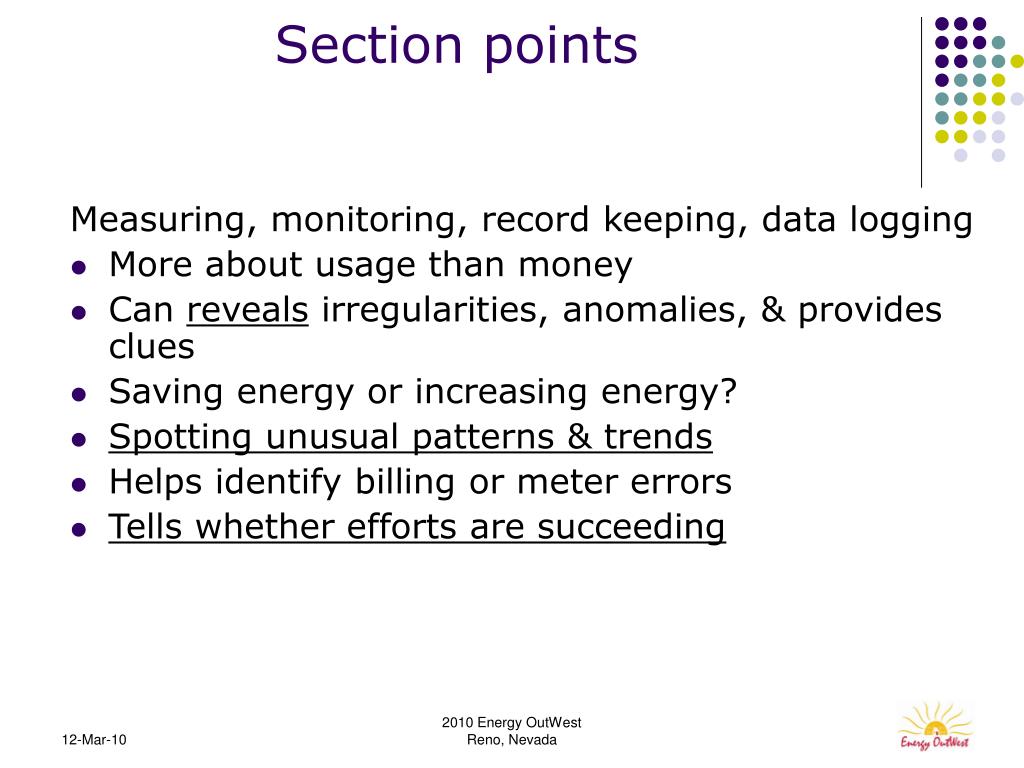

  47. Section points Measuring, monitoring, record keeping, data logging More about usage than money Can reveals irregularities, anomalies, & provides clues Saving energy or increasing energy? Spotting unusual patterns & trends Helps identify billing or meter errors Tells whether efforts are succeeding 2010 Energy OutWest Reno, Nevada
