  1. Probabilistic Robotics Planning and Control: Markov Decision Processes Based on slides from the book's website

  2. Motivation • Robot perception not the ultimate goal: • Choose right sequence of actions to achieve goal. • Planning/control applications: • Navigation, Surveillance, Monitoring, Collaboration etc. • Ground, air, sea, underground! • Action selection non-trivial in real-world problems: • State non-observable. • Action non-deterministic. • Require dynamic performance.

  3. Problem Classes • Deterministic vs. stochastic actions. • Classical approaches assume known action outcomes. Actions typically non-deterministic. Can only predict likelihoods of outcomes. • Full vs. partial observability. • State of the system completely observable – never happens in real-world applications. • Build representation of the world by performing actions and observing outcomes. • Current and anticipated uncertainty.

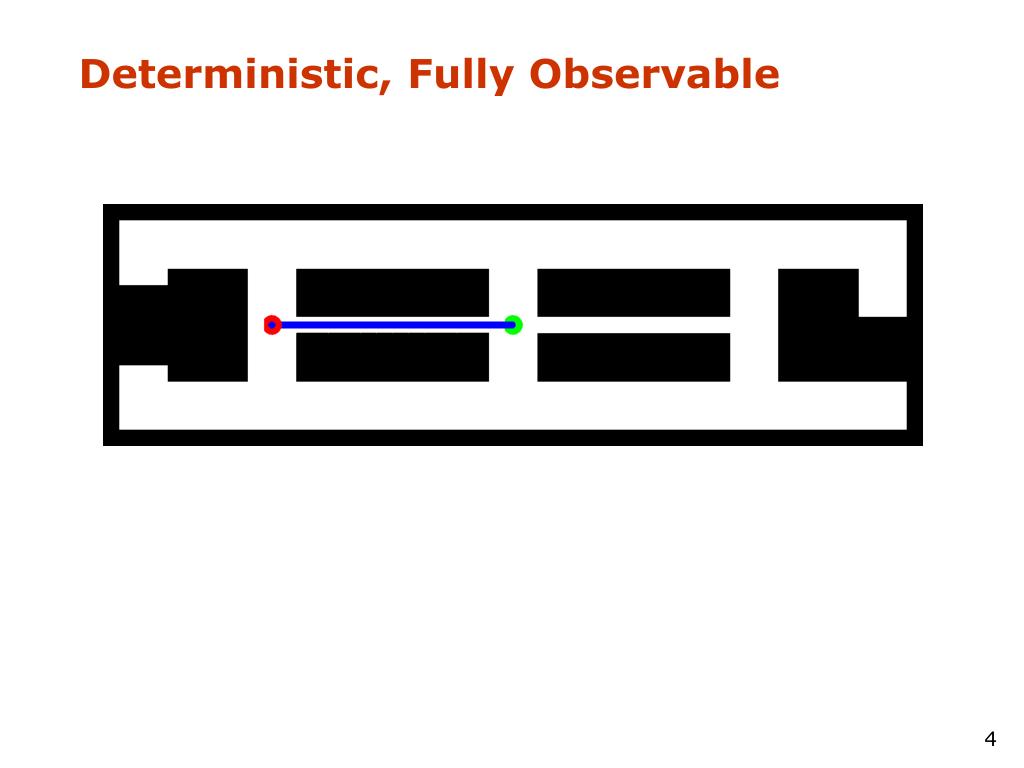

  4. Deterministic, Fully Observable

  5. Stochastic, Fully Observable • No noise in Motion models. • Noisy motion models.

  6. Stochastic, Partially Observable

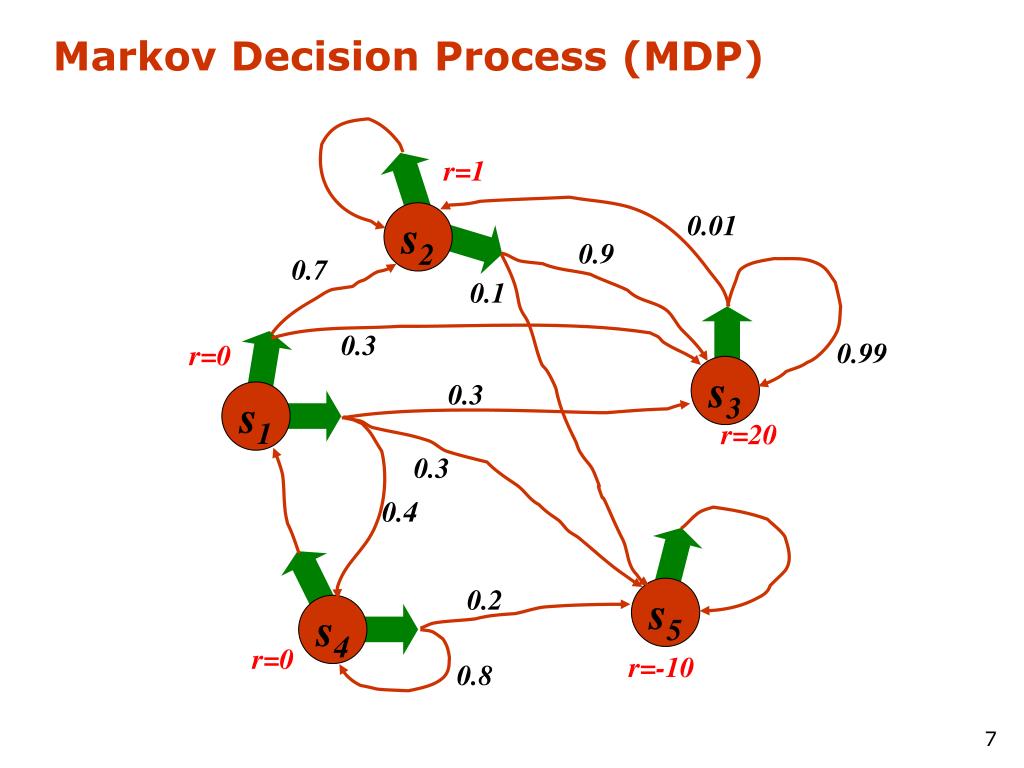

  7. Markov Decision Process (MDP) r=1 s2 0.01 0.9 0.7 0.1 0.3 0.99 r=0 s3 0.3 s1 r=20 0.3 0.4 0.2 s5 s4 r=0 r=-10 0.8

  8. Markov Decision Process (MDP) • Given: • States: • Actions: • Transition probabilities: • Reward / payoff function: • Wanted: • Policy that maximizes the future expected reward.

  9. Policies • Policy (general case): • All past data mapped to control commands. • Policy (fully observable case): • State mapped to control commands.

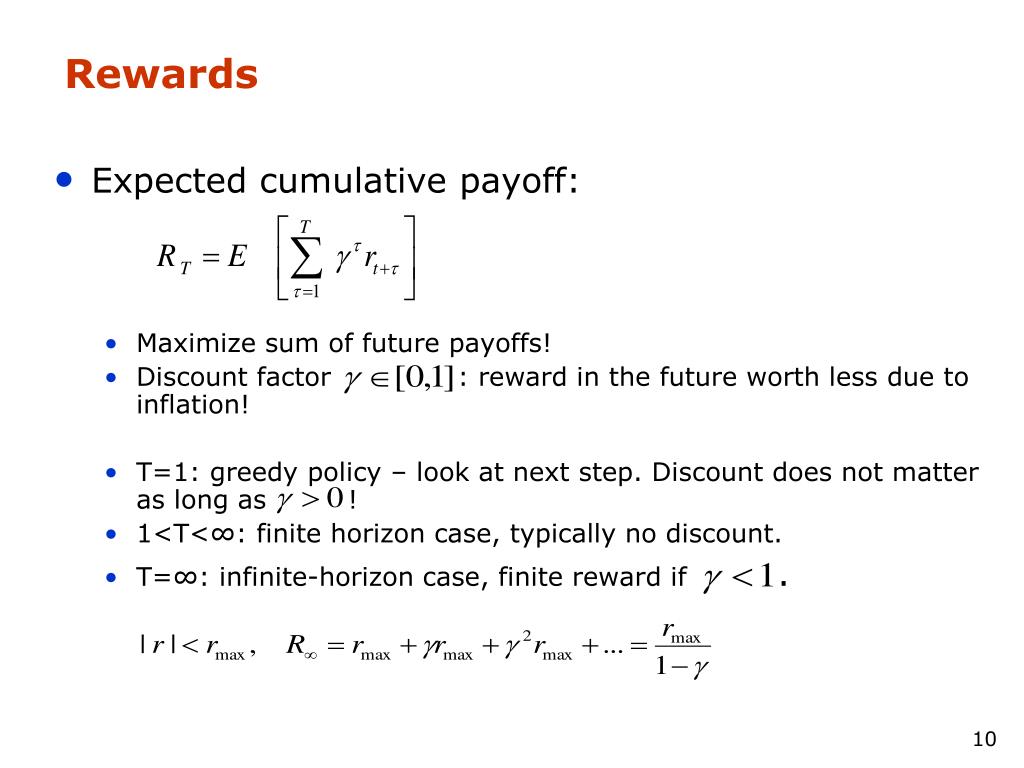

  10. Rewards • Expected cumulative payoff: • Maximize sum of future payoffs! • Discount factor : reward in the future worth less due to inflation! • T=1: greedy policy – look at next step. Discount does not matter as long as ! • 1<T<∞: finite horizon case, typically no discount. • T=∞: infinite-horizon case, finite reward if .

  11. Optimal Policies • Expected cumulative payoff of policy: • Optimal policy: • 1-step optimal policy: • Value function of 1-step optimal policy:

  12. 2-step Policies • Optimal policy: • Value function:

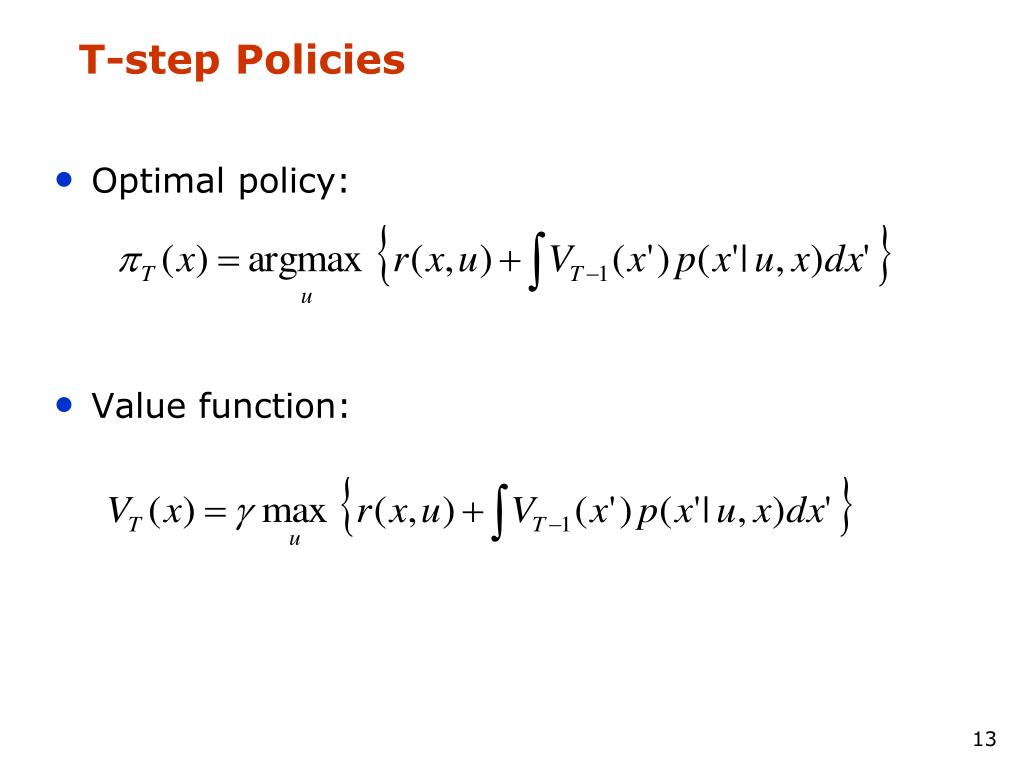

  13. T-step Policies • Optimal policy: • Value function:

  14. Infinite Horizon • Optimal policy: • Bellman equation. • Necessary and sufficient condition for optimal policy.

  15. Value Iteration • For all x do • EndFor • Repeat until convergence • For all x do • EndFor • EndRepeat • Return • Action choice: • After convergence, choose greedy policy!

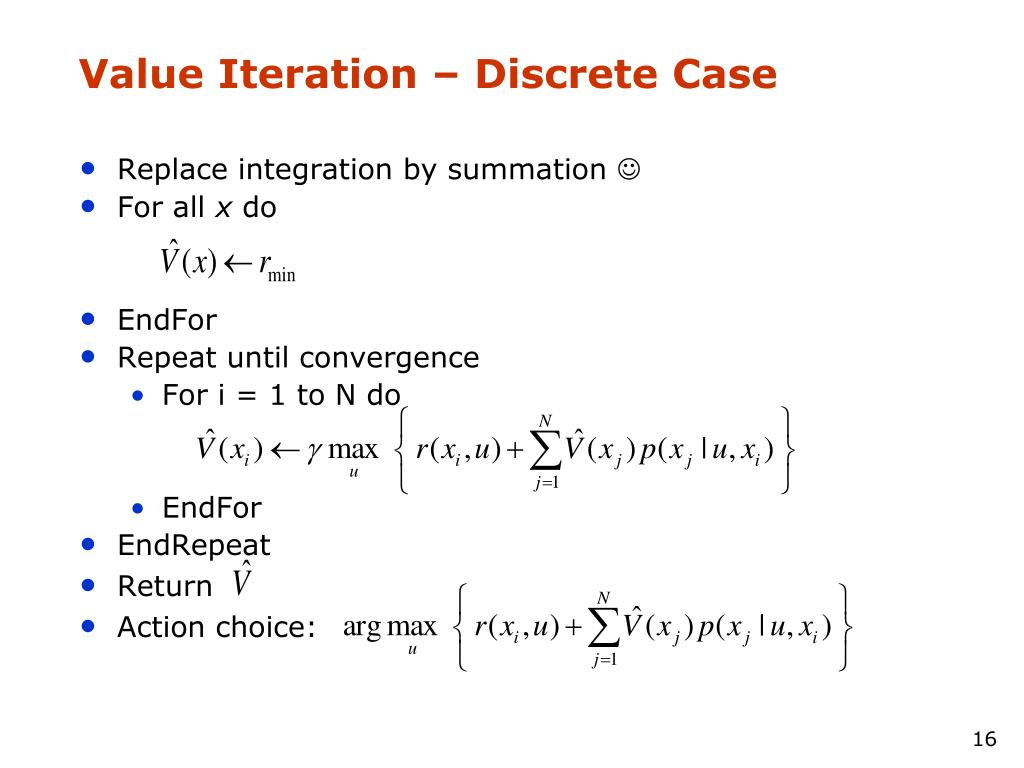

  16. Value Iteration – Discrete Case • Replace integration by summation  • For all x do • EndFor • Repeat until convergence • For i = 1 to N do • EndFor • EndRepeat • Return • Action choice:

  17. Value Iteration for Motion Planning

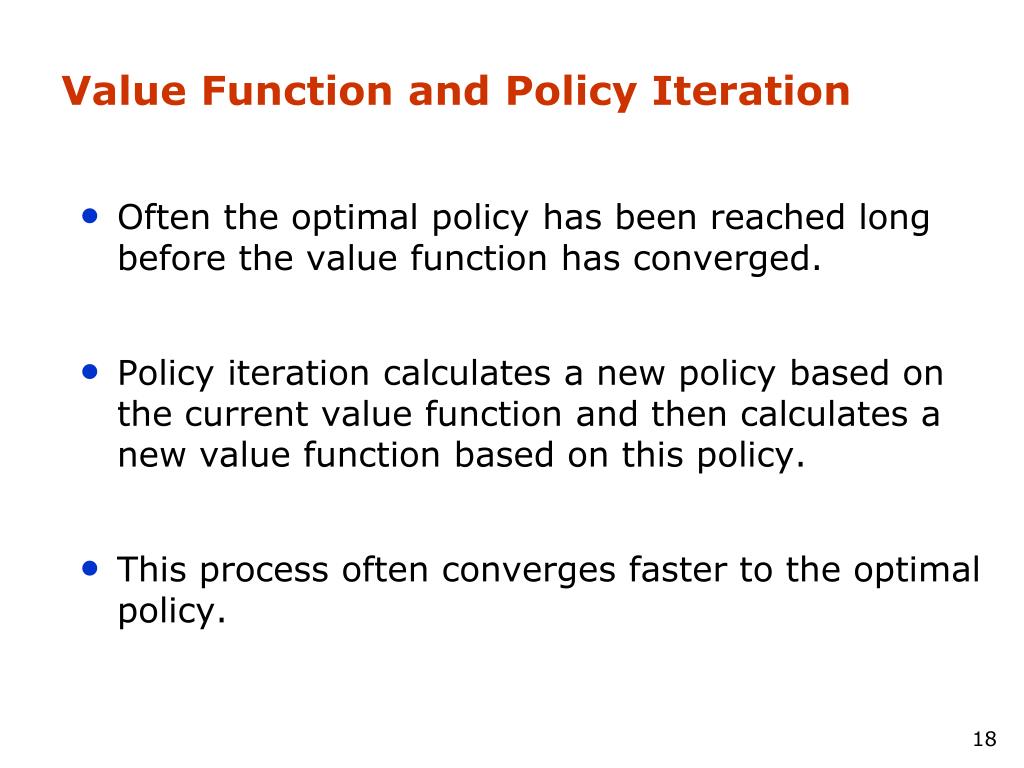

  18. Value Function and Policy Iteration • Often the optimal policy has been reached long before the value function has converged. • Policy iteration calculates a new policy based on the current value function and then calculates a new value function based on this policy. • This process often converges faster to the optimal policy.

  19. Value-Iteration Game  • Move from start state (color1) to end state (color2). • Maximize reward. • Four actions. • Twelve colors. • Exploration and exploitation.

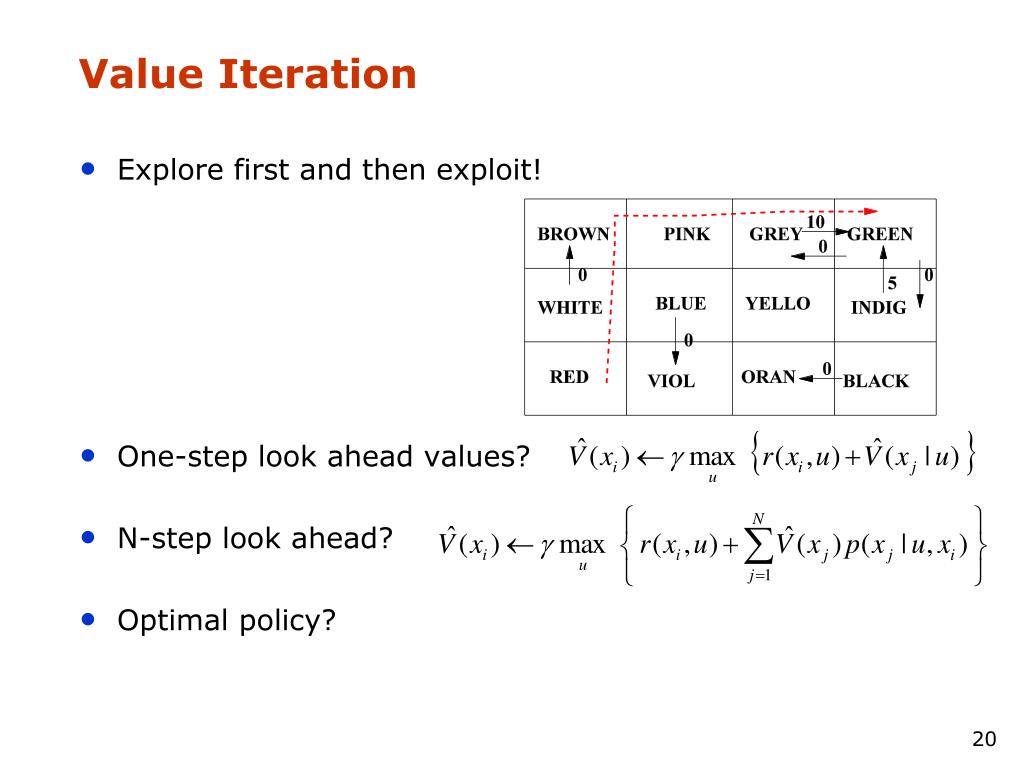

  20. Value Iteration • Explore first and then exploit! • One-step look ahead values? • N-step look ahead? • Optimal policy?

  21. Value Iteration – A few steps…

  22. Value Iteration – A few steps…

  23. Value Iteration – A few steps…

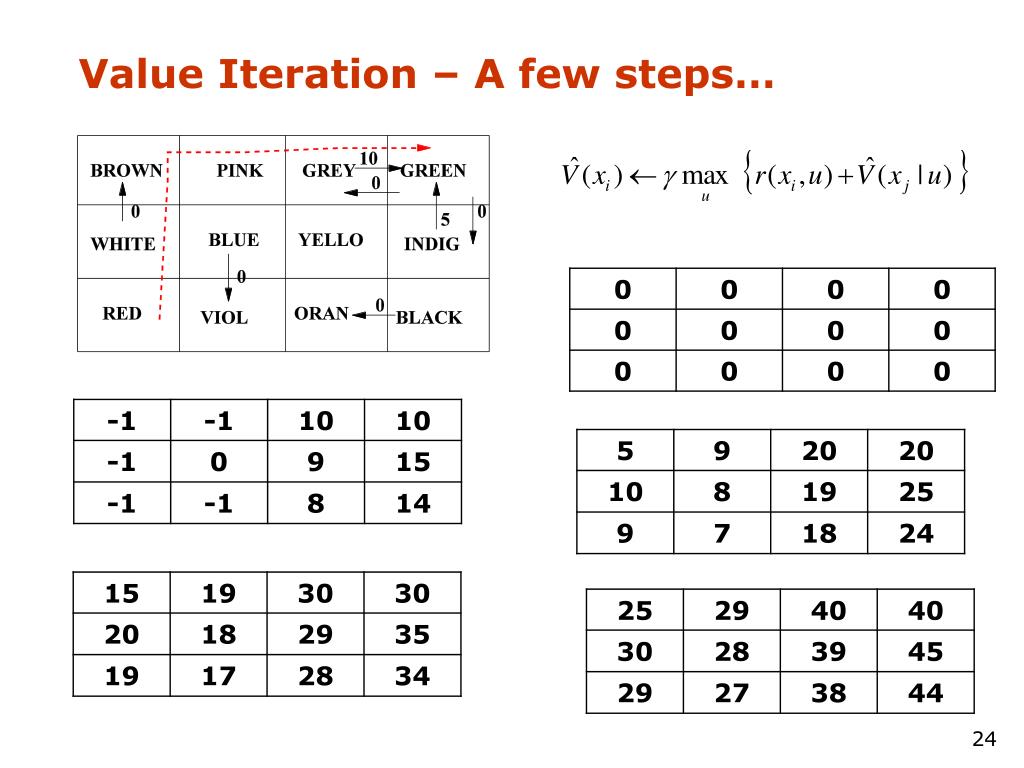

  24. Value Iteration – A few steps…
