  1. Source of Water

  2. Sources of Water • Hydrological Cycle - Rain – Surface runoff – water storage - infiltration – ground water – evaporation – transpiration - • Rain • Surface Water • Groundwater • Aquifer

  3. Choice of Source • Location of source • Quantity of water available • Quality of water • Cost of the entire scheme

  4. Surface water • Surface water source may be further classified as: • -lakes • -Impounding reservoirs • -River, streams, irrigation canals • The area where water is collected for water supply purpose is called catchment or watershed.

  5. Ground Water • Aquifer • An aquifer is a layer of pervious material beneath the ground surface and underlied by impervious stratum. • Water table • The free surface of water in the aquifer is called water table • Sources - Spring - Wells

  6. Characteristics of Ground Water • Generally ground water is clear and colorless. When water seeps down into ground, it dissolves inorganic salts. • Therefore, sometimes harmful

  7. Sources of Water in Hong Kong • natural catchment • Guangdong Province of China. • Administration by Water Authority • Responsible for supply, treatment and distribution

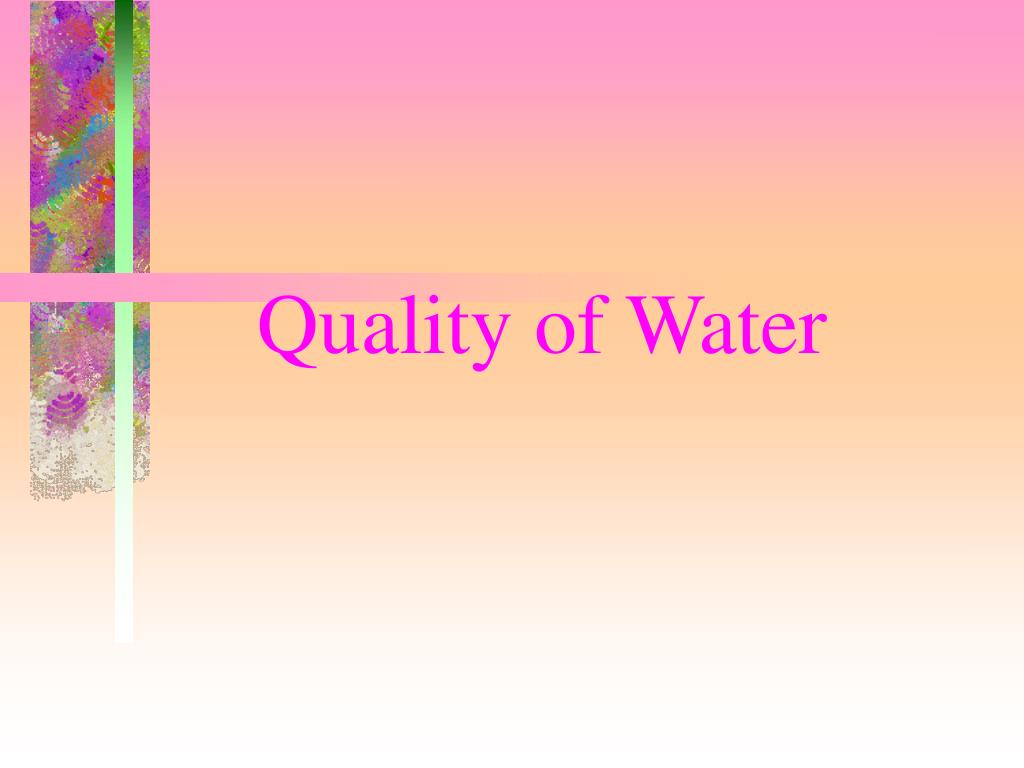

  8. Quality of Water

  9. Quality Monitoring • conform both chemically and bacteriologically to the Guidelines for Drinking Water Quality (WHO, 1984). • Parameters: • Physical • Chemical : a) inorganics • b) organic • Biological • Bacterialogical • Radiological

  10. Physical : e.g. pH, conductivity, turbidity, colour, etc. • Chemical : • a) inorganics e.g. nurients, ions, heavy metals etc. • b) organic e.g. trihalomethane, pesticides etc. • Biological : e.g. algae, zooplankton, macroinvertebrate, fish, • Bacterialogical : total coliform, E. Coliform, plate count • Radiological : e.g. gamma emitters.

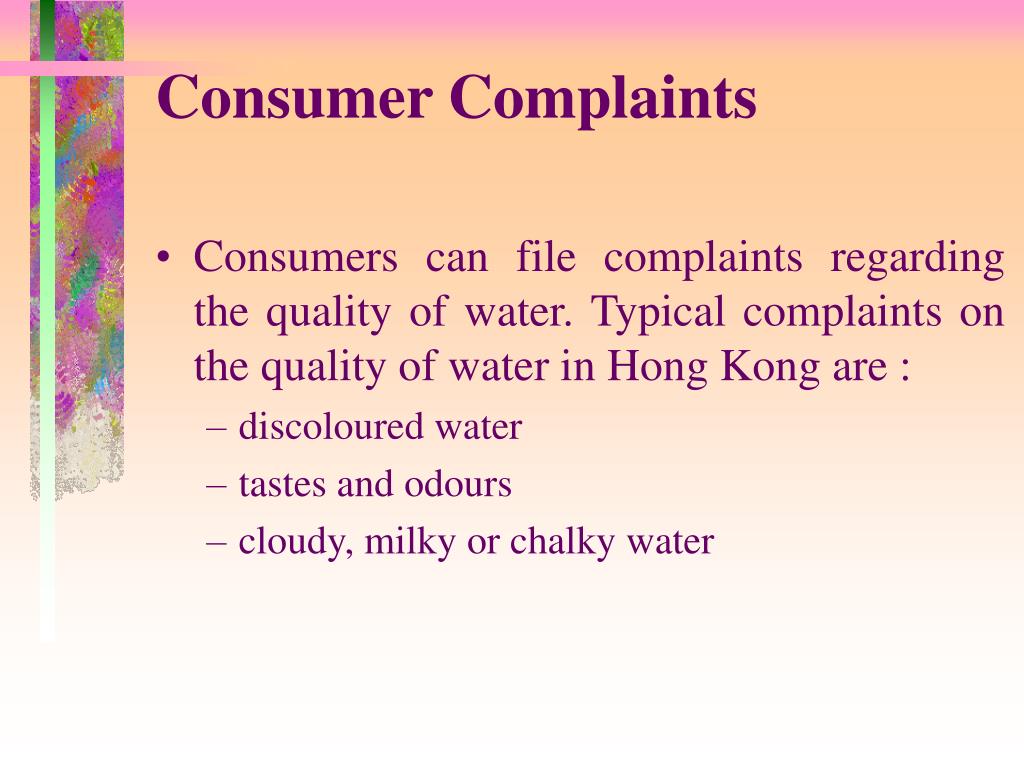

  11. Consumer Complaints • Consumers can file complaints regarding the quality of water. Typical complaints on the quality of water in Hong Kong are : • discoloured water • tastes and odours • cloudy, milky or chalky water

  12. Introduction to Water Treatment

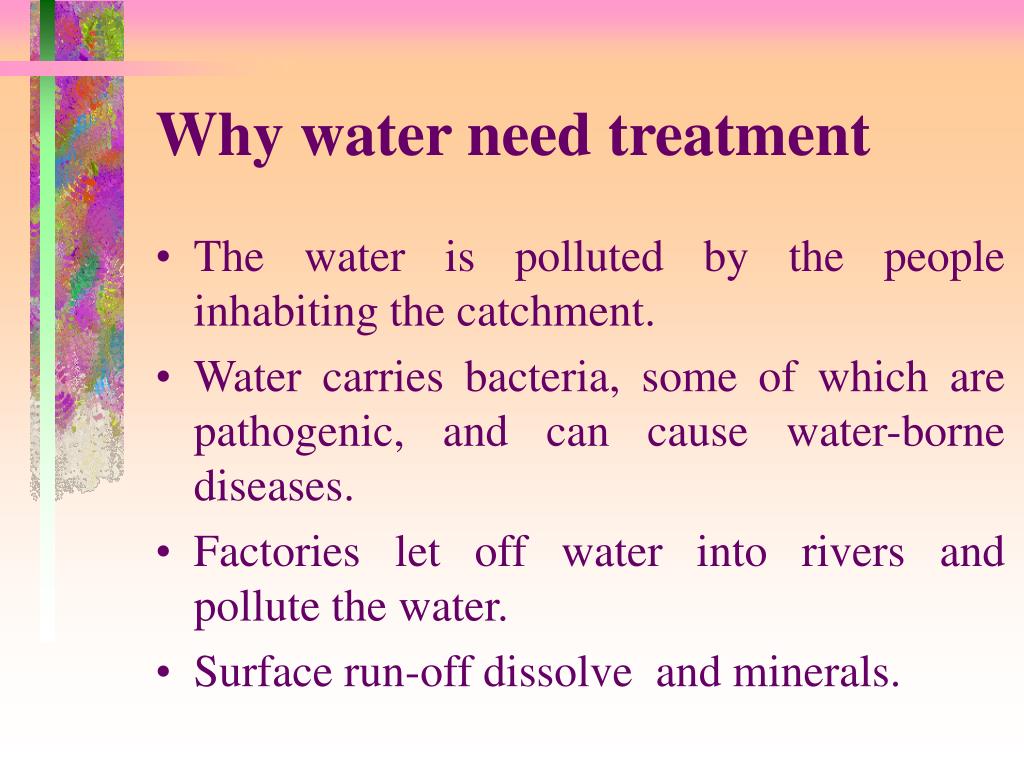

  13. Why water need treatment • The water is polluted by the people inhabiting the catchment. • Water carries bacteria, some of which are pathogenic, and can cause water-borne diseases. • Factories let off water into rivers and pollute the water. • Surface run-off dissolve and minerals.

  14. Impurities • Physical impurities • Chemical impurities • Bacteriological impurities

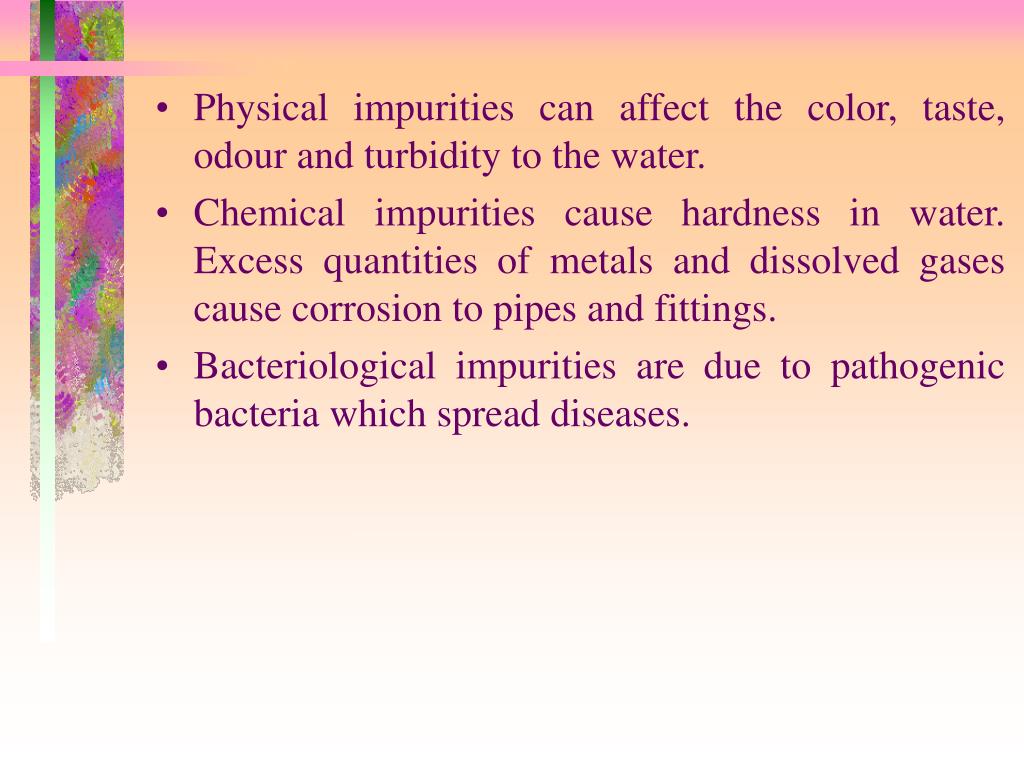

  15. Physical impurities can affect the color, taste, odour and turbidity to the water. • Chemical impurities cause hardness in water. Excess quantities of metals and dissolved gases cause corrosion to pipes and fittings. • Bacteriological impurities are due to pathogenic bacteria which spread diseases.

  16. Objectives of Water Treatment • To remove colour, objectionable taste and odour • To remove dissolved gases, dissolved and suspended impurities and harmful minerals • To remove suspended and dissolves organic impurities • To remove harmful bacteria • To make the water safe and attractive for drinking and domestic purposes

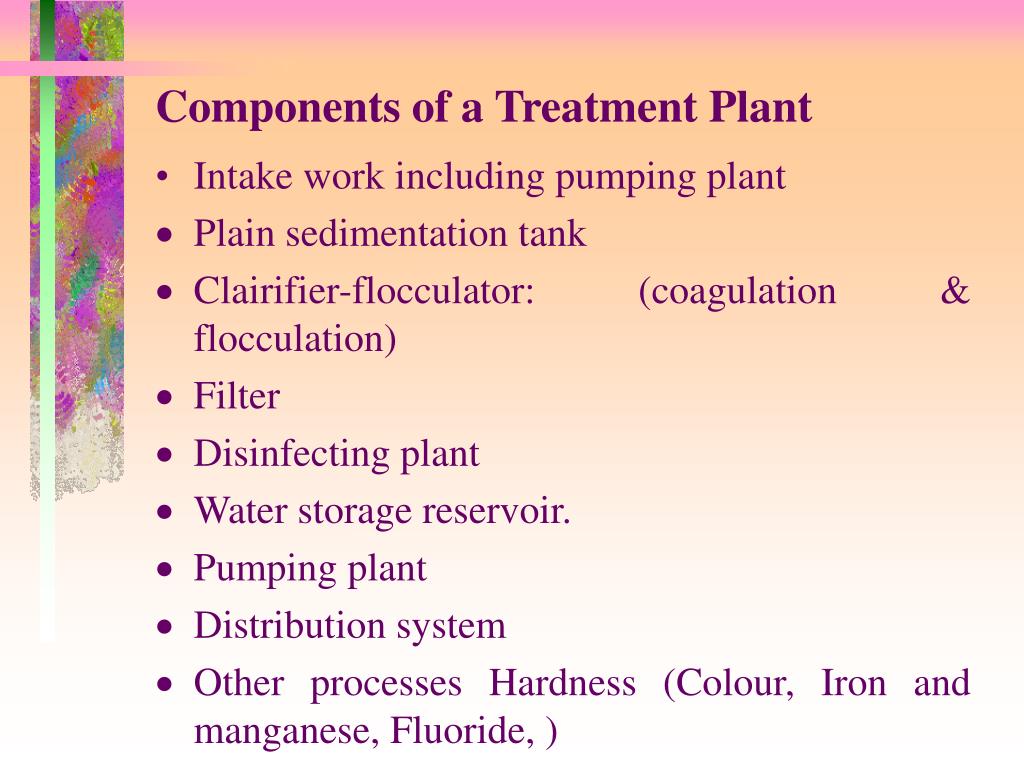

  17. Components of a Treatment Plant • Intake work including pumping plant • Plain sedimentation tank • Clairifier-flocculator: (coagulation & flocculation) • Filter • Disinfecting plant • Water storage reservoir. • Pumping plant • Distribution system • Other processes Hardness (Colour, Iron and manganese, Fluoride, )

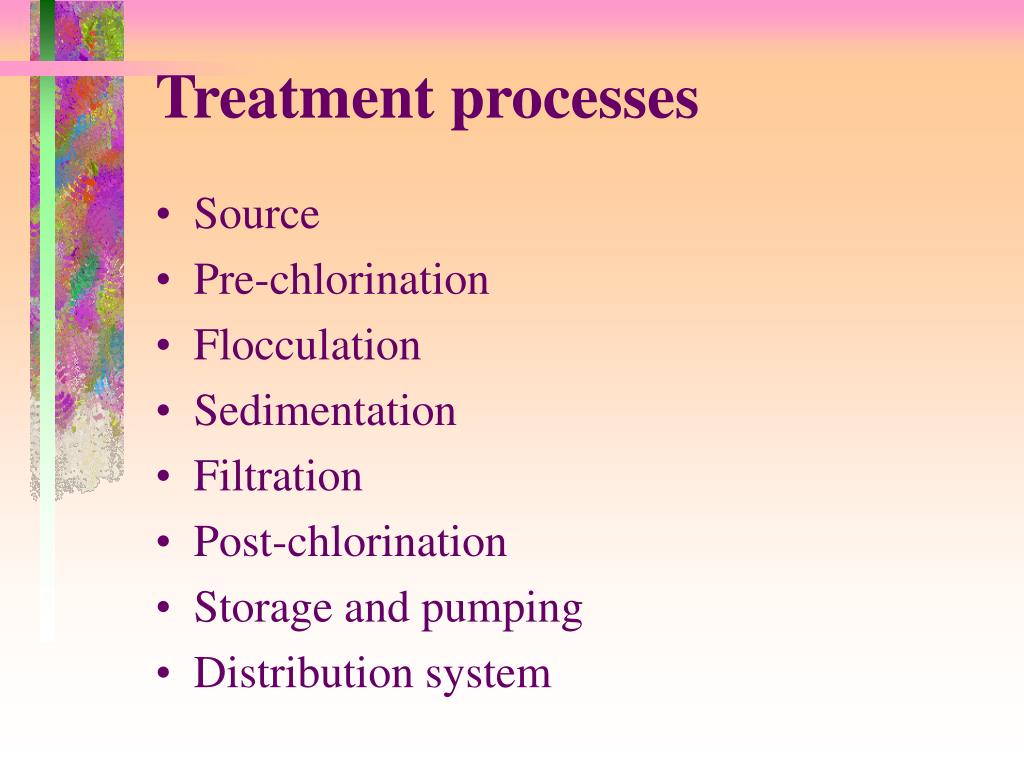

  18. Treatment processes • Source • Pre-chlorination • Flocculation • Sedimentation • Filtration • Post-chlorination • Storage and pumping • Distribution system

  19. Plain Sedimentation • Suspended and colloidal impurities that are settleable are separated in the sedimentation tanks by gravitation.

  20. Principle of Sedimentation • The main principle of sedimentation is to allow water to rest or flow at a very slow velocity so that the heavier particles settle down due to gravity.

  21. Types of Sedimentation Tanks • Sedimentation tanks can be • Horizontal flow tanks • Vertical flow tanks

  22. Horizontal Flow Tanks • The direction of flow in the tank is essentially horizontal. • (a) Rectangular tanks • (b) Circular tanks • Radial flow tanks • Circumferential flow tanks

  23. Vertical Flow Tanks

  24. Sedimentation with coagulation • Colloidal particles which are fine particles of size finer than 0.0001 mm carry electrical charges on them. These are continuously in motion and will never settle down under gravity.

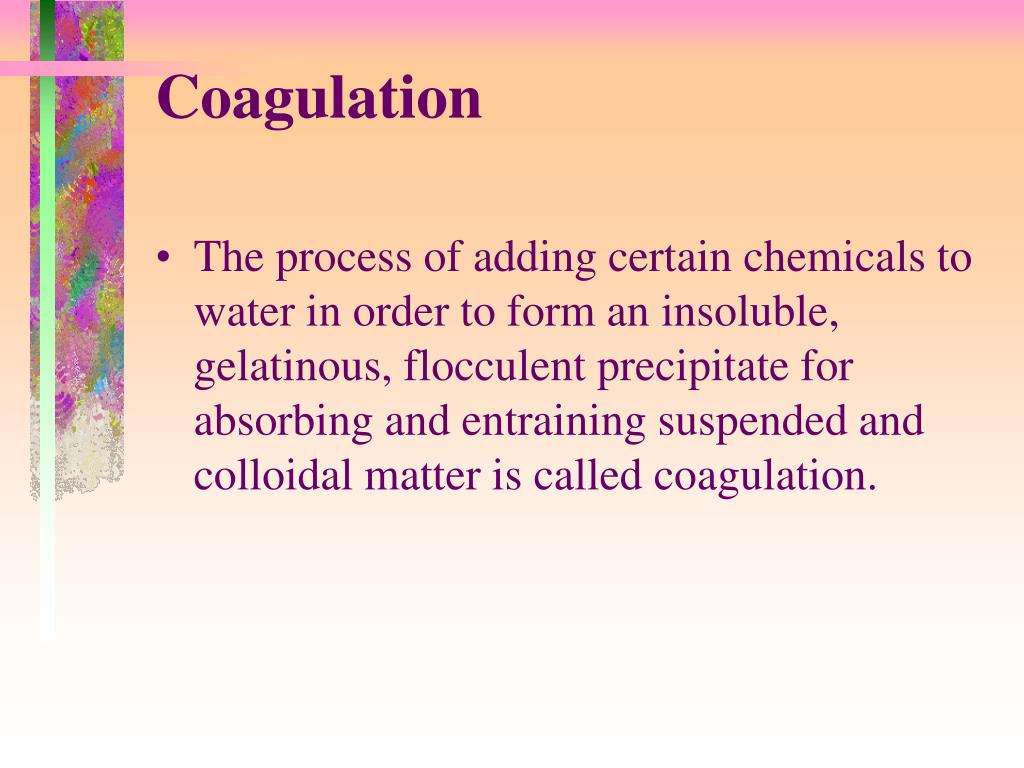

  25. Coagulation • The process of adding certain chemicals to water in order to form an insoluble, gelatinous, flocculent precipitate for absorbing and entraining suspended and colloidal matter is called coagulation.

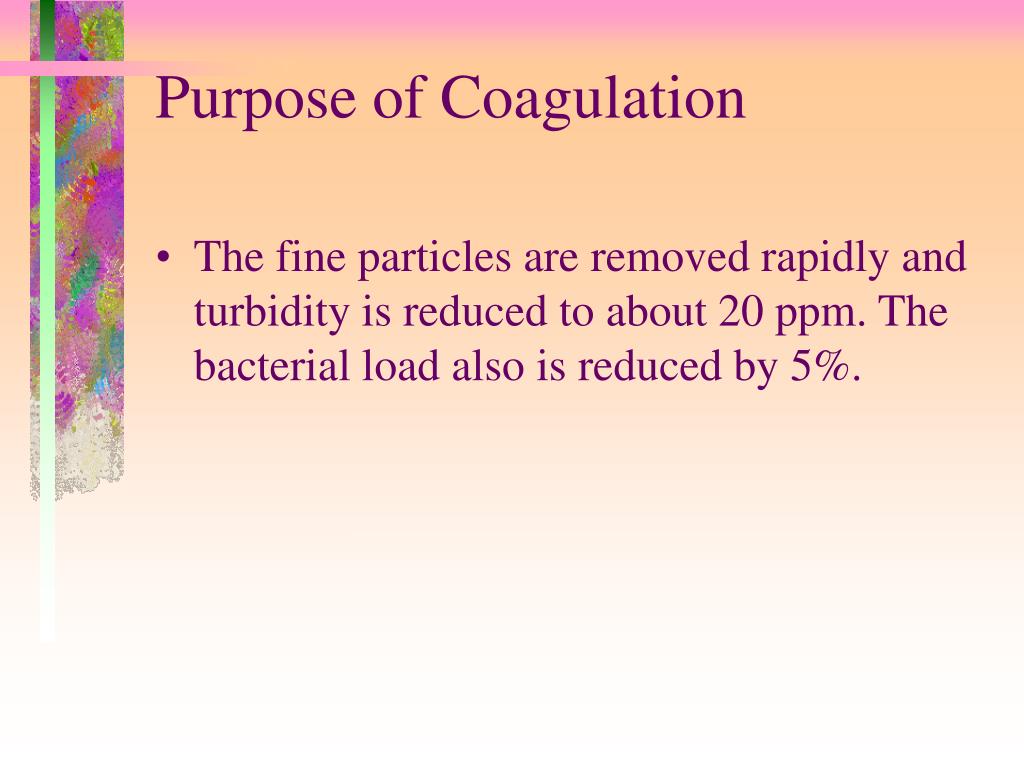

  26. Purpose of Coagulation • The fine particles are removed rapidly and turbidity is reduced to about 20 ppm. The bacterial load also is reduced by 5%.

  27. Principle of Coagulation • Floc Formation • Electric Charges • Floc Formation • forming of a thick gelatinous precipitate which is insoluble in water and settle. • Electric Charges • Colloidal particle possess negatively charged ions. The floc thus attracts the colloidal particles and makes settle down.

  28. Coagulants • The common coagulants used are: • Salts of aluminium: • alum (明礬), filter alum, Sodium aluminate • Salts of iron: • Ferrous sulphate, Ferric sulphate, Ferric chloride

  29. Chemistry of Coagulation • When alum is added to water, Al3+ ion will hydrolyze to different charged hydrolysis products depending on the pH : • Al(H2O)63+< == > [Al(H2O)5OH] 2+ < == > [Al(H2O)3 (OH)3] (s) < ==> Al(H2O) 2(OH)4]-

  30. Polyelectrolytes • Polyelectrolytes are increasingly used in water treatment as primary coagulant, flocculant coagulant aid or filter aid. • They are synthetic long-chain organic compounds which contain different monomers. • They can exhibit either positive (cationic), negative (anionic) or nonionic charge.

  31. Advantages of polyelectrolytes • increase process stability and efficiency • improve water quality • improve sludge quality and reduce sludge quantity

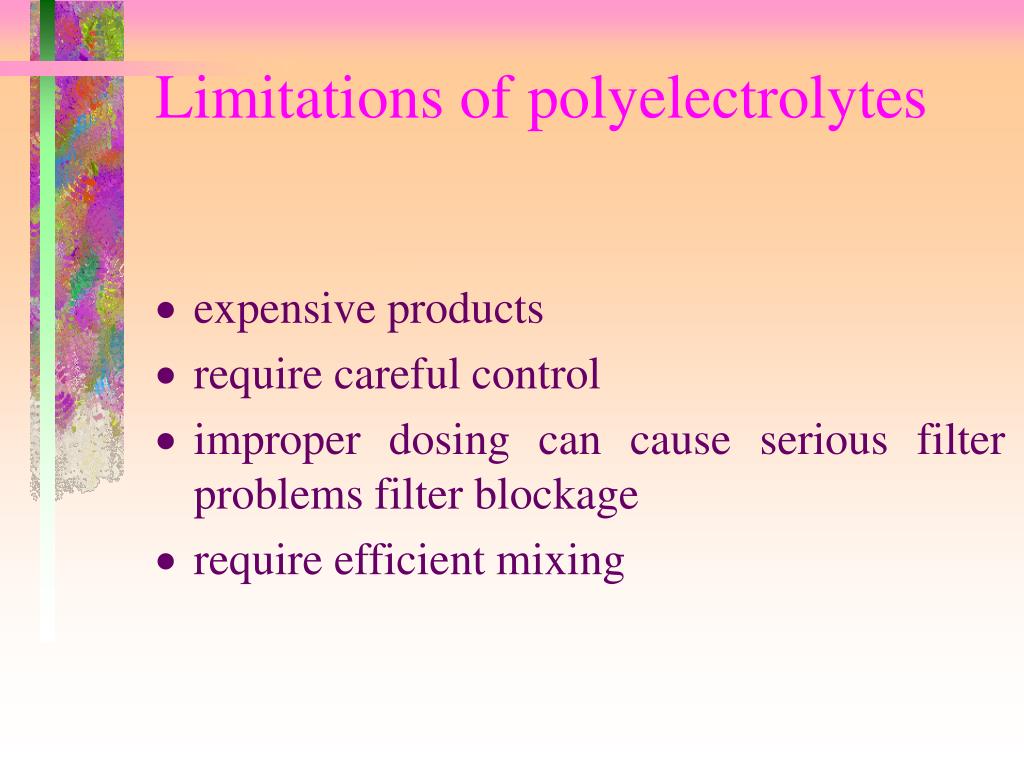

  32. Limitations of polyelectrolytes • expensive products • require careful control • improper dosing can cause serious filter problems filter blockage • require efficient mixing

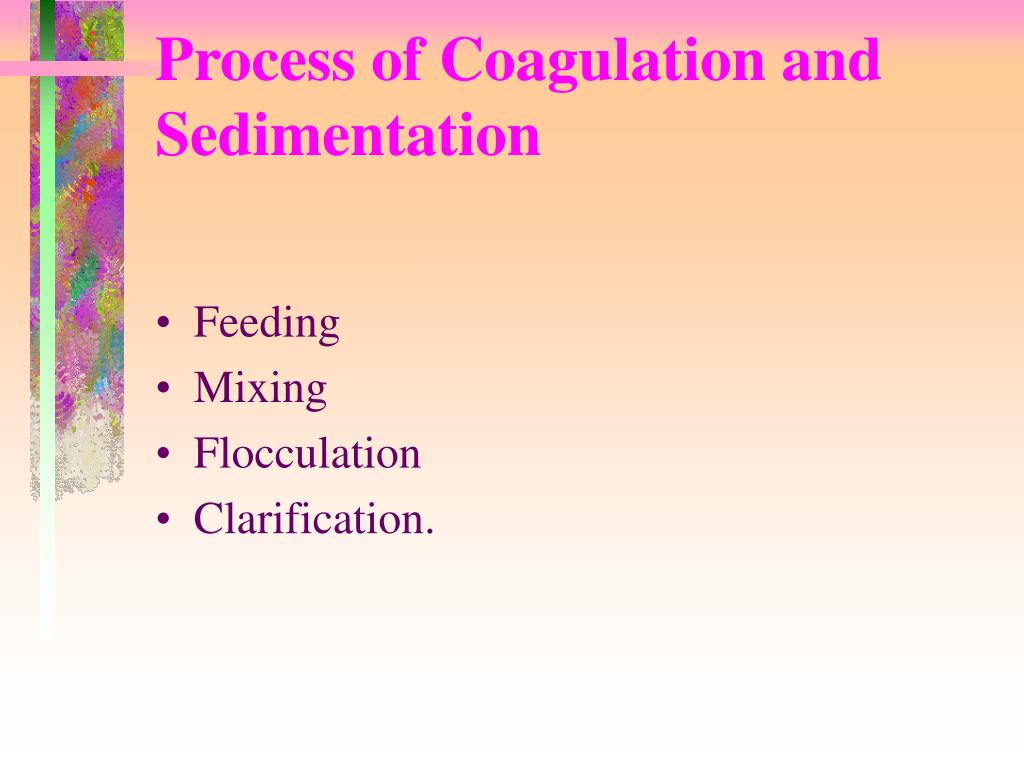

  33. Process of Coagulation and Sedimentation • Feeding • Mixing • Flocculation • Clarification.

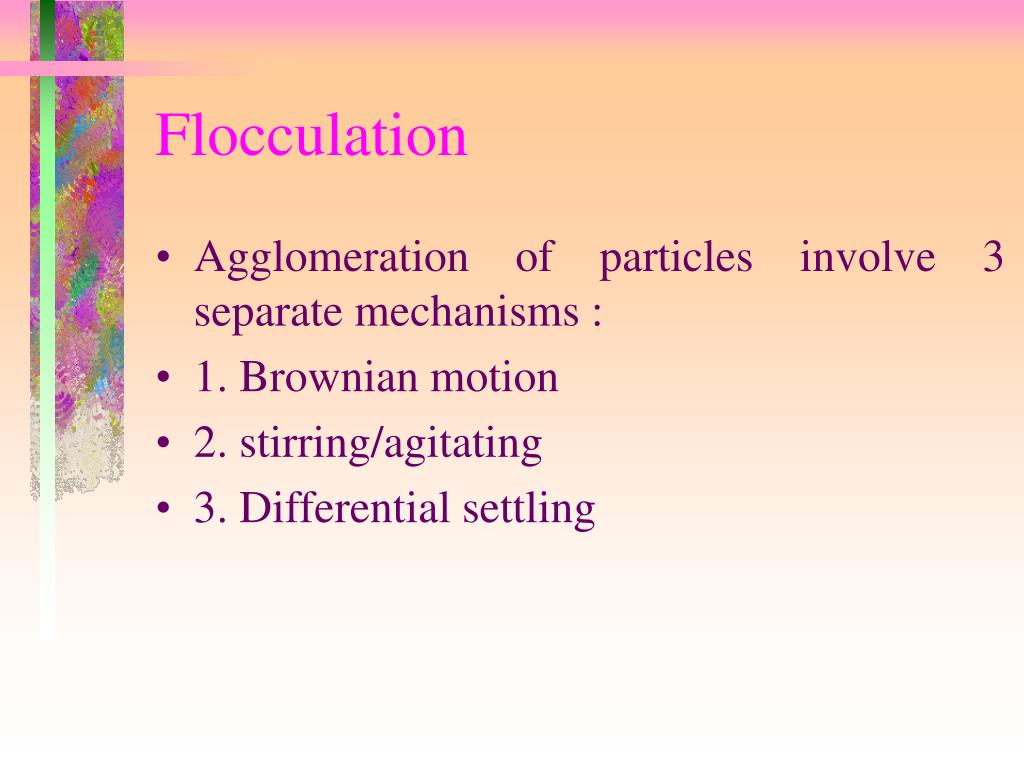

  34. Flocculation • Agglomeration of particles involve 3 separate mechanisms : • 1. Brownian motion • 2. stirring/agitating • 3. Differential settling

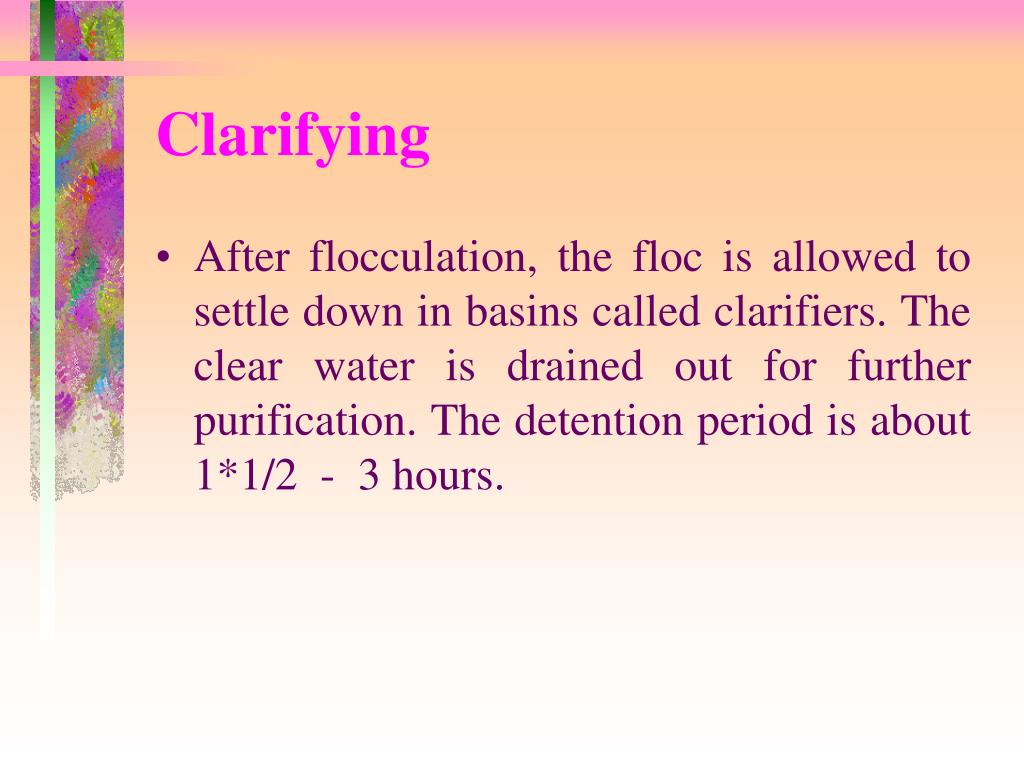

  35. Clarifying • After flocculation, the floc is allowed to settle down in basins called clarifiers. The clear water is drained out for further purification. The detention period is about 1*1/2 - 3 hours.

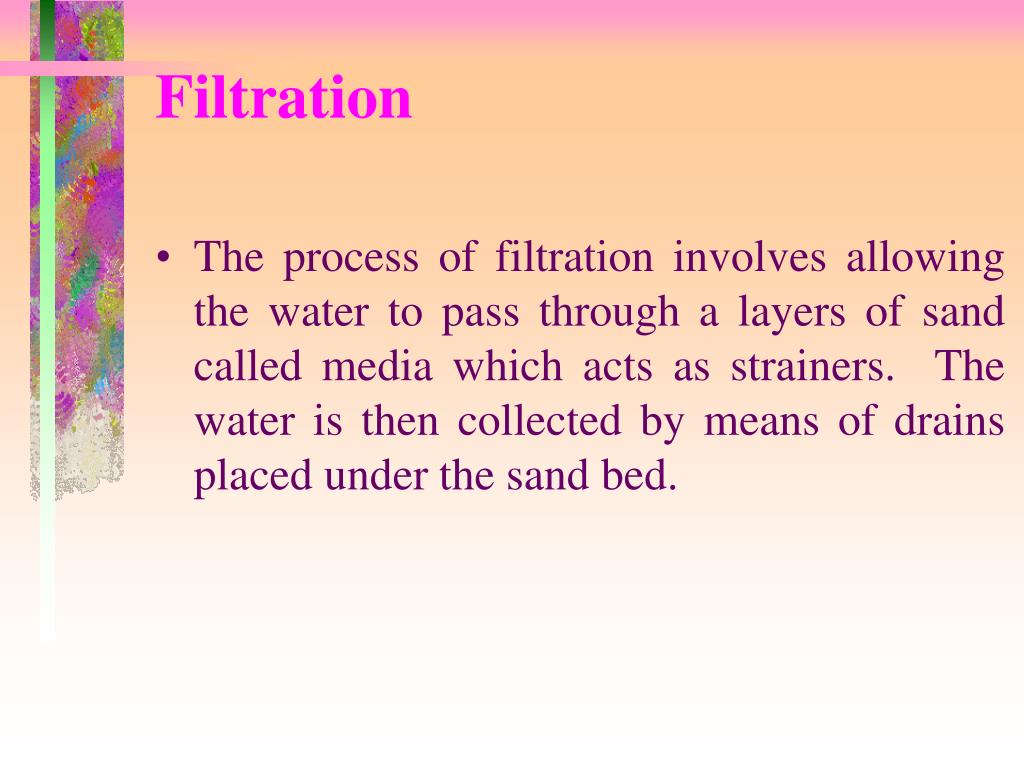

  36. Filtration • The process of filtration involves allowing the water to pass through a layers of sand called media which acts as strainers. The water is then collected by means of drains placed under the sand bed.

  37. Objectives of Filtration • Remove colloidal and suspended matter remaining after sedimentation • Remove bacterial load

  38. Theory of Filtration • Mechanical straining • Sedimentation or adsorption • Biological Metabolism • Electrolytic changes

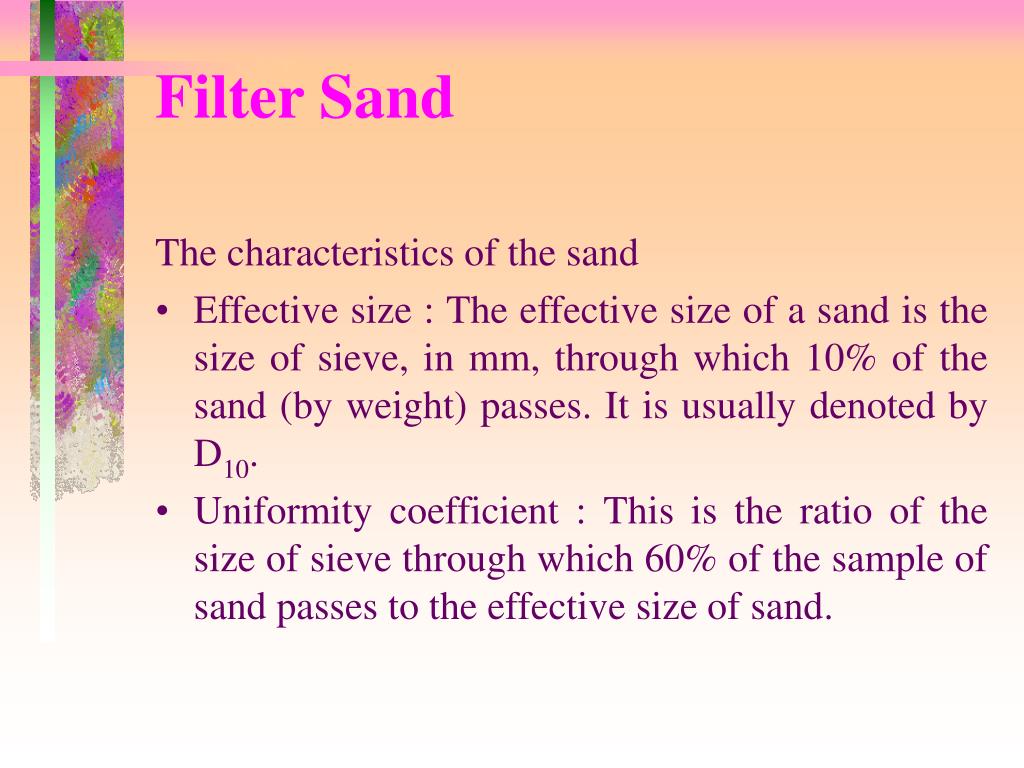

  39. Filter Sand The characteristics of the sand • Effective size : The effective size of a sand is the size of sieve, in mm, through which 10% of the sand (by weight) passes. It is usually denoted by D10. • Uniformity coefficient : This is the ratio of the size of sieve through which 60% of the sample of sand passes to the effective size of sand.

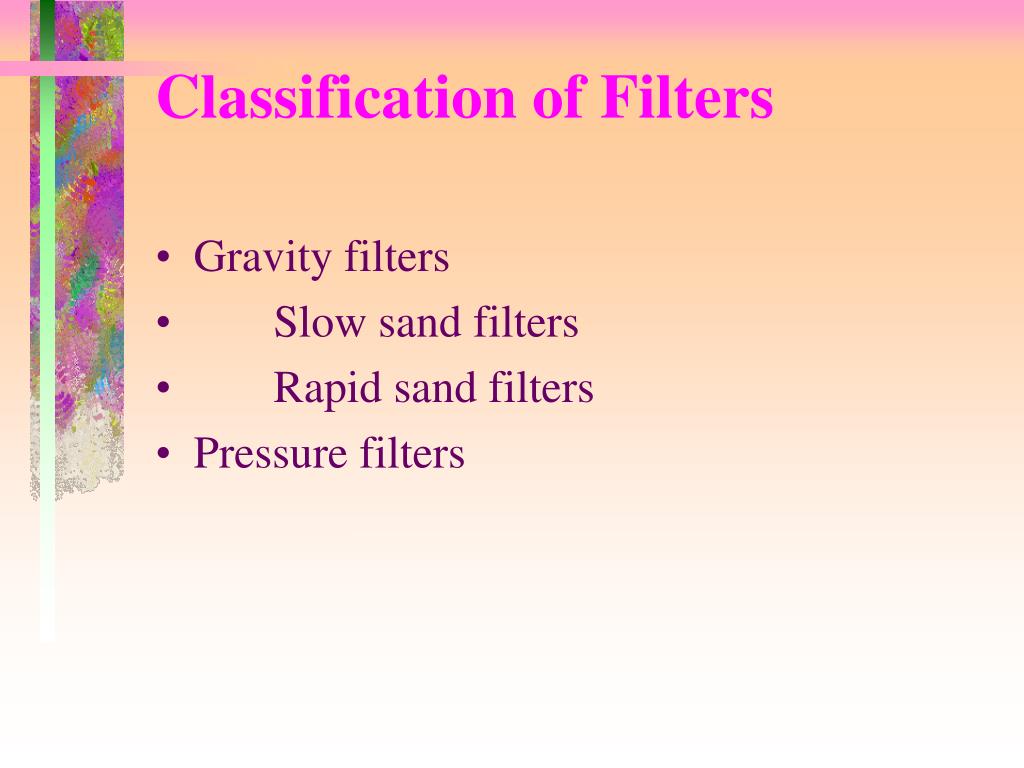

  40. Classification of Filters • Gravity filters • Slow sand filters • Rapid sand filters • Pressure filters

  41. Types of Filter Media configuration in Hong Kong In Hong Kong, only rapid sand filter is used. Filtering materials can be single media filter or dual media filter.

  42. Disinfecting •  The process by which harmful bacteria are destroyed to make it safe for drinking is called Disinfecting. • Chemicals used for this purpose are called disinfectants.

  43. Criteria for a Good Disinfectant • Capable of destroying pathogenic organisms within the contact time available. • Should NOT change the physical and chemical characteristics • Should not be toxic • Available at reasonable cost • Should have residual concentration • Detectable in the water by simple tests • Easy in transportation and application

  44. Methods of Disinfecting • Boiling water • Ozone gas treatment • Excess lime treatment • Iodine and bromine treatment • Ultraviolet rays treatment • Potassium permanganate treatment • Chlorination

  45. Chlorination • The process is economical and cheap • It is harmless to human beings • It is reliable and effective • Residual chlorine can be maintained in the water • Easy to apply and ease to measure Disadvantages of Chlorination • Formation of trihalomethanes (THMs) such as carcinogen chloroform (CHCl3) • To avoid the formation of THMs, water should be removed of organic impurities as much as possible before chorination.

  46. Chemistry of Chlorination • Cl2 + H2O < == > HOCL + H+ + Cl- • The hypochlorous acid is the prime disinfecting agent. • Depending on the pH, the following reaction can also take place • HOCl < == > H+ + OCl- • Together, HOCl and OCl- are called free available chlorine.

  47. Chlorine Demand • Chlorine and its compounds are consumed by a variety of organic and inorganic materials present in water due to its oxidising power before disinfecting is achieved. • The difference between the amount of chlorine added to the water and the residual chlorine is called chlorine demand. • This depends on the amount of chlorine added, time of contact, pH and temperature.

  48. Breakpoint Chlorination • Chlorine acts as oxidising agent to remove bacterial and organic matters • When chlorine is applied, it first kills the bacteria Any further addition will appear as residual chlorine increases. • After a certain point, the residual chlorine suddenly decreases with emanation of bad smell and objectionable taste. This indicates that chlorine is being used for oxidising the organic impurities.

  49. Breakpoint Chlorination • Again, after some time, there is a sudden increase in residual chlorine indicating that oxidation of impurities is over. • The point at which both the demands are satisfied and residual chlorine increases is called breakpoint. • Beyond the breakpoint, any further dose of chlorine only gets accumulated. The process of adding chlorine beyond the breakpoint is called breakpoint chlorination.

  50. Hardness of Water
