1 / 6

b=12.9 Å

CuO 2 chains. A 14. Cu 2 O 3 ladders. b=12.9 Å. c C. c L. a=11.4 Å. Chains : Ladders : c C =2.75 Å c L =3.9 Å. 10 · c C ≈ 7 · c L ≈ 27.5 Å. c L / c C = √ 2. What is important in the ladders in Sr 14-x Ca x Cu 24 O 41 ?. Ladders: Non-linear conductivity.

ramiro
Télécharger la présentation

b=12.9 Å

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CuO2 chains A14 Cu2O3 ladders b=12.9 Å cC cL a=11.4 Å Chains: Ladders:cC=2.75 ÅcL=3.9 Å 10·cC≈7·cL≈27.5 Å cL/cC=√2

  2. What is important in the ladders in Sr14-xCaxCu24O41?

  3. Ladders: Non-linear conductivity small non-linear effect Maeda et al., PRB’03 “large” non-linear effect Blumberg et al., Science’02

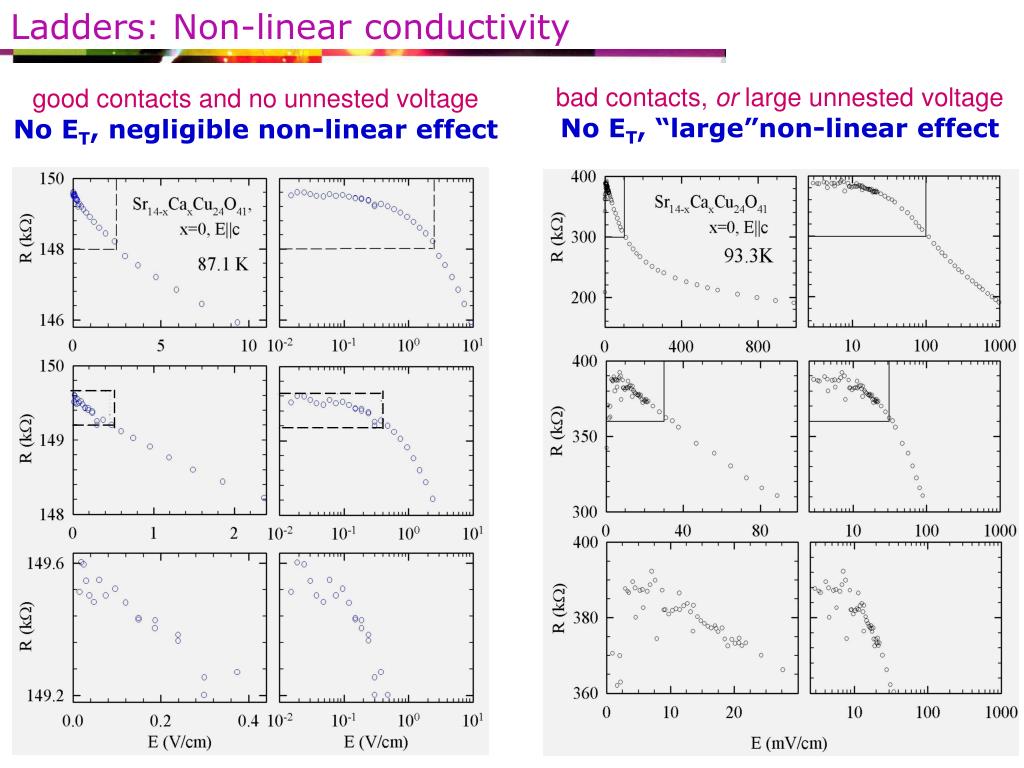

  4. Ladders: Non-linear conductivity bad contacts, or large unnested voltage No ET, “large”non-linear effect good contacts and no unnested voltage No ET, negligible non-linear effect

  5. 2D phason response in ladder plane radio-freq. mode enhanced effective mass m*=102-103 pinned mode W0 Kitano et al., EPL’01

  6. T* TCDW Phase diagram for ladders (corresponds to chains ph.diag.) suppresion of Tc and charge gaps 2D CDW in ladder plane unique to ladders? or common to low-D systems with charge order? order in ladders: CO oflocalized or CDW of itinerant electrons? analogy with AF/SDW half-filled ladder in Hubbard model: CDW+pDW in competition with d-SC Suzumura et al., JPSJ’04
