Web Tools Feature Transition with FOS 6.1.1 and higher

Web Tools Feature Transition with FOS 6.1.1 and higher. For improved segmentation of configuration capabilities vs. management capabilities, some of the traditional WebTools features have moved into both DCFM Professional and DCFM Enterprise with FOS 6.1.1 and higher.

ranae
Télécharger la présentation

Web Tools Feature Transition with FOS 6.1.1 and higher

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

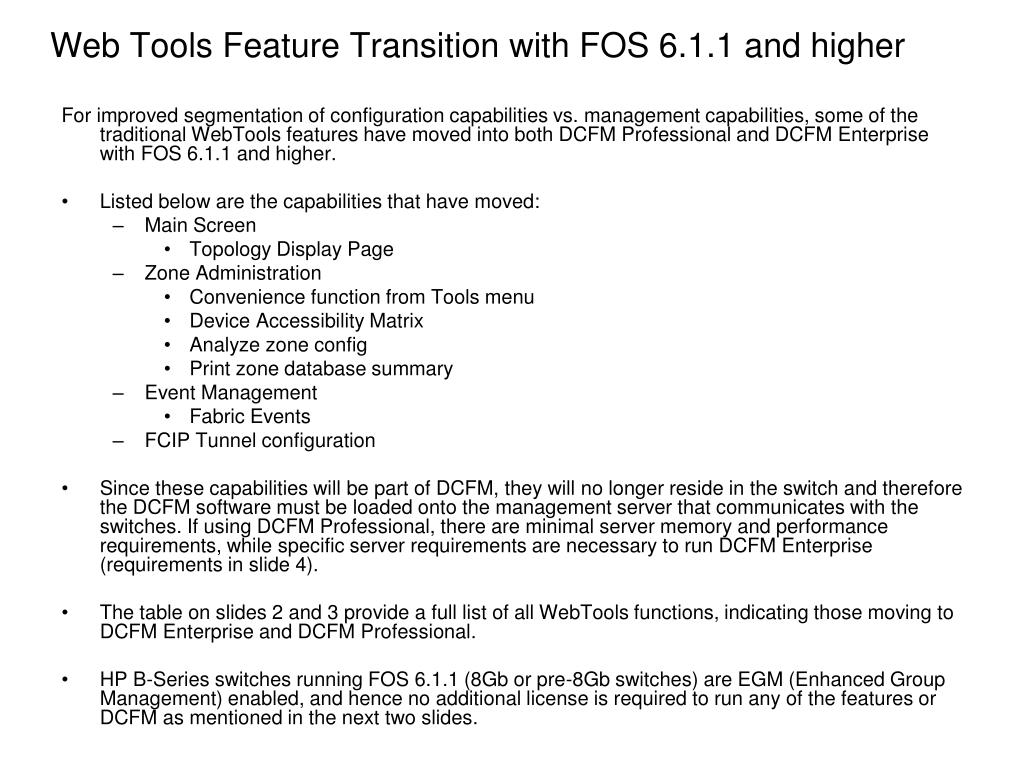

  1. Web Tools Feature Transition with FOS 6.1.1 and higher For improved segmentation of configuration capabilities vs. management capabilities, some of the traditional WebTools features have moved into both DCFM Professional and DCFM Enterprise with FOS 6.1.1 and higher. • Listed below are the capabilities that have moved: • Main Screen • Topology Display Page • Zone Administration • Convenience function from Tools menu • Device Accessibility Matrix • Analyze zone config • Print zone database summary • Event Management • Fabric Events • FCIP Tunnel configuration • Since these capabilities will be part of DCFM, they will no longer reside in the switch and therefore the DCFM software must be loaded onto the management server that communicates with the switches. If using DCFM Professional, there are minimal server memory and performance requirements, while specific server requirements are necessary to run DCFM Enterprise (requirements in slide 4). • The table on slides 2 and 3 provide a full list of all WebTools functions, indicating those moving to DCFM Enterprise and DCFM Professional. • HP B-Series switches running FOS 6.1.1 (8Gb or pre-8Gb switches) are EGM (Enhanced Group Management) enabled, and hence no additional license is required to run any of the features or DCFM as mentioned in the next two slides.

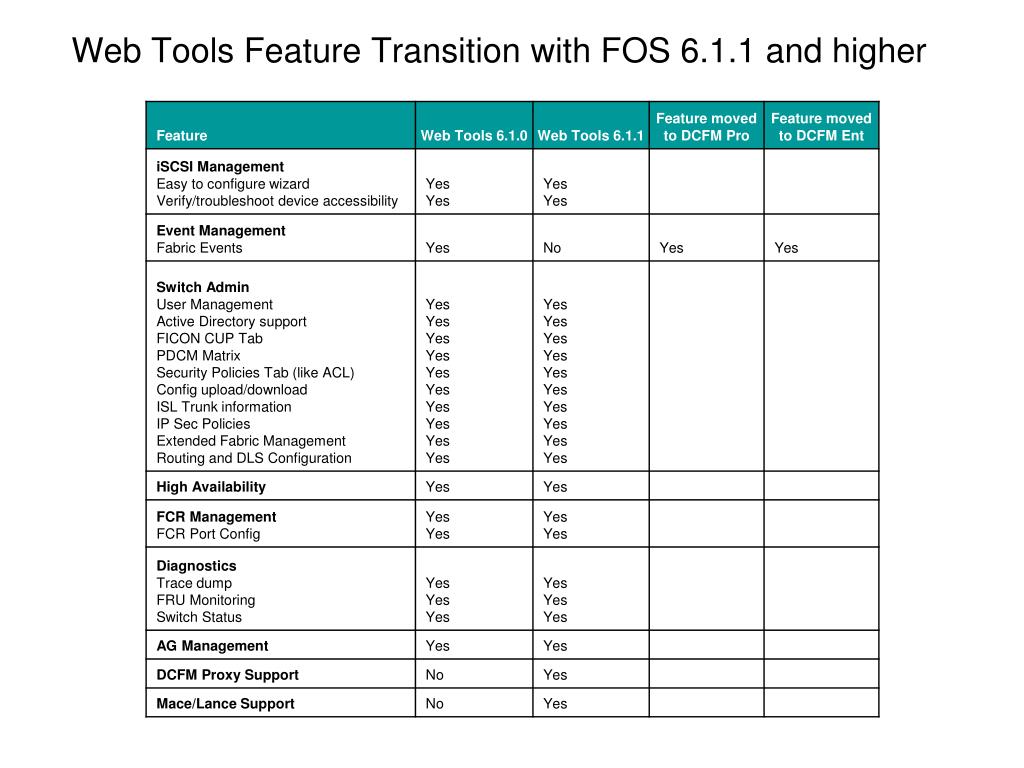

  2. Web Tools Feature Transition with FOS 6.1.1 and higher

  3. Web Tools Feature Transition with FOS 6.1.1 and higher

  4. DCFM Enterprise Server Hardware Recommendations
