Presentation Transcript

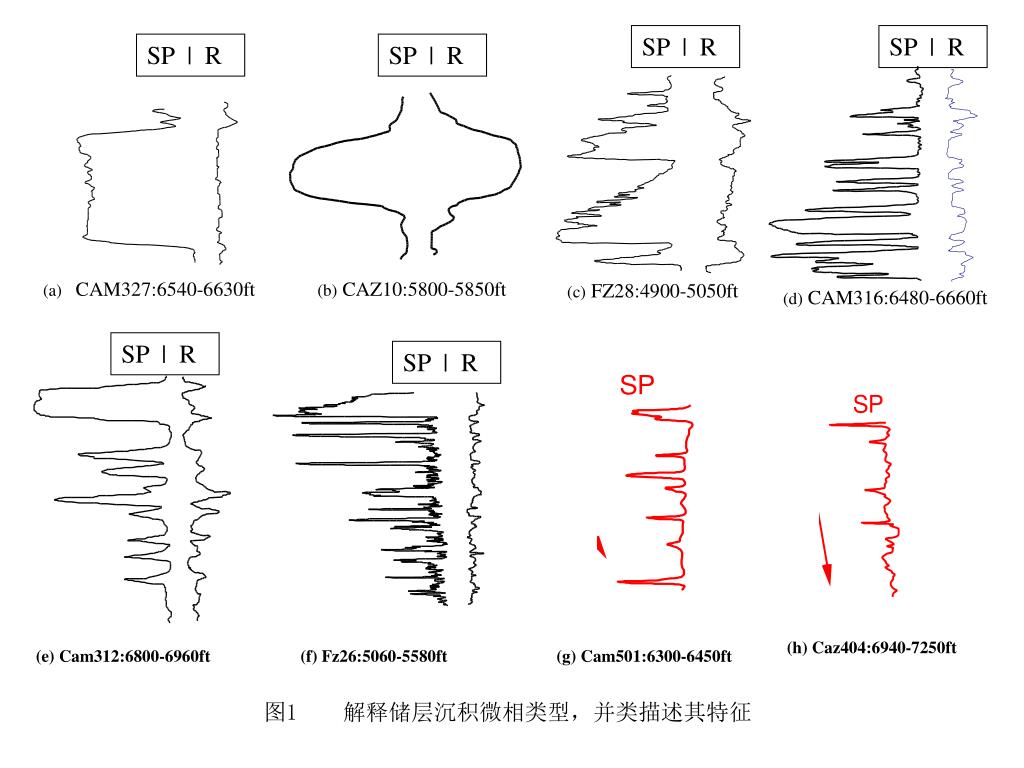

  1. SP | R SP | R SP | R SP | R (a) CAM327:6540-6630ft (b) CAZ10:5800-5850ft (c) FZ28:4900-5050ft (d) CAM316:6480-6660ft SP | R SP | R (h) Caz404:6940-7250ft (e) Cam312:6800-6960ft (f) Fz26:5060-5580ft (g) Cam501:6300-6450ft 图1 解释储层沉积微相类型，并类描述其特征

  2. 图2 识别地层接触关系，划分沉积层序边界，解释层序内部反射结构类型

  3. A B 图3 利用地震相外形和内部结构，识别沉积体，并解释其沉积体的类型

  4. C D 图4 利用地震相外形和内部结构，识别沉积体，并解释其沉积体的类型

  5. E F 图5 利用地震相外形和内部结构，识别沉积体，并解释其沉积体的类型
