Rotations

Rotations. A turn around a center. The distance from the center to any point on the shape stays the same. Rotations  degrees & direction . Clockwise. A rotation turns a figure through an angle about a fixed point called the center.  It is a rigid isometry.

randi
Télécharger la présentation

Rotations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

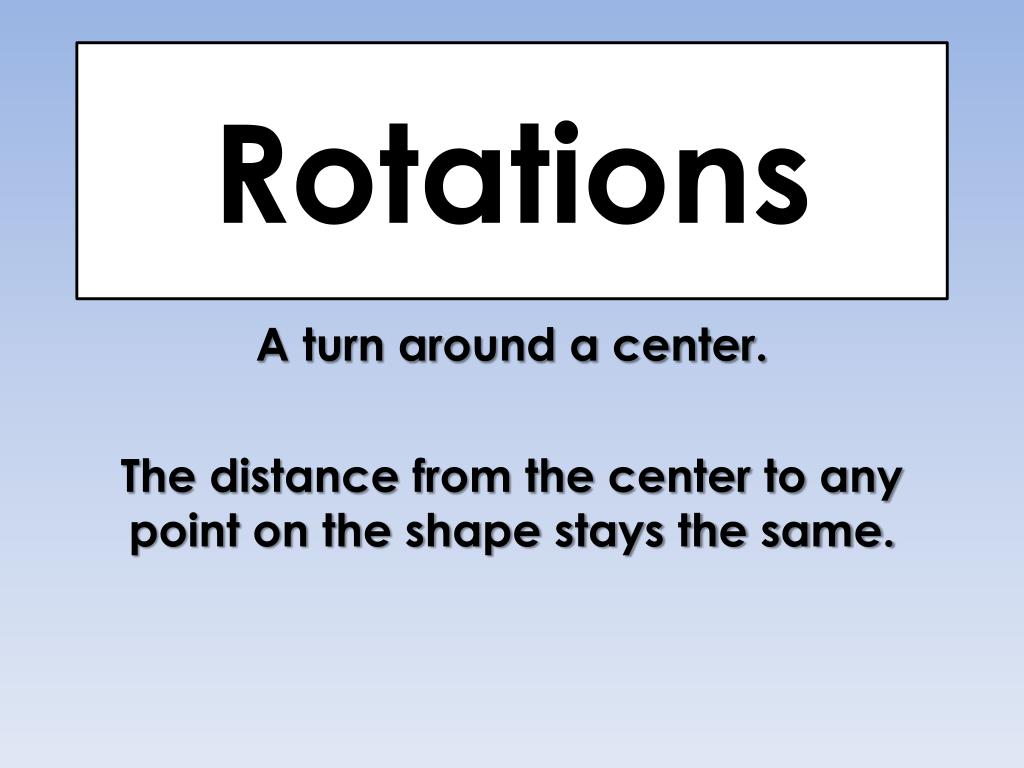

  1. Rotations A turn around a center. The distance from the center to any point on the shape stays the same.

  2. Rotations  degrees & direction Clockwise

  3. A rotation turns a figure through an angle about a fixed point called the center.  It is a rigid isometry. Rules of rotation are for clockwise rotations. Counter clockwise rotations are opposite clockwise. 90°cw = 270°ccw and 270°cw = 90°ccw

  4. Rotate ∆TSN 90°cw (x, y)  (y, -x) T’ T(-1, 1)  T'(1, 1) S(4, -1)  S'(-1, -4) N(1, -4)  N'(-4, -1) N’ S’ (270 ° CCW rotation)

  5. Rotate ∆TSN 180° (x, y) (-x, -y) T(-1, 1)  T'(1, -1)S(4, -1)  S'(-4, 1)N(1, -4)  N'(-1, 4)

  6. Rotate ∆TSN270° cw (x, y) to (-y, x) T(-1, 1) T'(-1, -1)S(4, -1) S'(1, 4)N(1, -4) N'(4, 1)

  7. Rotate 90 CW about the Origin(Same as 270 CCW) Change the sign of x and switch the order

  8. Rotate 90 CW

  9. Rotate 270Clockwise(Same as 90ccw) Change the sign of y and switch the order

  10. Rotate 90° counterclockwiseabout the origin

  11. Rotate 90° counterclockwiseabout the origin

  12. Rotate 180about the Origin ONLY Change the signs

  13. Rotate 180° about the origin

  14. Rotate 180° about the origin

  15. A rotation turns a figure through an angle about a fixed point called the center.  It is a rigid isometry. Rules of rotation are for clockwise rotations. Counter clockwise rotations are opposite clockwise. 90°cw = 270°ccw and 270°cw = 90°ccw

  16. Virtual Nerd Tutoring Lessons Lesson on Rotations http://www.virtualnerd.com/pre-algebra/geometry/transformations-symmetry/define-transformations/rotation-definition Lesson on Rotations 90° http://www.virtualnerd.com/pre-algebra/geometry/transformations-symmetry/rotating-figures/rotate-90-degrees-about-origin Lesson on Rotations 180° http://www.virtualnerd.com/pre-algebra/geometry/transformations-symmetry/rotating-figures/rotate-180-degrees-about-origin

  17. Coordinate Rules for Rotations about the origin: When a point (x, y) is rotated clockwise about the origin, the following rules are true: • For a rotation of 900(x, y)  (y, -x). • For a rotation of 1800(x,y)  (-x, -y). • For a rotation of 2700(x,y)  (-y, x). • When a point (x, y) is rotated counterclockwise about the origin, the following rules are true: • For a rotation of 900 (x,y) (-y, x). • For a rotation of 1800(x,y) (-x, -y). • For a rotation of 2700 (x, y) (y, -x).
