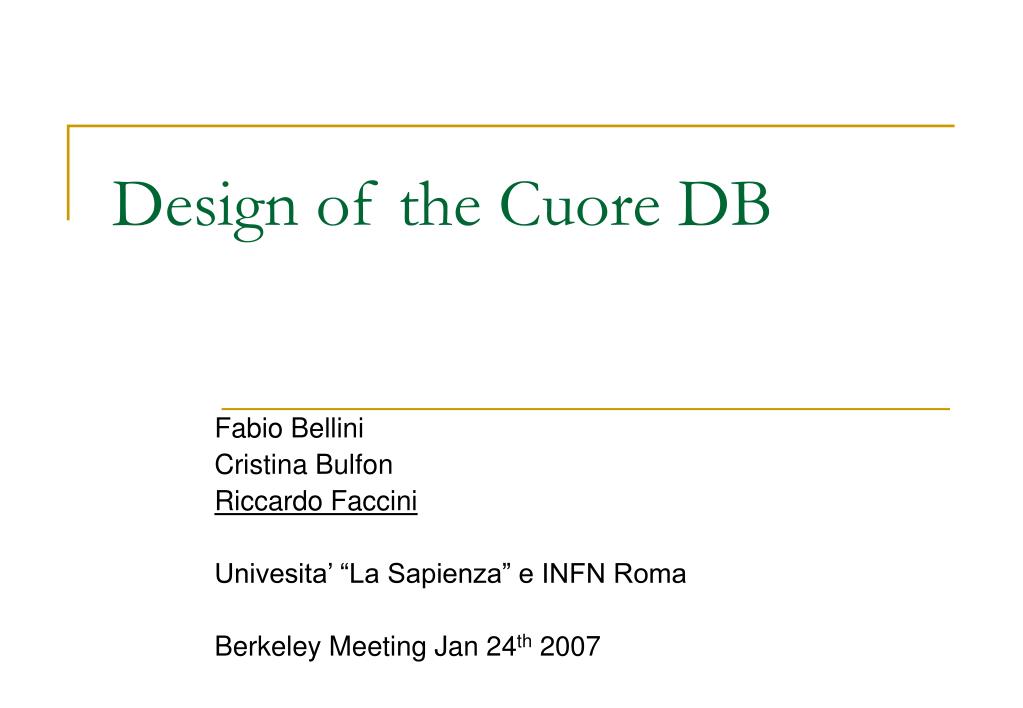

  1. Design of the Cuore DB Fabio Bellini Cristina Bulfon Riccardo Faccini Univesita’ “La Sapienza” e INFN Roma Berkeley Meeting Jan 24th 2007

  2. The context • Cuoricino currently has a database developed by Samuele • Svn: http://crio.mib.infn.it/wwwsvn/filedetails.php?repname=dbq • Web interface • http://crio.mib.infn.it/cuore/dbQ/ • Information written by DAQ on flat file  scripts to transfer info to DB • Only software accessing DB is the web interface (no direct analysis use)

  3. The need • A need was identified for • Having an automatic writing from DAQ • Apollo, developed by the Genova group • Extend the writing to all relevant programs (including analysis jobs) • Utilize the database directly in analysis jobs • Create new tables for new needs • Since Samuele has now left to the REAL WORLD, the group of Rome has agreed to take over the development and maintenance of the new Database

  4. The Plan • Design a database suited for the needs of Cuore • Identify how it can serve also the analysis in Cuoricino • Port the Cuoricino database to this new one • Including web interface • Implement and maintain the Cuore Database Today: progress report on all items

  5. SlowMon [always] II level processing GUI [every “run”] I level processing DataBase Apollo (always) III level processing The needs of cuore Legenda: programma [quando gira] cosa scrive • Average pulse • Final stabilization • Coefficients (same intervals) Calibration • Ambient variables • Cryostat parameters • … • RawData • Total Trig rate • Trig rate by kind • Noise Level (?) • Baseline info • Run Conditions • Trigger parameters • HW Mapping • Power Spectrum? • Stabilizzazione preliminare • Coefficents • Time intervals • Monitoring plots for shifters • Raw or reco data data • Gain • Baseline • Pulse Rate by kind • Single • Double • Triangular • … • Trig rate by element • Per tower • Per xl • Per E-Card • …. • Trig rate by trigger • Single • Coincidence.. • Reco Data • Xl resolution • … Data storage • Dataset (different root files) • Dark Matter • 2B0N • … • physics results Same nomenclature as Cuore Data Analysis Document #3

  6. Identified “first principles” of the new database • Each table should contain quantities which as much as possible have the same update rate • “stable” • hardware • mapping • settings • run parameters • other (sub-run) • Each table should as much as possible be written by the same program • Protects integrity • Use primary keys (which are unique) and foreign keys (which must have an existing value) to protect integrity • if creating a new line in a table requires an object in a table the object must be referenced • Break any many-to-many relationship by inserting an intermediate table Note change of notation: measure  run [interval between He fills] run  runCycle [intervals between warmings]

  7. HEATERS • [list of existing heaters] • # he_name • * he_kind • he_qc • * he_comments • * he_resistence THERMS [list of existing thermistors] # th_name * th_kind * th_qc * th_comments * r0 * T0 * gamma FISCHERS [list of existing fischer pins] # fisch_id, pin_id XTALS [list of existing xtals] # xl_name * xl_size * xl_kind * xl_qc • FRONTENDS • [list of FE channels] • # fe_id • * fe_board • fe_controller • fe_channel • PULSERS • [list of existing pulsers] • # pulse_id • * p_ch • p_name o comments • DIGITALS • [list of DAQ channels] • # daq_id • * daq_board • daq_crate • daq_channel • daq_type • BESSELS • [list of bessel channels] • # bes_id • * bes_board • bes_controller • bes_channel • bes_slot BOLOSTATUS # bolo_id FK * vbol * rbol * tbol * time_start o time_stop • BOLOMETERS • [assembled bolometers1] • # bolo_id • * det_id FK • o xl_name FK • o he_name FK • * th_name FK • * fisch_id,pin_id FK • * bolo_name • * bolo_tower • * bolo_floor • * bolo_pos • * bolo_x • * bolo_y • bolo_z • * bolo_kind • o comments • CRYOSTAT • # time validity ,det_id FK • main_bath_p • * main_bath_l • * main_bath_flow* 1kpot_level • * mixture_flow* 1kpot_p* 1kpot_t • * 1kpot_flow • * g4_p • * condenser_p • * p_mix • * p_still • p_tower DAQSETTINGS # daq_set, daq_id FK * flag_act * flag_gain * threshold * debounce * n_point * pulse_length * v_adc_limit_min * v_adc_limit_max • FESETTINGS • # fe_set, fe_id FK • * mema o v_bias • * memb o v_tot • * memc o rload • * memd o v_offset • dach • dacl MAPS [maps bolos and electronics3 ] # lg, profile_id FK o bolo_id FK o pulse_id FK o fe_id FK o bes_id FK * daq_id FK PULSERSETTINGS # p_set, pulse_id FK * mem0 o p_amplitude * mem1 o inc_state * mem2 o inc_factor * mem3 o dec_state o dec_factor o num_inc o width DETECTORS [array/towers of bolometrs2] # det_id * run_cycle * det_name * run_cycle4 * start_date * end_date o comments • PROFILES • [hardware configuration ] • # profile_id • * det_id • * profile_name • profile_comments • create_date • is_default • locked BESSETTINGS # bes_set, bes_id FK * mem * bes_param TRGSETTINGS # trg_set,bolo_id FK * trg1_enable * trg1_name * trg1_pars * … (4 trgs) SETDAQSTNGS #daq_set * creation_date o comments SETPLSSTNGS # p_set * creation_date o comments SETFESTNGS # fe_set * creation_date o comments SETBESSTNGS # trg_set * creation_date o comments • RUNS • [run configuration and stats5 ] • # run_number • * det_id4 • * profile_id FK * n_trg • fe_set FK * n_noise • trg_set FK * n_pulse • bes_set FK • daq_set FK • run_type FK • shifter_names • start_date • stop_date • ins_date • comments • stop_status • to_be_saved • saved • n_files SETTRGSTNGS # trg_set * creation_date o comments HW configuration and settings LEGENDA: # Primary key * compulsory attribute o facultative attribute FK Foreign key — 1 instance/ relationship ► many instances/rel. Time frequencies — almost unchanged — hardware — mapping — setting — run — other time interval USERS # user_name * passwd * date_created * level RUNTYPES # run_type * description STOPSTATUS # status_id * status * message

  8. Calibrations • USED_STABILIZATIONS • * stab_algo --FK • * bolo_id – FK • * stab_time_ins – FK • * stab_time_start – FK • stab_time_end – FK • * calib_algo –FK • * calib_set – FK • * calib_time_ins • STABILIZATIONS • # stab_algo --FK • # bolo_id – FK • # stab_time_start • # stab_time_end • # stab_time_ins • * ap_algo --FK • * ap_time_start --FK • * ap_time_end --FK • * ns_algo -- FK • * ps_time_start • * ps_time_end • * offset • * slope • pre-resolution • post-resolution CALIB-SETS # calib_set * start_run * end_run STAB-PARAMS [bolometer by bolometer] # stab_algo --FK # bolo_id – FK o st_position o n_poly_b o n_sigma_b o fit_type_b o n_poly_t o n_sigma_t o fit_type_t o min_delta_A o max_delta_A o min_delta_b o max_delta_b • CALIBRATIONS • # calib_algo –FK • # calib_set – FK • # calib_time_ins • # bolo_id – FK • calib_time_start • calib_time_end • * constant POWER-SPECTRA # ns_algo -- FK # bolo_id – FK # ps_time_start # ps_time_end * powerspectrum AVG-PULSES # ap_algo --FK # bolo_id – FK # ap_time_start # ap_time_end * Avgpulse • STAB-ALGOS • [change in criteria flags a change in algo] • # stab_algo • wiener_filter • o wien_n_baseline o amp_corr • o wien_n_smooth o windowing • o wien_decomp o one_side • o wien_max_second o rise_time • o wien_adaptive_fd o n_points_base • o max_frac o n_chan_af • o min_amp o n_chan_maxmin • o max_second o n_smooth • Description o n_points • o least_square test • o signed_test • o differentiated • o window_type CALIB-ALGORITHMS # calib_algo * description AP-ALGOS # ap_algo * description NS-ALGOS # ns_algo * description • Notes: • Power spectra and average pulses are computed with their own periodicity • stabilizations are supposed to have validity intervals comprised into the PS and AP ones • analysis criteria used in input are listed within the STAB_PARAMS (could be improved if needed) • calibrations have validity intervals which are supersets of the stabilizations • sql does not support versioning  hand made with the insertion time  anything better?

  9. Location of database(s) An open issue • A copy of the database should reside where the DAQ is • Cannot stop data taking because of connectivity problems • Several DAQs running at the same time expected (HallC,Cuoricino,…) • The master database, to be used for analysis, should be the merge of all the existing ones • Where should it reside? (LNGS?) • Periodic mirrors • Tolerable delay in update? (few weeks, a part from conference seasons?) • Merging in a safe way is an engineering problem • Cristina is looking at it

  10. Status and short term plans • Scripts to implement the new database are in place in the http://crio.mib.infn.it/wsvn/dbt svn repository > svn co http://crio.mib.infn.it/svn/dbt to check them out • Scripts to insert the current Cuoricino variables under test • Web interface being worked on (Cristina) • Implementing a beta version in Rome • Need decision on where it will eventually reside • Make your own empty copy with sql createdb qdb psql qdb # \i CreateQdbTable.sql • Hope to see it used soon with the new DAQ and authomatic stabilization
