  1. Storage Overview And Architecture Arvind Shrivastava

  2. Enterprise Network Storage Architecture Unbounded performance and capacity Network Attached Storage Direct Attached + Software Core Technology Unprecedented flexibility Services + Storage Area Network Simplified management The lowest total cost of ownership =

  3. Direct Attached Storage(DAS) • Low Cost Solution • Simple to Configure • De-Centralized Storage • No Storage Consolidation • No High Availability • Low Performance

  4. Network Attached Storage(NAS) • Heterogeneous Environment • Centralized Storage • Low Performance • Limited scalability • Network Congestion during backups & Restore • Ethernet Limitations

  5. Storage Area Network • Heterogeneous environment • Centralized Storage Management • High Degree of Fault Tolerance • Best and superior performance • Storage Consolidation • Fast and efficient backups and restores • Dynamic Scalability • Expensive solution for small setups

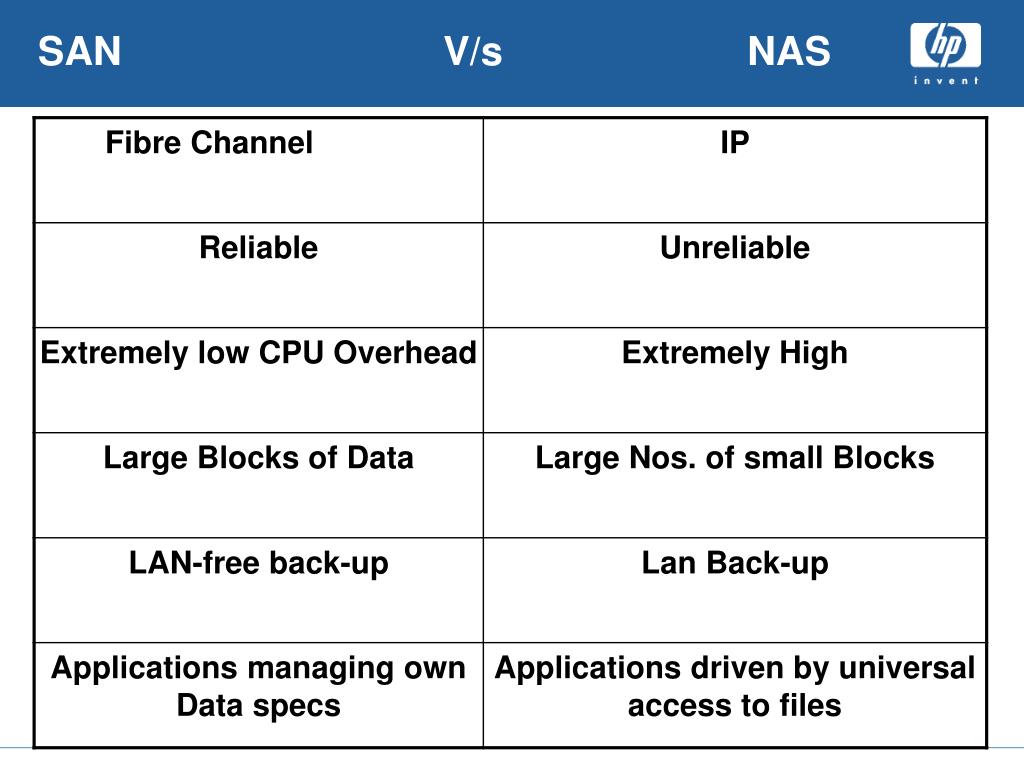

  6. SAN V/s NAS

  7. Mid-Range Storage Features • • Excellent ease of use • • Virtualization • • Dynamic virtual disk expansion • • Business Copy functions • • Continuous Access functions • • High availability features • • High, middle*, and low models and configurations • • Multiple operating system support • • Single pathing support for all operating systems • • Coexistence with heterogeneous configurations

  8. Buisness copy Overview

  9. Continuous Access-Overview

  10. Flex Copy Concept Cost-effective, external point-in-time copies • Features • Allows use of low end storage for low-cost point-in-time copies of production data • Point-in-time copy to and restore from Low end storage • CLI or GUI Configuration • Benefits • Reduced TCO in mixed product/non-production • Offloads production data from secondary operations • Allows for distributed remote data and hi performance two-stage backup/archive configurations C1 Low end storage P Enterprise storage

  11. Product Positioning

  12. Additional Features EVA4000/6000/8000 • Additional features unique to the second generation EVA • • New controllers with improved performance, higher capacity • support, larger cache, more FC ports • • Up to 200TB of presented capacity (versus 35TB for the first • generation EVA) • • Support for 1024 LUNs (first generation EVA was 512) • • Support for active-active failover using multipath software • for all operating systems • • Increased support for boot from SAN (AIX, Solaris) • • Direct Connect support for Windows • • Additional CA functionality • • Support for native HBAs and HBA drivers • • Additional snapshot and snapclone functionality

  13. Useful Links • Information sources :- • – HP Enterprise Virtual Array • • http://h18006.www1.hp.com/storage/arraysystems.html • – HP Command View EVA • • http://h18006.www1.hp.com/products/storage/software/cmdvieweva/index.htm • – Whitepapers • • http://h18006.www1.hp.com/storage/arraywhitepapers.html

  14. Storage backup Overview And Architecture Arvind Shrivastava

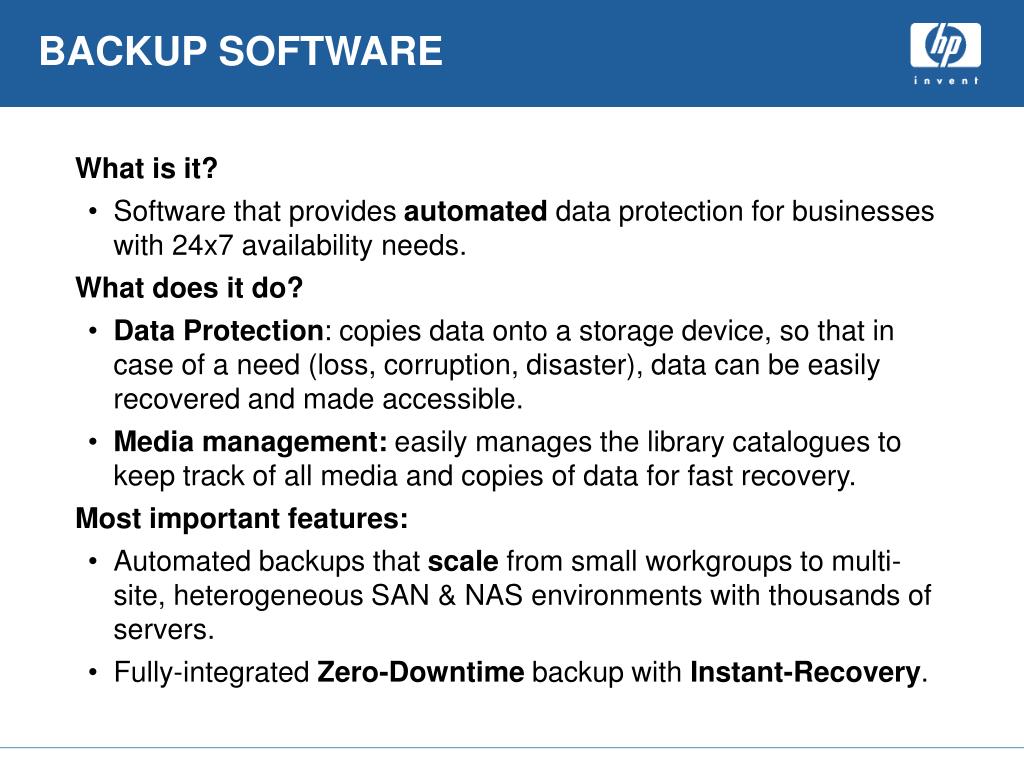

  15. BACKUP SOFTWARE • What is it? • Software that provides automated data protection for businesses with 24x7 availability needs. • What does it do? • Data Protection: copies data onto a storage device, so that in case of a need (loss, corruption, disaster), data can be easily recovered and made accessible. • Media management: easily manages the library catalogues to keep track of all media and copies of data for fast recovery. • Most important features: • Automated backups that scale from small workgroups to multi-site, heterogeneous SAN & NAS environments with thousands of servers. • Fully-integrated Zero-Downtime backup with Instant-Recovery.

  16. Architecture Components manager of managers distributed GUI operations console cell manager cell clients

  17. Client-Server Modules cell console (CC) cell manager (CM) media agent (MA) disk agent (DA)

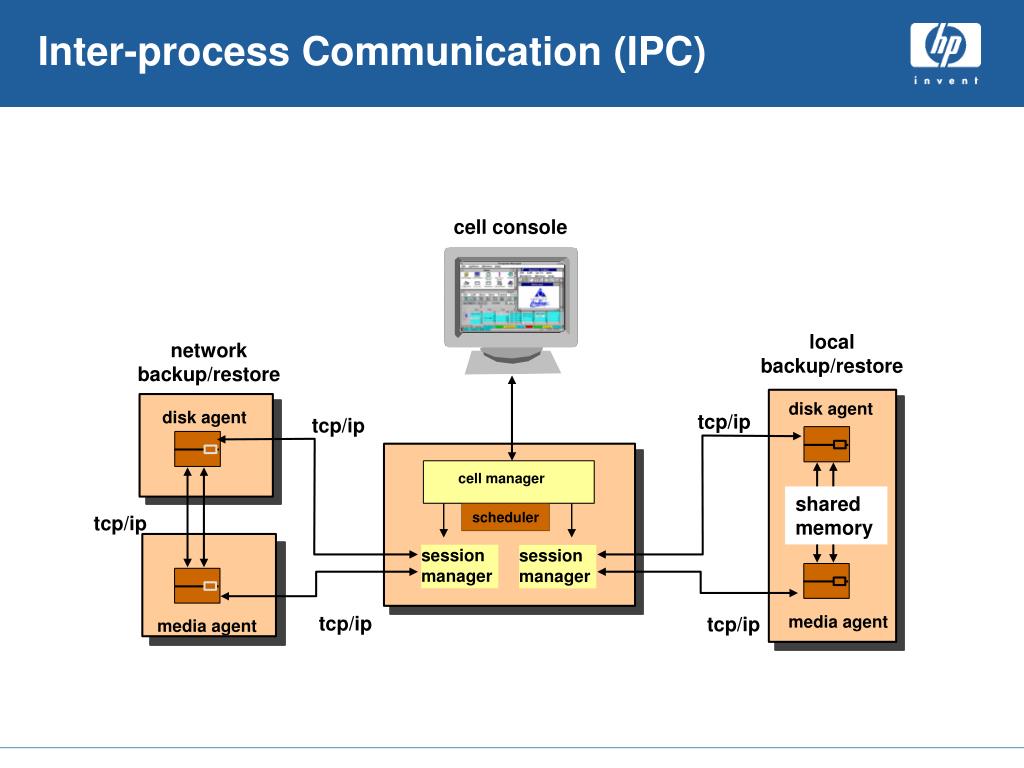

  18. Inter-process Communication (IPC) cell console local backup/restore network backup/restore disk agent tcp/ip disk agent tcp/ip cell manager shared memory scheduler tcp/ip session manager session manager tcp/ip tcp/ip media agent media agent

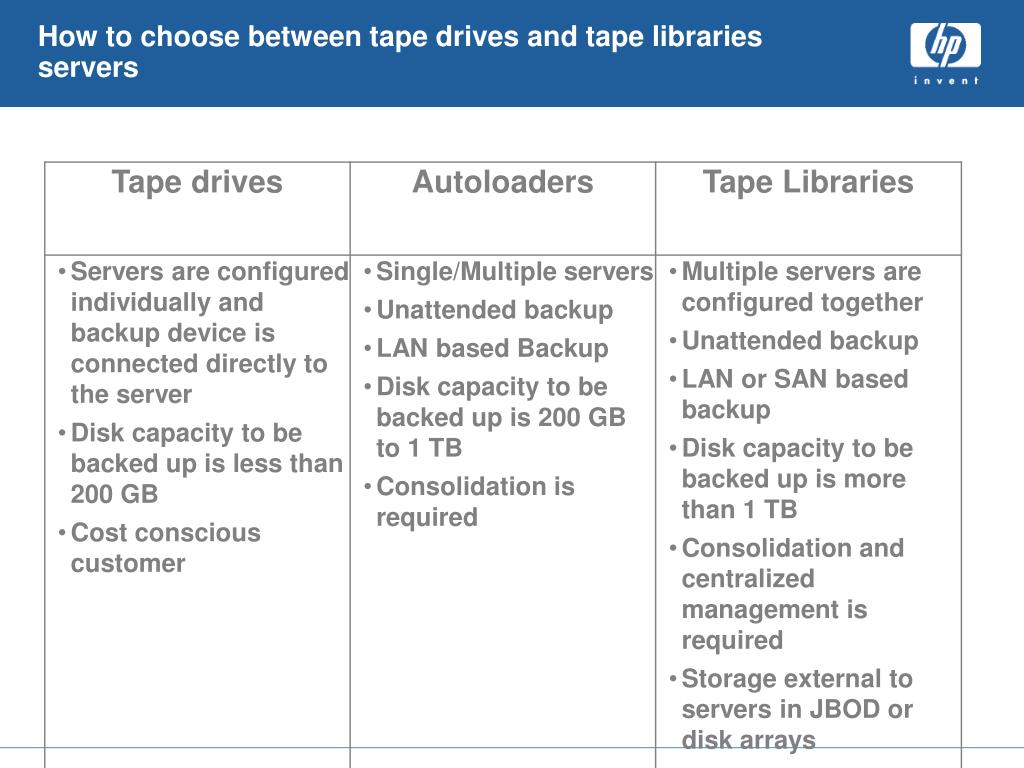

  19. How to choose between tape drives and tape libraries servers

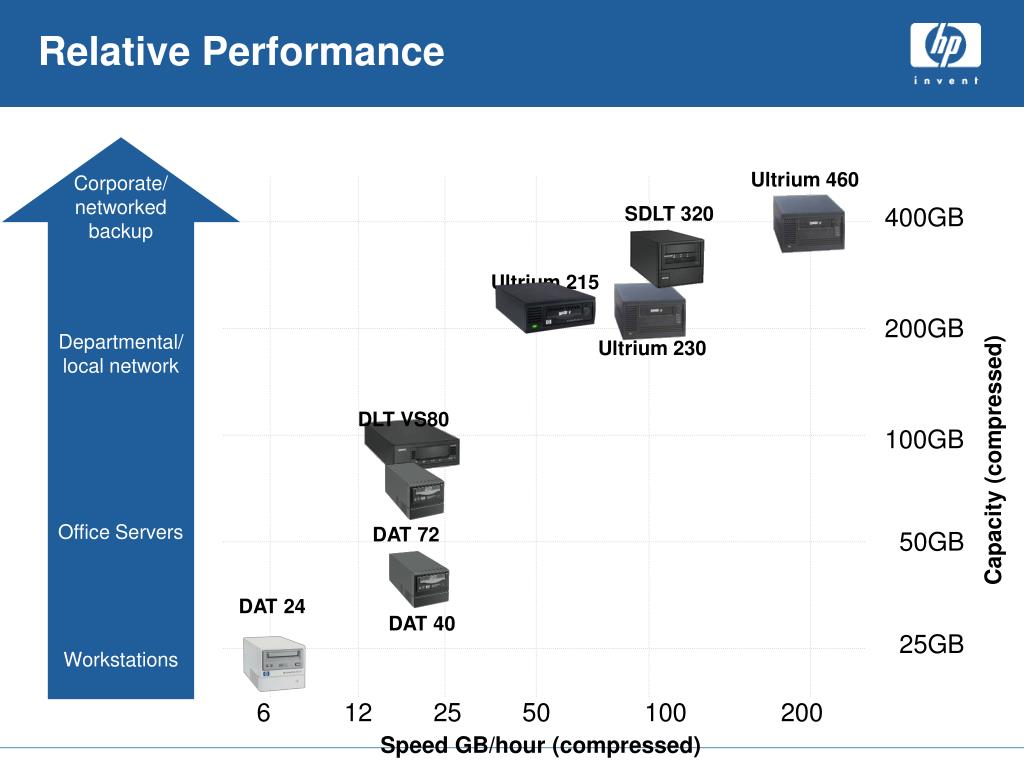

  20. Ultrium 460 Corporate/ networked backup SDLT 320 Departmental/local network Ultrium 215 DLT VS80 DAT 72 Office Servers DAT 24 DAT 40 Workstations Relative Performance 400GB 200GB Ultrium 230 100GB Capacity (compressed) 50GB 25GB 6 12 25 50 100 200 Speed GB/hour (compressed)

  21. Tape drives – Speeds and feeds - Comparison Complied by Ranganath Sadasiva

  22. Features • Features Required in any Backup software • Advanced backup to disk • Oracle/SAP Integrations • Zero Downtime Backup • Split mirror • Snapshot • Snapclone • Filesystem / application backup on inactive MC/SG node

  23. Overview – Advanced backup to disk • Why backup to disk? • Benefits • Fast random access allowing: • Fast single file restore • Space efficient backup • Instant recovery • e.g. switching for recovery instead of restoring data from tape • Faster restore of backup chains • No tape streaming problems • Ideal for RAID 5 • Easy to detect disk failures • More protected, e.g. it’s not easy to steal a disk

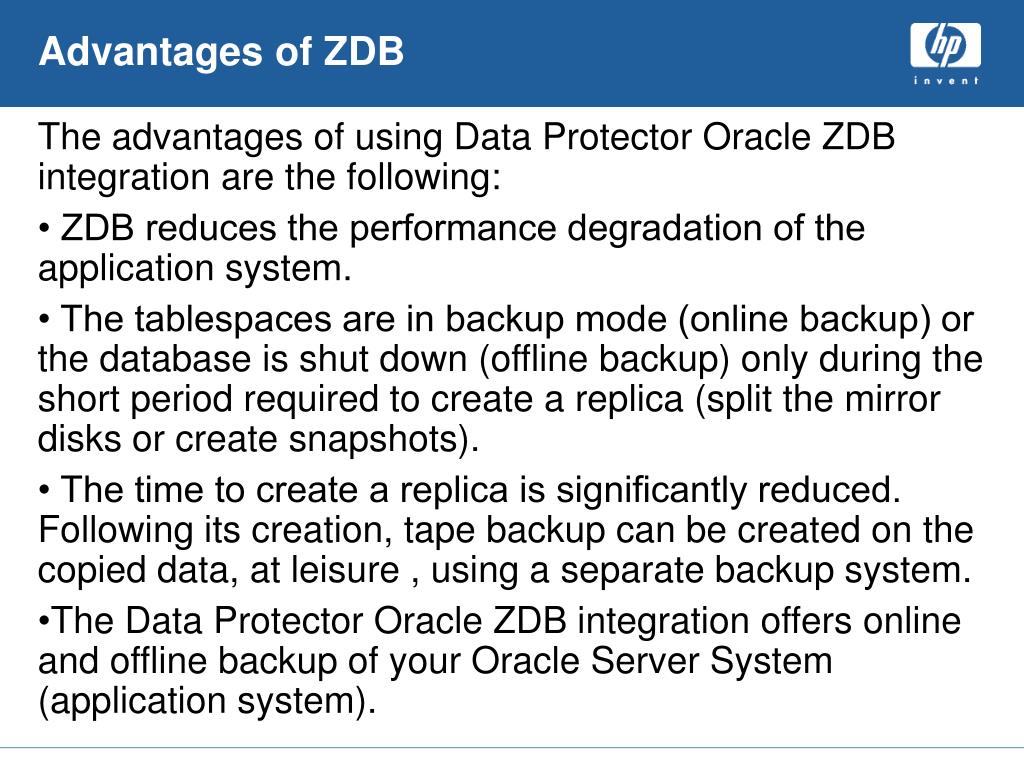

  24. Advantages of ZDB • The advantages of using Data Protector Oracle ZDB integration are the following: • • ZDB reduces the performance degradation of the application system. • • The tablespaces are in backup mode (online backup) or the database is shut down (offline backup) only during the short period required to create a replica (split the mirror disks or create snapshots). • • The time to create a replica is significantly reduced. Following its creation, tape backup can be created on the copied data, at leisure , using a separate backup system. • The Data Protector Oracle ZDB integration offers online and offline backup of your Oracle Server System (application system).

  25. BACKUP CONCEPT-SPLIT MIRROR BACKUP

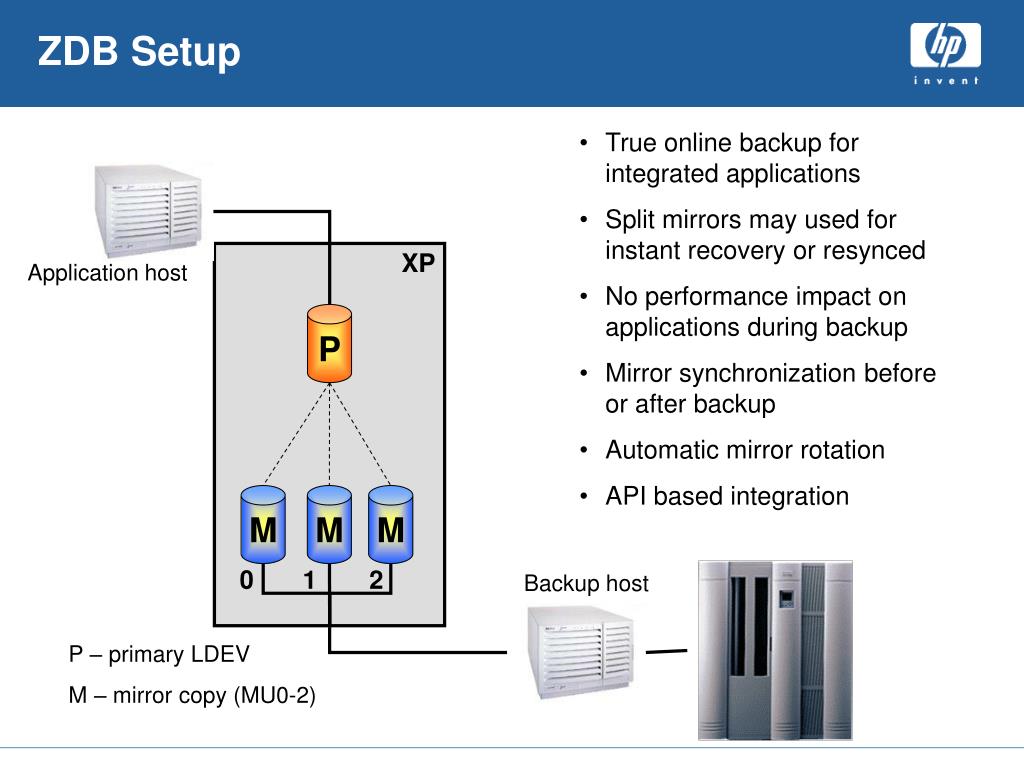

  26. ZDB Setup • True online backup for integrated applications • Split mirrors may used for instant recovery or resynced • No performance impact on applications during backup • Mirror synchronization before or after backup • Automatic mirror rotation • API based integration XP Application host P M M M 0 1 2 Backup host P – primary LDEV M – mirror copy (MU0-2)

  27. Backup Software and Storage Integration Concept Client 1 Client 2

  28. Questions?

  29. New HP Storage Products Arvind Shrivastava

  30. RISS • Introducing…HP StorageWorks Reference Information Storage SystemWhat is RISS is and who wants it?

  31. The HP StorageWorks Reference Information Storage System (RISS) • A cornerstone of HP ILM (Information Lifecycle Management ) • A fully integrated and uniquely scalable system for access to reference information that… • …reduces Total cost of Ownership, mitigates risk and turns data into information

  32. HP StorageWorks Reference Information Storage System • Manage Costs • Remove static data from application servers/storage • Shorten backup windows • Eradicate duplicate data objects • Mitigate Risks • Automated retention of messages & attachments • Data is digitally signed, time stamped & protected • Assist customers to meet their compliance requirements • Exploit Data Assets • Power indexing! • Grid computing for fast search/retrieval

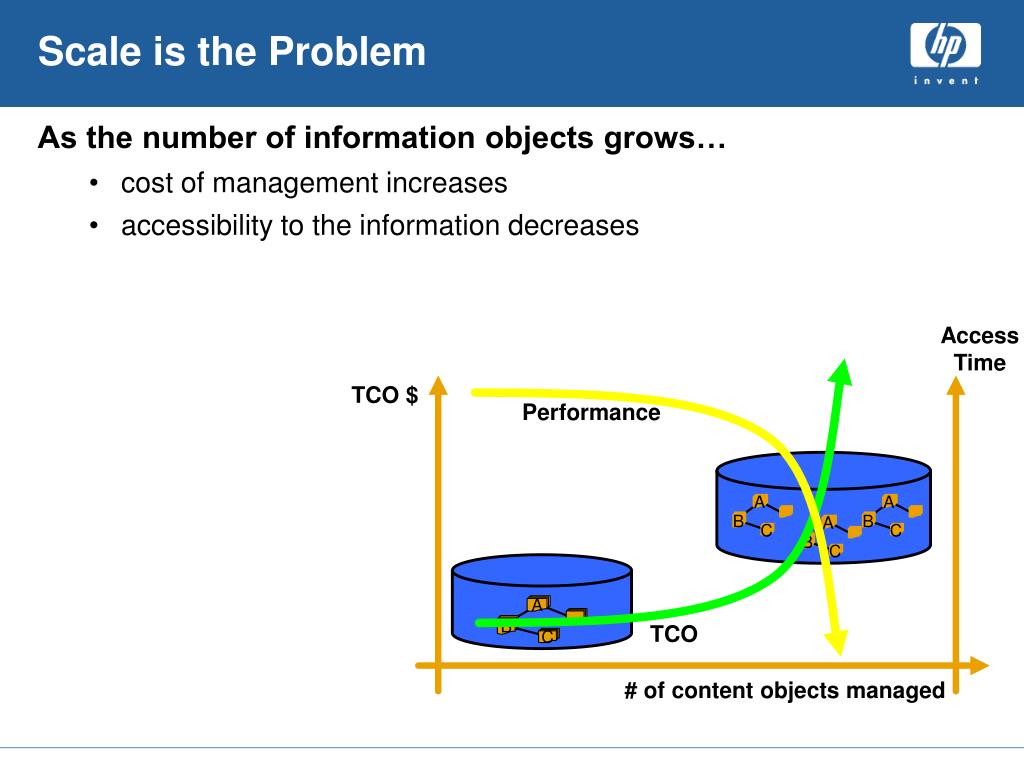

  33. A A A A B B B B C C C C Scale is the Problem • As the number of information objects grows… • cost of management increases • accessibility to the information decreases Access Time TCO $ Performance TCO # of content objects managed

  34. User Application Application Integration smart cell smart cell HP StorageWorks RISSarchitectural benefits Client applications get added archive functionality(architecture transparent to them) Clients ‘front end' Application integrationwith e-mail and MS Office ‘back end' RISS Open protocol API Content is digitally signed and time stampedfor regulatory compliance Objects in the RISS cannot be modified or deleted until end of retention period Application-independent indexing, search and retrieval of information Modular, redundant, self healing gridcomputing and storage (smart cells)

  35. hp StorageWorksFile System Extender (FSE) A General Overview Arvind Shrivastava

  36. What is FSE? • HP StorageWorks File System Extender (FSE) is new-generation data management software that is part of the HP Information Lifecycle Management portfolio. • Enables automatic and transparent data movement between production (primary) storage media and secondary storage media, using simple user-defined rules.

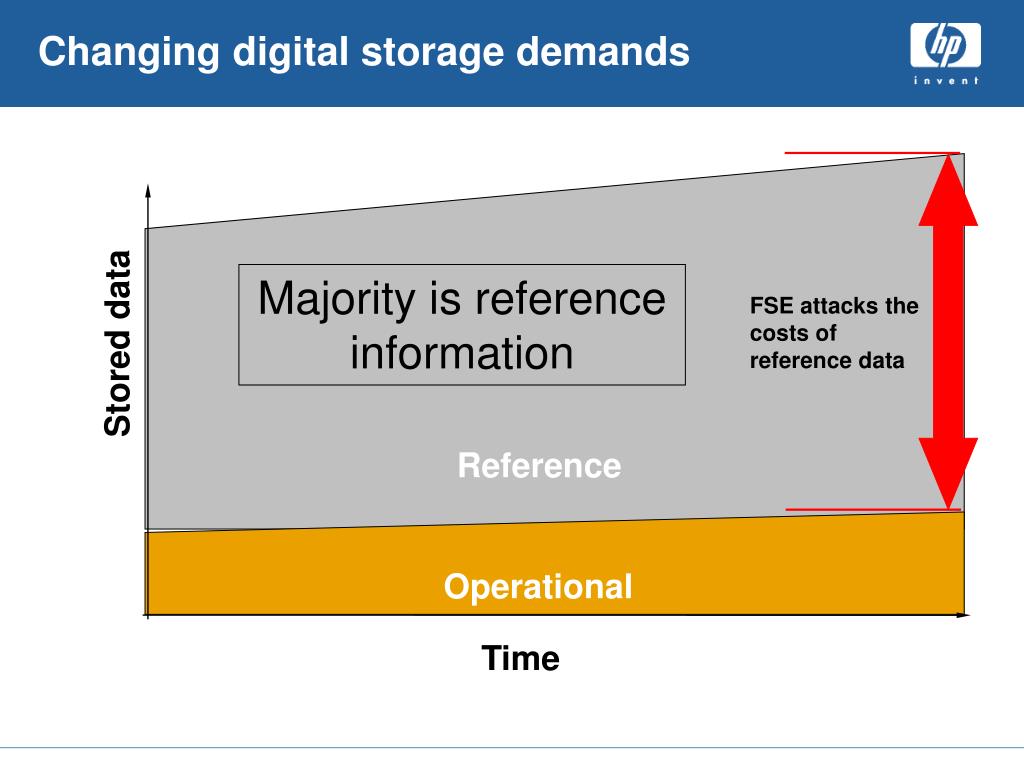

  37. FSE attacks the costs of reference data Changing digital storage demands Majority is reference information Stored data Reference Operational Time

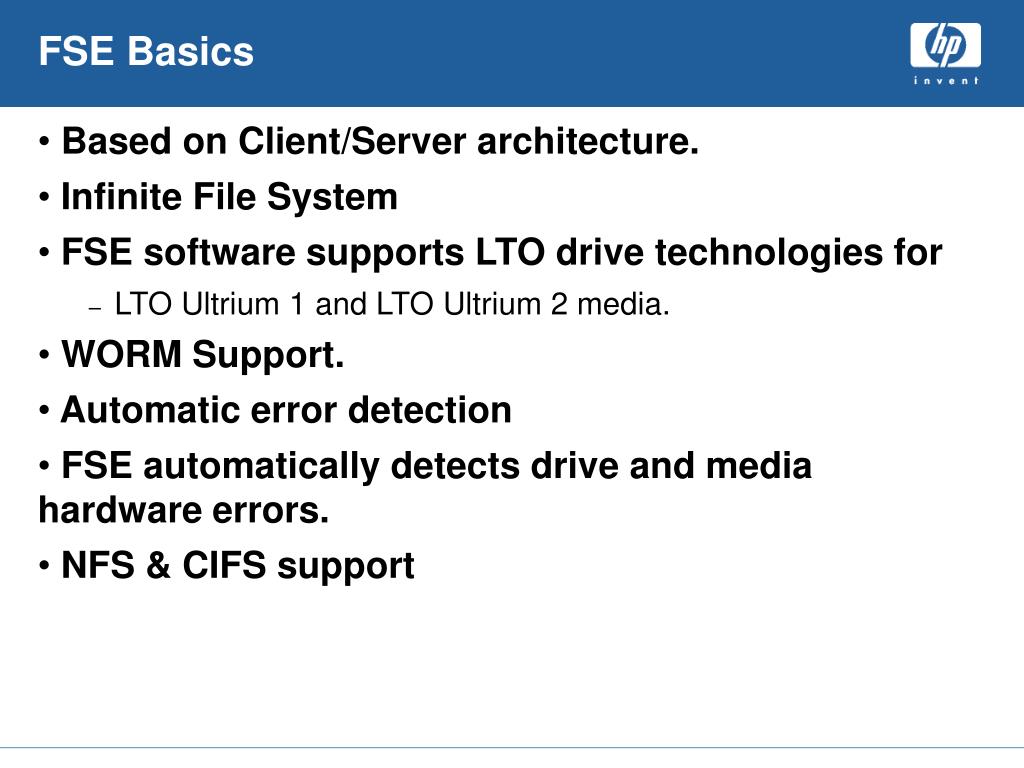

  38. FSE Basics • Based on Client/Server architecture. • Infinite File System • FSE software supports LTO drive technologies for • LTO Ultrium 1 and LTO Ultrium 2 media. • WORM Support. • Automatic error detection • FSE automatically detects drive and media hardware errors. • NFS & CIFS support

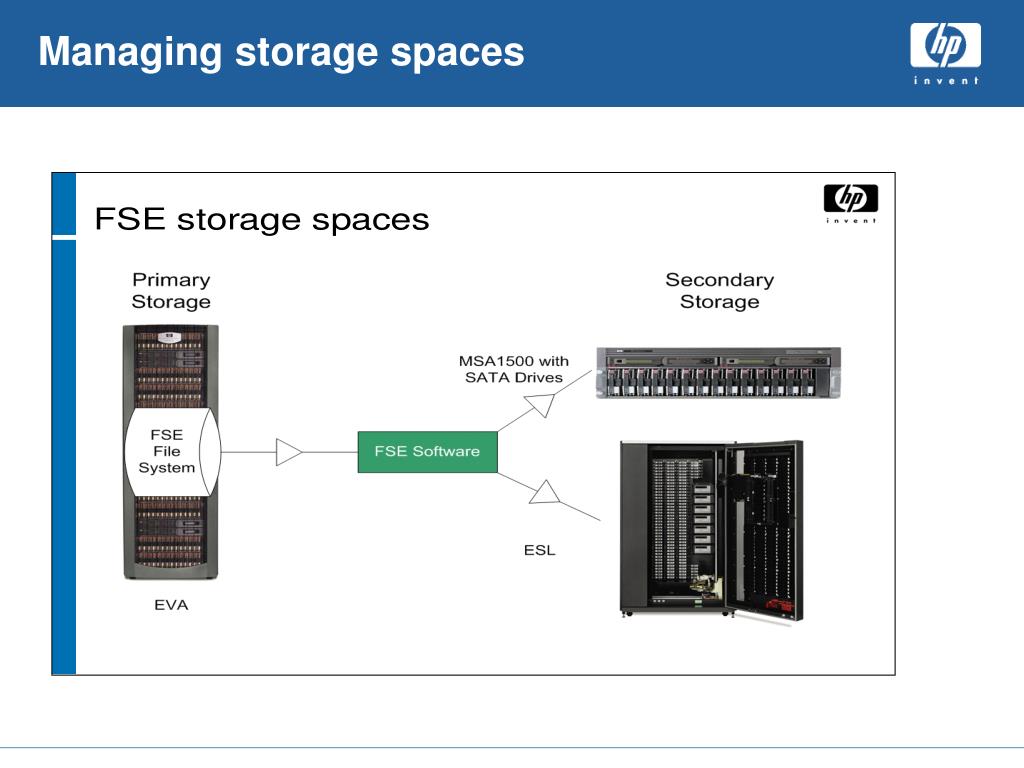

  39. Managing storage spaces

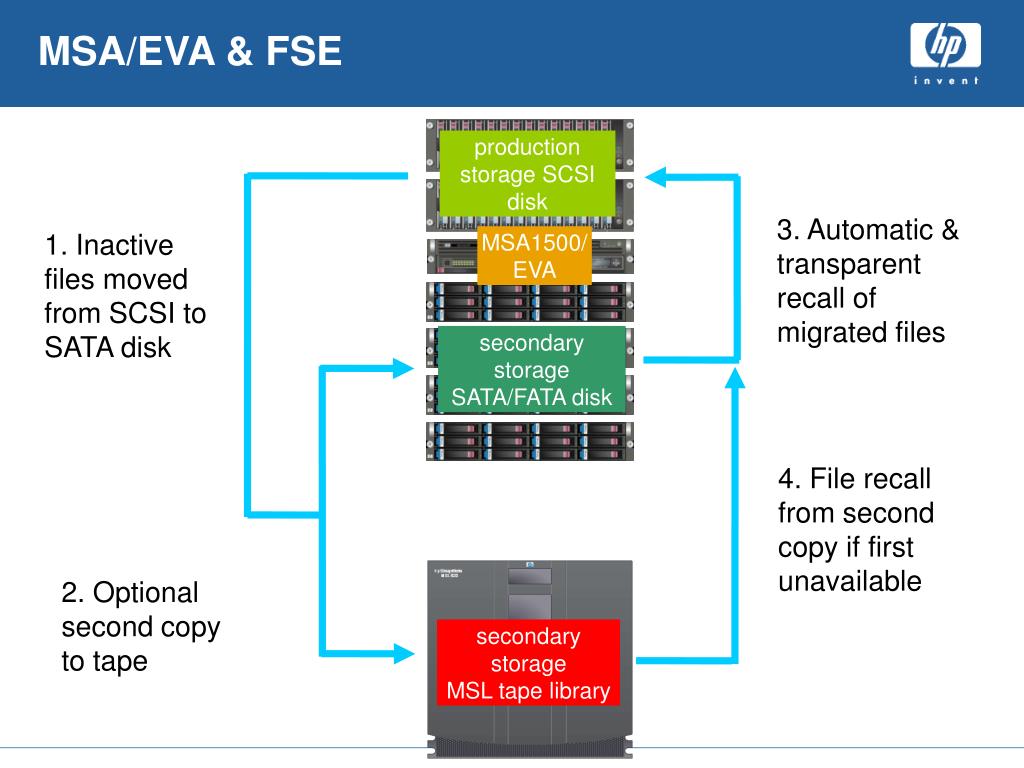

  40. MSA/EVA & FSE production storage SCSI disk 3. Automatic & transparent recall of migrated files 1. Inactive files moved from SCSI to SATA disk MSA1500/EVA secondary storage SATA/FATA disk 4. File recall from second copy if first unavailable 2. Optional second copy to tape secondary storage MSL tape library

  41. Contents • What is the EFS WAN Accelerator?

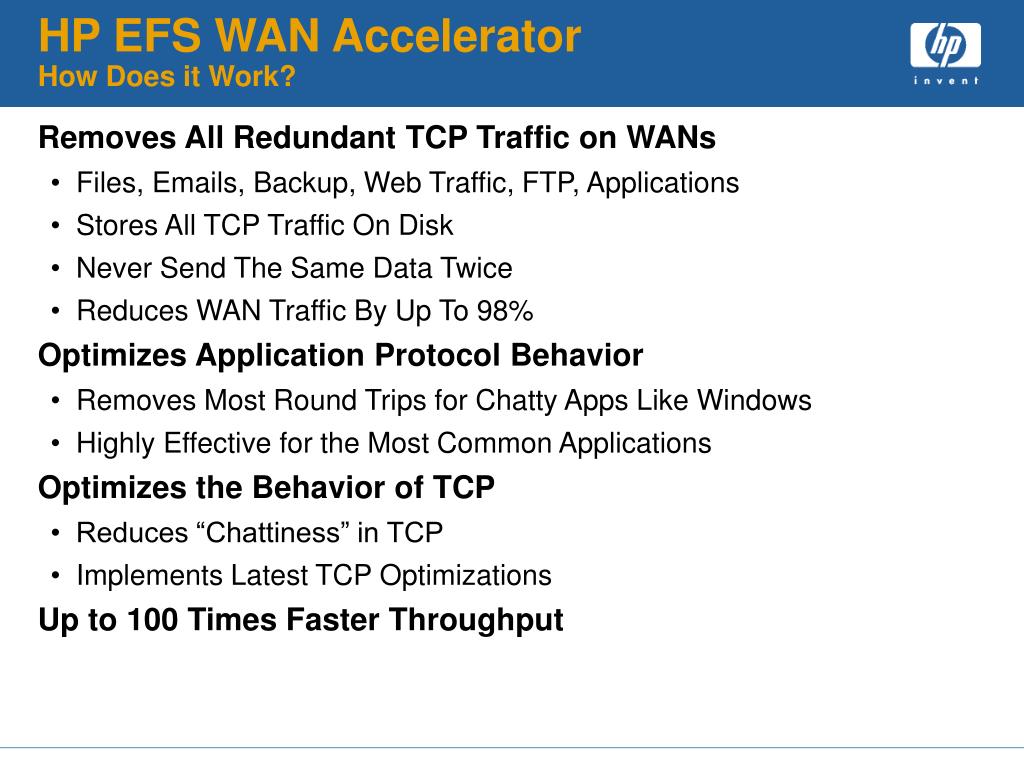

  42. HP EFS WAN AcceleratorHow Does it Work? • Removes All Redundant TCP Traffic on WANs • Files, Emails, Backup, Web Traffic, FTP, Applications • Stores All TCP Traffic On Disk • Never Send The Same Data Twice • Reduces WAN Traffic By Up To 98% • Optimizes Application Protocol Behavior • Removes Most Round Trips for Chatty Apps Like Windows • Highly Effective for the Most Common Applications • Optimizes the Behavior of TCP • Reduces “Chattiness” in TCP • Implements Latest TCP Optimizations • Up to 100 Times Faster Throughput

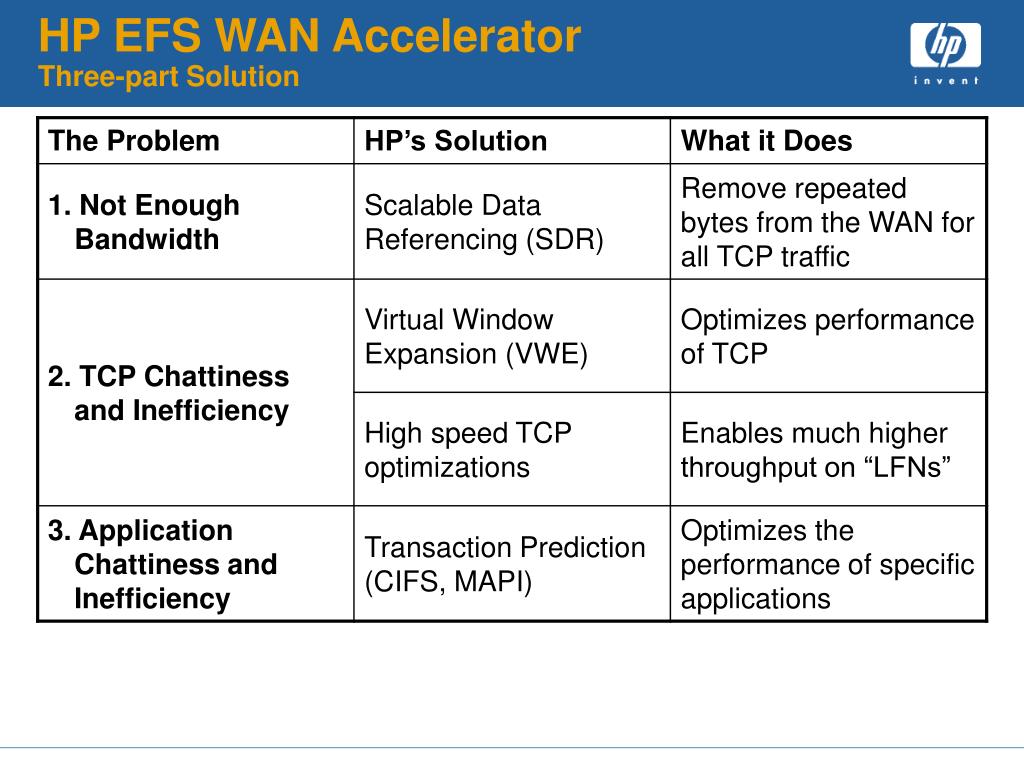

  43. HP EFS WAN AcceleratorThree-part Solution

  44. HP EFS WAN Accelerator Management Features Overview • EFS WAN Accelerator Manager • Provides central management of up to 500 appliances • Provides fleet management • Monitors health, throughput & acceleration done • Performs SW updates to groups of nodes • Separate product packaged as an appliance • HP Proliant Management • HP Systems Insight Manager • Full Integrated Lights-out (iLO) support

  45. HP Storage Essentials Suite Storage Software Division Hewlett-Packard
