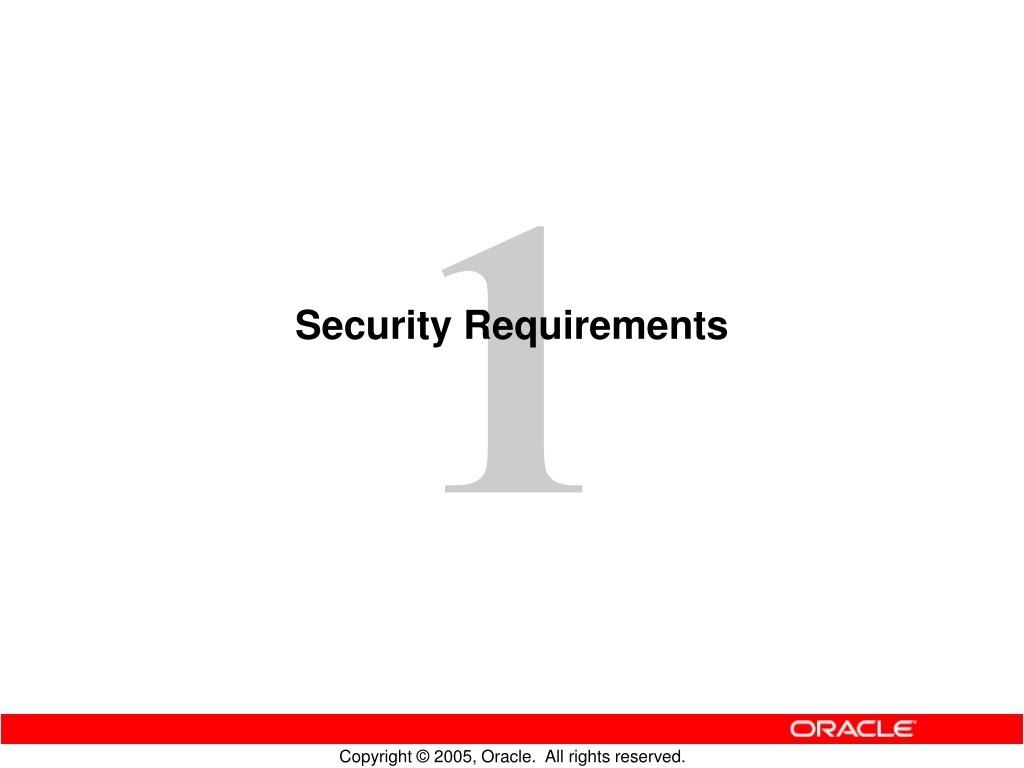

Security Requirements

1. Security Requirements

2. Objectives • After completing this lesson, you should be able to do the following: • Describe fundamental security requirements • Define the following terms: • Least privilege • Authorization • Authentication • Describe security policies • Describe the concept of security in detail

3. Industry-Security Requirements • Legal: • Sarbanes-Oxley Act (SOX) • Health Information Portability and Accountability Act (HIPAA) • California Breach Law • UK Data Protection Act • Auditing

4. Security Standards • Recognized security standards: • ISO 17799 • SANS Institute • CERT/CC Do your policies meet the standards?

5. Fundamental Data-Security Requirements • You should know the following fundamental data-security requirements: • Confidentiality • Integrity • Availability

6. Components for Enforcing Security • Authentication • Authorization • Access control • Auditing

7. Security Risks • Risk analysis includes: • External attack: • Unauthorized users • Denial of service • Unauthorized data and serviceaccess • Internal abuse: data or service theft • Sabotage: data or service corruption • Complexity

8. Risk Analysis Threat Vulnerability Attack Prevent Discover Protect Control

9. Principle of Least Privilege • Install only the required software on the machine. • Activate only the required services on the machine. • Give operating system (OS) and database access to only those users who require access. • Limit access to the root or administrator account. • Limit access to SYSDBA and SYSOPER accounts. • Limit users’ access to only the database objects that are required to do their jobs.

10. Defining a Security Policy • What is a security policy? • A set of rules • Specific to an area and site • Required • Approved by management • What is a standard? • Rules specific to a system or process • Required for everyone • What are guidelines? • Suggestions and best practices • Specific to a system or a process

11. Developing Your Security Policy • The steps to develop your security policy are: 1. Assemble your security team. 2. Define your security requirements. 3. Develop procedures and systems to meet these requirements. 4. Implement security procedures.

12. Examining All Aspects of Security • Consider the following dimensions: • Physical • Personnel • Technical • Procedural • Example: An employee leaves his or her desk while using an application.

13. Implementing a Security Policy • Implement your standards and procedures. • Implement the plan for developing new systems and applications. • Monitor and enforce the policy. • Keep systems and applications up-to-date with security patches. • Educate users.

14. Defense in Depth • Using the concept of “defense in depth”: • Enforce security policies • Train users • Harden the operating system • Use firewalls • Use network security • Use database-security features

15. Hardening the Operating System • Limit services to required services. • Limit users. • Use security from the service. • Apply all security patches and workarounds. • Protect backups. • Test security for in-house development. • Require strong passwords. • Control physical access. • Audit system activity. • Use intrusion-detection tools.

16. Easing Administration • Examine the security features of the service: • Select the features that meet your security requirements. • Integrate the features to simplify administration. • Ease security administration by: • Using single sign-on • Delegating security authority • Grouping users with common privileges • Synchronizing with other sources

17. Using a Firewall to Restrict Network Access Database server Client computers Firewall Application Web server Firewall

18. Hardening Oracle Services • Harden the database. • Harden Oracle Net Services. • Use Connection Manager as a firewall. • Use available components: • Fine-grained access control • Enterprise user authentication • Encryption • Label security • Strong authentication by using public key infrastructure or Kerberos • Harden the middle tier.

19. Summary • In this lesson, you should have learned how to: • List and describe fundamental security requirements • Define the following terms: • Principle of least privilege • Authorization • Authentication • Describe some security risks and requirements • Describe the concept of security in detail

20. Security Solutions

21. Objectives • After completing this lesson, you should be able to describe the following recommended solutions to common problems: • Preventing exploits • Maintaining data integrity • Protecting data • Controlling data access

22. Preventing Exploits • Use industry-standard practices: • Harden the database. • Harden the operating system. • Harden the network.

23. Maintaining Data Integrity • Sarbanes-Oxley requires assurance of the integrity of the data that is used to produce financial reports. Oracle Database 10g can provide the following: • Standard auditing • Fine-grained auditing • Privileged-account auditing • Network encryption

24. Data Protection • Under CA-SB-1386, personally identifiable information must be protected. Use the following techniques: • Restrict access. • Encrypt stored data. • Encrypt network traffic. • Restrict network access. • Monitor activity. • Harden every layer. MyCreditCardNum OKYMSEISPDTGA

25. Access Control • The law requires that only certain persons may access specific data. Access control and monitoring include: • Implement the Virtual Private Database (VPD): • Application context • Fine-grained access control (FGAC) • Use Oracle Label Security (OLS). • Apply auditing.

26. Middle-Tier Authentication and Authorization • Applications often handle the authentication and authorization for application users. Secure solutions are: • Pass-thru • Proxy User • Secure Application Role • Enterprise User Security Application server Database

27. Network-wide Authentication • Solutions involving single sign-on or single point of authentication reduce administration costs and can improve security. There are several solutions: • Oracle Identity Management • Enterprise User Security (EUS) • Integration with Active Directory • Integration with Kerberos

28. Summary • In this lesson, you should have learned how to describe the following recommended solutions to common problems: • Preventing exploits • Maintaining data integrity • Protecting data • Controlling data access

29. Internal Database Security

30. Objectives • After completing this lesson, you should be able to do the following: • Apply the principle of least privilege to the database • Apply security patches (Critical Patch Update) • Lock and expire default user accounts • Change default user passwords • Create strong passwords • Enforce password management • Protect the data dictionary

31. Database Security: Checklist • Apply the principle of least privilege: • Install only what is required. • Harden the operating system (OS). • Maintain installed products. • Manage default user accounts. • Enforce password management. • Protect the data dictionary. • Revoke unnecessary privileges from PUBLIC. • Restrict the directories accessible by the user. • Limit users with administrative privileges. • Restrict remote database authentication. • Use other database security features.

32. Reducing Administration Effort • Use roles to group users by job function. • Enable and disable roles as appropriate. • Use single sign-on.

33. Installing Only What Is Required • Install only the required products and features. • Plan your installation: • Determine what needs to be installed. • You may require a custom installation. • You can always install additional products later.

34. Applying Security Patches • Use the Critical Patch Update process. • Apply all security patches and workarounds. • See the Oracle Security Products Web site.

35. SYS and SYSTEM Accounts • The SYS account: • Is granted the DBA role • Has all privileges with ADMINOPTION • Is required for startup, shutdown, and some maintenance commands • Owns the data dictionary • The SYSTEM account is granted the DBA role. • These accounts are not used normally.

36. SYSOPER and SYSDBA

37. Locking and Expiring Default User Accounts • The Database Configuration Assistant (DBCA) expires and locks all accounts, except: • SYS • SYSTEM • SYSMAN • DBSNMP • For a manual installation, lock and expire accounts by using: ALTER USER hr PASSWORD EXPIRE ACCOUNT LOCK;

38. Changing Default Account Passwords • Default accounts provide easy access to the database. • Change the password on any account that has not been locked. • To change the password of the SH account to s9049gbnij, run: SQL> ALTER USER sh IDENTIFIED BY s9049gbnij; User altered. SQL>

39. Enforcing Password Management • Use a password verification routine to enforce constraints on the user’s new password. • The profile identifies which routine to use: • A verification routine is created by the utlpwdmg.sql script. • Use the Oracle Advanced Security option for strong authentication. ALTER PROFILE all_users LIMIT ... PASSWORD_VERIFY_FUNCTION verify_function;

40. Protecting the Data Dictionary • The data dictionary is protected by default with the initialization parameter set: • This configuration prevents users with the ANY system privileges from accessing data dictionary base tables. • The SELECTANYDICTIONARY system privilege allows read access to the dictionary only. O7_DICTIONARY_ACCESSIBILITY = FALSE

41. System and Object Privileges • Applying the principle of least privilege: • Limit object privileges to actual needs • Do not use GRANTALLONobject • Limit system privileges • Do not grant the DBA role to users • Encapsulate sensitive objects

42. Restricting the Directories Accessibleby the User • Do not use the UTL_FILE_DIR parameter. • Use the DIRECTORY objects: • Allows granular access to directory paths by the user • Allows read or write access separately • Is limited to the directories that the Oracle process can access Example: CREATE DIRECTORY local AS '/user/local/dbs'; GRANT READ, WRITE ON DIRECTORY local TO scott;

43. Limiting Users with Administrative Privileges • Restrict the following types of privileges: • Grants of system and object privileges • SYS-privileged connections: SYSDBA and SYSOPER • DBA-type privileges, such as DROPANYTABLE • Restrict run-time permissions. Example: List all users with the DBA role: SQL> SELECT grantee FROM dba_role_privs 2 WHERE granted_role = 'DBA'; GRANTEE ------------------------------ SYS SYSTEM

44. Separation of Responsibilities • Users with DBA privileges must be trusted, but separation of responsibilities can: • Prevent abuse of trust • Allow audit trails to protect the trusted position • To implement separation of trust: • DBA responsibilities must be shared • Accounts must never be shared • DBA and system administrator must be different people • SYSOPER and SYSDBA responsibilities must be separated.

45. Using Other Database Security Features • Authenticate the users through the middle tier. • Use secure application roles. • Use virtual private databases. • Audit user activity, especially privileged activity. • Encrypt columns for additional privacy protection.

46. Summary • In this lesson, you should have learned how to: • Apply the principle of least privilege to the database • Apply security patches (Critical Patch Update) • Lock and expire default user accounts • Change default user passwords • Create strong passwords • Enforce password management • Protect the data dictionary

47. Database Auditing

48. Objectives • After completing this lesson, you should be able to do the following: • Implement basic database auditing • Implement auditing of the privileged user • Implement DML and DDL auditing

49. Monitoring for Suspicious Activity • Monitoring or auditing should be an integral part of your security procedures. • The built-in audit tools in Oracle Database 10g include: • Database auditing • Value-based auditing • Fine-grained auditing (FGA)

50. Type of Audit • What Is Audited? • What Is in the Audit Trail? • Standard database auditing • Privilege use including object access • Fixed set of data • Value-based auditing • Data changed by DML statements • Administrator defined • Fine-grained auditing (FGA) • SQL statements (INSERT, UPDATE, DELETE, and SELECT) based on content • Fixed set of data, including the SQL statement Audit Tool Comparisons
