  1. P14372 Actively Stabilized Hand-Held Laser Pointer Kaitlin Peranski Spencer Wasilewski Kyle Jensen Kyle Lasher Jeremy Berke Chris Caporale

  2. Agenda • Problem Definition Review • Executive Summary • System Review • Detailed Design Review • Detailed Risk Assessment • Test Plans • Bill of Materials • Cost Analysis • Project Plan for MSD II

  3. Problem Definition Review

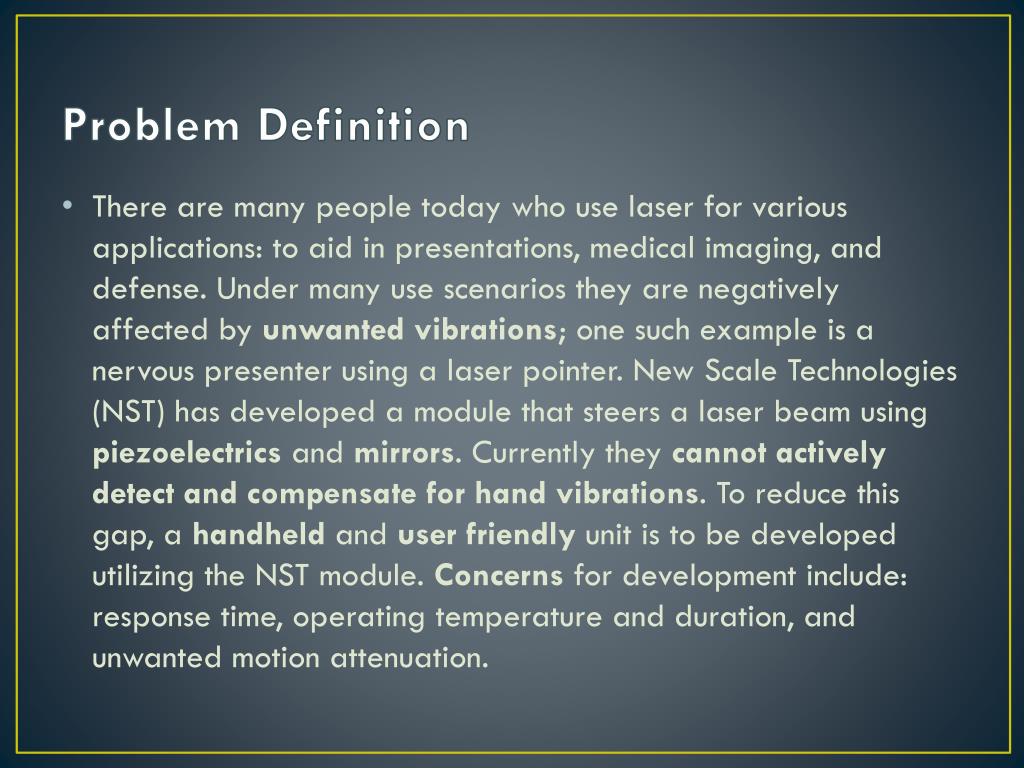

  4. Problem Definition • There are many people today who use laser for various applications: to aid in presentations, medical imaging, and defense. Under many use scenarios they are negatively affected by unwanted vibrations; one such example is a nervous presenter using a laser pointer. New Scale Technologies (NST) has developed a module that steers a laser beam using piezoelectrics and mirrors. Currently they cannot actively detect and compensate for hand vibrations. To reduce this gap, a handheld and user friendly unit is to be developed utilizing the NST module. Concerns for development include: response time, operating temperature and duration, and unwanted motion attenuation.

  5. Customer Needs Engineering Requirements

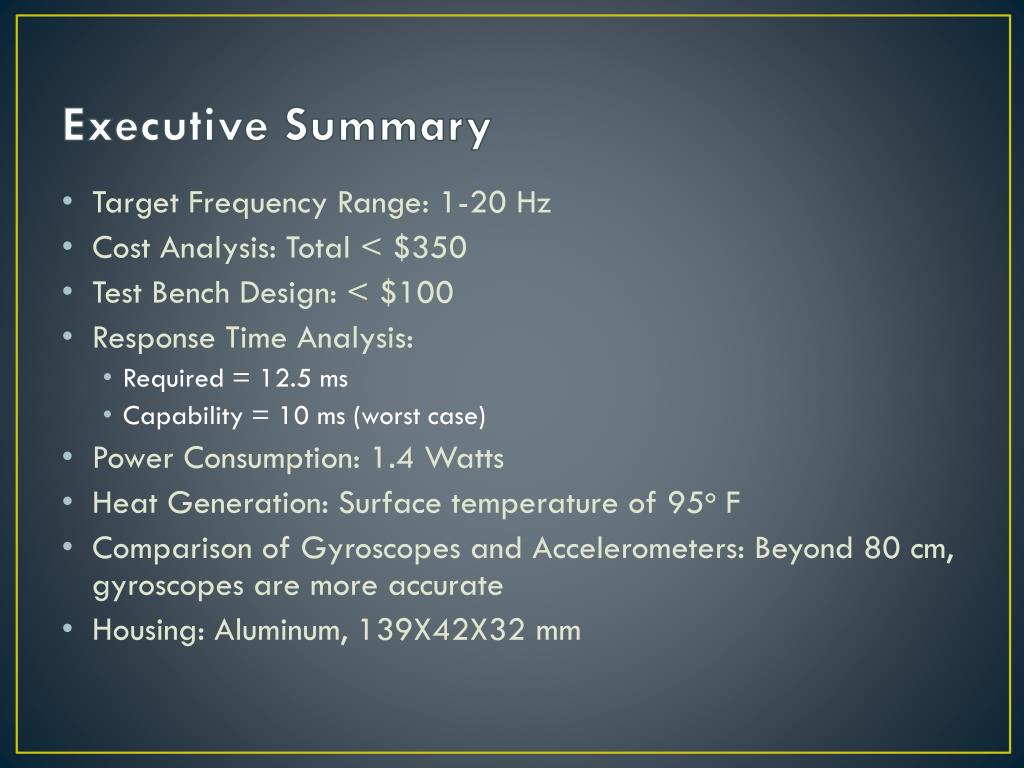

  6. Executive Summary • Target Frequency Range: 1-20 Hz • Cost Analysis: Total < $350 • Test Bench Design: < $100 • Response Time Analysis: • Required = 12.5 ms • Capability = 10 ms (worst case) • Power Consumption: 1.4Watts • Heat Generation: Surface temperature of 95o F • Comparison of Gyroscopes and Accelerometers: Beyond 80 cm, gyroscopes are more accurate • Housing: Aluminum, 139X42X32 mm

  7. System Review

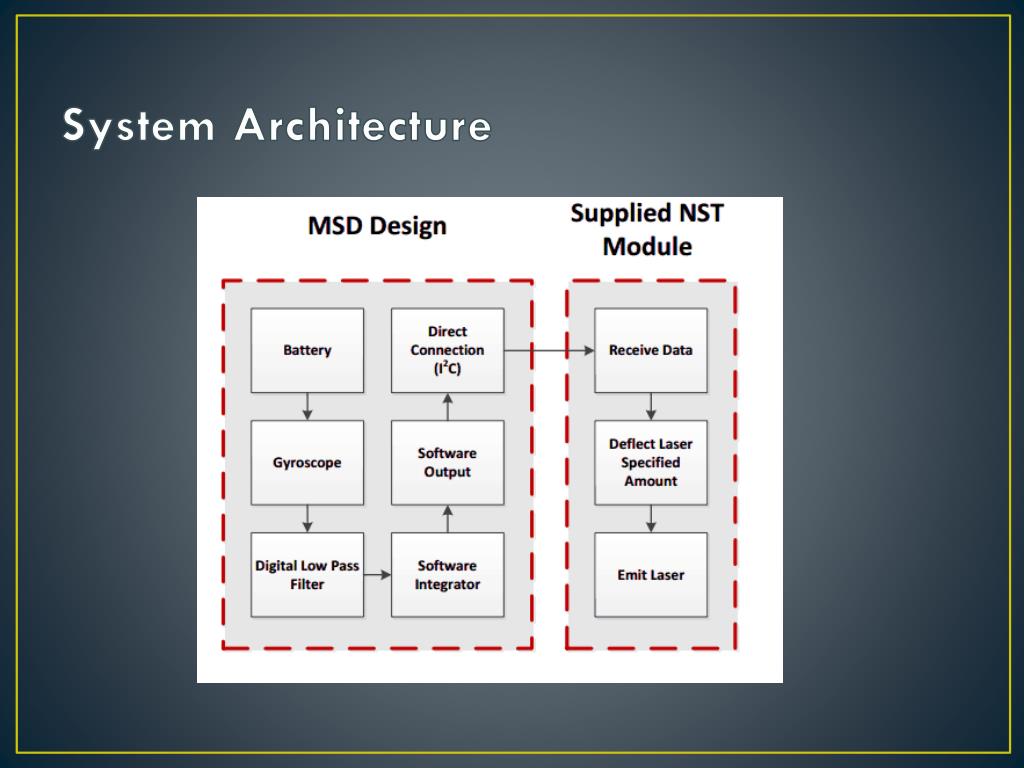

  8. System Architecture

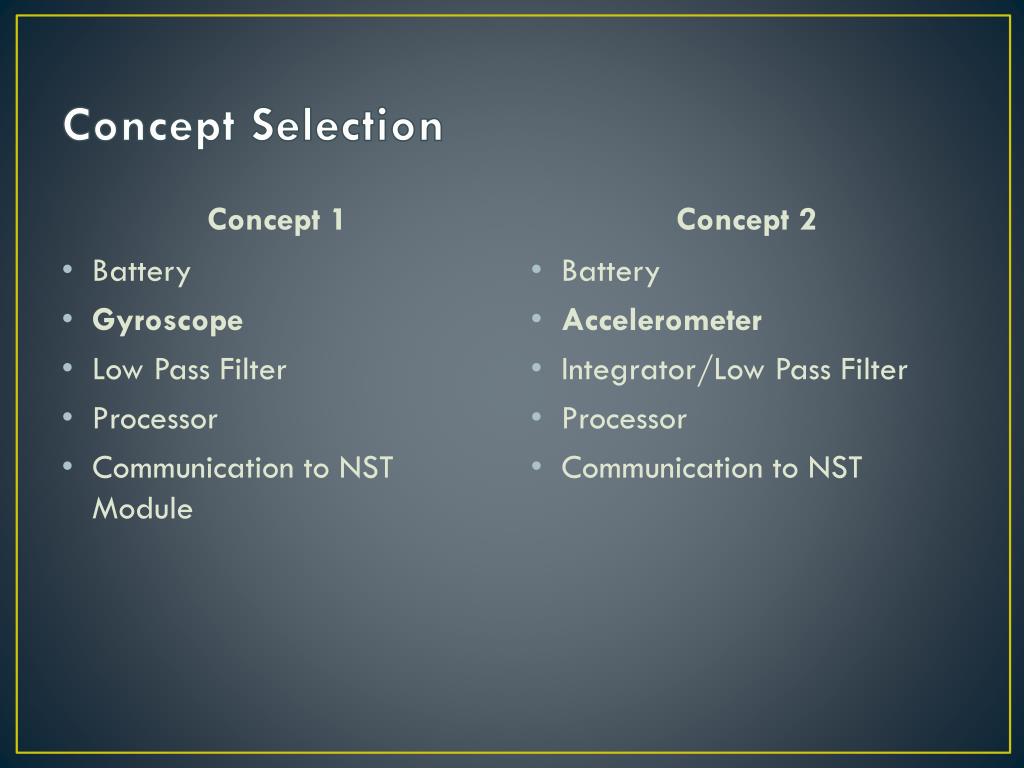

  9. Concept Selection Concept 1 Concept 2 Battery Accelerometer Integrator/Low Pass Filter Processor Communication to NST • Battery • Gyroscope • Low Pass Filter • Processor • Communication to NST Module

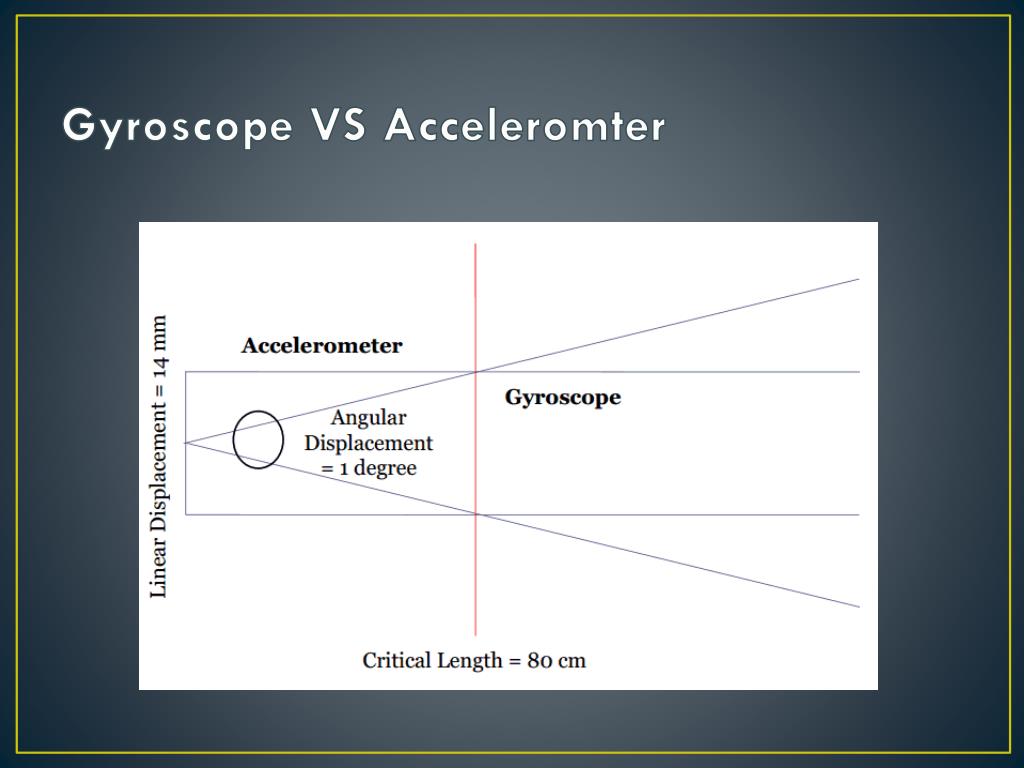

  10. Gyroscope VS Acceleromter

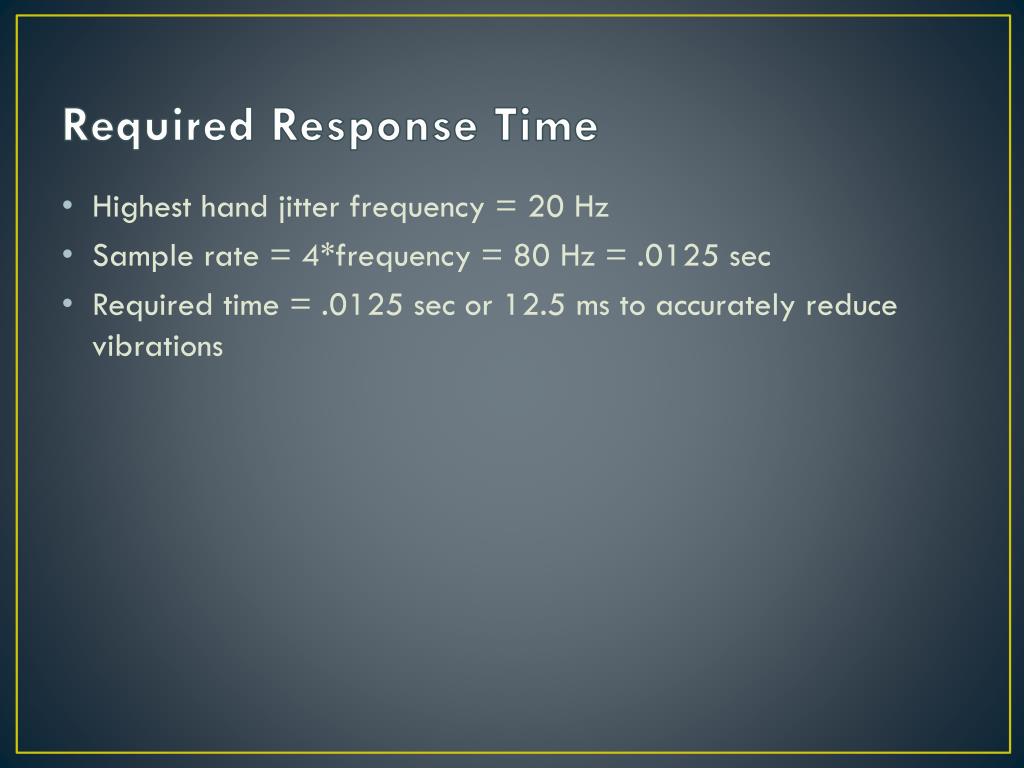

  11. Required Response Time • Highest hand jitter frequency = 20 Hz • Sample rate = 4*frequency = 80 Hz = .0125 sec • Required time = .0125 sec or 12.5 ms to accurately reduce vibrations

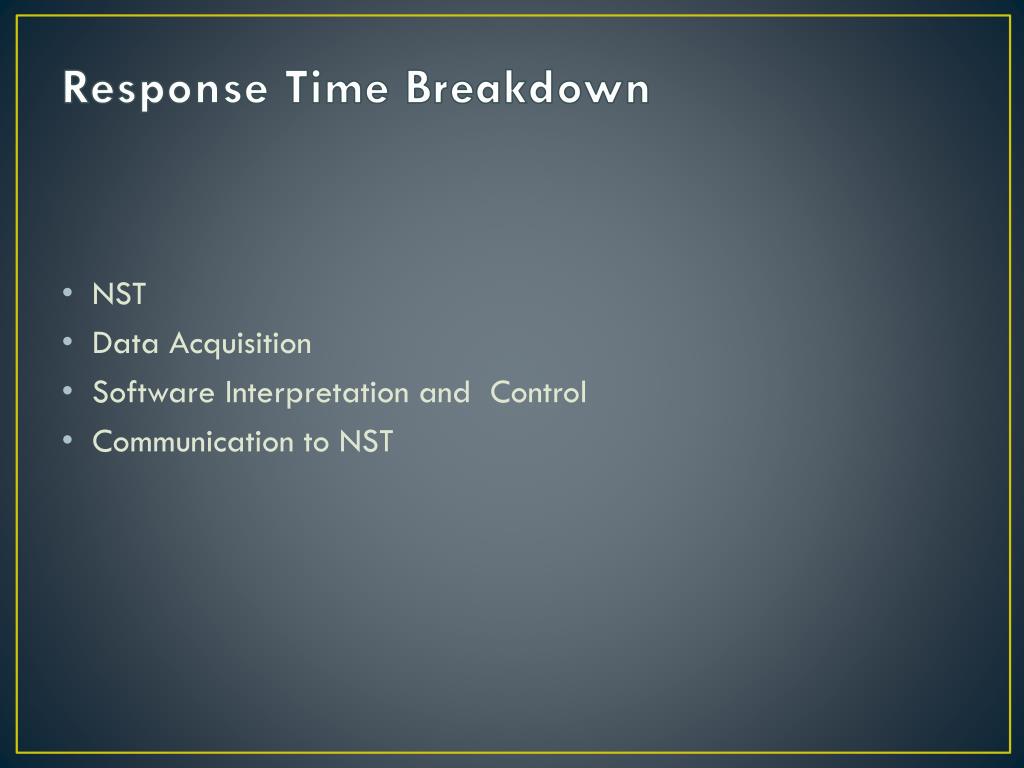

  12. Response Time Breakdown • NST • Data Acquisition • Software Interpretation and Control • Communication to NST

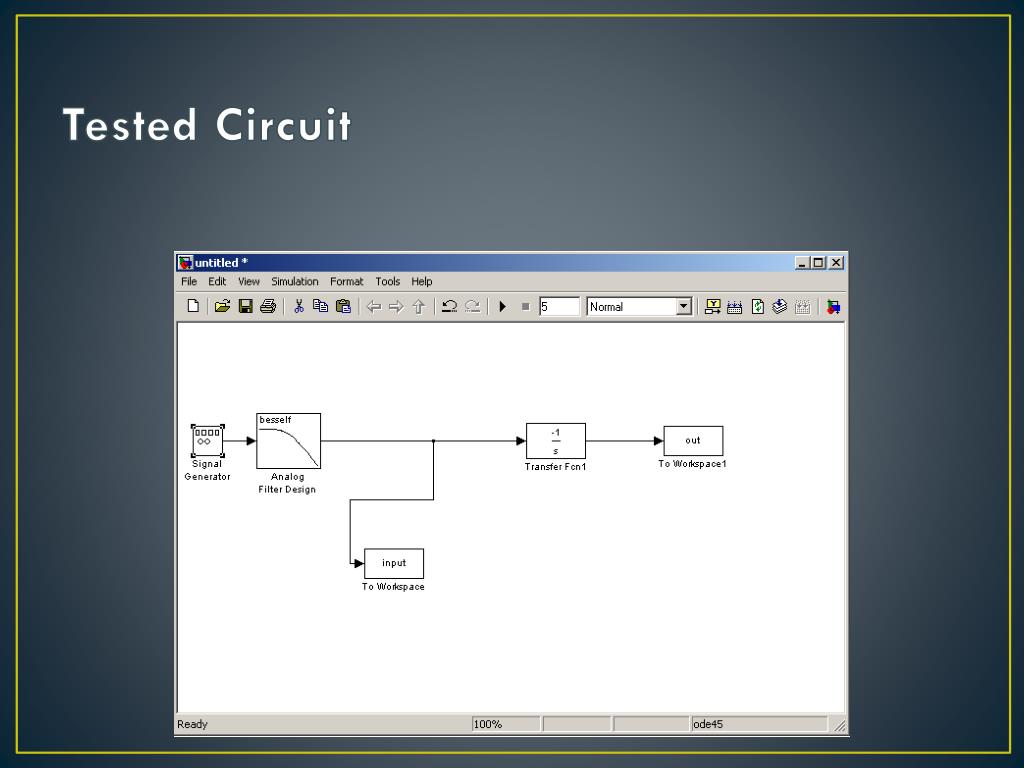

  13. Tested Circuit

  14. Response Time Measurements Zoomed to Zero (Delay) Total Time

  15. Total Response Time • NST ~ 2 ms (worst case scenario) • Data Acquisition ~ 2 ms • Software Interpretation and Control ~ 2-5 ms • Communication to NST ~ .2 ms • Total Time = 9.9 to 10 ms • Gives 2.5 ms of overhead

  16. Agenda • Detailed Design Review • Schematic Drawings • Control Algorithm • Thermal Resistance Analysis • Device Housing/Layout • Test Bench Design

  17. Detailed Review

  18. Block Schematic: Our System

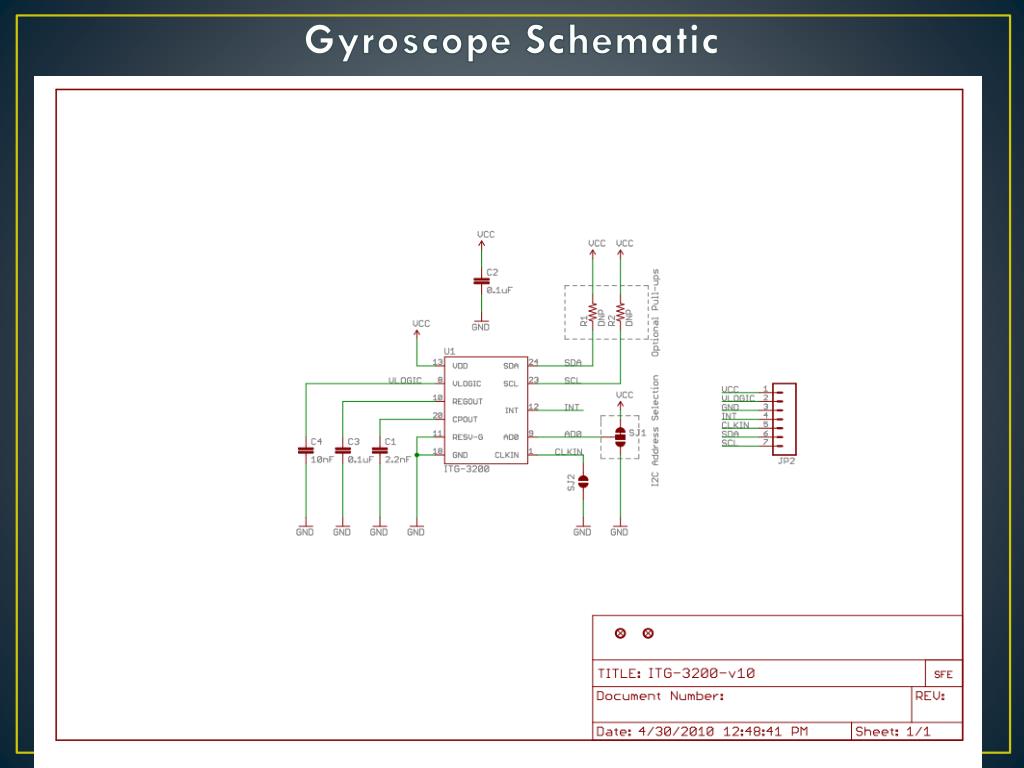

  19. Gyroscope Schematic

  20. Gyroscope • InvenSense ITG-3200 • Sample Rate: 8kHz • Operating Current: 6.5mA • Operating Voltage: 3.3V • Full Scale Range: 2000°/s • Fast Mode 400kHz I2C Interface • Simple breakout board with mounting holes

  21. Power Supply and Charger

  22. Battery • UnionFortune 063450 Cells • 1000mAh LiPo • 2 cells in parallel for 2000mAh total • Battery life close to 4 hours • -25°C to 60°C Operating Temperature • Nominal Voltage: 3.7V • Maximum Current: 1A (wire limited)

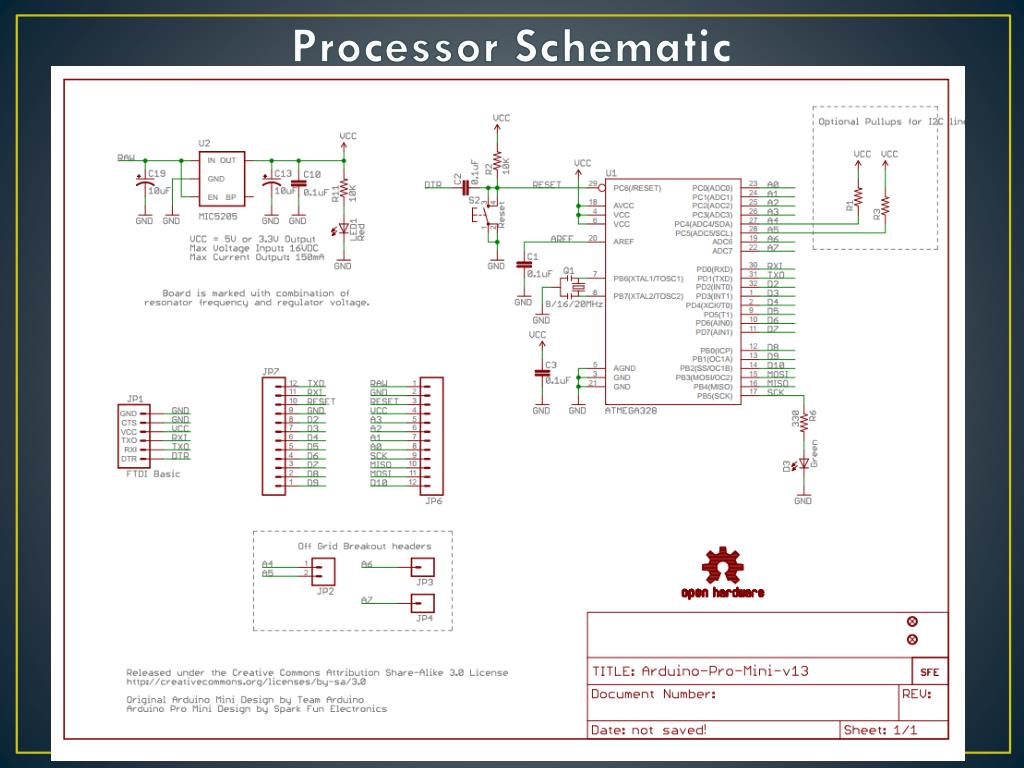

  23. Processor Schematic

  24. Processor • SparkFunArduinoFio v3 • 8MHz Clock • 16 Digital I/Os • 6 Analog I/Os • 150mA Current Draw • Built in 3.3v regulator and LiPo charger • Built in switch • I2C, SPI, USB compatible

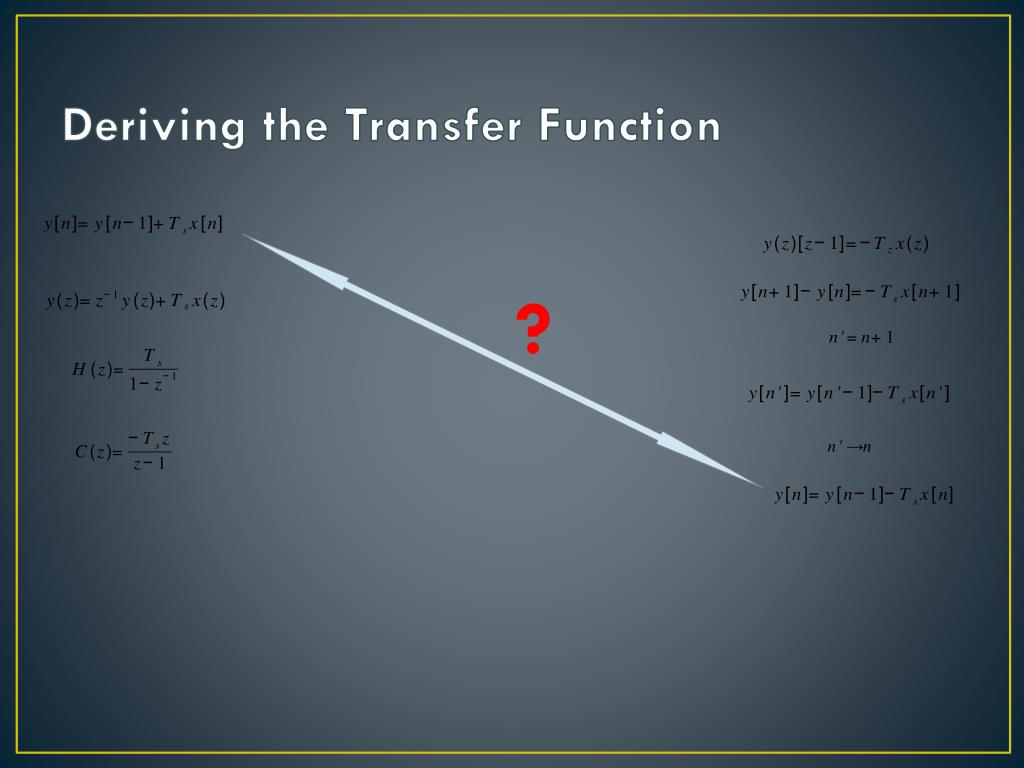

  25. Deriving the Transfer Function ?

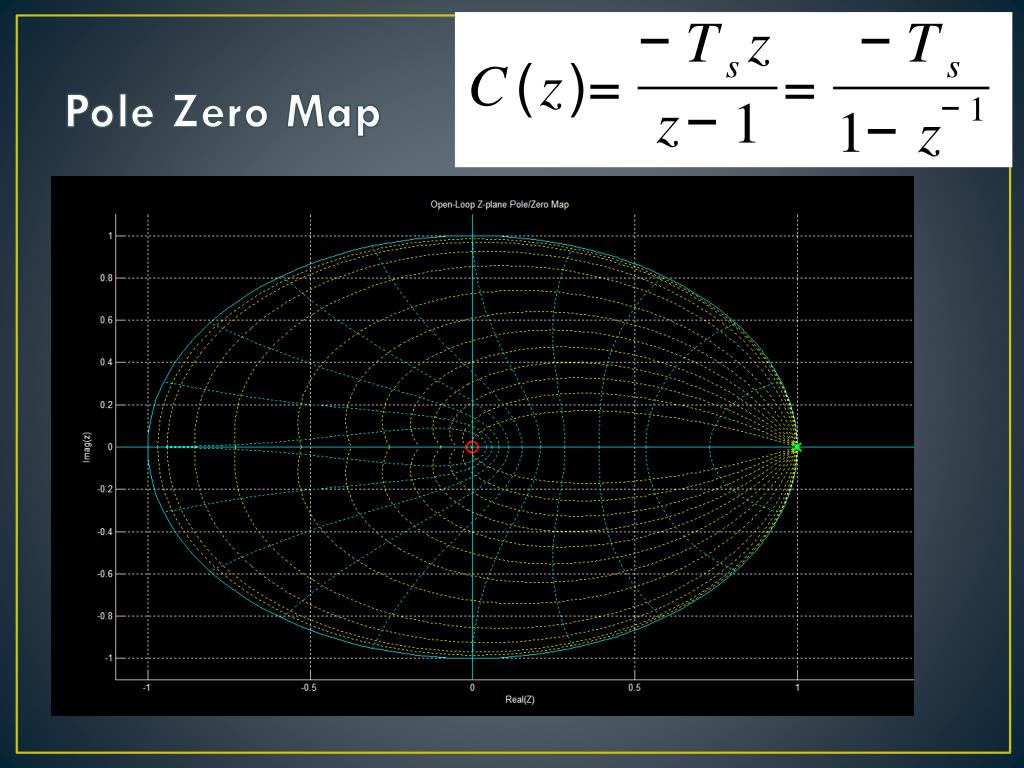

  26. Pole Zero Map

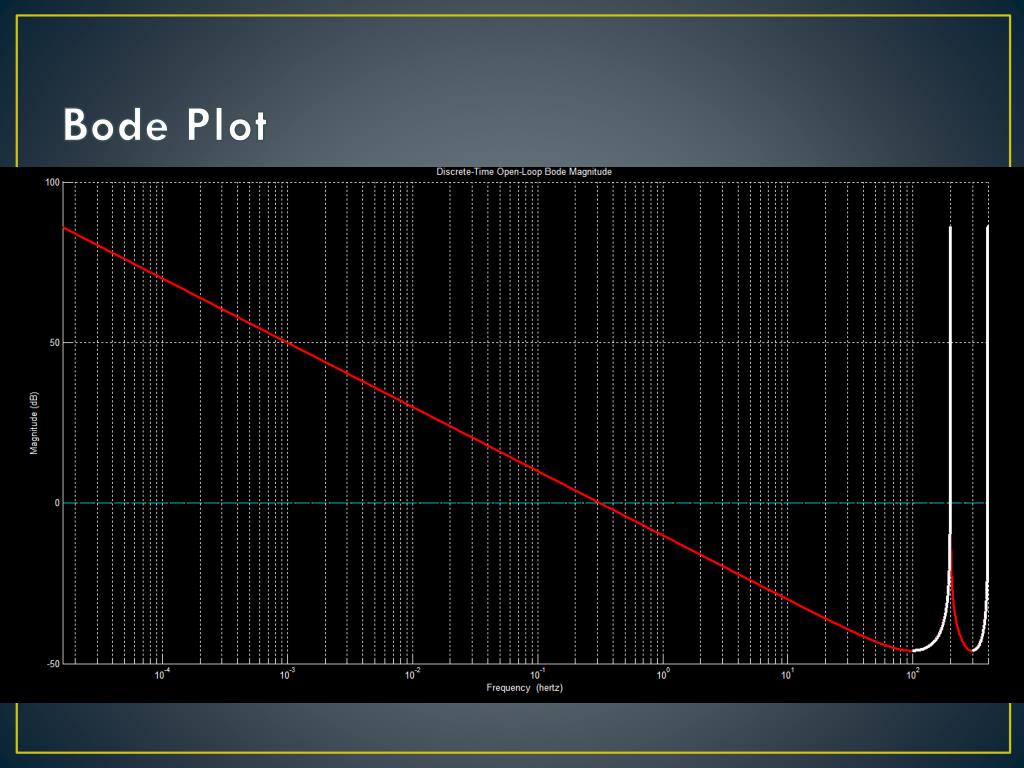

  27. Bode Plot

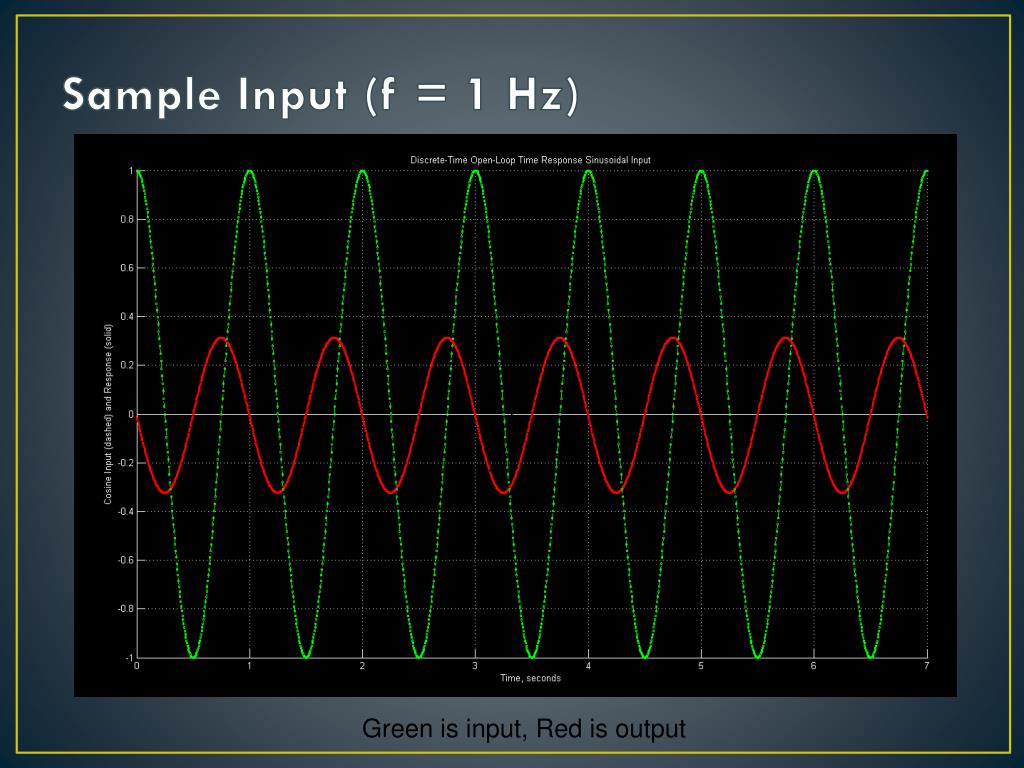

  28. Sample Input (f = 1 Hz) Green is input, Red is output

  29. Control Algorithm Poll Gyro For Data (I2C) Acc = 0 Subtract Gyro Data From Accumulator Wait Acc > 15? Re-Center NST Module Acc < -15? Compute Encoder Counts Send to NST Module

  30. First Control Scheme

  31. Second Control Scheme

  32. Simulated Jump (Within Bound)

  33. Simulated Jump (Bound Crossing) Delay = .1s

  34. Simulated Jump (Bound Crossing) Delay = .5 s

  35. Thermal Resistance Analysis • Surface temperature of housing • Assuming hand insulating half the surface and =68°F

  36. Thermal Resistance Analysis

  37. Thermal Resistance Analysis • Assuming TC1=TC2=TC

  38. Thermal Resistance Conclusions • Top surface = 96 • Bottom surface (surface with hand) = 97 • Temperature at surface of chip = 117

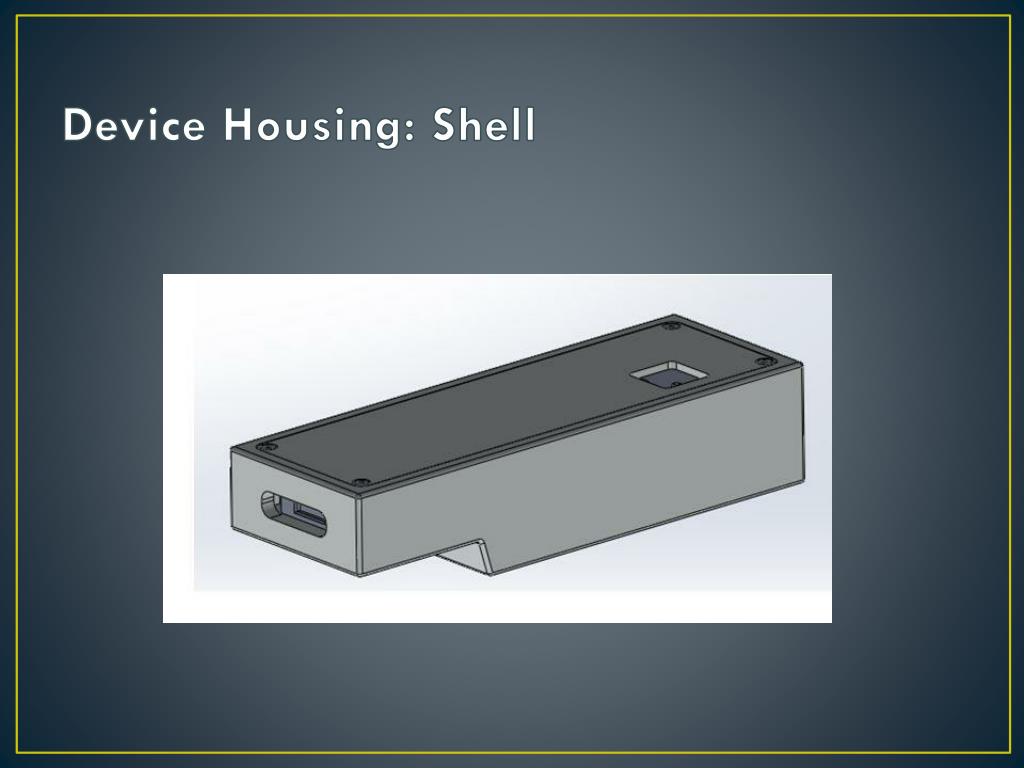

  39. Device Housing: Shell

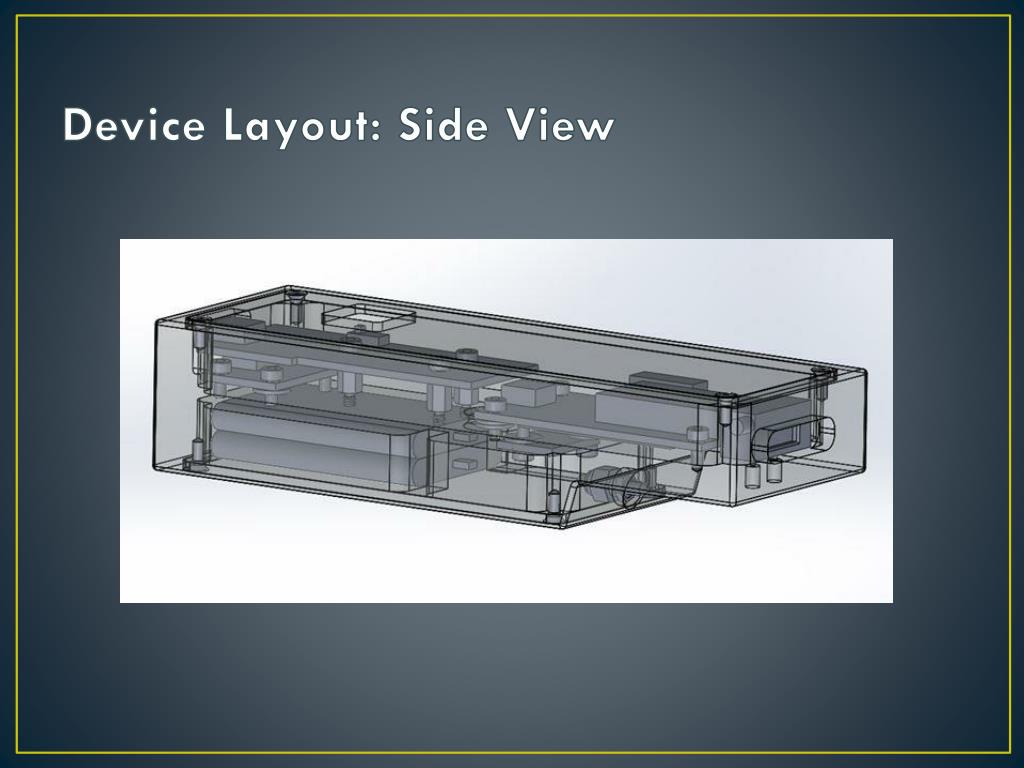

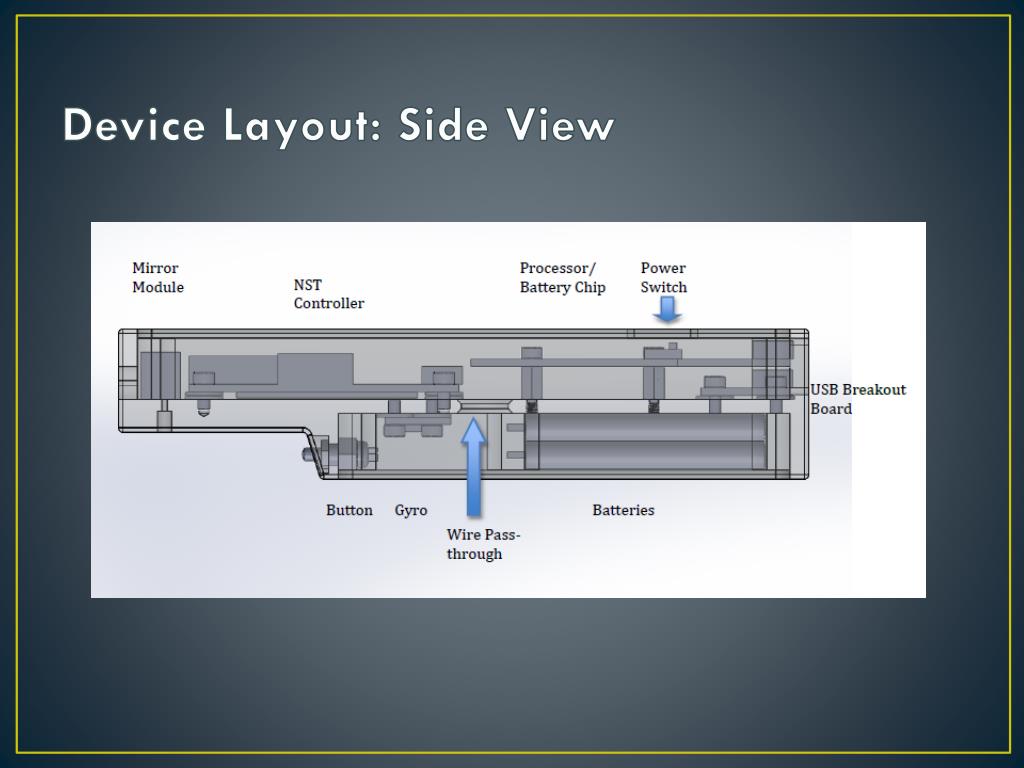

  40. Device Layout: Side View

  41. Device Layout: Side View

  42. Device Layout: Side View with Screws

  43. Device Layout: Top View

  44. Device Layout: Bottom View

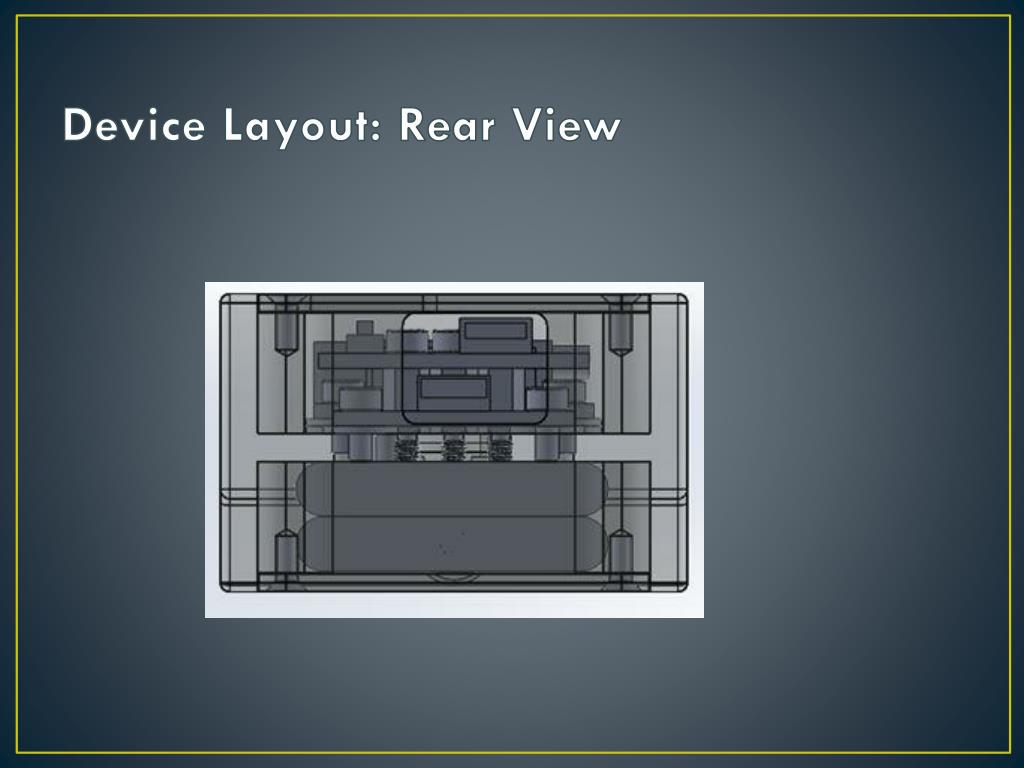

  45. Device Layout: Rear View

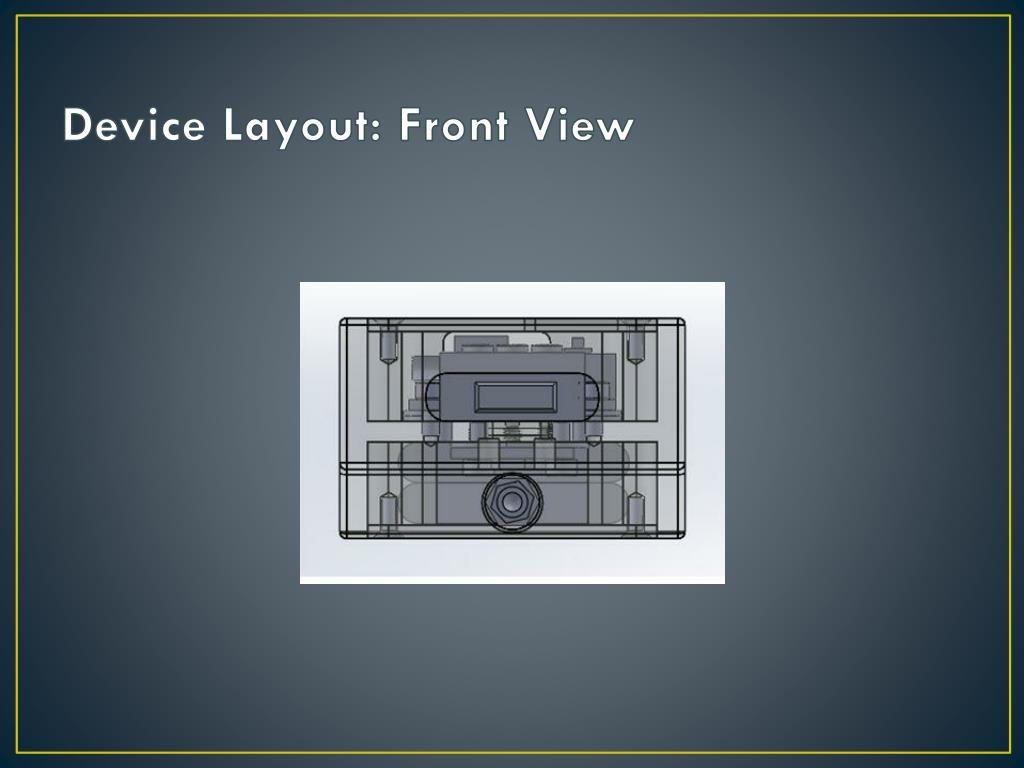

  46. Device Layout: Front View

  47. Wiring Diagram: Test Bench

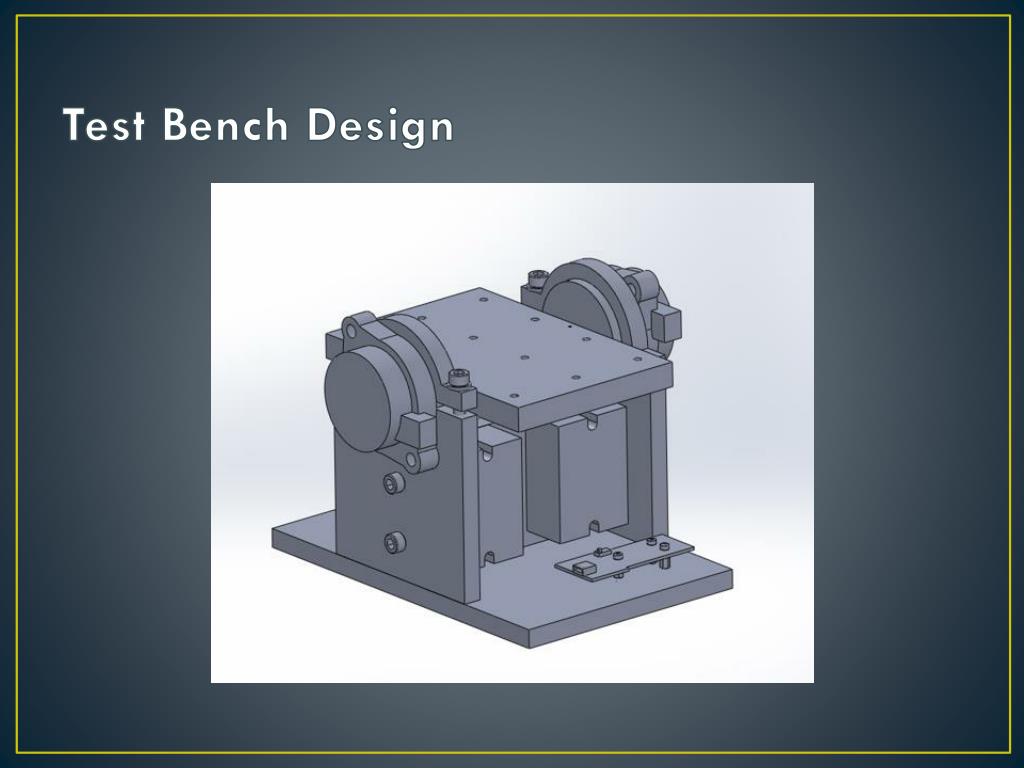

  48. Test Bench Design

  49. Test Bench

  50. Test Bench
