Complete Wi-Fi Solution for PowerBots with MRF24WB0MA and PIC32 Microcontroller

The Microchip MRF24WB0MA Wi-Fi module offers a comprehensive solution for onboard communication with PowerBot. Featuring an integrated TCP/IP stack, it simplifies the implementation of sockets and data transfer via TCP/UDP. This low-power solution consumes only 250 µA in sleep mode, 85 mA while active, and 154 mA during transmission. Designed with the PIC32MX695F512H-80V/MR microcontroller, providing 80MHz clock speed, 512Kb flash, and 64Kb RAM, this combination ensures efficient navigation and communication for PowerBots.

ranee
Télécharger la présentation

Complete Wi-Fi Solution for PowerBots with MRF24WB0MA and PIC32 Microcontroller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Wi-Fi Module - MRF24WB0MA • The Microchip MRF24WB0MA provides a complete Wi-Fi solution for onboard communication with PowerBot • The integrated TCP/IP stack within the Wi-Fi module allows for easier implementation of sockets and passing data via TCP/UDP

  2. Power Consumption • Provides low power • communication solution • 250 uA Power Consumption when in sleep mode • 85 mA while active and connected • 154 mA Power while active and transmitting

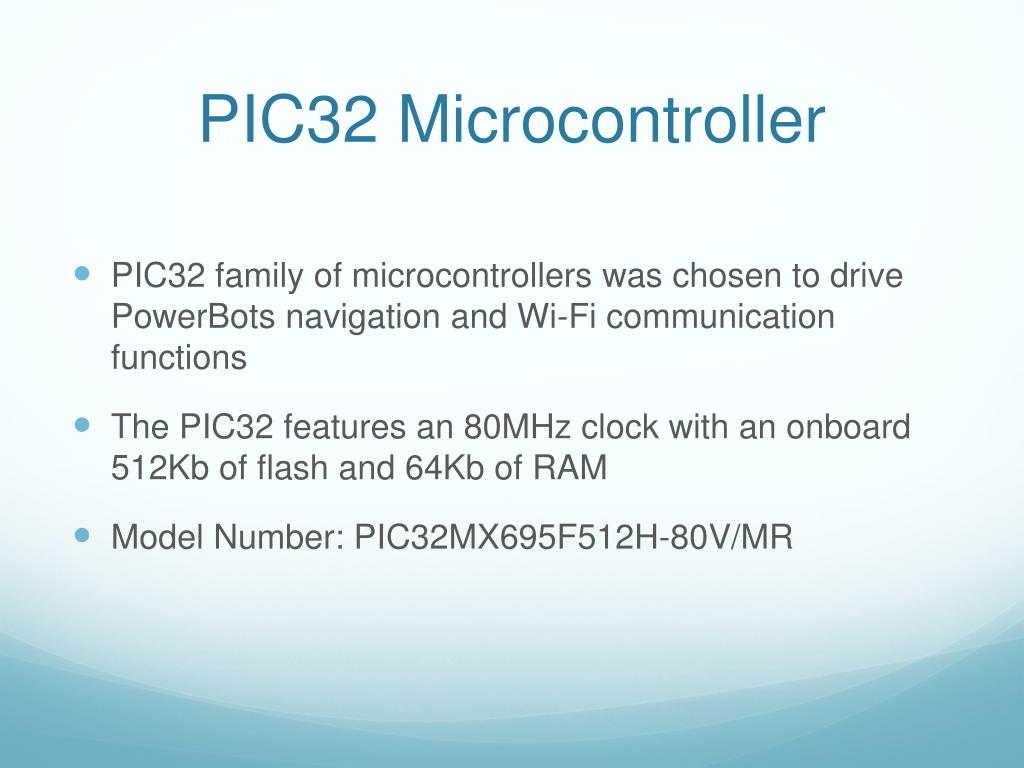

  3. PIC32 Microcontroller • PIC32 family of microcontrollers was chosen to drive PowerBots navigation and Wi-Fi communication functions • The PIC32 features an 80MHz clock with an onboard 512Kb of flash and 64Kb of RAM • Model Number: PIC32MX695F512H-80V/MR

  4. Development Board • DV102411 chosen as development board • Combines PIC32 MCU with the Microchip Wi-Fi module • Model Number: PIC32MX695F512H-80V/MR

  5. Wi-Fi Operating Modes If no message received in time interval Sleep Receiving Awake Transmitting Awake Receiveing
