  1. CSCI 6962: Server-side Design and Programming Facelets and User Interface Design

  2. Uniform Site Appearance • Pages on same site should have same layout • Site identifiable to user • User knows where to look for major components (navbar, etc.) • Particularly important for error pages

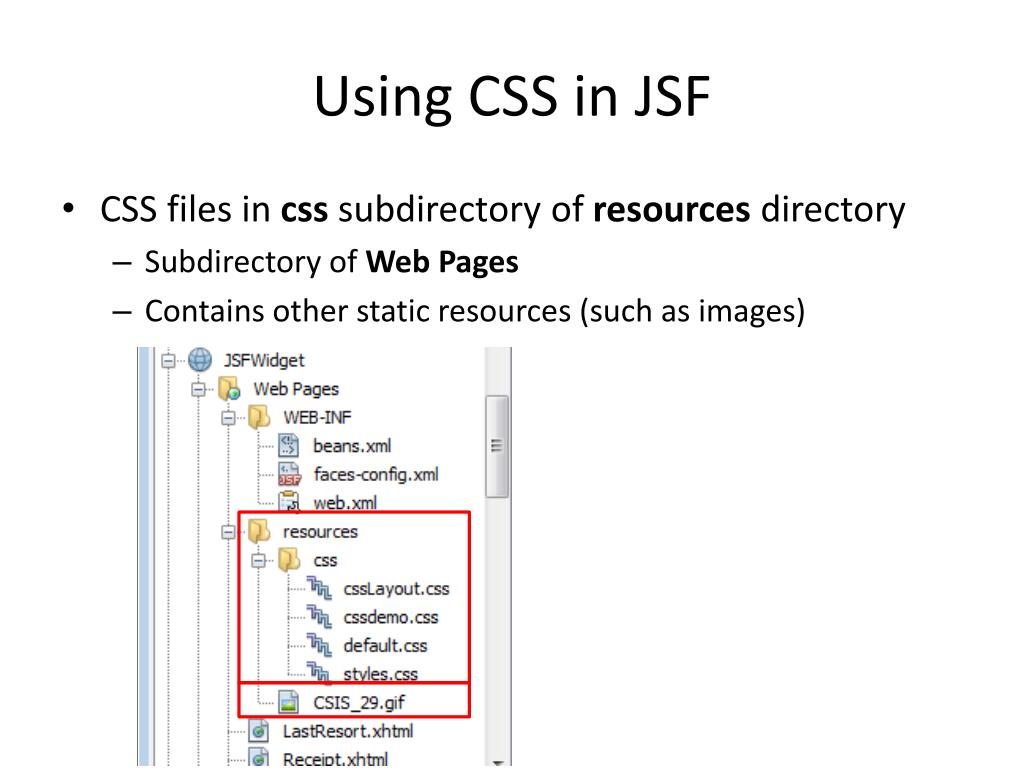

  3. Using CSS in JSF • CSS files in css subdirectory of resources directory • Subdirectory of Web Pages • Contains other static resources (such as images)

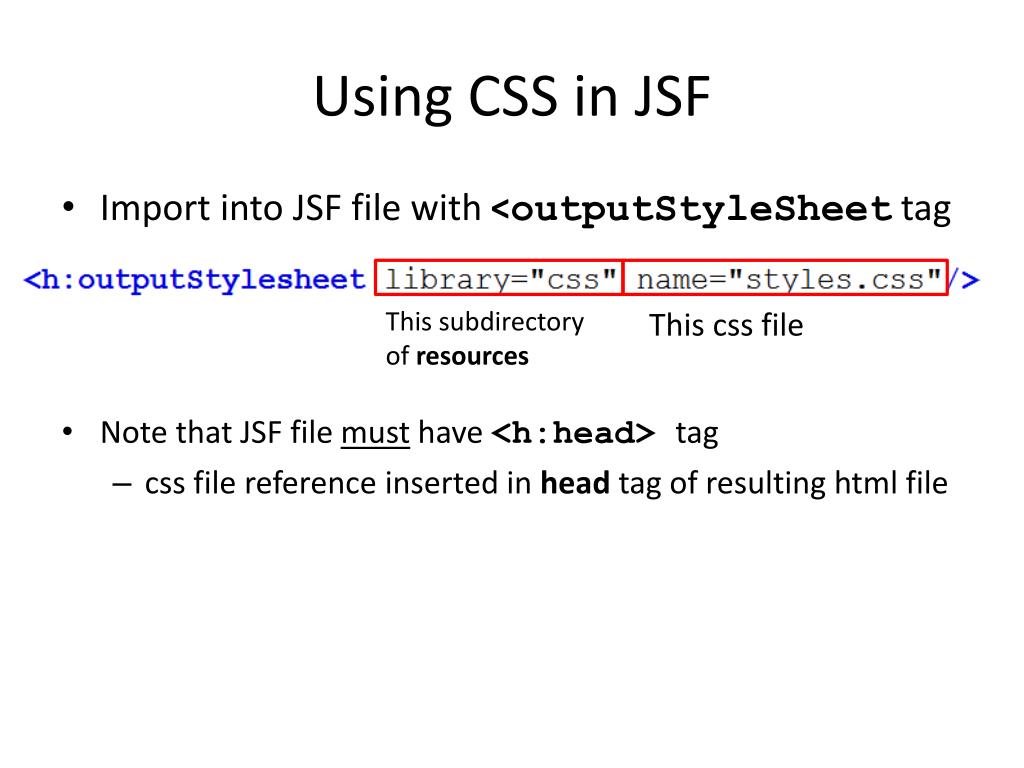

  4. Using CSS in JSF • Import into JSF file with <outputStyleSheettag • Note that JSF file must have <h:head>tag • css file reference inserted in head tag of resulting html file This subdirectory of resources This css file

  5. Using CSS in JSF styles.css

  6. Facelets • “Template” for some or all pages on site • Defines css styles used • Defines layout of pages • Defines content universal to sections of pages • Example: All pages have company name at top Content specific to individual pages All pages have same navigation options on left

  7. Facelets • Other pages then define content areas • Key: Modifying logo/navigation requires changing single template file rather than all pages

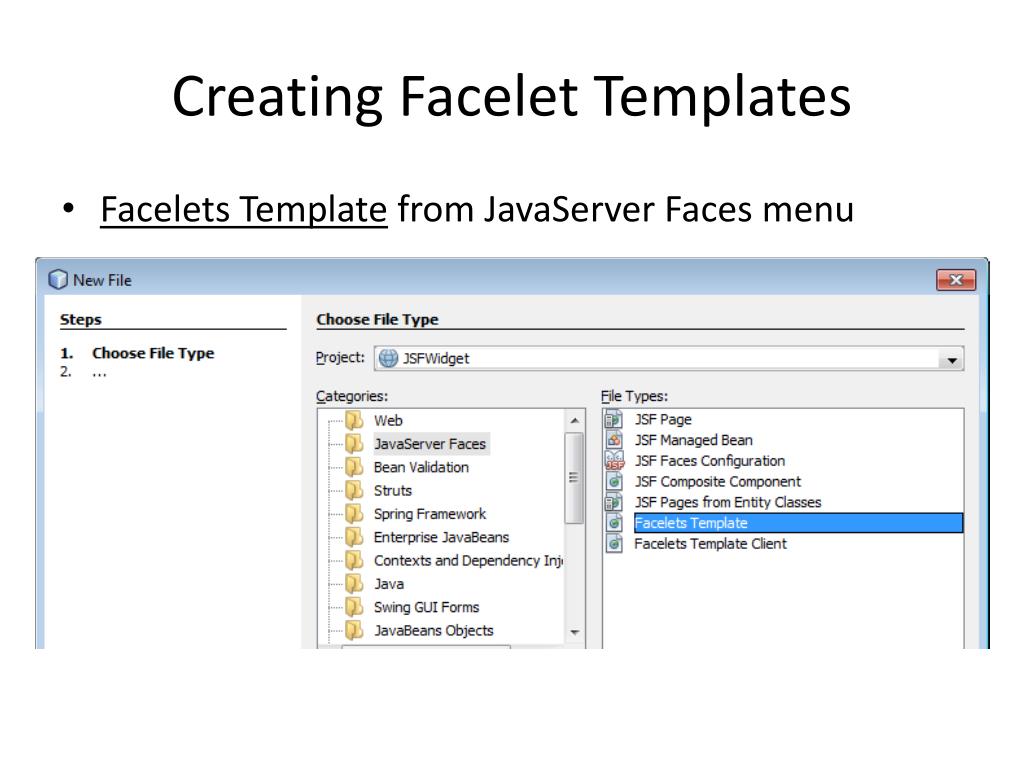

  8. Creating Facelet Templates • Facelets Template from JavaServer Faces menu

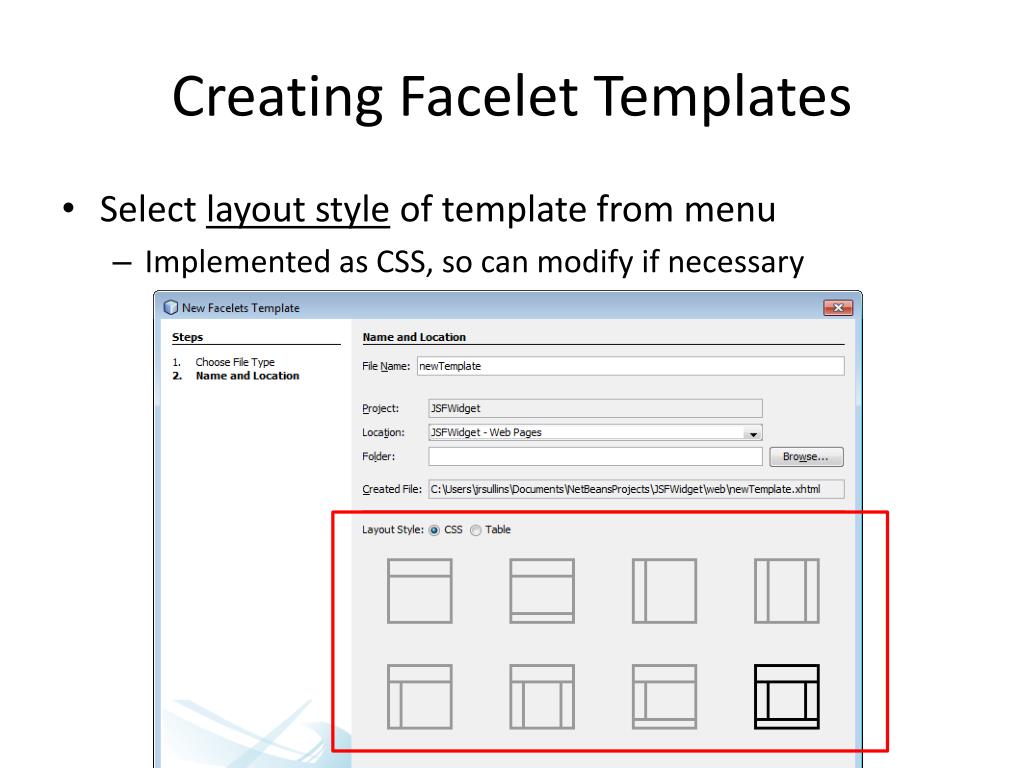

  9. Creating Facelet Templates • Select layout style of template from menu • Implemented as CSS, so can modify if necessary

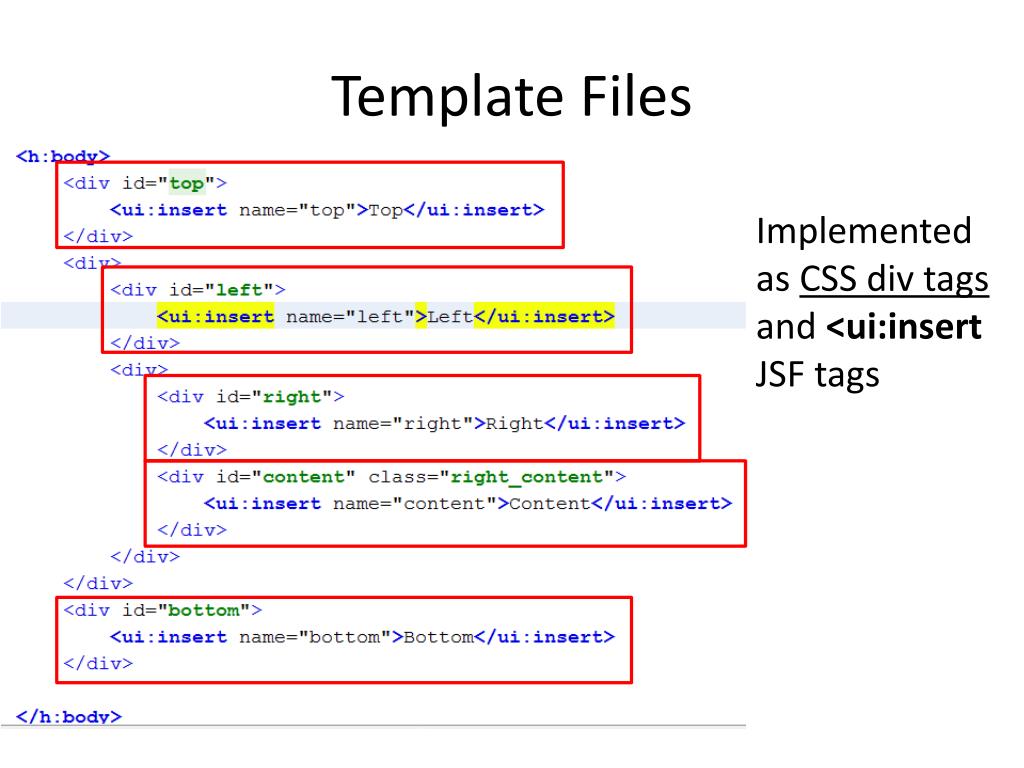

  10. Template Files Implemented as CSS div tagsand <ui:insertJSF tags

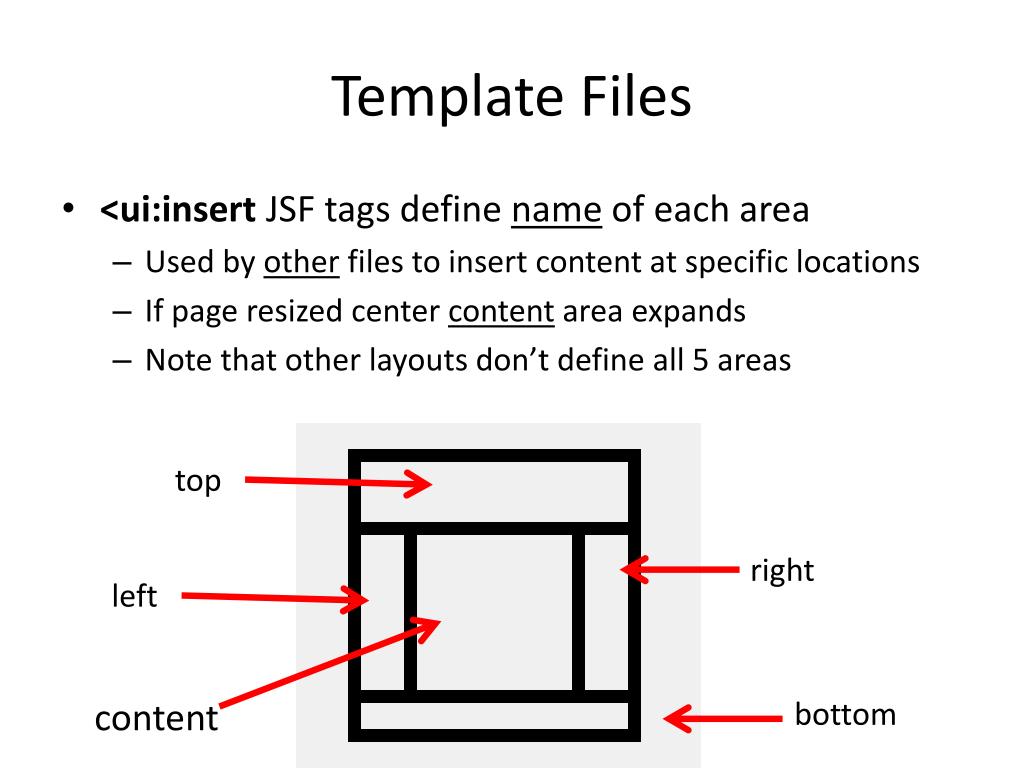

  11. Template Files • <ui:insert JSF tags define name of each area • Used by other files to insert content at specific locations • If page resized center content area expands • Note that other layouts don’t define all 5 areas top right left content bottom

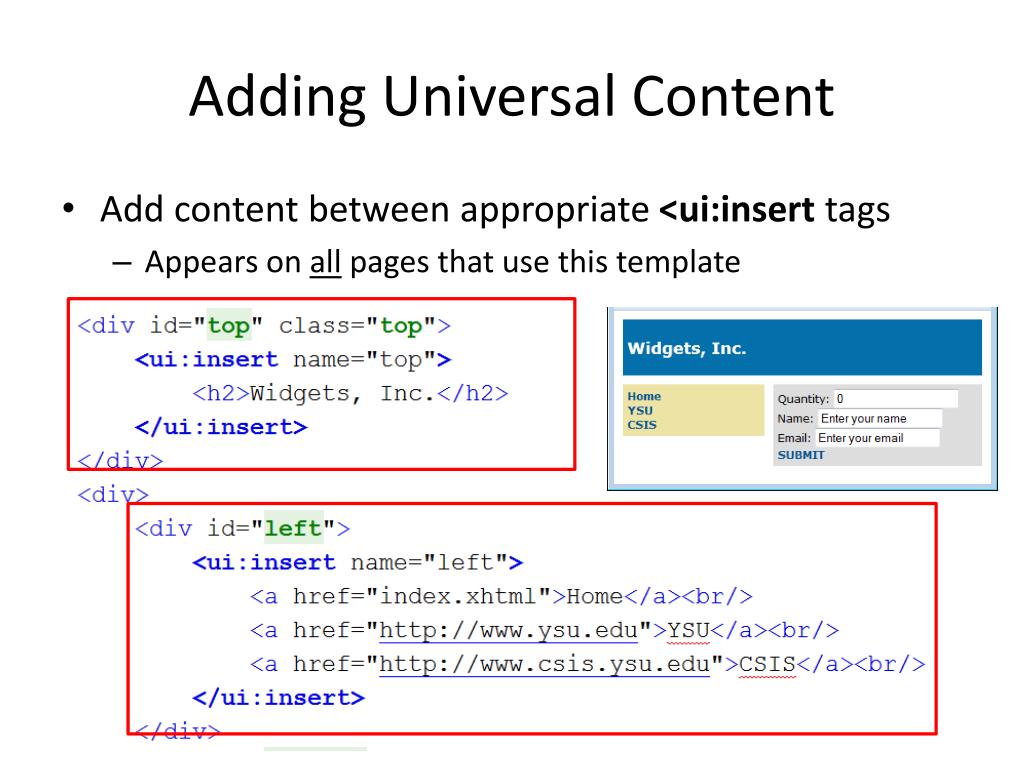

  12. Adding Universal Content • Add content between appropriate <ui:inserttags • Appears on all pages that use this template

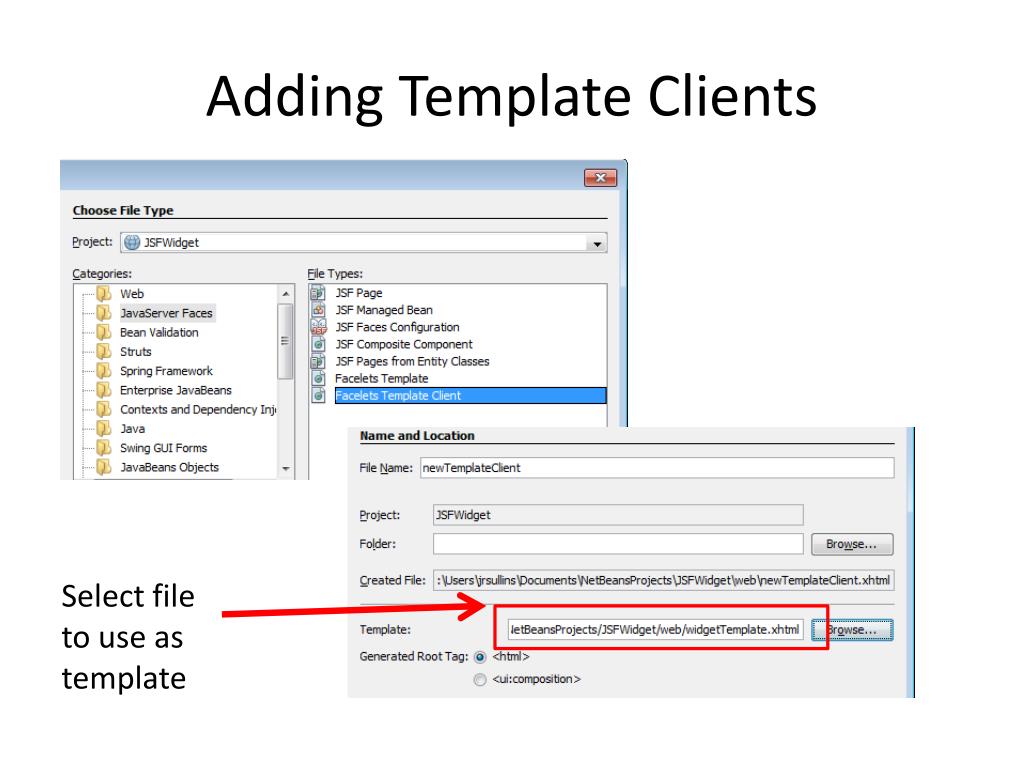

  13. Adding Template Clients Select file to use as template

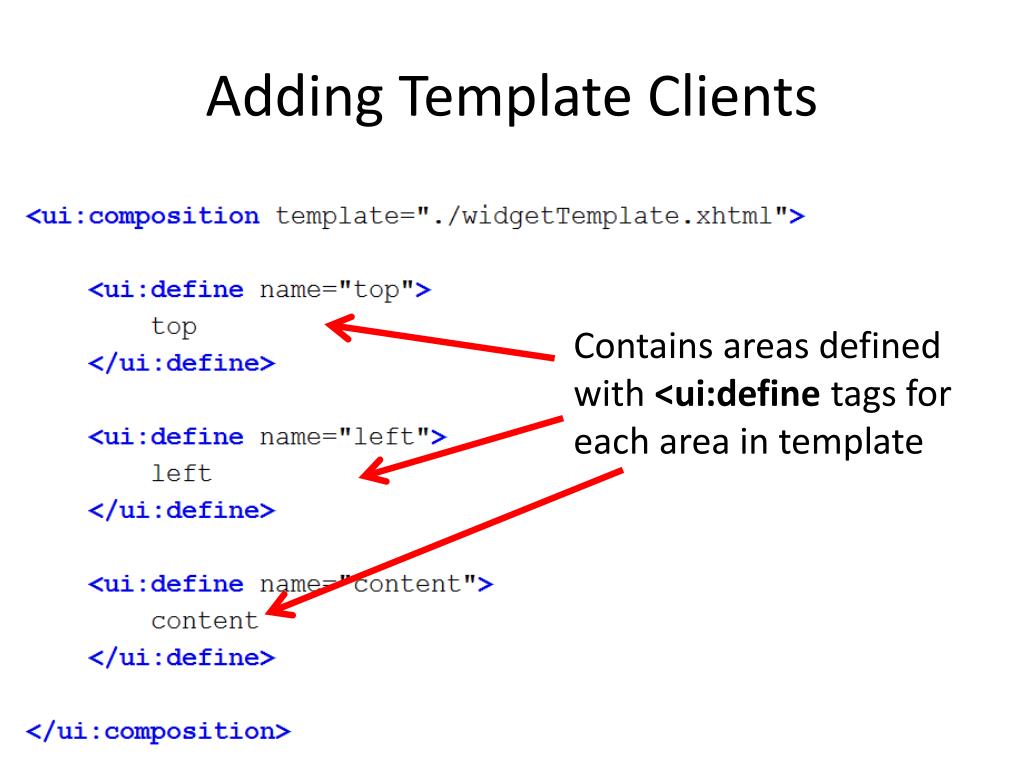

  14. Adding Template Clients Contains areas defined with <ui:define tags for each area in template

  15. Adding Page-Specific Content • Insert own code into desired areas of page

  16. Adding Page-Specific Content • Comment out or delete other <ui:define tags to use content from template Content specific to template client page Content from template page

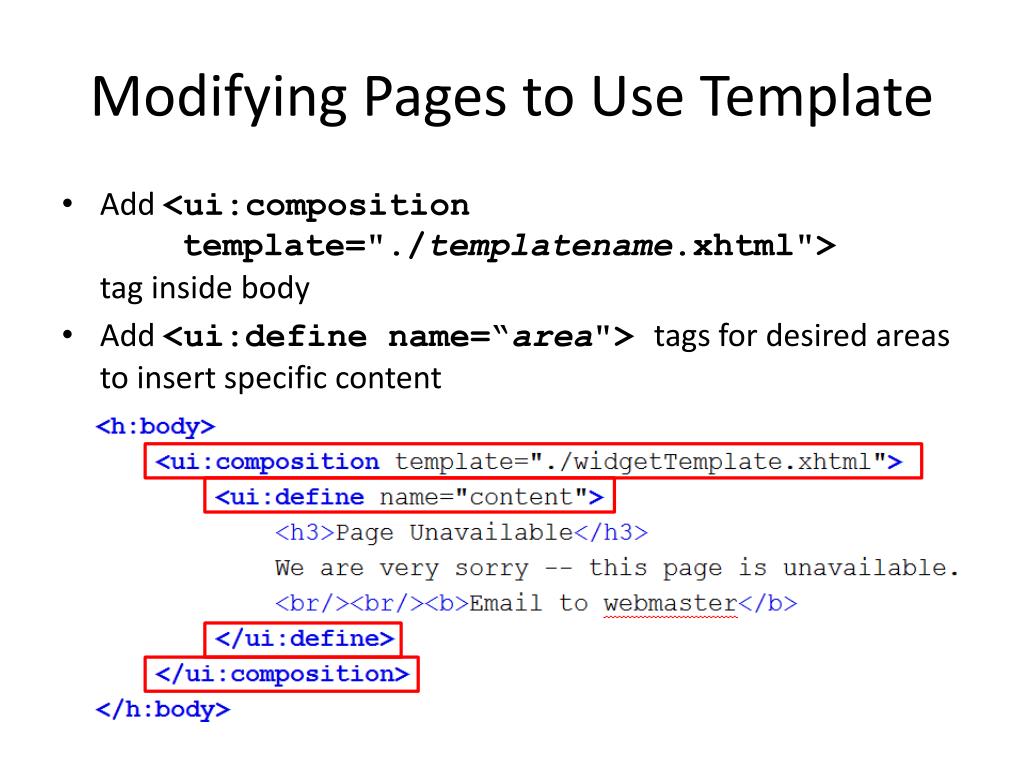

  17. Modifying Pages to Use Template • Add <ui:composition template="./templatename.xhtml"> tag inside body • Add <ui:define name=“area"> tags for desired areas to insert specific content

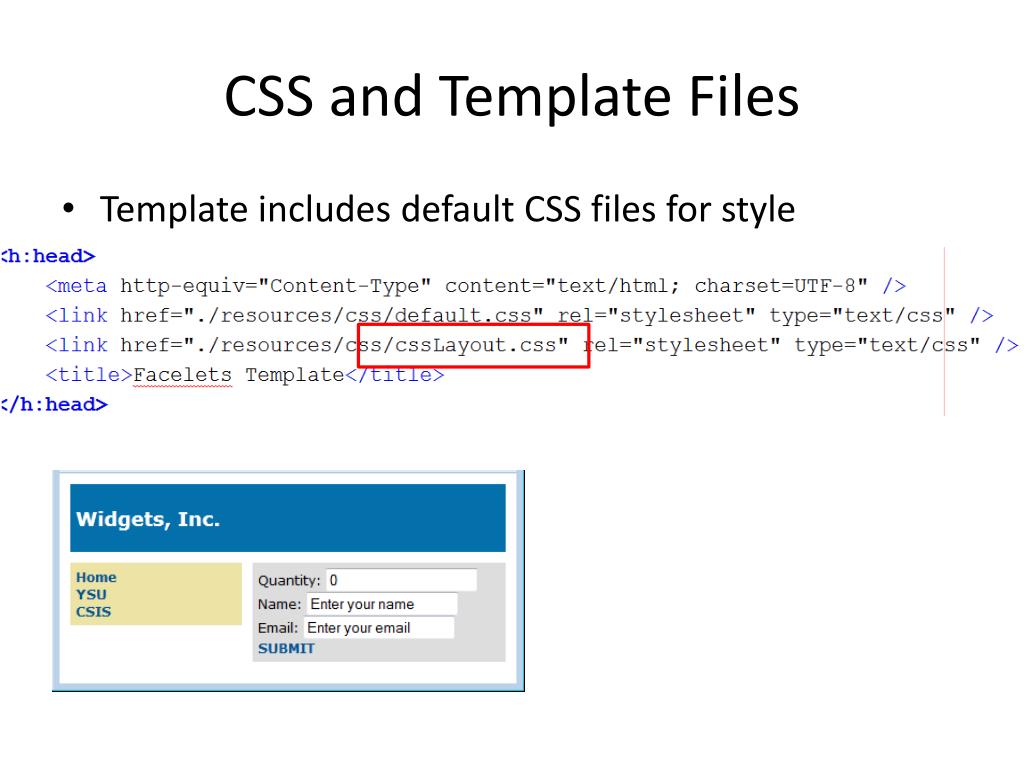

  18. CSS and Template Files • Template includes default CSS files for style

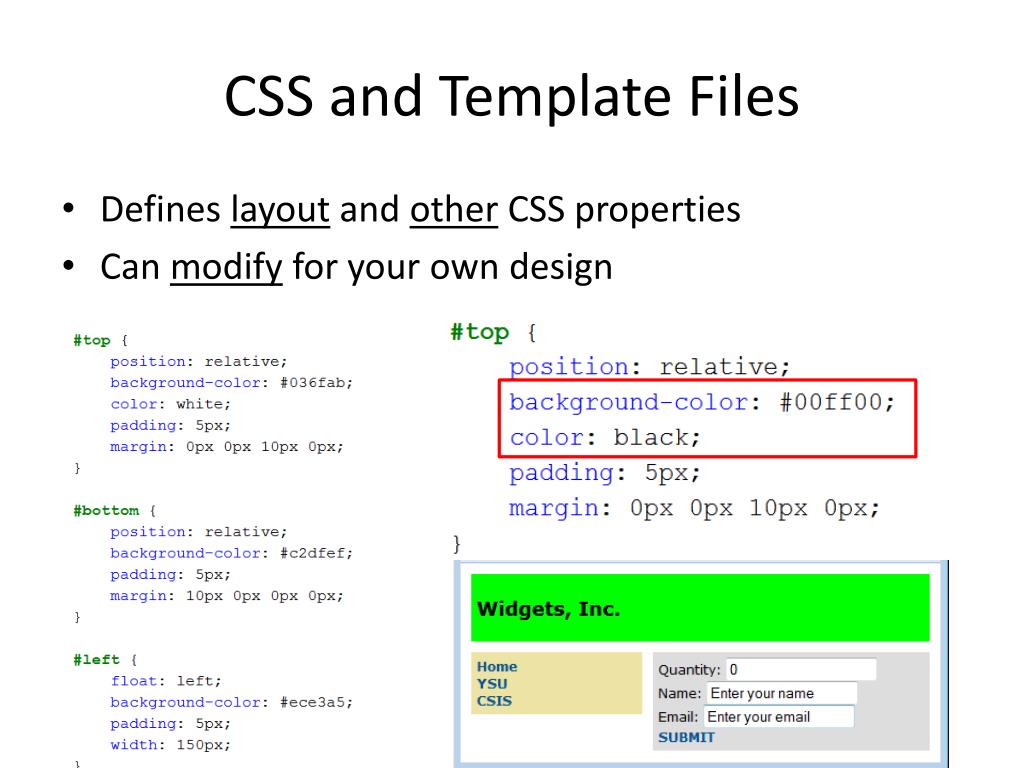

  19. CSS and Template Files • Defines layout and other CSS properties • Can modify for your own design
