  1. Task Story Board • A Corde Lane & Brian Roberts Production

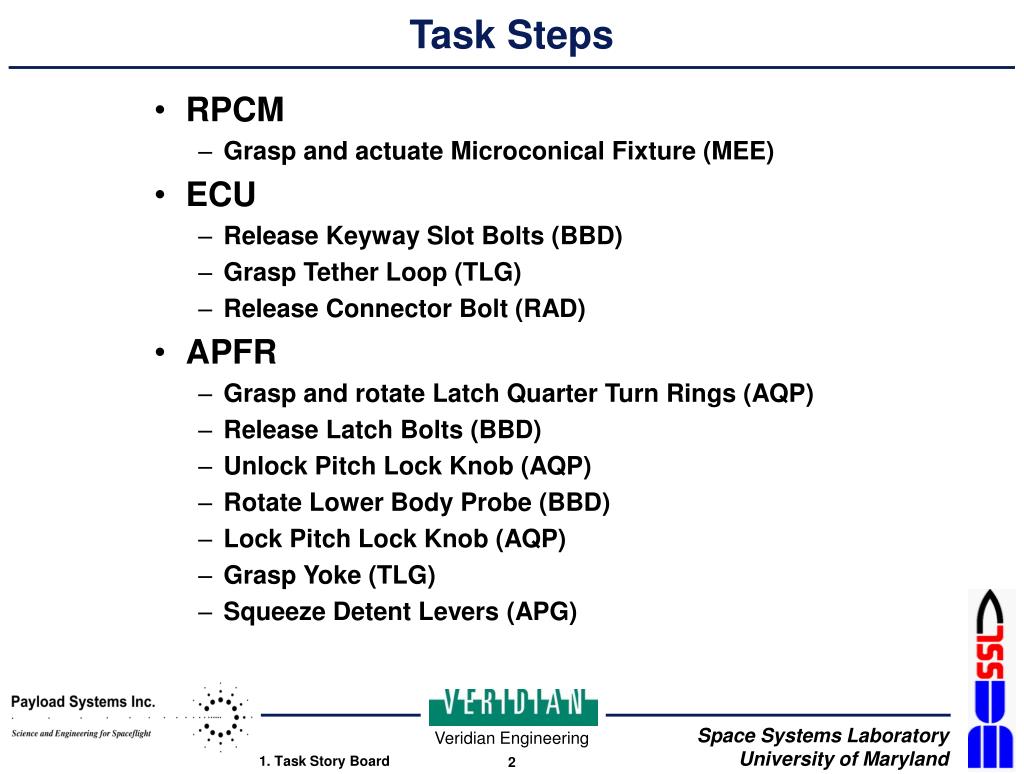

  2. Task Steps • RPCM • Grasp and actuate Microconical Fixture (MEE) • ECU • Release Keyway Slot Bolts (BBD) • Grasp Tether Loop (TLG) • Release Connector Bolt (RAD) • APFR • Grasp and rotate Latch Quarter Turn Rings (AQP) • Release Latch Bolts (BBD) • Unlock Pitch Lock Knob (AQP) • Rotate Lower Body Probe (BBD) • Lock Pitch Lock Knob (AQP) • Grasp Yoke (TLG) • Squeeze Detent Levers (APG)

  3. RPCM - MEE grasps microconical fixture

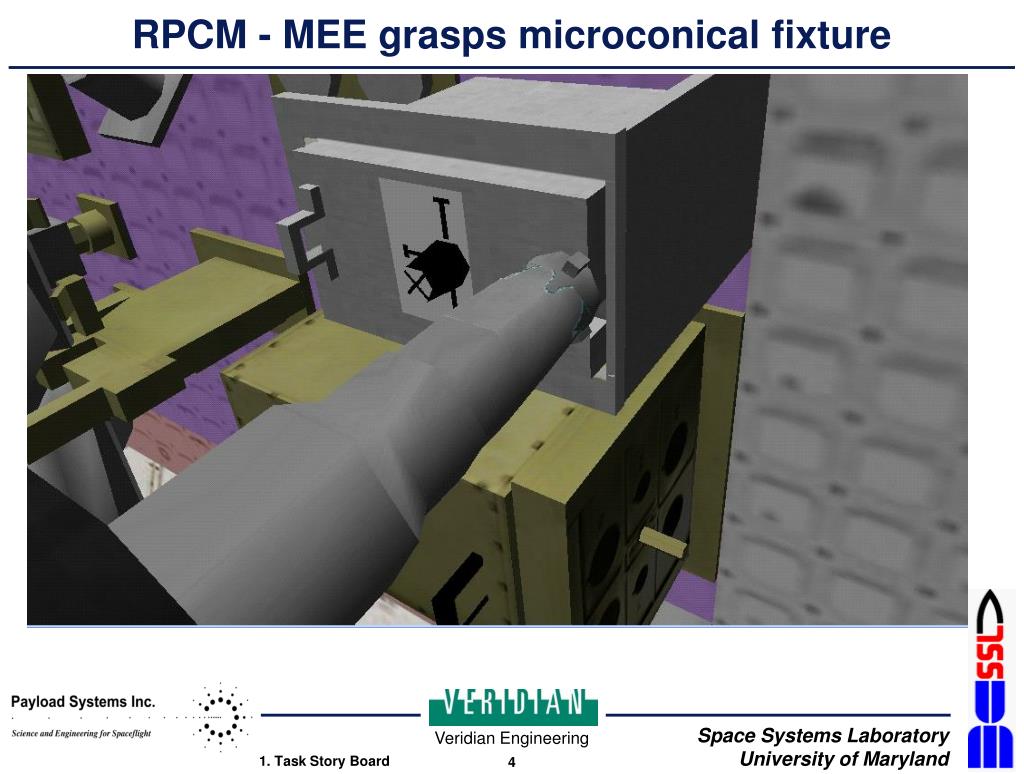

  4. RPCM - MEE grasps microconical fixture

  5. ECU - BBD actuates keyway slot bolt

  6. ECU - BBD actuates keyway slot bolt

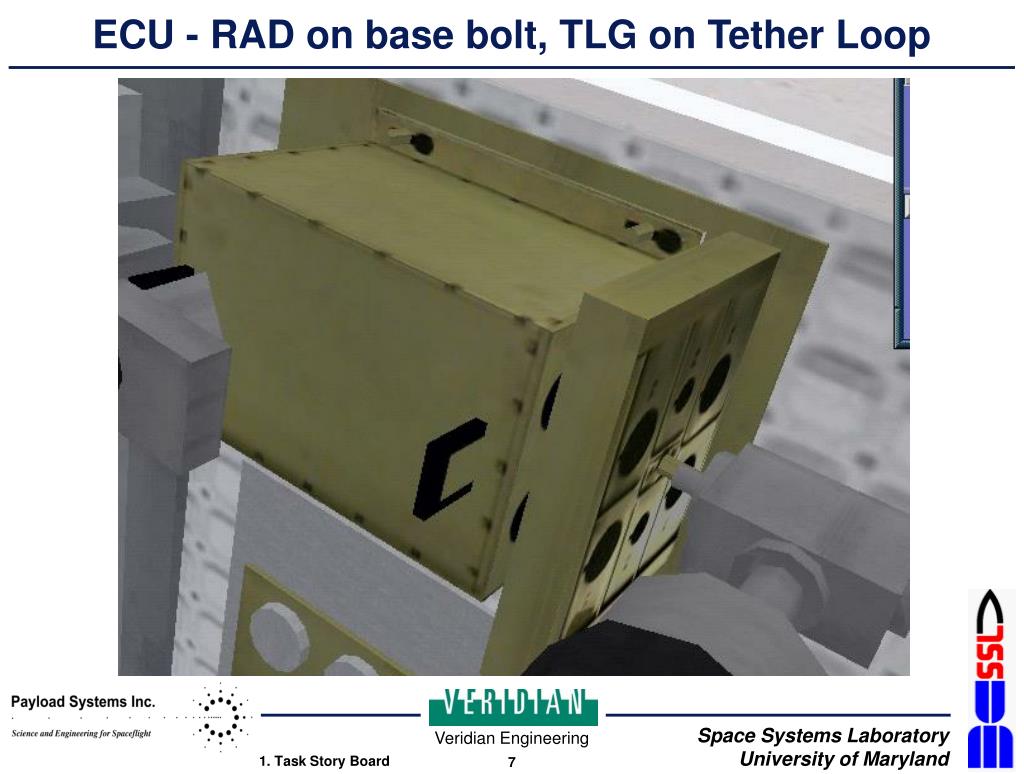

  7. ECU - RAD on base bolt, TLG on Tether Loop

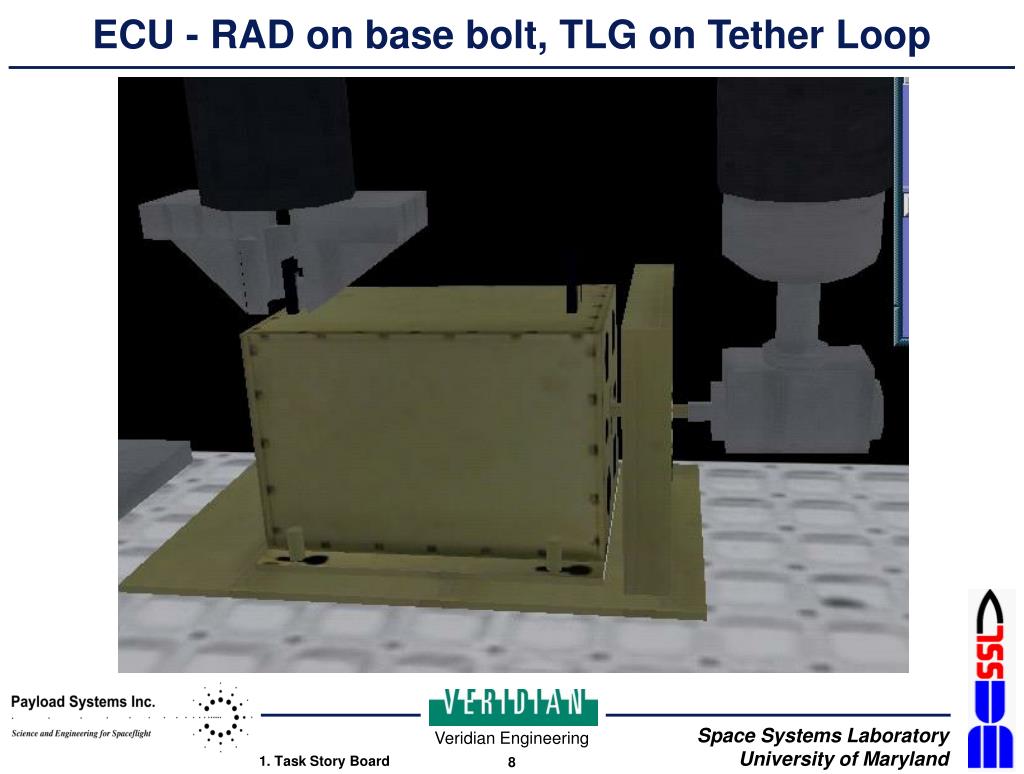

  8. ECU - RAD on base bolt, TLG on Tether Loop

  9. APFR - AQP on Quarter Turn Ring at BP Latch

  10. APFR - BBD on Boot Plate Latch Bolt

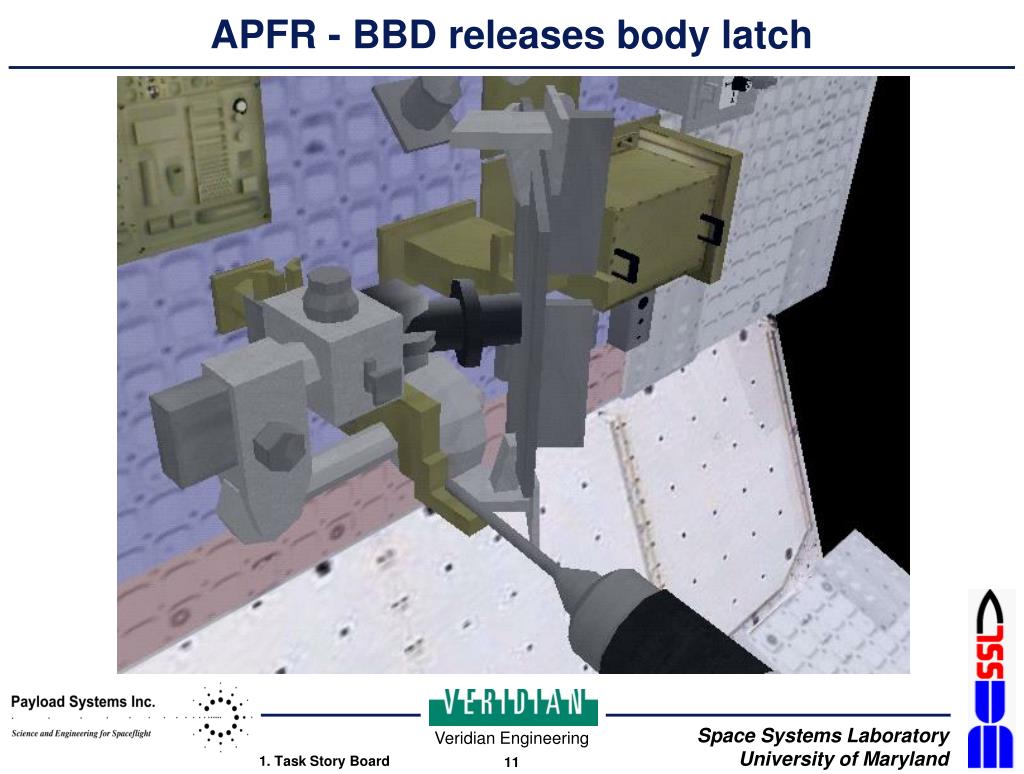

  11. APFR - BBD releases body latch

  12. APFR - BBD begins probe rotation

  13. APFR - BBD completes probe rotation

  14. APFR - TLG on Yoke, APG on Detent Levers

  15. APFR - TLG on Yoke, APG on Detent Levers
