Warm-up Find the measures of angles 1 – 4.

Warm-up Find the measures of angles 1 – 4. 52.5 . 4. 32 . 2. 3. 105 . 36.5 . 1. 105 . 16 . Math II. UNIT QUESTION: What special properties are found with the parts of a circle? Standard: MM2G1, MM2G2 Today’s Question: How do we find segment lengths in circles?

ray
Télécharger la présentation

Warm-up Find the measures of angles 1 – 4.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Warm-up Find the measures of angles 1 – 4. 52.5 4 32 2 3 105 36.5 1 105 16

  2. Math II UNIT QUESTION: What special properties are found with the parts of a circle? Standard: MM2G1, MM2G2 Today’s Question: How do we find segment lengths in circles? Standard: MM2G3.b

  3. 6.6 Segment Lengths in Circles

  4. 6.6 Segment Lengths in Circles • Find the lengths of segments of chords • Find the lengths of segments of tangents and secants

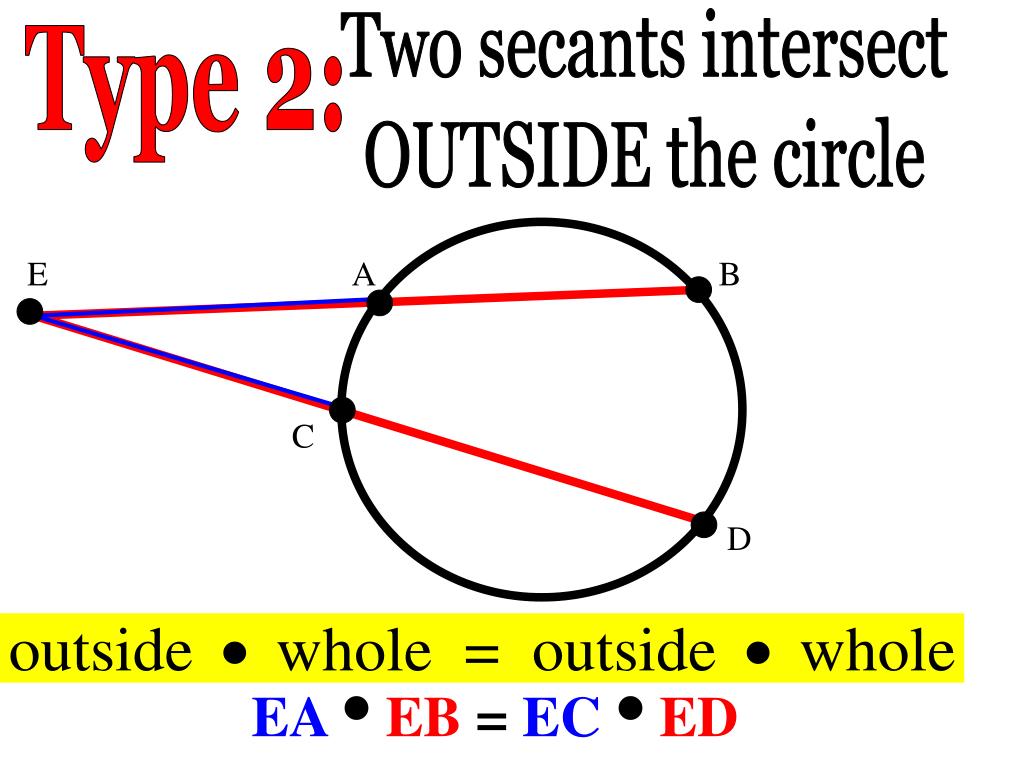

  5. Two secants intersect OUTSIDE the circle Type 2: E A B C D EA•EB = EC•ED

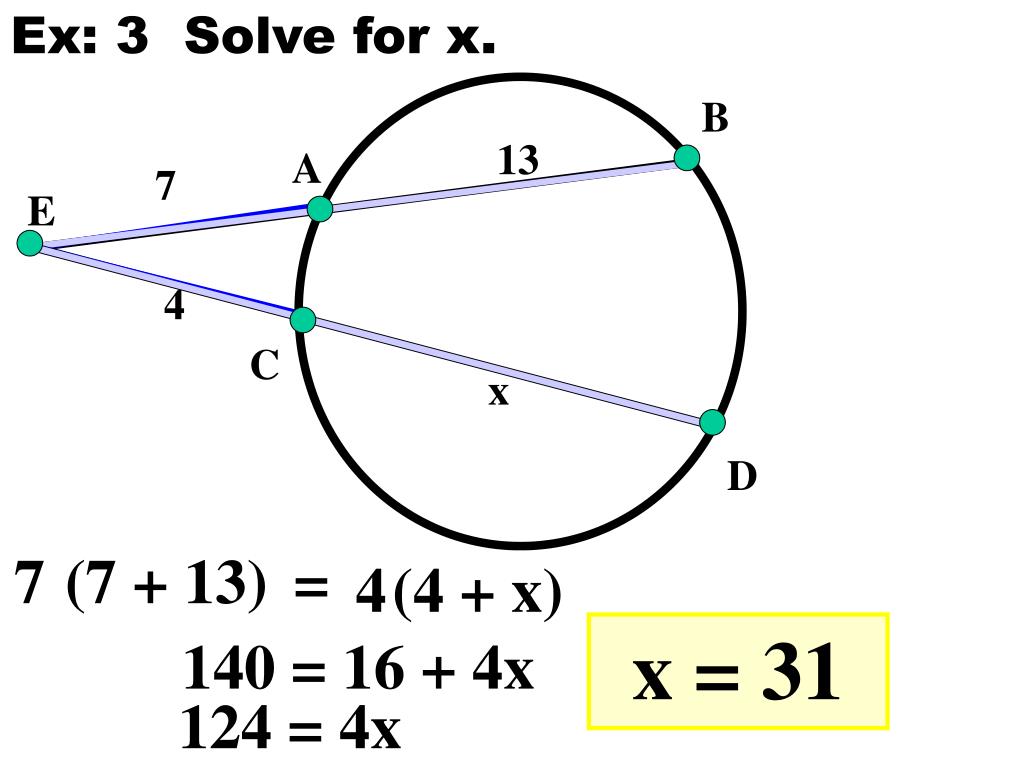

  6. Ex: 3 Solve for x. B 13 A 7 E 4 C x D 7 (7 + 13) = 4 (4 + x) x = 31 140 = 16 + 4x 124 = 4x

  7. Ex: 4 Solve for x. B x A 5 D 8 6 C E 6 (6 + 8) = 5 (5 + x) 84 = 25 + 5x x = 11.8 59 = 5x

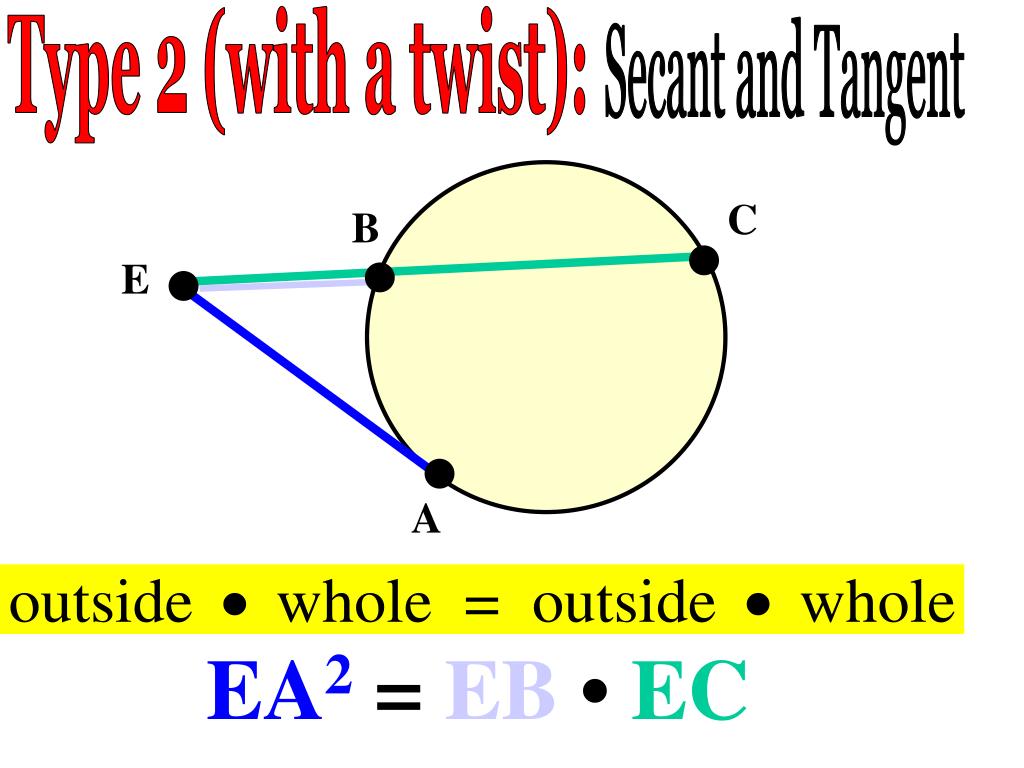

  8. Type 2 (with a twist): Secant and Tangent C B E A EA2= EB • EC

  9. Ex: 5 Solve for x. C B x 12 E 24 A (12 + x) 242 = 12 x = 36 576 = 144 + 12x

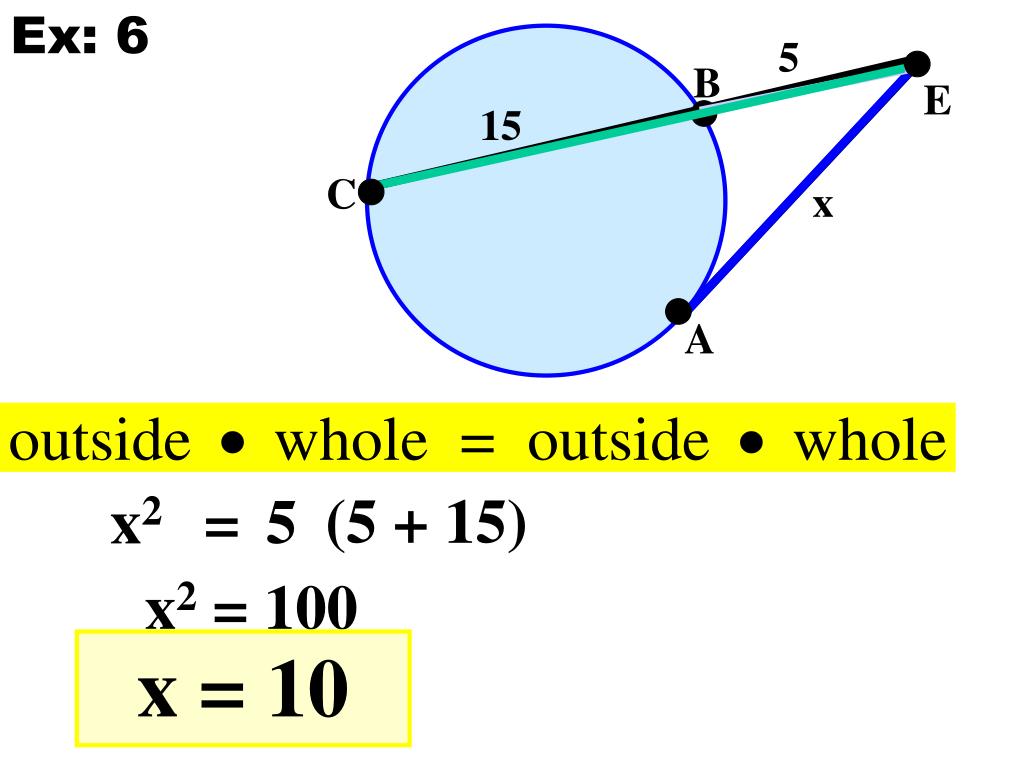

  10. Ex: 6 5 B E 15 C x A (5 + 15) x2 = 5 x2 = 100 x = 10

  11. Class Work Textbook – p. 220 #7-20, 23, 24 p. 222 #1-3, 5-7, 11

  12. Homework Workbook p. 231 #4-9; p. 232-233 #13-19, 21, 23, 24
