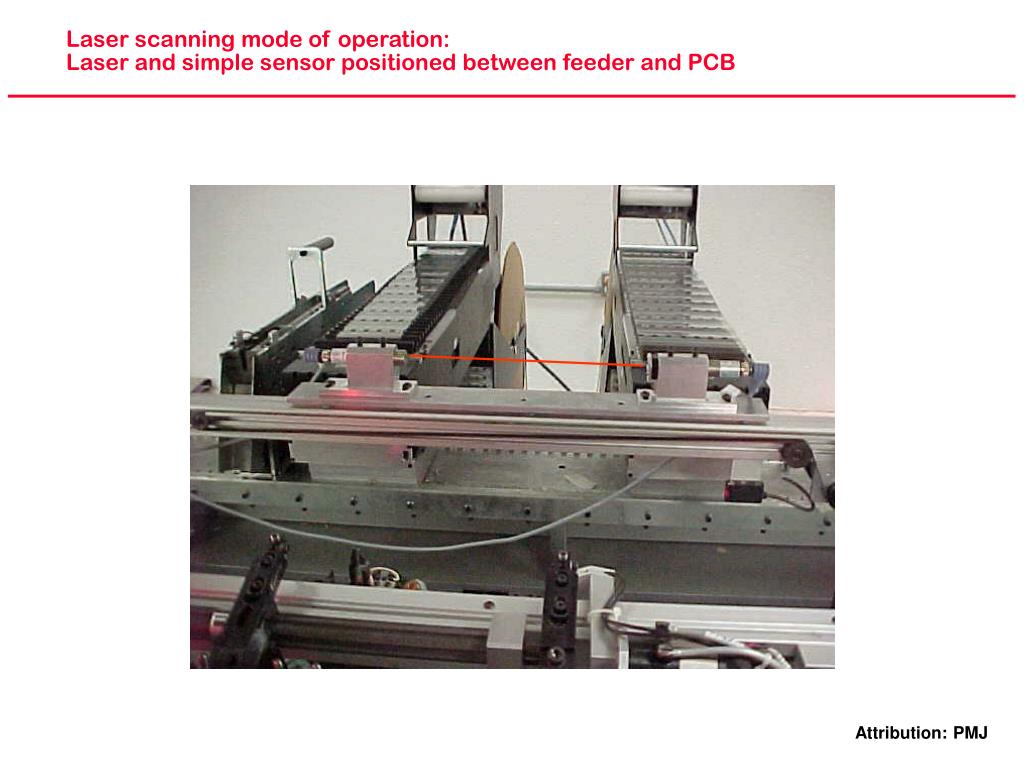

  1. Laser scanning mode of operation:Laser and simple sensor positioned between feeder and PCB

  2. Detection process bent lead

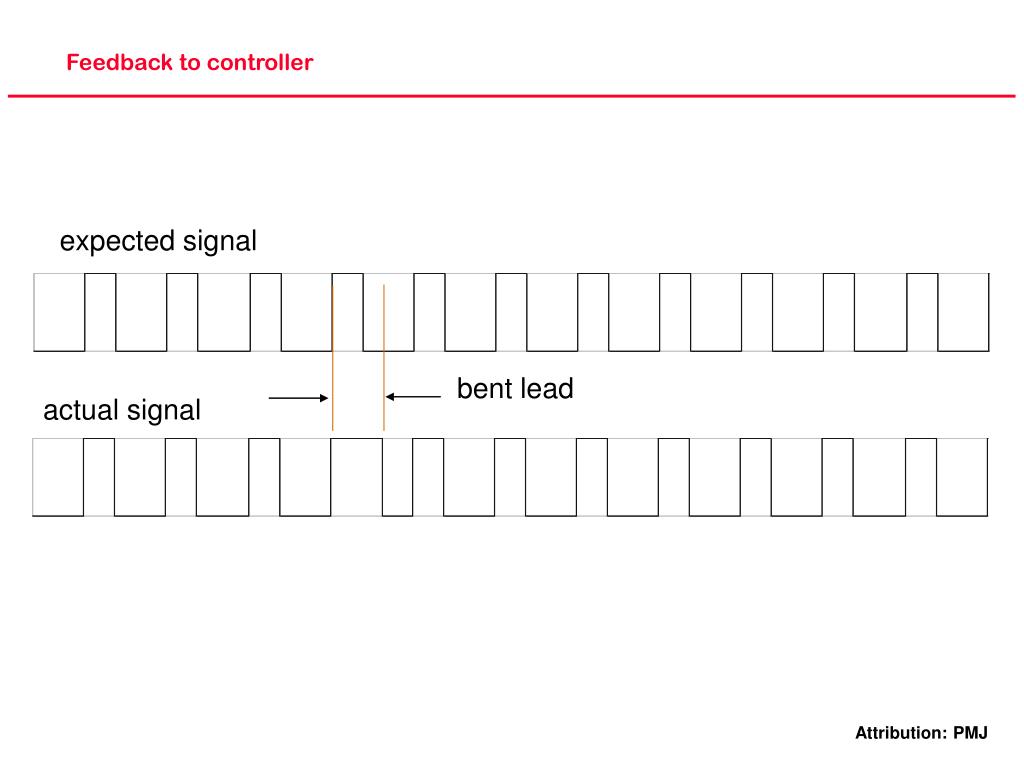

  3. Feedback to controller expected signal bent lead actual signal

  4. Laser scanner used for moulded body components gripper to component offset

  5. Feedback to controller expected signal gripper to component offset actual signal
