  1. ENGINE PARTS IDENTIFICATION Teknik Kendaraan Ringan Semester 3th Class XI Kompetensi Kejuruan SK-KD 6TH

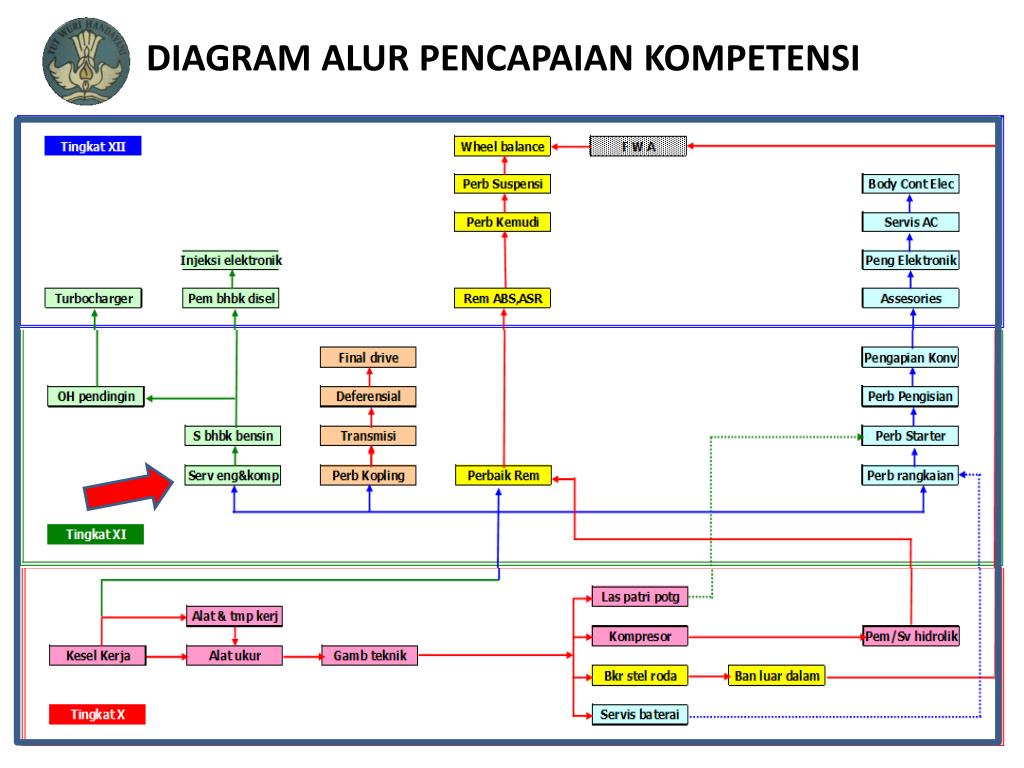

  2. DIAGRAM ALUR PENCAPAIAN KOMPETENSI

  3. PART OF ENGINE • Rocker arm • Valve spring • Cylinder head • Valve • Cylinder • Engine block • Piston • Connecting rod • Crankshaft • Crankshaft timing gear • Camshaft timing gear • Camshaft • Cam • Cam follower • Pushrod. Teknologi dan Rekayasa

  4. CYLINDER BLOCK FUNCTION Piston move at this place to product the power Silinder Bore Type 1. Wet Type 2. Dry Type Teknologi dan Rekayasa

  5. CYLINDER HEAD THE COMPONENT AT CYLINDER HEAD • Intake and Exhaust valve • Intake and Exhaust manifold • Combustion Chamber • Water Jacket • Spark Plug • The Kinds Of Combustion Chamber • Bathtube • Wedge • Hemispherical Wedge type combustion chamber Hemispherical type combustion chamber Teknologi dan Rekayasa

  6. PISTON FUNCTION Pressure gas as combustion product received by this component, then continue this power to crankshaft throught conecting rod Piston Clearance To prevent the piston stop when move Teknologi dan Rekayasa

  7. PISTON RING 1st Compression Ring 2nd Compression Ring Ring Oli ada 2 macam 1. Integral Type 2. Three piece Oil Ring Teknologi dan Rekayasa

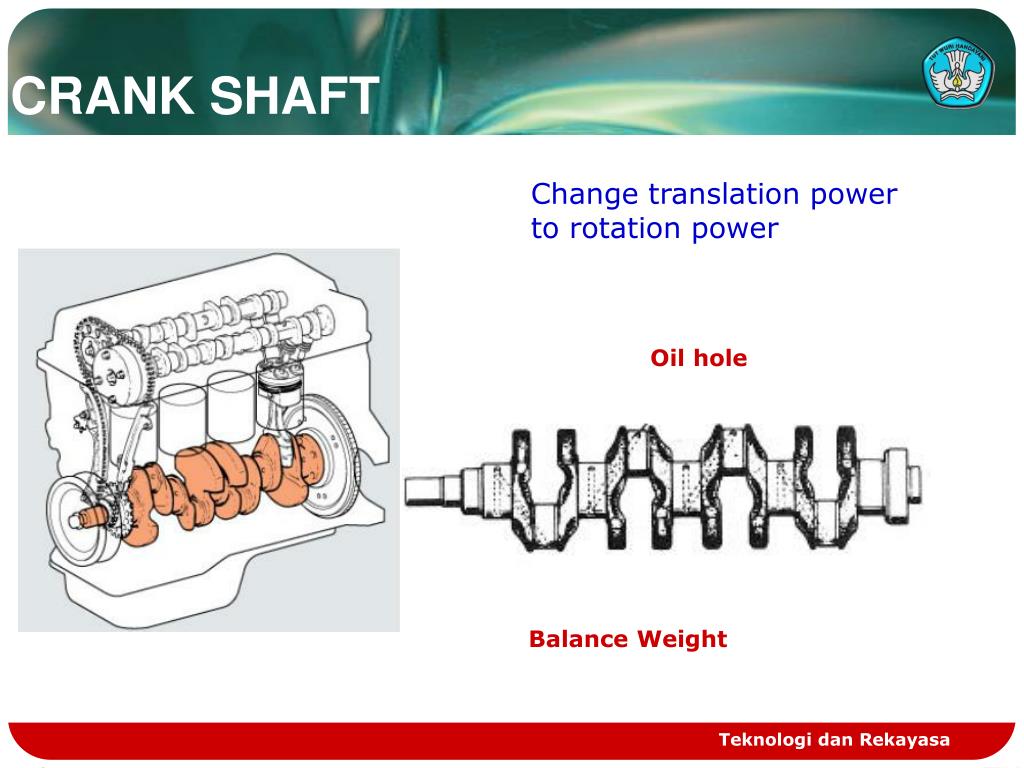

  8. CRANK SHAFT Change translation power to rotation power Oil hole Balance Weight Teknologi dan Rekayasa

  9. CONECTING ROD To connect piston with crankshaft and continue power from piston to cranksahft Teknologi dan Rekayasa

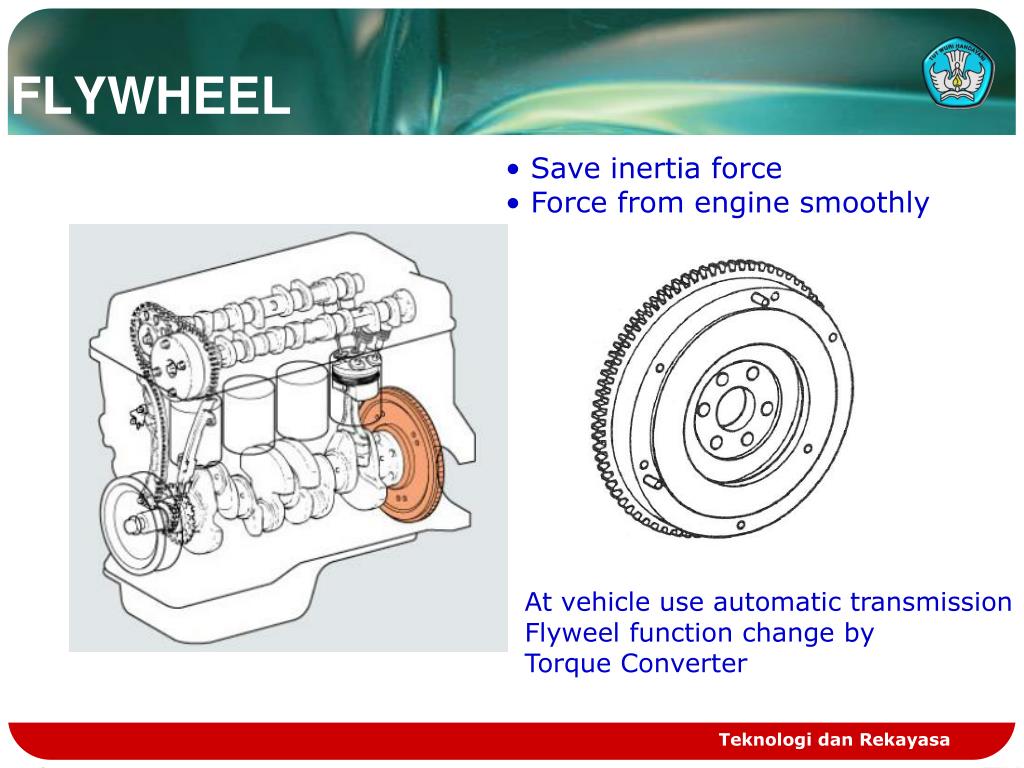

  10. FLYWHEEL • Save inertia force • Force from engine smoothly At vehicle use automatic transmission Flyweel function change by Torque Converter Teknologi dan Rekayasa

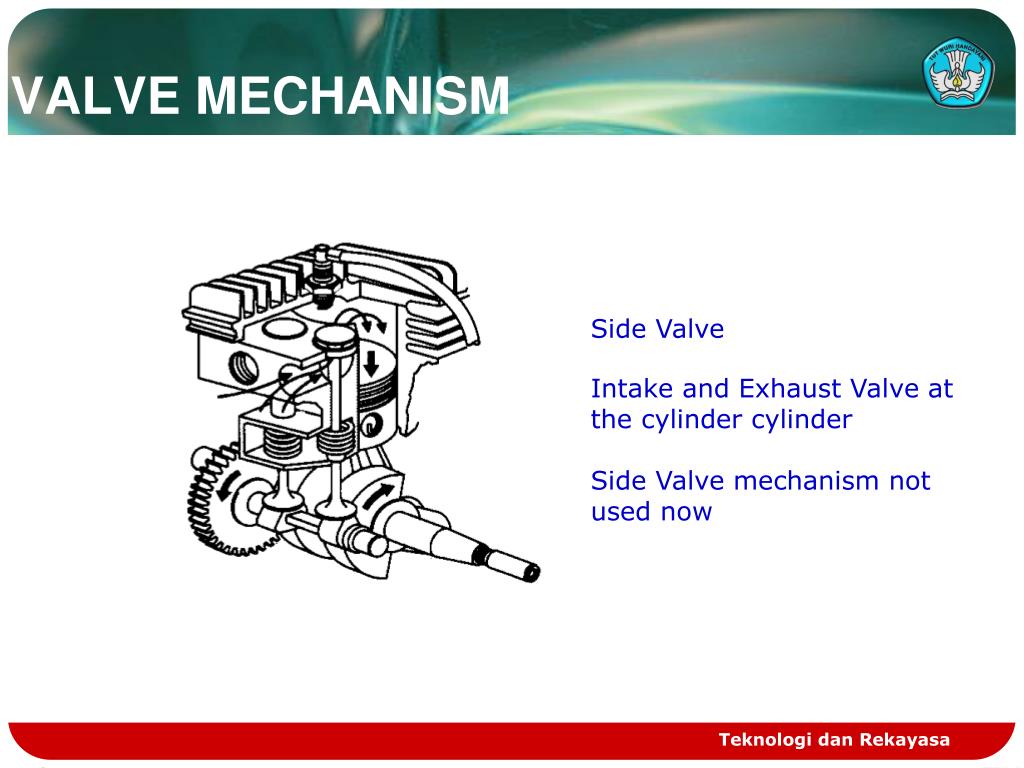

  11. VALVE MECHANISM Side Valve Intake and Exhaust Valve at the cylinder cylinder Side Valve mechanism not used now Teknologi dan Rekayasa

  12. VALVE MECHANISM Rocker Arm Rotation of Camshaft continued by valve lifter, Pushrod, and Rocker Arm. Pushrod Lifter Valve Cam Shaft OHV ( Over Head Valve ) Teknologi dan Rekayasa

  13. VALVE MECHANISM Teknologi dan Rekayasa

  14. Engine Displacement Displacement n 2 = D L N V 4 n phi V Volume of cylinder ( cc ) Cylinder Diameter D L Piston stroke Bore N Cyilnder Stroke TDC ( Top Dead Center ) BDC ( Bottom Dead Center ) Teknologi dan Rekayasa

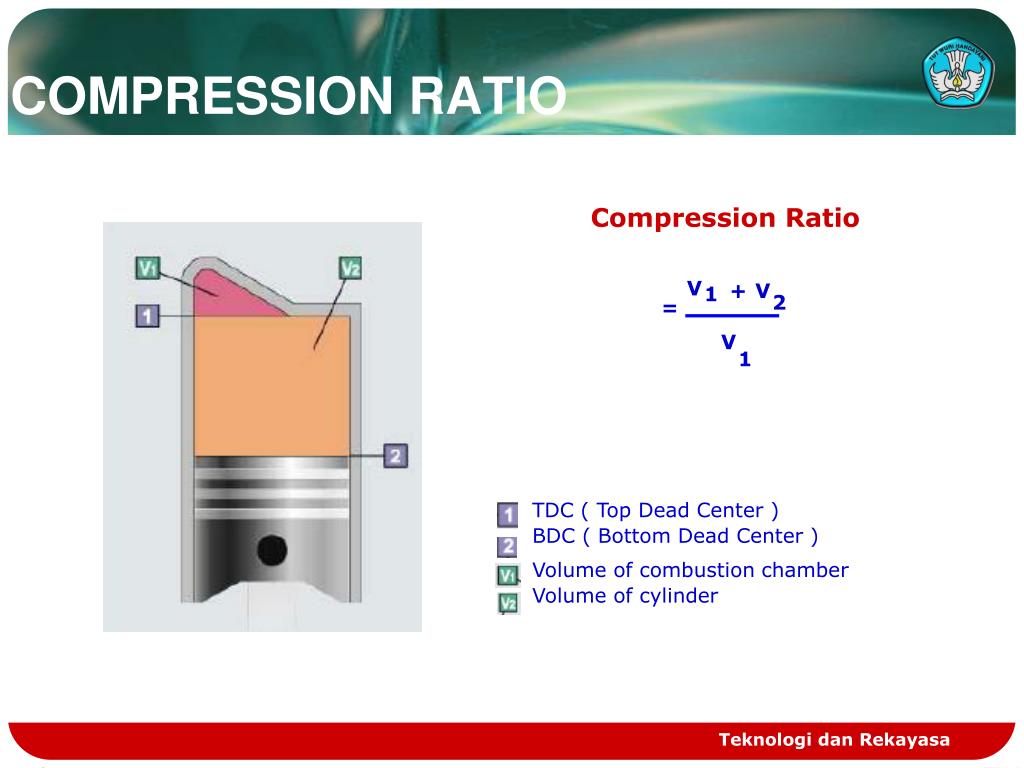

  15. COMPRESSION RATIO Compression Ratio V + V 1 2 = V 1 TDC ( Top Dead Center ) BDC ( Bottom Dead Center ) Volume of combustion chamber Volume of cylinder Teknologi dan Rekayasa

  16. Engine Performance Curve Teknologi dan Rekayasa

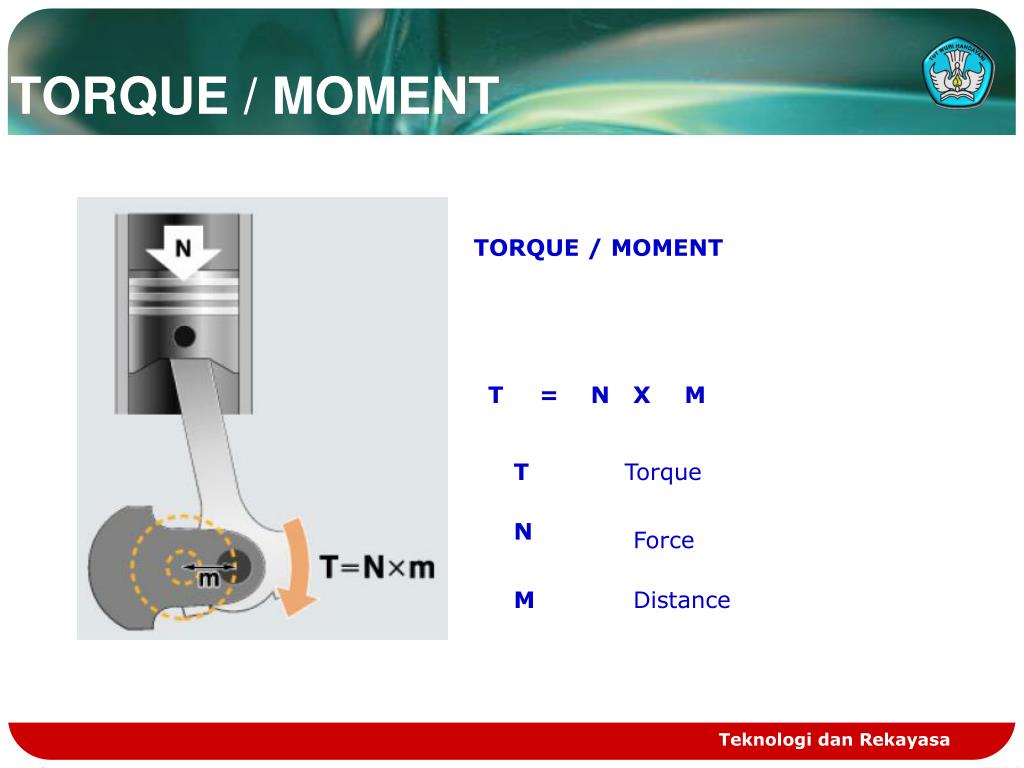

  17. TORQUE / MOMENT TORQUE / MOMENT T = N X M T Torque N Force M Distance Teknologi dan Rekayasa

  18. BIBLIOGRAPHY: Briggs and Stratton TEAM 21 “Toyota Technician”, Toyota Astra Motor

  19. Thanks very much Presented by Aloysius Sudibyo SMK Negeri 1 Magelang
