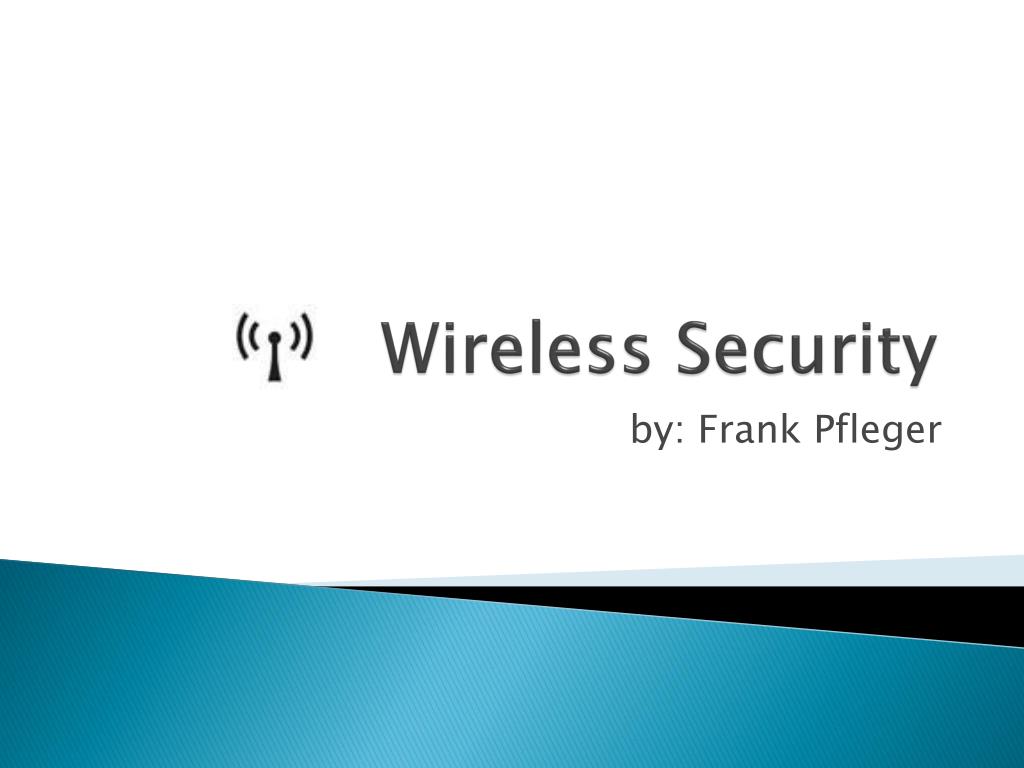

  1. Wireless Security by: Frank Pfleger

  2. Overview • Introduction to Wireless Networks • Secure the Network • Wireless Security Mechanisms • Unsecure the Network • Security Mechanism Weaknesses • Tools and Techniques • Wardriving / Procedures

  3. Introduction • Private Wi-Fi • Easy installation  security problems • Location freedom • Office Wi-Fi • Location freedom • Laptop popularity • Public Hotspot • Non-private ( mostly with fee ) • Public places Introduction  Secure  Unsecure  Wardriving  Conclusion

  4. Secure the Network • Non Encryption • Static IP addresses • Deactivate DHCP • Assign IP address on every host • MAC address filter • Restrict access to unique hardware address • Add MAC address for every host • Hide SSID • Deactivate the SSID broadcasting  INSECURE Introduction  Secure  Unsecure  Wardriving  Conclusion

  5. Secure the Network • Encryption • WEP – Wired Equivalent Privacy • Based on RC4 (pseudo-random generator) • XOR between data and random (bitstream) • RC4 uses WEP key + Initialization vector • INSECURE • WPA – Wi-Fi Protected Access • Based on the WEP architecture ( RC4 ) • TKIP – Temporal Key Integrity Protocol • RC4 uses WPA key (PSK or EAP) + Initialization vector + Per packet key mixing + Re Keying+ Message Integrity Check • SECURE Introduction  Secure  Unsecure  Wardriving  Conclusion

  6. Secure the Network • Encryption • WPA2 – Wi-Fi Protected Access 2 • Implements IEEE 802.11 a,b,gand basic/mandatory functions of IEEE 802.11 i • New architecture based on AES • AES – Advanced Encryption Standard • Symmetric crypto system • Complies with the requirements of FIPS 140-2 • Choose strong password / passphrase (63 characters) • SECURE Introduction  Secure  Unsecure  Wardriving  Conclusion

  7. Secure the Network • RADIUS • Remote Authentification Dial-In Server • Client – Server system • AAA protocol • Authentification ( who ) • Authorization ( what ) • Accounting ( track consumption ) • VPN – Virtual Private Network • Tunnel • Authentification • Secure Encryption ( Public Key / RSA ) Introduction  Secure  Unsecure  Wardriving  Conclusion

  8. Unsecure the Network • Weaknesses • Serveral techniques to compromise • Sniffing a IP address • Deactivated DHCP • IP address transmitted in every packet • Spoofing a MAC address • MAC address filter • MAC address transmitted in every frame Introduction  Secure  Unsecure  Wardriving  Conclusion

  9. Unsecure the Network • Hacking WEP • Introduced in 1999 • Serious weaknesses identified in 2001 • IV – Initialization Vector used for decryption • ICV – Integrity Check Value • CRC32 checksum • CRC32 is strict linear • Calculation of the Key • Attack based on security flaw in CRC32 • 500 000 – 1 000 000 IV‘s for 128 bit encryption • Techniques: Packet Reinjection / Deauthenticate Client • TU Darmstadt ( PTW ) 50 000 IV‘s for 128 bit (50%) Introduction  Secure  Unsecure  Wardriving  Conclusion

  10. Unsecure the Network • WPA / WPA2 • Currently no weakness or security flaw • Weak Passwords • Choose a strong password • At least 12 characters • Mixed letters, numbers and symbols • Dictionary Attack • Brute-Force Attack Introduction  Secure  Unsecure  Wardriving  Conclusion

  11. Unsecure the Network • Tools and Techniques • MAC address spoofing • Linux • macchanger –s wlan0 • Windows • supported by some Wi-Fi cards • SMAC or other tools • ARP spoofing • Spoof the wrong MAC – IP combination • Windows • WinArpSpoofer • Linux • arpspoof –t 10.0.0.1 ( all packets to your host) Introduction  Secure  Unsecure  Wardriving  Conclusion

  12. Unsecure the Network • Tools and Techniques • Man-in-the-Middle ( MITM ) • Use ARP spoofing to get packets • Analyze packets • Forward packets to victim • Linux: • fragroute/fragrouter • sslsniff ( https MITM ) • DNS Spoofing • Spoof the wrong Hostname – IP combination • Linux: • dnsspoof Introduction  Secure  Unsecure  Wardriving  Conclusion

  13. Unsecure the Network • Tools and Techniques • Sniffing data • Used for MITM or passive listening • Capture and analyze data • Linux / Windows: • Wireshark ( Ethereal ) • Aircrack Toolkit • Cracking a WEP encryption • Airodump • Logging / Scanning IV‘s • Aireplay • Re-inject packets Introduction  Secure  Unsecure  Wardriving  Conclusion

  14. Wardriving • Act of searching Wireless Networks • In general with a car • Warbiking • Warwalking • Warchalking • Mark a place, mostly with chalk • Mapping • Create exact maps • Use GPS to get the coordinates • Provide information online • Difference to Piggybacking • Use of the wireless network Introduction  Secure  Unsecure  Wardriving  Conclusion

  15. Wardriving • Equipment • Good equipment for effective Wardriving • Notebook with Tools • Wireless Network Card • Regular Card • Special Card with an external antenna interface • Antenna • Directional • Onmidirectional • Parabolic (not for Wardriving) • GPS receiver • Logging / Mapping Introduction  Secure  Unsecure  Wardriving  Conclusion

  16. Wardriving • Tools • Operating System • Windows ( just for Mapping and Logging ) • Linux (Special Distributions) • All tools and drivers preinstalled • Run from CD • Eg. Backtrack ( Auditor ) • Scanning and Mapping • Windows • Netstumbler • Linux • Kismet Introduction  Secure  Unsecure  Wardriving  Conclusion

  17. Procedures • Wardriving • Scan for wireless networks ( Netstumbler / Kismet ) • Save the GPS position • Piggybacking • Connect to the wireless network • Use the network Introduction  Secure  Unsecure  Wardriving  Conclusion

  18. Hacking WEP • Using Backtrack ( Auditor ) • Hidden SSID • aircrack to deauthenticate ( force reconnect ) • Scan with airodump for the SSID • Scan and log IV‘s • airodump to log • Filters, Stores and analyzes packets for IV‘s • Reinject packets • aireplay reinjects found IV‘s • Increases the retransmitted IV‘s • Crack the Key • aircrack to calculate the WEP key • Enough IV‘s needed Introduction  Secure  Unsecure  Wardriving  Conclusion

  19. Compromise the Network • MAC filter • Scan packets with Wireshark ( Ethereal ) • Spoof a MAC address with macchanger • DHCP deactivated • Scan packets with Wireshark ( Ethereal ) • Set your IP address • Man-in-the-Middle • Spoof your MAC with the gateways IP • Spoof your MAC with the victims IP • Reroute packets • Using arpspoof and fragroute Introduction  Secure  Unsecure  Wardriving  Conclusion

  20. Compromise the Network • Spoof DNS Entry • Spoof your IP address for different hostnames • Eg. hostname of the victims bank • Intercept SSL connections • SSL MITM attack • Fake SSL certificate • Sniff data transmitted via SSL • Using sslsniff • Sniff Data • Log and analyze all transmitted data • Using Wireshark ( Ethereal ) • Get access to Computers • Using various Windows / Linux tools Introduction  Secure  Unsecure  Wardriving  Conclusion

  21. Conclusion • Secure your wireless network properly! • Don‘t rely on • Hidden SSID • MAC filter • Deactivated DHCP • WEP • Use a proper encryption • WPA / WPA2 ( choose a strong password ) • VPN ( secure with multi user ) Introduction  Secure  Unsecure  Wardriving  Conclusion

  22. Wireless Security Thanks for your attention. Any Question? Frank Pfleger mail@frankpfleger.com Introduction  Secure  Unsecure  Wardriving  Conclusion
