Presentation Transcript

  1. TiAlN/CrN 奈米結構多層硬膜 電漿製程與分析研究室 指導教授 張銀祐

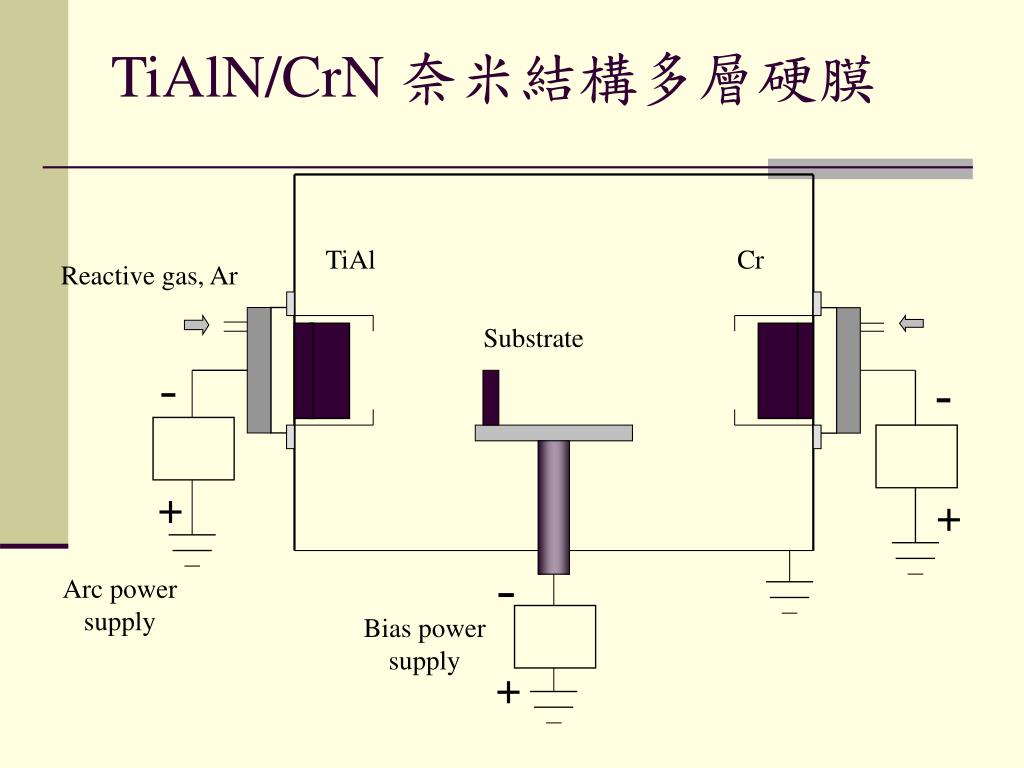

  2. TiAl Cr Reactive gas, Ar Substrate - - + + - Arc power supply Bias power supply + TiAlN/CrN 奈米結構多層硬膜

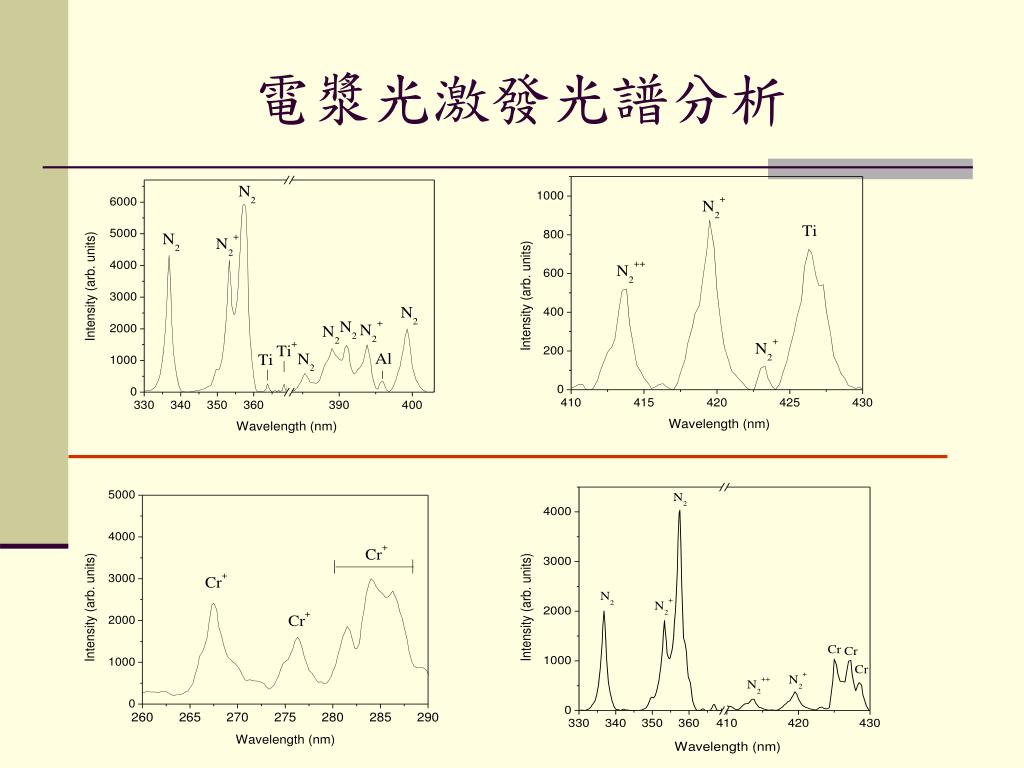

  3. 電漿光激發光譜分析

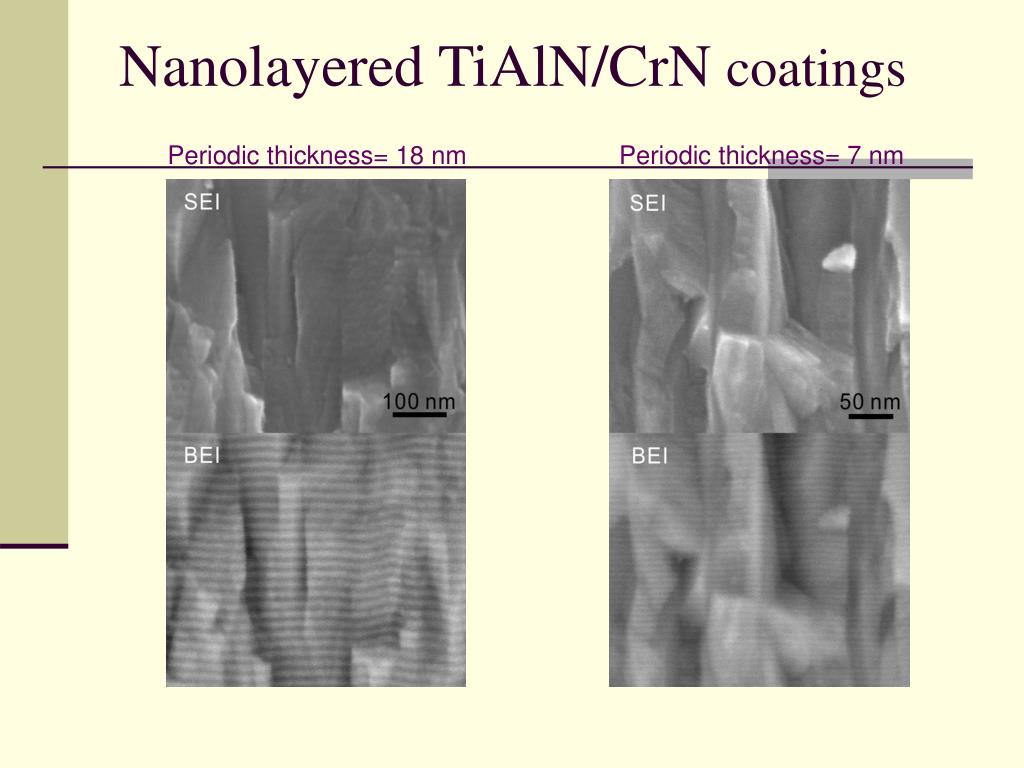

  4. Nanolayered TiAlN/CrN coatings Periodic thickness= 18 nm Periodic thickness= 7 nm

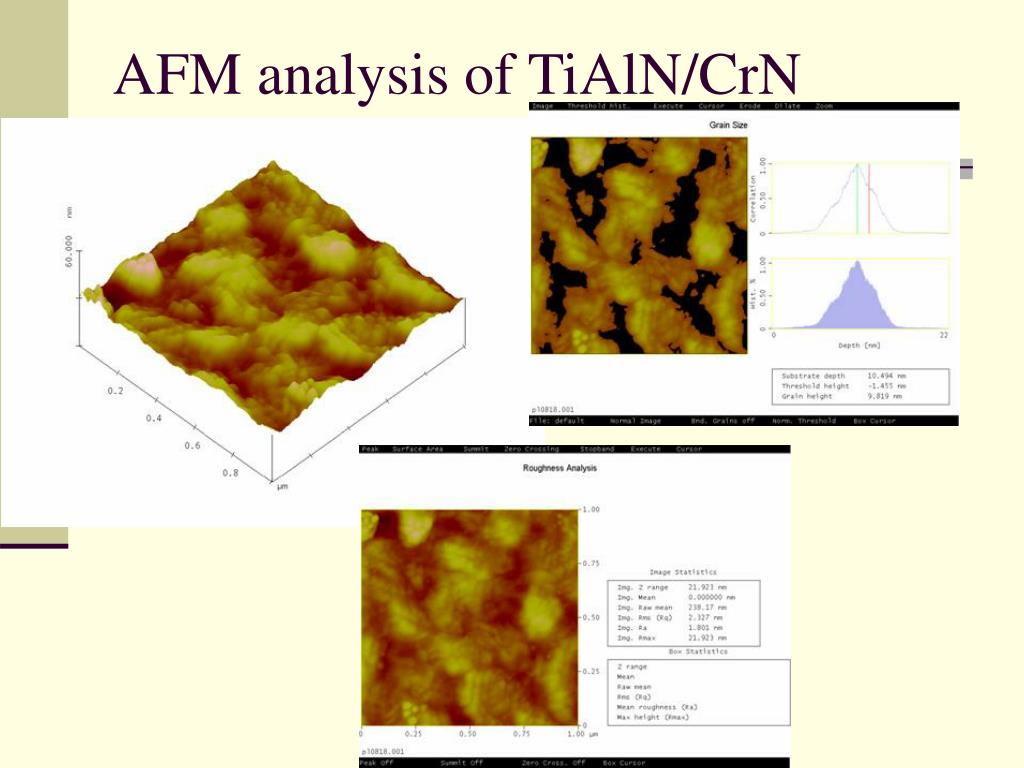

  5. AFM analysis of TiAlN/CrN

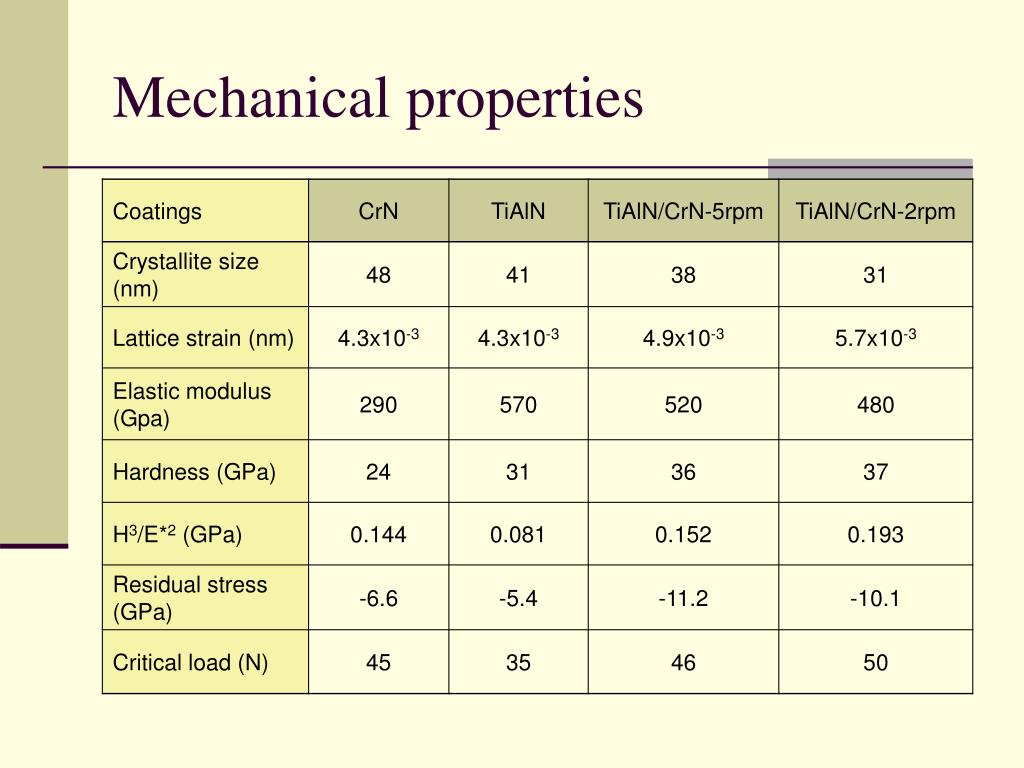

  6. Mechanical properties
