Advanced Home Area Network (HAN) Integration for Utility Meter Data Management

This presentation outlines the integration of Home Area Networks (HAN) with advanced utility meter technologies. It discusses the potential for data exchange methods, including the implementation of gateways and collectors for utility meters, and highlights essential features like emergency notifications and pricing signals. The focus is on facilitating two-way communication between consumer-owned devices and utility providers through various protocols like Zigbee and Wi-Fi, enhancing overall energy management and reliability.

redford
Télécharger la présentation

Advanced Home Area Network (HAN) Integration for Utility Meter Data Management

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

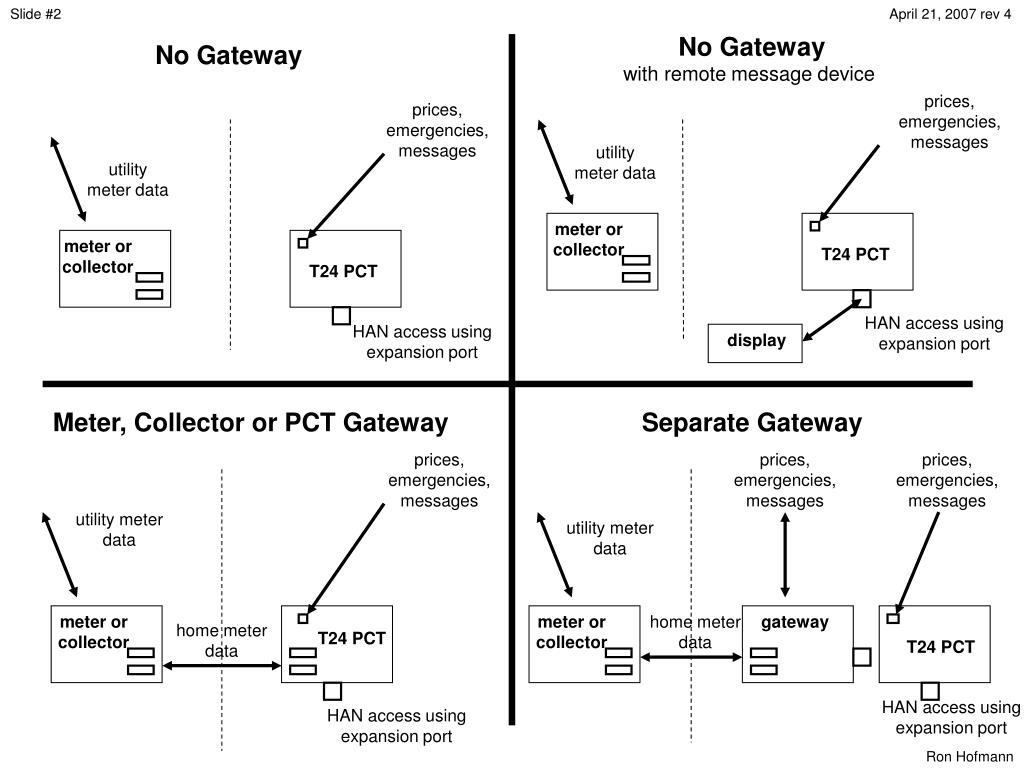

  1. Slide #2 April 21, 2007 rev 4 No Gatewaywith remote message device No Gateway prices,emergencies,messages prices,emergencies,messages utility meter data utility meter data meter or collector meter or collector T24 PCT T24 PCT HAN access using expansion port HAN access using expansion port display Meter, Collector or PCT Gateway Separate Gateway prices, emergencies, messages prices, emergencies, messages prices, emergencies, messages utility meter data utility meter data meter or collector meter or collector home meter data gateway home meter data T24 PCT T24 PCT HAN access using expansion port HAN access using expansion port Ron Hofmann

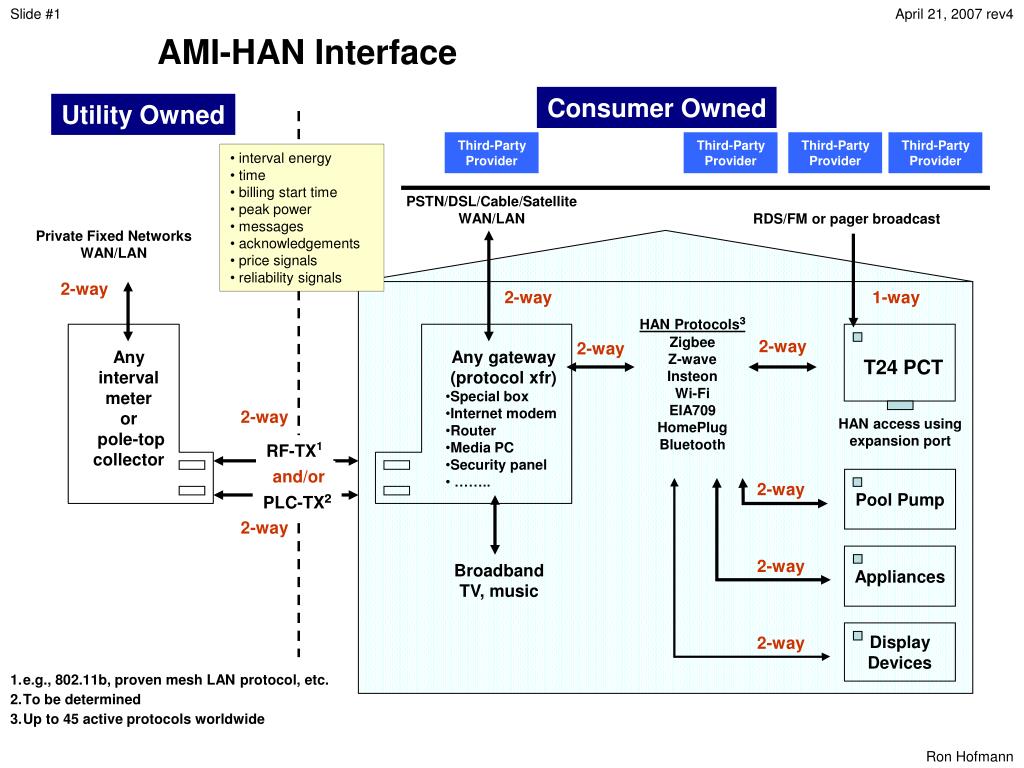

  2. Slide #1 April 21, 2007 rev4 Pool Pump Appliances Display Devices AMI-HAN Interface Consumer Owned Utility Owned Third-Party Provider Third-Party Provider Third-Party Provider Third-Party Provider • interval energy • time • billing start time • peak power • messages • acknowledgements • price signals • reliability signals PSTN/DSL/Cable/Satellite WAN/LAN RDS/FM or pager broadcast Private Fixed Networks WAN/LAN 2-way 2-way 1-way HAN Protocols³ Zigbee Z-wave Insteon Wi-Fi EIA709 HomePlug Bluetooth 2-way 2-way Anyintervalmeter or pole-top collector • Any gateway (protocol xfr) • Special box • Internet modem • Router • Media PC • Security panel • …….. T24 PCT 2-way HAN access using expansion port RF-TX1 and/or 2-way PLC-TX² 2-way Broadband TV, music 2-way 2-way • e.g., 802.11b, proven mesh LAN protocol, etc. • To be determined • Up to 45 active protocols worldwide Ron Hofmann
