  1. Mobile Programming Lecture 14 Communicating via the Internet

  2. Agenda • A look at HTML • HttpUrlConnection • HttpGet • A more in-depth look at XML • Introducing JSON • Introducing Web APIs • ProgrammableWeb.com

  3. A look at HTML • Go to http://www.imdb.com and search for your favorite movie • Right click on the page and view the source • Not surprisingly, you will find that the source behind the page is not easy to read

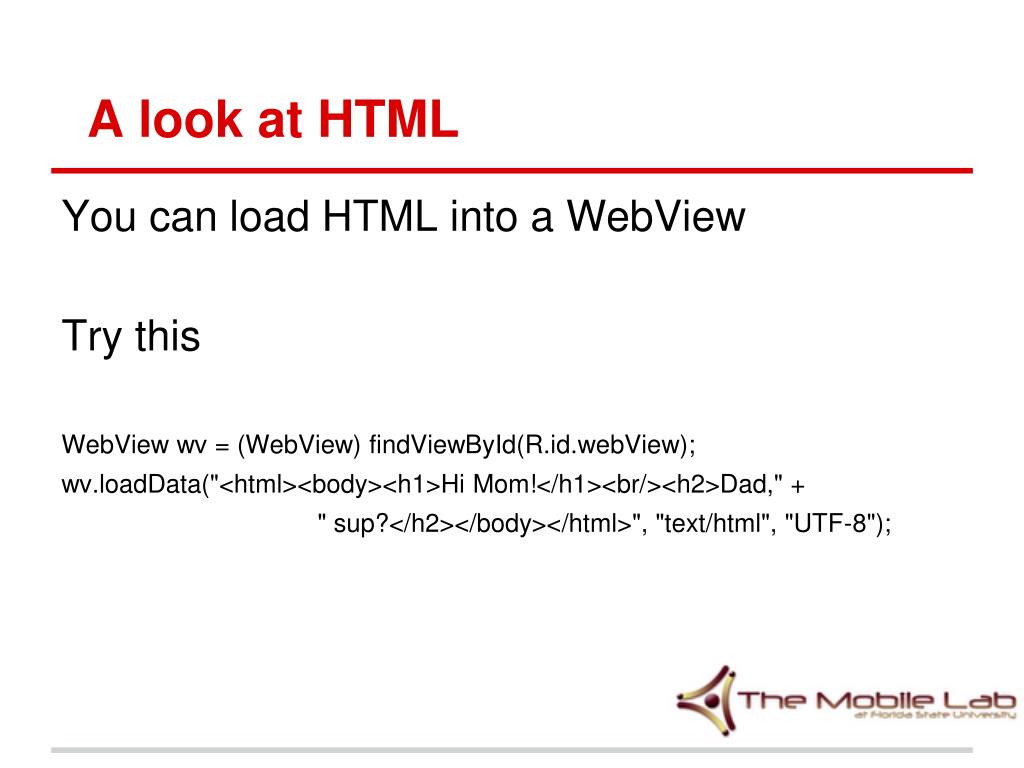

  4. A look at HTML You can load HTML into a WebView Try this WebView wv = (WebView) findViewById(R.id.webView); wv.loadData("<html><body><h1>Hi Mom!</h1><br/><h2>Dad," + " sup?</h2></body></html>", "text/html", "UTF-8");

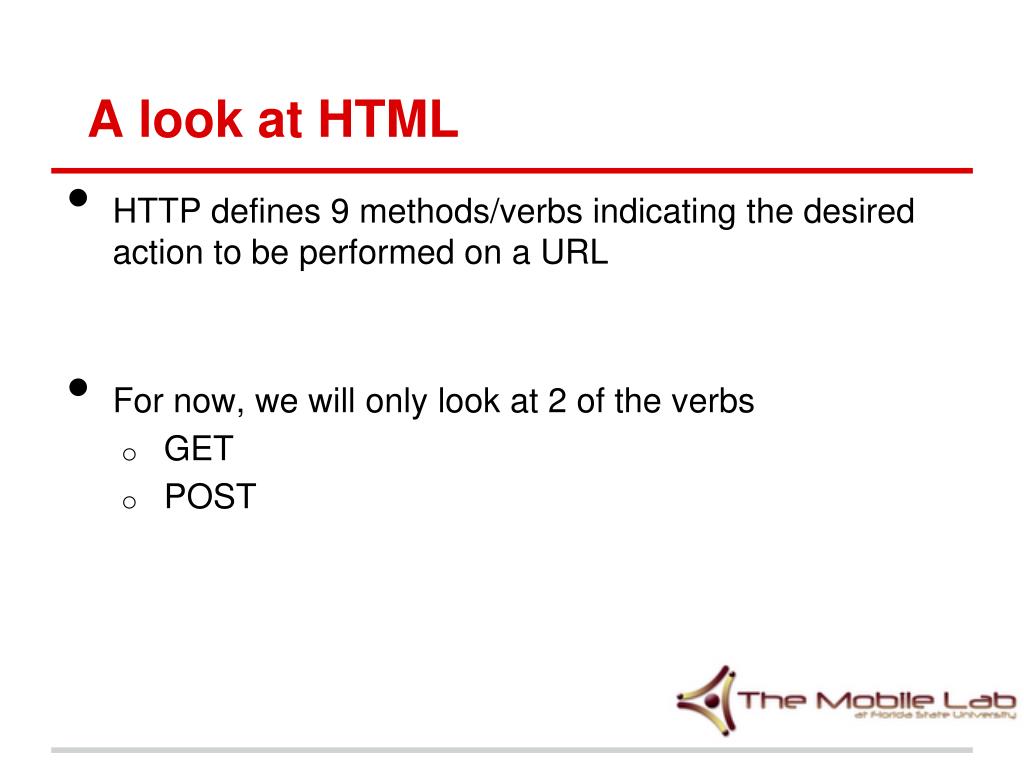

  5. A look at HTML • HTTP defines 9 methods/verbs indicating the desired action to be performed on a URL • For now, we will only look at 2 of the verbs • GET • POST

  6. A look at HTML • HTTP GET • Requests a representation of the specified resource. Requests using GET should only retrieve data and should have no other effect • HTTP POST • Submits data to be processed (e.g., from an HTML form) to the identified resource. The data is included in the body of the request.

  7. A look at HTML Get is like a query. You can usually modify the arguments to the query directly Not the same with POST!

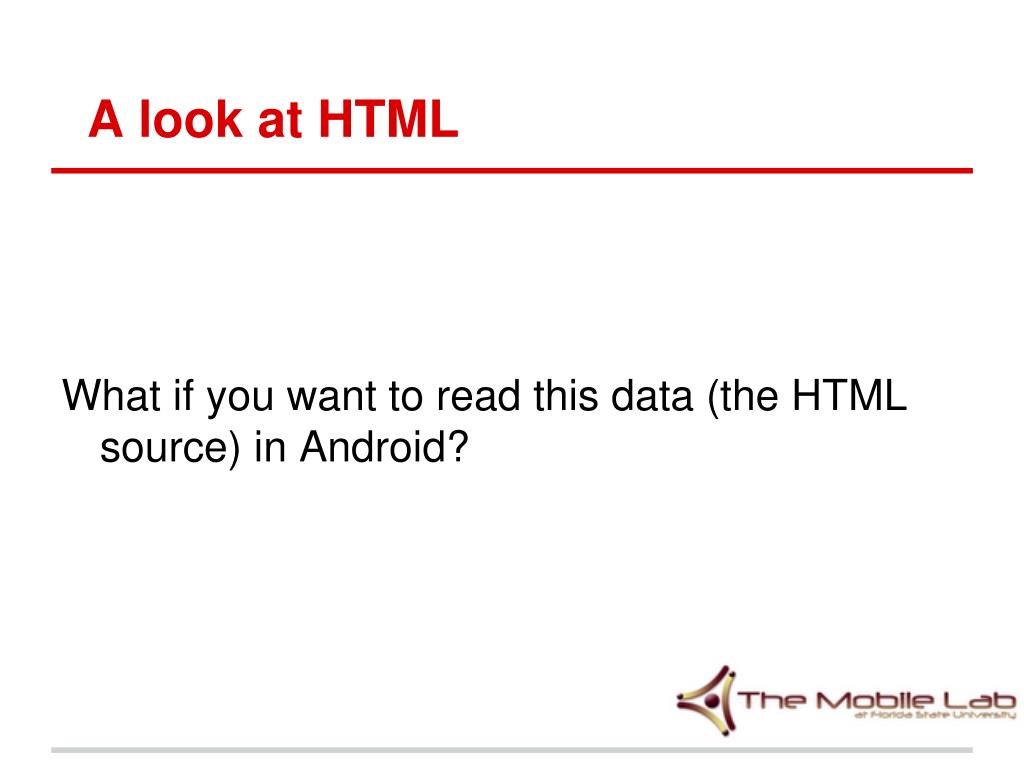

  8. A look at HTML What if you want to read this data (the HTML source) in Android?

  9. HttpUrlConnection • used to send and receive data over the web • data may be of any type and length

  10. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); }

  11. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } We will use this WebView to display a page

  12. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } We need to run network routines on a separate thread, otherwise we will get Exceptions

  13. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } To run a block of code on a separate thread (i.e., not on the UI aka main thread)

  14. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Create an instance of Thread

  15. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Pass an anonymous inner Runnable class as the argument to the Thread constructor

  16. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Override the run() method of Runnable

  17. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Add your code block to the run() method

  18. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Call start() on the Thread

  19. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } URL object identifies the location of an Internet resource

  20. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } HttpURLConnection used to (send and) receive data over the Internet

  21. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Get an instance of it by calling openConnection() on the URL

  22. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Get an InputStream for reading in the data

  23. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } A one-liner that I stole from here for reading in all of the data using the InputStream

  24. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } Release the resources held by the connection

  25. HttpUrlConnection @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); wv = (WebView) findViewById(R.id.webView); new Thread(new Runnable() { @Override public void run() { URL url = new URL("http://mobile.cs.fsu.edu/"); HttpURLConnection urlConnection = (HttpURLConnection) url.openConnection(); InputStream in = new BufferedInputStream(urlConnection.getInputStream()); data = new java.util.Scanner(in).useDelimiter("\\A").next(); urlConnection.disconnect(); wv.loadData(data, "text/html", "UTF-8"); } }).start(); } data should now contain the HTML returned by the URL. We load the data into the WebView

  26. A look at HTML HTML tells the browser how the server wants to display information to the user • How would the server send this information to your device, efficiently?

  27. HttpUrlConnection See HttpUrlConnectionExample.tar

  28. HttpUrlConnection What happens if we try to open a connection to an invalid URL? URL url = new URL("http://mobiles.cs.fsu.edu/"); with an extra "s" after mobile, instead of URL url = new URL("http://mobile.cs.fsu.edu/");

  29. HttpUrlConnection We need to check the HTTP response code for errors first, then act accordingly

  30. HttpGet HttpClient client = new DefaultHttpClient(); HttpGet request = new HttpGet(); request.setURI(new URI("http://mobile.cs.fsu.edu/androids")); HttpResponse response = client.execute(request); final int statusCode = response.getStatusLine().getStatusCode(); if(statusCode == 200) { in = new BufferedReader(new InputStreamReader(response.getEntity().getContent())); StringBuffer sb = new StringBuffer(""); String line = ""; String NL = System.getProperty("line.separator"); while ((line = in.readLine()) != null) sb.append(line + NL); in.close(); browser.loadData(sb.toString(), "text/html", "UTF-8"); }

  31. HttpGet HttpClient client = new DefaultHttpClient(); HttpGet request = new HttpGet(); request.setURI(new URI("http://mobile.cs.fsu.edu/androids")); HttpResponse response = client.execute(request); final int statusCode = response.getStatusLine().getStatusCode(); if(statusCode == 200) { in = new BufferedReader(new InputStreamReader(response.getEntity().getContent())); StringBuffer sb = new StringBuffer(""); String line = ""; String NL = System.getProperty("line.separator"); while ((line = in.readLine()) != null) sb.append(line + NL); in.close(); browser.loadData(sb.toString(), "text/html", "UTF-8"); } This takes care of a bunch of mumbo jumbo that you don't want to deal with

  32. HttpGet HttpClient client = new DefaultHttpClient(); HttpGet request = new HttpGet(); request.setURI(new URI("http://mobile.cs.fsu.edu/androids")); HttpResponse response = client.execute(request); final int statusCode = response.getStatusLine().getStatusCode(); if(statusCode == 200) { in = new BufferedReader(new InputStreamReader(response.getEntity().getContent())); StringBuffer sb = new StringBuffer(""); String line = ""; String NL = System.getProperty("line.separator"); while ((line = in.readLine()) != null) sb.append(line + NL); in.close(); browser.loadData(sb.toString(), "text/html", "UTF-8"); } Use HttpGet to retrieve whatever information is identified by the request-URI

  33. HttpGet HttpClient client = new DefaultHttpClient(); HttpGet request = new HttpGet(); request.setURI(new URI("http://mobile.cs.fsu.edu/androids")); HttpResponse response = client.execute(request); final int statusCode = response.getStatusLine().getStatusCode(); if(statusCode == 200) { in = new BufferedReader(new InputStreamReader(response.getEntity().getContent())); StringBuffer sb = new StringBuffer(""); String line = ""; String NL = System.getProperty("line.separator"); while ((line = in.readLine()) != null) sb.append(line + NL); in.close(); browser.loadData(sb.toString(), "text/html", "UTF-8"); } set the URI!

  34. HttpGet Check this link out to learn more about status codes. 200 means OK! HttpClient client = new DefaultHttpClient(); HttpGet request = new HttpGet(); request.setURI(new URI("http://mobile.cs.fsu.edu/androids")); HttpResponse response = client.execute(request); final int statusCode = response.getStatusLine().getStatusCode(); if(statusCode == 200) { in = new BufferedReader(new InputStreamReader(response.getEntity().getContent())); StringBuffer sb = new StringBuffer(""); String line = ""; String NL = System.getProperty("line.separator"); while ((line = in.readLine()) != null) sb.append(line + NL); in.close(); browser.loadData(sb.toString(), "text/html", "UTF-8"); }

  35. HttpGet HttpClient client = new DefaultHttpClient(); HttpGet request = new HttpGet(); request.setURI(new URI("http://mobile.cs.fsu.edu/androids")); HttpResponse response = client.execute(request); final int statusCode = response.getStatusLine().getStatusCode(); if(statusCode == 200) { in = new BufferedReader(new InputStreamReader(response.getEntity().getContent())); StringBuffer sb = new StringBuffer(""); String line = ""; String NL = System.getProperty("line.separator"); while ((line = in.readLine()) != null) sb.append(line + NL); in.close(); browser.loadData(sb.toString(), "text/html", "UTF-8"); } If the status is OK, then write the rest of the code that will handle a successful GET

  36. HttpGet HttpClient client = new DefaultHttpClient(); HttpGet request = new HttpGet(); request.setURI(new URI("http://mobile.cs.fsu.edu/androids")); HttpResponse response = client.execute(request); final int statusCode = response.getStatusLine().getStatusCode(); if(statusCode == 200) { in = new BufferedReader(new InputStreamReader(response.getEntity().getContent())); StringBuffer sb = new StringBuffer(""); String line = ""; String NL = System.getProperty("line.separator"); while ((line = in.readLine()) != null) sb.append(line + NL); in.close(); browser.loadData(sb.toString(), "text/html", "UTF-8"); } Then you may also wish to handle cases when the status is NOT OK.

  37. HttpGet See HttpGetExample.tar

  38. In-depth Look at XML • XML doesn't replace HTML • XML doesn't do anything • something is done with the XML • You can invent your own tags with XML

  39. In-depth Look at XML • Simplifies data sharing • Simplifies data transport • You can invent your own tags with XML

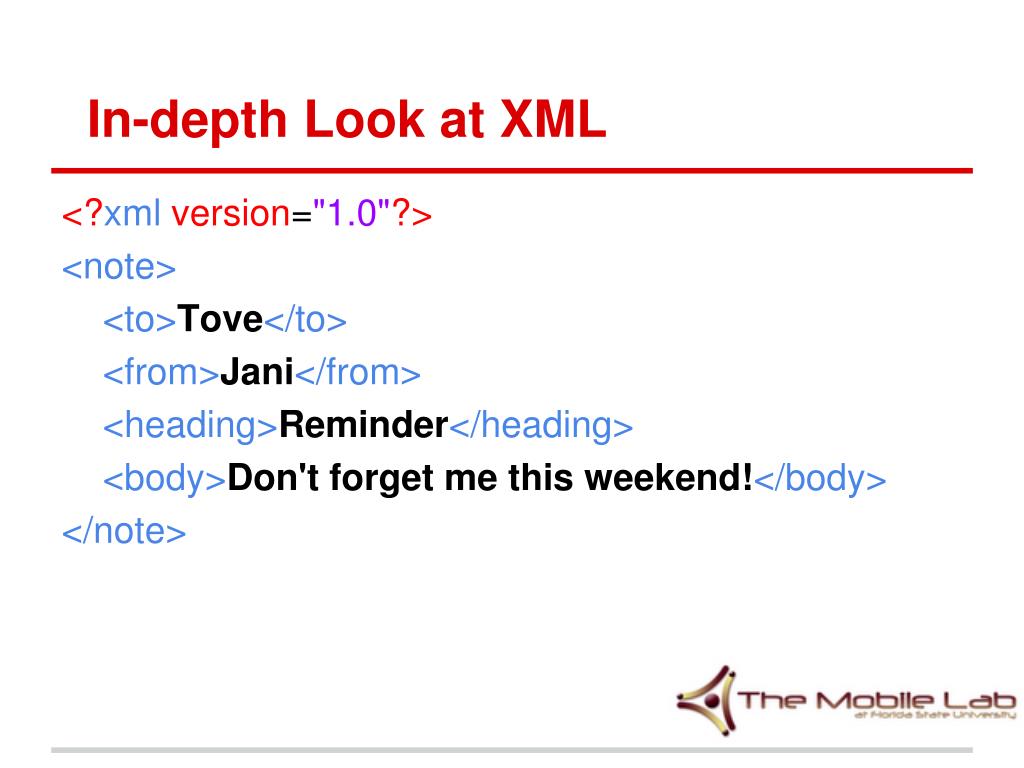

  40. In-depth Look at XML <?xmlversion="1.0"?> <note> <to>Tove</to> <from>Jani</from> <heading>Reminder</heading> <body>Don't forget me this weekend!</body> </note>

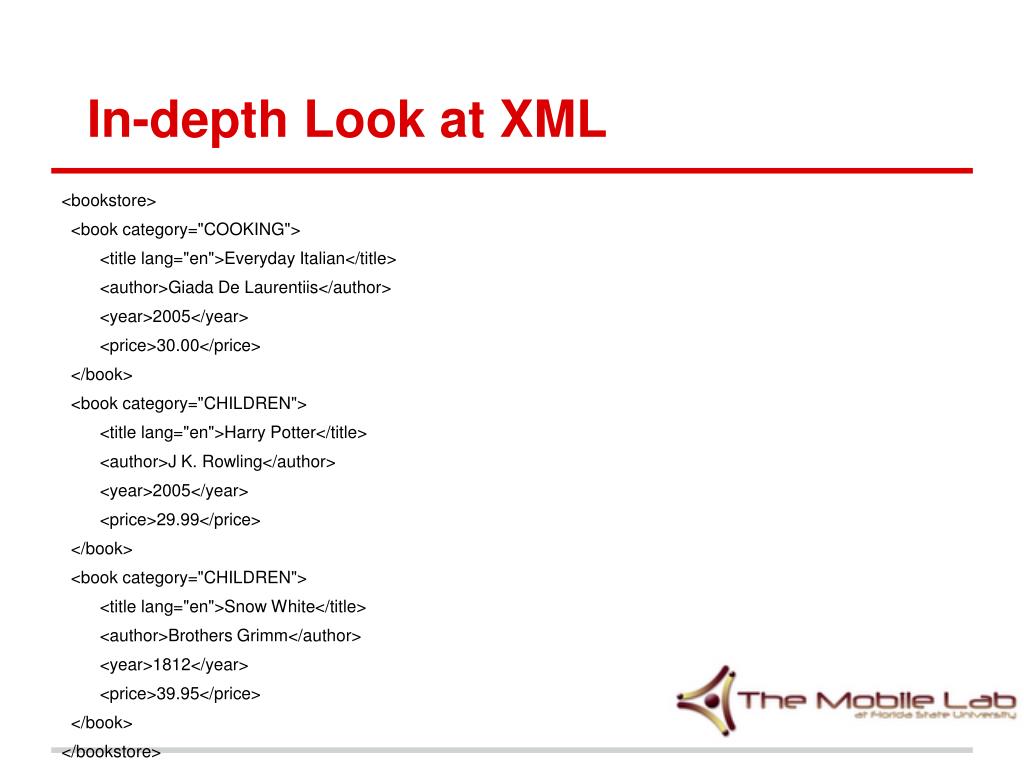

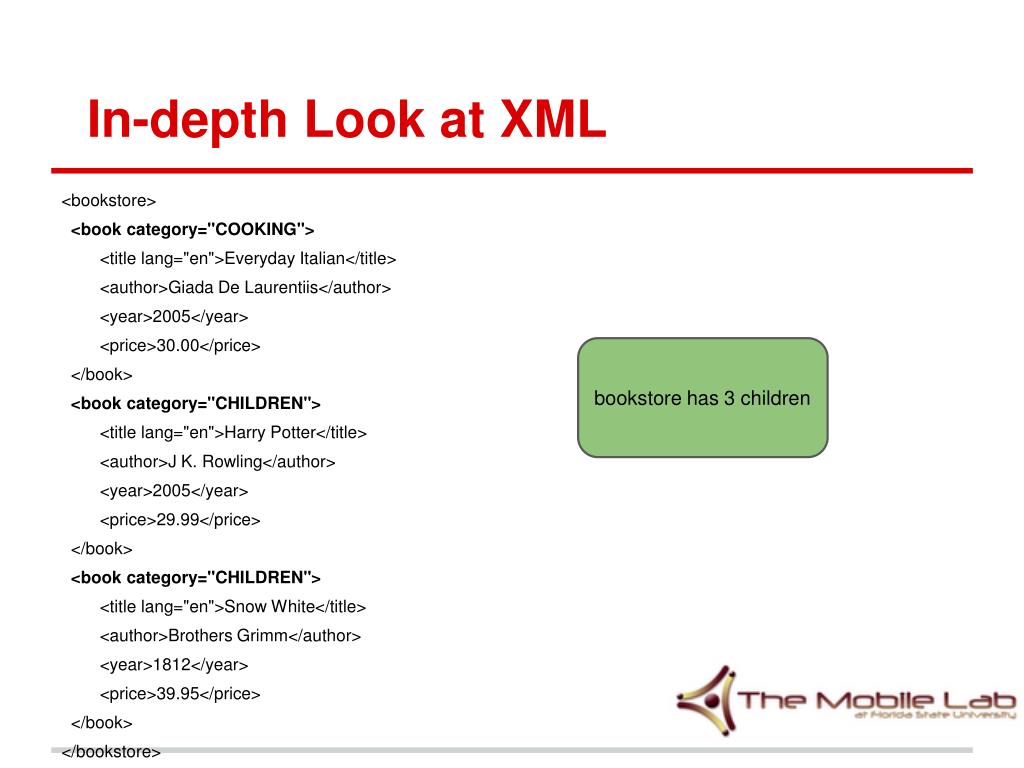

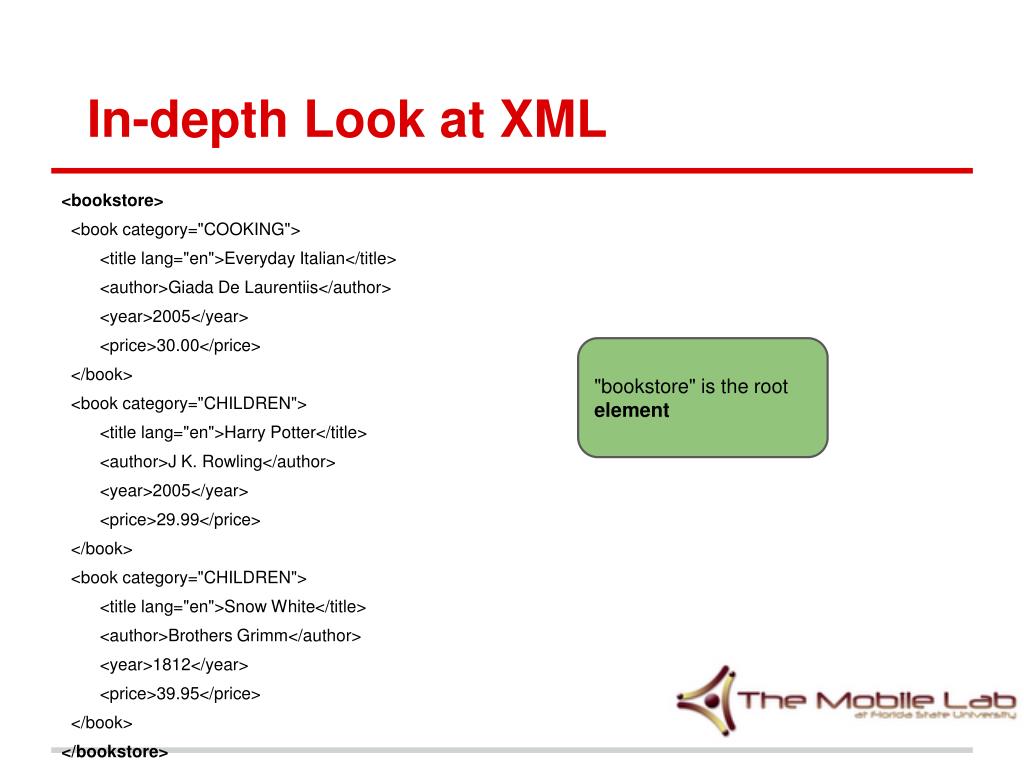

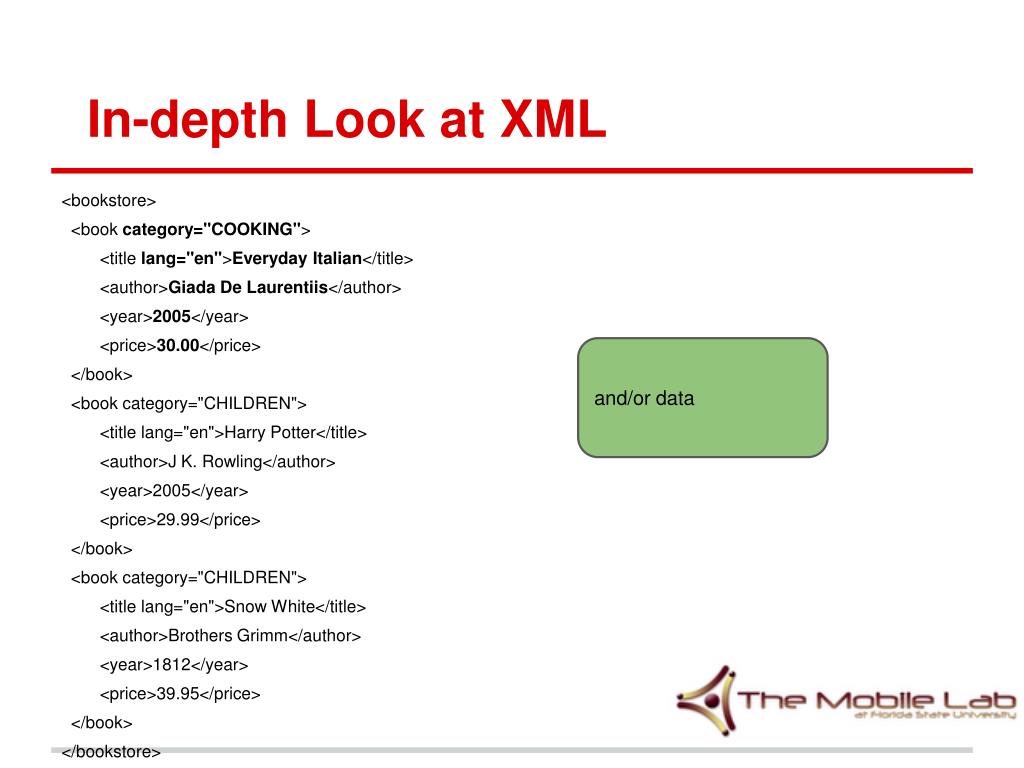

  41. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore>

  42. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore> "bookstore" is the root element

  43. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore> bookstore has 3 children

  44. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore> each one is a "sibling" to the other (title, author, year, price)

  45. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore> An element may have children (book element has 4 children in this case)

  46. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore> and or attributes

  47. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore> and/or data

  48. In-depth Look at XML <bookstore> <book category="COOKING"> <title lang="en">Everyday Italian</title> <author>Giada De Laurentiis</author> <year>2005</year> <price>30.00</price> </book> <book category="CHILDREN"> <title lang="en">Harry Potter</title> <author>J K. Rowling</author> <year>2005</year> <price>29.99</price> </book> <book category="CHILDREN"> <title lang="en">Snow White</title> <author>Brothers Grimm</author> <year>1812</year> <price>39.95</price> </book> </bookstore> attribute values must always be within double quotes

  49. In-depth Look at XML You can use an XML parser in Java to parse an XML file, in order to get the desired information

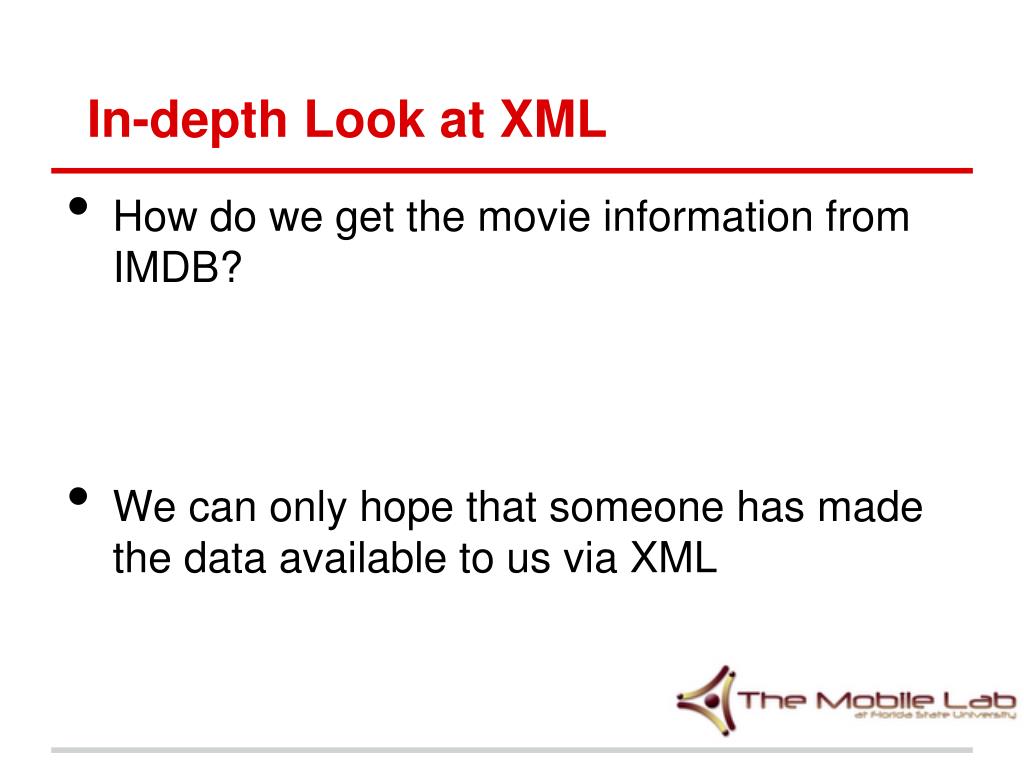

  50. In-depth Look at XML • How do we get the movie information from IMDB? • We can only hope that someone has made the data available to us via XML
