  1. Improving Shibboleth Origin Performance Walter Hoehn Internet2 Spring Member Meeting 2004

  2. Origin Transaction Overhead • 50-75% of transaction time falls into one of 3 categories • SSL (browser->HS & SHAR->AA) • Performance considerations are well understood • Multiple processors, load distribution, hardware accelerators • AA communication with backend data sources • Cost is variable, depending on infrastructure • Optimization is site dependant • We implemented caching in v1.0 • Signing Operations in HS (public key encryption) • Low hanging fruit

  3. Apache XML Security Library • Implements W3c XML Security standards • XML Encryption Syntax & Processing • XML Signature Syntax & Processing • Uses the JCA/JCE interfaces for crypto • Digitally signs SAML AuthN Assertions • Performance Bottleneck • Latency • Throughput • Library Optimizations included in 1.1

  4. JuiCE • JCE -> OpenSSL using JNI • Plugs into existing java apps without modification • Apache, here we come! • OpenSSL Engine

  5. Enough talk, show me the numbers… • Solaris - Sun Netra X1, 500mhz, 1gb RAM • 160.3 ms - Sun JCE Provider • 40.1 ms - JuiCE • OSX - Mac Dual 2ghz G5, 1gb RAM • 12.3 ms- Sun JCE Provider • 8.1 ms - JuiCE • Linux - 2.3 ghz Pentium 4, 1gb RAM • 30 ms- Sun JCE Provider • 9.4 ms - JuiCE

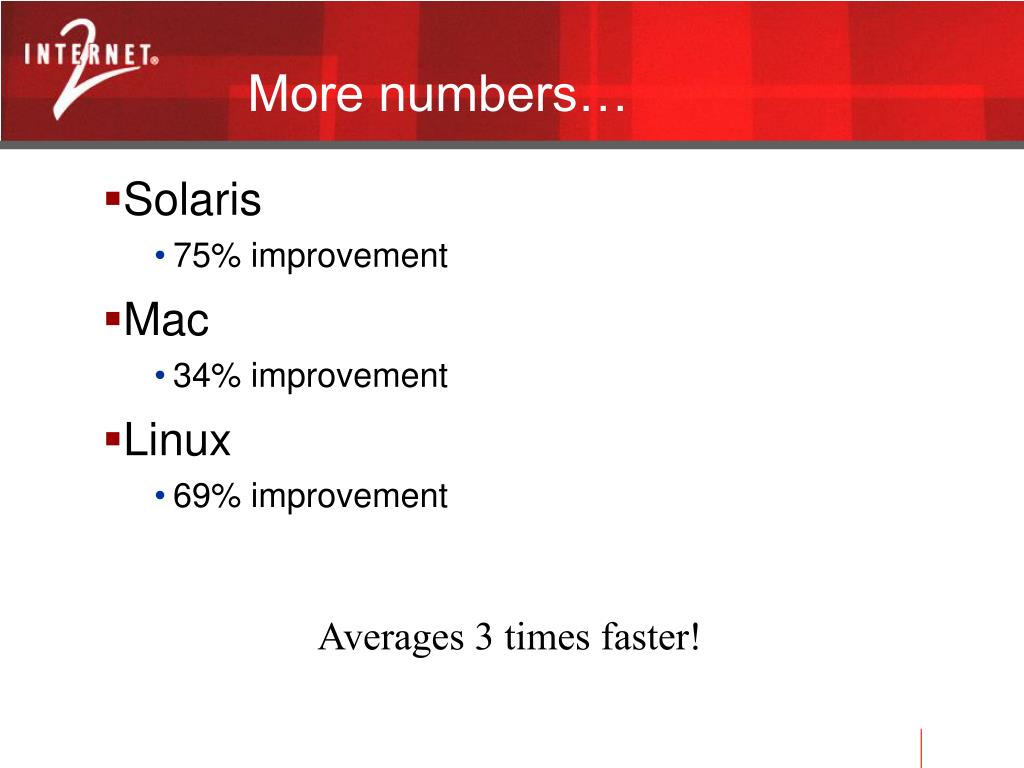

  6. More numbers… • Solaris • 75% improvement • Mac • 34% improvement • Linux • 69% improvement Averages 3 times faster!

  7. Where do we go from here? • Further development of JuiCE • Support for hardware crypto accelerators • Further optimization of XML Security Library • Shibboleth performance FAQ • Best practices for configuration • Hardware/Software platform recommendations • Metrics • Pitfalls

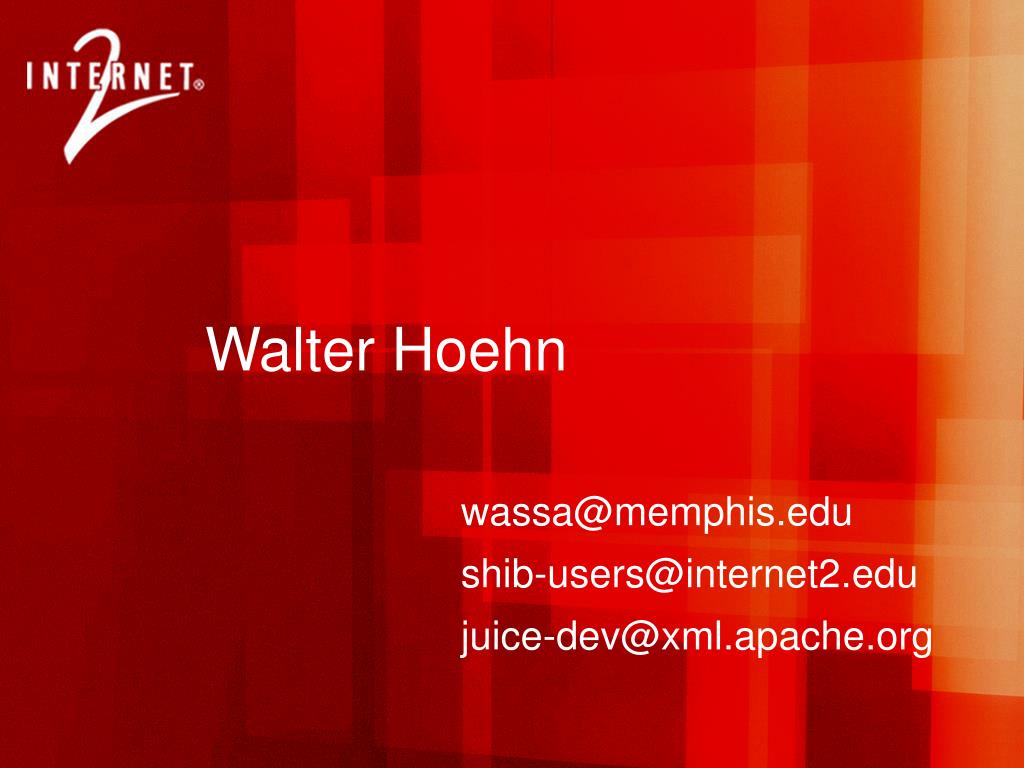

  8. Walter Hoehn wassa@memphis.edu shib-users@internet2.edu juice-dev@xml.apache.org
