  1. 국제 Working Group 활동 보고(Detector) Reported by Il H. Park (Ewha) Based on summary talks of LCWS05 • Brief Report on LCWS05 at SLAC • ILC Detector concept • Variety of Trackers, Calorimeters, Muons • Beam tests and Organization Korean ILC meeting, 건국대학교, 2005년4월1일

  2. Brief Report from LCWS05 • Please refer to our presentations at LCWS05 and summary talks on detector concepts, tracker, and calorimeter/muon (see the program who presented what) • Three detector groups are organized: SiD, LDC, GLD • Korean Involved Area and technology: Silicon tracker, Silicon Calorimeter, Scintillator Calorimeter • Korean activity(R&D on a tracker and calormeters, beam tests of Silicon calorimeter prototype) is now exposed largely to the ILC community, particularly Korean silicon experience draws a serious attention at LCWS05 • At this workshop, we agree on joint activity of Korean Silicon Calorimeter with CALICE group and possibly with SiD in parallel as well. Foresee a substantial progress from such collaborative works this year

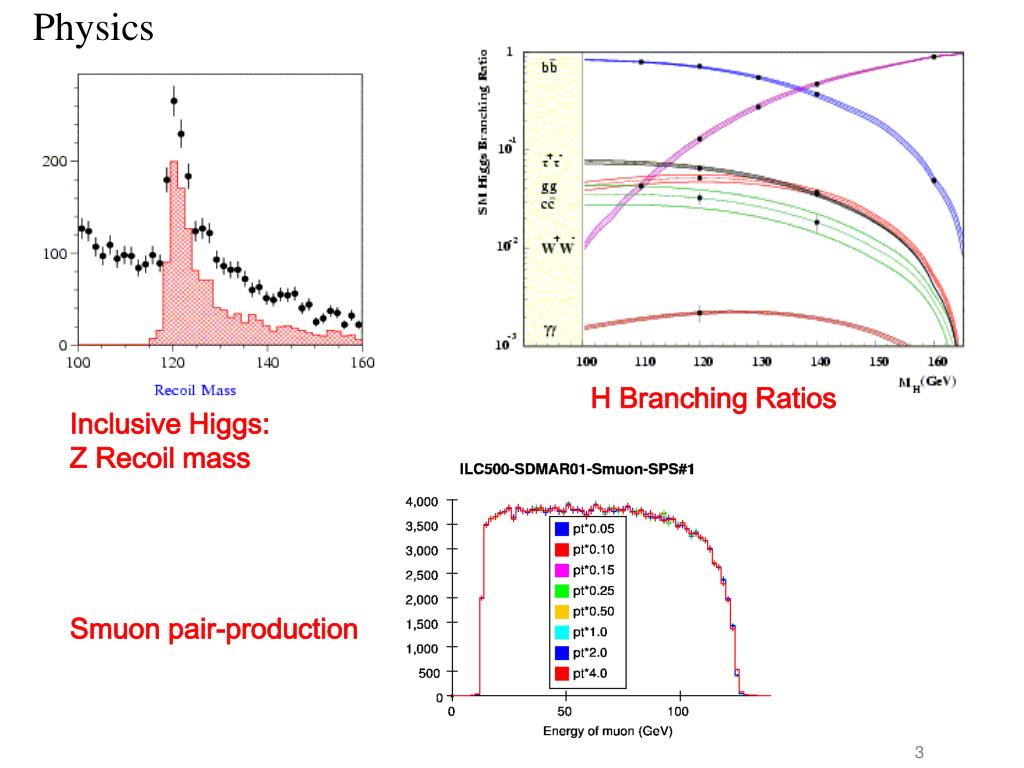

  3. Physics H Branching Ratios Inclusive Higgs: Z Recoil mass Smuon pair-production

  4. Basic design concept • Performance goal (common to all det. concepts) • Vertex Detector: • Tracking: • Jet energy res.:  Detector optimized for Particle Flow Algorithm (PFA)

  5. Tracker • Momentum resolution set by recoil mass analysis of • reconstruction and long-lived new particles (GMSB SUSY) • Multiple scattering effects • Forward tracking • Measurement of Ecm, differential luminosity and polarization using physics events Recoil Mass (GeV)

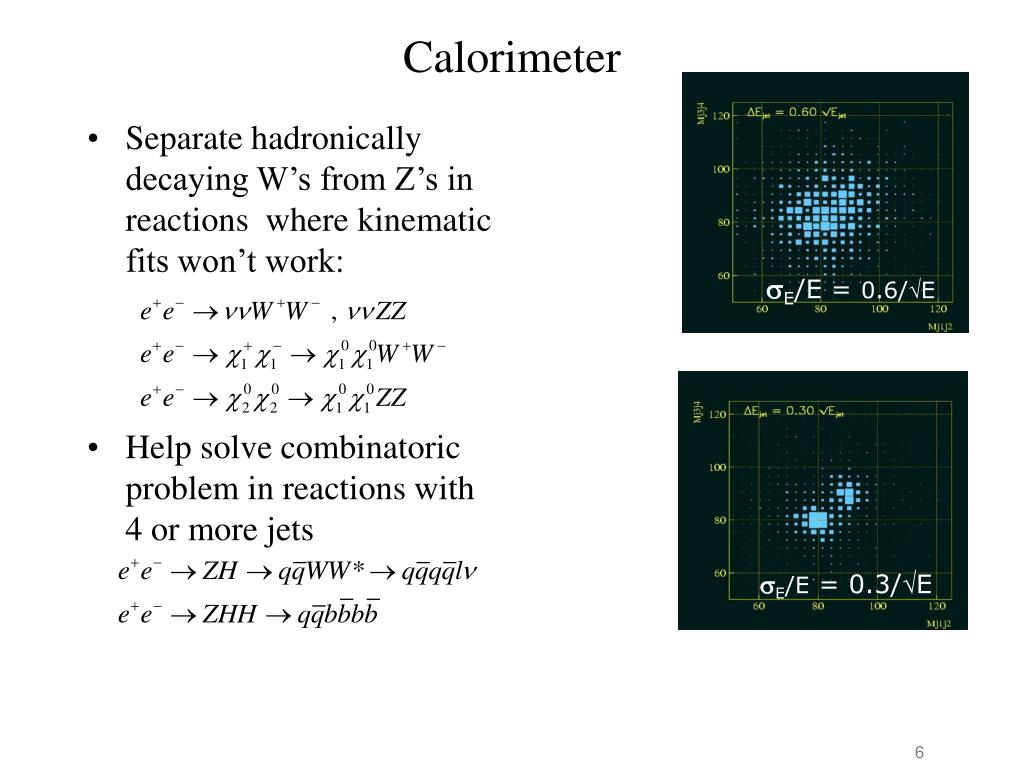

  6. Separate hadronically decaying W’s from Z’s in reactions where kinematic fits won’t work: Help solve combinatoric problem in reactions with 4 or more jets Calorimeter sE/E = 0.6/ÖE sE/E = 0.3/ÖE

  7. Three Detector Concepts SiD LDC GLD

  8. Comparison of parameters

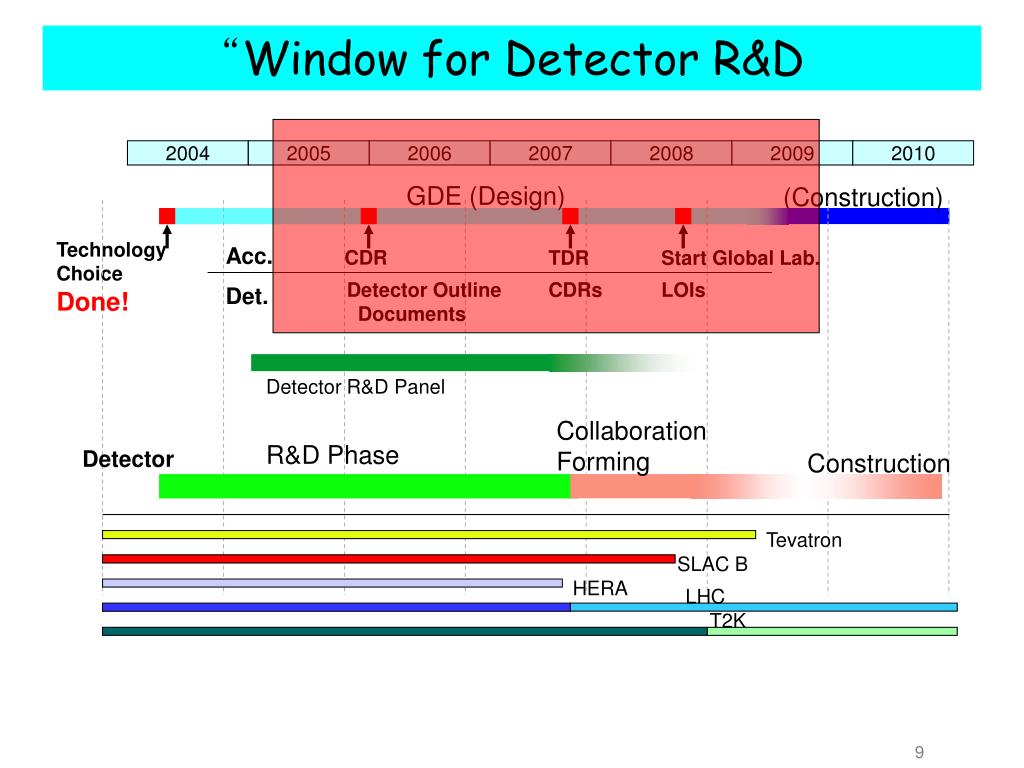

  9. “Window for Detector R&D 2004 2005 2006 2007 2008 2009 2010 GDE (Design) 　(Construction) Technology Choice Acc. CDR TDR Start Global Lab. Detector Outline Documents CDRs LOIs Det. Done! Detector R&D Panel Collaboration Forming R&D Phase Detector 　Construction Tevatron SLAC B HERA LHC T2K

  10. Review Tracking and VertexingJan Timmermans - NIKHEF • 32 presentations in total: • 12 vertex detector related • 10 on SI tracking • 10 on TPC R&D

  11. Vertex Detector • pixels ~ 20 x 20 μm2 • point resolution ~3 μm • material <0.1% X0 • 1st layer at ~1.5 cm • To keep occupancy below 1%: • readout ~20 times during bunch train or store signals • OR make pixels smaller ( FPCCD 5 x 5 μm2 ) • Many variants: CPCCD, FPCCD, DEPFET, MAPS, FAPS, SoI, ISIS • New at LCWS05: • (revolver)ISIS • Add time stamping (Baltay, Bashindzhagyan)

  12. Vertex Detector Options Y.Sugimoto - KEK • FPCCD • Accumulate hit signals for one train and read out between trains • Keep low pixel occupancy by increasing number of pixels by x20 with respect to “standard” pixel detector • As a result, pixel size should be as small as ~5x5mm2 • Epitaxial layer has to be fully depleted to minimize charge spread by diffusion • Operation at low temperature to keep dark current negligible (r.o. cycle=200ms) Tracking efficiency under beam background is critical issue; simulation needed.

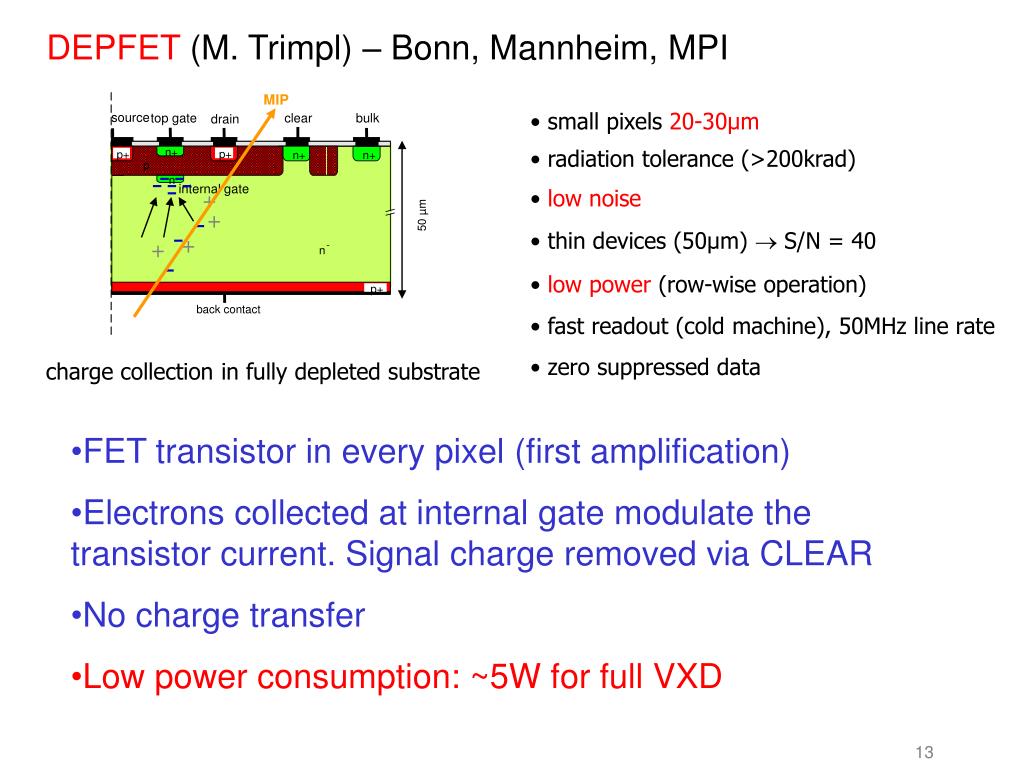

  13. + - - - - - - - + - + + - MIP source top gate clear bulk drain n+ p+ p+ n+ n+ p n internal gate 50 µm - n p+ back contact DEPFET (M. Trimpl) – Bonn, Mannheim, MPI • small pixels 20-30µm • radiation tolerance (>200krad) • low noise • thin devices (50µm) S/N = 40 • low power (row-wise operation) • fast readout (cold machine), 50MHz line rate • zero suppressed data charge collection in fully depleted substrate • FET transistor in every pixel (first amplification) • Electrons collected at internal gate modulate the transistor current. Signal charge removed via CLEAR • No charge transfer • Low power consumption: ~5W for full VXD

  14. Flexible APS 1 A FAPS Memory Cell #0 Column Output Memory Cell #1 RST_W SEL Memory Cell #9 Ibias Write amplifier J. Velthuis – UK MAPS • FAPS=Flexible APS • Every pixel has 10 deep pipeline • Designed for TESLA proposal. • Quick sampling during bunch train and readout in long period between bunch trains • S/N between 14.7 and 17.0

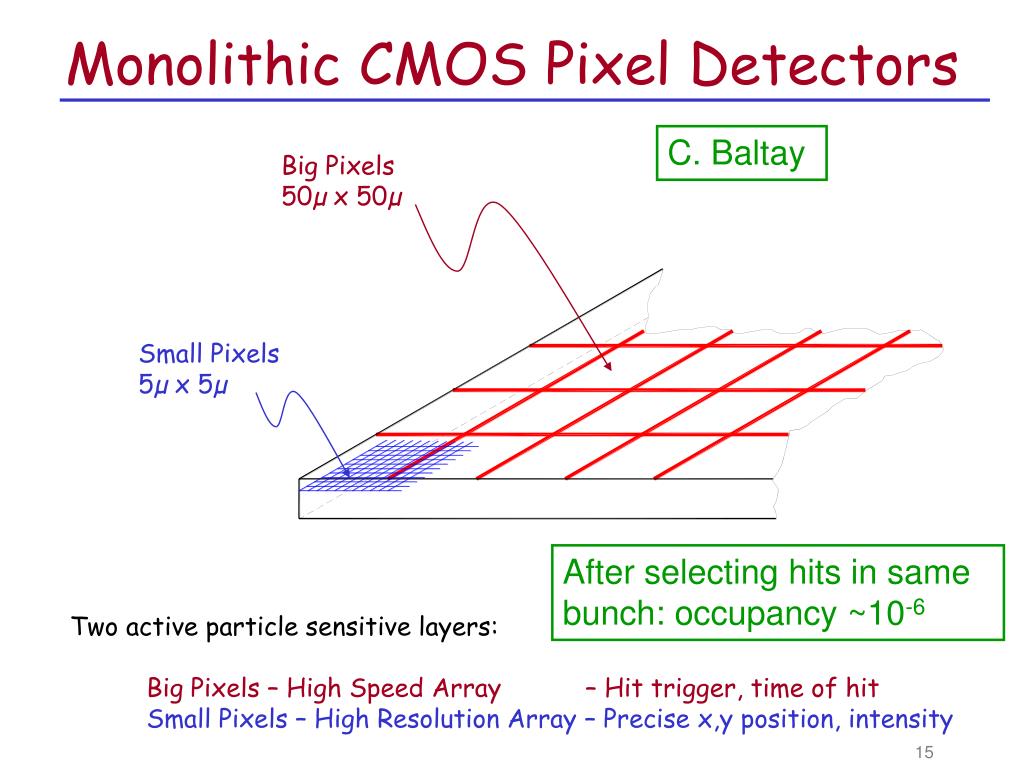

  15. Monolithic CMOS Pixel Detectors C. Baltay Big Pixels 50µ x 50µ Small Pixels 5µx 5µ After selecting hits in same bunch: occupancy ~10-6 Two active particle sensitive layers: Big Pixels – High Speed Array – Hit trigger, time of hit Small Pixels – High Resolution Array – Precise x,y position, intensity

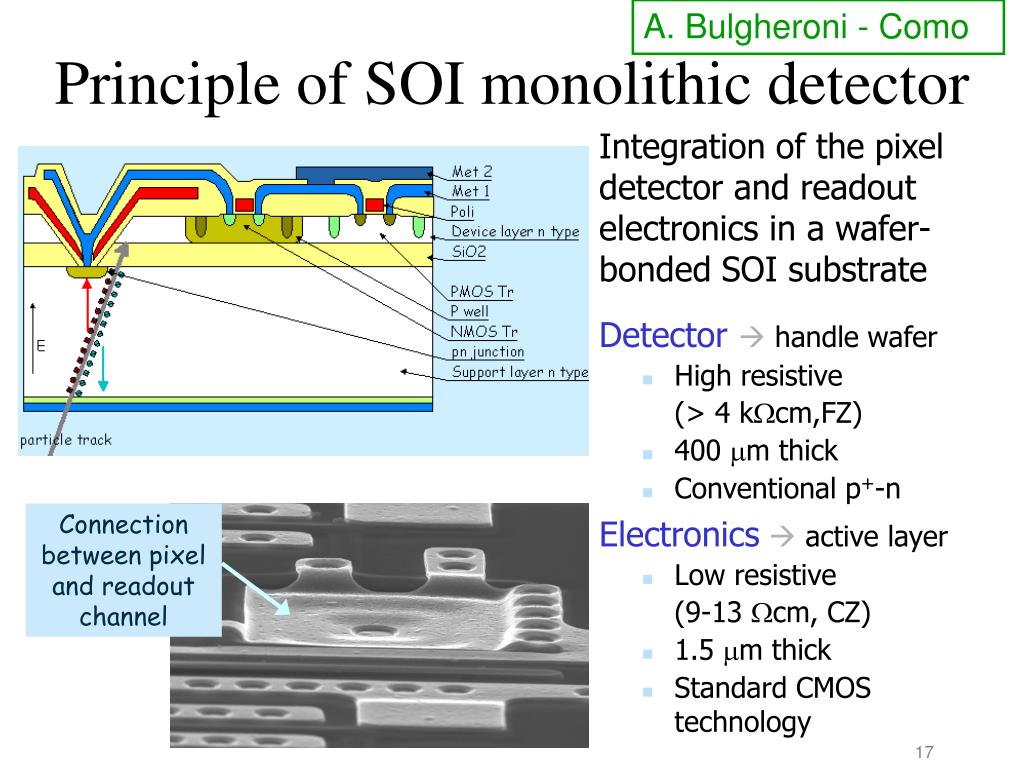

  16. Principle of SOI monolithic detector A. Bulgheroni - Como Integration of the pixel detector and readout electronics in a wafer-bonded SOI substrate Detector handle wafer • High resistive (> 4 kcm,FZ) • 400 m thick • Conventional p+-n Electronics active layer • Low resistive (9-13 cm, CZ) • 1.5 m thick • Standard CMOS technology Connection between pixel and readout channel

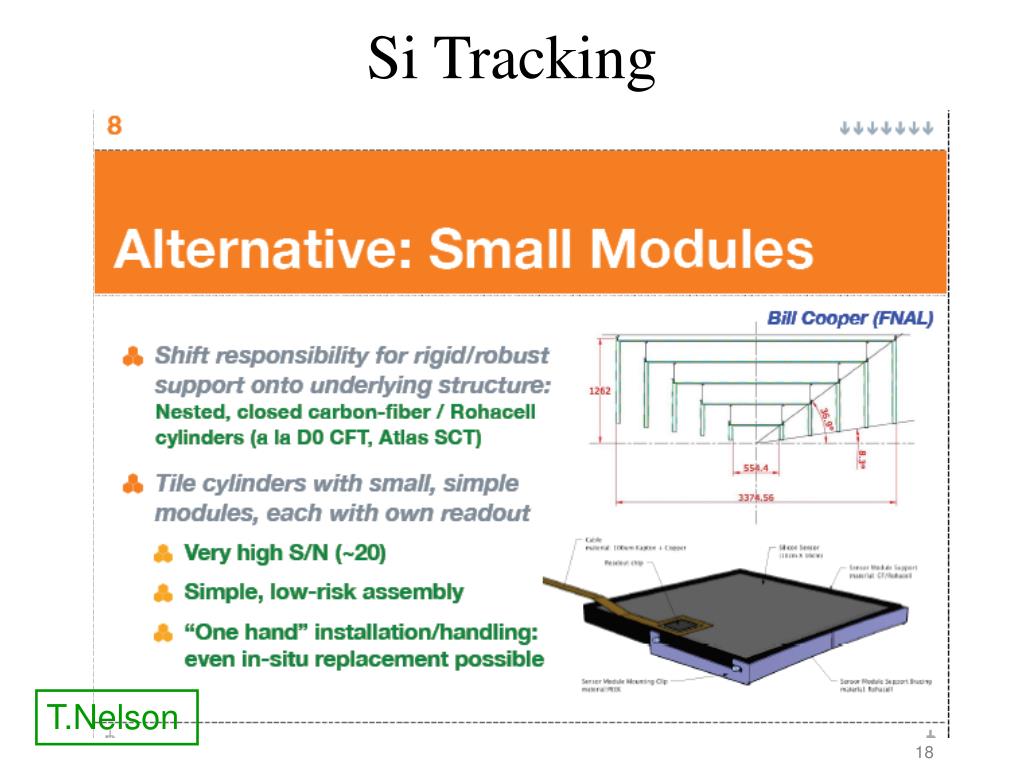

  17. Si Tracking T.Nelson

  18. Silicon Tracking System with a centralgaseous detectorThe Silicon Envelope concept = ensemble of Si-trackers surrounding the TPC (LC-DET-2003-013) The Si-FCH: TPC to calorimetry (SVX,FTD,(TPC),SiFCH) The FTD: Microvertex to SiFCH The SIT: Microvertex to TPC The SET: TPC to calorimetry (SVX, SIT, (TPC), SET) TPC Microvertex A. Savoy-Navarro

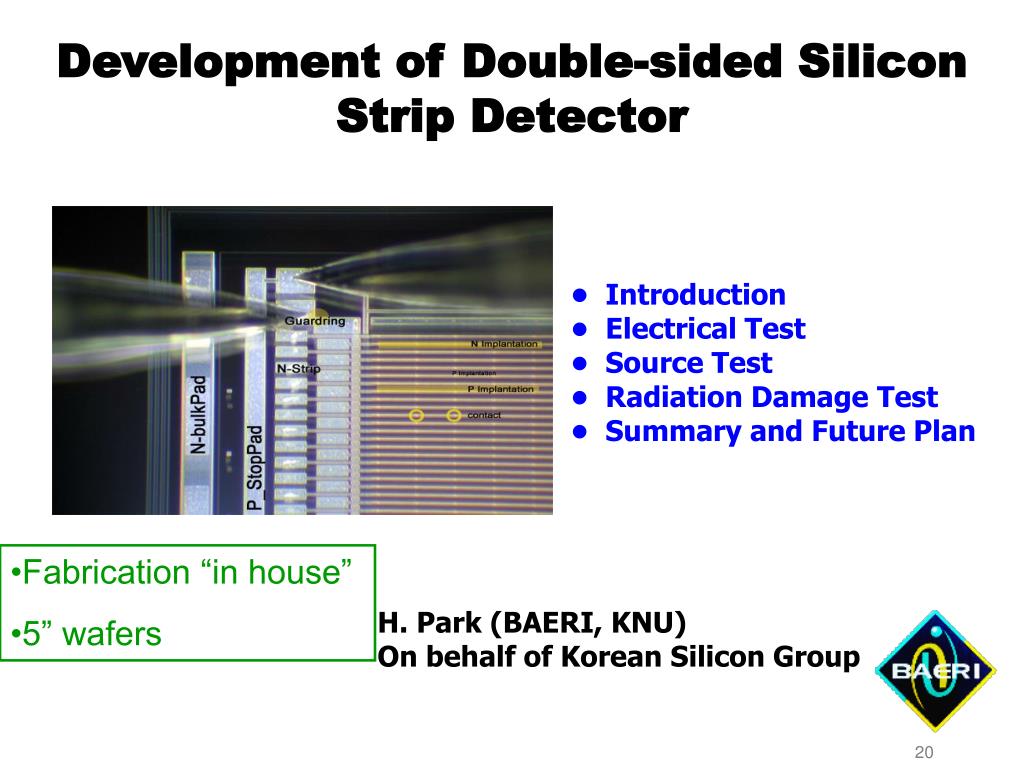

  19. Development of Double-sided Silicon Strip Detector • Introduction • Electrical Test • Source Test • Radiation Damage Test • Summary and Future Plan H. Park (BAERI, KNU) On behalf of Korean Silicon Group • Fabrication “in house” • 5” wafers

  20. Digital Active Pixel Array G.Bashindzhagyan N.Sinev LCWS 2005 G.Bashindzhagyan 25x25 μm2 pixels DAP Strip 1 DAP Strip 2 Position memory Time memory Position memory Time memory Position memory Time memory Position memory Time memory Position memory Time memory Position memory Time memory

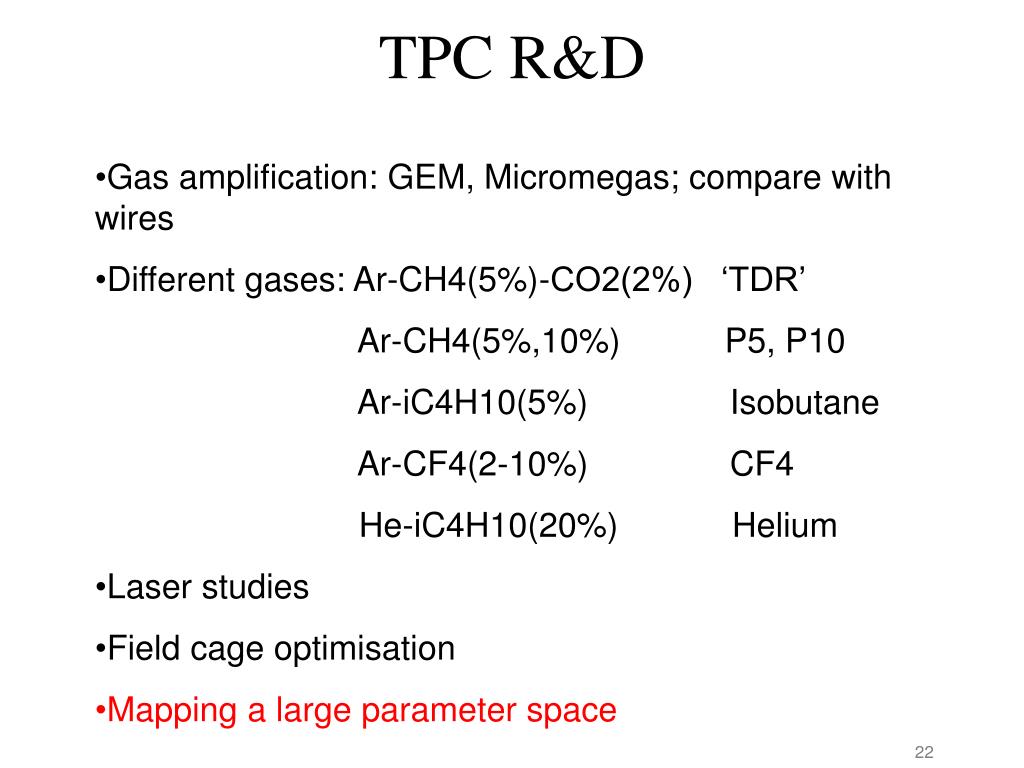

  21. TPC R&D • Gas amplification: GEM, Micromegas; compare with wires • Different gases: Ar-CH4(5%)-CO2(2%) ‘TDR’ • Ar-CH4(5%,10%) P5, P10 • Ar-iC4H10(5%) Isobutane • Ar-CF4(2-10%) CF4 • He-iC4H10(20%) Helium • Laser studies • Field cage optimisation • Mapping a large parameter space

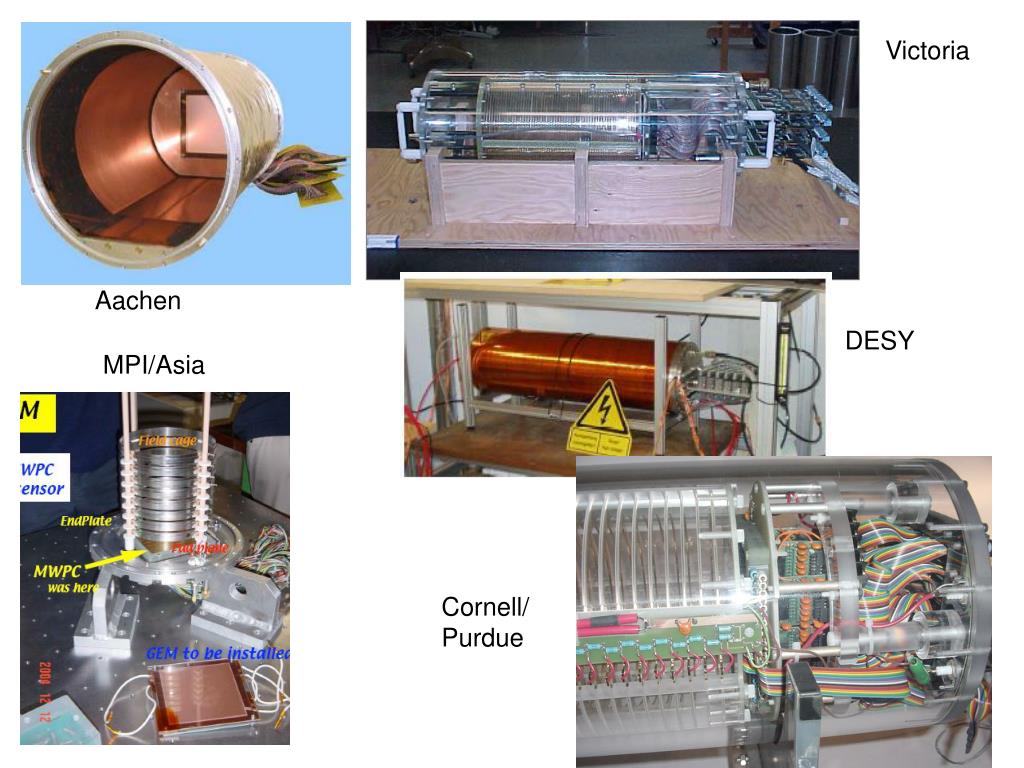

  22. Victoria Aachen DESY MPI/Asia Cornell/ Purdue

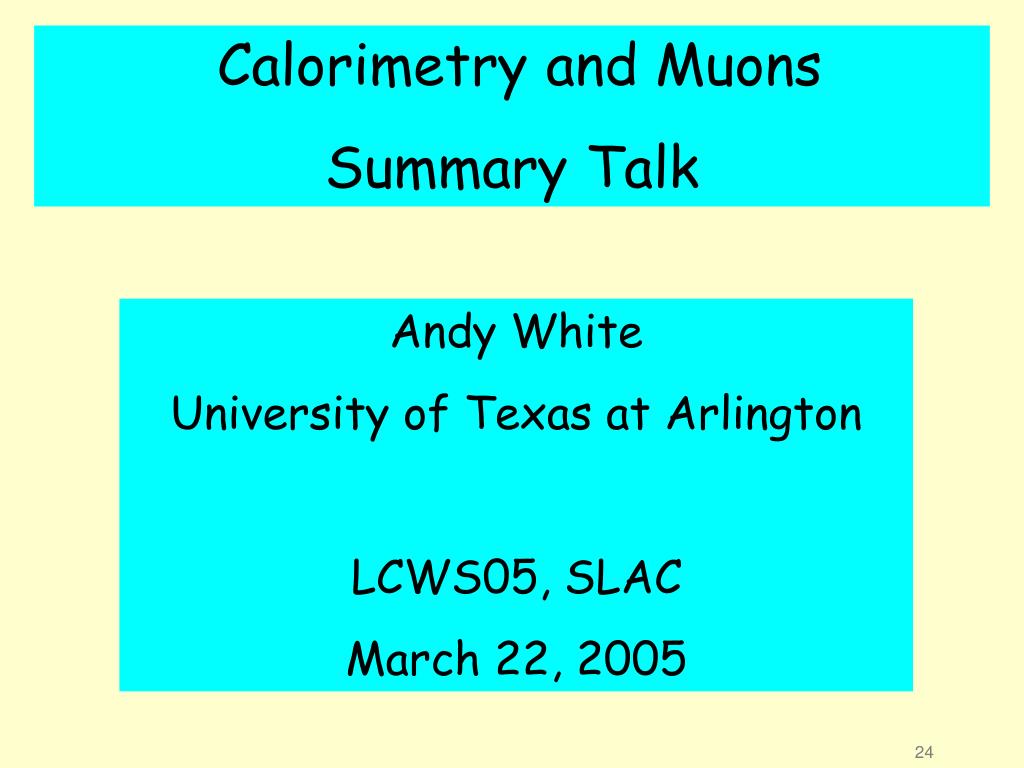

  23. Calorimetry and Muons Summary Talk Andy White University of Texas at Arlington LCWS05, SLAC March 22, 2005

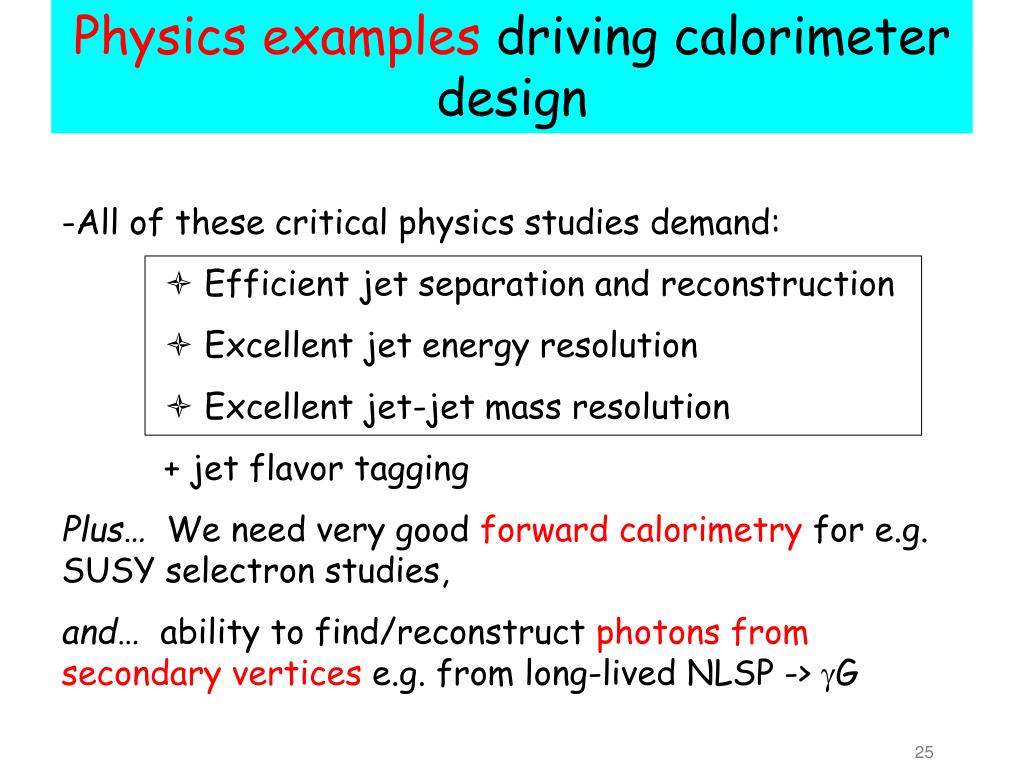

  24. Physics examples driving calorimeter design • All of these critical physics studies demand: •  Efficient jet separation and reconstruction •  Excellent jet energy resolution •  Excellent jet-jet mass resolution • + jet flavor tagging • Plus… We need very good forward calorimetry for e.g. SUSY selectron studies, • and… ability to find/reconstruct photons from secondary vertices e.g. from long-lived NLSP -> G

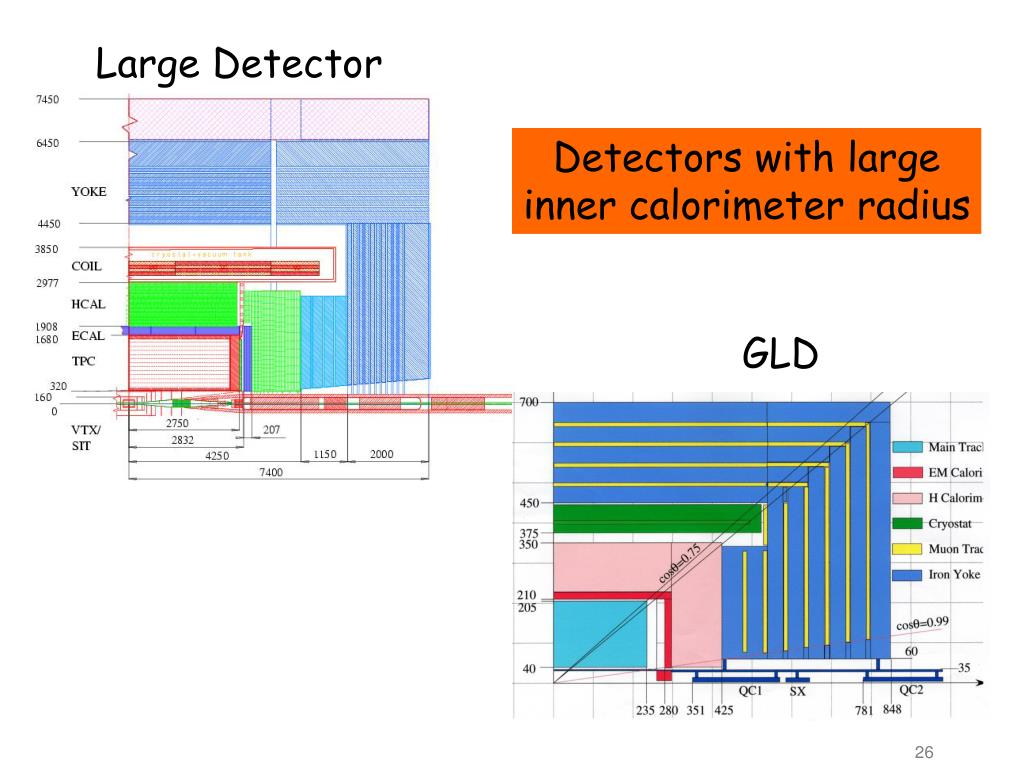

  25. Large Detector Detectors with large inner calorimeter radius GLD

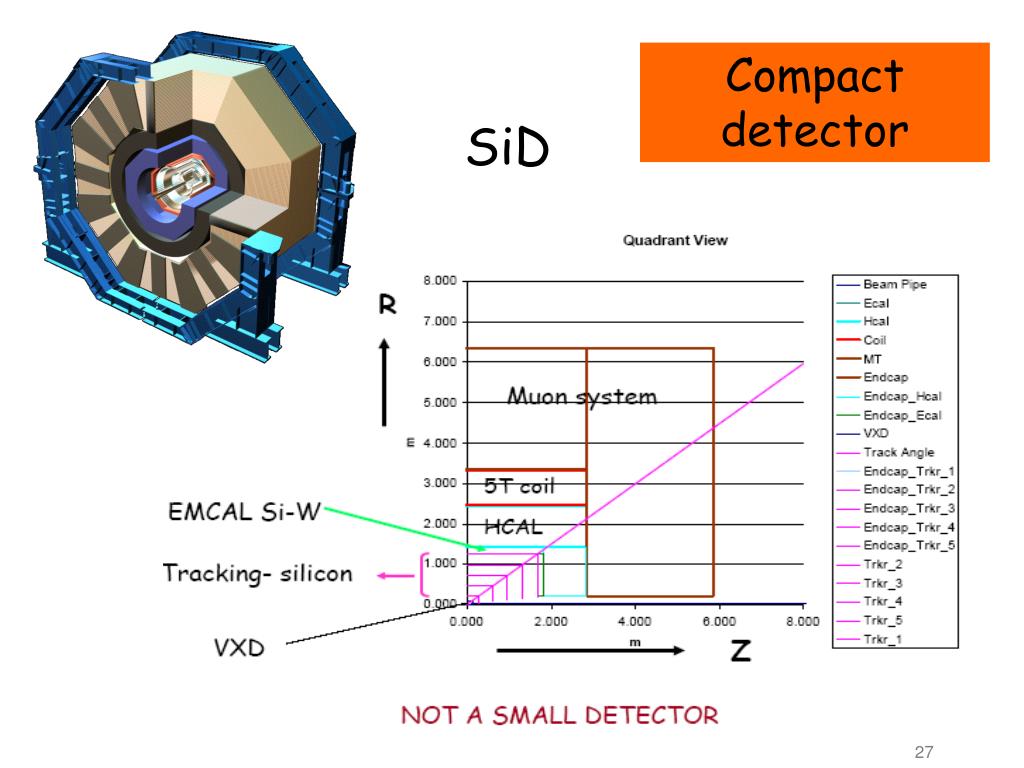

  26. Compact detector SiD

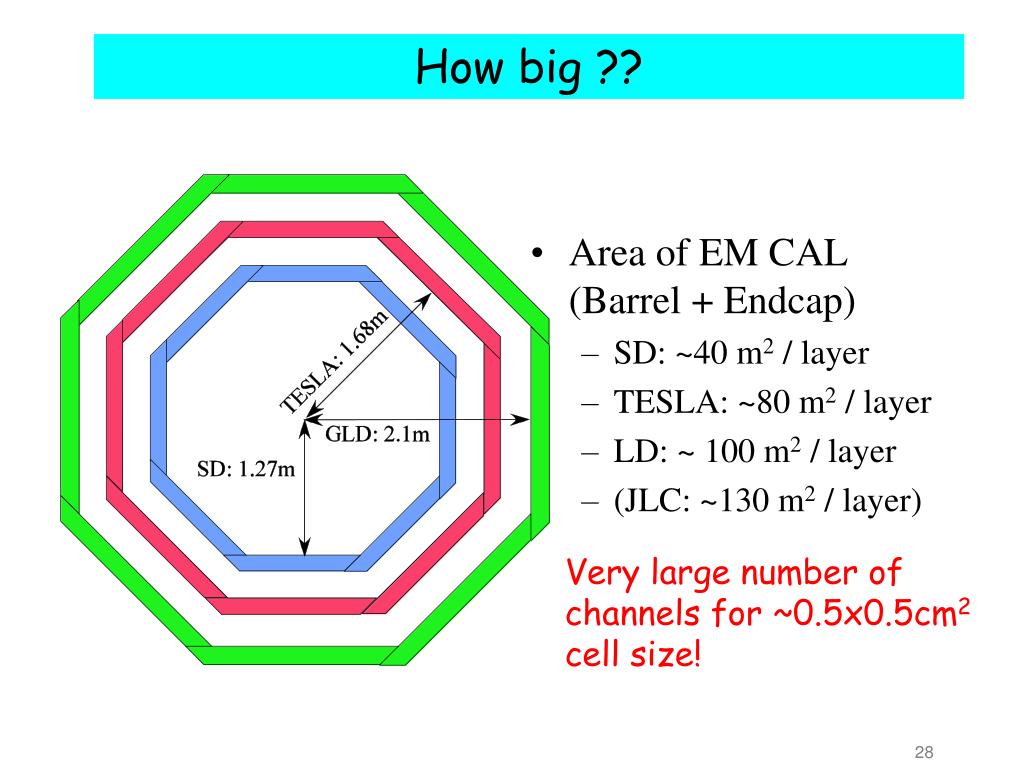

  27. How big ?? • Area of EM CAL (Barrel + Endcap) • SD: ~40 m2 / layer • TESLA: ~80 m2 / layer • LD: ~ 100 m2 / layer • (JLC: ~130 m2 / layer) Very large number of channels for ~0.5x0.5cm2 cell size!

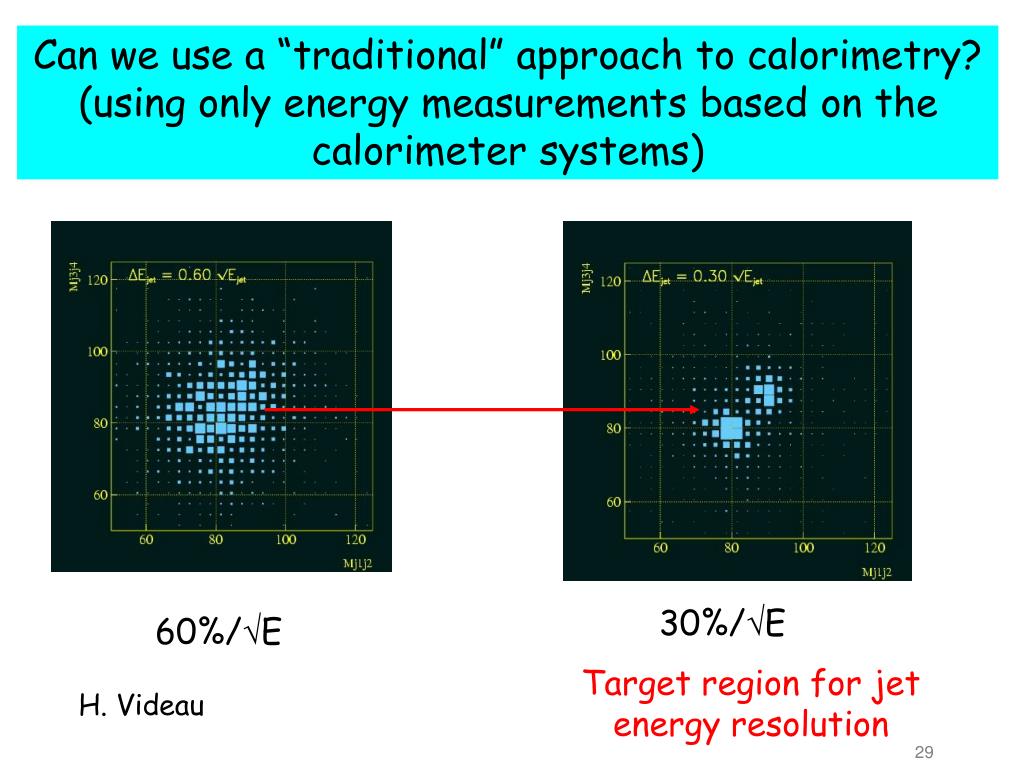

  28. Can we use a “traditional” approach to calorimetry? (using only energy measurements based on the calorimeter systems) 30%/E 60%/E Target region for jet energy resolution H. Videau

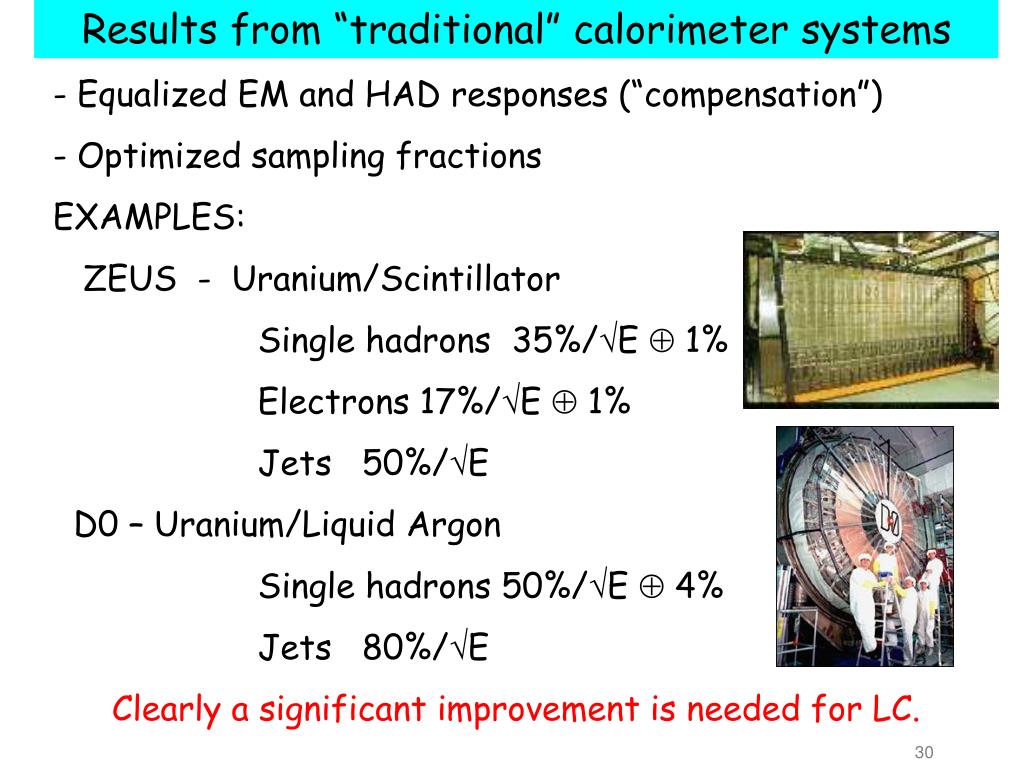

  29. Results from “traditional” calorimeter systems • Equalized EM and HAD responses (“compensation”) • Optimized sampling fractions • EXAMPLES: • ZEUS - Uranium/Scintillator • Single hadrons 35%/E  1% • Electrons 17%/E  1% • Jets 50%/E • D0 – Uranium/Liquid Argon • Single hadrons 50%/E  4% • Jets 80%/E • Clearly a significant improvement is needed for LC.

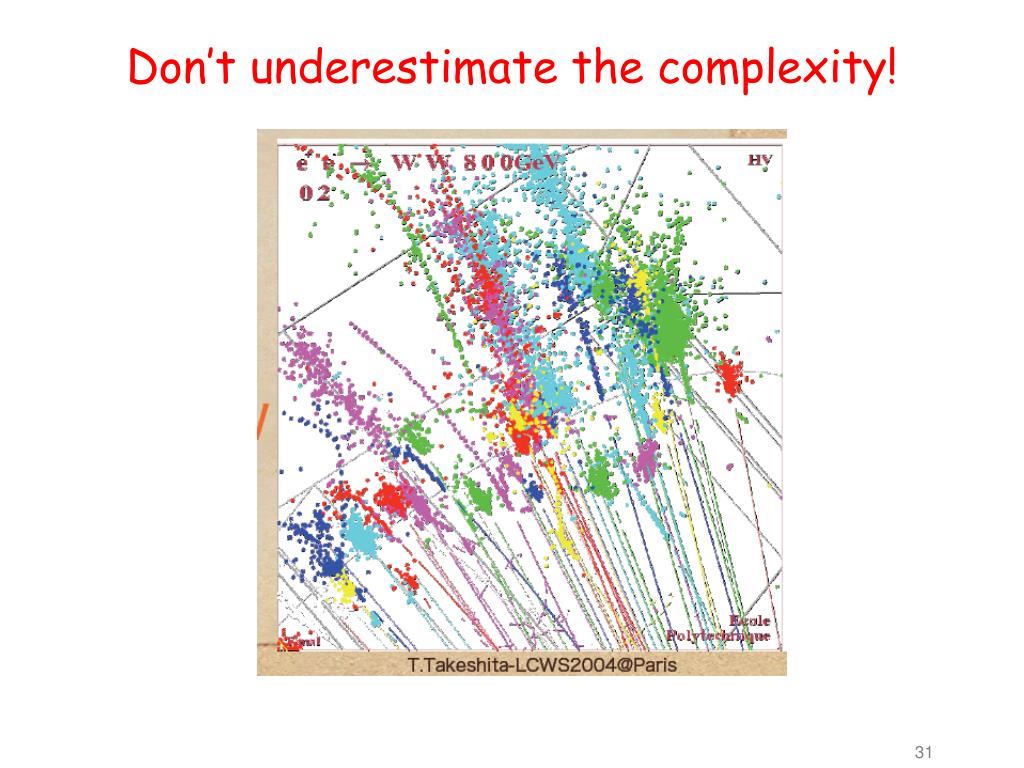

  30. Don’t underestimate the complexity!

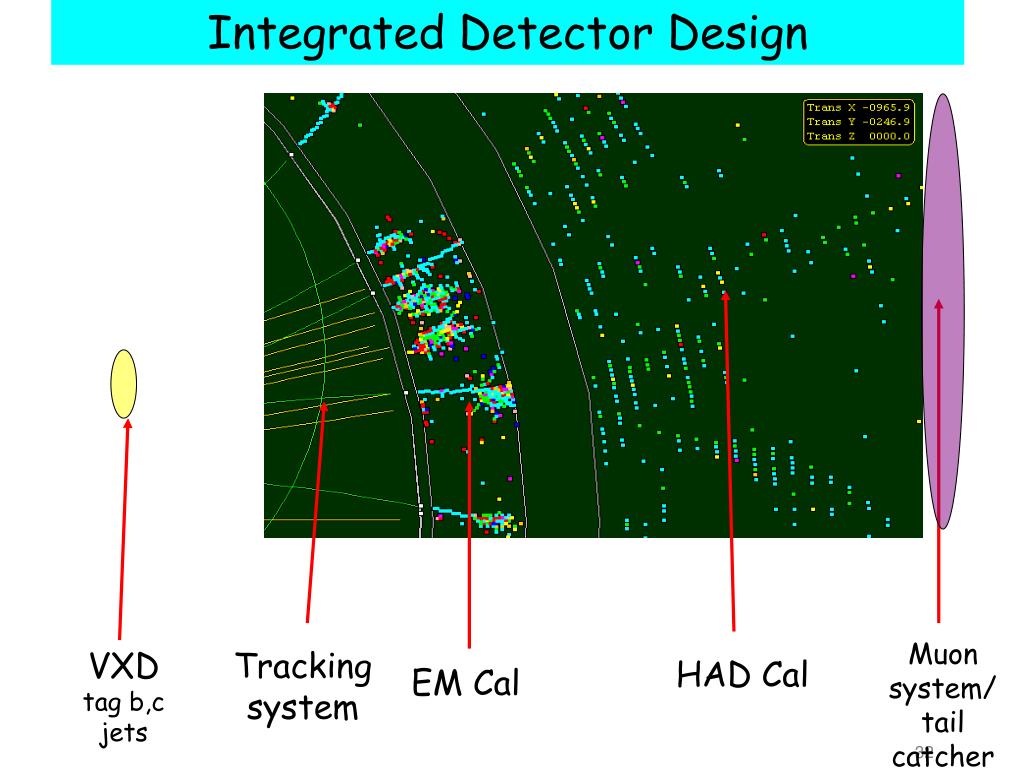

  31. Integrated Detector Design Muon system/ tail catcher VXD tag b,c jets Tracking system HAD Cal EM Cal

  32. Integrated Detector Design So now we must consider the detector as a whole. The tracker not only provides excellent momentum resolution (certainly good enough for replacing cluster energies in the calorimeter with track momenta), but also must: - efficiently find all the charged tracks: Any missed charged tracks will result in the corresponding energy clusters in the calorimeter being measured with lower energy resolution and a potentially larger confusion term.

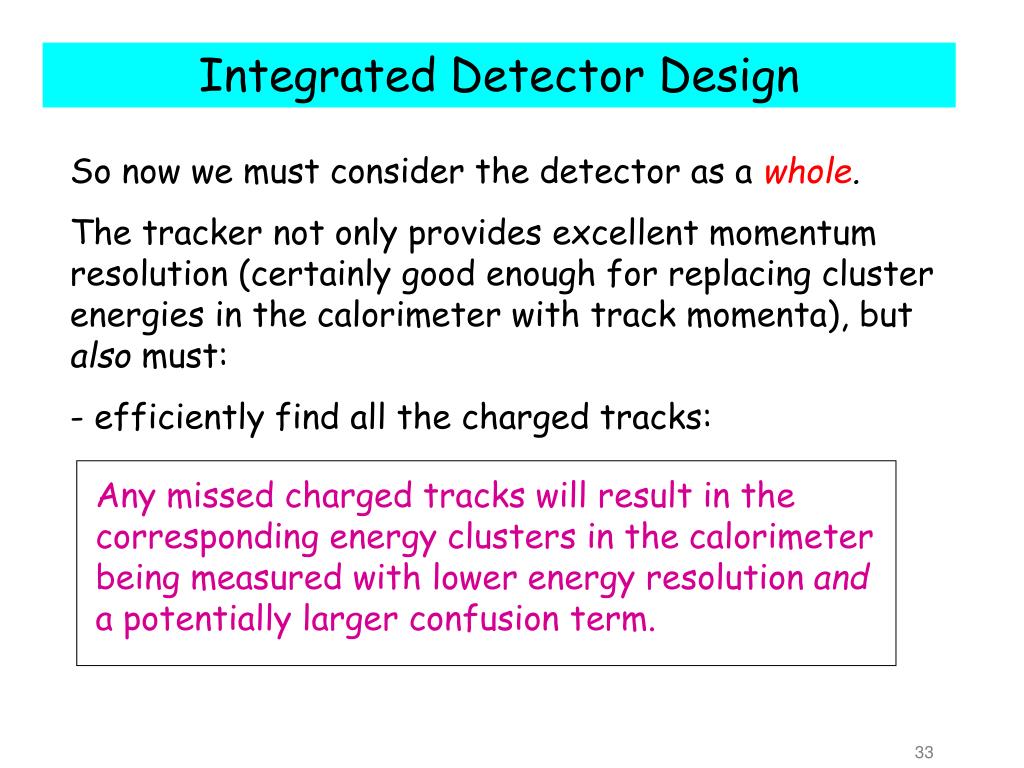

  33. Integrated Detector Design • provide excellent two track resolution for correct track/energy cluster association • > tracker outer radius/magnetic field size – implications for e.m. shower separation/Moliere radius in ECal. • Different technologies for the ECal and HCal ?? • - do we lose by not having the same technology? • - compensation – is the need for this completely overcome by using the energy flow approach?

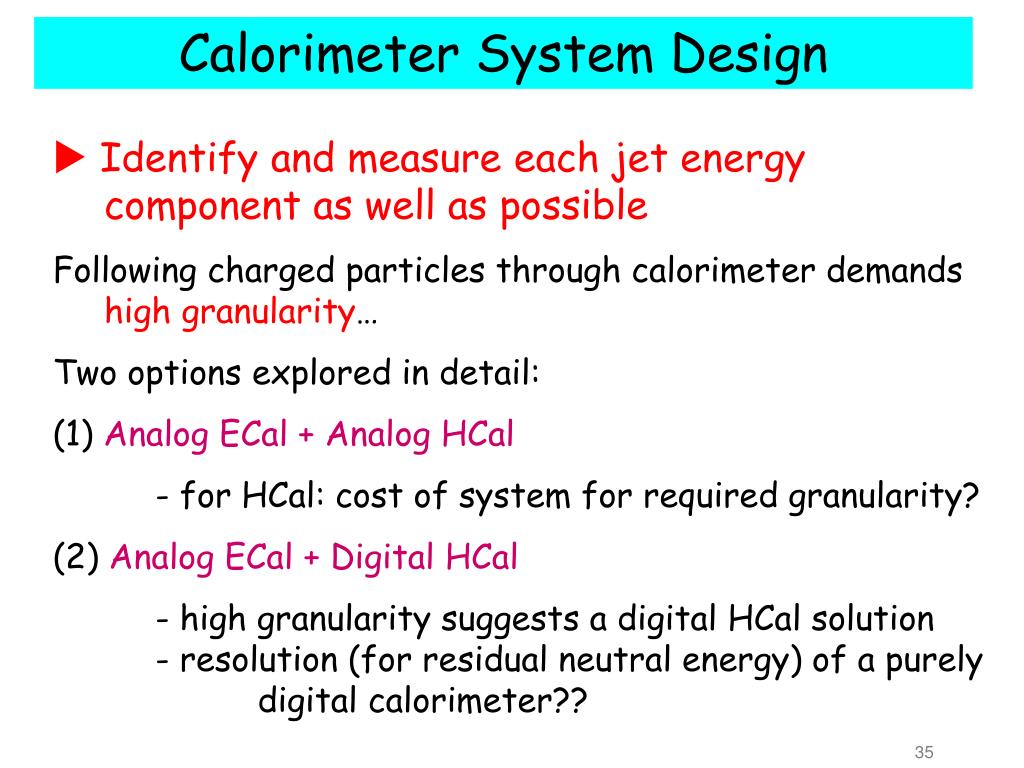

  34. Calorimeter System Design  Identify and measure each jet energy component as well as possible Following charged particles through calorimeter demands high granularity… Two options explored in detail: (1) Analog ECal + Analog HCal - for HCal: cost of system for required granularity? (2) Analog ECal + Digital HCal - high granularity suggests a digital HCal solution - resolution (for residual neutral energy) of a purely digital calorimeter??

  35. Calorimeter Technologies Electromagnetic Calorimeter Physics requirements emphasize segmentation/granularity (transverse AND longitudinal) over intrinsic energy resolution. Localization of e.m. showers and e.m./hadron separation -> dense (small X0) ECal with fine segmentation. Moliere radius -> O(1 cm.) Transverse segmentation  Moliere radius Charged/e.m. separation -> fine transverse segmentation (first layers of ECal). Tracking charged particles through ECal -> fine longitudinal segmentation and high MIP efficiency. Excellent photon direction determination (e.g. GMSB) Keep the cost (Si) under control!

  36. CALICE – Si/W Electromagnetic Calorimeter Wafers: Russia/MSU and Prague PCB: LAL design, production – Korea/KNU New design for ECal active gap -> 40% reduction to 1.75m, Rm = 1.4cm Evolution of FE chip: FLC_PHY3 -> FLC_PHY4 -> FLC_TECH1

  37. ECal work in Asia Si/W ECal prototype from Korea Rt= a layer / tungsten = 15.0/3.5 = 4.8 (CALICE ~ 2) Eff. Rm = 9mm * (1 + Rt) = 52mm Total 20 layers = 20 X0, 30cm thick 19 layers of shower sampling Results from CERN beam tests 2004: 29%/E (vs. 18%/E for GEANT4) S/N = 5.2 Fit curve of 29%/√E

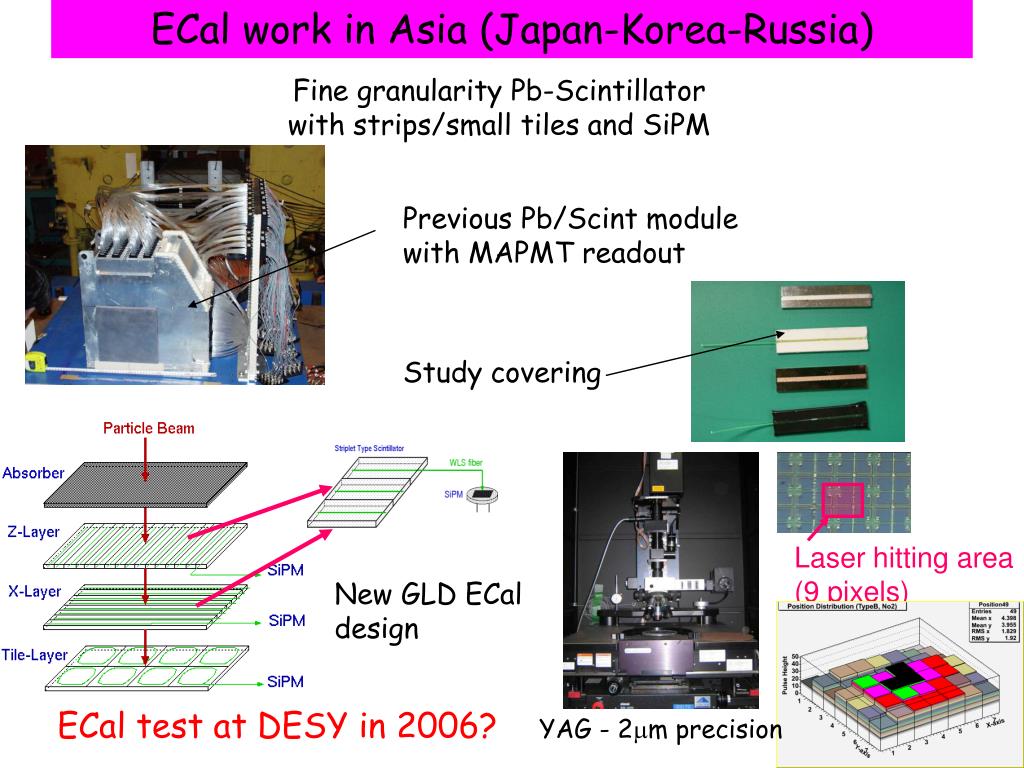

  38. ECal work in Asia (Japan-Korea-Russia) Laser hitting area (9 pixels) Fine granularity Pb-Scintillator with strips/small tiles and SiPM Previous Pb/Scint module with MAPMT readout Study covering New GLD ECal design ECal test at DESY in 2006? YAG - 2m precision

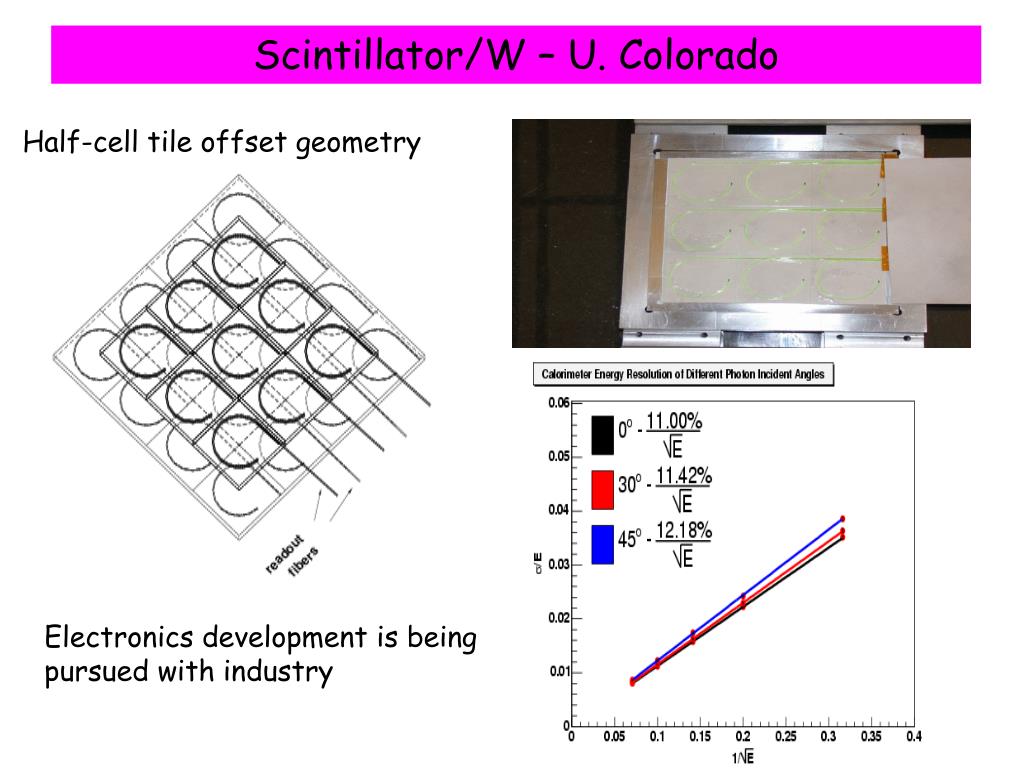

  39. Scintillator/W – U. Colorado Half-cell tile offset geometry Electronics development is being pursued with industry

  40. =2.45 mm =2.16 mm e- Hybrid Ecal – Scintillator/W with Si layers – LC-CAL (INFN) • 45 layers • 25 × 25 × 0.3 cm3 Pb • 25 × 25 × 0.3 cm3 Scint.: 25 cells 5 × 5 cm2 • 3 planes:252 .9 × .9 cm2 Si Pads at: 2, 6, 12 X0 Low energy data (BTF) confirmed at high energy !!! 11.1%E =3.27 mm • The LCcal prototype has been built and fully tested. • Energy and position resolution as expected: • E/E ~11.-11.5% /E, pos~2 mm (@ 30 GeV) • Light uniformity acceptable. • e/ rejection very good ( <10-3) Si L3 Si L2 Si L1

  41. Hadron Calorimeter – CALICE/analog Minical – results from electron test beam SiPM Full 1m3 prototype stack – with SiPM readout. Goal is for Fermilab test beam exposure in Spring 2006 • APD chips from Silicon Sensor used • AD 1100-8, Ø 1.1 mm, Ubias~ 160 V APD

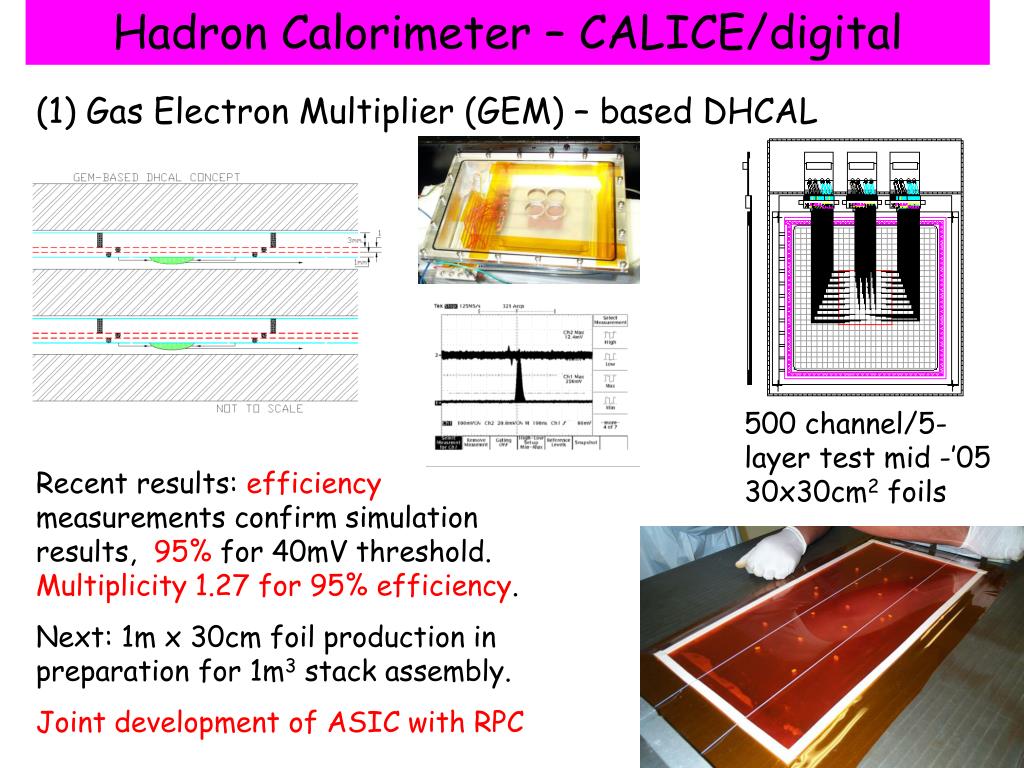

  42. Hadron Calorimeter – CALICE/digital (1) Gas Electron Multiplier (GEM) – based DHCAL 500 channel/5-layer test mid -’05 30x30cm2 foils Recent results: efficiency measurements confirm simulation results, 95% for 40mV threshold. Multiplicity 1.27 for 95% efficiency. Next: 1m x 30cm foil production in preparation for 1m3 stack assembly. Joint development of ASIC with RPC

  43. Muon Detector Technologies Scintillator-based muon system development U.S. Collaboration Extruded scintillator strips with wavelength shifting fibers. Readout: Multi-anode PMTs GOAL: 2.5m x 1.25m planes for Fermilab test beam

  44. Muon Detector Technologies European – CaPiRe Collaboration TB @ Frascati

  45. Tail Catcher / Muon Tracker – CALICE/NIU Extrusion Cassette SiPM location Goal: Test Beam Fermilab/2005

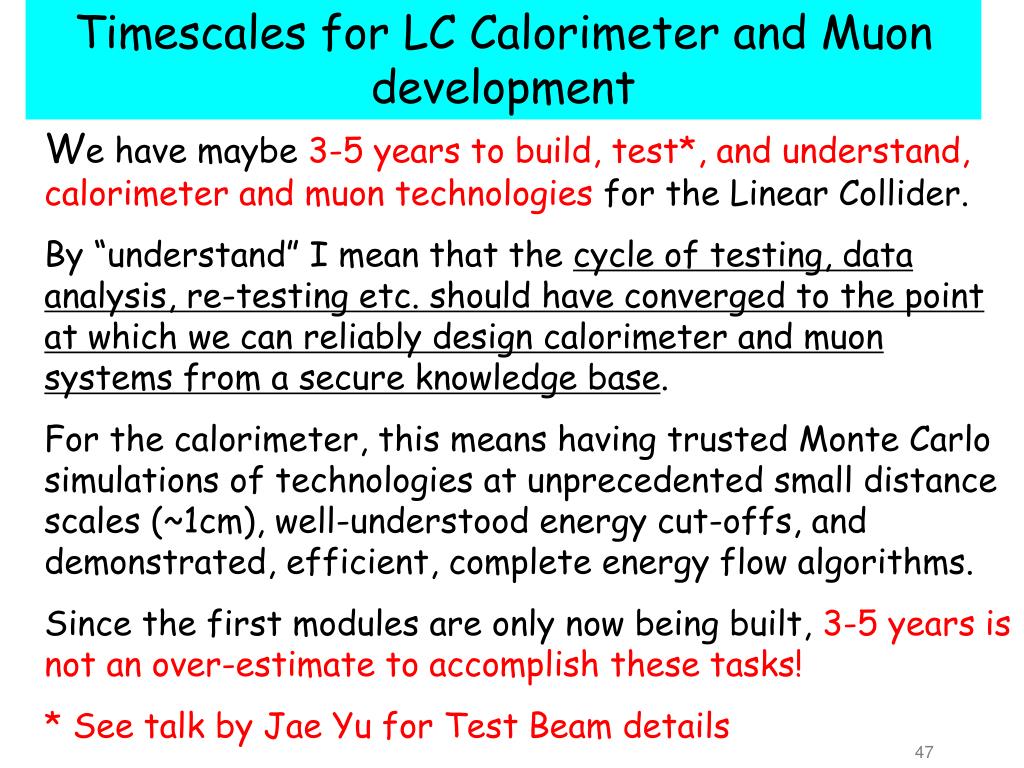

  46. Timescales for LC Calorimeter and Muon development We have maybe 3-5 years to build, test*, and understand, calorimeter and muon technologies for the Linear Collider. By “understand” I mean that the cycle of testing, data analysis, re-testing etc. should have converged to the point at which we can reliably design calorimeter and muon systems from a secure knowledge base. For the calorimeter, this means having trusted Monte Carlo simulations of technologies at unprecedented small distance scales (~1cm), well-understood energy cut-offs, and demonstrated, efficient, complete energy flow algorithms. Since the first modules are only now being built, 3-5 years is not an over-estimate to accomplish these tasks! * See talk by Jae Yu for Test Beam details

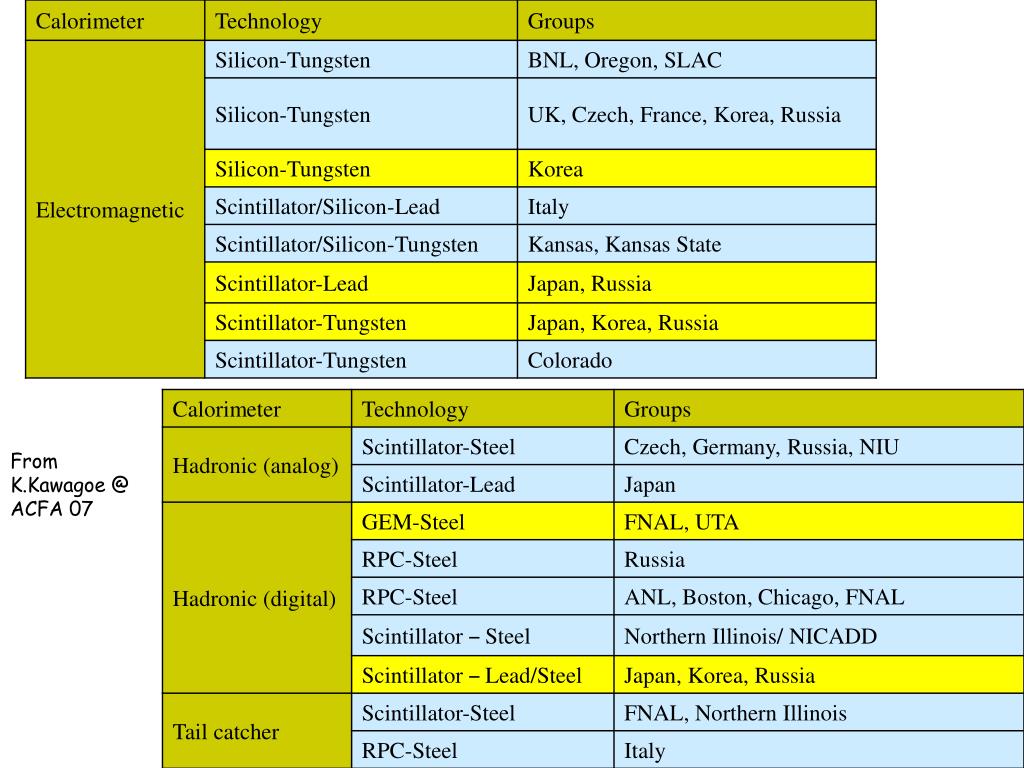

  47. From K.Kawagoe @ ACFA 07

  48. ILC Test Beam LCWS2005 at Stanford March 18 – 22, 2005 Jae Yu University of Texas at Arlington • Introduction • What has been happening? • Beam Test Timeline • World-wide TB Organization • Conclusions *On behalf of the HEP group at UTA.

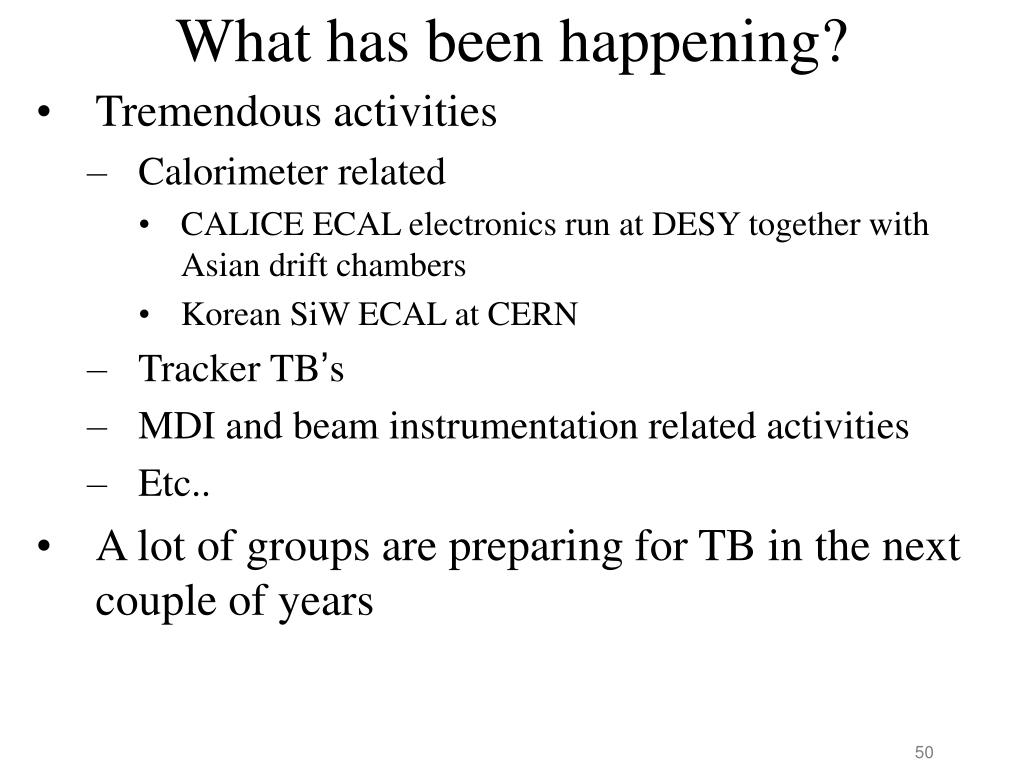

  49. What has been happening? • Tremendous activities • Calorimeter related • CALICE ECAL electronics run at DESY together with Asian drift chambers • Korean SiW ECAL at CERN • Tracker TB’s • MDI and beam instrumentation related activities • Etc.. • A lot of groups are preparing for TB in the next couple of years
