  1. CSC 480 – Software Engineering Workshops 5 & 6 Design Patterns

  2. Make Parts(components) into a Unit (composite) Client Composite pattern

  3. Hide Parts Using a Façade(MyGameTank) Client Façade pattern

  4. Decouple Client w/ Concrete Tank Abs. Factory pattern

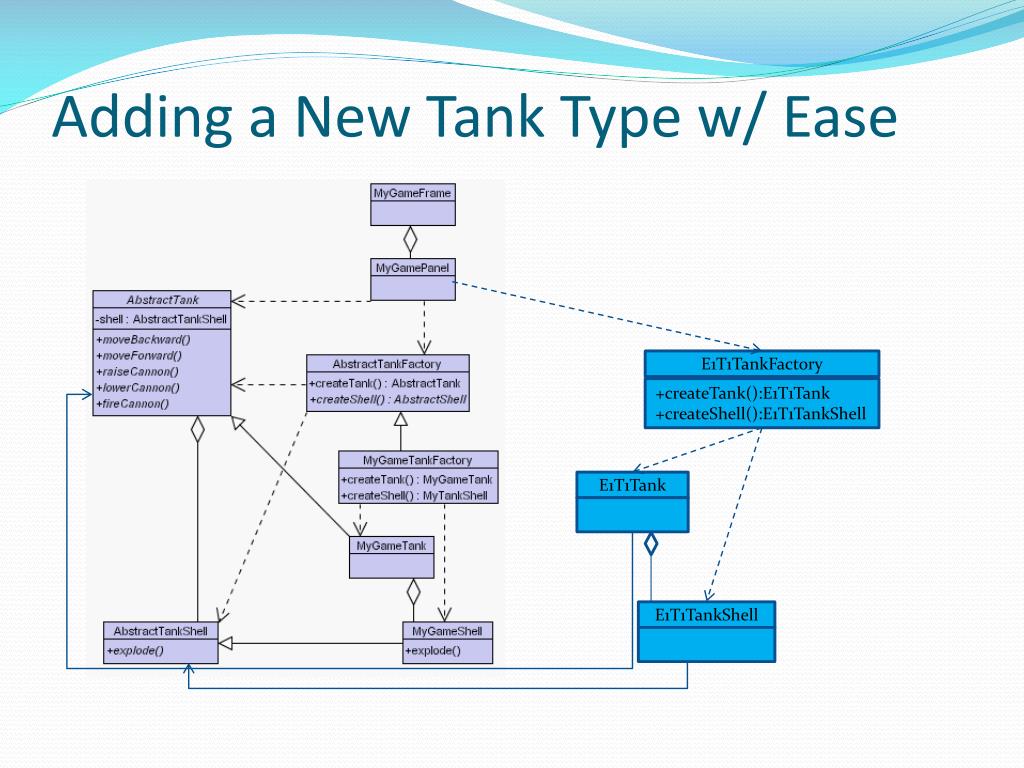

  5. Adding a New Tank Type w/ Ease E1T1TankFactory +createTank():E1T1Tank +createShell():E1T1TankShell E1T1Tank E1T1TankShell

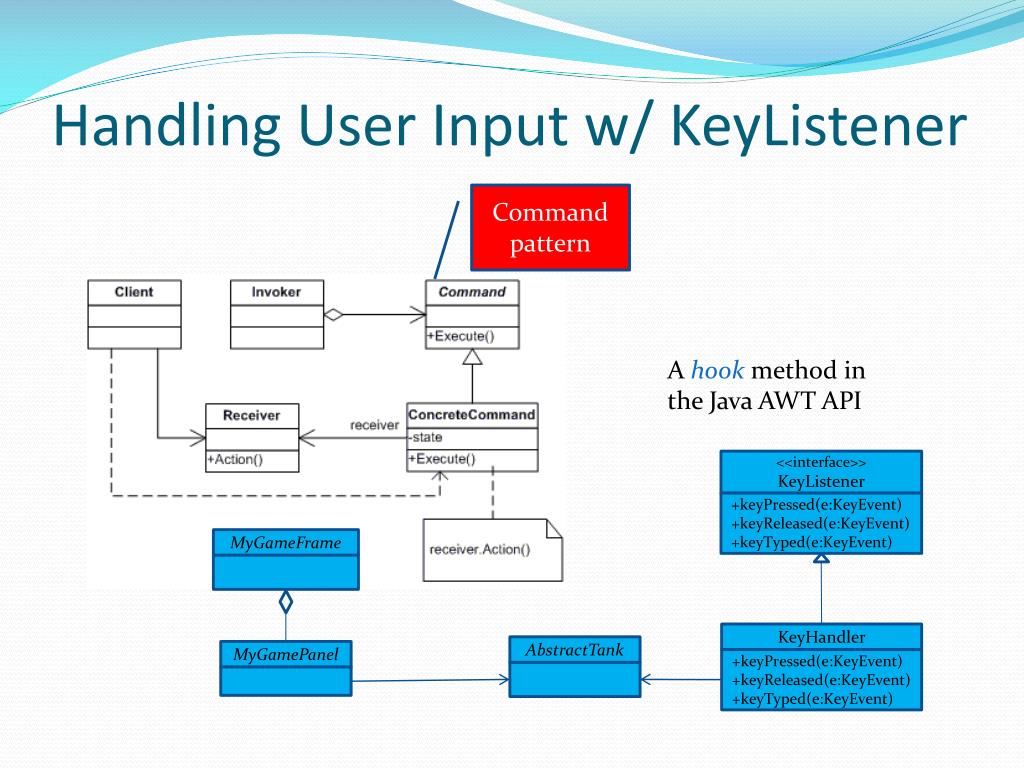

  6. Handling User Input w/ KeyListener Command pattern A hook method in the Java AWT API <<interface>> KeyListener +keyPressed(e:KeyEvent) +keyReleased(e:KeyEvent) +keyTyped(e:KeyEvent) MyGameFrame KeyHandler AbstractTank MyGamePanel +keyPressed(e:KeyEvent) +keyReleased(e:KeyEvent) +keyTyped(e:KeyEvent)
