Kinetic Theory

17 August, 2014. Kinetic Theory. Keywords Boiling point, condense, evaporate, freezing point, melt, melting point, sublimation. Learning Outcomes: All students should be able to: Describe what happens at melting/freezing and boiling point Label a general cooling curve.

reia
Télécharger la présentation

Kinetic Theory

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 17 August, 2014 Kinetic Theory Keywords Boiling point, condense, evaporate, freezing point, melt, melting point, sublimation

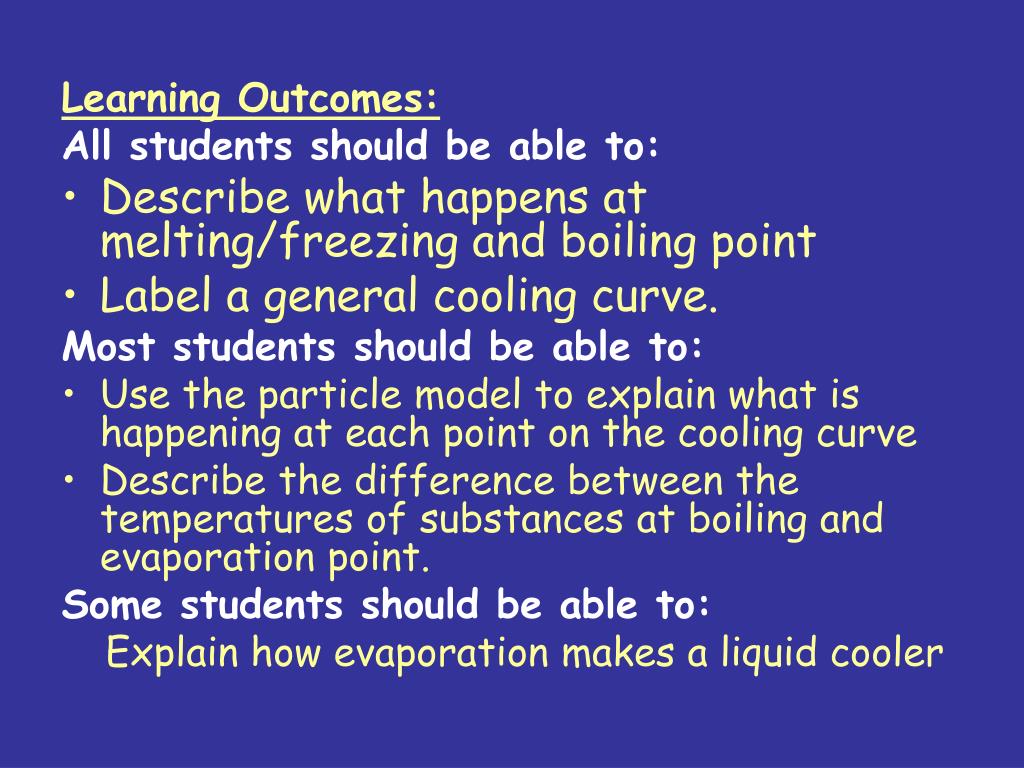

  2. Learning Outcomes: All students should be able to: • Describe what happens at melting/freezing and boiling point • Label a general cooling curve. Most students should be able to: • Use the particle model to explain what is happening at each point on the cooling curve • Describe the difference between the temperatures of substances at boiling and evaporation point. Some students should be able to: Explain how evaporation makes a liquid cooler

  3. States of matter and temperature Water can be a solid, liquid or a gas • At a cold enough temperature, even substances that are normally gases will become solid. • At higher temperatures, solids change to become liquids or gases – as long as they do not catch fire or break down.

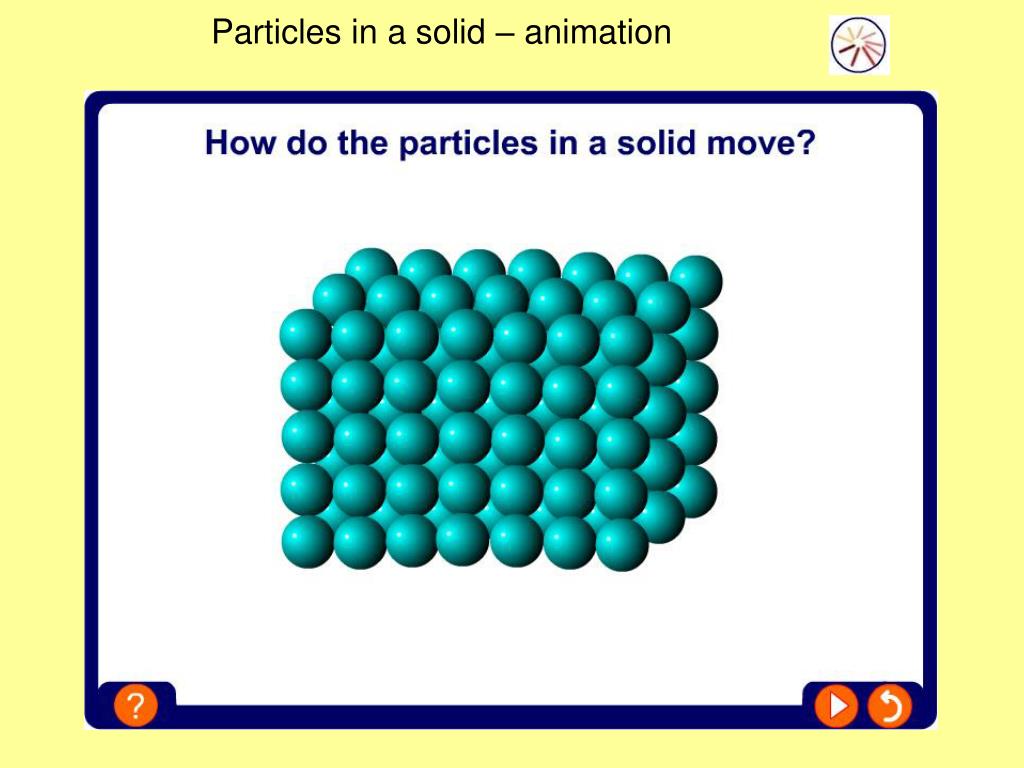

  4. Particles in a solid – animation

  5. Particles in a liquid – animation

  6. Particles in a gas – animation

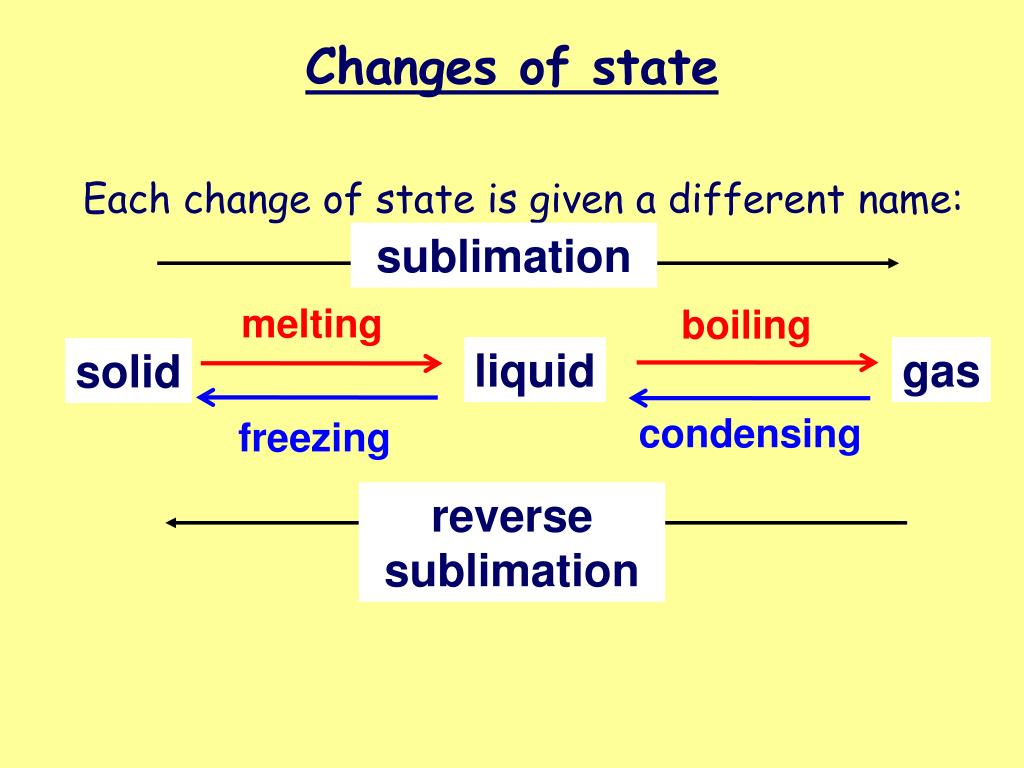

  7. Changes of state melting boiling condensing freezing Each change of state is given a different name: sublimation liquid gas solid reverse sublimation

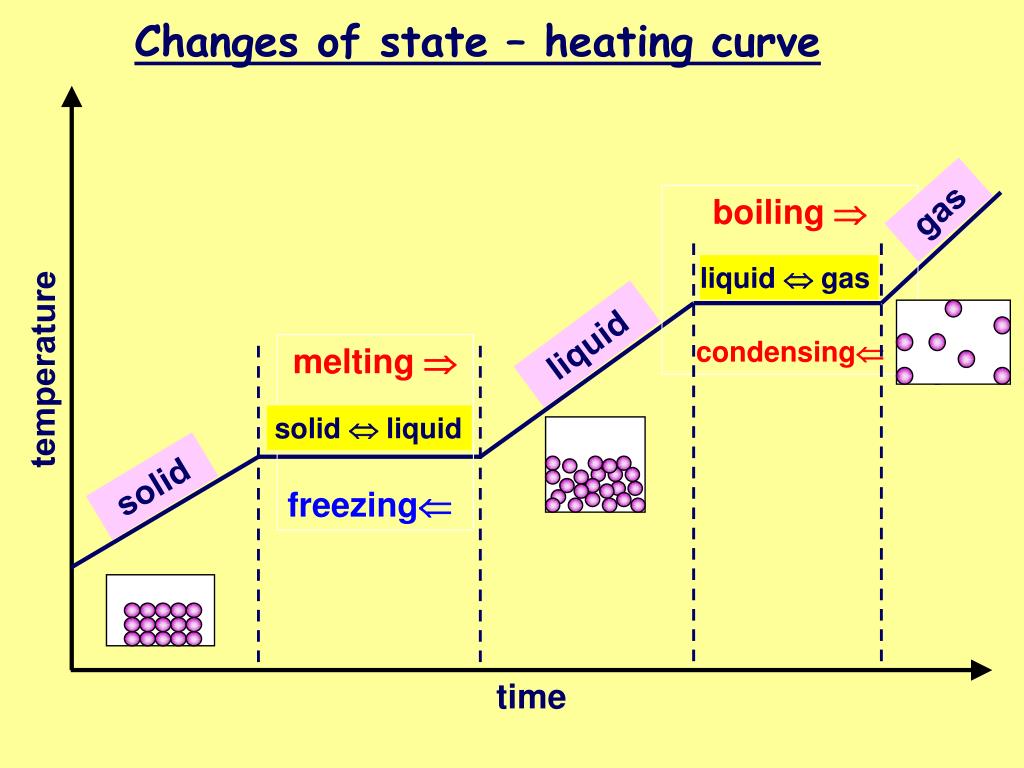

  8. Changes of state – heating curve gas boiling  condensing liquid  gas liquid melting  freezing solid  liquid solid temperature time

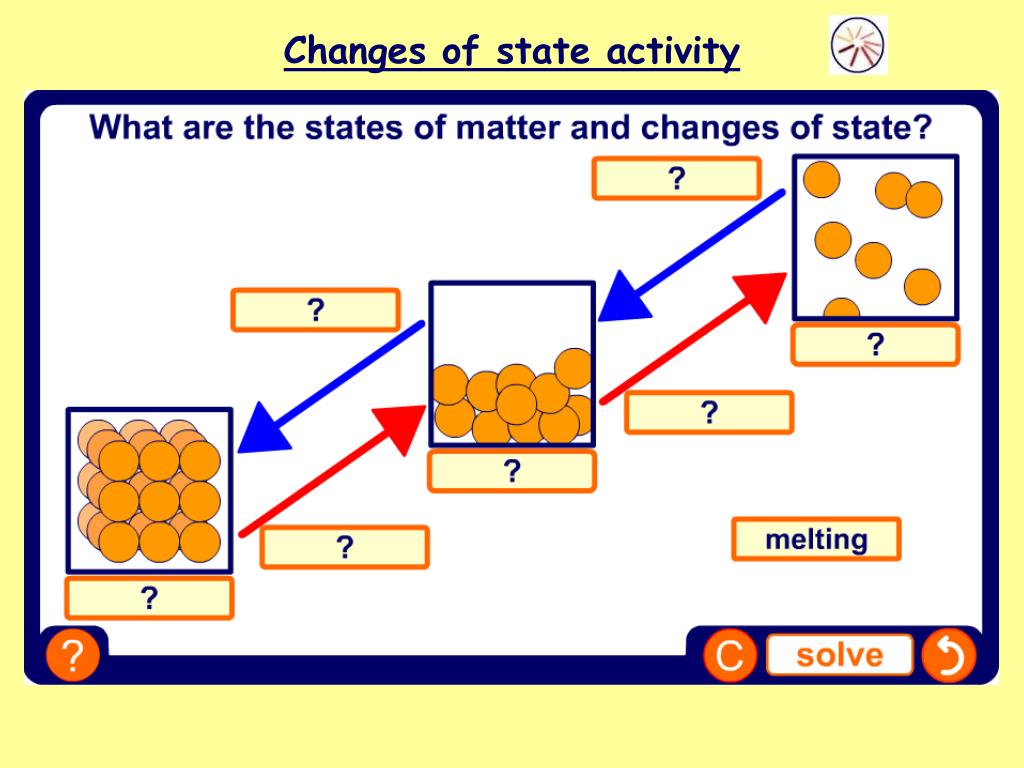

  9. Changes of state activity

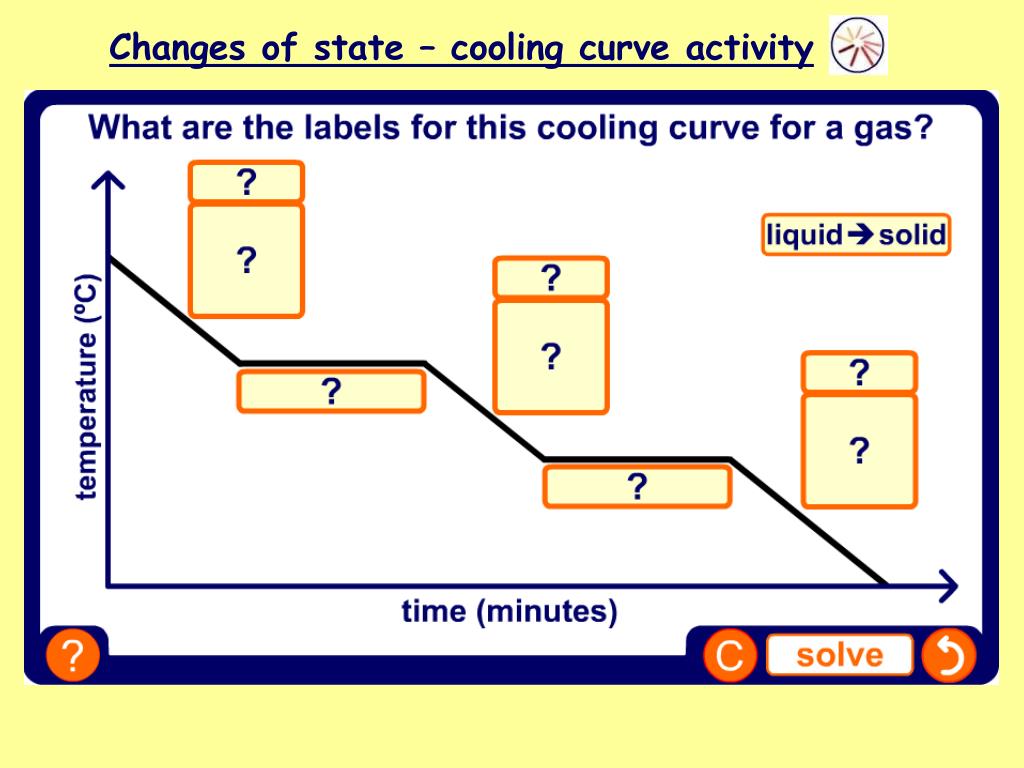

  10. Changes of state – cooling curve activity

  11. What is evaporation? Evaporation occurs when the particles in a liquid escape to form a vapour. Evaporation can occur at any temperature but it occurs most rapidly at a liquid’s boiling point. The particles that escape take some energy from the remaining particles and so the temperature of the liquid falls. Evaporation is another method of heat transfer.

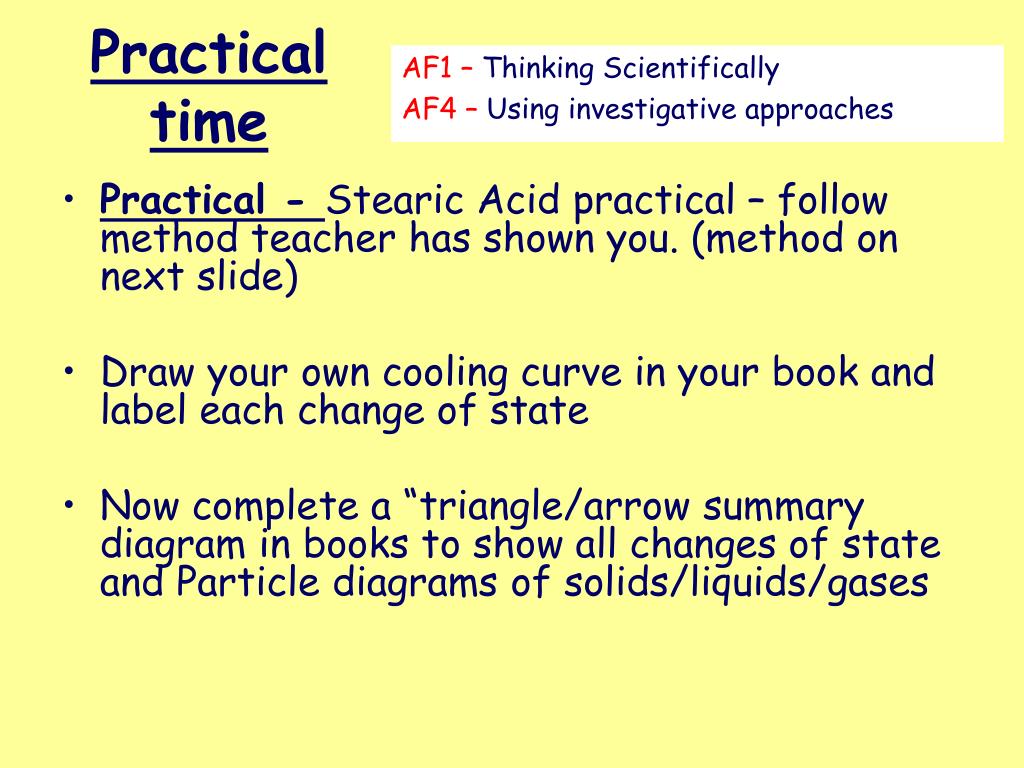

  12. Practical time AF1 – Thinking Scientifically AF4 – Using investigative approaches • Practical - Stearic Acid practical – follow method teacher has shown you. (method on next slide) • Draw your own cooling curve in your book and label each change of state • Now complete a “triangle/arrow summary diagram in books to show all changes of state and Particle diagrams of solids/liquids/gases

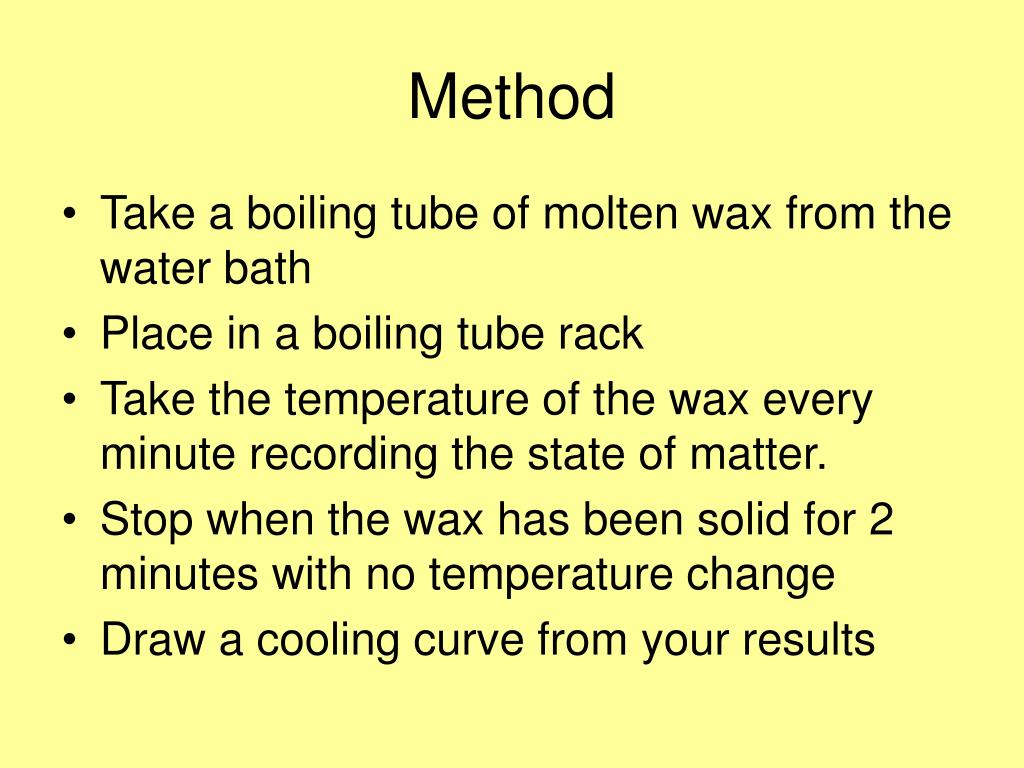

  13. Method • Take a boiling tube of molten wax from the water bath • Place in a boiling tube rack • Take the temperature of the wax every minute recording the state of matter. • Stop when the wax has been solid for 2 minutes with no temperature change • Draw a cooling curve from your results

  14. Plenary - Sublimation Sublimation, reverse sublimation OR: AB document link on page 127 opens a CLOZE exercise covering the material on page 126-127. There is also an AT presentation with the answers. Youtube video of sublimation of dry ice: http://www.youtube.com/watch?v=J8mDGwf-5x0
