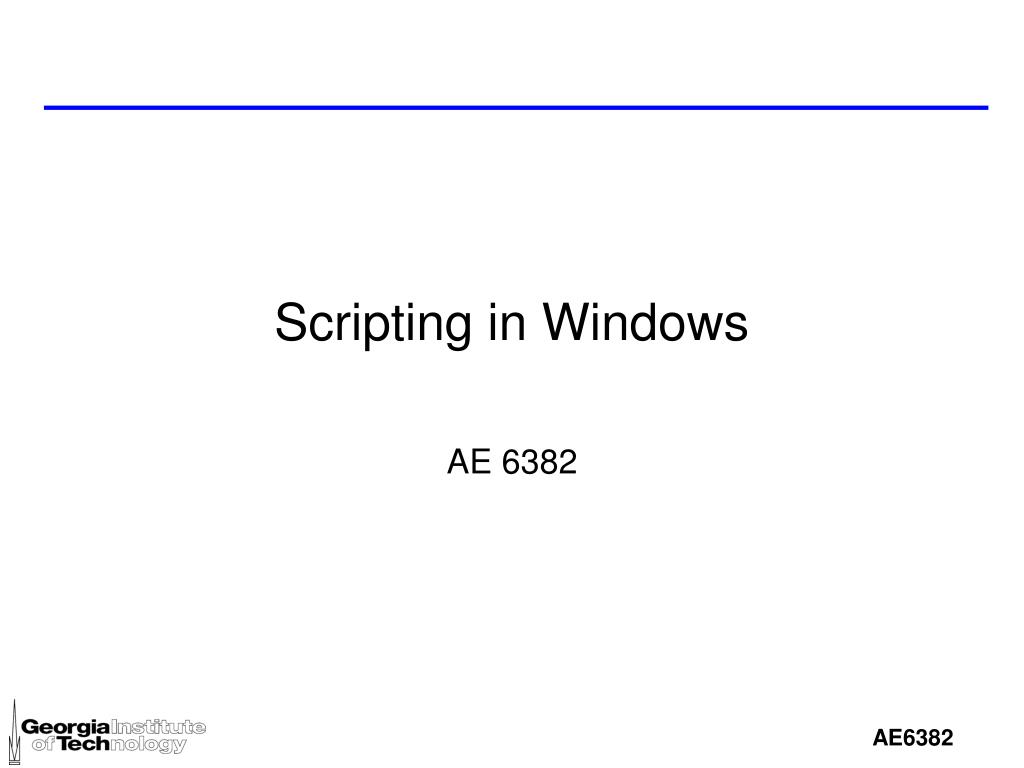

  1. Scripting in Windows AE 6382

  2. Documentation • The most difficult aspect of scripting in Windows is finding the documentation. • Microsoft produces enormous quantities of documentation for its part – it is a matter of locating the correct document and interpreting it. • The documentation for non-Microsoft software can be difficult.

  3. MS Documentation • Local copies of some of the MS scripting documents are located at • http://www.ae.gatech.edu/classes/ae6382/documents/MS_Scripting/ • The Script56.CHM file is best suited for on-line use and contains information on VBScript and Jscript languages. It also contains the documentation for Windows Scripting Host (WSH), the Script Runtime objects, and Windows Scripting Components.

  4. MS Documentation – script56.chm

  5. Windows Scripting Host • The Windows Scripting Host provides an environment for running scripts in Windows. • Provides a host for ActiveX scripting engines (VBScript, Jscript, and other 3rd party implementations) • The fundamental object is WScript and is pre-instantiated • Properties • Name, Path, StdIn, StdOut,StdErr • Methods • CreateObject, GetObject, Quit, Sleep

  6. Windows Scripting Host • The WshShell object makes it possible to run a program locally. • Can control the programs input and output • The WshScriptExec object is returned from the Exec method and contains status information • Properties • CurrentDirectory • Methods • AppActivate, SendKeys, Exec, RegDelete, RegRead, RegWrite, PopUp

  7. Runtime Scripting • The Runtime Scripting component provides capabilities for VBScript and Jscript that are not otherwise available. They cannot be use when scripting a web page in IE. • The objects included in the Runtime Scripting are • Dictionary (associative arrays) • File System Object • Create and delete files/folders • Read and write files

  8. MS Office Objects • The objects available for the Office programs (Excel in this case) are located on the Office CD in the form of .chm (MS Help files). • The file for Excel 10 is VBAXL10.CHM • This file contains all the objects and their methods and properties. • The objects documented here can be used either by VBA within Excel or accessed externally via automation of the Excel program. • For more information see • http://www.ae.gatech.edu/classes/ae6382/documents/MS_scripting/Office10/

  9. Execl VBAXL10.CHM

  10. vbaxl10 – Worksheet Object

  11. vbaxl10 – Worksheet Properties

  12. vbaxl10 – Worksheet Methods

  13. Automation of Excel Example • An application that uses data stored in an Excel worksheet to generate a configuration file for use by a Linux dhcp server. • The Excel file contains IP address, MAC address, location, owner, and information about whether address is to be managed by dhcp. • A script file uses automation to access the fields in the Excel file then generates a Linux formatted text file.

  14. dhcp_sample.xls

  15. The script - generate_dhcp.pl #!/usr/bin/perl # # Windows version with automation access to excel # use strict; use Win32::OLE qw(in with); use Win32::OLE::Const 'Microsoft Excel'; use Win32::OLE::Variant; use Win32::OLE::NLS qw(:LOCALE :DATE); # Program dies on errors $Win32::OLE::Warn = 3; # The file (spreadsheet) to access my $excel_file = 'e:\programming\ruby\dhcp_sample.xls';

  16. The script - generate_dhcp.pl • This script was written using ActiveState’s ActivePerl distribution. • It can be downloaded from • http://www.activestate.com/ • This script is run under windows. • It is not using the Windows Scripting Host it is standalone. • The Win32::OLE modules that are loaded via the use statements provide the automation support. • See the ActivePerl documentation for more details.

  17. The script - generate_dhcp.pl # Create a connection to Excel my $Excel = Win32::OLE->GetActiveObject('Excel.Application') || Win32::OLE->new('Excel.Application','Quit'); print "ERROR: ",$Win32::OLE::LastError,"\n" if $Win32::OLE::LastError; # Turn off any alert boxes (such as the SaveAs Response) $Excel->{DisplayAlerts} = 0; # Make Excel visible on the desktop $Excel->{Visible} = 1; # Open the file my $Book = $Excel->Workbooks->Open($excel_file); # Create a reference to the worksheet my $Sheet = $Book->Worksheets('ASDL'); $Sheet->Activate();

  18. vbaxl10 – Application Object

  19. vbaxl10 – Application Visible

  20. vbaxl10 – Workbook Object

  21. vbaxl10 – Worksheet Object

  22. vbaxl10 – Worksheet Object

  23. The script - generate_dhcp.pl # Setup my %mac_list = (); my %ip_list = (); # Read the spreadsheet file contents print "Loading data from $excel_file\n"; my $row_count = $Sheet->Rows->{Count}; print "row_count: $row_count\n"; foreach my $row (3..$row_count) { #print "ROW: $row\n"; # Look for empty name field my $name = $Sheet->Range("a${row}")->{Value}; print "name: $name\n"; last if $name eq ''; # Build the entry my @entry = (); my $i = 0; foreach my $col (qw(a b c d e f g h i j)) { #print "COL: $col\n"; $entry[$i++] = $Sheet->Range("${col}${row}")->{Value}; } #print @entry,"\n";

  24. vbaxl10 – Worksheet Object

  25. The script - generate_dhcp.pl # Save by MAC address MAC: { next MAC if $entry[1] eq '*'; # Check format of each MAC address $entry[1] =~ tr/A-F/a-f/; $entry[1] =~ tr/-/:/; my $mac = $entry[1]; my $flag = ($mac =~ m/[0-9a-f]{2}:[0-9a-f]{2}:[0-9a-f]{2}:[0-9a-f]{2}:[0-9a-f]{2}:[0-9a-f]{2}/); if ($flag != 1) { print "MAC Address format error: $entry[1]\n", "\t",@entry,"\n"; next MAC; } if (exists $mac_list{$entry[1]}) { my $entry1 = $mac_list{$entry[1]}; print "Duplicate MAC address: $entry[1]\n", "\t",@{$entry1},"\n", "\t",@entry,"\n"; next MAC; } $mac_list{$entry[1]} = \@entry; }

  26. The script - generate_dhcp.pl # Save by IP address IP: { next IP if $entry[4] eq '*'; if (exists $ip_list{$entry[4]}) { my $entry1 = $ip_list{$entry[4]}; print "Duplicate IP address: $entry[4]\n", "\t",@{$entry1},"\n", "\t",@entry,"\n"; } $ip_list{$entry[4]} = \@entry; } }

  27. The script - generate_dhcp.pl # Generate dhcpd.conf file print "Generating dhcpd-hosts.conf file\n"; open(OUT,">dhcpd-hosts.conf") || die "Unable to create dhcpd-hosts.conf: $!"; binmode OUT; # Insert the individual node fields foreach my $key (sort keys %mac_list) { my $entry = $mac_list{$key}; # Skip non-dhcp controlled machines next if $entry->[5] ne 'Y' and $entry->[5] ne 'y'; my $host_name = $entry->[0]; $host_name =~ s/ +/_/g; my $mac_address = $entry->[1]; my $ip_address = $entry->[4]; $ip_address =~ s/\.0{1,2}/./g; print "SKIP: $mac_address $ip_address\n" if $ip_address eq '*'; next if $ip_address eq '*'; print OUT "host $host_name {\n"; print OUT "\thardware ethernet $mac_address;\n"; print OUT "\tfixed-address $ip_address;\n"; print OUT "}\n"; } close(OUT); __END__

  28. The output – dhcp-hosts.conf host df { hardware ethernet 00:01:02:cf:78:16; fixed-address 172.16.5.3; } host CD-COPIER { hardware ethernet 00:01:02:cf:78:65; fixed-address 172.16.5.62; } host scanner-pc { hardware ethernet 00:01:02:cf:78:7d; fixed-address 172.16.5.46; } host grc1 { hardware ethernet 00:01:02:cf:78:81; fixed-address 172.16.96.11; } host hippo { hardware ethernet 00:01:e6:3e:31:15; fixed-address 172.16.2.28; } host sonic { hardware ethernet 00:01:e6:3f:06:a6; fixed-address 172.16.2.24; } host falala { hardware ethernet 00:01:e6:3f:06:ab; fixed-address 172.16.2.31; } host python { hardware ethernet 00:01:e6:3f:06:c5; fixed-address 172.16.2.14; } ……
