Automated Software Testing: Test Execution and Review

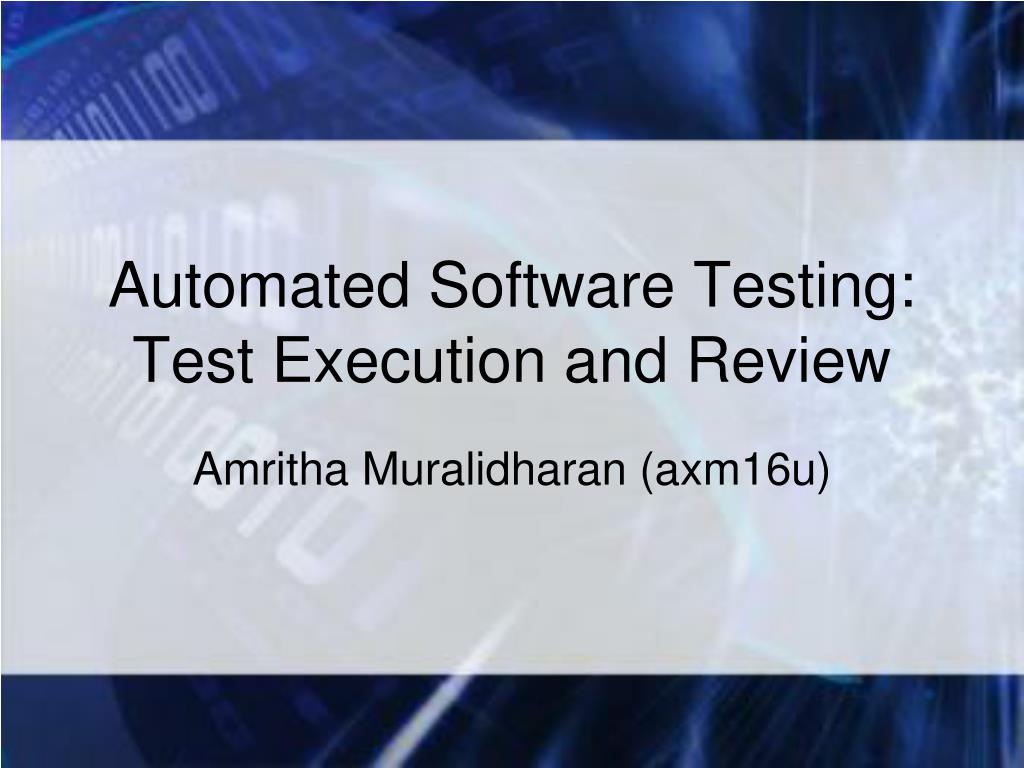

1. Automated Software Testing: Test Execution and Review Amritha Muralidharan (axm16u)

2. Contents • What is test execution? • Phases of Testing • Unit Testing • Integration Testing • System Testing • Test Results Analysis of Regression Tests • User Acceptance Testing • Defect Tracking and Automated Tracking tool • Test Program Status Tracking and EVMS • Test Metrics Collection and Analysis • White Box • Black Box • Test Execution Review

3. Test Execution Flow

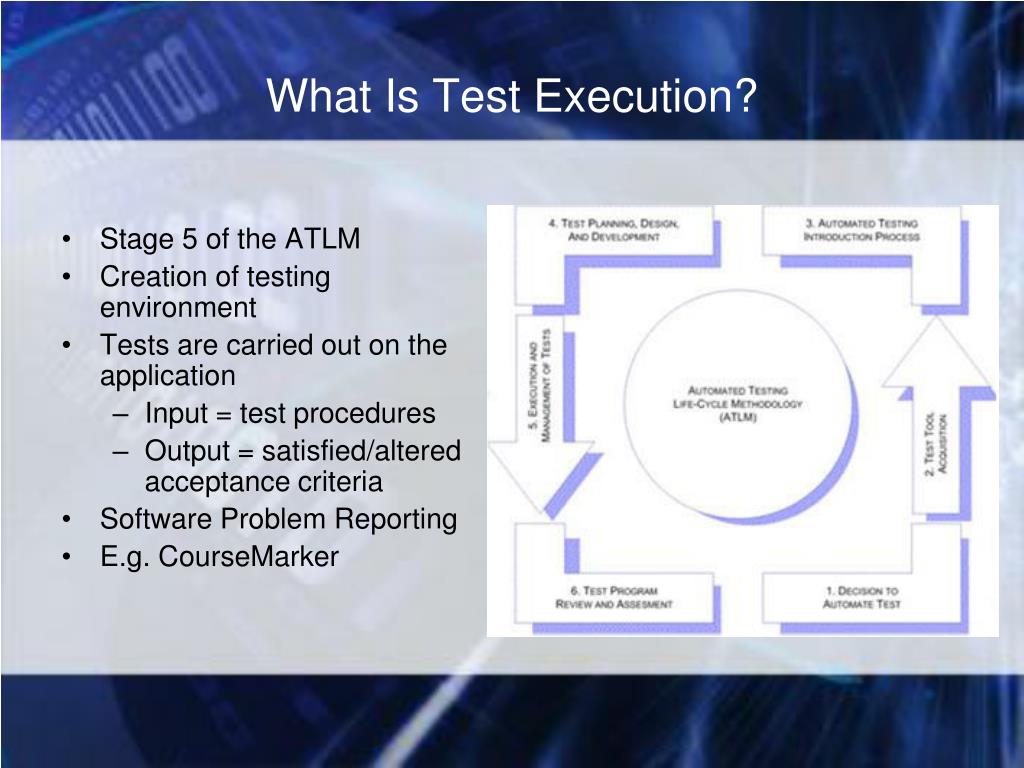

4. What Is Test Execution? • Stage 5 of the ATLM • Creation of testing environment • Tests are carried out on the application • Input = test procedures • Output = satisfied/altered acceptance criteria • Software Problem Reporting • E.g. CourseMarker

5. Phases of Testing • Unit, Integration, System and User Acceptance testing. • Tests executed according to the Test Plan for each phase.

6. Phases of Testing: Unit Testing • Consistent with Development Schedule • Automated Results Checkout Process • White Box Level • Involves detailed look at code • Best to execute unit tests as soon after the code has been created. • Static Analysis • Code Profiling • Development Test Tools • Test Documentation • Metric Collection • Process Improvement • Software development folders (SDF) and Unit Test Evaluation Criteria

7. Phases of Testing: Integration Testing • “Units that are incrementally integrated are tested together based on control flow” • Some integration testing takes place during unit testing • Test procedures based on integration test design addressed earlier in the ATLM • Results are analyzed and documented • Refining Test Procedures • Some test scripts can be automated for re-use in system testing • End-user approval = end of unit and integration testing

8. Phases of Testing: System Testing • Higher Level • Performed by a separate test team • May require many individual test procedures • Test Execution • False Negatives • False Positives • Software Problem Report

9. Test Results/Analysis of Regression Tests • New application baseline • Build release notes should accompany the new build • Smoke Tests • Regression Testing (after defects have been fixed/modified) • Investigate high risk areas of code • Indicator of developer behaviour • Test team investigates areas with larger number of problem reports • Analysis is a clear indicator of whether test execution procedures are useful in locating errors. • Where more test effort is required • System testing is complete when criteria have been met

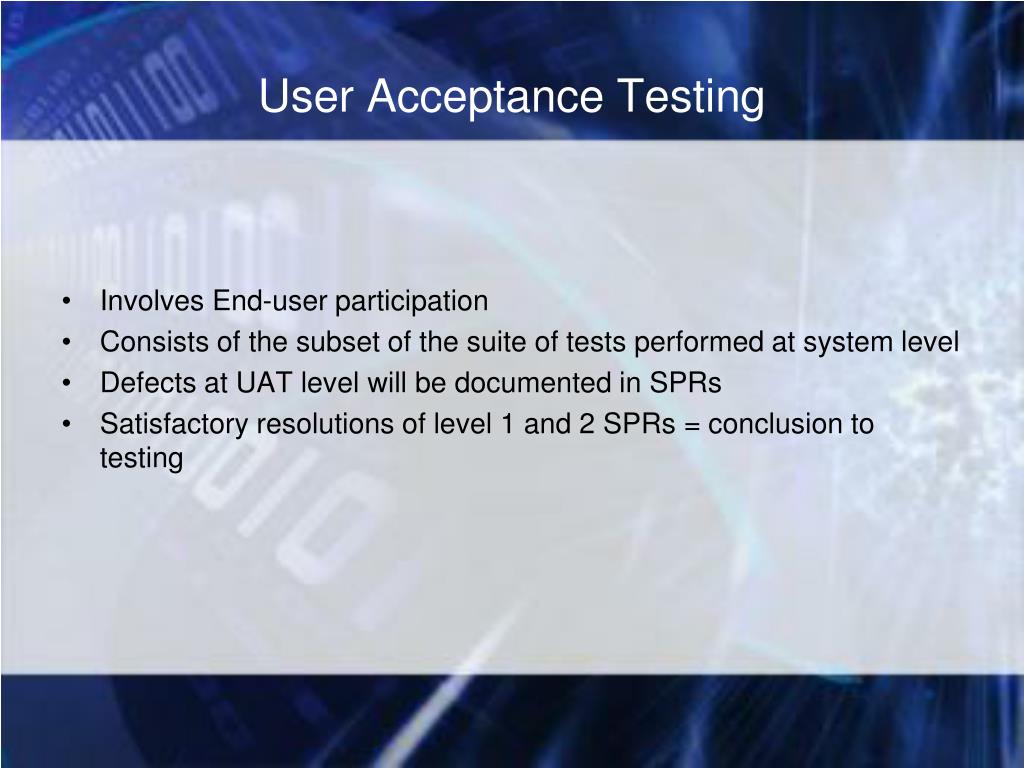

10. User Acceptance Testing • Involves End-user participation • Consists of the subset of the suite of tests performed at system level • Defects at UAT level will be documented in SPRs • Satisfactory resolutions of level 1 and 2 SPRs = conclusion to testing

11. Defect Tracking and New Build Process • Test team performs problem reporting operations in compliance with a defined process • SPR creation • E-mail Notification to configuration management(CM) and developers • New software is checked via CM tools • New software build issuance • Defect Priority • Fatal, high, medium, low • Engineering review Board (ERB) • Automated Defect Tracking Tool • Ensures reported defects receive proper attention • Central defect tracking repository • Has several basic characteristics • Automated Test Tools • Maintain test results/permit automatic generation of test results • Recommended that SPRs are generated per life-cycle stage

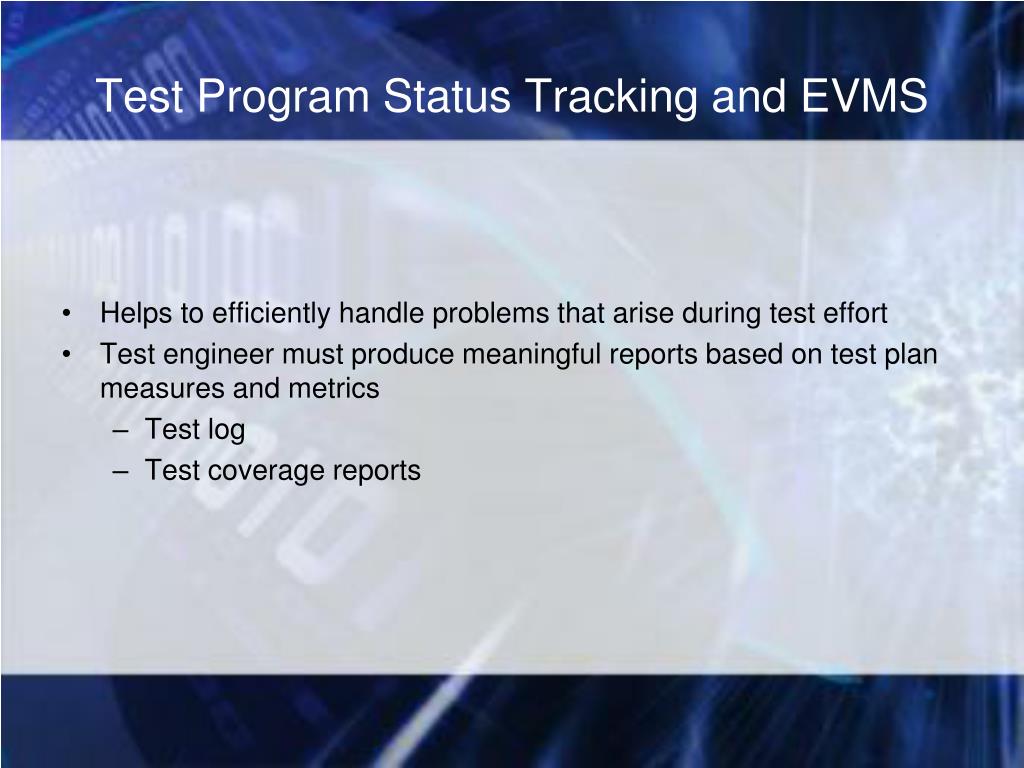

12. Test Program Status Tracking and EVMS • Helps to efficiently handle problems that arise during test effort • Test engineer must produce meaningful reports based on test plan measures and metrics • Test log • Test coverage reports

13. Test Program Status Tracking and EVMS Cont… • To effectively monitor testing progress and report to senior management, an earned value approach is used. • EVMS = one of the best ways to track progress • Tracks value of completed works and compares it to planned costs and actual • Provides true measure of schedule and cost status • Enables creation of effective corrective actions • 4 steps • Identify short tasks • Schedule each task • Assign a budget to each task • Measure progress of each task Earned value for work completed – planned budget = Schedule Variance Earned value for work completed – actual cost = Cost Variance

14. Test Metrics Collection and Analysis • Metrics = key indicators of test coverage progress and quality of test effort • Separated into white box and black box testing efforts • HOWEVER, gathering too many metrics can be time consuming

15. Test Metrics Collection and Analysis: White Box Testing • Targets application’s internal working • Measures the DEPTH of testing • Coverage Analysis • Code Analysis and Code Profiling e.g. Rational Quantify • Objective is to locate complex areas of source code • Fault Density (Fd) = Nd/KSLOC • Predicts the remaining number of faults • Design Complexity Metrics measures the number of ways a module can cal other modules

16. Test Metrics Collection and Analysis: Black Box Testing • Focus on the BREADTH of testing • Based on application’s external considerations • Each metric is assigned to one of three categories • Coverage • Progress • Quality

17. Test Metrics Collection and Analysis: Black Box Testing • Coverage • Test Coverage • System Coverage • Functional Coverage • Progress • Test Procedure Execution Status • Error Discovery Rate • Defect Aging • Defect Fix Rate • Defect Trend Analysis • Quality • Test Success Index • Defect Density • Test Effectiveness • Problem Report Acceptance Criteria Metric • Test Automation Metric

18. Test Execution Review • Stage 6 of ATLM • Review test performance e.g. metrics • Helps determine enhancements to be made • Document well performed activities • Lessons Learned should be acknowledged/documented • Aim to ensure best practices are used • Integrate a continual iterative learning process • Encouraged as improvement opportunities • “check pulse” • Documentation should be easily accessible to all team members • Corrective actions suggested must be evaluated • Represents he need for process improvement

19. Questions?
