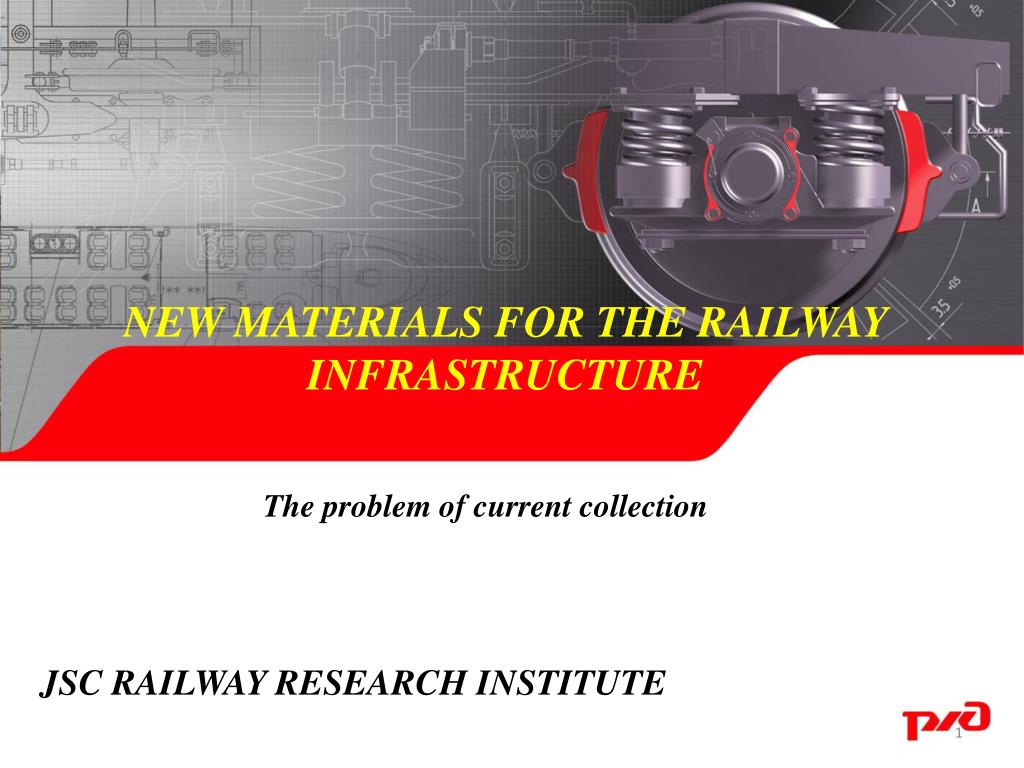

  1. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTURE The problem of current collection JSC RAILWAY RESEARCH INSTITUTE

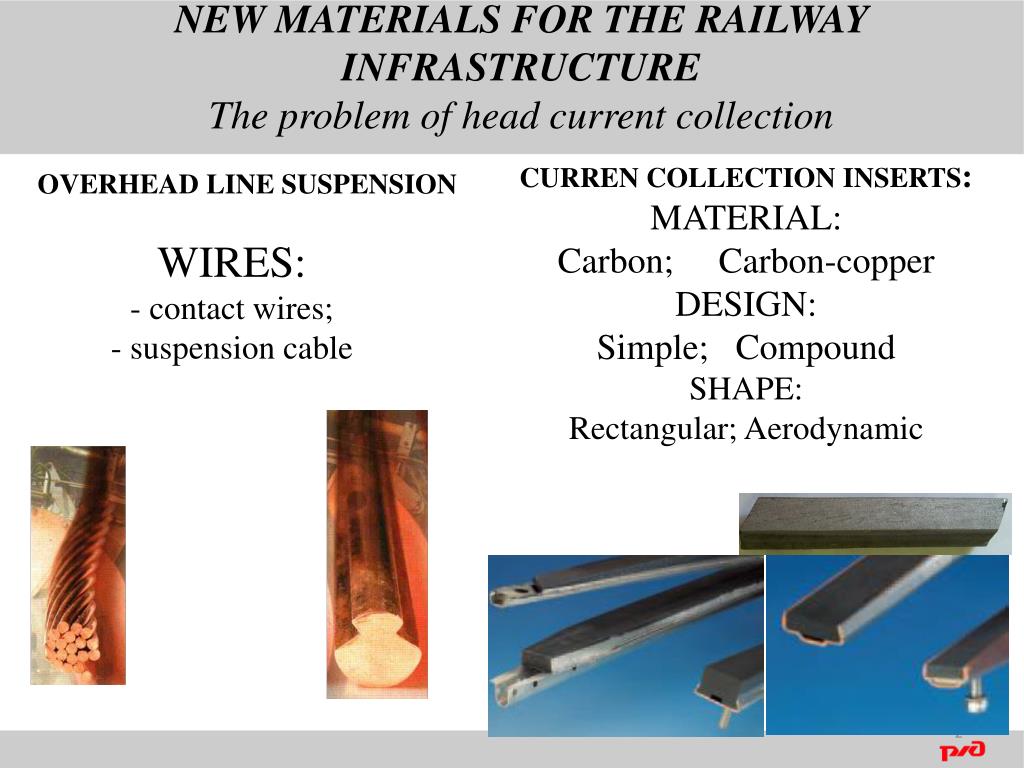

  2. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection • WIRES: • contact wires; • suspension cable CURREN COLLECTION INSERTS: MATERIAL: Carbon; Carbon-copper DESIGN: Simple; Compound SHAPE: Rectangular; Aerodynamic OVERHEADLINE SUSPENSION

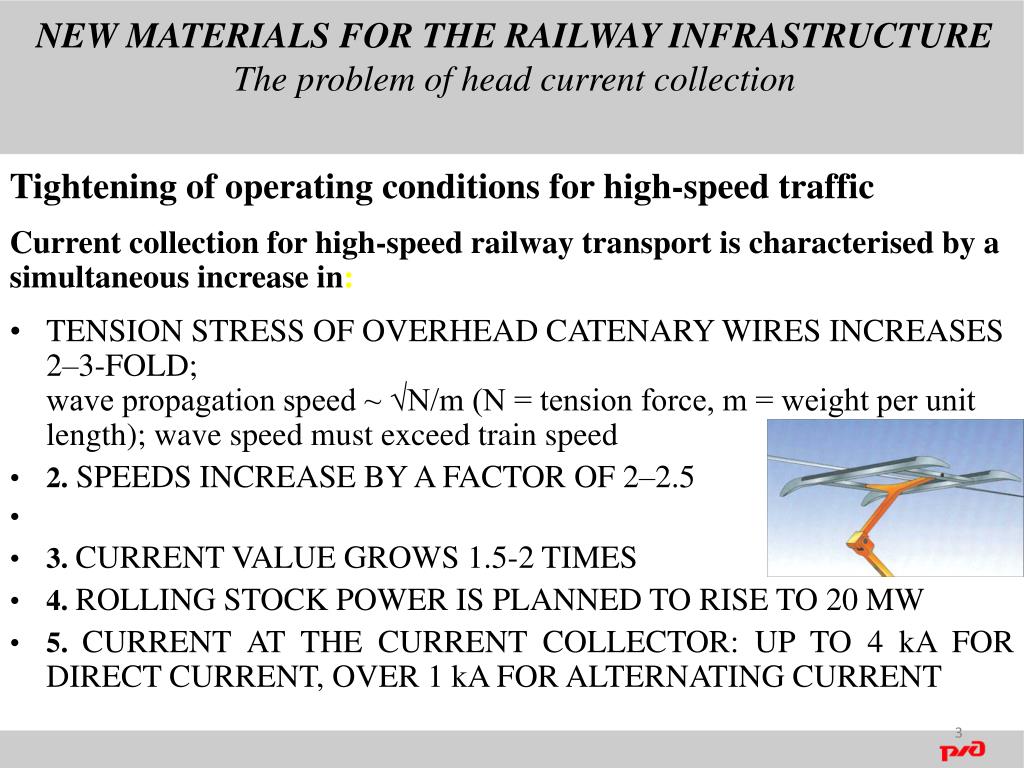

  3. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection Tightening of operating conditions for high-speed traffic Current collection for high-speed railway transport is characterised by a simultaneous increase in: • TENSION STRESS OF OVERHEAD CATENARY WIRES INCREASES 2–3-FOLD;wave propagation speed ~ √N/m (N = tension force, m = weight per unit length); wave speed must exceed train speed • 2. SPEEDS INCREASE BY A FACTOR OF 2–2.5 • 3. CURRENT VALUE GROWS 1.5-2 TIMES • 4. ROLLING STOCK POWER IS PLANNED TO RISE TO 20 MW • 5. CURRENT AT THE CURRENT COLLECTOR: UP TO 4 kA FOR DIRECT CURRENT, OVER 1 kA FOR ALTERNATING CURRENT

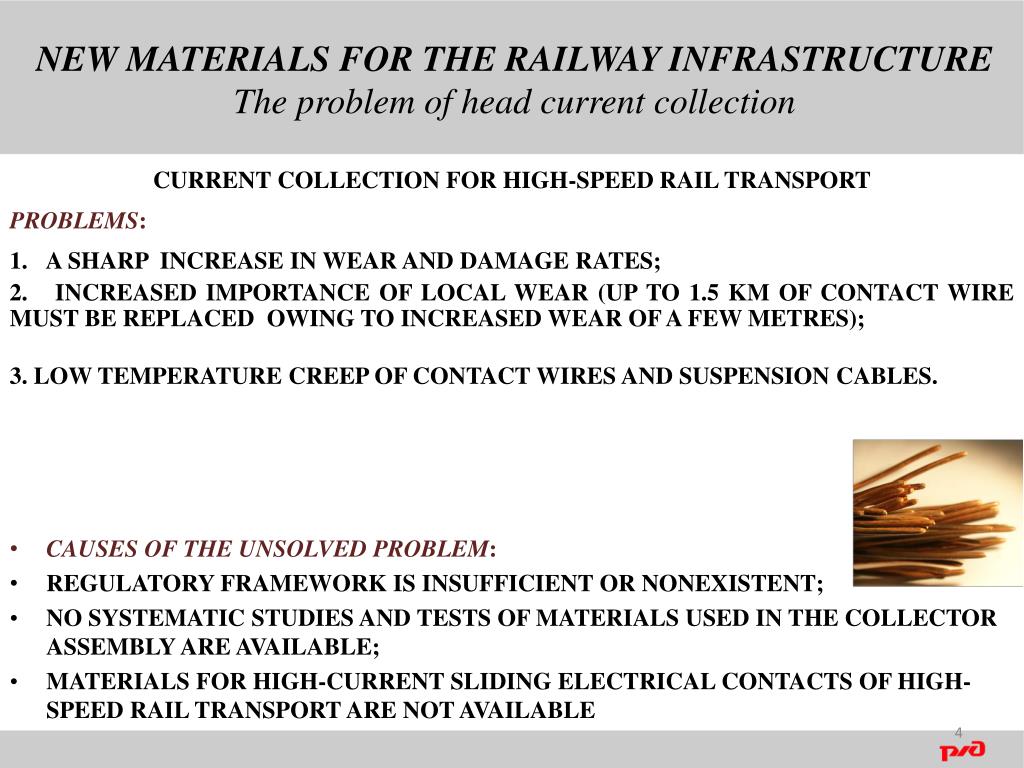

  4. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection CURRENT COLLECTION FOR HIGH-SPEED RAIL TRANSPORT PROBLEMS: • A SHARP INCREASE IN WEAR AND DAMAGE RATES; 2.   INCREASED IMPORTANCE OF LOCAL WEAR (UP TO 1.5 KM OF CONTACT WIRE MUST BE REPLACED OWING TO INCREASED WEAR OF A FEW METRES); 3.LOW TEMPERATURE CREEP OF CONTACT WIRES AND SUSPENSION CABLES. • CAUSES OF THE UNSOLVED PROBLEM: • REGULATORY FRAMEWORK IS INSUFFICIENT OR NONEXISTENT; • NO SYSTEMATIC STUDIES AND TESTS OF MATERIALS USED IN THE COLLECTOR ASSEMBLY ARE AVAILABLE; • MATERIALS FOR HIGH-CURRENT SLIDING ELECTRICAL CONTACTS OF HIGH-SPEED RAIL TRANSPORT ARE NOT AVAILABLE

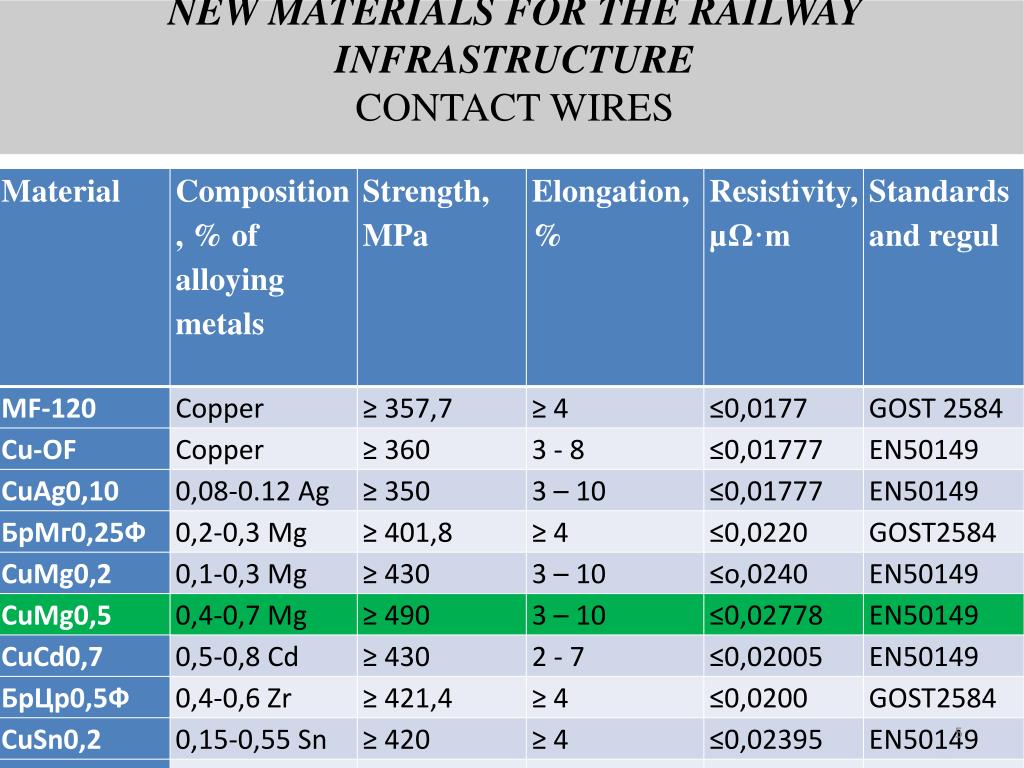

  5. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTURECONTACT WIRES

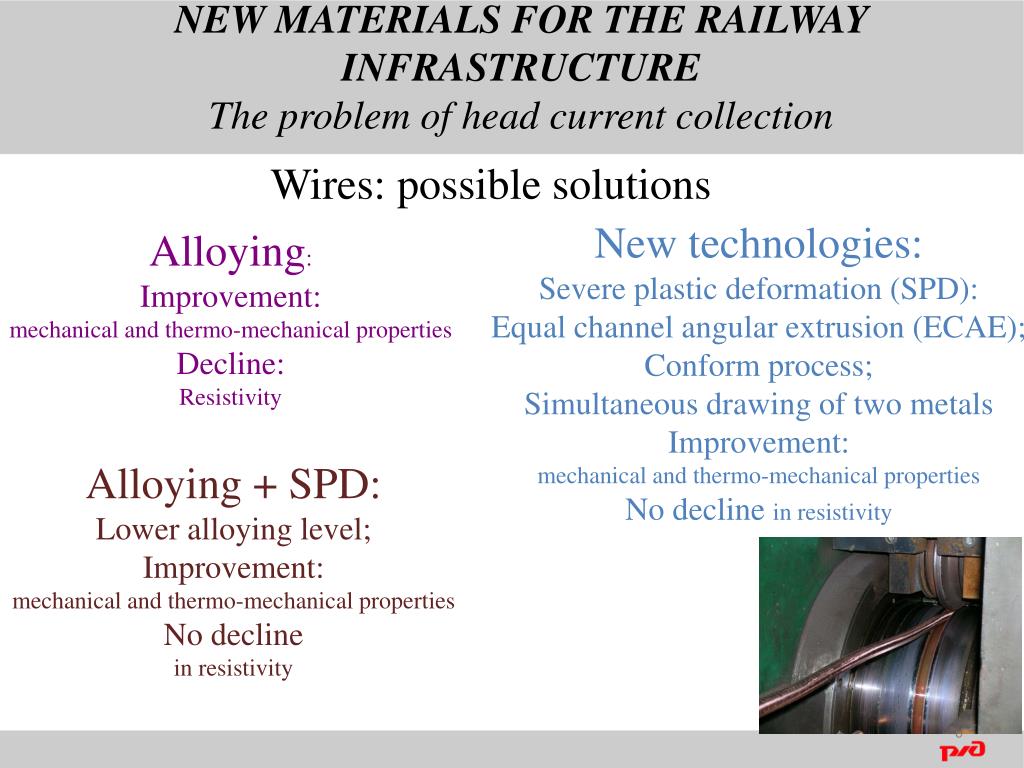

  6. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection Wires: possible solutions New technologies: Severe plastic deformation (SPD): Equal channel angular extrusion (ECAE); Conform process; Simultaneous drawing of two metals Improvement: mechanical and thermo-mechanical properties No decline in resistivity Alloying: Improvement: mechanical and thermo-mechanical properties Decline: Resistivity Alloying + SPD: Lower alloying level; Improvement: mechanical and thermo-mechanical properties No decline in resistivity

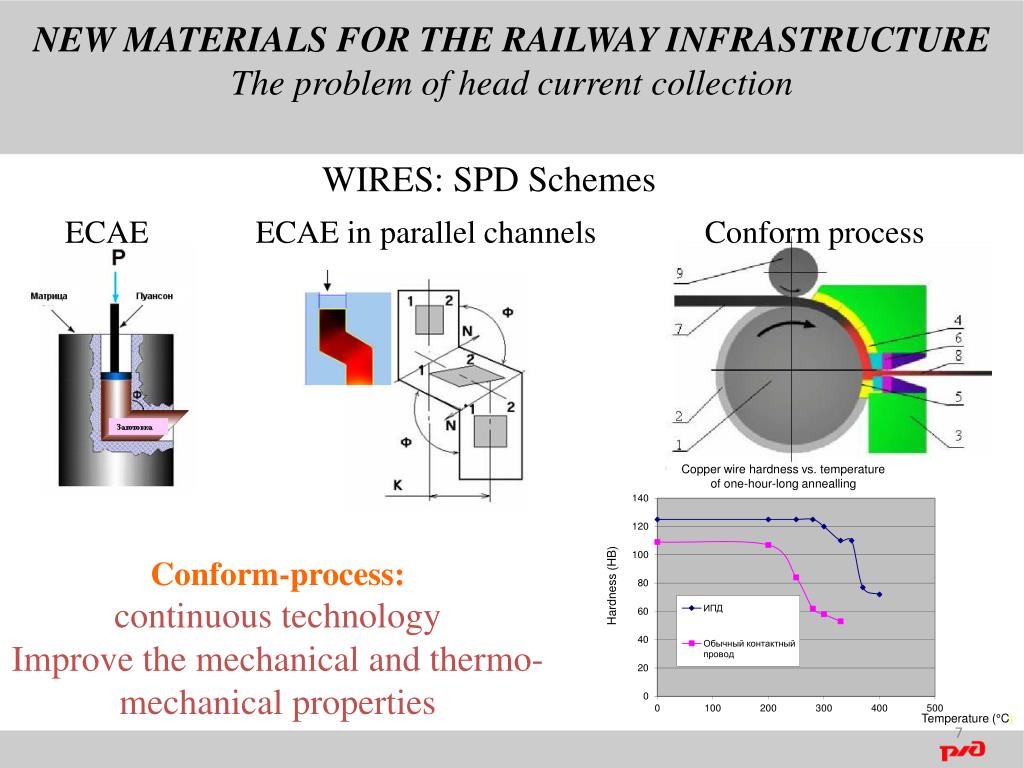

  7. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection WIRES: SPD Schemes ECAE in parallel channels ECAE Conform process Conform-process: continuous technology Improve the mechanical and thermo-mechanical properties

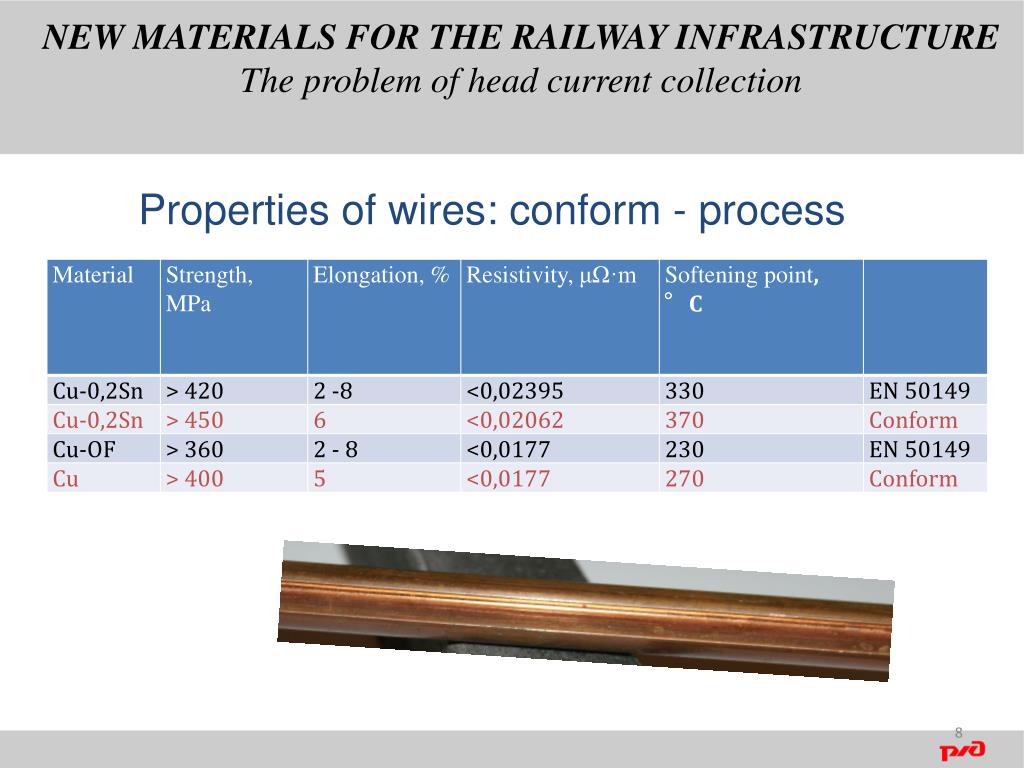

  8. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection Properties of wires: conform - process

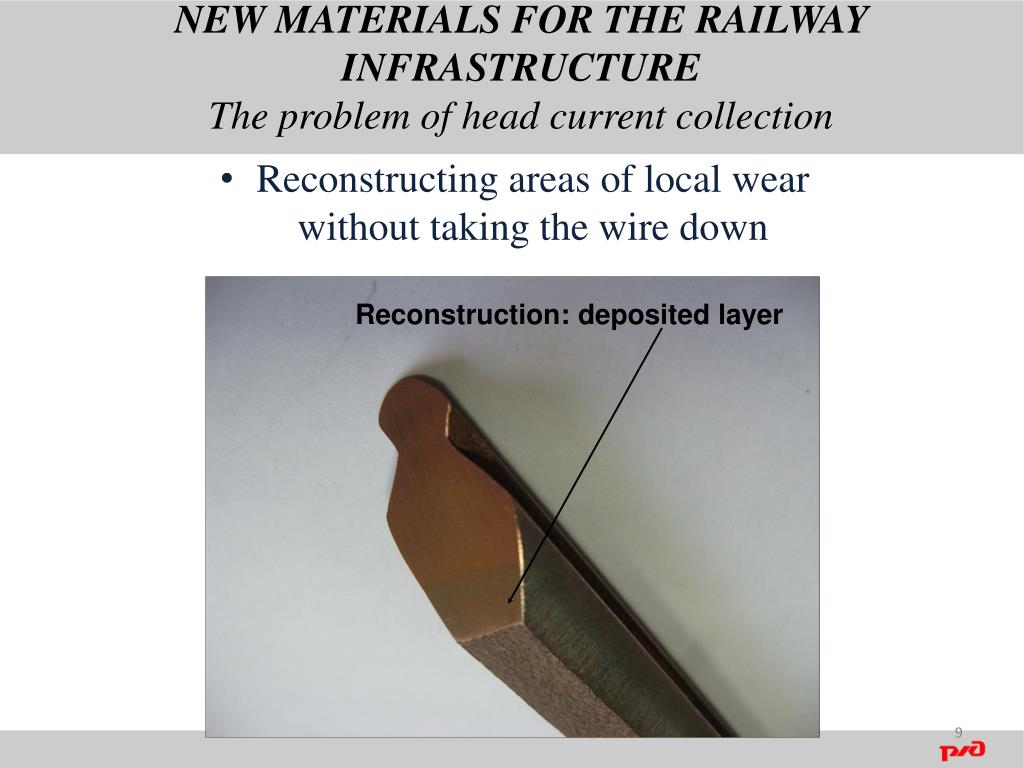

  9. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection • Reconstructing areas of local wearwithout taking the wire down Reconstruction: deposited layer

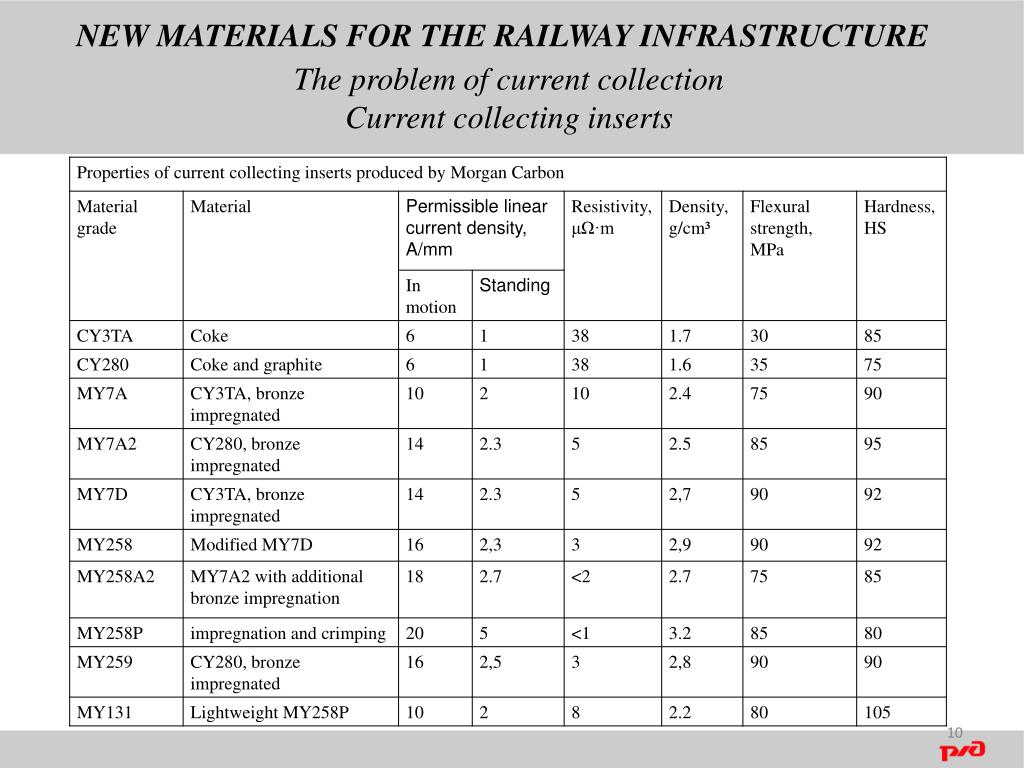

  10. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTURE The problem of current collection Current collecting inserts

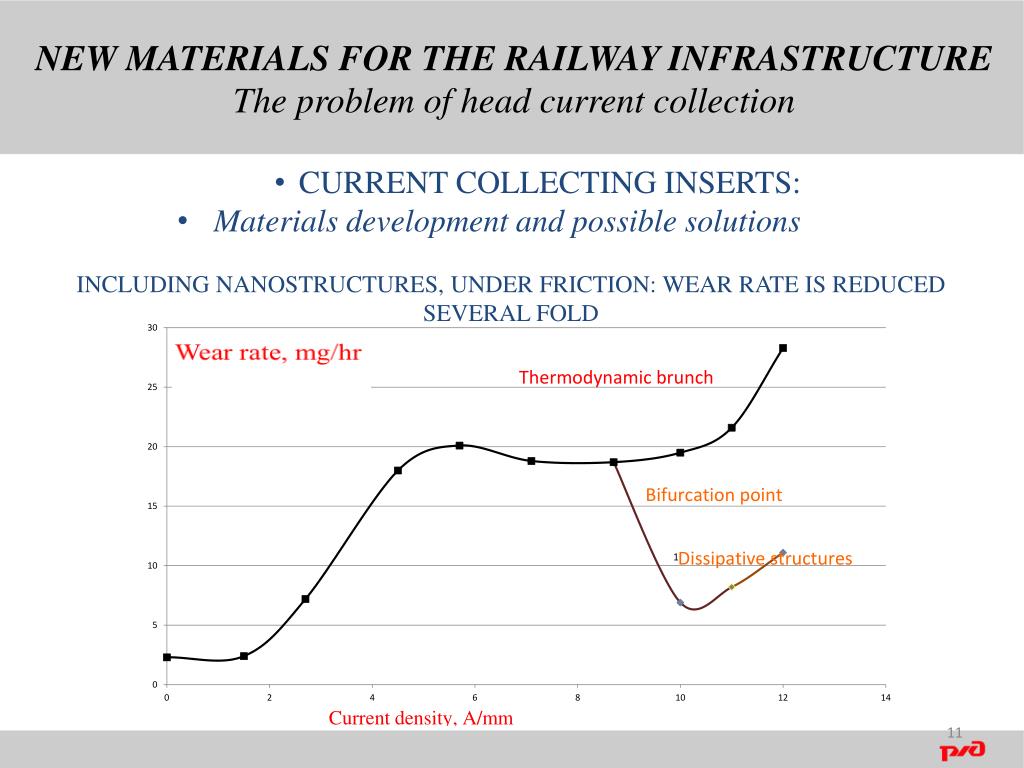

  11. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection • CURRENT COLLECTING INSERTS: • Materials development and possible solutions СНИЖЕНИUSING SELF-ASSEMBLY BEHAVIOUR OF SURFACE STRUCTURES, INCLUDING NANOSTRUCTURES, UNDER FRICTION: WEAR RATE IS REDUCED SEVERAL FOLD

  12. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collectionCURRENT COLLECTING INSERTS Aerodynamic shape of current collection inserts. Wear resistance increase (30-70 %) Catalyst application Wear resistance increase Without catalyst With catalyst 3% With catalyst 6% With catalyst 9% Current, A JSC “VNIIZhT”

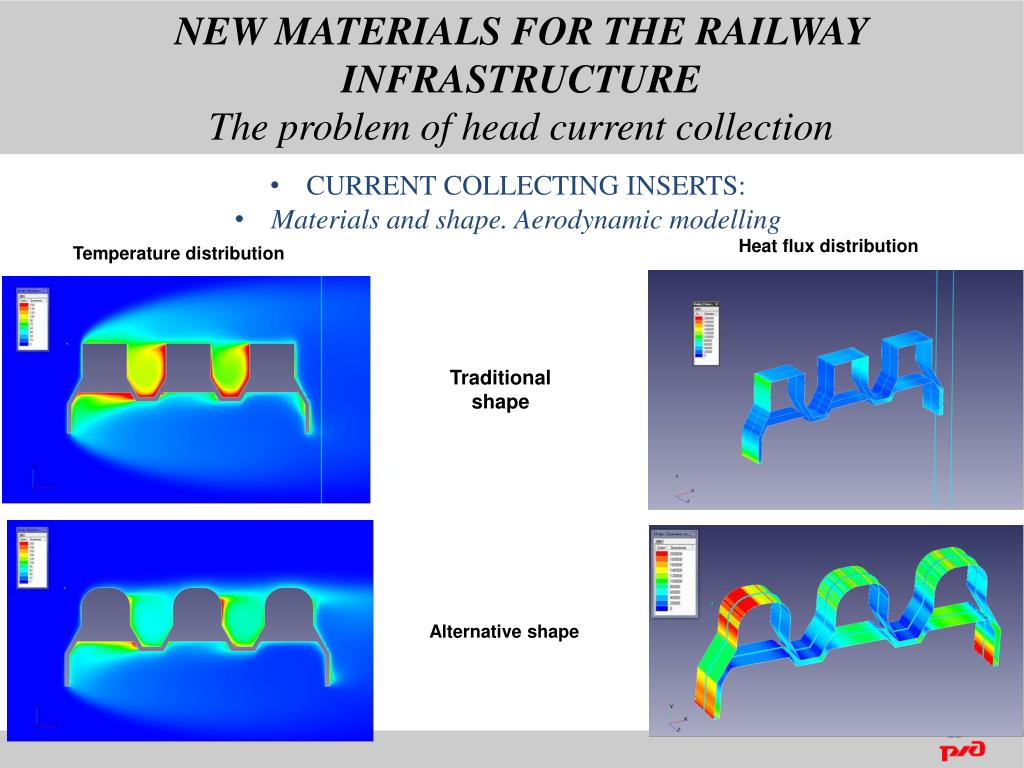

  13. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection • CURRENT COLLECTING INSERTS: • Materials and shape. Aerodynamic modelling Heat flux distribution Temperature distribution Traditional shape Alternative shape

  14. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection • Research programme Studies to investigate wear rate dependence on current density, slidingspeed and contact force for various current collecting inserts and contact wires; 2. Studies of wear surfaces 3. Studies and tests of copper-based wires manufactured using different technologies to investigate low-temperature creep and determine their electrical, mechanical and thermal characteristics; 4. Developing a technology for reconstructing areas of local contact wire wear without taking the wires down; 5. Developing standards: – for contact wires; – for current collecting inserts; – for fixtures

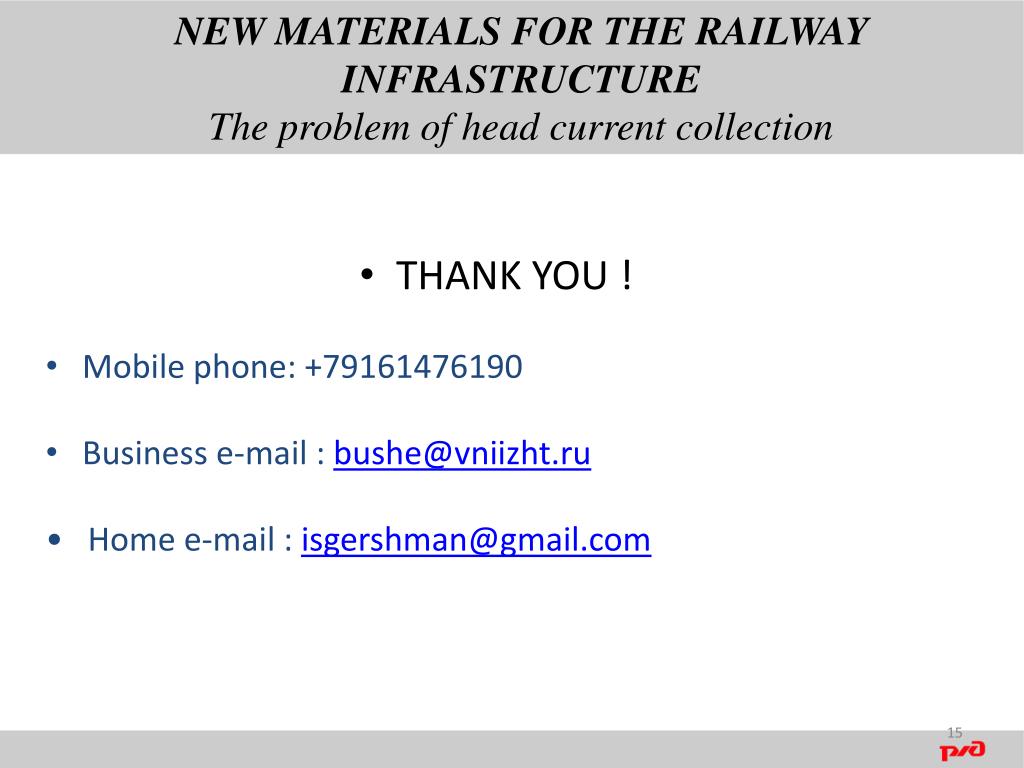

  15. NEW MATERIALS FOR THE RAILWAY INFRASTRUCTUREThe problem of head current collection • THANK YOU ! • Mobile phone: +79161476190 • Business e-mail : bushe@vniizht.ru • Home e-mail : isgershman@gmail.com
