  1. Stochastic sleep scheduling (SSS) for large scale wireless sensor networks Yaxiong Zhao Jie Wu Computer and Information Sciences Temple University

  2. Outline • Motivation • Basic scheduling model • Analysis of delay in networks of regular topology • Greedy routing algorithm • Chain and grid • SSS-based MAC protocol • Adaptive listening • Conclusion and future work

  3. Outline • Motivation • Basic scheduling model • Analysis of delay in networks of regular topology • Greedy routing algorithm • Chain and grid • SSS-based MAC protocol • Adaptive listening • Conclusion and future work

  4. Fixed sleep scheduling • A fixed scheduling is shown in the figure • The interval between “on” periods is fixed • The length of “on” periods is fixed • The ratio of “on” to “off” periods is tunable • Determines the energy efficiency of the scheduling • Lower ratio => larger delay and lower energy consumption

  5. Stochastic sleep scheduling (SSS) • The interval between “on” periods is random • The length of “on” periods is random • The ratio of “on” to “off” periods is tunable • Minimal coordination between sensors • Good for large scale networks

  6. Outline • Motivation • Basic scheduling model • Analysis of delay in networks of regular topology • Greedy routing algorithm • Chain and grid • SSS-based MAC protocol • Adaptive listening • Conclusion and future work

  7. SSS scheduling model • The ratio of “on” to “off” periods is given “r” • Two random variables “ON” and “OFF” with expectations “Ton” and “Toff” • The ratio of Ton/Toff = r • Long term energy efficiency is guaranteed • The “on” period is drawn from ON and OFF

  8. The delay introduced by SSS • Due to the randomness • There always be a delay • Between two successive sensors • In this paper • We try to characterize the end-to-end delay between sensors • Guide the design and choice of the parameters

  9. Outline • Motivation • Basic scheduling model • Analysis of delay in networks of regular topology • Greedy routing algorithm • Chain and grid • SSS-based MAC protocol • Adaptive listening • Conclusion and future work

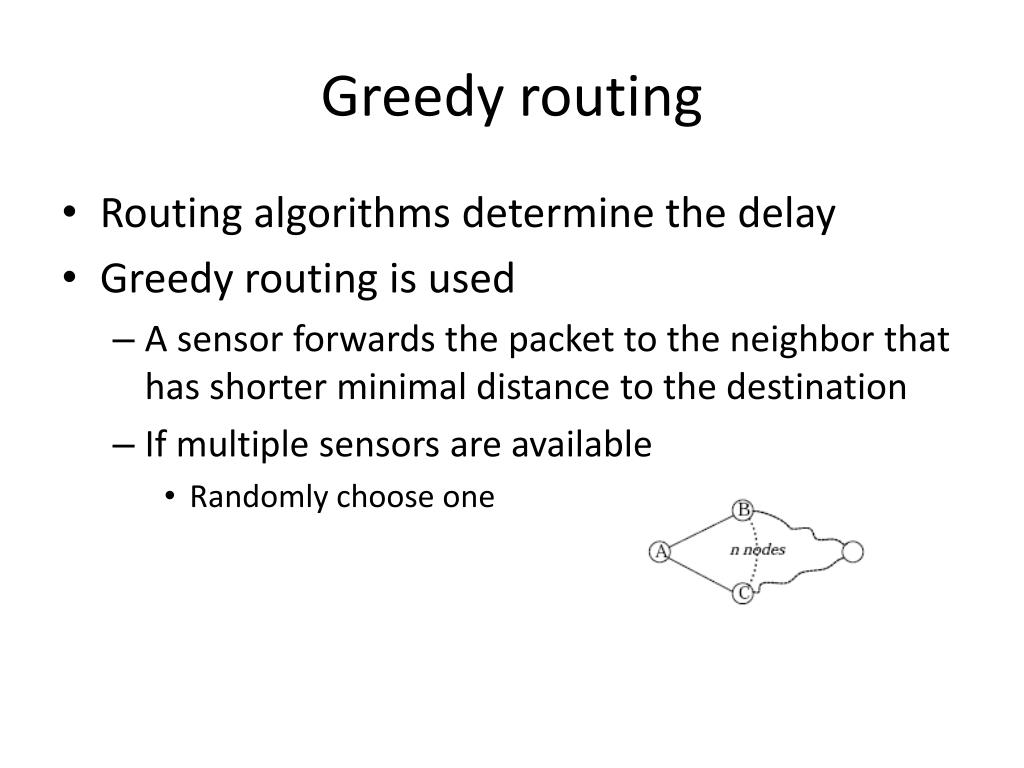

  10. Greedy routing • Routing algorithms determine the delay • Greedy routing is used • A sensor forwards the packet to the neighbor that has shorter minimal distance to the destination • If multiple sensors are available • Randomly choose one

  11. Outline • Motivation • Basic scheduling model • Analysis of delay in networks of regular topology • Greedy routing algorithm • Chain and grid • SSS-based MAC protocol • Adaptive listening • Conclusion and future work

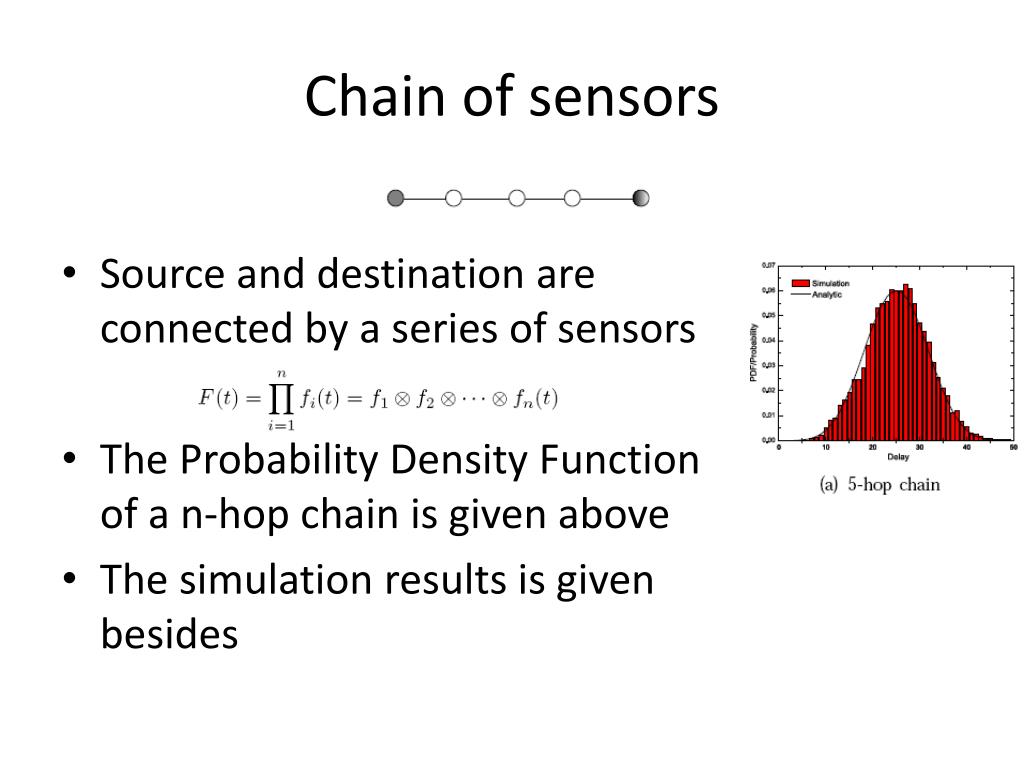

  12. Chain of sensors • Source and destination are connected by a series of sensors • The Probability Density Function of a n-hop chain is given above • The simulation results is given besides

  13. Grid networks • The distribution of end-to-end delay is more complicated in Grid networks • Three parts • Regular part • Expanding part • Contracting part • They have different distribution of forwarding sensors

  14. Grid networks (cont’d) • Transition matrix between different levels in different parts • A sample matrix for expanding part is given • We can multiply multiple matrices to obtain the distribution Sample transition matrix

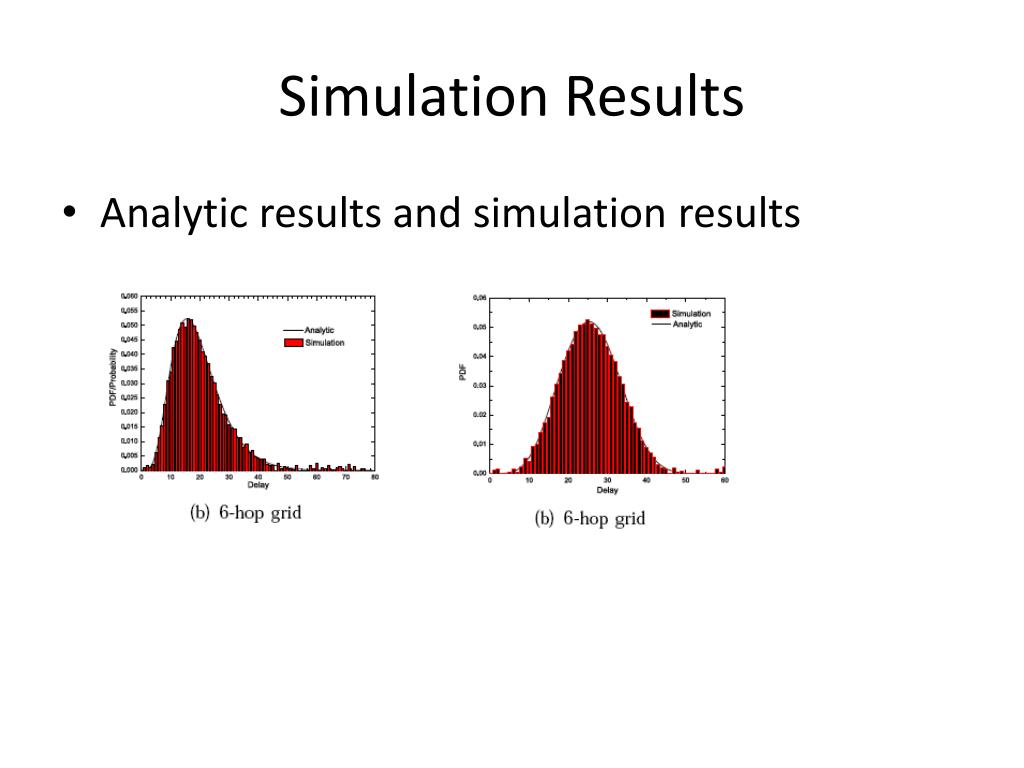

  15. Simulation Results • Analytic results and simulation results

  16. Outline • Motivation • Basic scheduling model • Analysis of delay in networks of regular topology • Greedy routing algorithm • Chain and grid • SSS-based MAC protocol • Adaptive listening • Conclusion and future work

  17. Adaptive listening • Instead of continuously listen the channel • Listen the channel periodically with short cycle • We need to determine the cycle length so that the probability of detecting the availability of channel is guaranteed • The interval between listening should be less than the “on” period of the intended neighbor • Its probability should be larger than a certain threshold

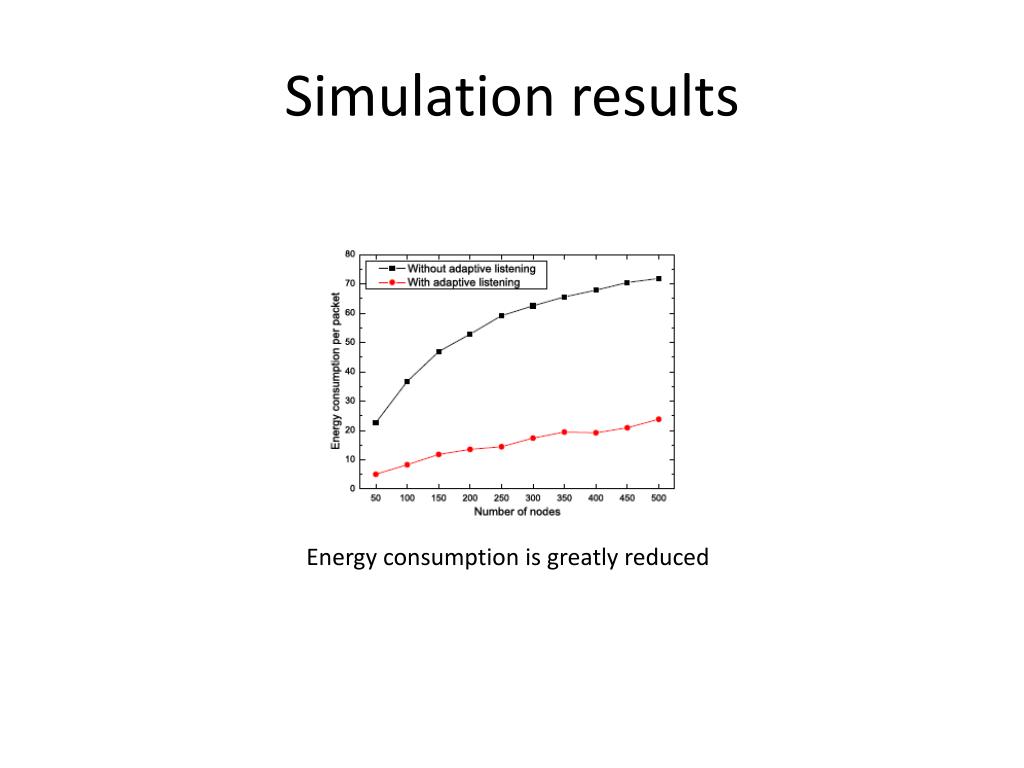

  18. Simulation results Energy consumption is greatly reduced

  19. Outline • Motivation • Basic scheduling model • Analysis of delay in networks of regular topology • Greedy routing algorithm • Chain and grid • SSS-based MAC protocol • Adaptive listening • Conclusion and future work

  20. Concluding remarks • SSS can be made controllable • End-to-end delay in networks using SSS is acceptable • Minimal control overhead • A practical MAC protocol based on SSS is presented • Monitoring overhead is reduced using adaptive listening

  21. Future work • In SSS, sensors are completely agnostic of each other • Introducing a certain amount of coordination can improve the performance • More extensive theoretical analysis is needed • For networks with random topologies • Take into consideration traffic pattern, routing algorithms, and mobility

  22. Q&A Thanks for listening
